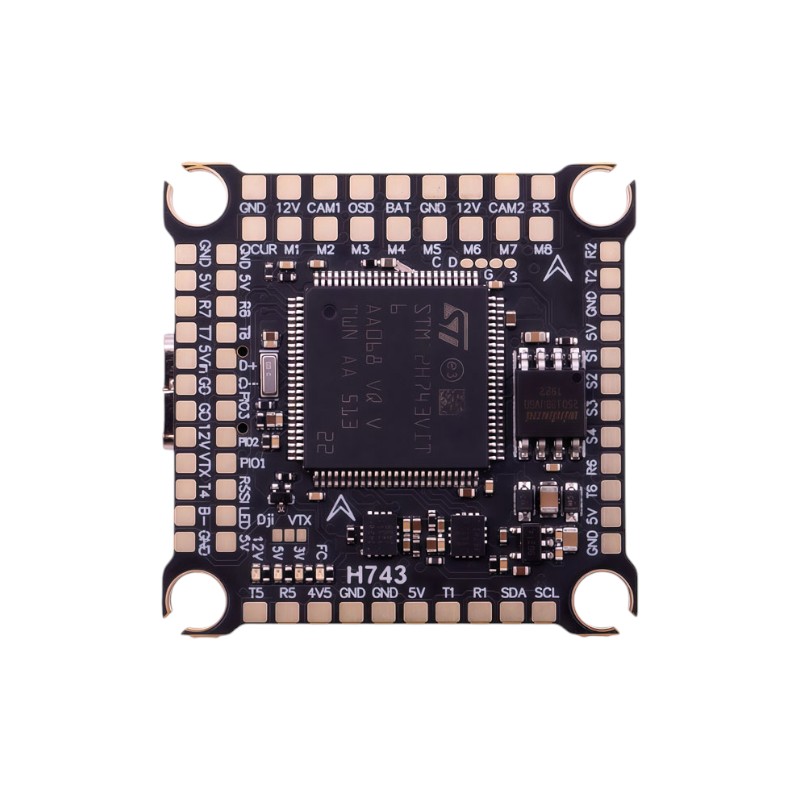

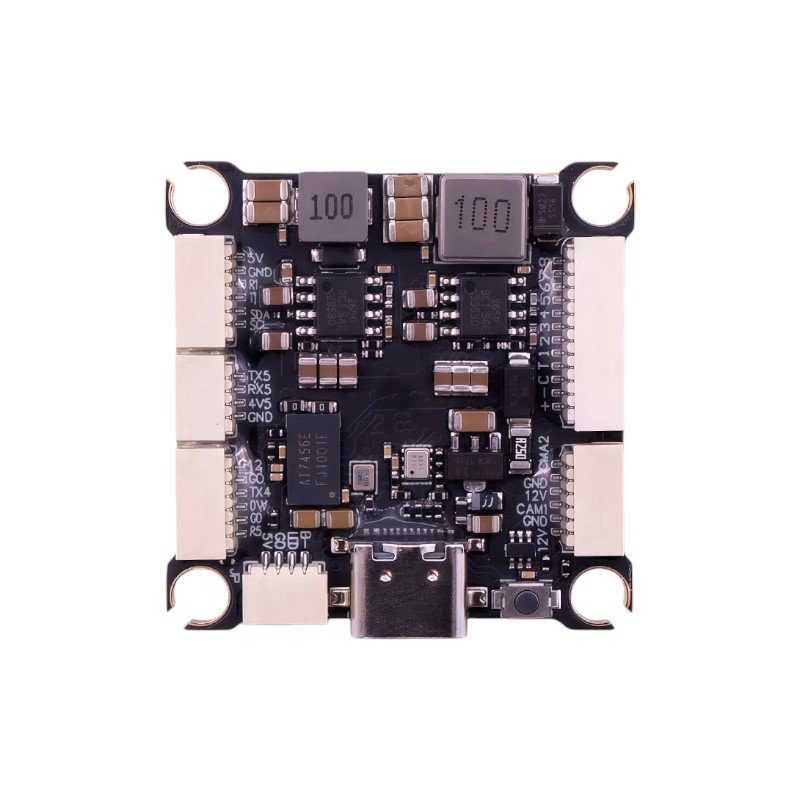

HPXGRC H743 Flight Controller

Specifications:

Product Name:  HPXGRC H743 30 x 30 Flight Controller

Main Controller: STM32H743

Gyroscope: ICM42688P

USB Interface Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E

Bluetooth BLE: None

WIFI: Not Supported

DJI Air Unit Connection Method: Supports two ways - direct insertion into a 6-pin socket or soldering connection.

6-pin DJI Sky End Direct Socket Sub: Supported. Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any wire sequence.

FLASH (Black Box): 16MB Flash Memory

Current Meter: Supported

Input Voltage: 3-12S Lithium Battery

UART Serial Ports: 8 Groups

Buzzer Pad: Supported. BZ+ and BZ- pads can be connected to 5V active buzzer

BOOT Button: Supported. [A]. Press the BOOT button and supply power to the flight controller simultaneously to force it into DFU mode, which is used for firmware flashing when the flight controller has a problem.

RSSI Pad: Supported. Located at the top of the front RS pad

SmartPort/F.Port: Not Supported

Supported Flight Controller Firmware Types: BetaFlight (default factory firmware), Ardupilot

Firmware Target Name: DAKEFPVH743

Installation Hole Position: 30.5 x 30.5mm (4mm hole diameter)

Size: 36 x 36 x 8 mm

Weight: 8g
