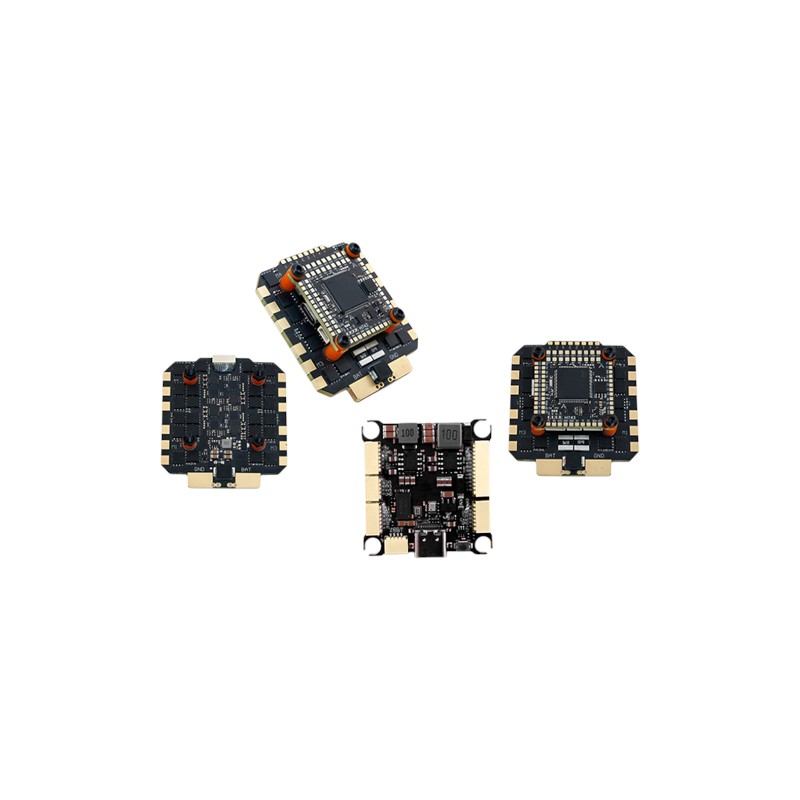

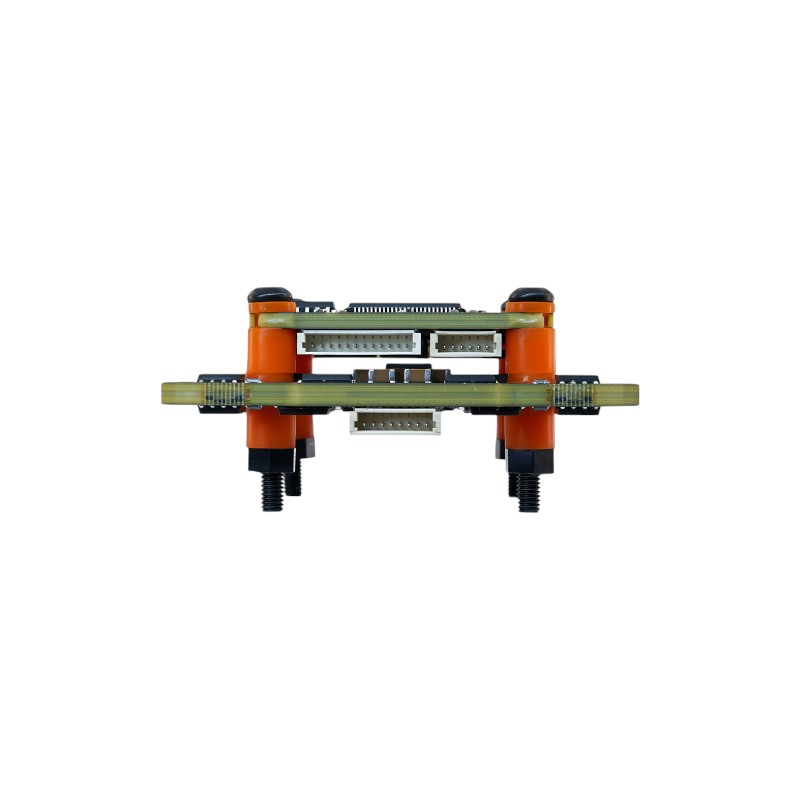

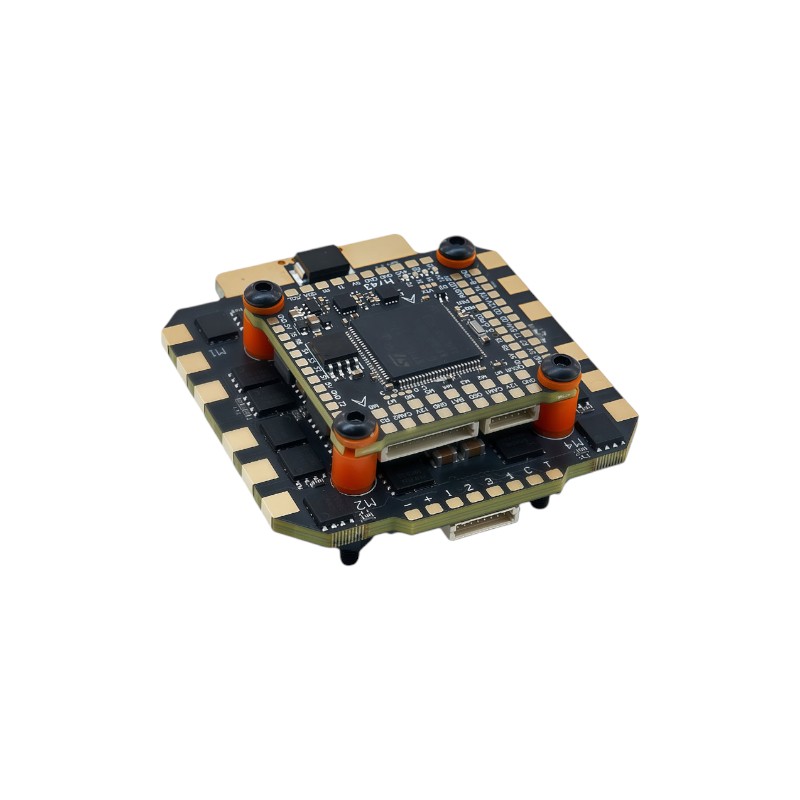

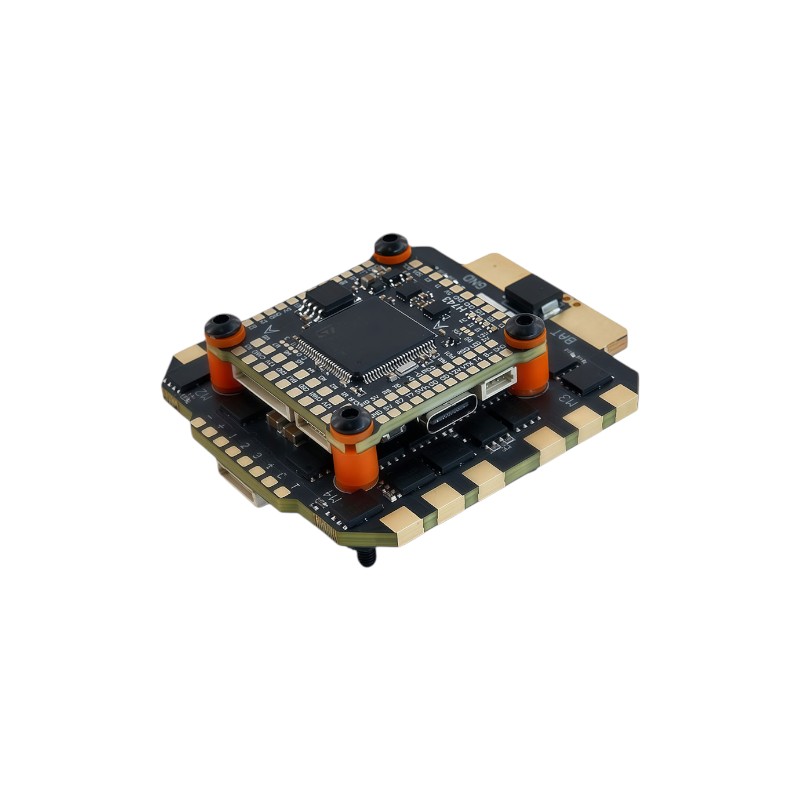

HPXGRC H743 BL32 80A 100A Stack

Specifications:

Product Name:  HPXGRC H743 30 x 30 Flight Controller

Main Controller: STM32H743

Gyroscope: ICM42688P

USB Interface Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E

Bluetooth BLE: None

WIFI: Not Supported

DJI Air Unit Connection Method: Supports two ways - direct insertion into a 6-pin socket or soldering connection.

6-pin DJI Sky End Direct Socket Sub: Supported. Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any wire sequence.

FLASH (Black Box): 16MB Flash Memory

Current Meter: Supported

Input Voltage: 3-12S Lithium Battery

UART Serial Ports: 8 Groups

Buzzer Pad: Supported. BZ+ and BZ- pads can be connected to 5V active buzzer

BOOT Button: Supported. [A]. Press the BOOT button and supply power to the flight controller simultaneously to force it into DFU mode, which is used for firmware flashing when the flight controller has a problem.

RSSI Pad: Supported. Located at the top of the front RS pad

SmartPort/F.Port: Not Supported

Supported Flight Controller Firmware Types: BetaFlight (default factory firmware), Ardupilot

Firmware Target Name: DAKEFPVH743

Installation Hole Position: 30.5 x 30.5mm (4mm hole diameter)

Size: 36 x 36 x 8 mm

Weight: 8g

HPXGRC BLHeli-32 8S 80A ESC

ESC firmware：BLHeli-32

Firmware Version：BLHeli-32.9

MCU：STM32G071G8U6N

MOS Transistor : ON5C430NL

Continuous Maximum Current : 80A X4

Peak Current : 85A X4-10S

TVS : Have

Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor x1

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot

Battery Input : 3-8S

Ammeter : Support / Ammeter ratio 120

Power Output : VBAT

Dimensions : 56mm*59mm*7mm

Mounting Hole Position : 30.5mmx*30.5/M4

Weight : 30g

Operating Temperature : 20℃~+85C

Storage Temperature : 20°CC~+70°CC

Working Humidify : 20~95%

HPXGRC BLHeli-32 8S 100A ESC

ESC firmware：BLHeli-32

Firmware Version：BLHeli-32.9

MCU：STM32G071G8U6N

MOS Transistor : ON5C430NL

Continuous Maximum Current : 100A X4

Peak Current : 105A X4-10S

TVS : Have

Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor x1

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot

Battery Input : 3-8S

Ammeter : Support / Ammeter ratio 120

Power Output : VBAT

Dimensions : 56mm*59mm*7mm

Mounting Hole Position : 30.5mmx*30.5/M4

Weight : 30g

Operating Temperature : 20℃~+85C

Storage Temperature : 20°CC~+70°CC

Working Humidify : 20~95%
