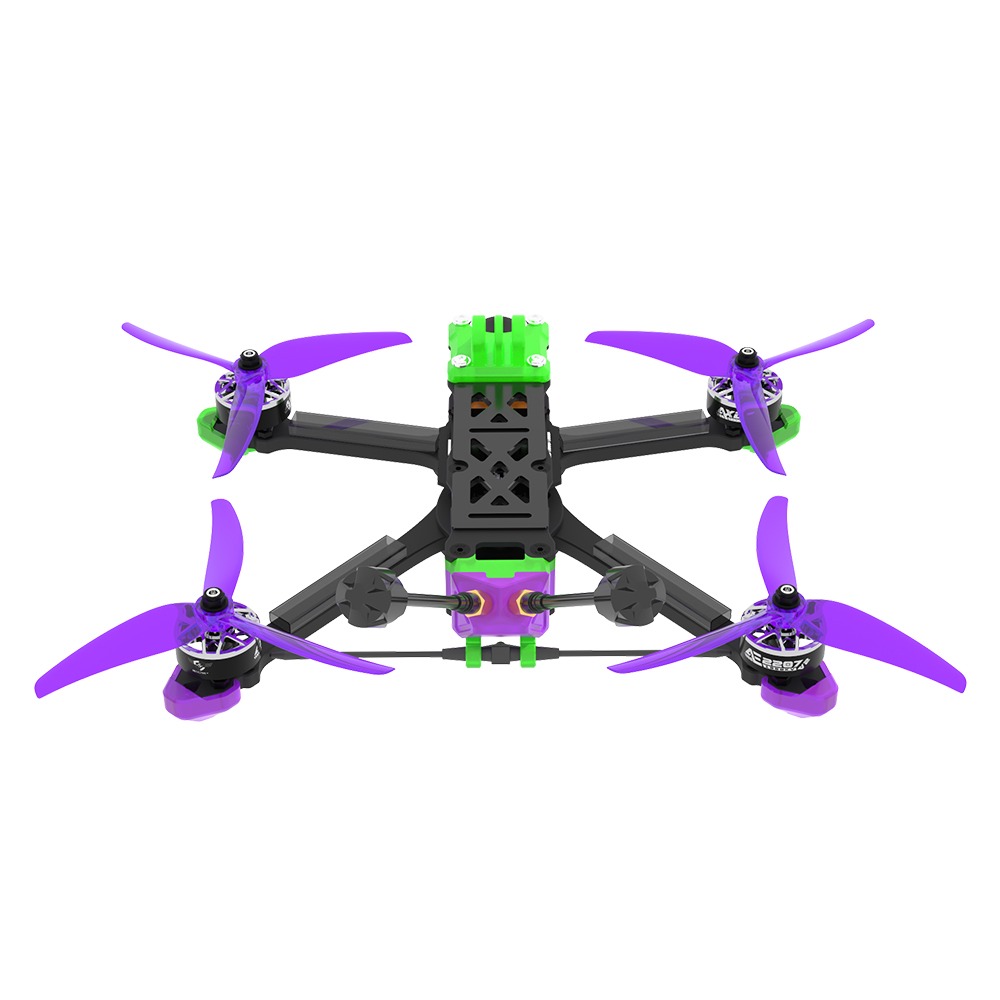

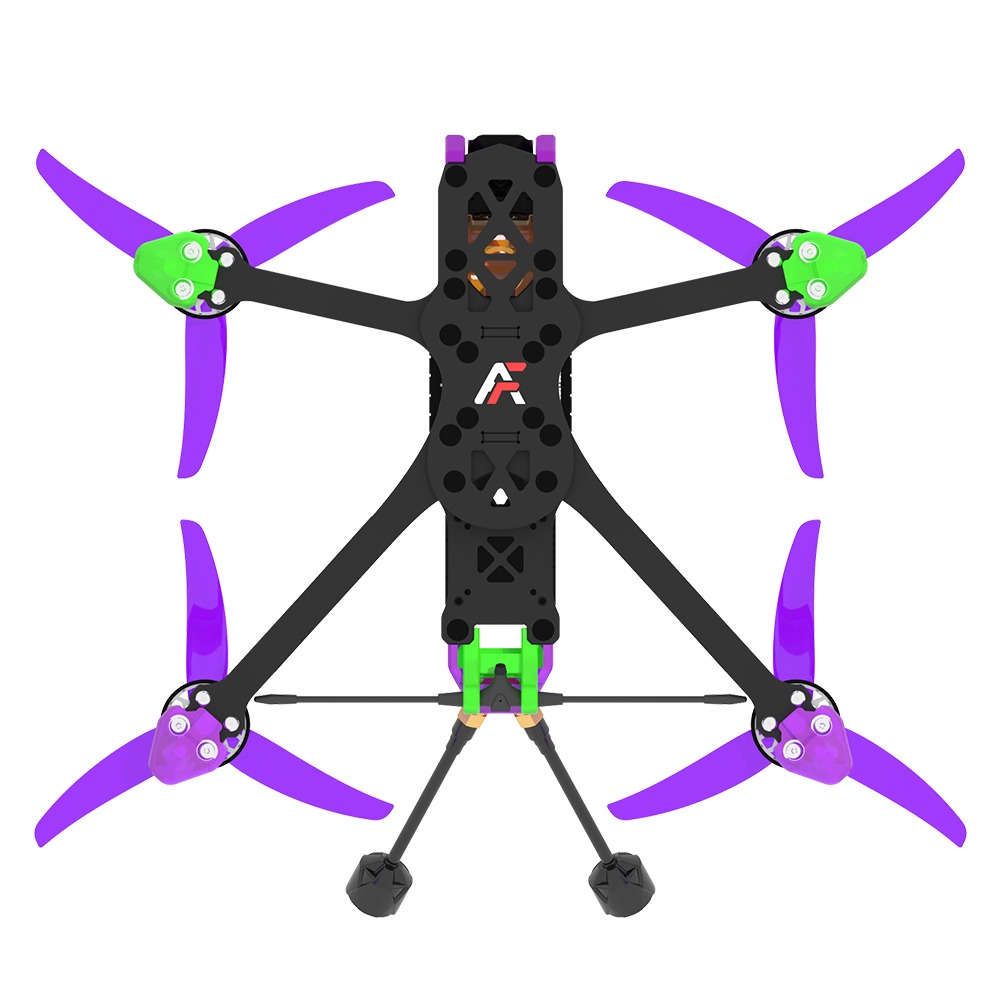

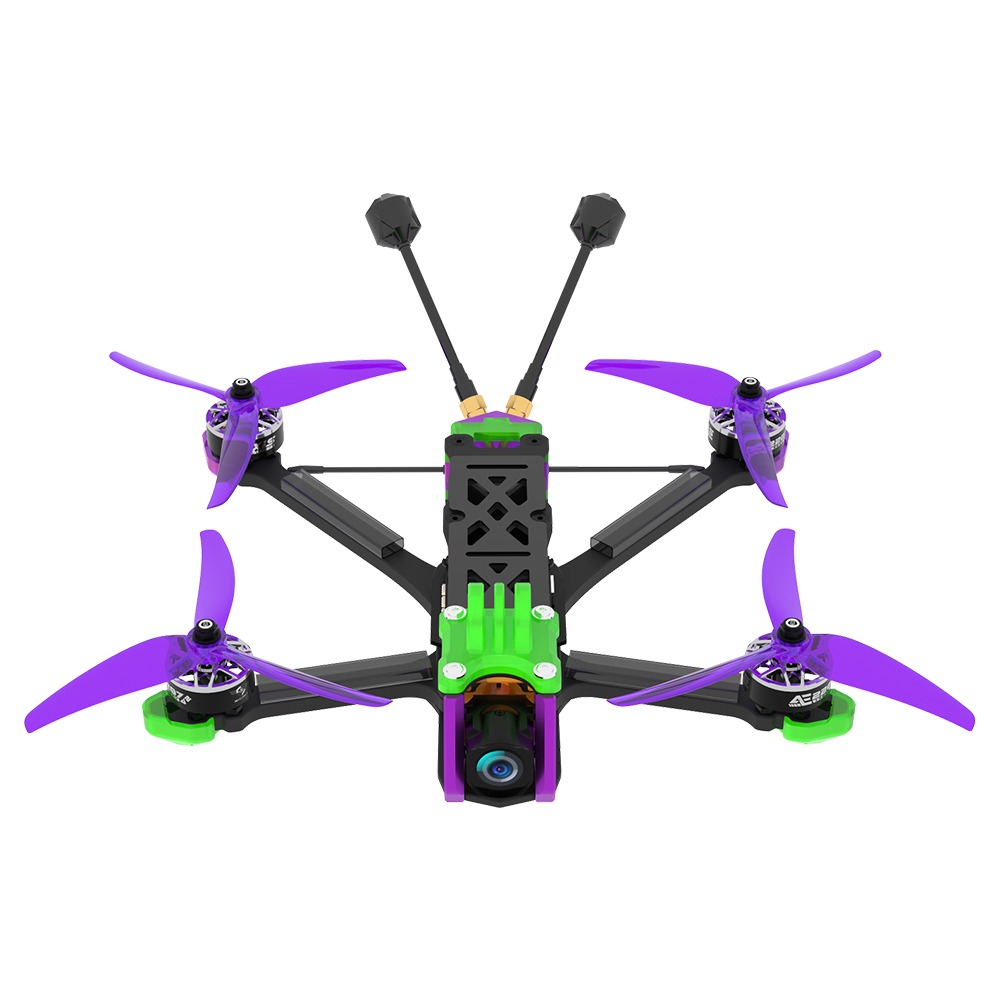

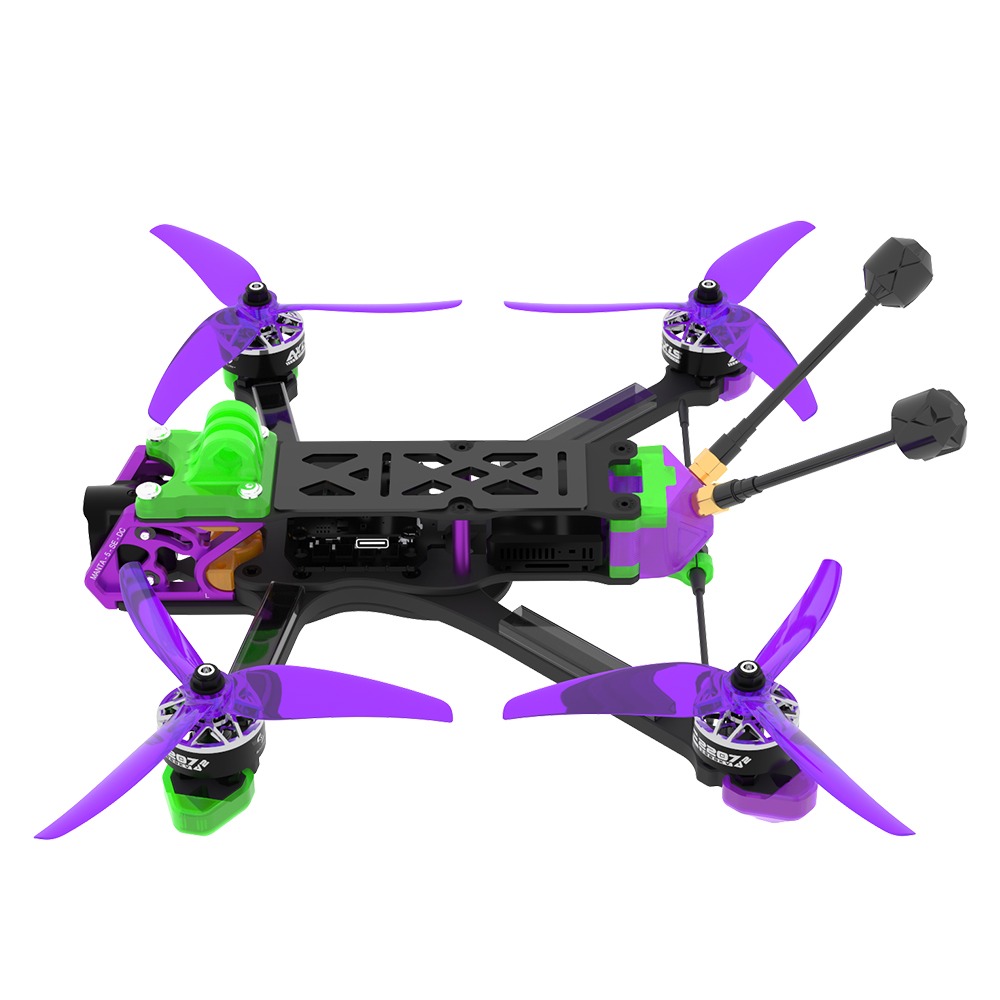

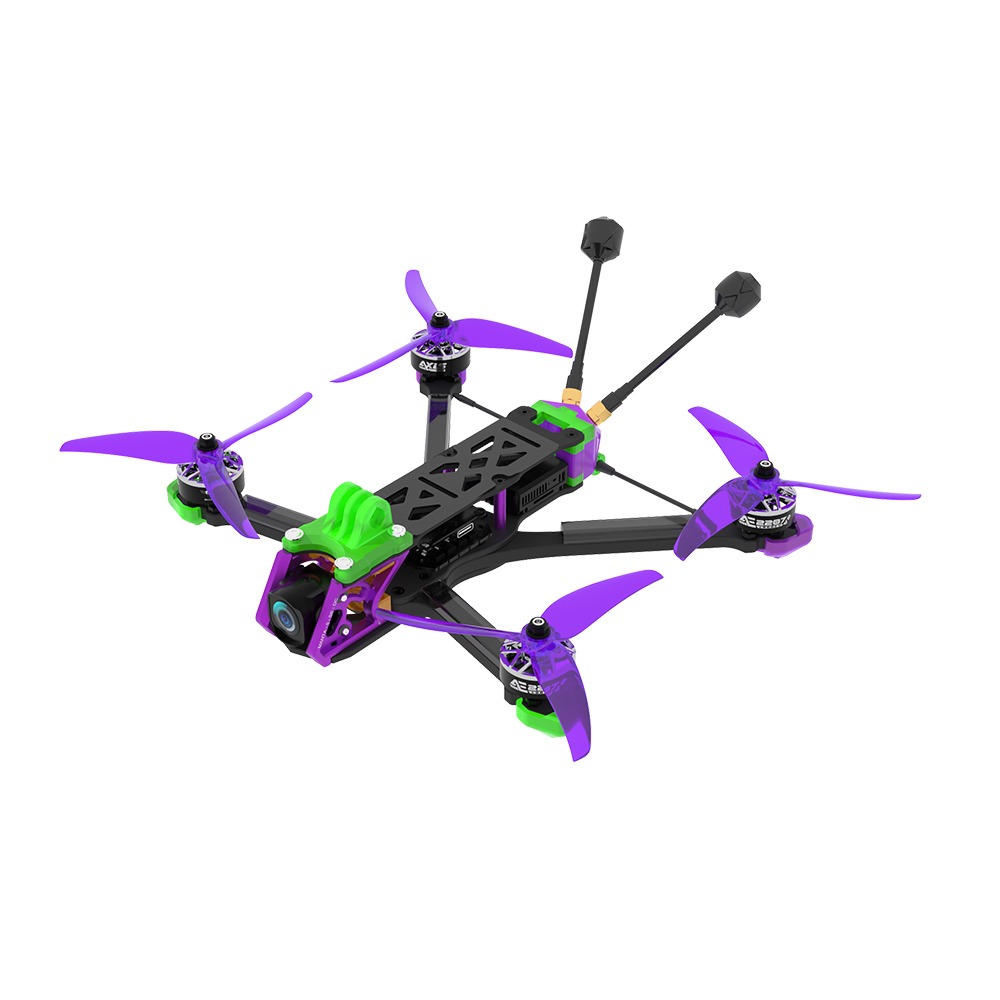

Axisflying Manta 5 SE DC Version FPV Drone 6S O4 Pro With GPS -PNP/ELRS/TBS for Long Range RC FPV Freestyle Drone

Axisflying is dedicated to optimizing user experience by meticulously identifying and addressing user pain points. In the realm of freestyle, we continuously gather user feedback and distill it into valuable product design insights. By integrating precision CNC aluminum components with high-quality carbon fiber plates, Axisflying has introduced the MANTA series of freestyle frames, which feature a unique and innovative design that sets them apart in the industry.

Feature

• Innovative Structure: The frame features an innovative CNC aluminum structure combined with high-strength carbon fiber plates, ensuring an extremely robust, stable, and safe overall construction.

• Versatile Compatibility: The stack mounting supports both 20×20mm and 30.5×30.5mm configurations, covering all common stack types available on the market. The VTX mounting is compatible with movable M2 (20×20mm) and M3 (30.5×30.5mm) setups, accommodating all analog VTX types as well as HD VTX solutions such as the DJI Air Unit and Vista.

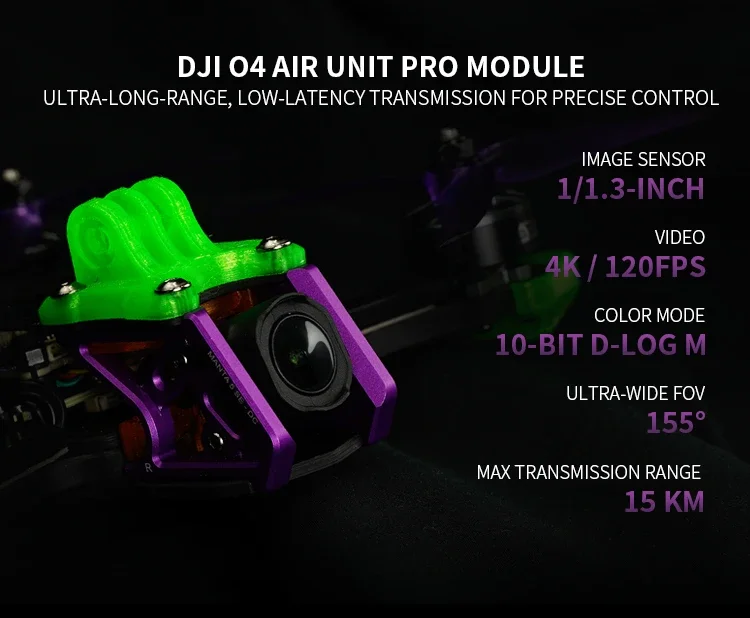

• FPV Camera Integration: The frame is designed to fit 19–20mm wide FPV cameras, with aluminum side plates providing effective protection. The print section has been upgraded to ensure the lens is more securely fixed, eliminating jelly effects.

• Motor Mounting: The motor mounting holes are 16×16mm, compatible with popular motors such as AF227 and AF236. We recommend using 4.9″–5.1″ freestyle propellers, such as those from BlackBird V3.

Specs

• Wheelbase: 229mm

• Weight: 482g

• Carbon Fiber: T700

• Max Prop Size: 5.1″

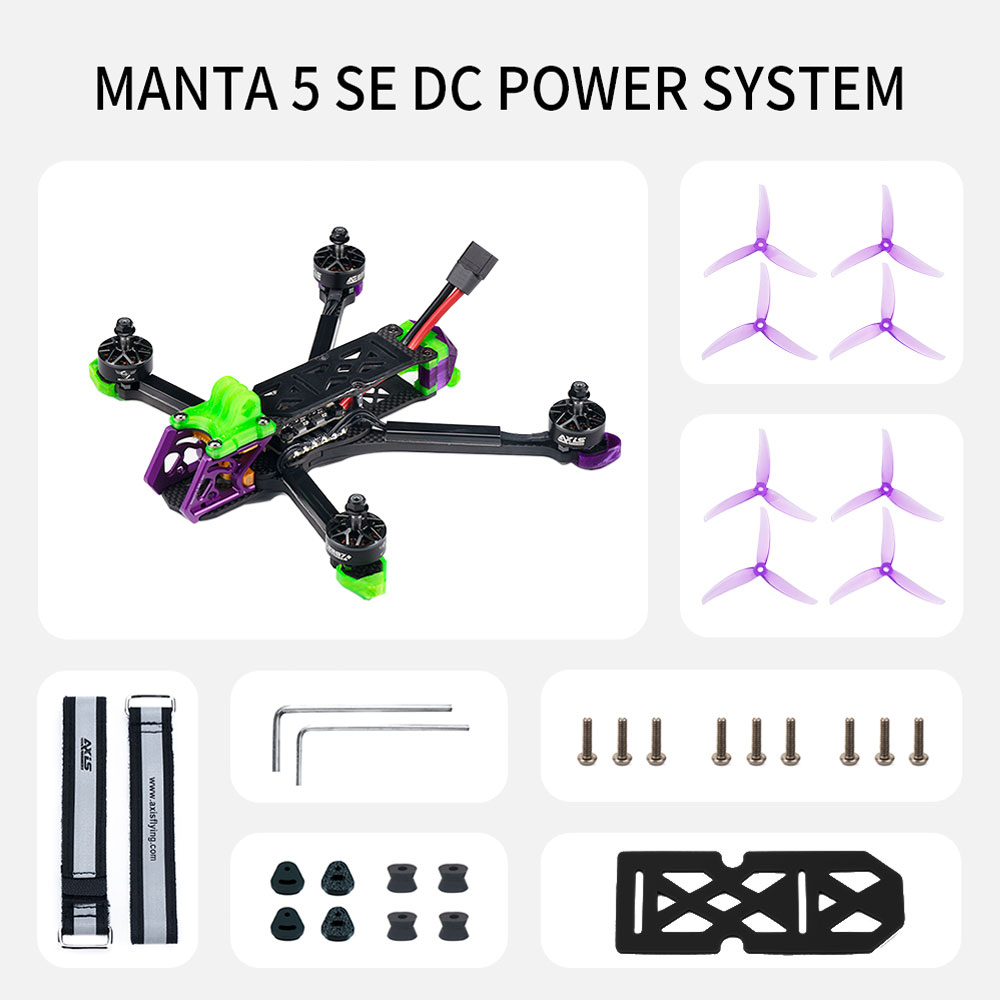

Recommended Configuration

• Motors: Axisflying C246 Cinematic Motor

• Batteries: 1050–1500mAh 4S/6S LiPo

• Stack: Axisflying ArgusPRO 55A/F7 Stack

• Propellers: Axisflying / Gemfan / HQ 4.9″–5.1″ Freestyle Props
