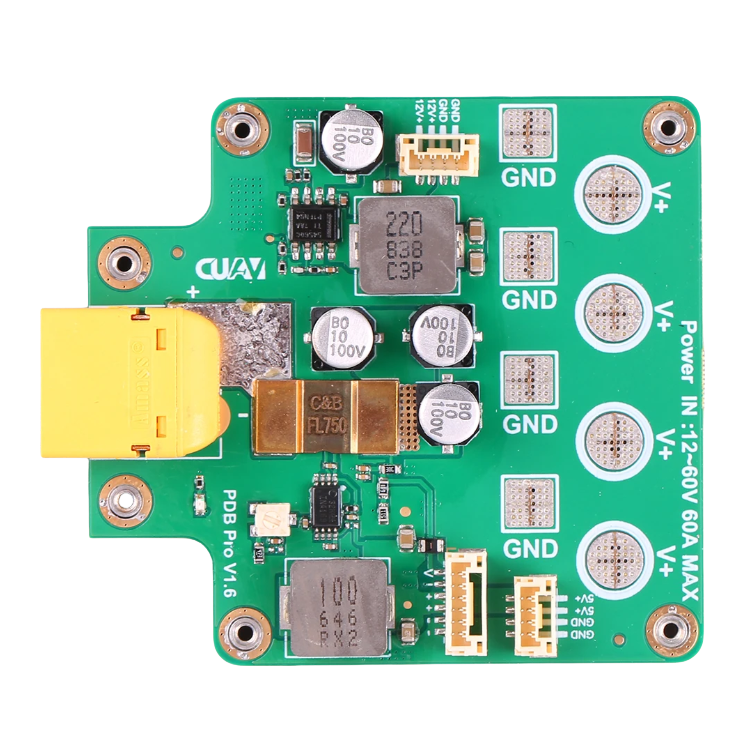

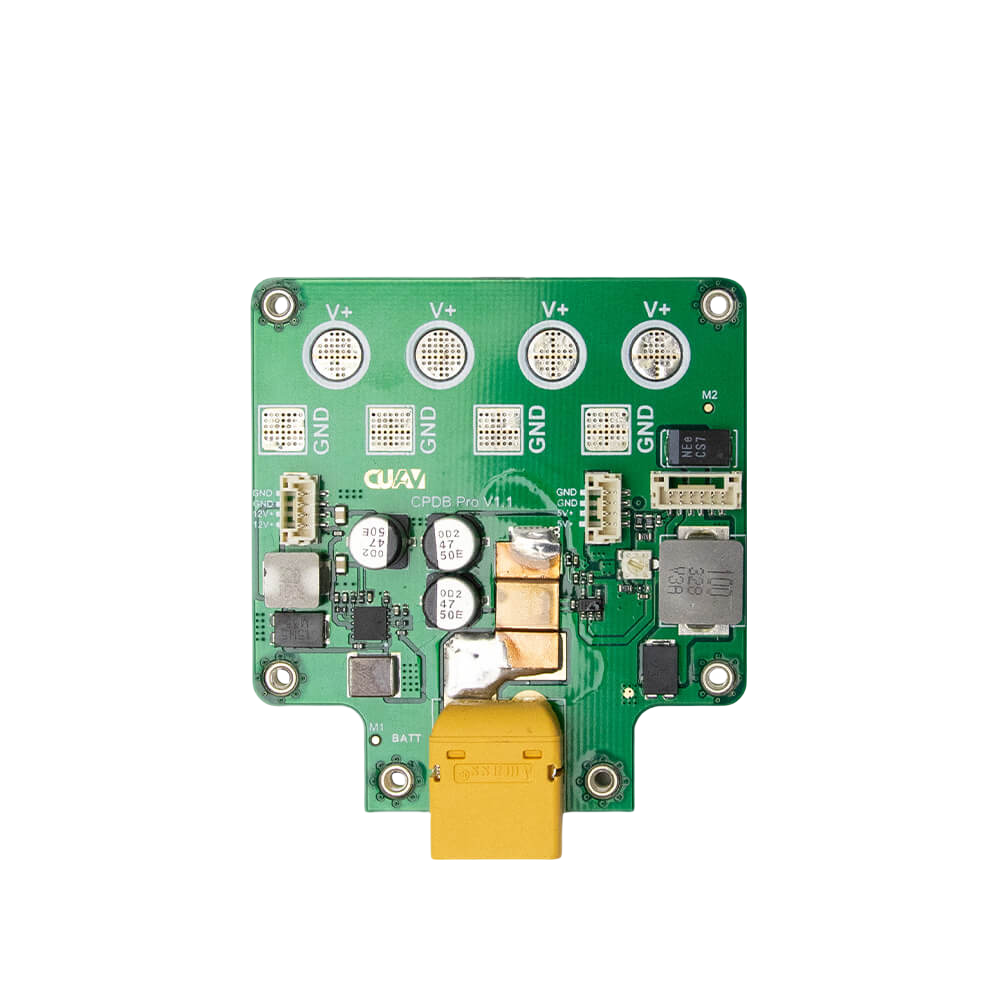

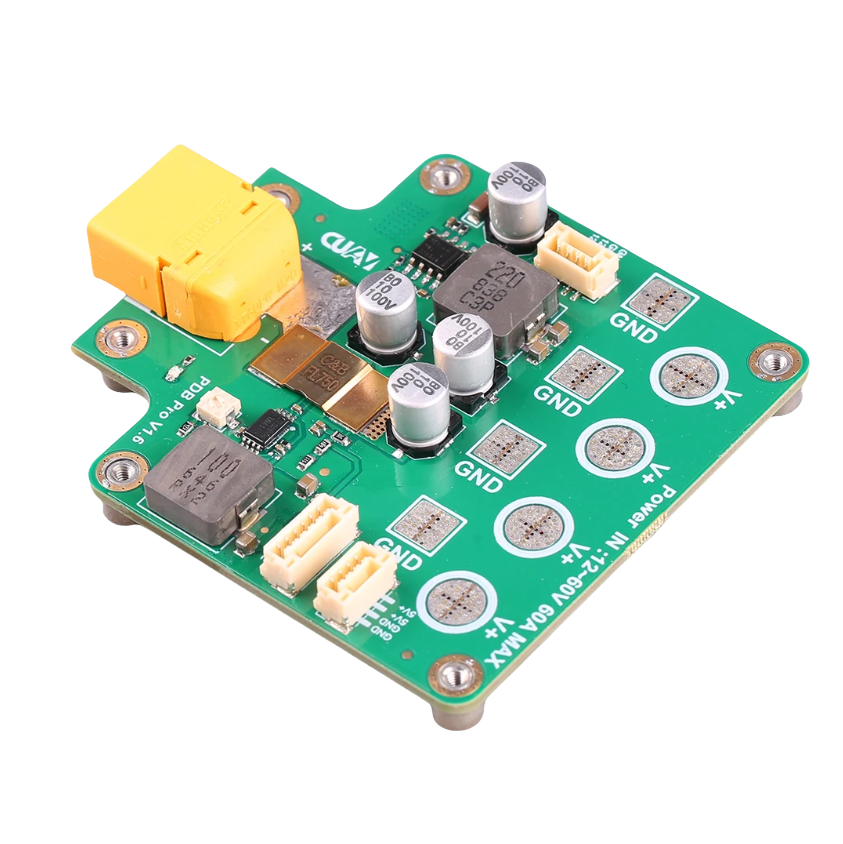

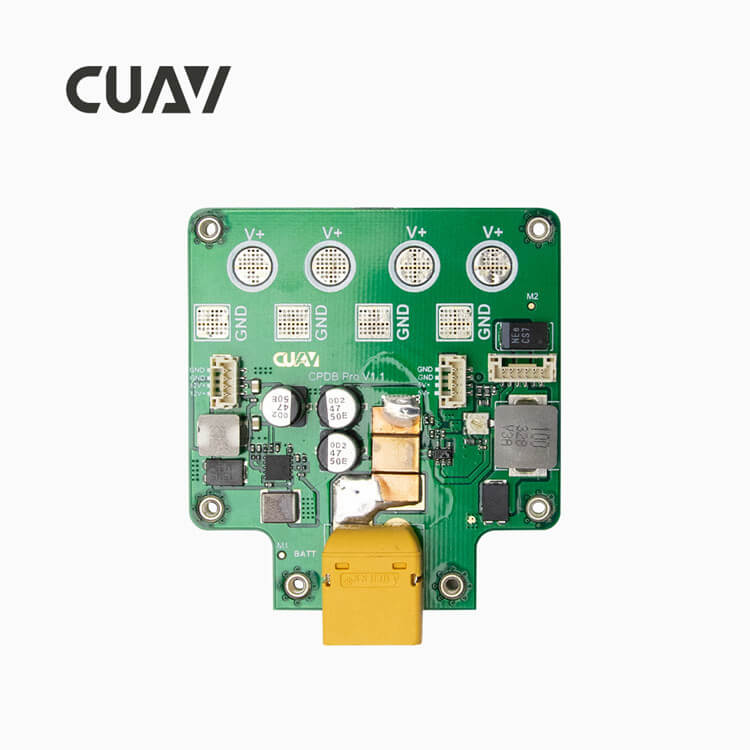

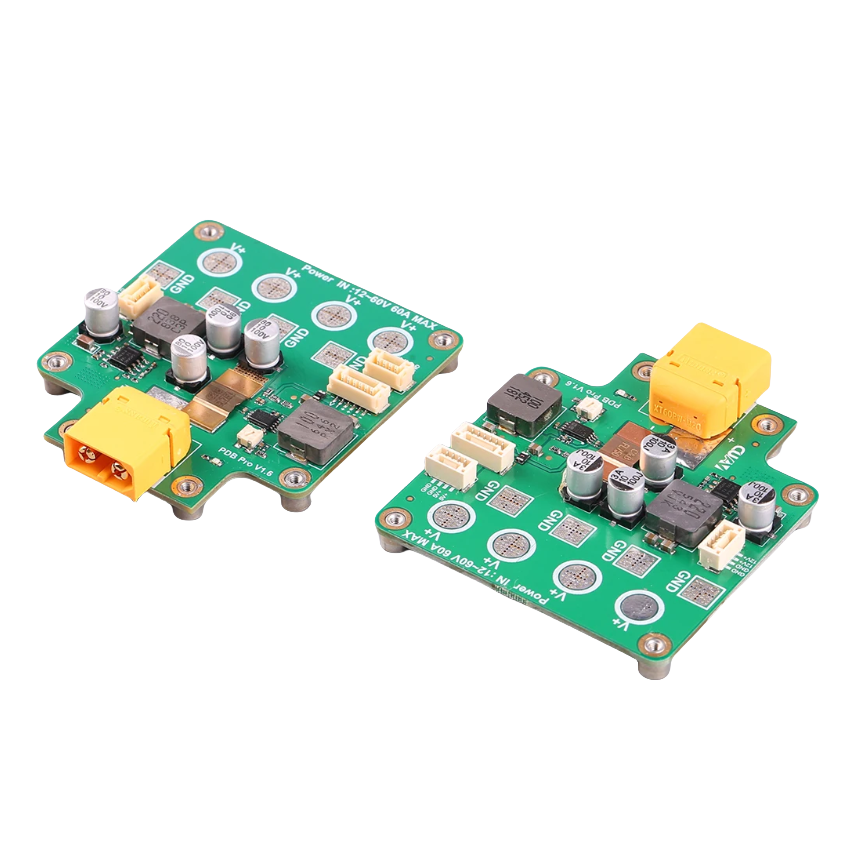

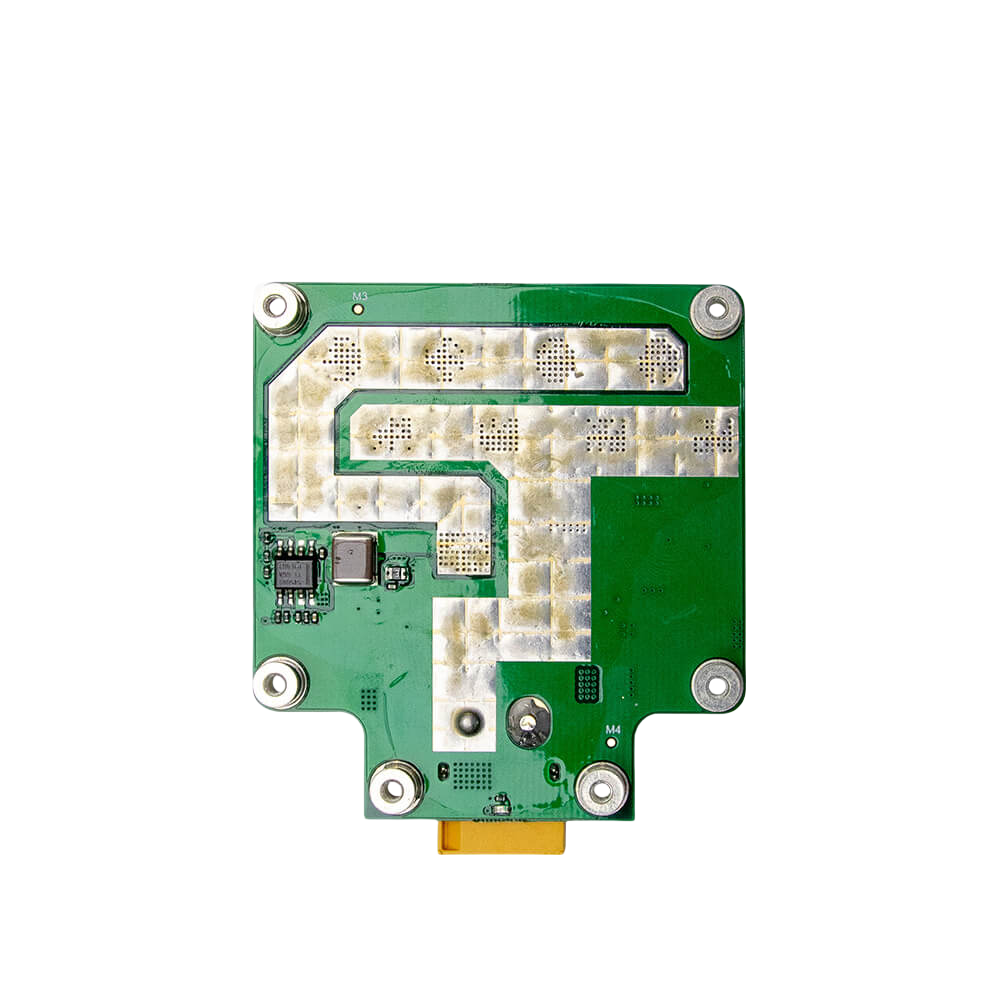

CPDB Pro is an on-board device with voltage, current detection and power distribution board functions, providing controllerswith power, voltage and current signals, as well as two separate interfaces to output 5V and 12V. This version of the equipment is not only suitable for four-rotor, but also suitable for six or eight-rotor drones (the same pad can weld two power cords).

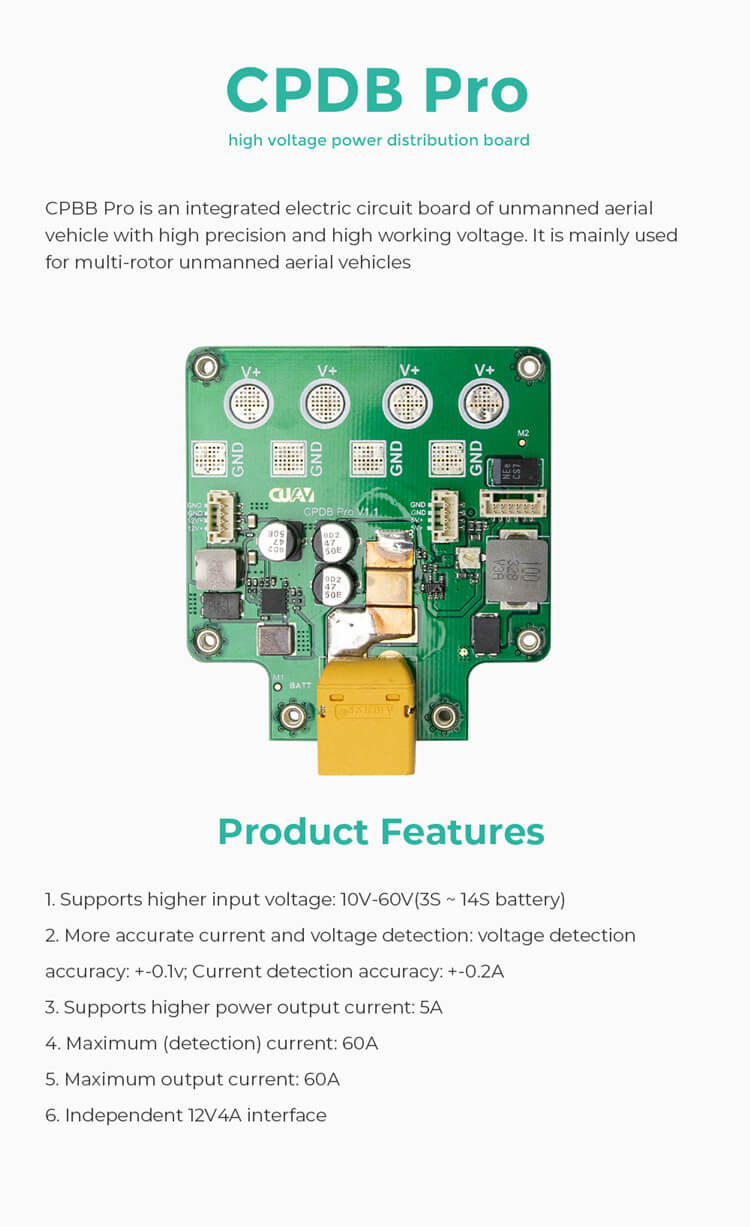

CUAV CPDB pro Features:
1–Supports higher power output current: 5A.
2–Maximum (detection) current: 60A.
3–Maximum output current: 60A.
4–Independent 12V4A interface
5–Supports higher input voltage: 10V-60V.
6–More accurate current and voltage detection: voltage detection accuracy: +-0.1v; Current detection accuracy:+-0.2A.
Main Parameter |
|
| Rated voltage | 10 ~ 60V（3 ~ 14S Lipo) |
| Current(MAX) | 60A |
| Current Accuracy | ±0.2A |
| Voltage Accuracy | ±0.1V |
Interface current |
|
| 12V out | 4A |
| 5V out | 2A |
| FC power | 5A |
Interface type |
|

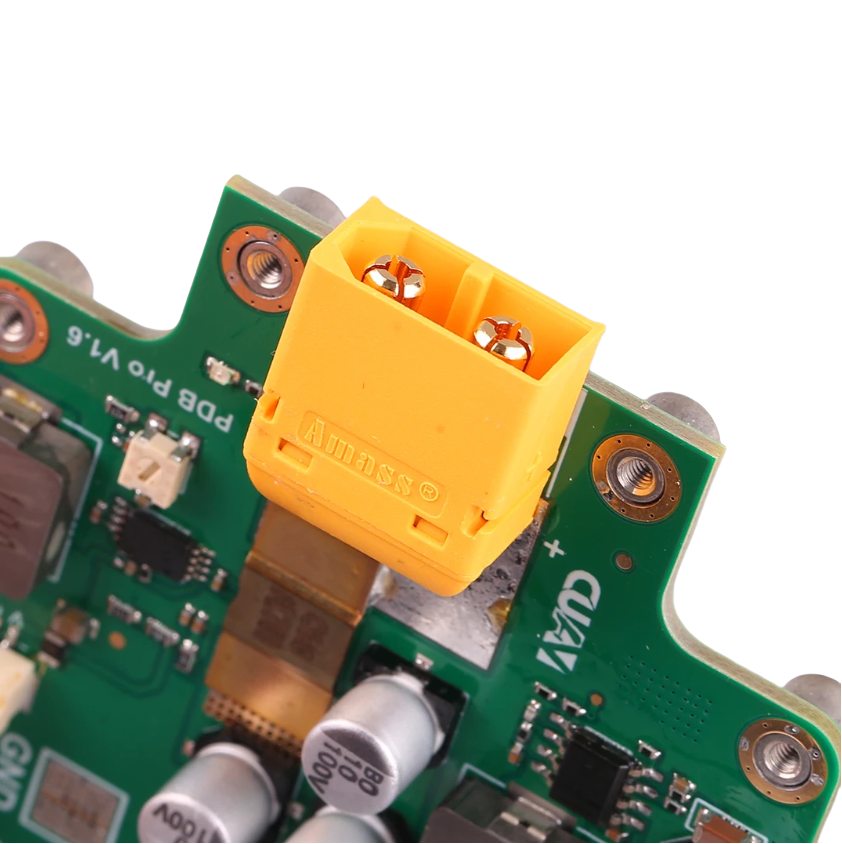

| Battery | XT60 |
| 12V out 5V out FC Power |
GH1.25 |
| Weight | 35g |
