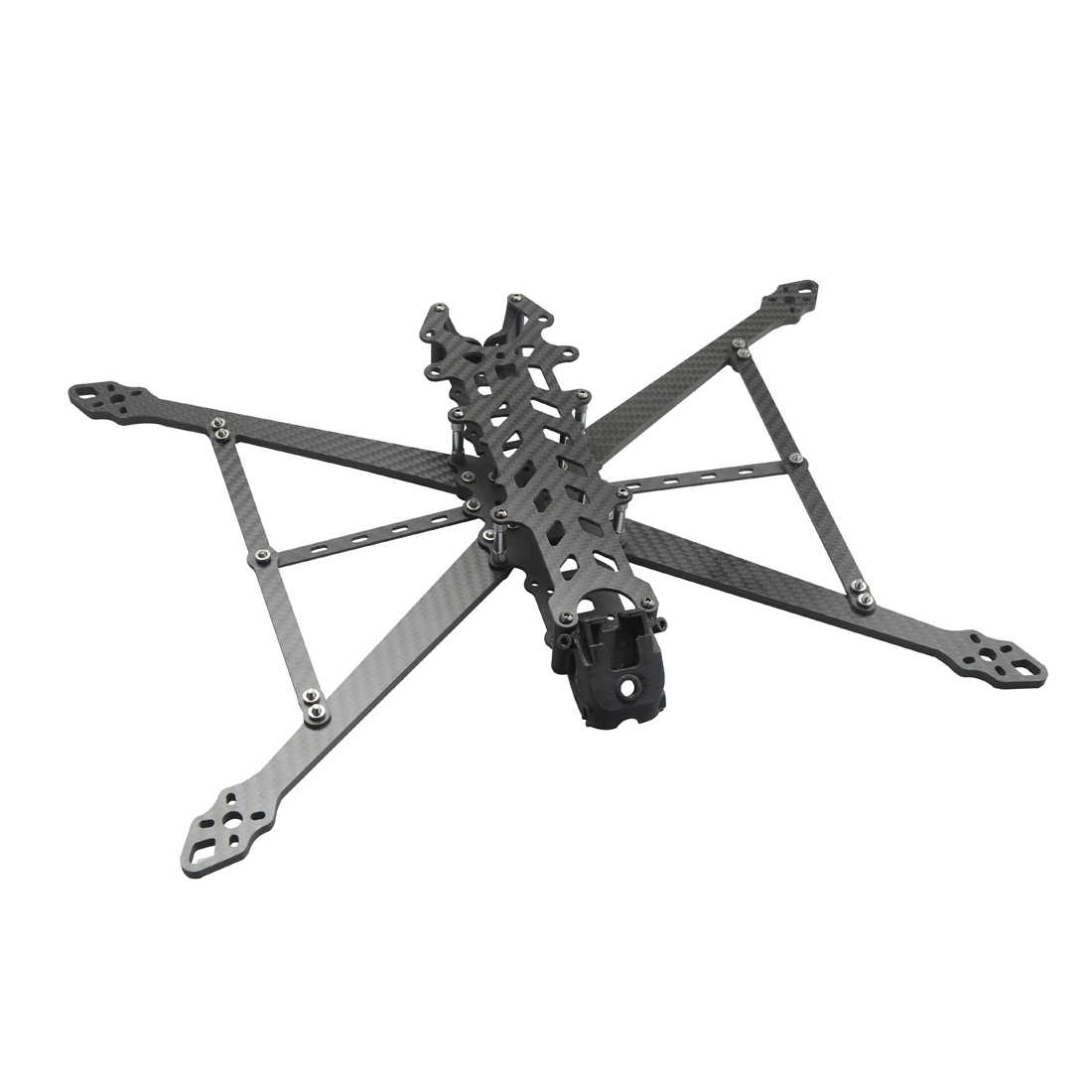

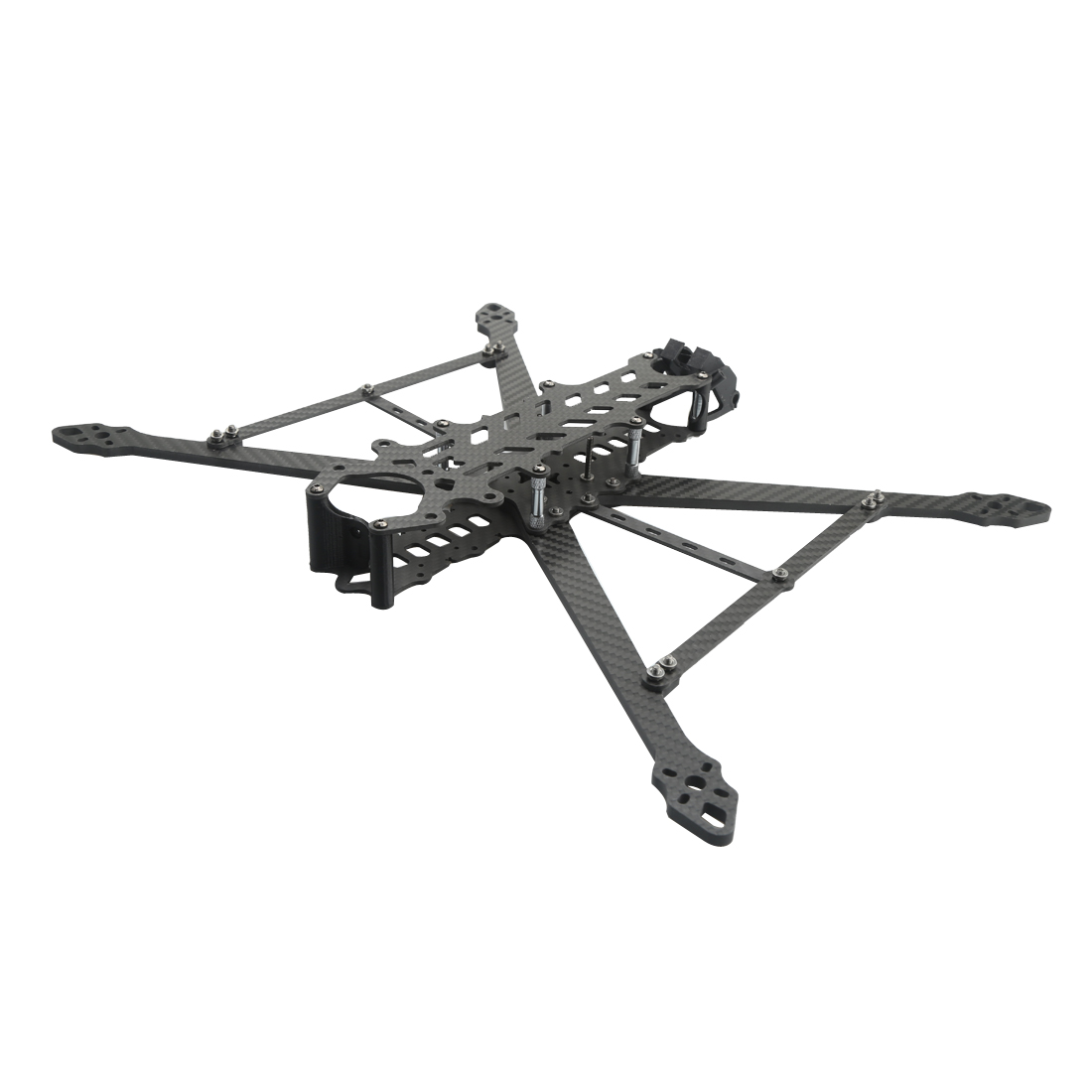

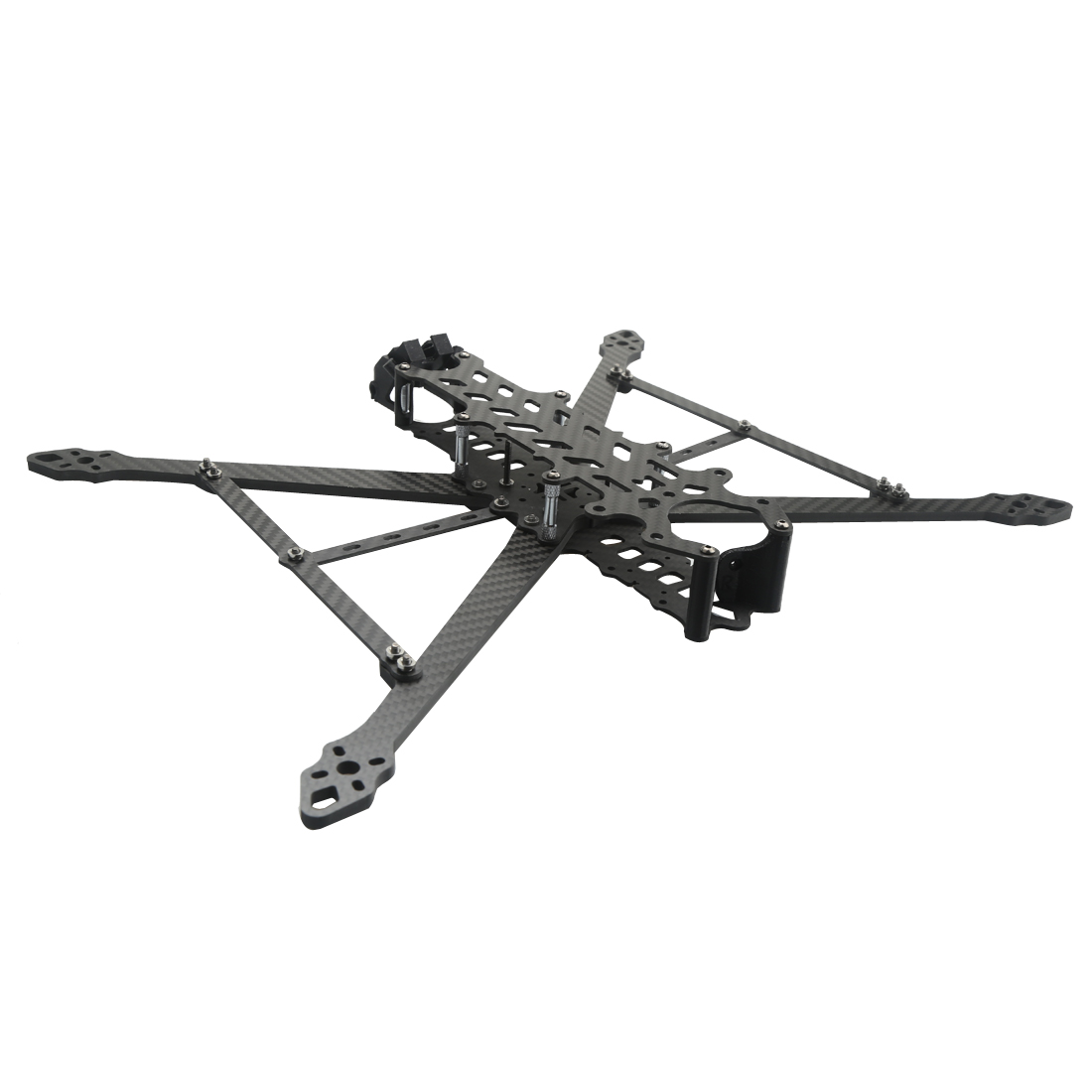

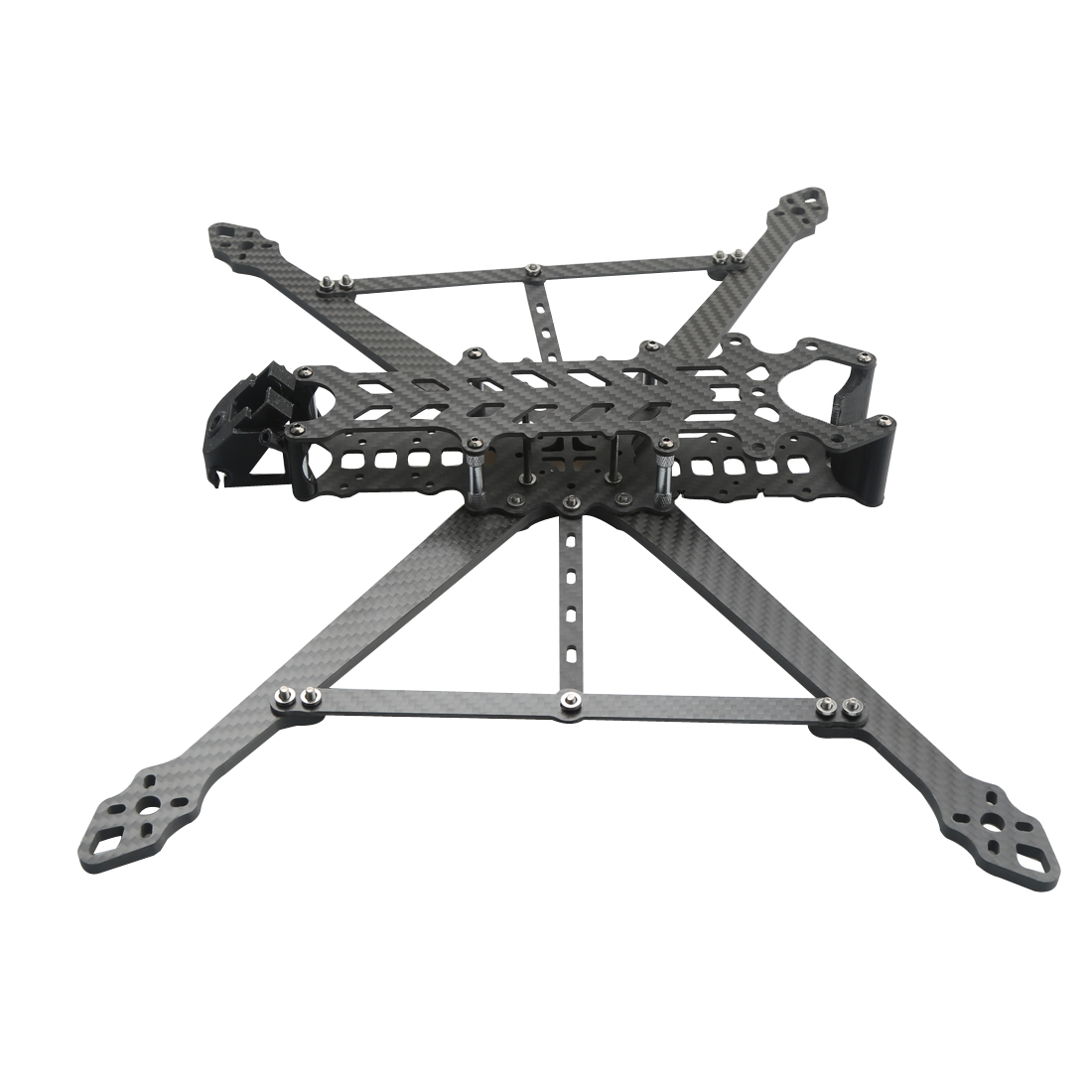

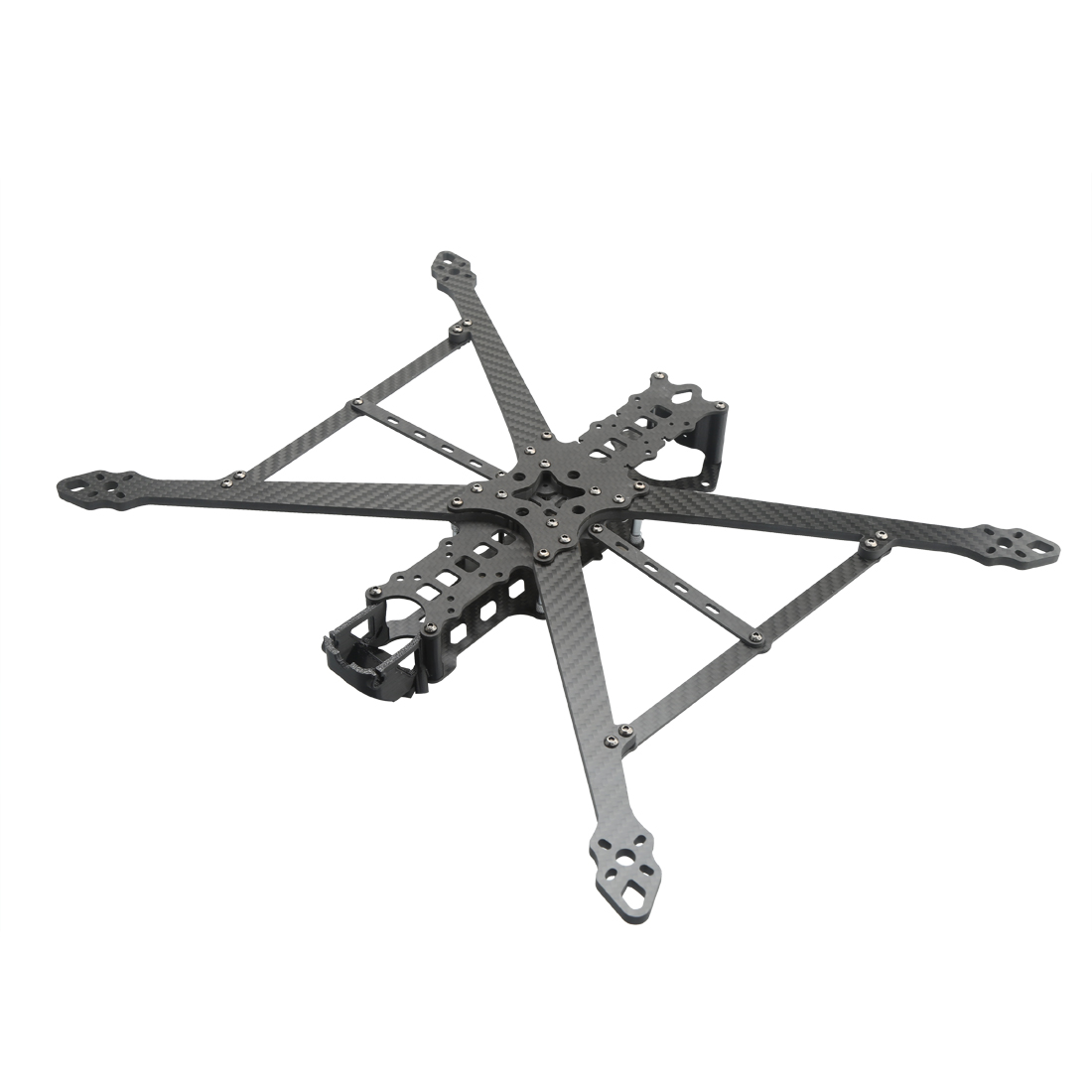

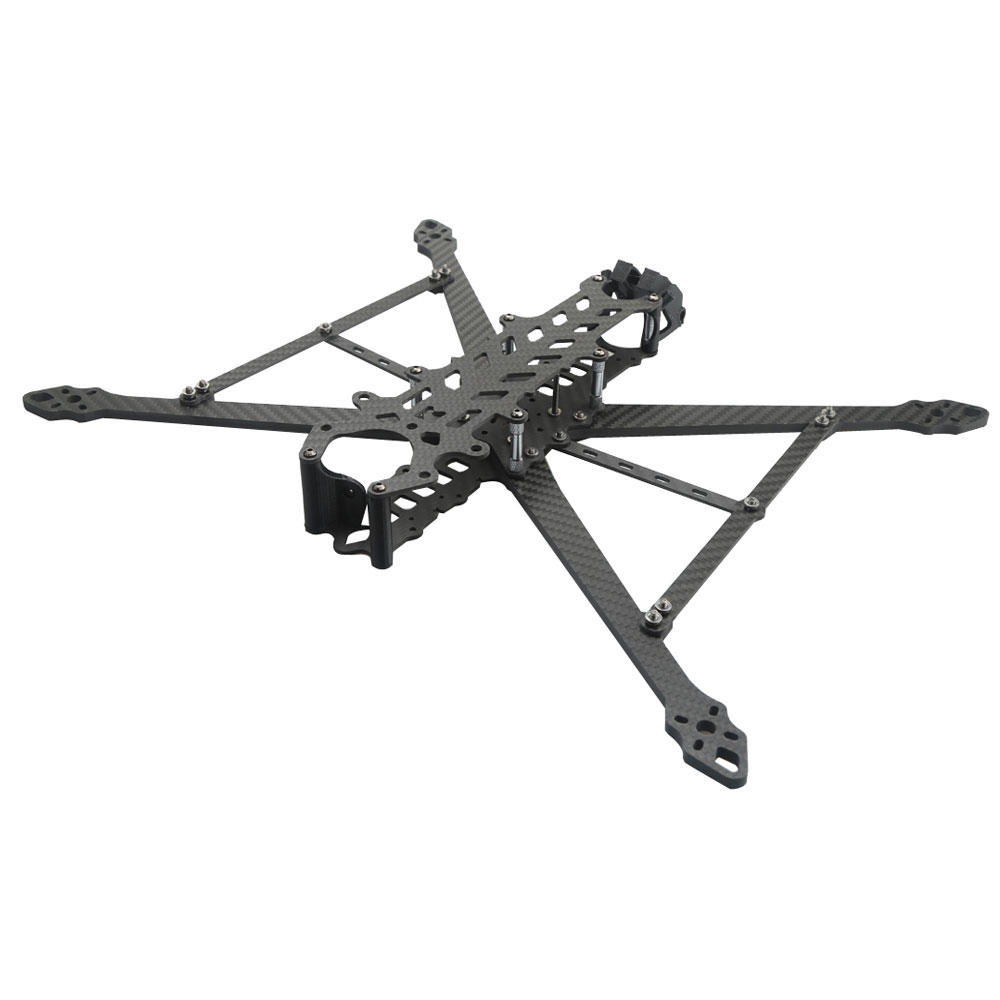

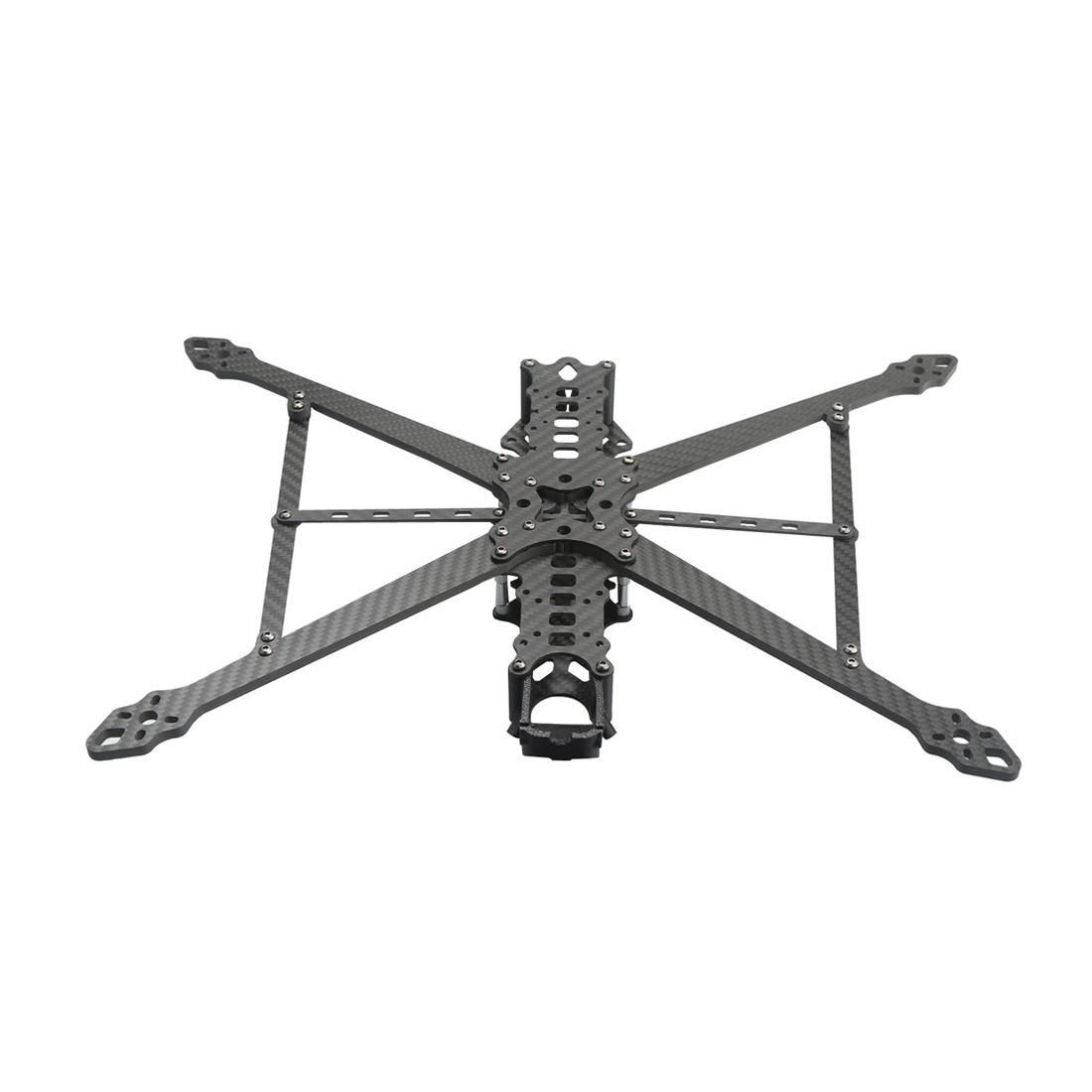

Poisonous Bees DF-V2 FPV Drone Frame KIT 8/9/10inch 367/387/427mm

Attention: This model has been upgraded to the latest thickened model for greater durability and stability.
The 8-inch and 9-inch models have been upgraded to 6MM arms, and the 10 inch models have been upgraded to 7MM arms.
The rack has been upgraded to increase the installation position of the thrower, which can be expanded to accommodate one or two throwers,

Model: DF- V2 8inch
Wheelbase: 367mm
Weight: 282g
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Recommended Configuration: (not included)
motor: 2810/2812/3110/3112
ESC: 45A-60A
propeller: 8 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722/KK
VTX:5.8G/1.2G/4.9G-1.2W-3W
Battery: 6S-3000MAH-8000MAH

Model: DF- V2 9inch
Wheelbase: 387mm
Weight:292g
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Recommended Configuration: (not included)
motor: 2812/3110/3115/3210/3214
ESC: 50A-65A
propeller: 9 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722/KK
VTX:5.8G/1.2G/4.9G-1.2W-3W
Battery: 6S-4000MAH-8000MAH

Model: DF- V2 10inch
Wheelbase: 427mm
Weight: 310g
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of camera arm: 7mm
Camera side panel thickness: 2mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Recommended Configuration: (not included)
motor: 3110/3115/3210/3214
ESC: 60A-80A
propeller: 10 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722/KK
VTX:5.8G/1.2G/4.9G-1.2W-5W
Battery: 6S-6000MAH-12000MAH

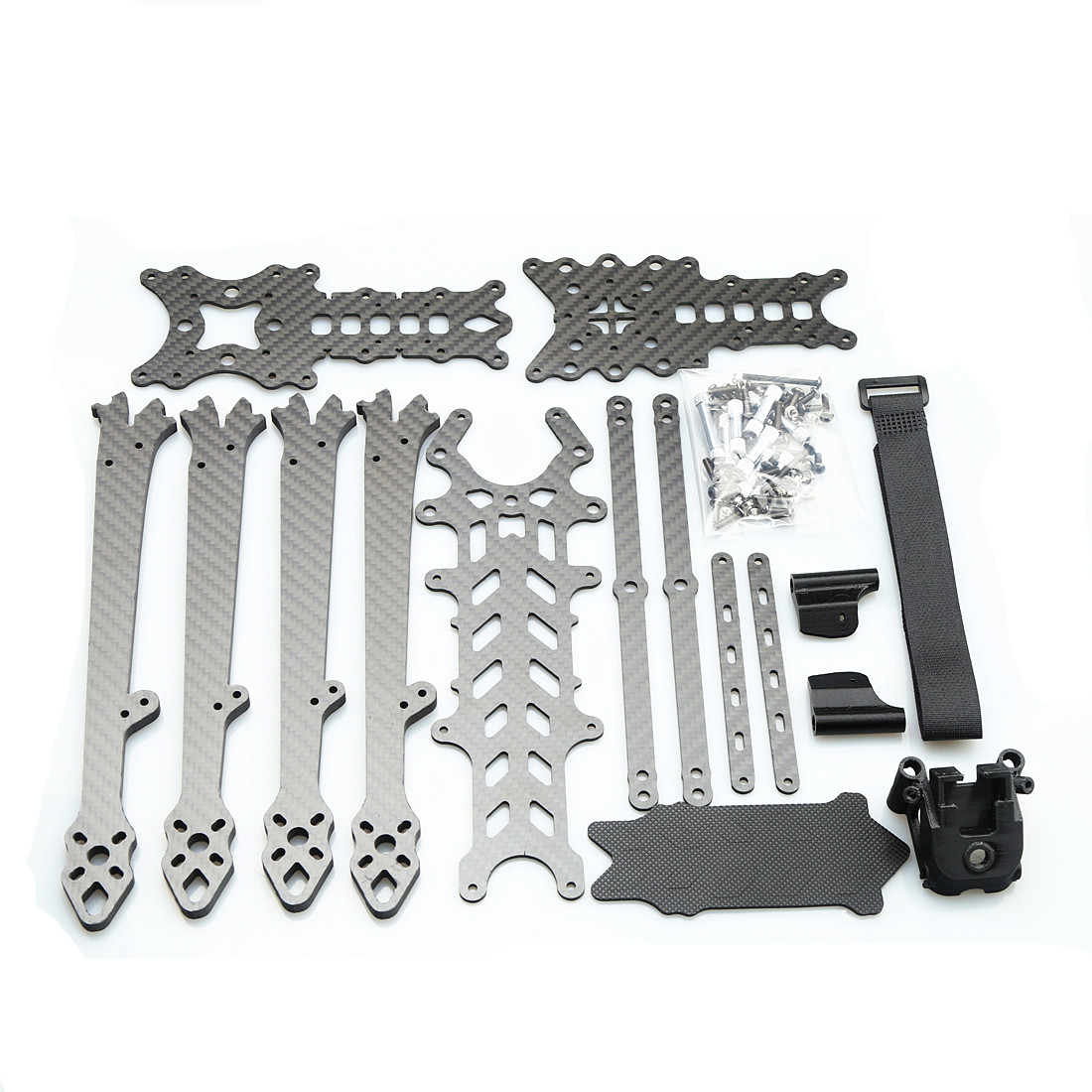

Package included:
1*DF-V2 FPV Drone Frame KIT 8/9/10inch 367/387/427mm Carbon Fiber
