SpeedyBee 2812 RGB LED light strips feature 4 lamp beads and a compact size of 37mm x 6.5mm x 4.3mm. With a weight of only 1.2g per strip, they are lightweight and won't weigh down your drone. The light intensity ranges from 200-400mcd for red and blue, and 800-1000mcd for green. They also have a wide half-intensity viewing angle of 120 degrees. With support for multi-stage series connection, you can easily connect up to 8 levels in series.

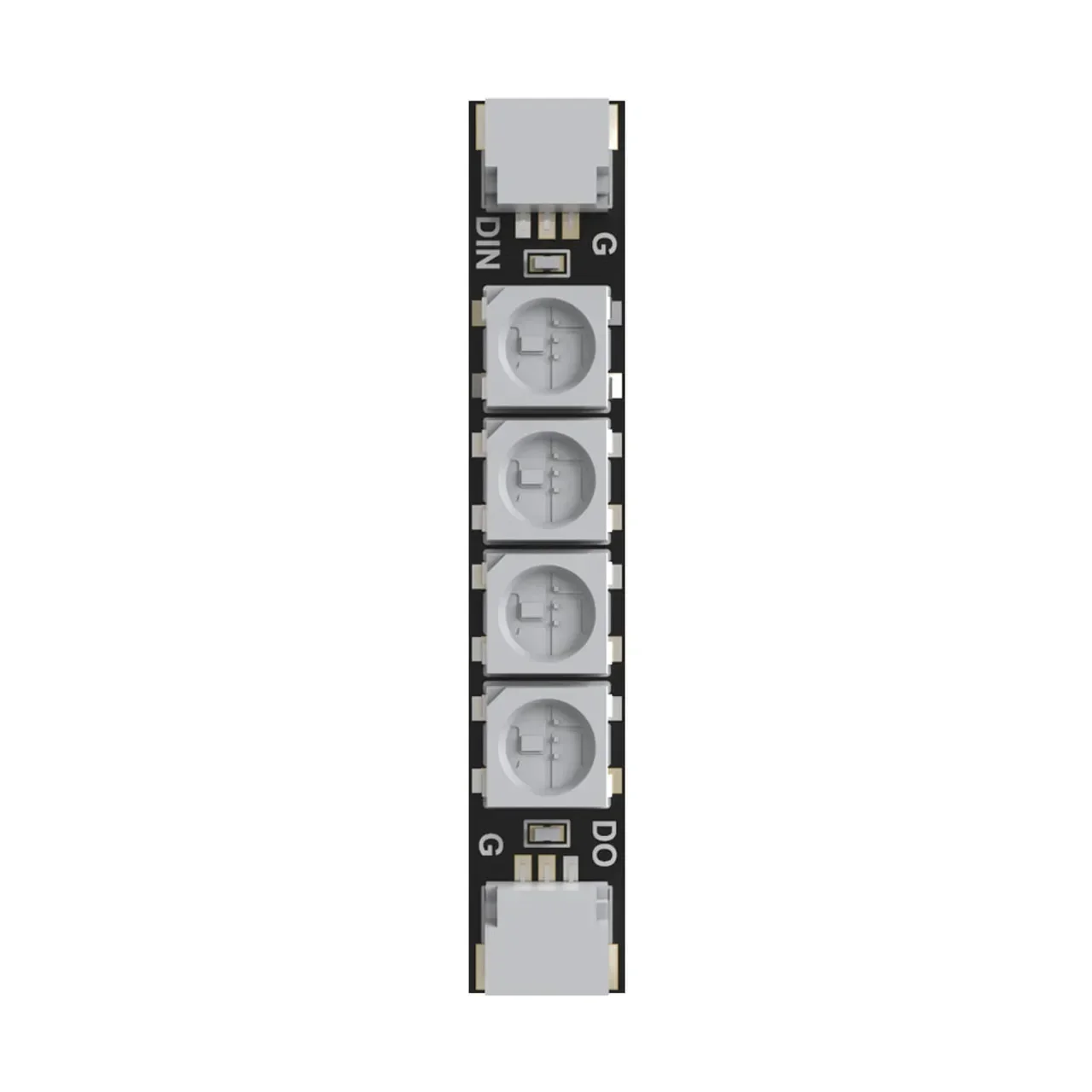

Item: SpeedyBee 2812 RGB Arm Light Strips Programmable 4 Lamp Beads LED Board
Parameters:
Item name:LED light strip

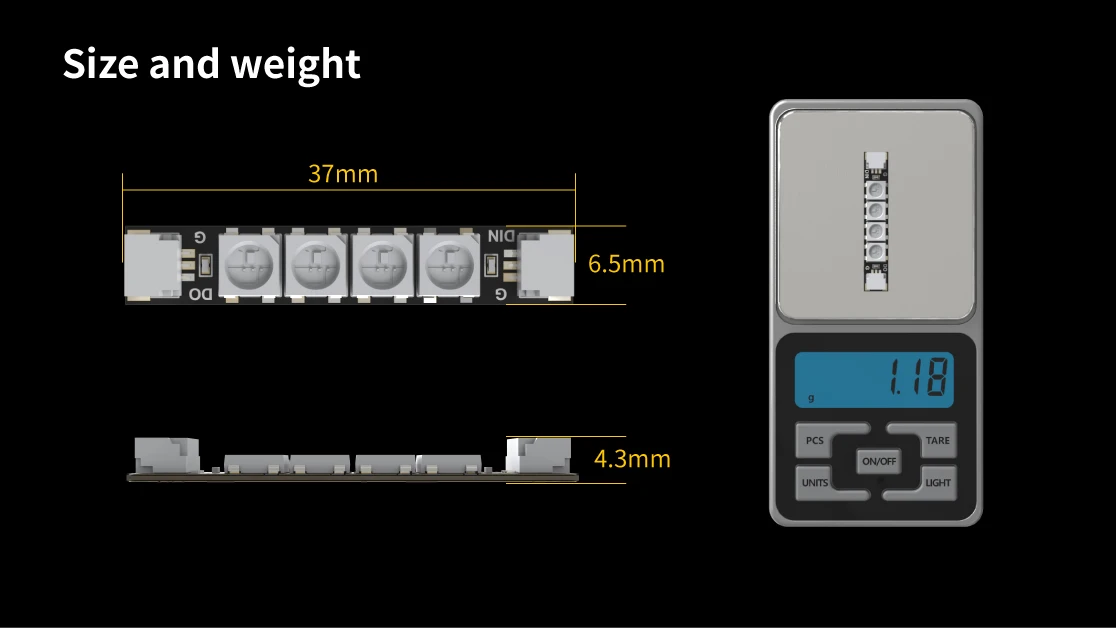

Size:37mm x 6.5mm x 4.3mm
Cable length:50mm
Heat shrink tube length:35mm

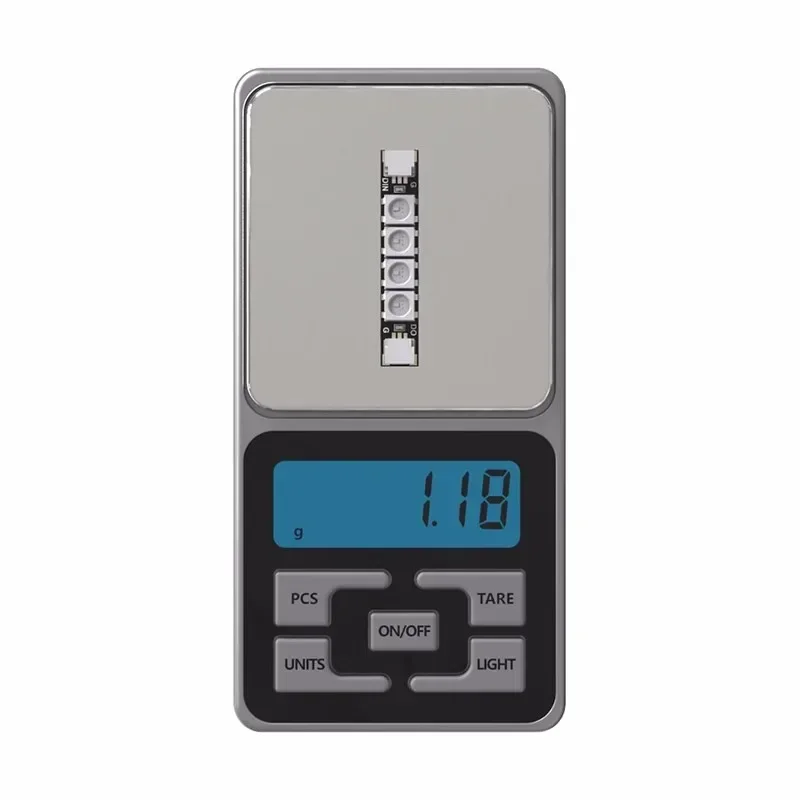

Weight:about 1.2g/pcs(only light strip)
Used for FPV drone arm

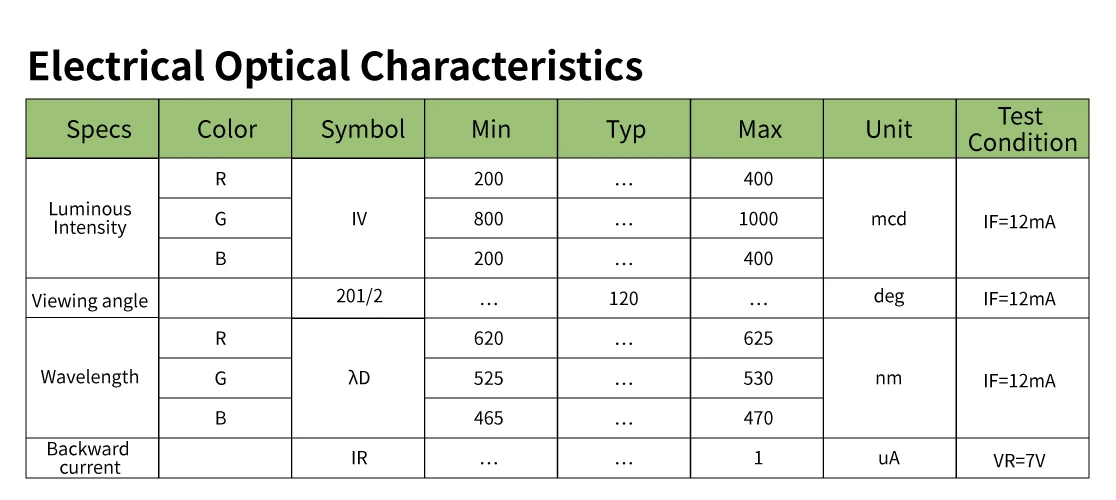

Photoelectric Parameters:
Light intensity(IV):(test conditions:IF=12mA)
R: 200-400mcd
G: 800-1000mcd
B: 200-400mcd
Half-intensity viewing angle(201/2): 120deg(test conditions:IF=12mA)
Dominant wavelength(λD):(test conditions:IF=12mA)
R: 620-625nm
G: 525-530nm
B: 465-470nm
Reverse current(IR): maximum to 1uA((test conditions:VR=7V)

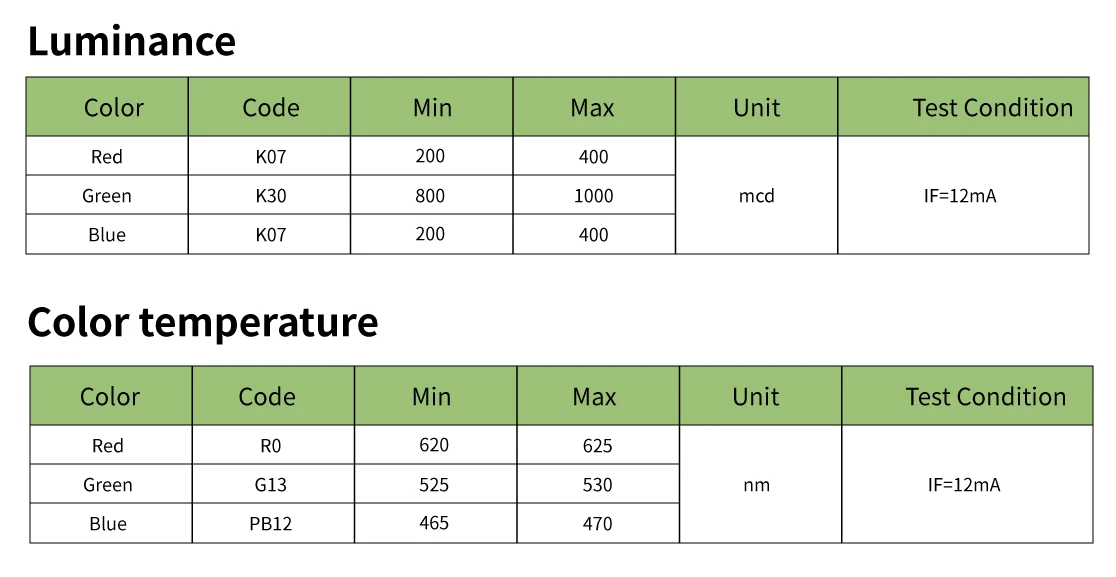

Brightness Binning:(test conditions:IF=12mA)
Red(code K07): 200-400mcd
Green(code K30):800-1000mcd
Blue(code K07): 200-400mcd
Color Temperature Binning:(test conditions:IF=12mA)
Red(code R0): 620-625nm
Green(code G13):525-530nm
Blue(code PB12): 465-470nm

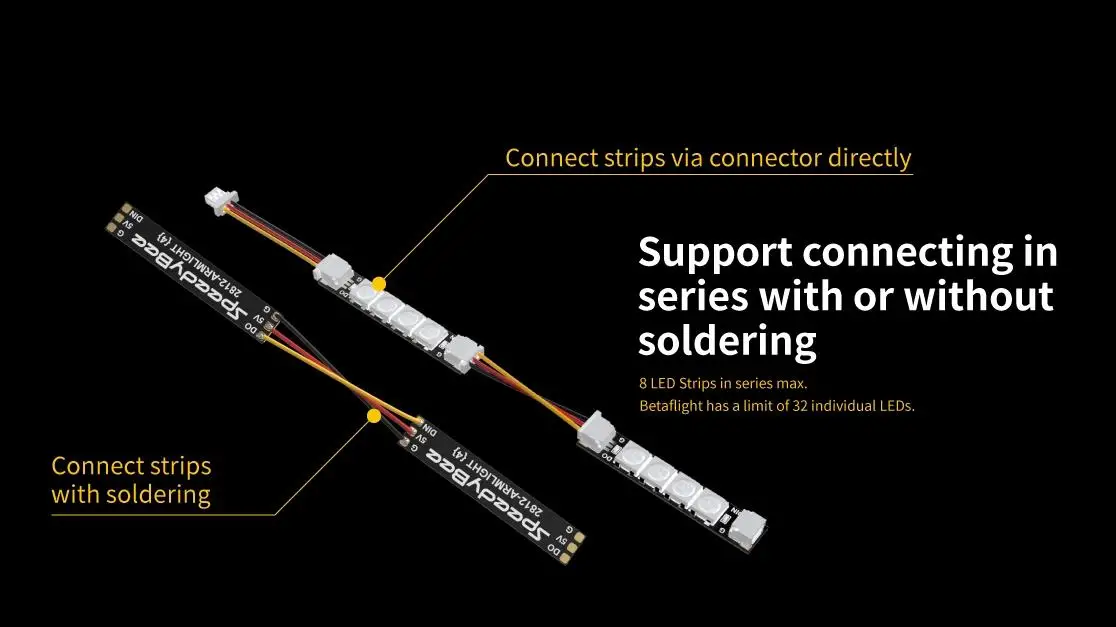

Support welding and welding-free multi-stage series connection.
(Supports up to 8 levels of series connection, Betaflight currently only supports 32 lamp beads.)

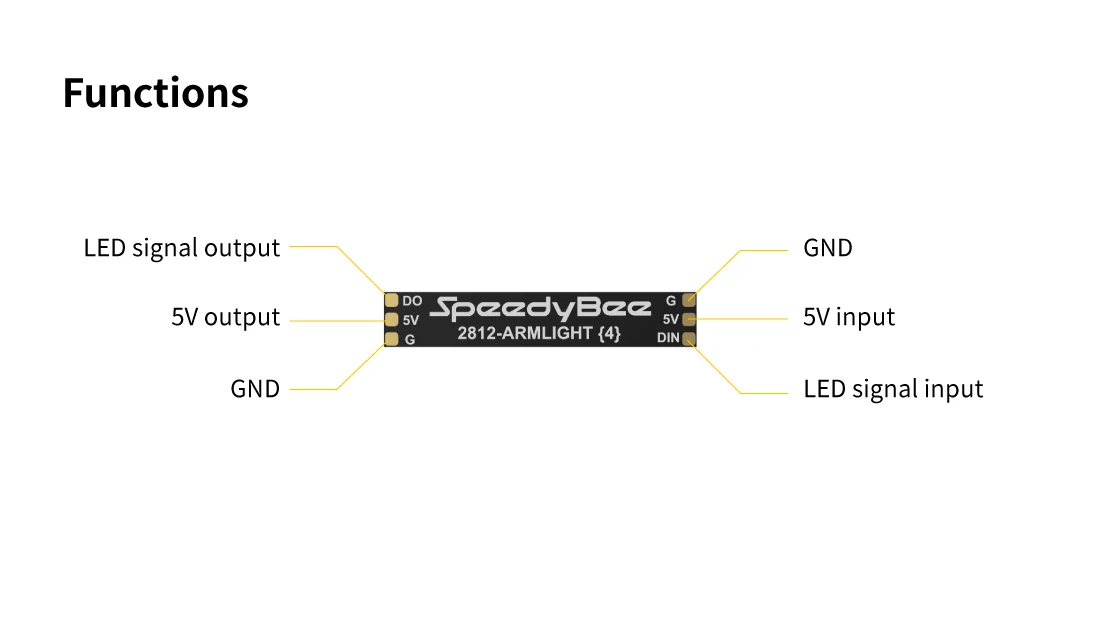

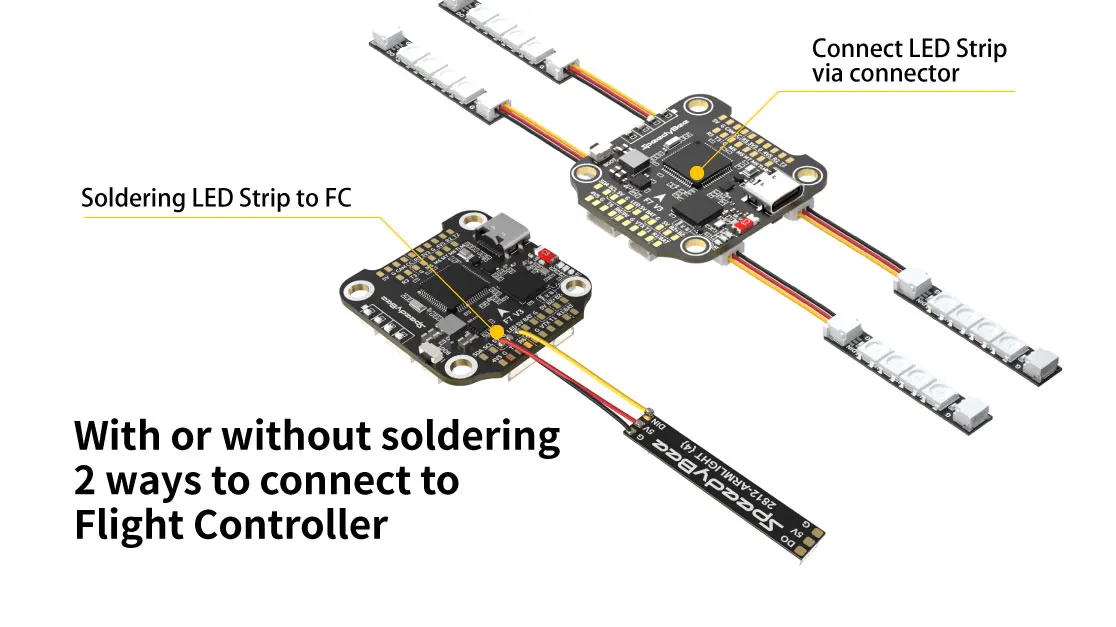

Support welding and welding-free connection to the flight controller.
(Direct welding of flight controllers and light strips.
The flight controller and the light strip seat are inserted directly without welding.)
Note:
1.The flight controller and drone will not include.
2.Due to manual measurement the size may have slightly deviation.

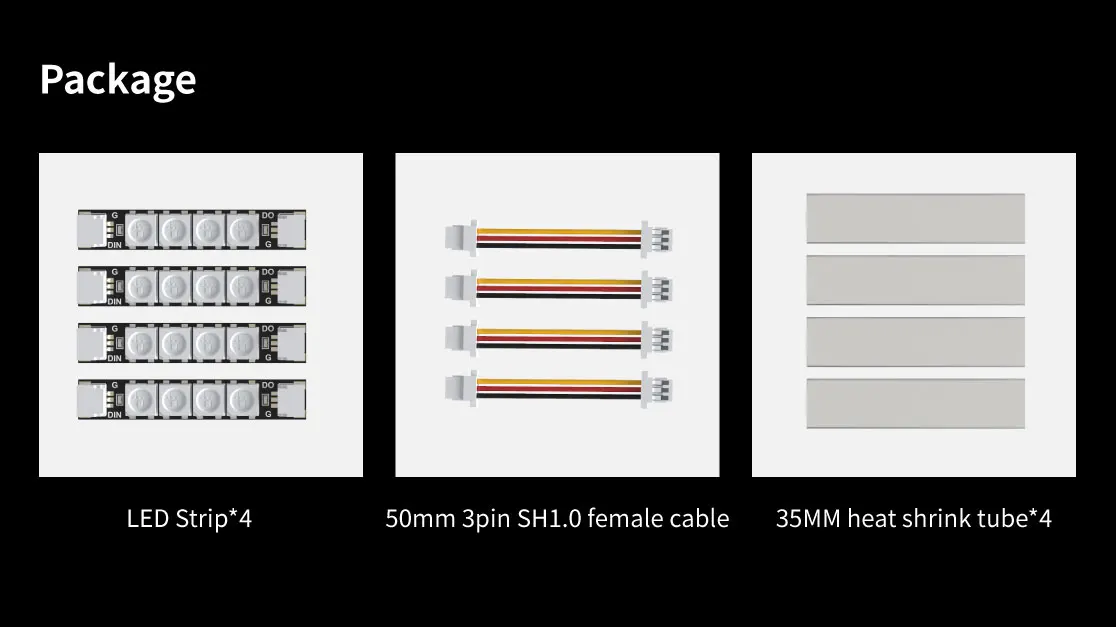

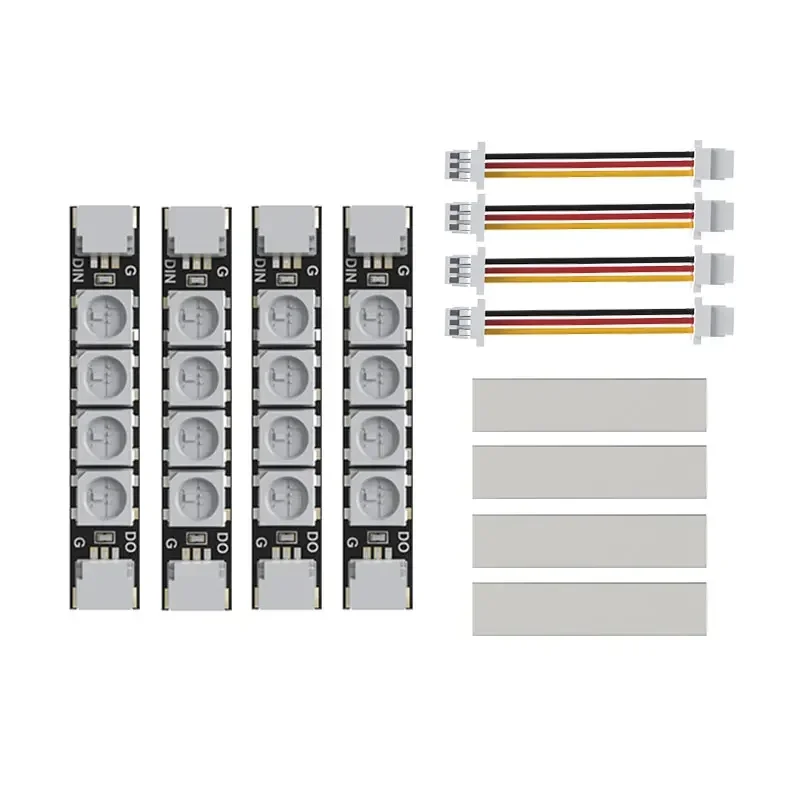

Package Included:
4pcs light strips + 4pcs cables + 4pcs heat shrink tubes
