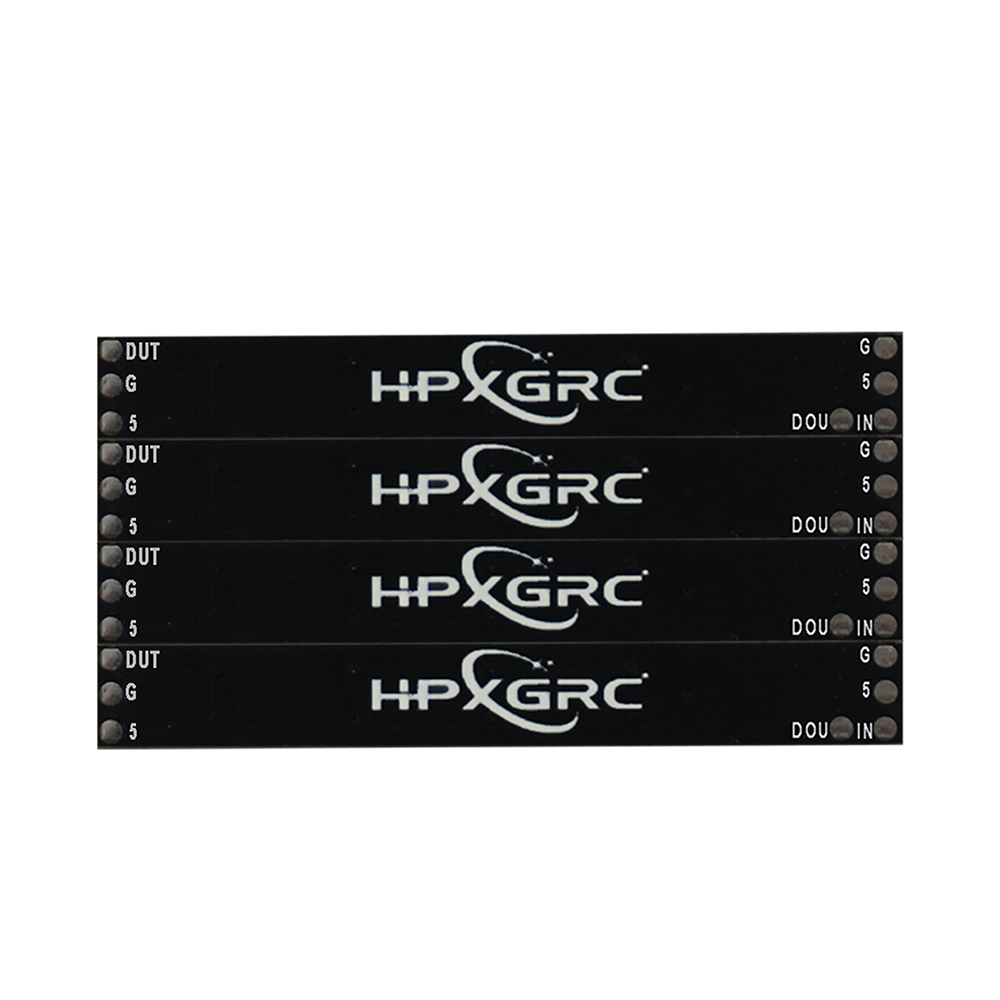

2812 RGB Programmable LED Light Strip (4pcs)

About This Product

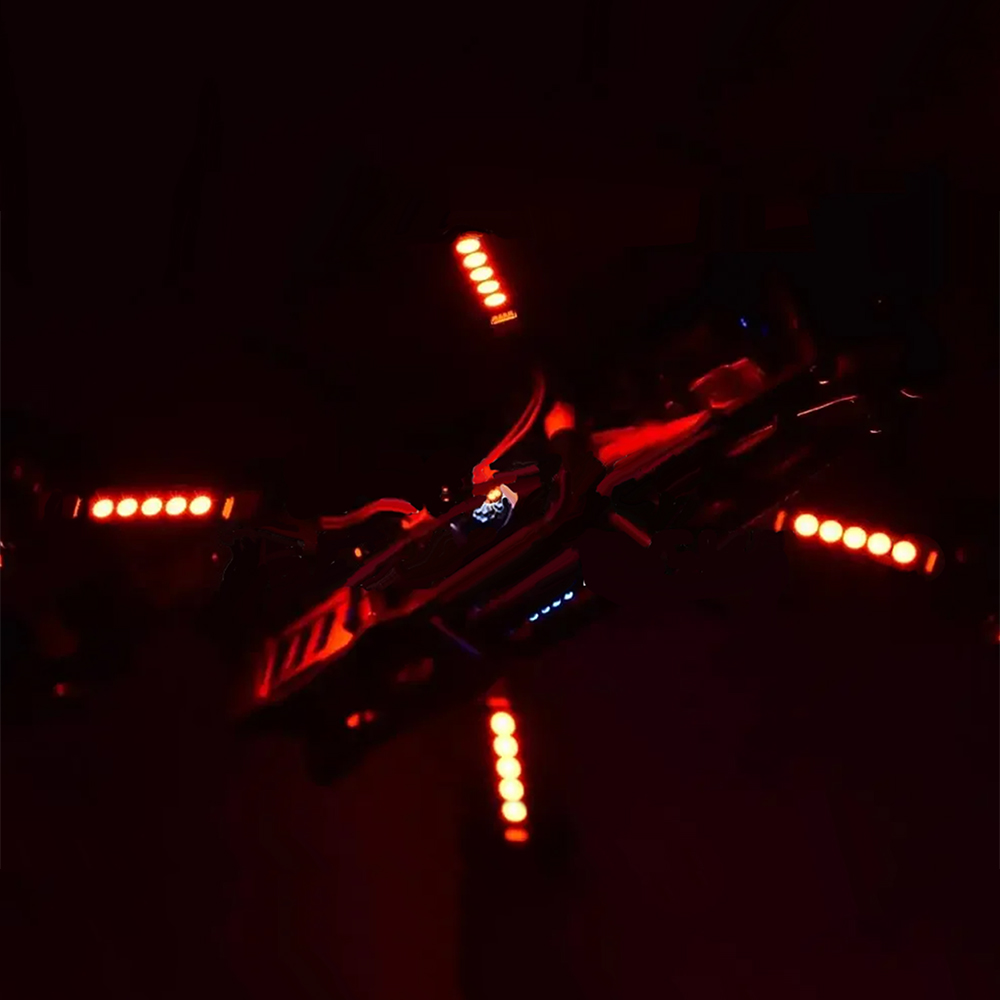

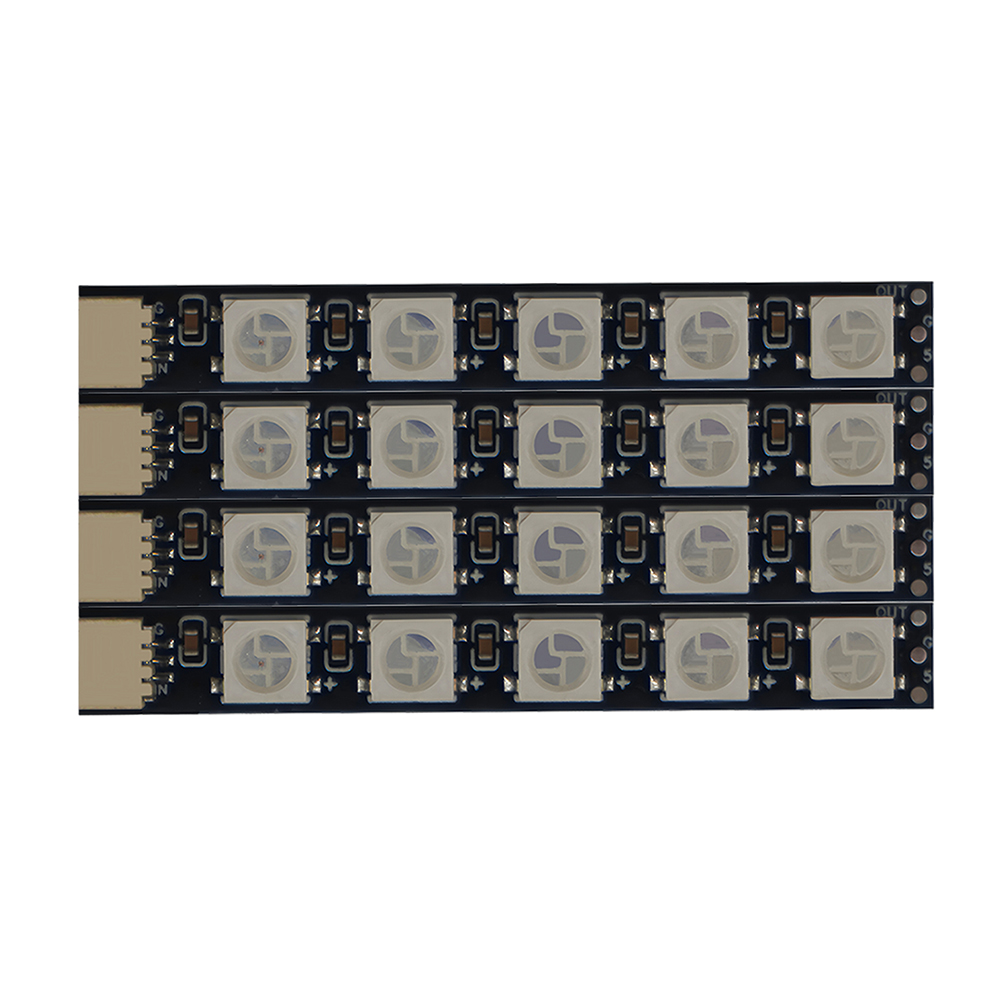

This 2812 RGB programmable LED arm light strip is designed specifically for drones and other aircraft. Each set includes four high-quality strips. Powered by the advanced WS2812B chip, each of the five LEDs can be independently controlled, creating vibrant and creative lighting effects for your aircraft. Whether it's for a show or nighttime operations, your drone will stand out.

Features
Connect with or without soldering
1.2g per LED Strip
RGB LEDs

Parameters:
Item name:HPXGRC 2812 RGB Arm Light Strips Programmable 5 Lamp Beads LED Board

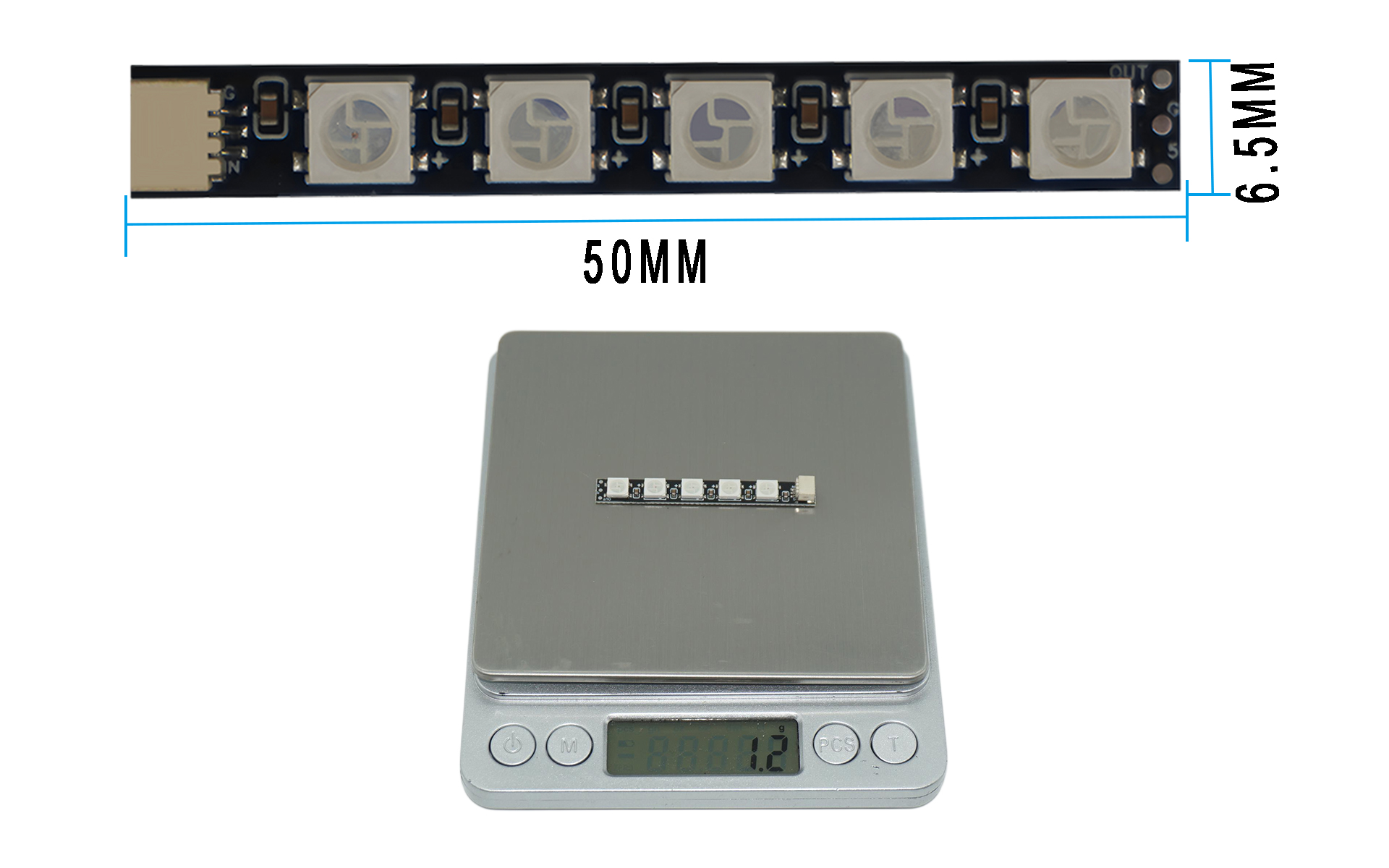

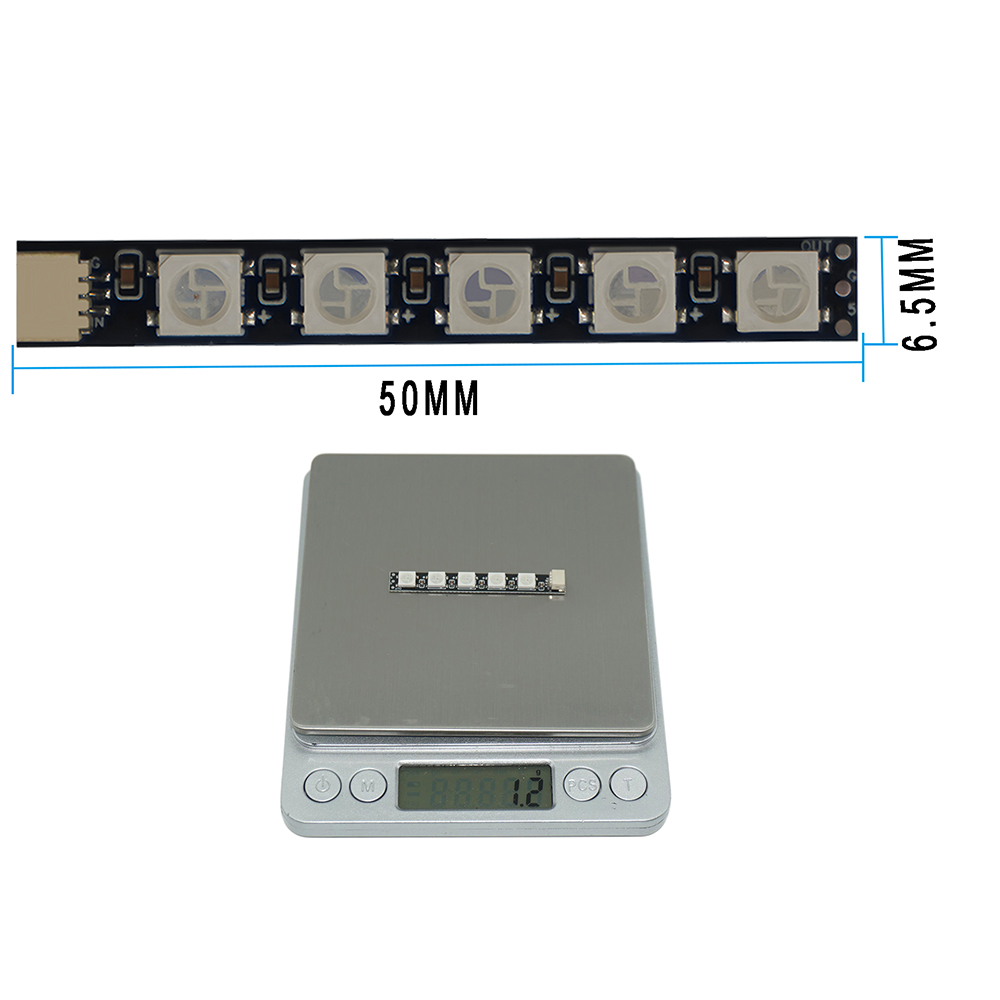

Size:50mm x 6.5mm x 4mm
Cable length:100mm
Heat shrink tube length:50mm
Weight:about 1.2g/pcs(only light strip)

Photoelectric Parameters:
Light intensity(IV):(test conditions:IF=12mA)
R: 200-400mcd
G: 800-1000mcd
B: 200-400mcd

Half-intensity viewing angle(201/2): 120deg(test conditions:IF=12mA)
Dominant wavelength(λD):(test conditions:IF=12mA)
R: 620-625nm
G: 525-530nm
B: 465-470nm
Reverse current(IR): maximum to 1uA((test conditions:VR=7V)

Brightness Binning:(test conditions:IF=12mA)
Red(code K07): 200-400mcd
Green(code K30):800-1000mcd
Blue(code K07): 200-400mcd

Color Temperature Binning:(test conditions:IF=12mA)
Red(code R0): 620-625nm
Green(code G13):525-530nm
Blue(code PB12): 465-470nm

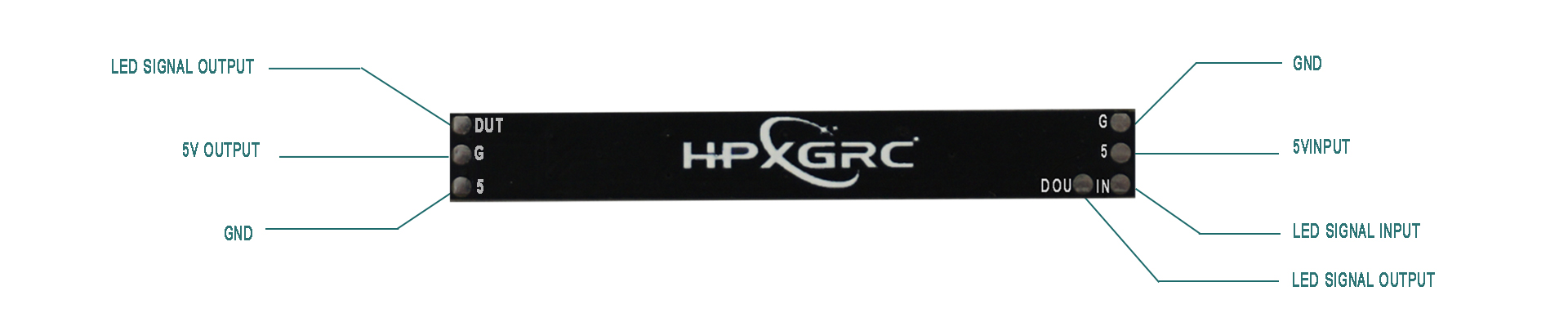

Support welding and welding-free multi-stage series connection.
(Supports up to 8 levels of series connection, Betaflight currently only supports 32 lamp beads.)

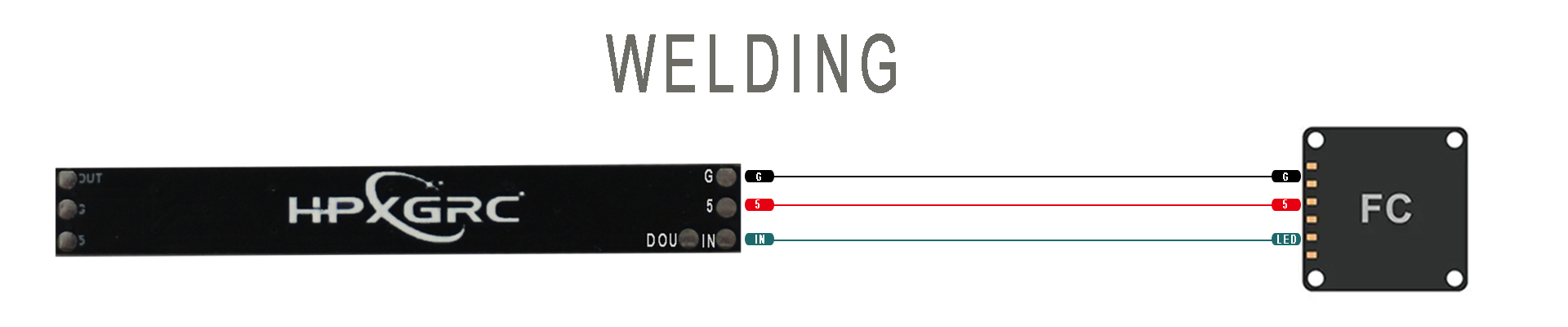

Support welding and welding-free connection to the flight controller.
(Direct welding of flight controllers and light strips.
The flight controller and the light strip seat are inserted directly without welding.)

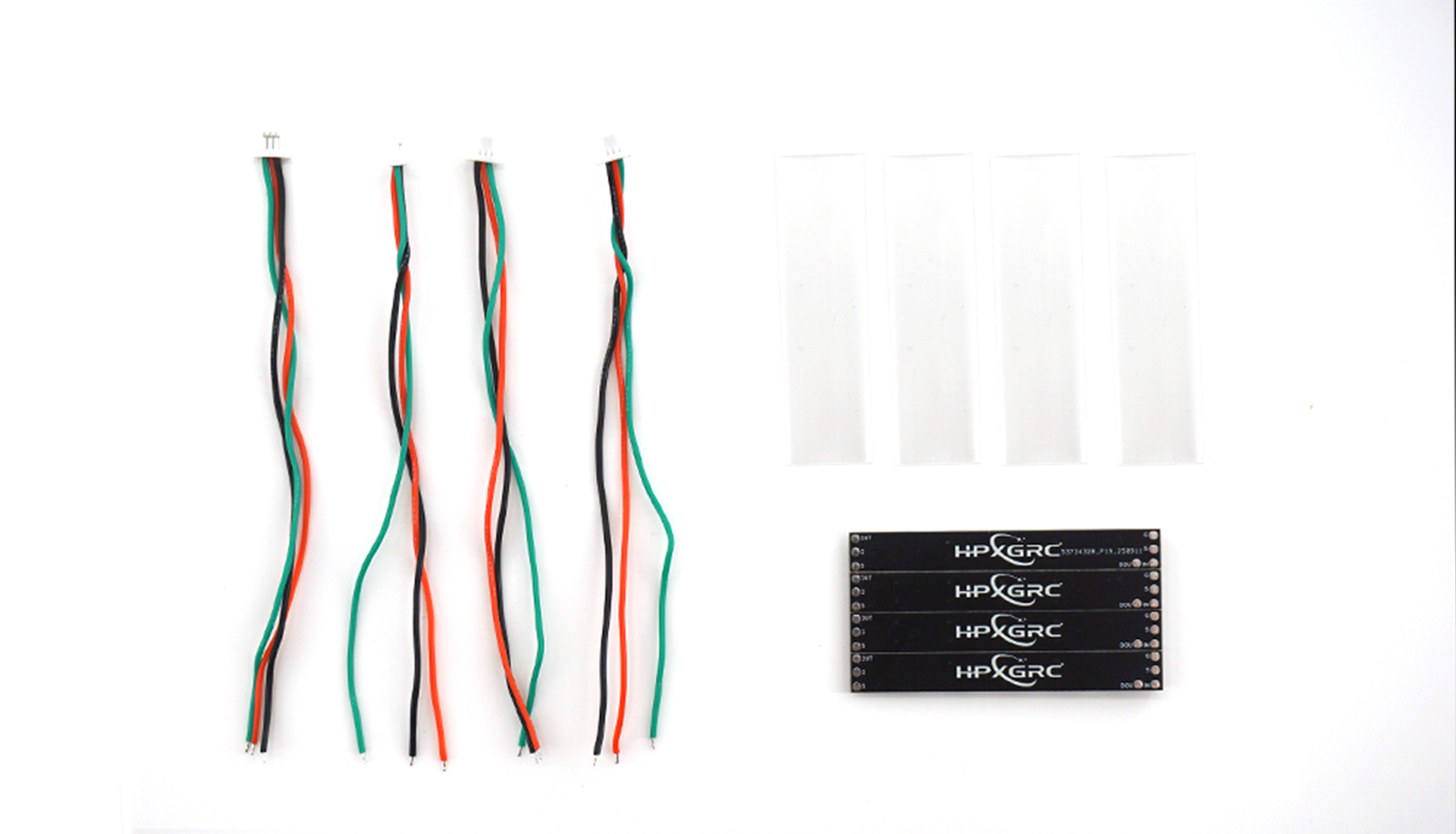

Package Included:
4x light strips
4x cables
4x heat shrink tubes
