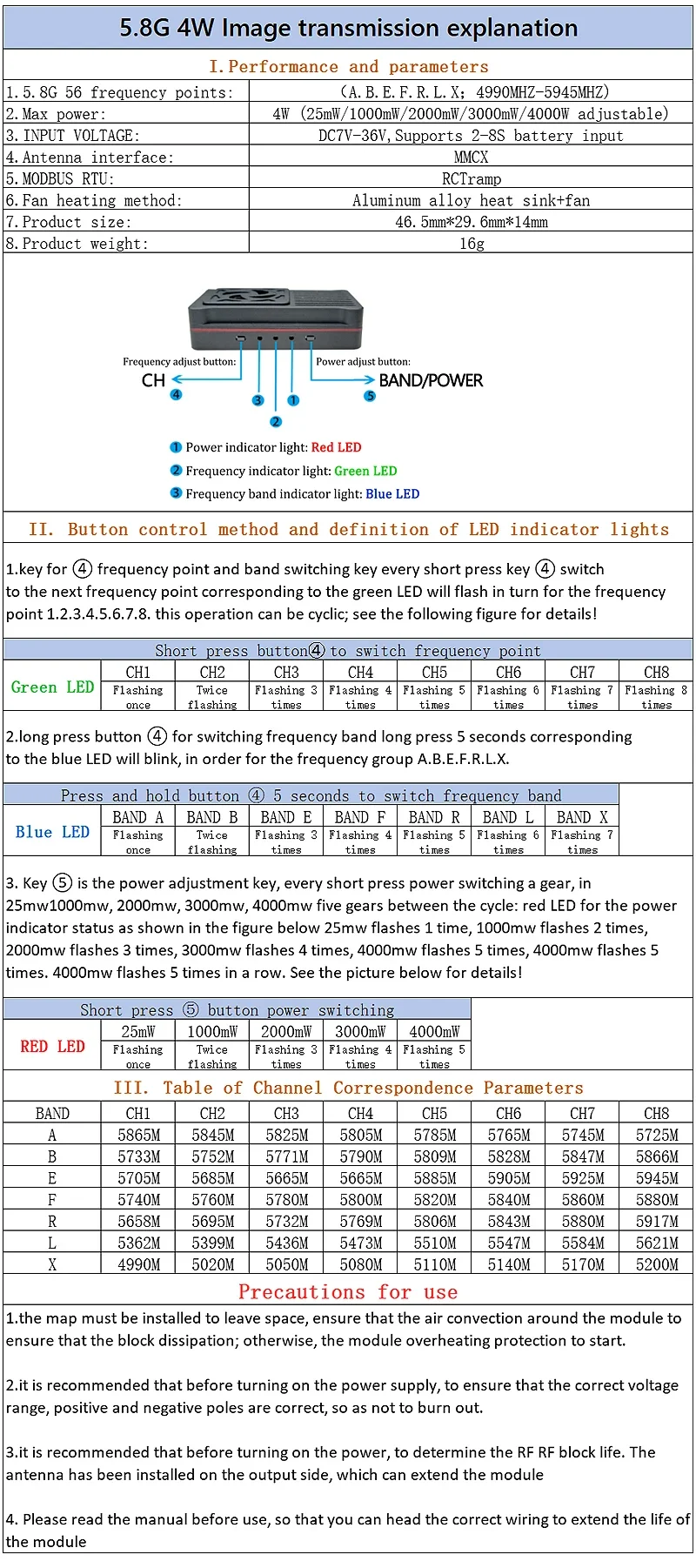

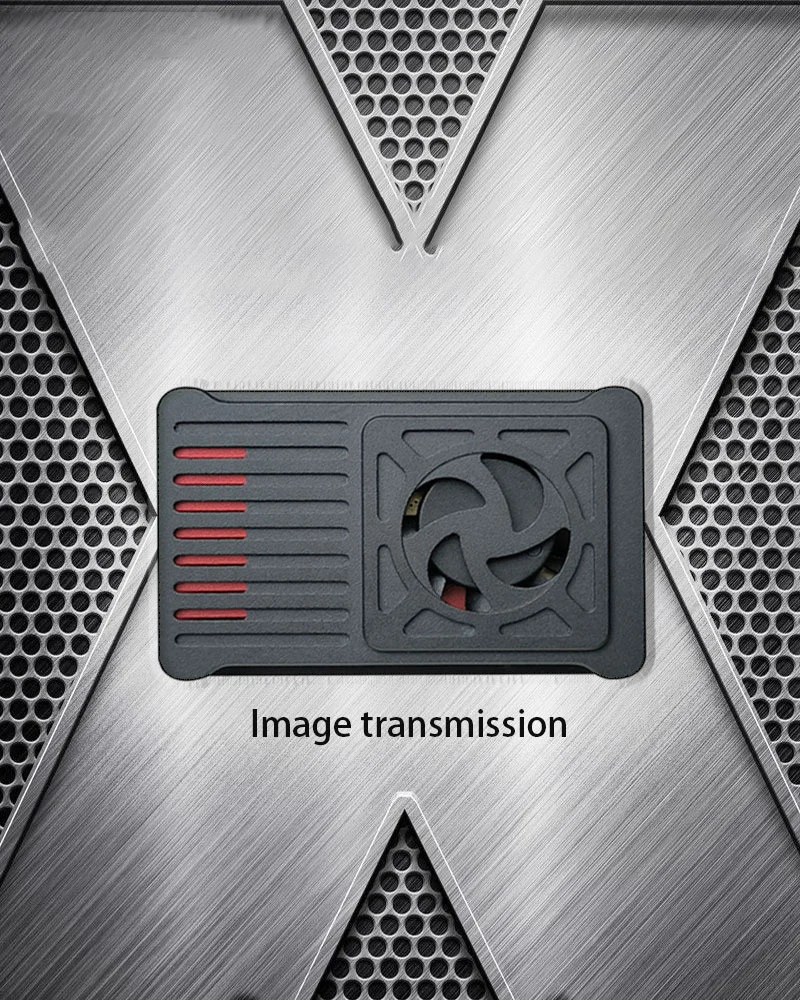

Performance and parameters
1.5.8G 56 frequency points : (A.B.E.F.R.L.X;4990MHZ-5945MHZ)
2.Max power : 4W (25mW/1000mW/2000mW/3000mW/4000W adjustable)
3.INPUT VOLTAGE : DC7V-36V,Supports 2-8S battery input

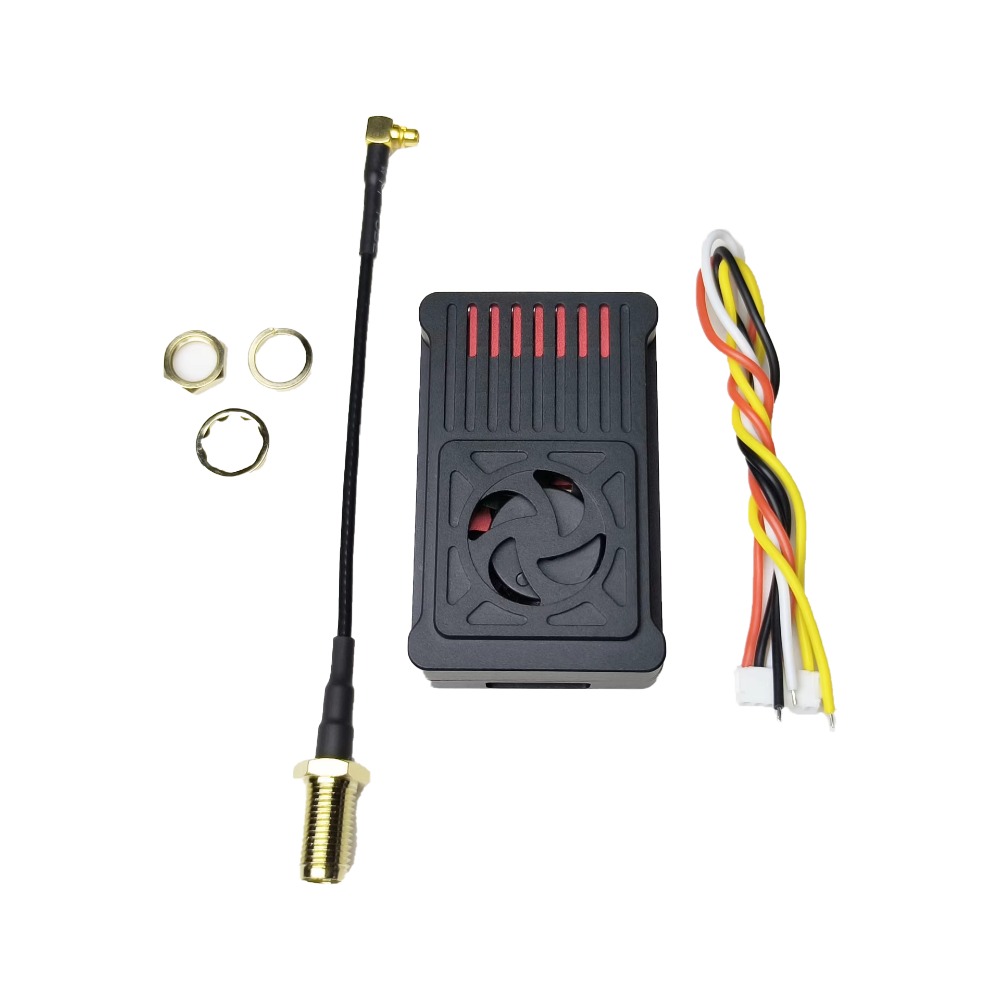

4.Antenna interface : MMCX
5.MODBUS RTU : RCTramp
6.Fan heating method : Aluminum alloy heat sink+fan

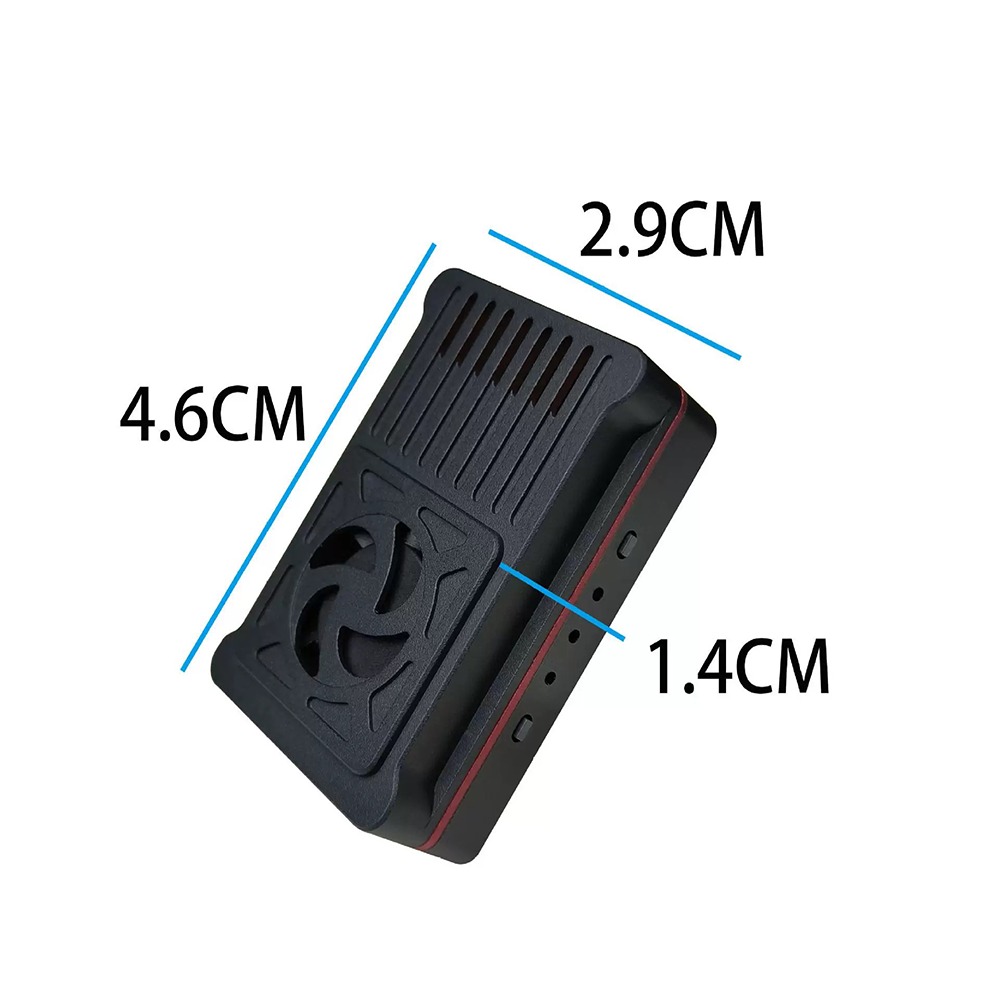

7.Product size : 46.5mm*29.6mm*14mm
8.Product weight : 16g
Precautions for use
1.the map must be installed to leave space, ensure that the air convection around the module to ensure that the block dissipation; otherwise, the module overheating protection to start.
2.it is recommended that before turning on the power supply, to ensure that the correct voltage range, positive and negative poles are correct, so as not to burn out.
3.it is recommended that before turning on the power, to determine the RF RF block life. The antenna has been installed on the output side, which can extend the module
4.Please read the manual before use, so that you can head the correct wiring to extend the life of the module
