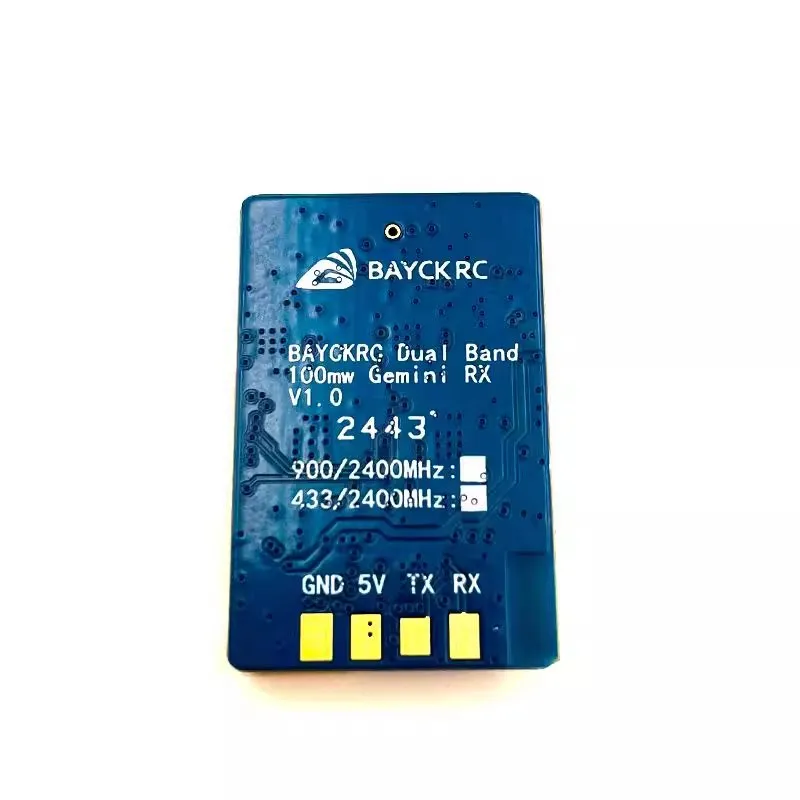

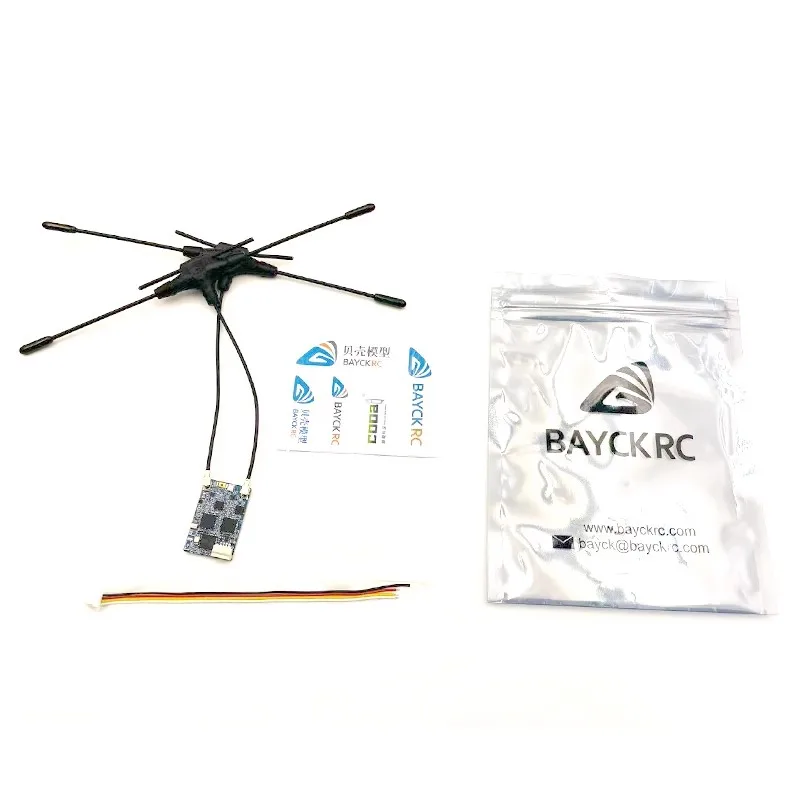

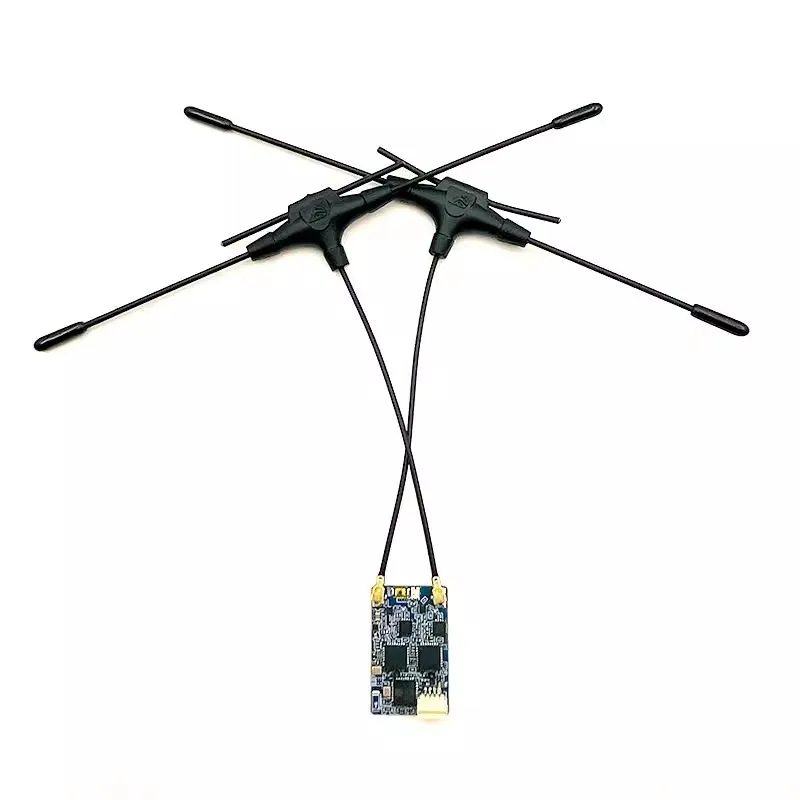

The BAYCKRC C3 Gemini RX offers 915MHz/2.4GHz dual-band performance with 100mW TX power, dual-antenna design, and eight selectable modes. Optimized for RC FPV, this receiver ensures reliable long-range control within 868-915MHz frequencies.
Features

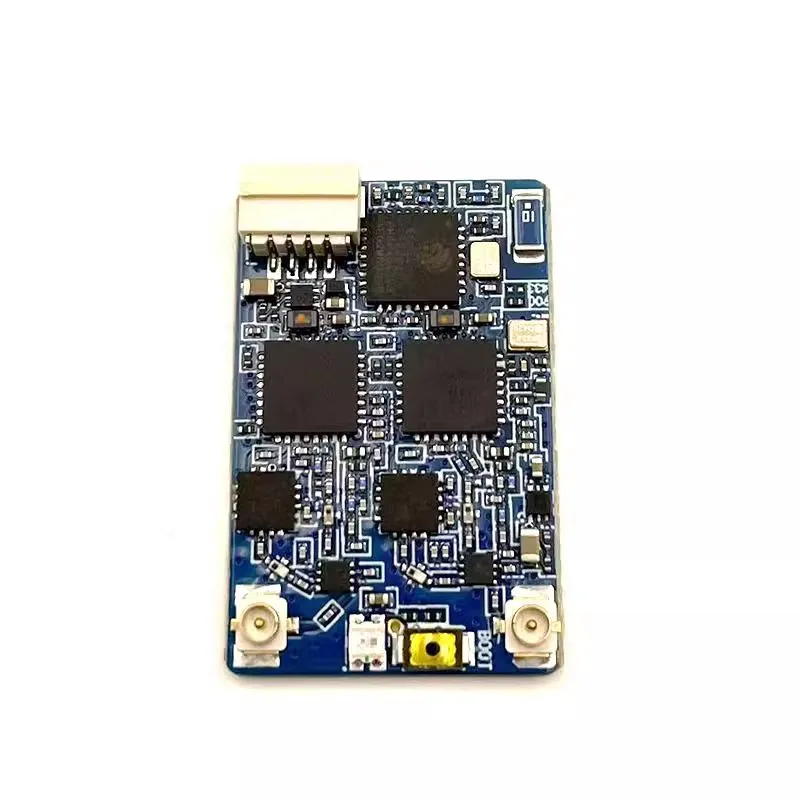

Single-sided component layout design
Featuring the Espressif ESP32-C3 (RISC-V 32-bit single-core processor, clock frequency up to 160 MHz, with 4MB built-in Flash)
2100mw@868Mhz/915Mhz/2400Mhz：

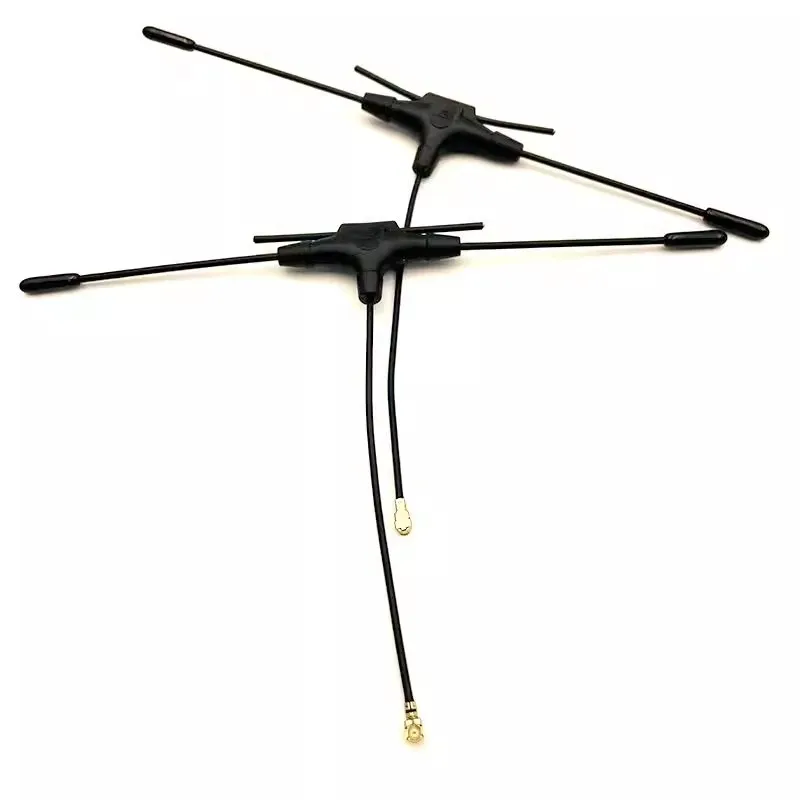

Maple Leaf custom triple-band antenna (868MHz/915MHz/2.4GHz) with return power: 2100mW@868MHz/915MHz/2.4GHz
Onboard 1.0mm 4PIN connector with locking mechanism
It can achieve 8 receiving modes:
868mhz diversity mode (dual-antenna true diversity mode)
868mhz Gemini mode (dual-antenna Gemini mode)
915mhz diversity mode (dual-antenna true diversity mode)
915mhz Gemini mode (dual-antenna Gemini mode)
2.4GHz diversity mode (dual-antenna true diversity mode)
2.4GHz Gemini mode (dual-antenna Gemini mode)
868mhz&2.4GHz dual-band GeminiX mode (dual-antenna GeminiX mode)
915mhz&2.4GHz dual-band GeminiX mode (dual-antenna GeminiX mode)
The KDS 32mhz temperature-compensated crystal ensures no frequency drift during operation from -40°C to +85°C.
Specifications
Model: BAYCKRC C3 900/2400 Dual Band 100mw Gemini RX
Name: ExpressLRS Receiver
RF Freq: 868Mhz/915Mhz/2.4Ghz
IC: 2*LR1121+ESP32-C3+TCXO
TX Power: 2*100mw@868Mhz/915Mhz/2.4Ghz
Color: Blue
Connector: 2*IPEX 1
Input Power: 3.6-5.5V
Weight: 1.6g(receiver only)
Size: 17mm*26.5mm
