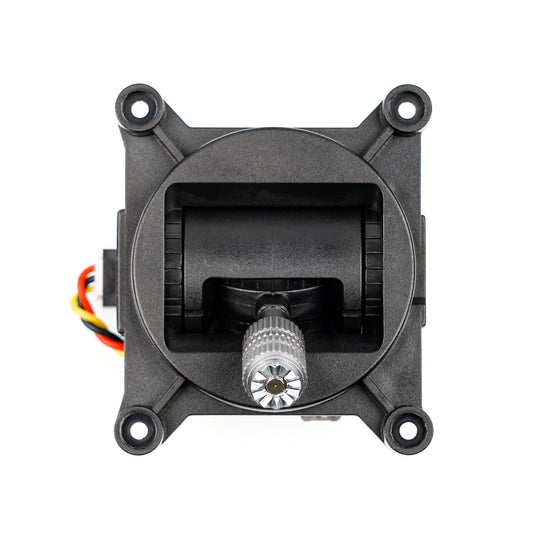

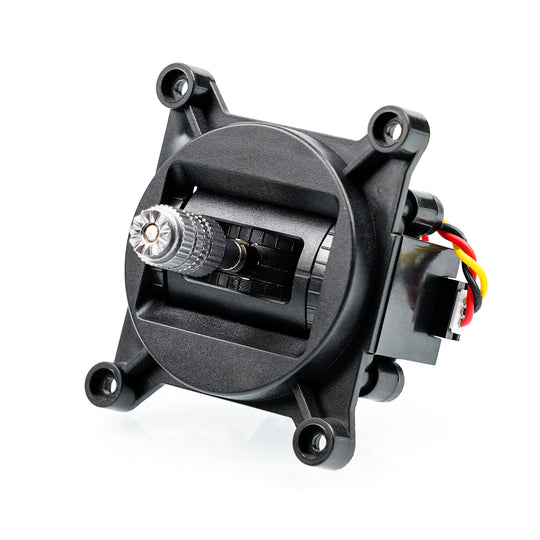

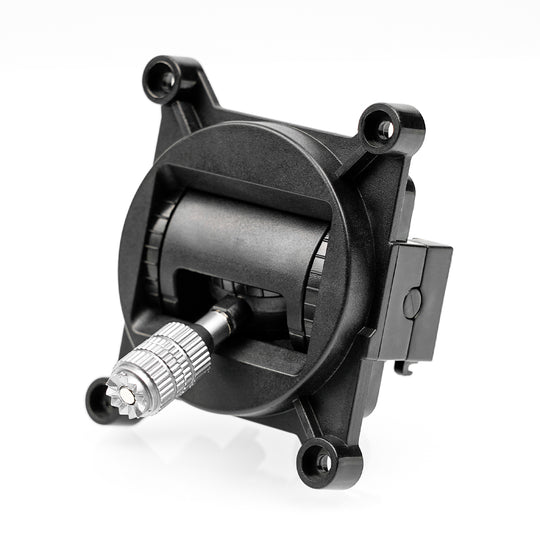

BETAFPV LiteRadio Transmitter Nano Gimbal

Original joystick gimbal for LiteRadio 3 & LiteRadio 2 SE. Durable, enhances flight experience; wired design for easy replacement. Ideal for replacement/upgrade—stable performance at a reasonable price.

Key Benefits (Bullet Points)

• Material & Feel: High-quality plastic + metal. Ergonomic, detachable, anti-slip stick ends with adjustable height.

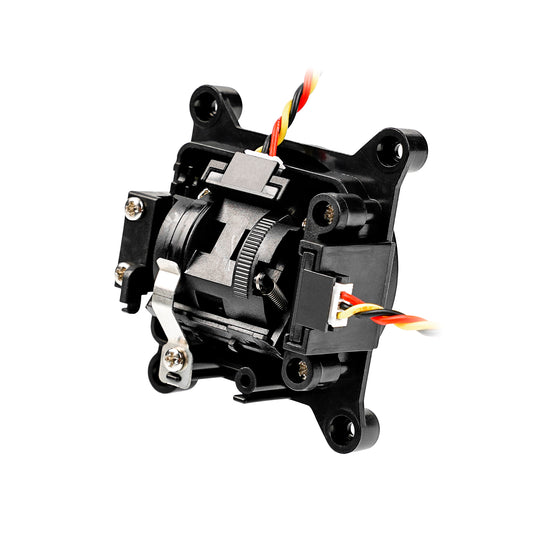

• Durability: Potentiometer gimbal offers long life (up to 120k rotations). Wired design simplifies replacement.

• Precision Control: Potentiometer ensures accurate positioning and fast response sensitivity for smooth flight.

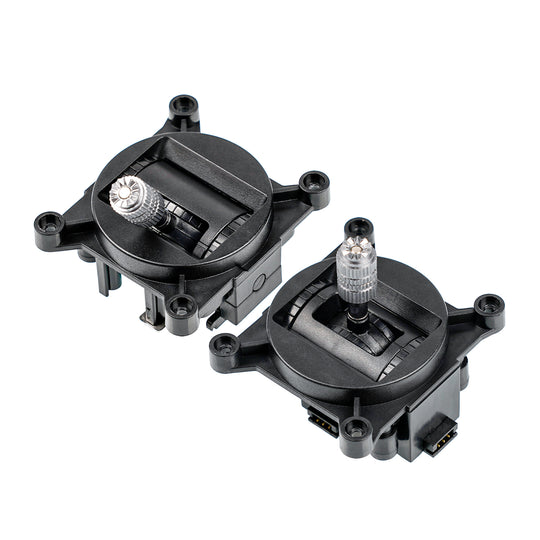

• Function Notes: Throttle/yaw stick (acceleration) does not auto-center; pitch/roll stick (direction control) auto-centers.

Specifications

• Item: LiteRadio Transmitter Nano Gimbal

• Sensor: Potentiometer

• Color: Black

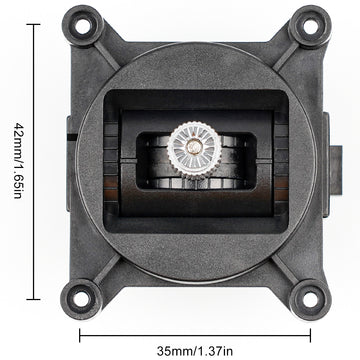

• Size: 35mm × 42mm

• Recommended Transmitters: LiteRadio 3, LiteRadio 2 SE

Wiring Diagram

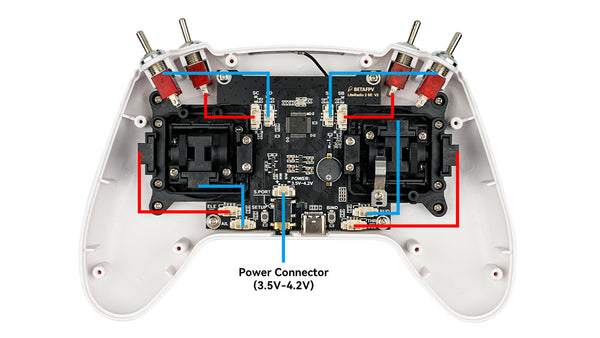

Below is the connection diagram for potentiometer gimbal. Here is the example on Literadio 2 SE (mode 2).

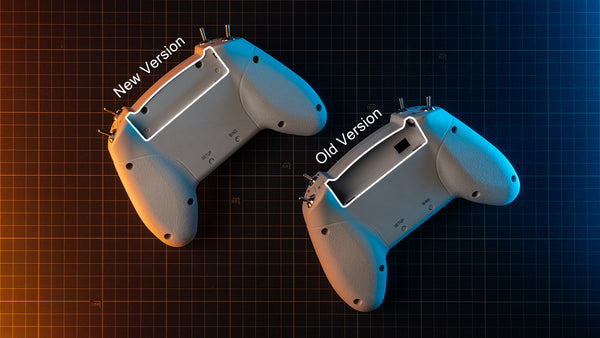

Parts of the battery bay should be cut if the LiteRadio 2 SE is an old version. The cutting parts depend on where the throttle gimbal is installed. For the new version of LiteRadio 2 SE, it can be replaced the gimbal normally.

Note: The parts of the battery bay should be cut too if you are ready to replace gimbals for LiteRadio 2. Please refer to the old version of LiterRadio 2 SE about the cutting parts.

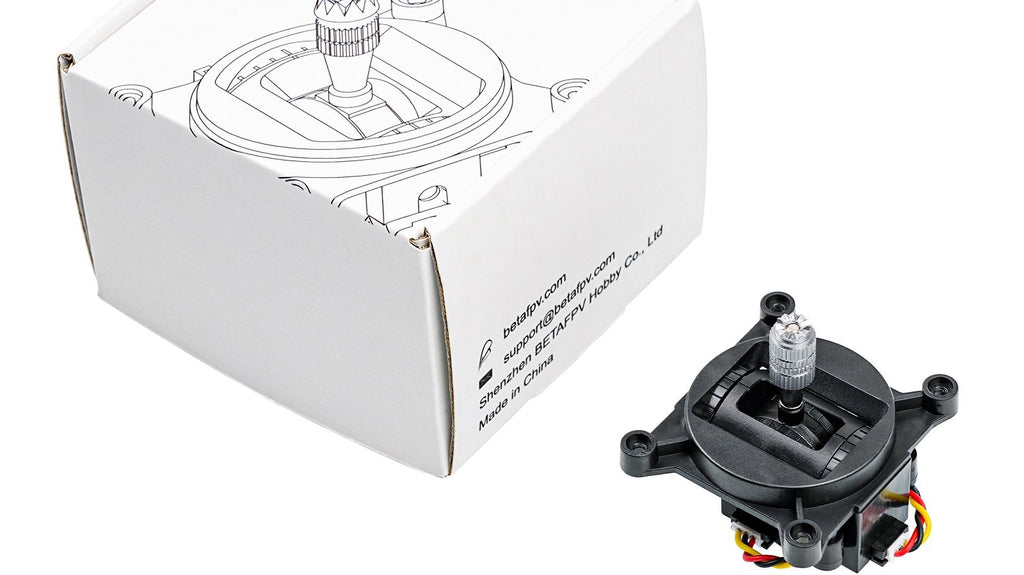

Package

• 1 * LiteRadio Transmitter Nano Gimbal (Throttle/Yaw Stick or Pitch/Roll Stick)
