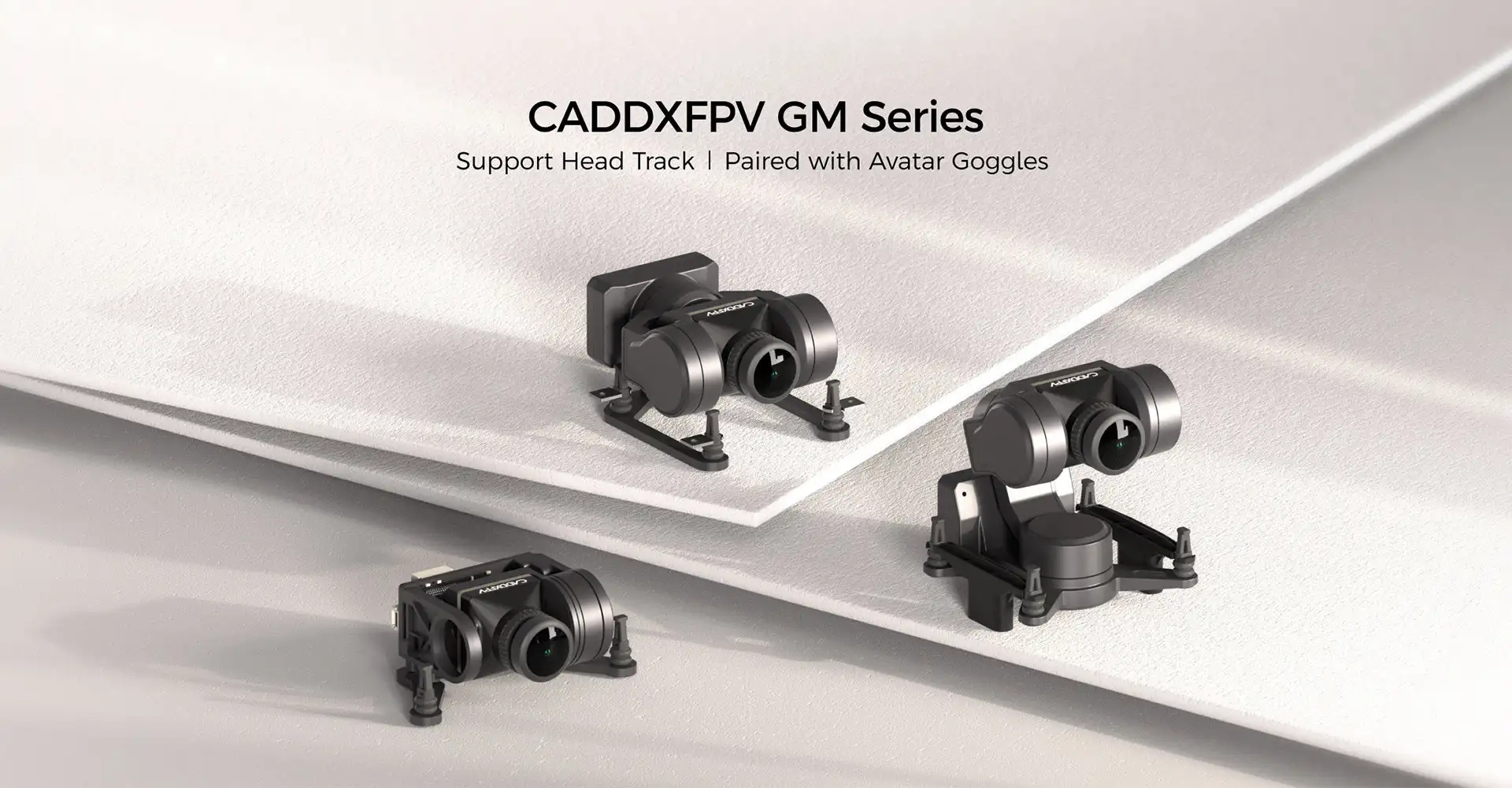

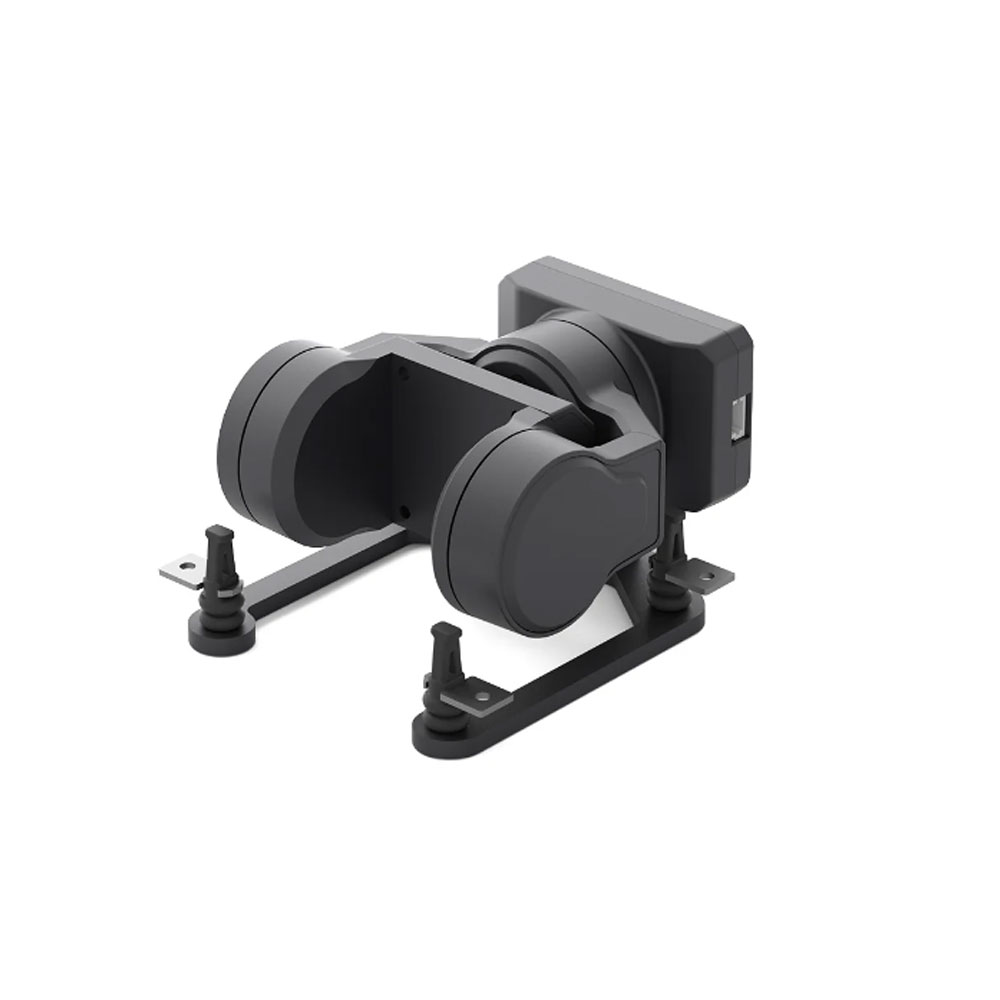

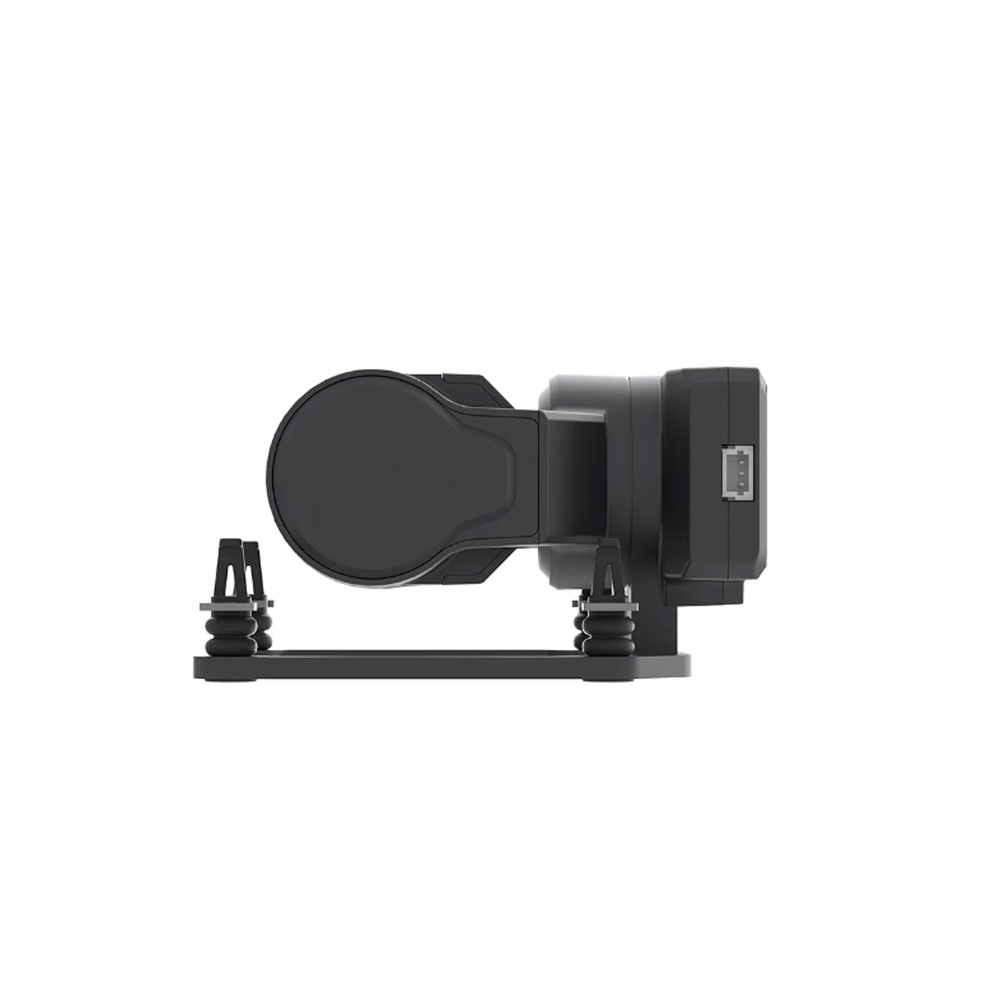

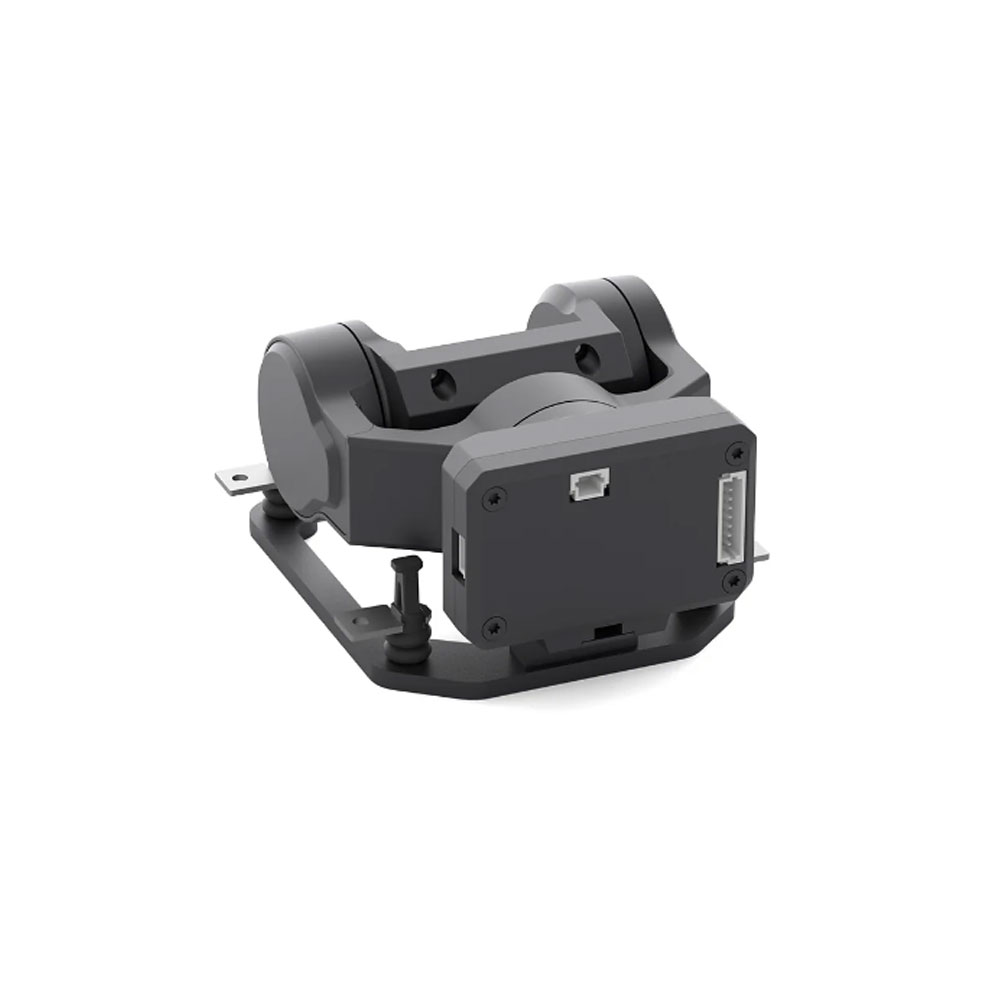

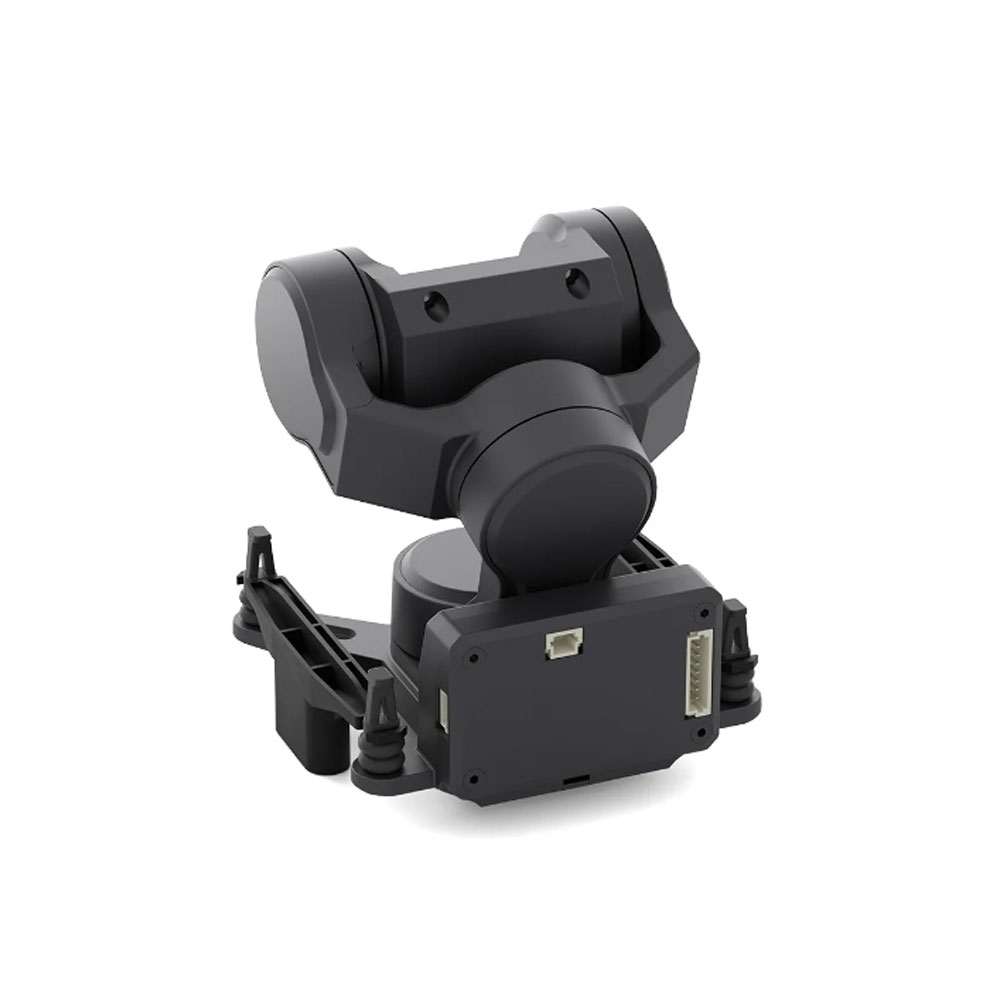

CADDXFPV GM Series FPV Gimbal GM1 / GM2 / GM3 (No Camera) Gimbals

ACP6066
¥453.00 CNY 起
¥528.00 CNY
结账时计算运费
有货
Options
数量
  • Fast shipping, worldwide delivery | Refund for lost or damaged packages

  • Worry-free after-sales service | Easy returns and exchanges

  • Quality Assurance | Official Warranty

  • Security and Privacy | Every transaction is protected

  • Professional Support | 24-hour response

Based on pilots feedback and implement head tracking function of goggles, our R & D department team has designed gimbals specifically for FPV cameras. This series includes three models: single-axis, dual-axis, and tri-axis, catering to various user needs. The design of the gimbal is primarily aimed at enhancing the pilot's experience, providing them with stable, smooth images, allowing them to easily capture stunning aerial videos and photos. With the addition of the head tracking function, it creates an immersive feeling.

Features:

Enhanced FPV Experience

Head Tracking Functionality

Exceptional Stability

Quick Assembly

Compatibility

Flexibility

Bullet Points:

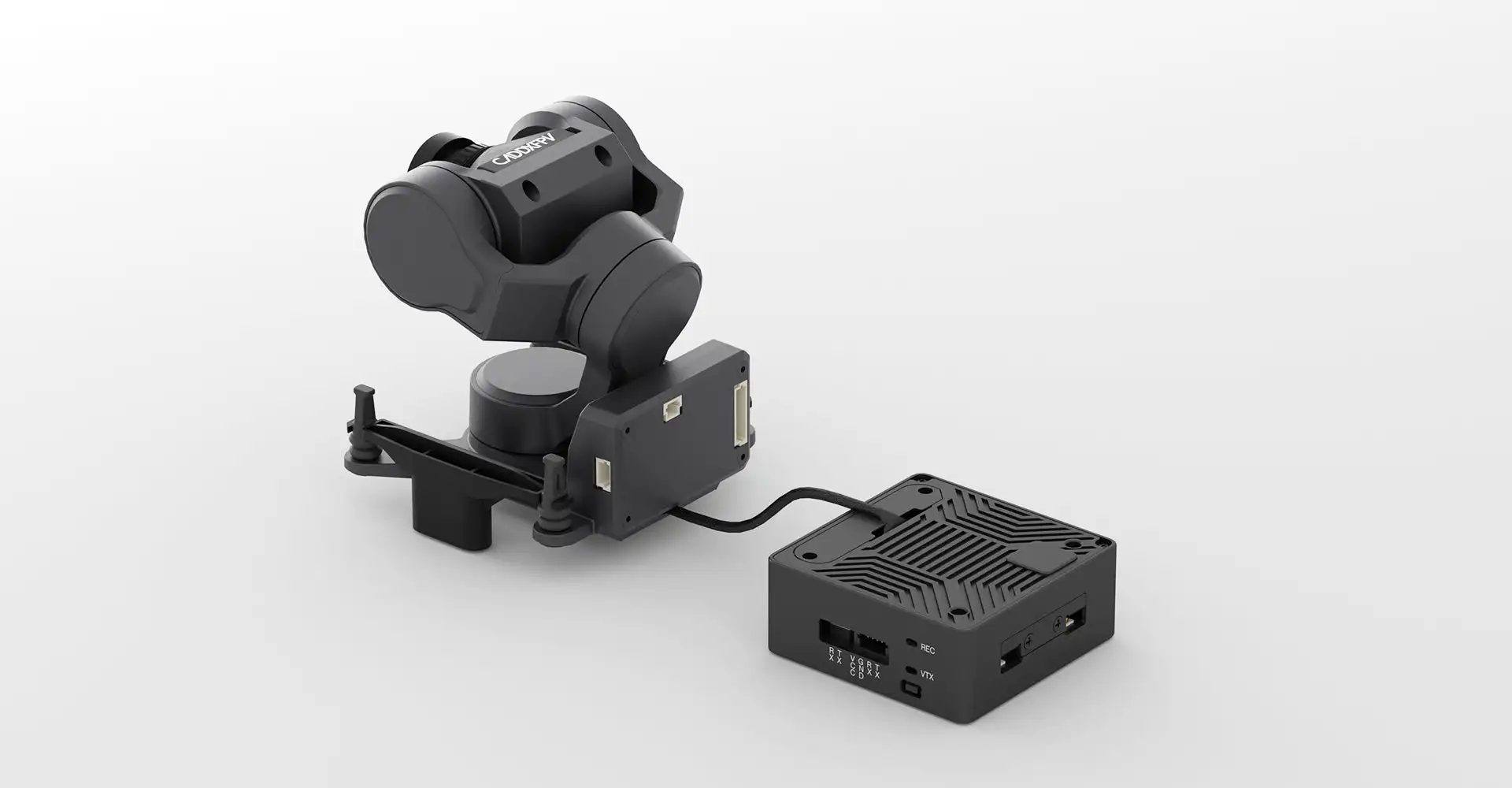

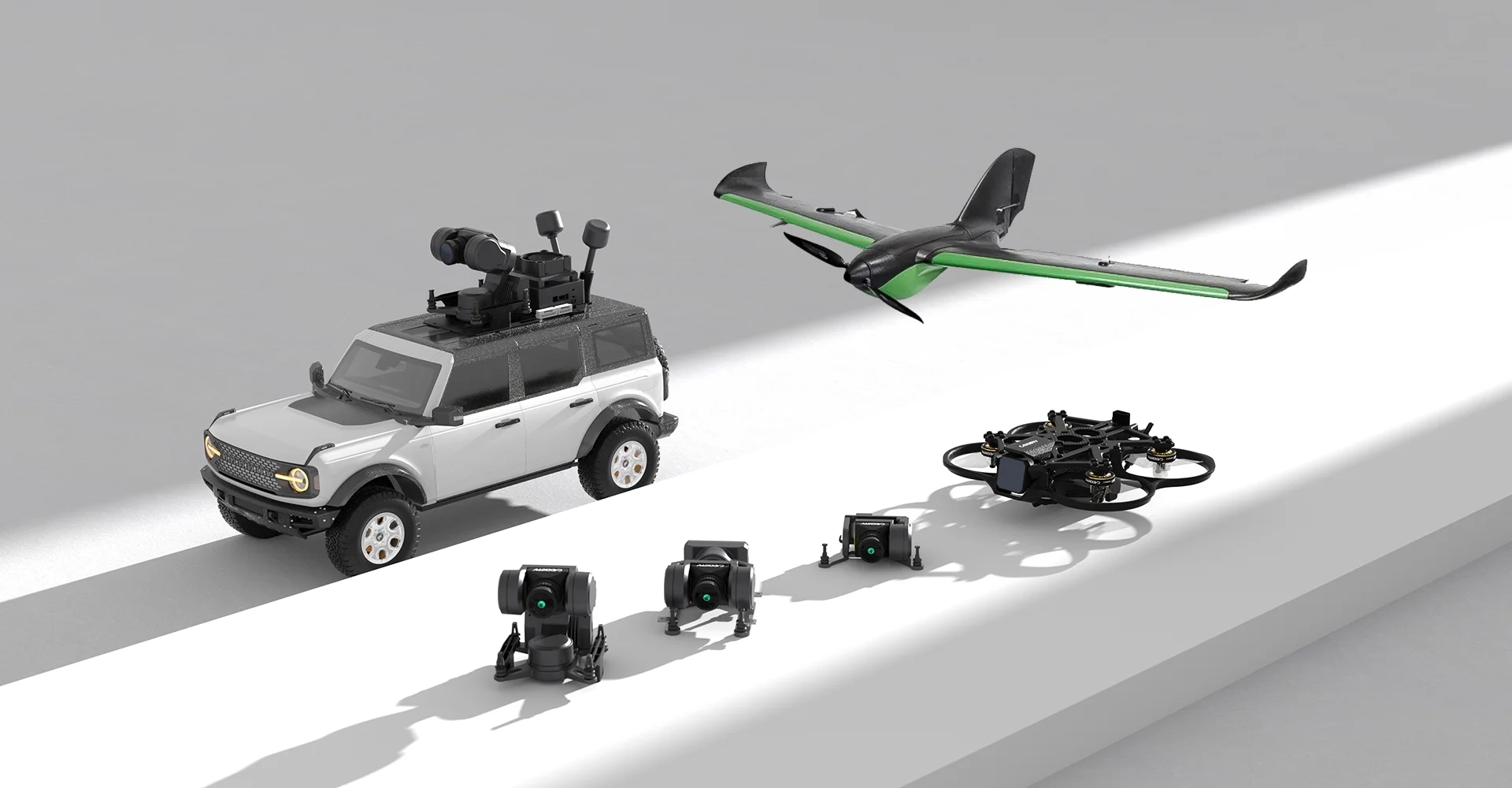

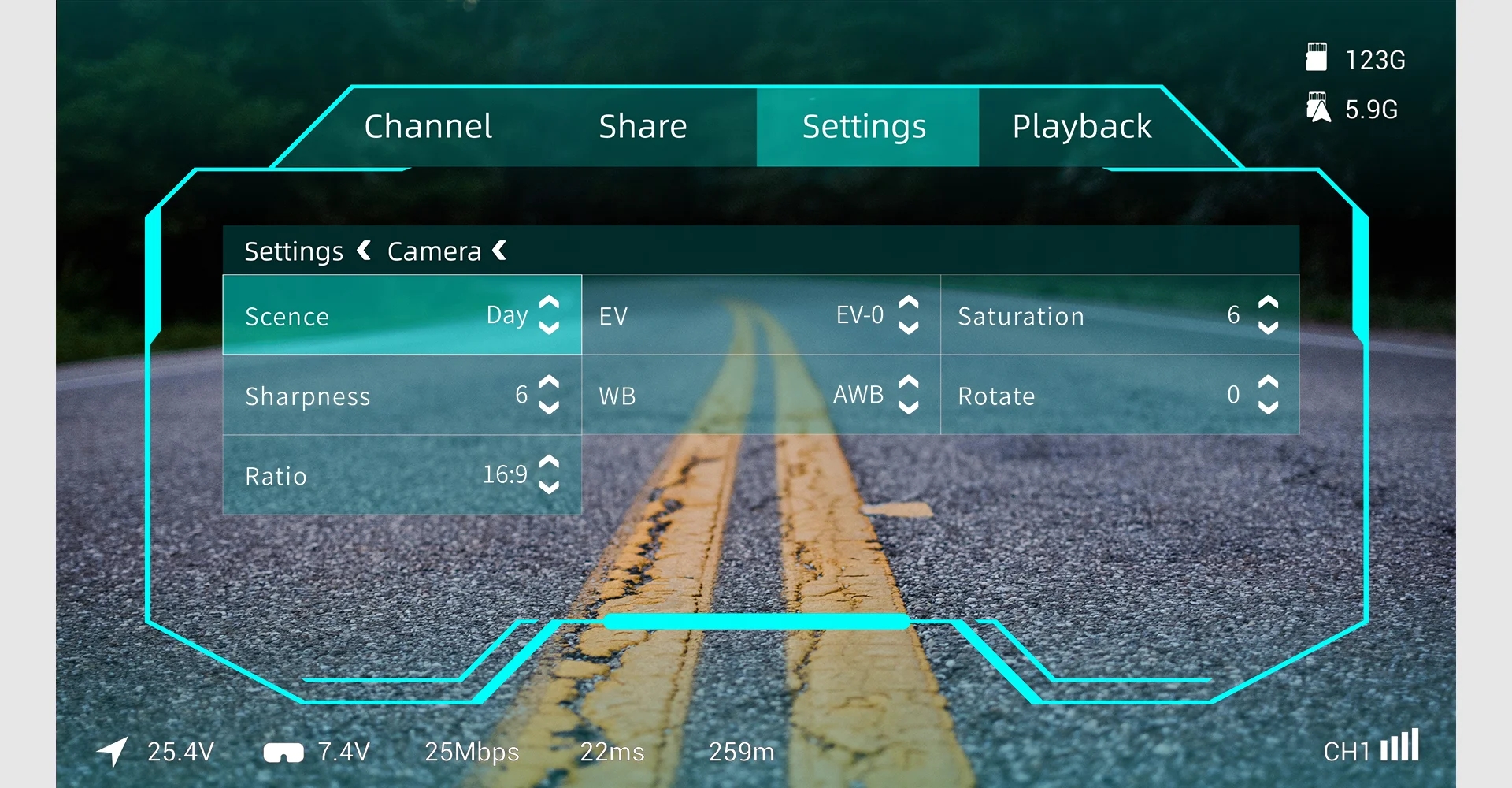

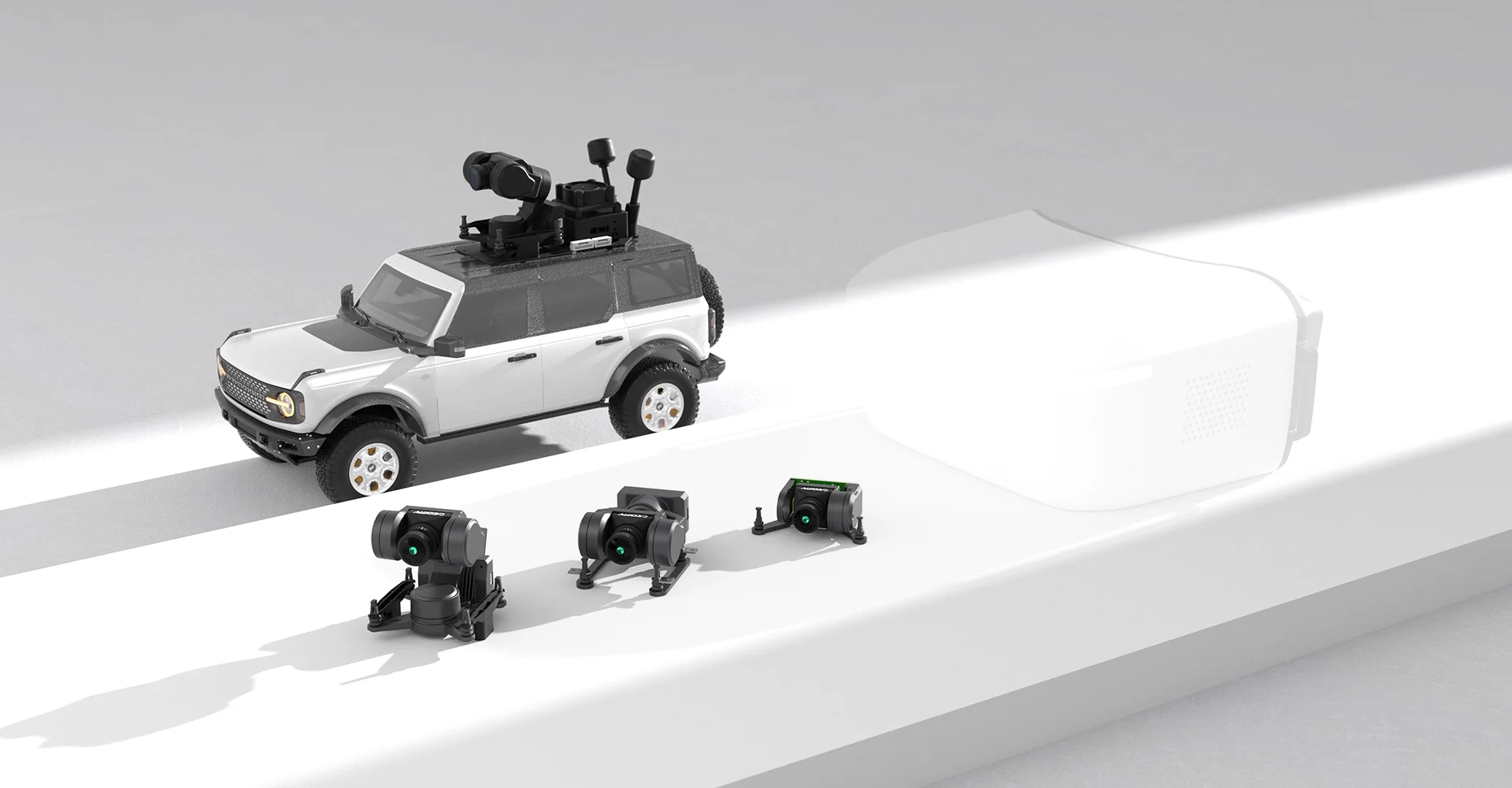

CADDXFPV gimbal is designed to work perfectly with Avatar HD goggles, enabling head tracking functionality. This feature allows the gimbal to follow the movement of your head, making you feel as if you are in the cockpit, enhancing your FPV adventures with unmatched realism and control.CADDXFPV gimbal uses advanced mechanical stabilization to effectively reduce camera shake during flight, ensuring clear and smooth footage even in unstable environments.Easily manage gimbal modes and sensitivity through the Avatar goggles menu or via PWM controls, giving you precise control over your gimbal's behavior.No matter if you are using an FPV drone, RC FPV Wing, or RC car, CADDXFPV gimbal series provides the perfect solution for your needs. The gimbal's broad compatibility ensures it fits seamlessly with various FPV setups. Enhance your FPV experience with unparalleled stability and control, and capture stunning footage every time. Equipped with a coaxial cable to connect with VTX, enabling seamless head tracking functionality, and ensuring a fully immersive FPV experience. The quick assembly process makes it simple for anyone to set up and start using the gimbal.Equipped with a coaxial cable to connect with VTX, enabling seamless head tracking functionality, and ensuring a fully immersive FPV experience. The quick assembly process makes it simple for anyone to set up and start using the gimbal.

Specification



Model

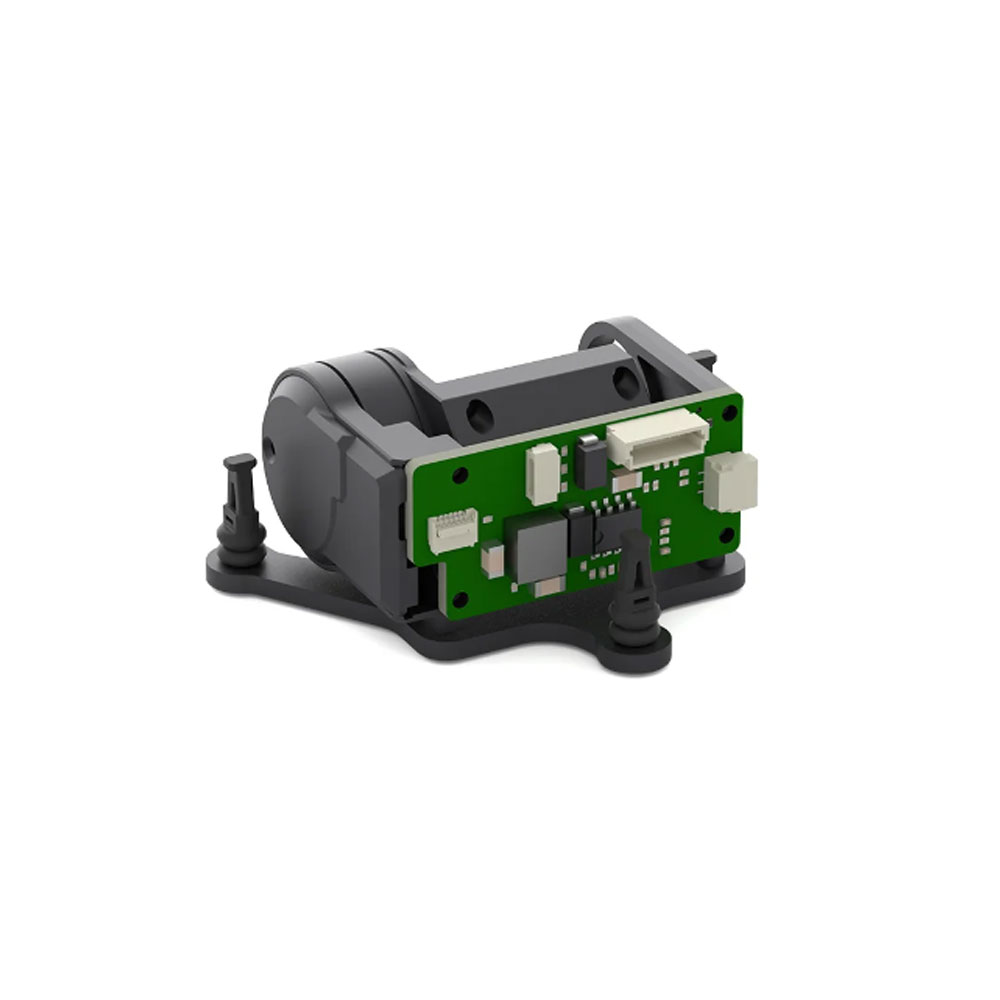

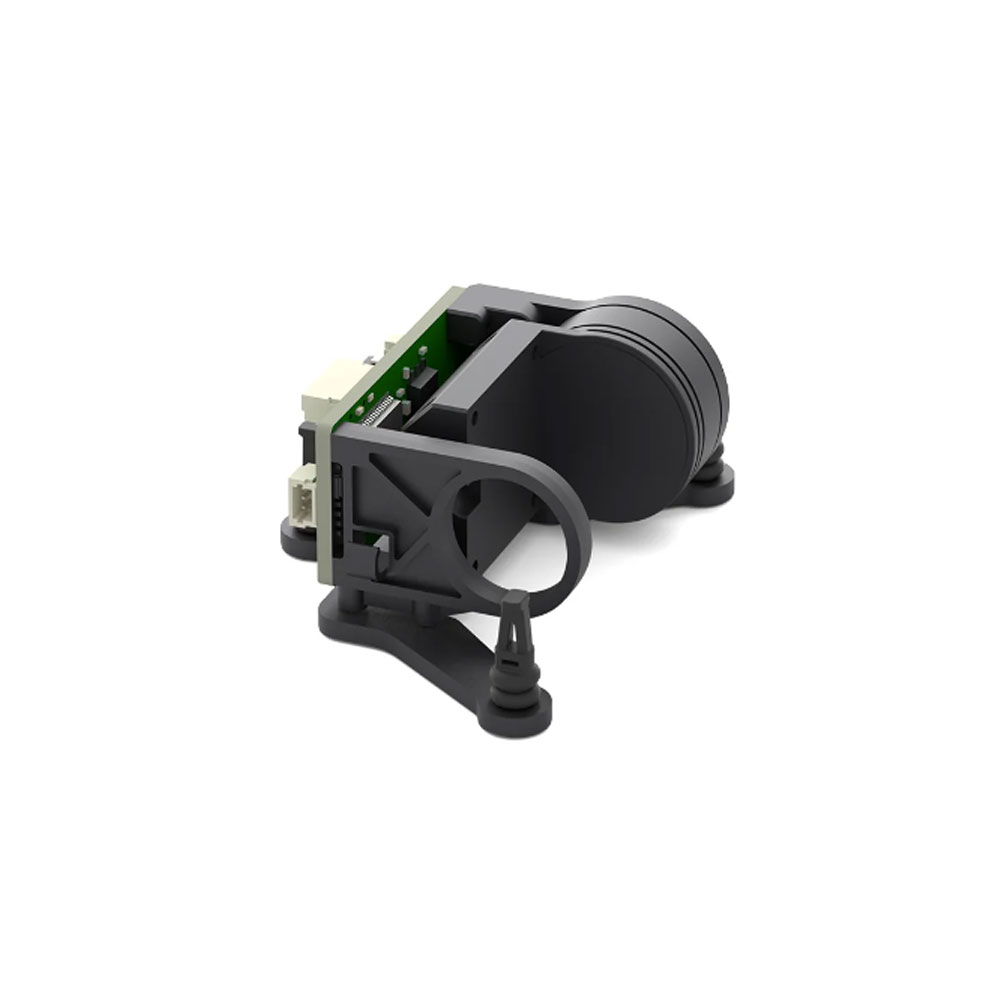

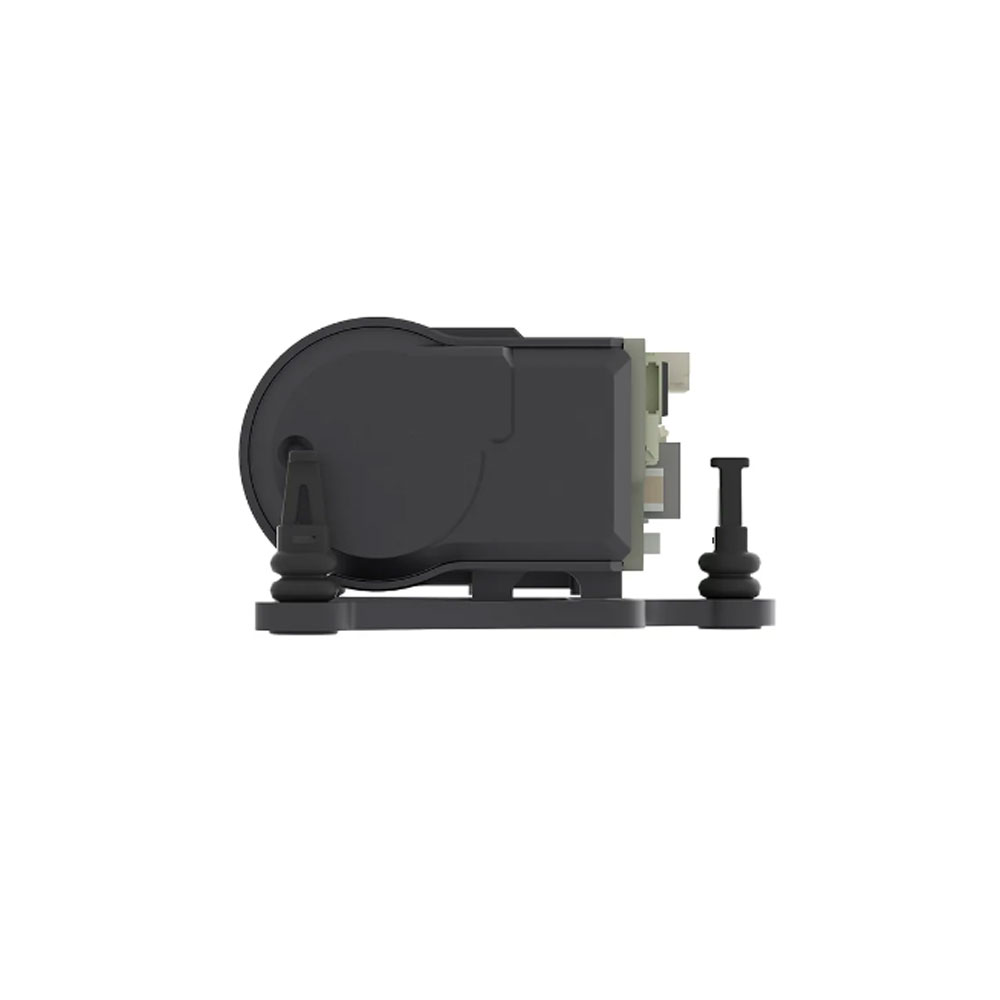

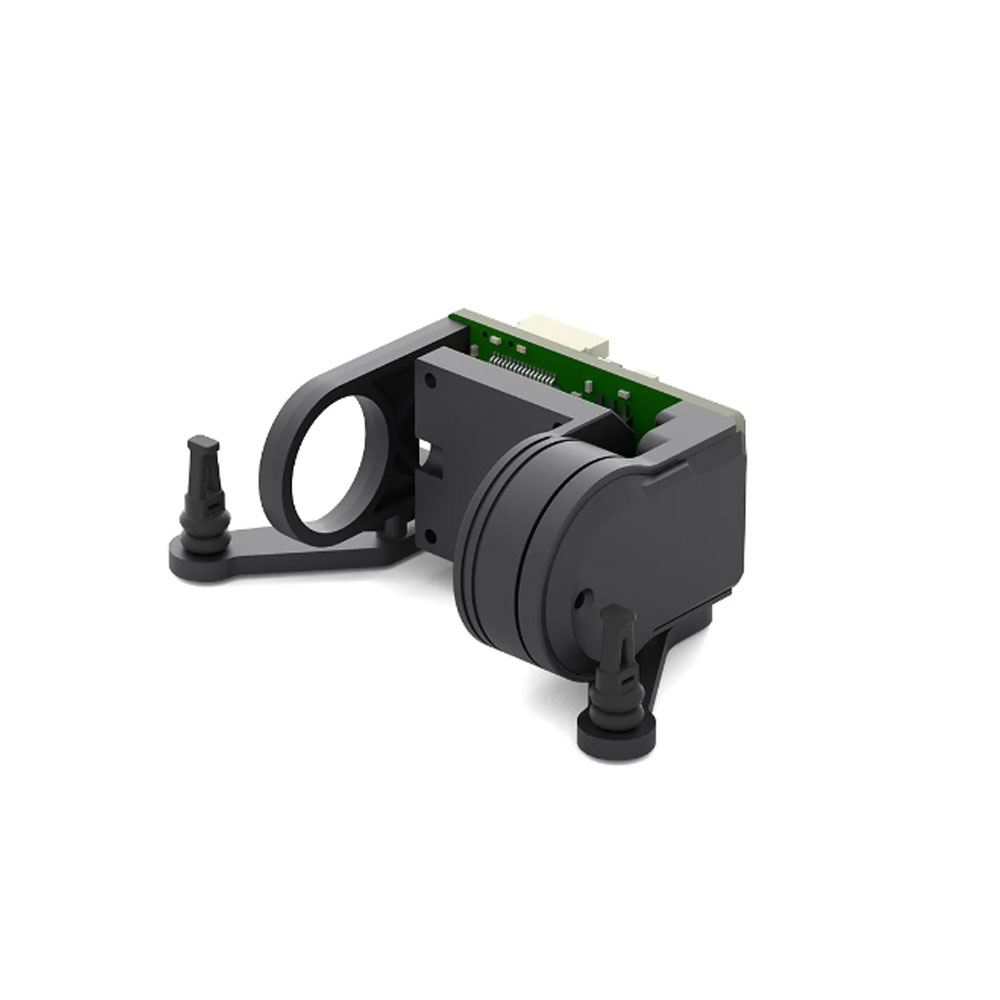

GM1

Camera Compatibility

19mm FPV Camera

Image Stabilization

±0.005°

Max Controllable Speed

±1500°/s

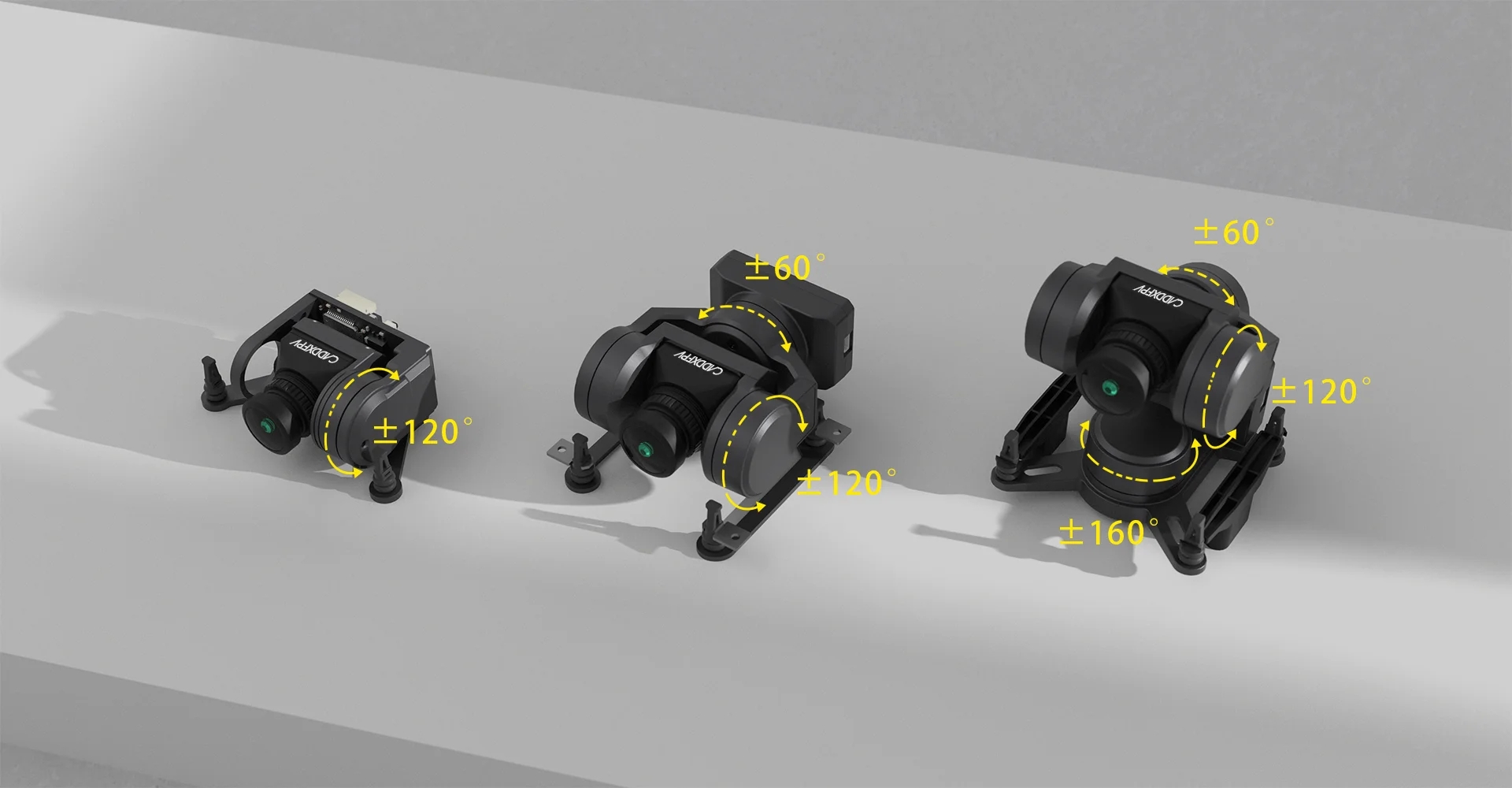

Max Controlled Rotational Range

pitch: ±120°

Size

32.2x38.1x20.5mm

Weight

16g

Control Mode

PWM /UART

Head Tracking Control

Support

Voltage

7~26V

Static Power Dissipation

1.0W

Model

GM2

Camera Compatibility

19mm FPV Camera

Image Stabilization

±0.005°

Max Controllable Speed

±1500°/s

Max Controlled Rotational Range

Pitch: ±120°, Roll: ±60°

Size

46.7x46.5x26.2mm

Weight

30g

Control Mode

PWM /UART

Head Tracking Control

Support

Voltage

7~26V

Static Power Dissipation

1.2W

Model

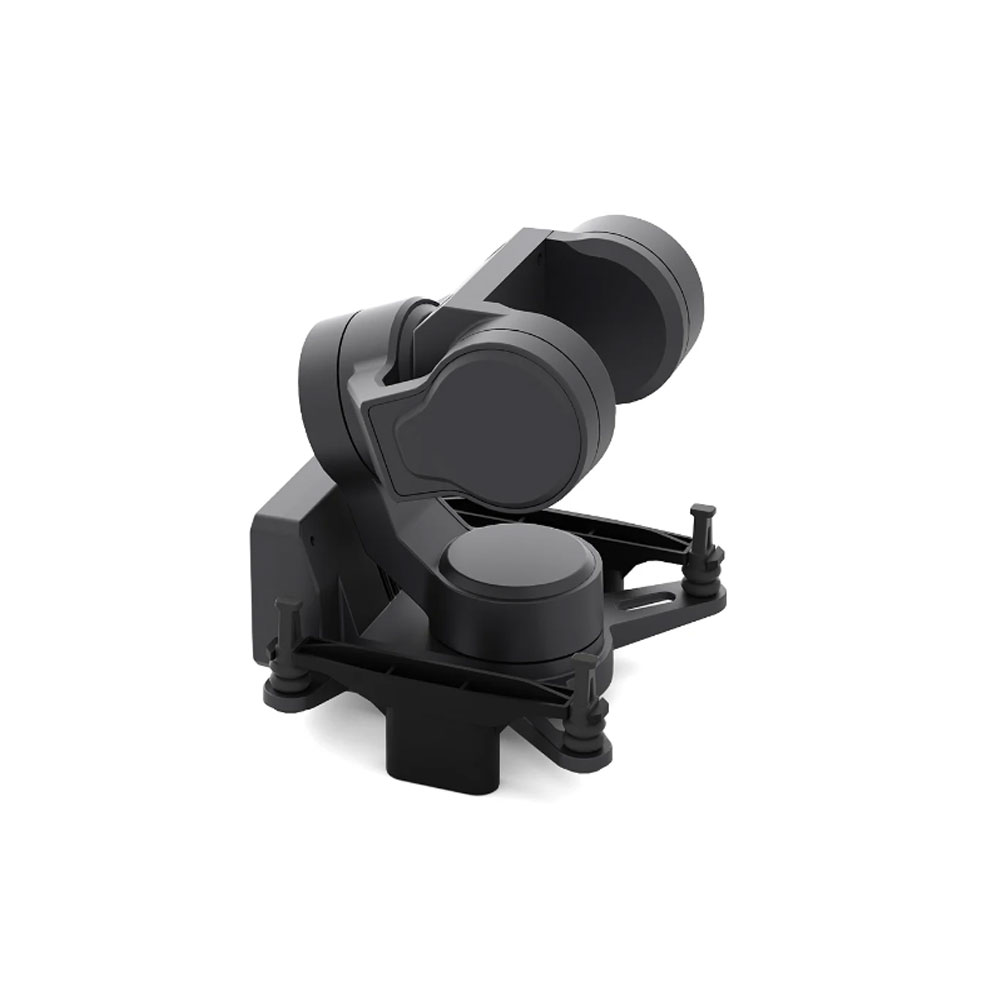

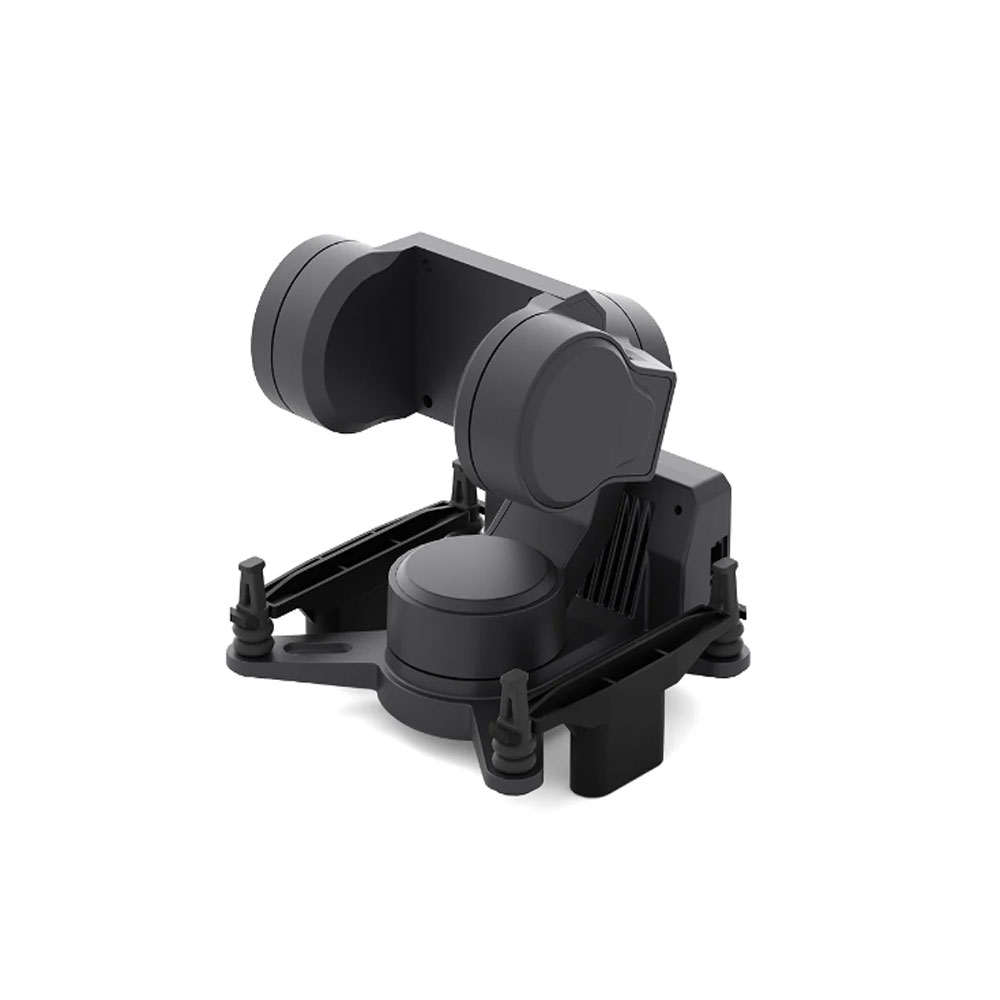

GM3

Camera Compatibility

19mm FPV Camera

Image Stabilization

±0.005°

Max Controllable Speed

±1500°/s

Max Controlled Rotational Range

Pitch: ±120, Roll: ±60, Yaw: ±160°

Size

50x46.5x53mm

Weight

46g

Control Mode

PWM /UART

Head Tracking Control

Support

Voltage

7~26V

Static Power Dissipation

1.5W

Packing List



GM1/GM2/GM3

X1

Power Cable

X1
