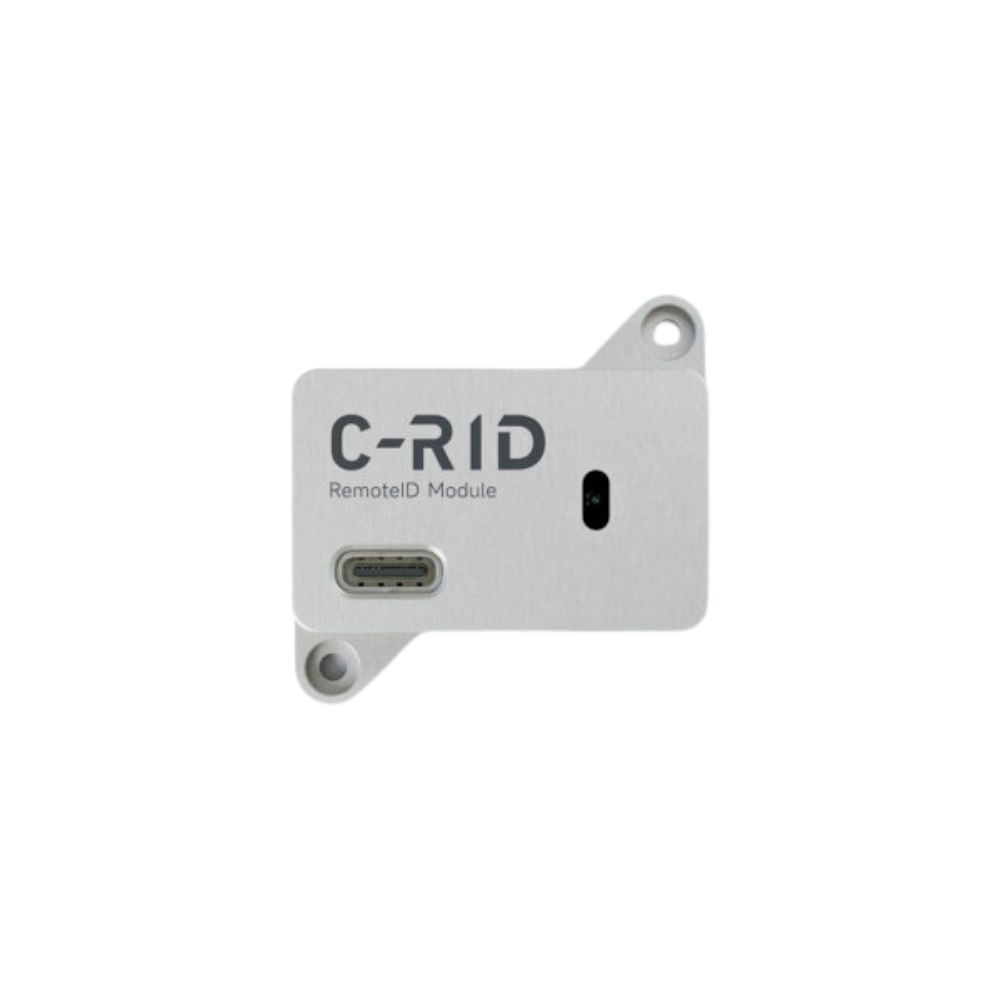

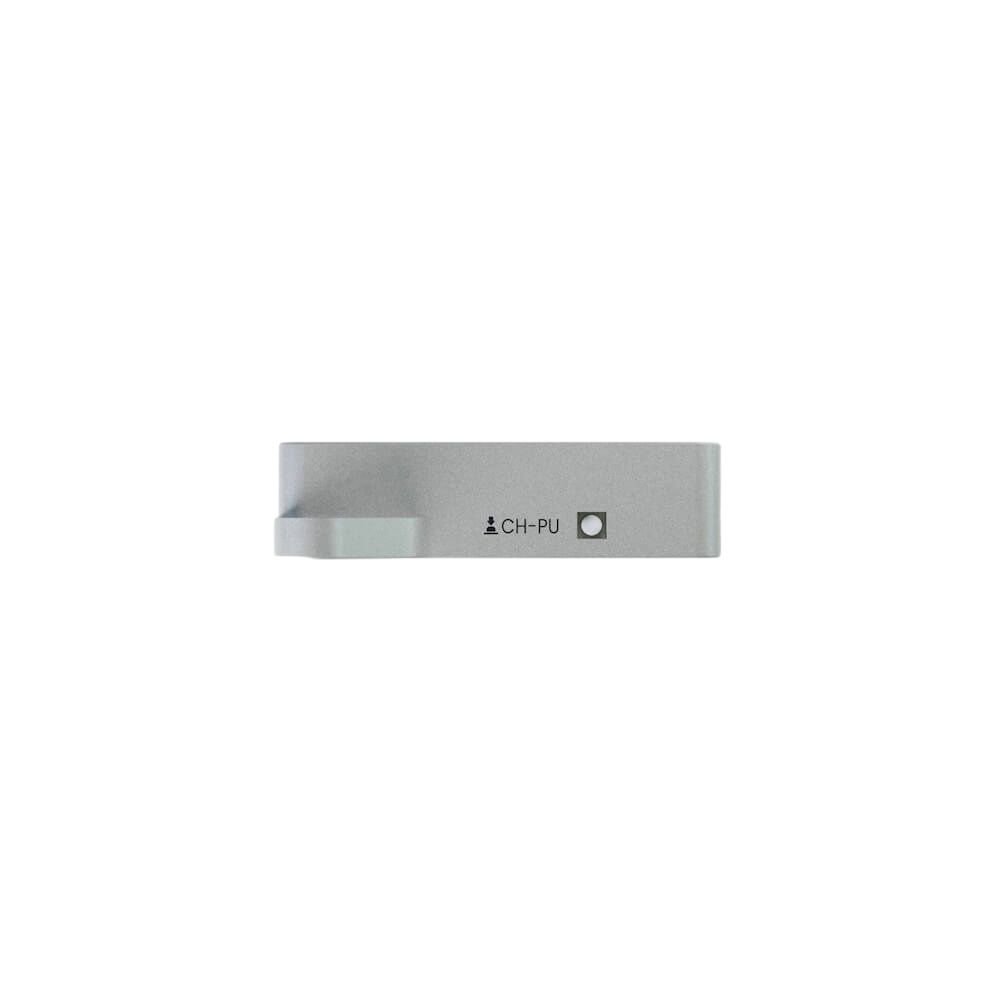

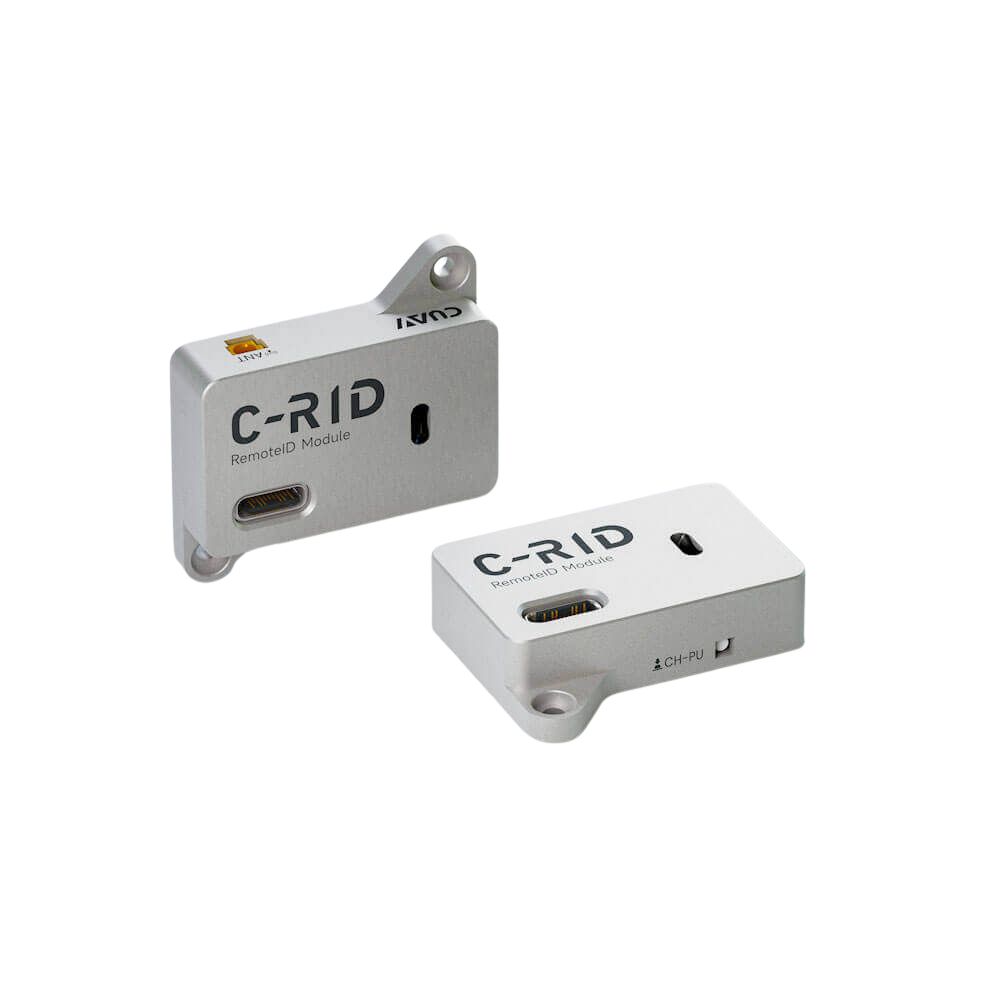

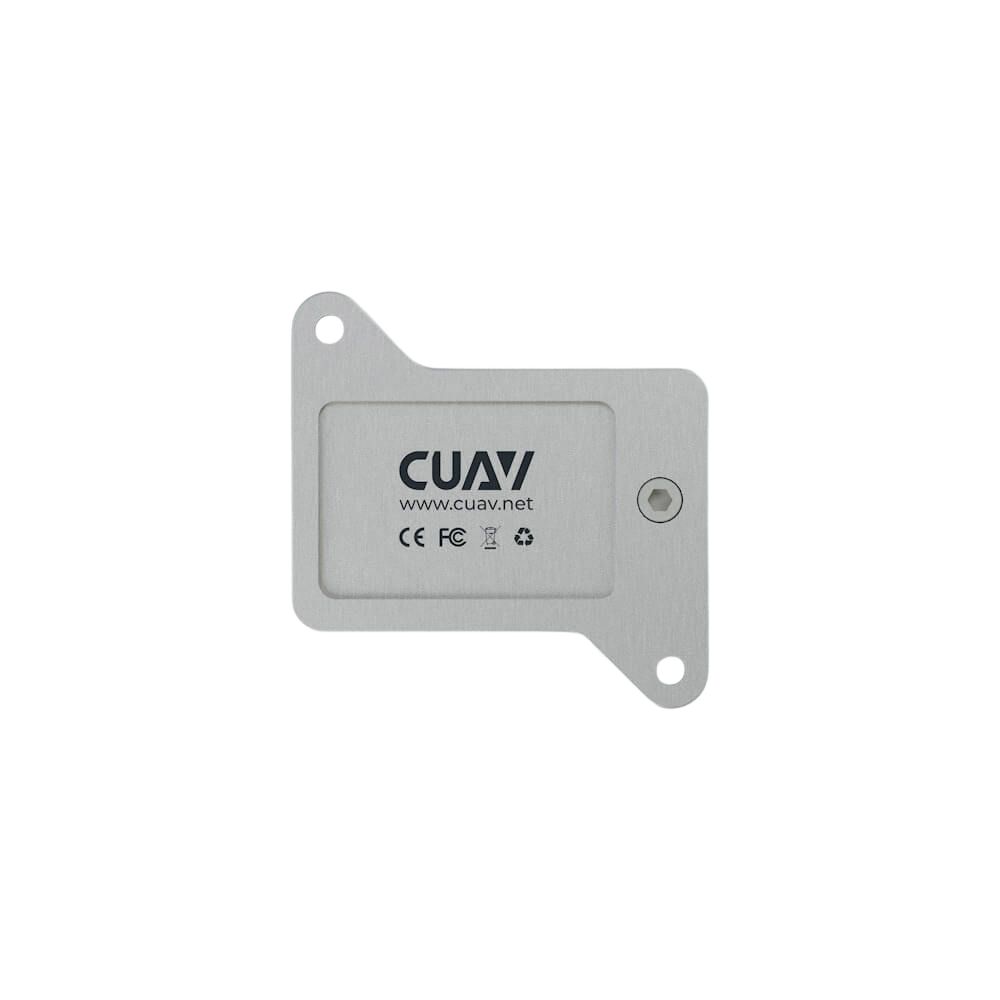

CUAV C-RID Drone Remote ID Broadcast Module

C-RID is a unique product identification code broadcasting module of drones, which can help drones comply with regulatory requirements of some countries / regions.

C-RID Product Feature：
1– Identification Code for Compliant Products ofDrones
2– Domestic Dual-Core MCU Break through Performance Boundaries
3– Long-Range Broadcast, Wider Coverage
4– Lightweight Design, Compact Size
5– Support DroneCAN Bus and UART Serial Communication
6– Cooperate with LGC to Setand Analyze Broadcast Data
7– Security Reinforcement and Defense Enhancement
8– ArduRemotelD Standard Hardware Compatible with ArduPilot and PX4

C-RID Product Parameter：
Processor：Xtensa® 32-bit LX7 dual-core processor
Protocol：DroneCAN/UART(MAVLink)
Communication Frequency：2.4GHz
Communication Mode：Wi-Fi or Bluetooth Broadcast
Range：>300m
Transmit Power：20dBm
Firmware：ArduRemoteID (Support OTA Online Upgrade)

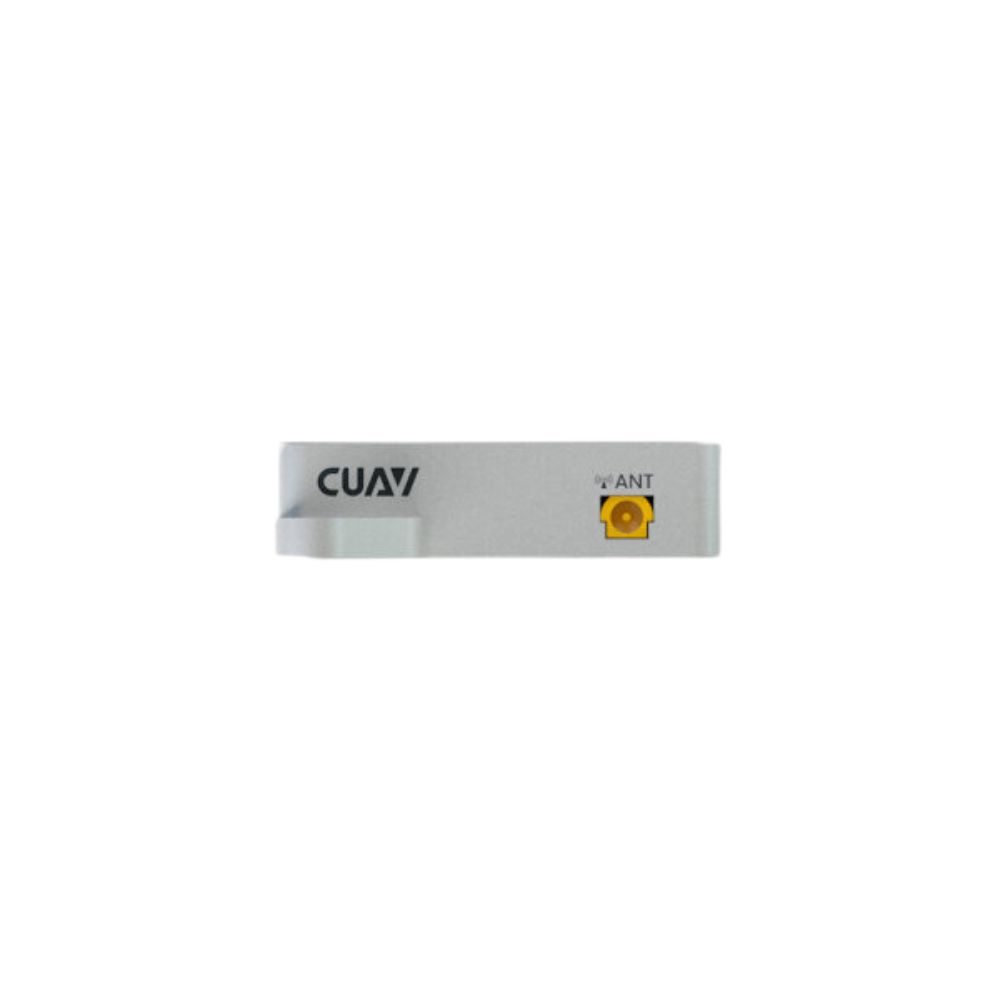

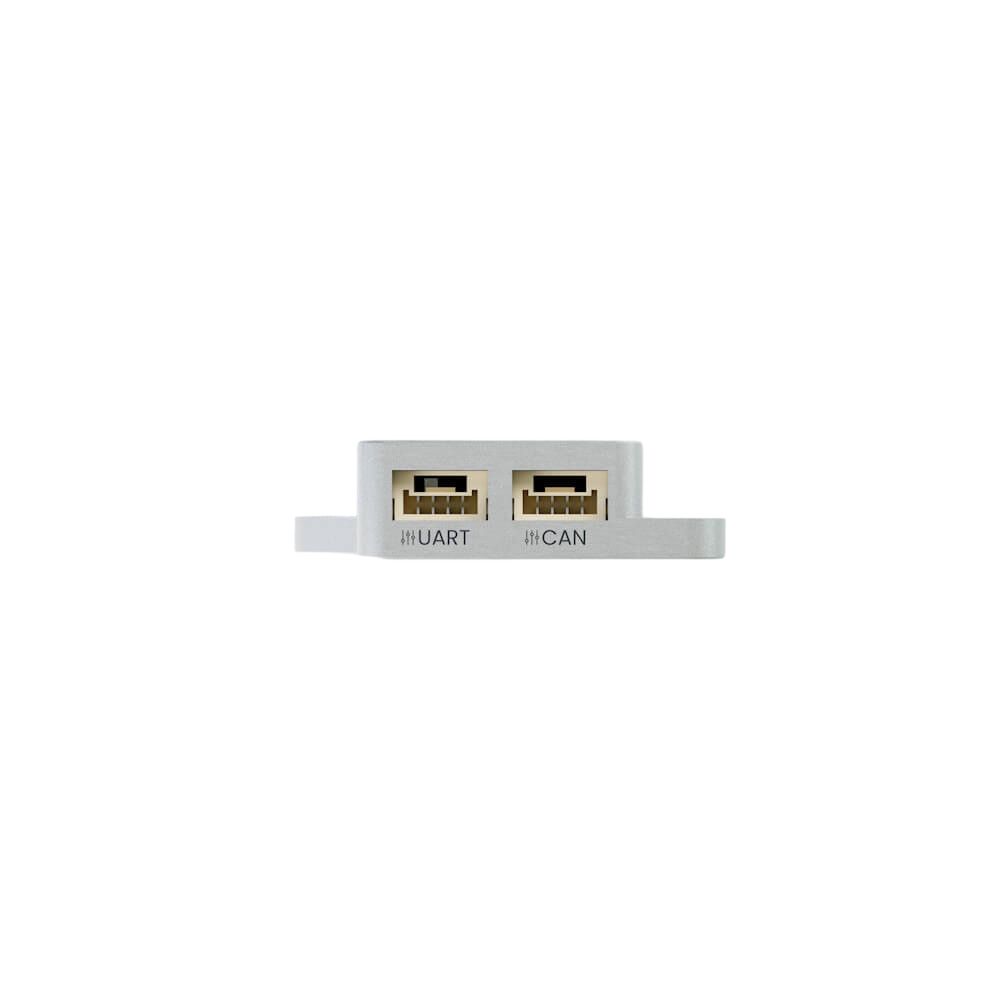

Ports：1 xCAN (4-pin GH1.25) / 1 xUART (4-pin GH1.25) / 1xANT(MMCX)
Shell Material：Aviation Aluminum
Operating Voltage：4.7~5.2V

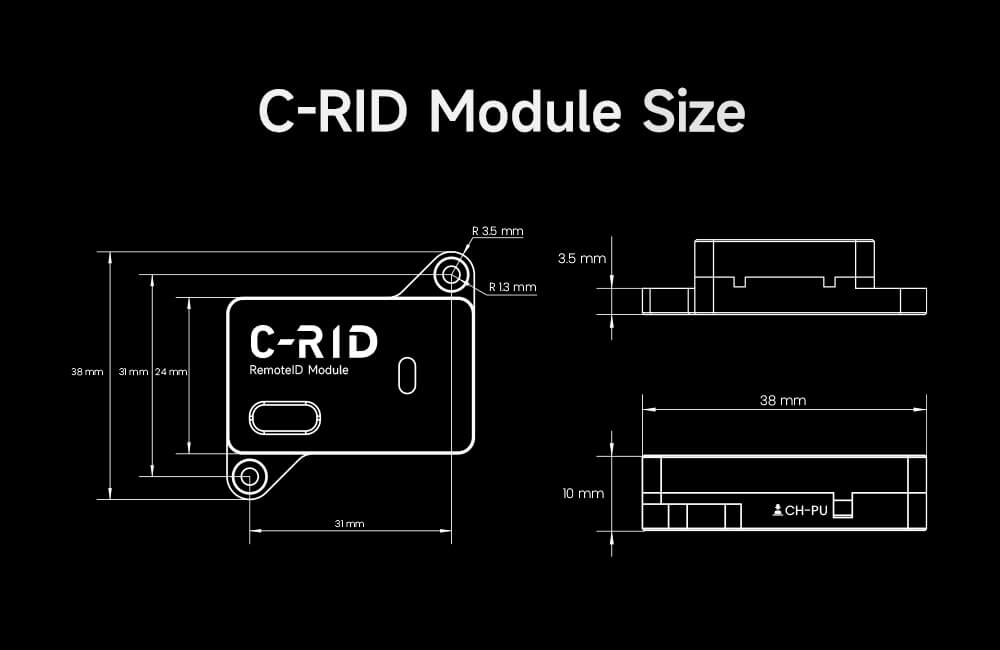

Size：Main: 24×38×10mm / Including Fixing Hole: 38×38×10mm
Weight：15.5g
LED (main) Status：Off: Not connected or not working / Constant Red: Configuration is not completed(disarming conditions are not met) / Constant Green: Configuration is successful, unlockable

C-RID Official Standard Packing List
C-RID Module：×1
CAN Cable (35 cm)：×1
External 2.4G Antenna (Including antenna: 75 cm)：×1

Identification Code for Compliant Products of Drones

Drones equipped with Remote ID and capable of broadcasting have become a regulatory requirement in countries and regions such as China, the European Union, and the United States. C-RID is designed based on Chinese standards (GB/T 41300-2022, GB42590-2023, “Unique Product Identification Code for Civil Unmanned Aircraft”), EU standards (prEN 4709-002 standard), and ASTM F3411 − 22a standard, ensuring compatibility with remote ID regulations in multiple regions.

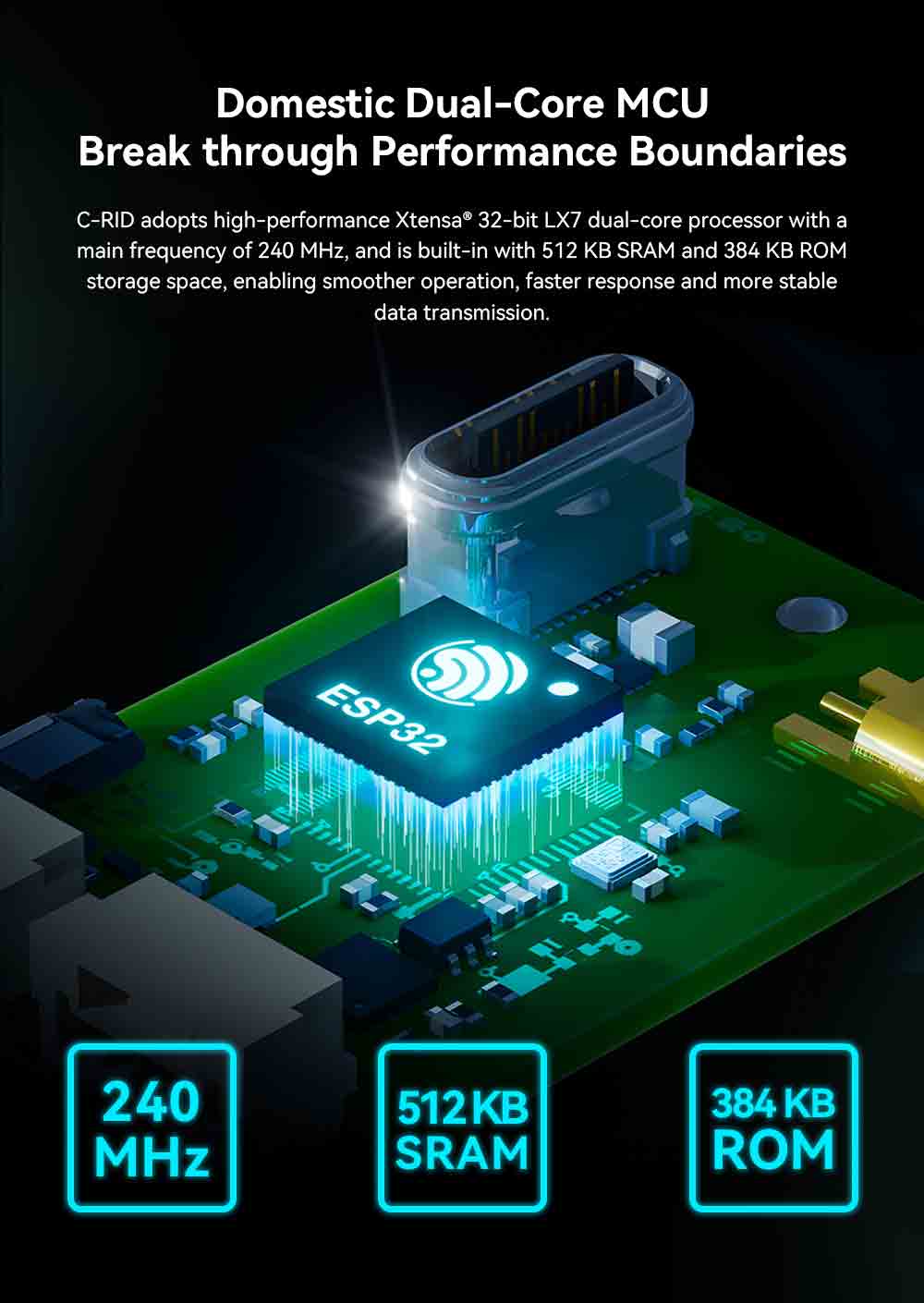

Domestic Dual-Core MCU Breakthrough Performance Boundaries

C-RID adopts a high-performance Xtensa® 32-bit LX7 dual-core processor with a main frequency of 240 MHz, and is built with 512 KB SRAM and 384 KB ROM storage space, enabling smoother operation, faster response, and more stable data transmission.

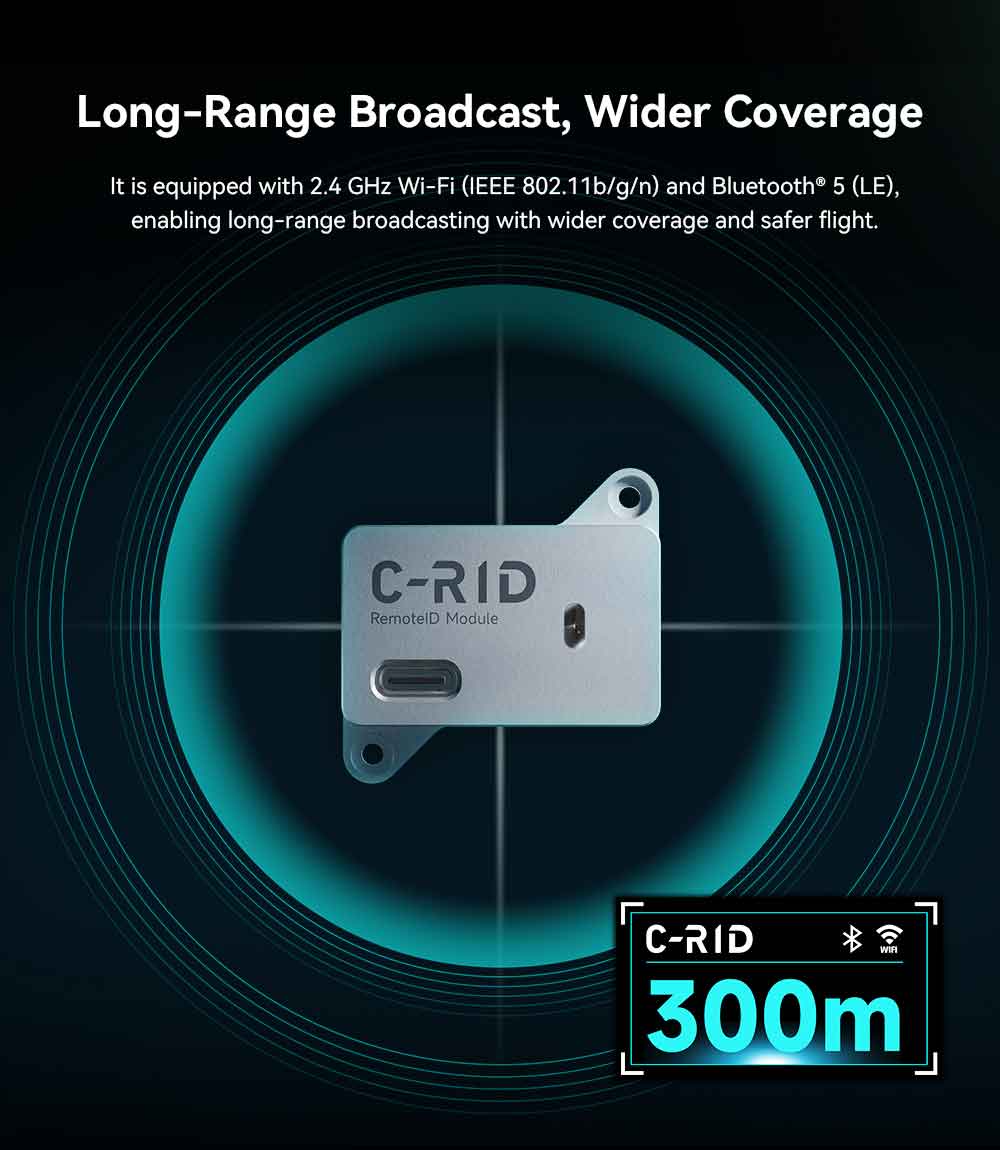

Long-Range Broadcast Wider Coverage

It is equipped with 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) and Bluetooth® 5 (LE), enabling long-range broadcasting with wider coverage and safer flight.

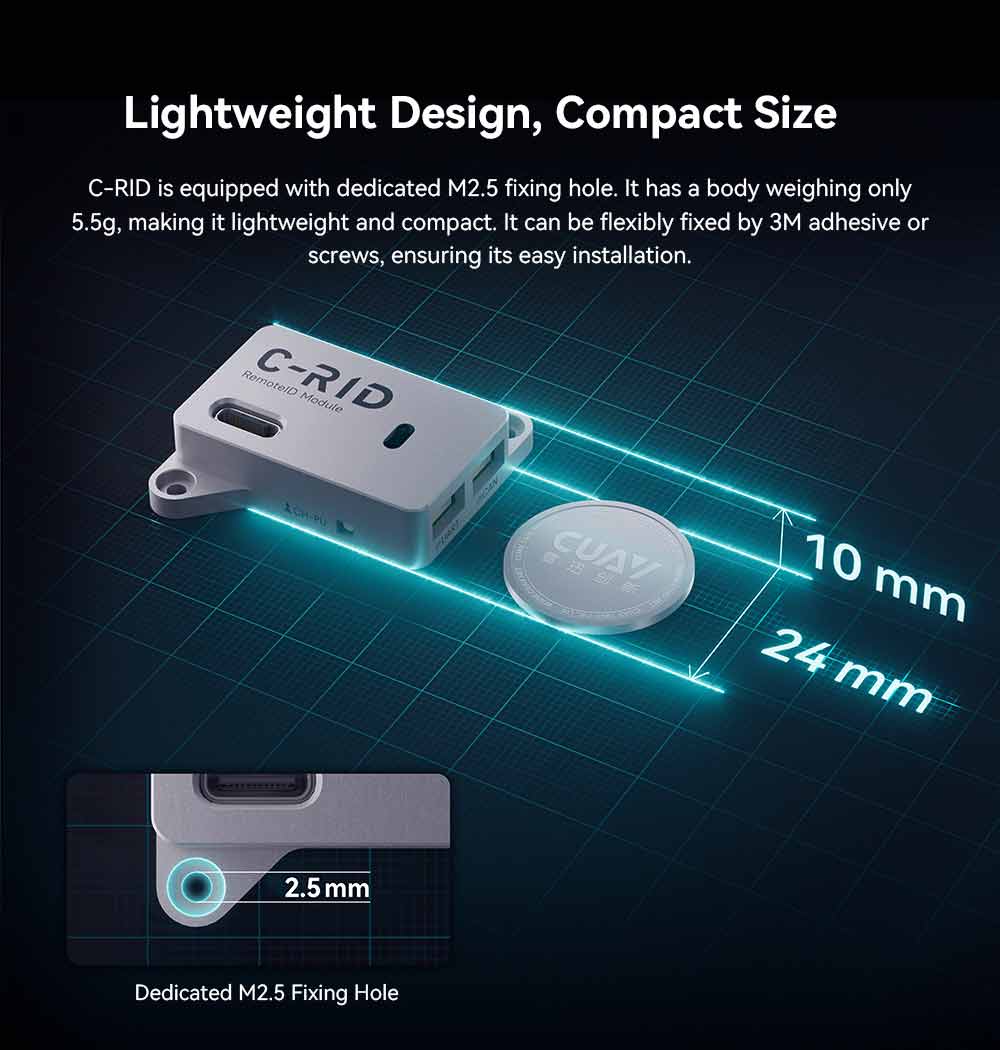

Lightweight Design Compact Size

C-RID is equipped with a dedicated M2.5 fixing hole. It has a body weighing only 5.5g, making it lightweight and compact. It can be flexibly fixed by 3M adhesive or screws, ensuring its easy installation.

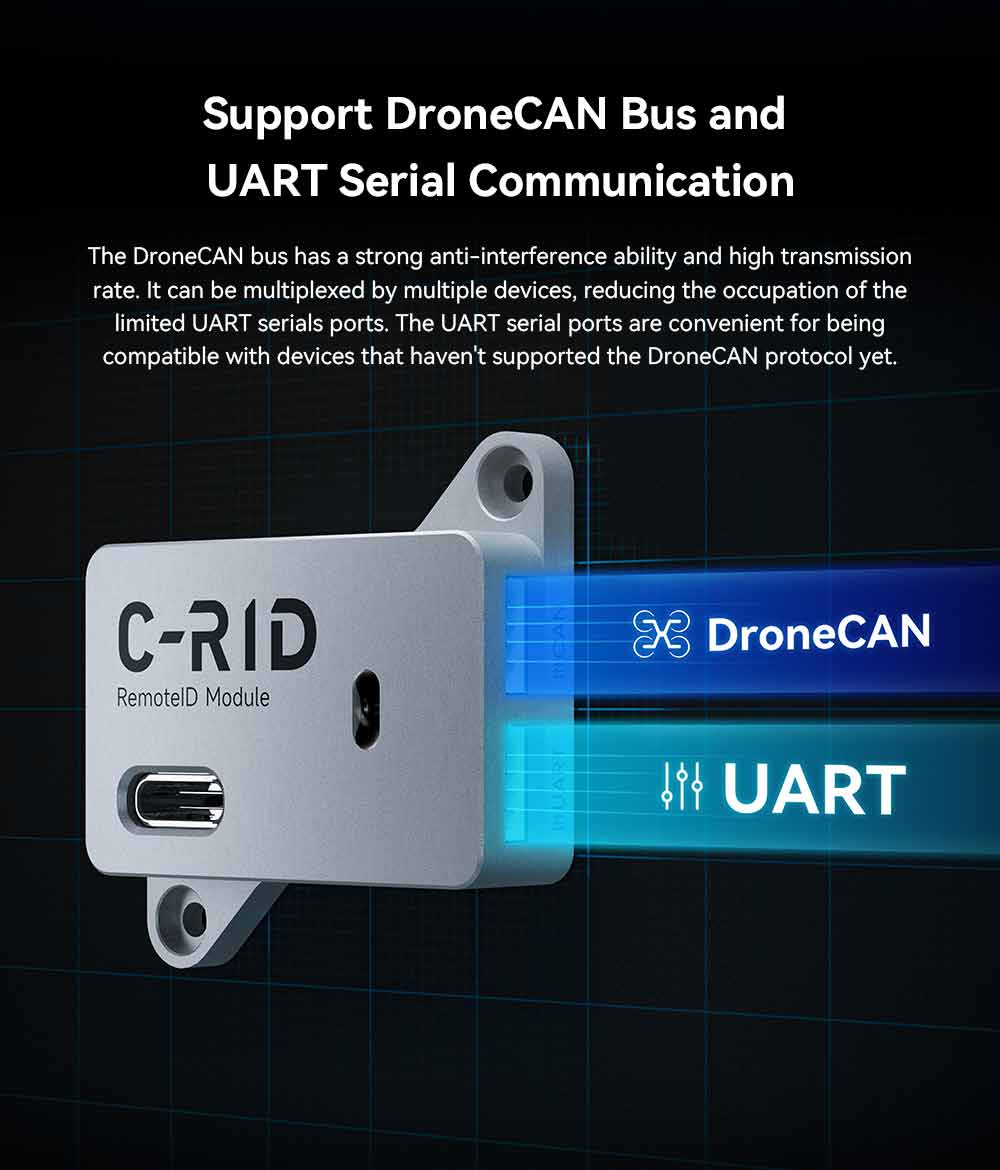

Support DroneCAN Bus and UART Serial Communication

The DroneCAN bus has a strong anti-interference ability and a high transmission rate. It can be multiplexed by multiple devices, reducing the occupation of the limited UART serial ports. The UART serial ports are convenient because they are compatible with devices that haven’t supported the DroneCAN protocol yet.

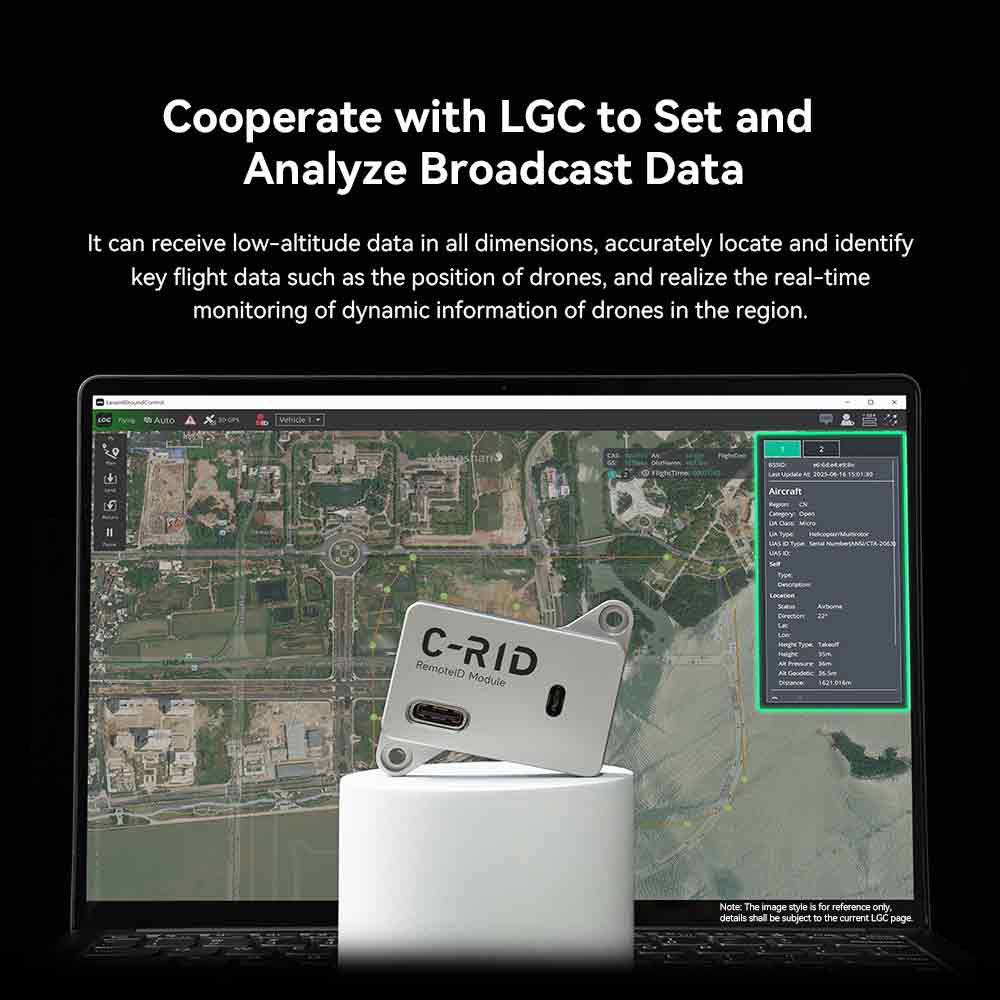

Cooperate with LGC to Set and Analyze Broadcast Data

It can receive low-altitude data in all dimensions, accurately locate and identify key flight data such as the position of drones, and realize the real-time monitoring of dynamic information of drones in the region.

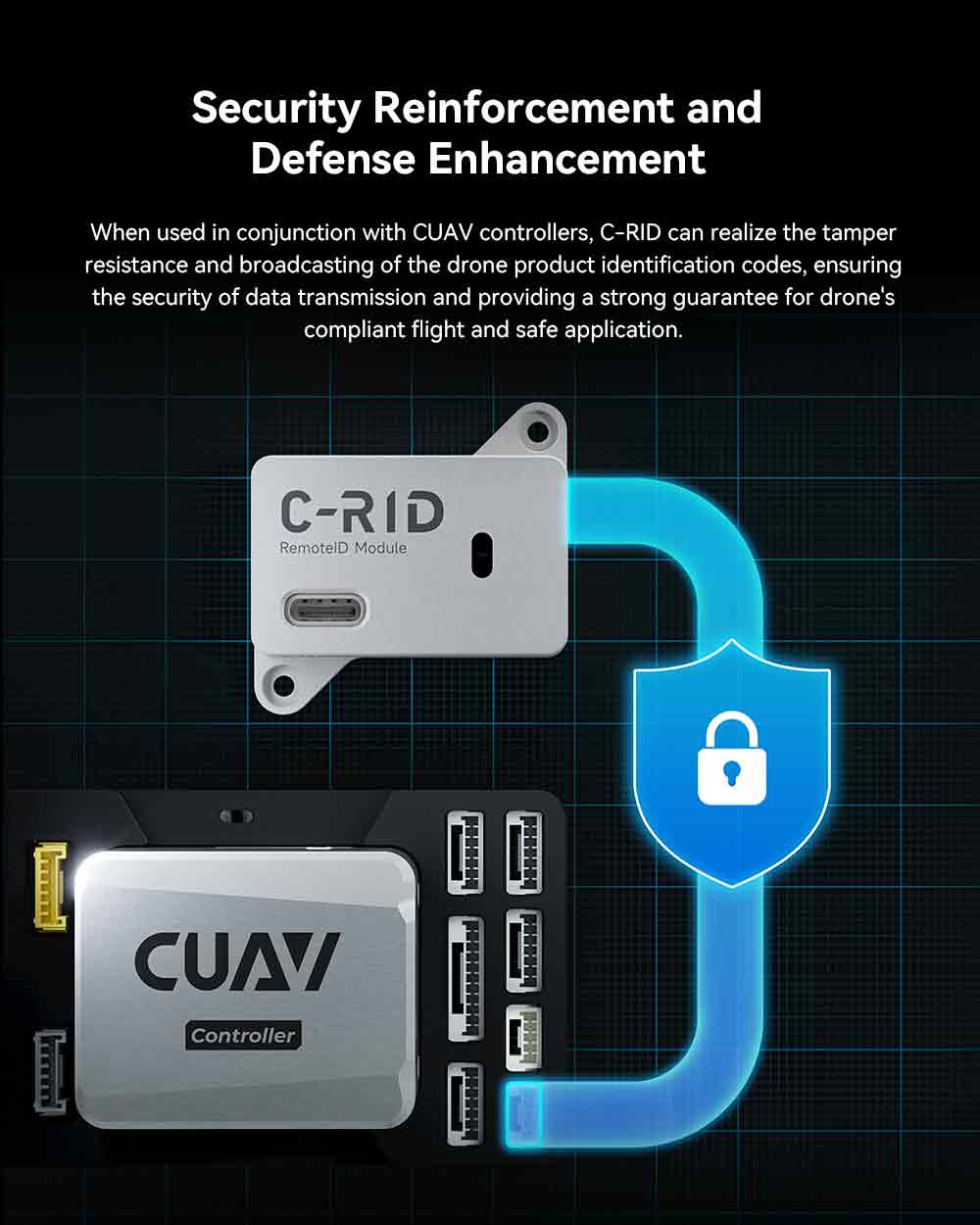

Security Reinforcement and Defense Enhancement

When used in conjunction with CUAV controllers, C-RID can realize the tamper resistance and broadcasting of the drone unique product identification codes, ensuring the security of data transmission and providing a strong guarantee for drone’s compliant flight and safe application.

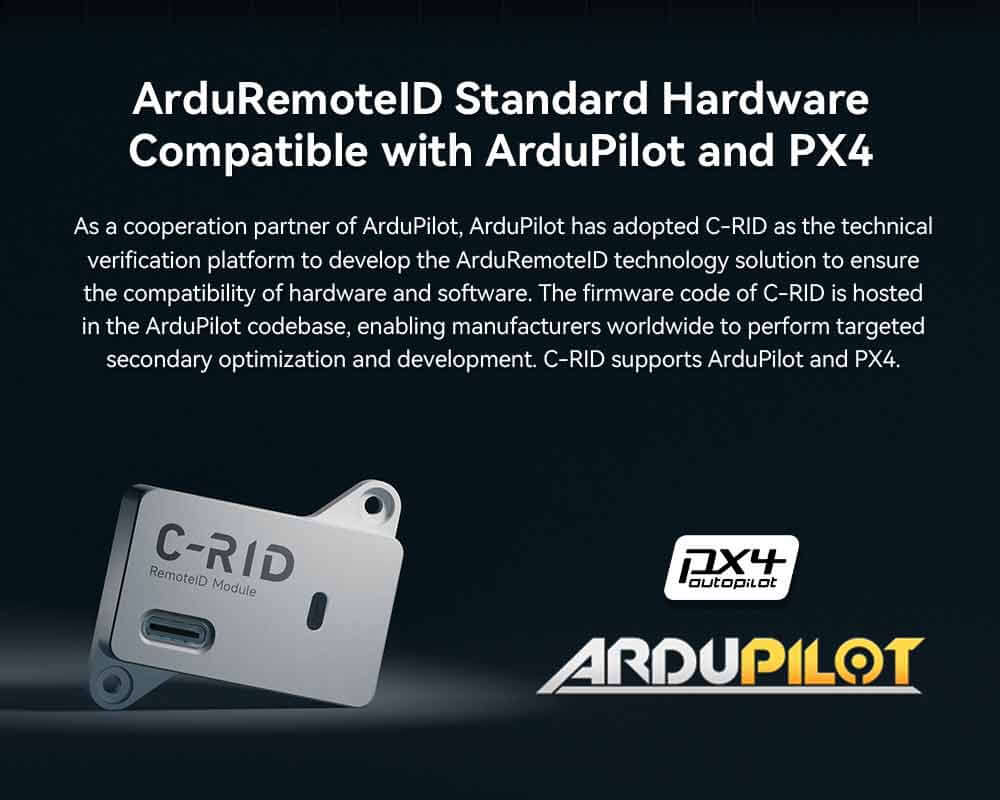

ArduRemoteID Standard Hardware Compatible with ArduPilot and PX4

As a cooperation partner of ArduPilot, ArduPilot has adopted C-RID as the technical verification platform to develop the ArduRemoteID technology solution to ensure the compatibility of hardware and software. The firmware code of C-RID is hosted in the ArduPilot codebase, enabling manufacturers worldwide to perform targeted secondary optimization and development. C-RID supports ArduPilot and PX4.
