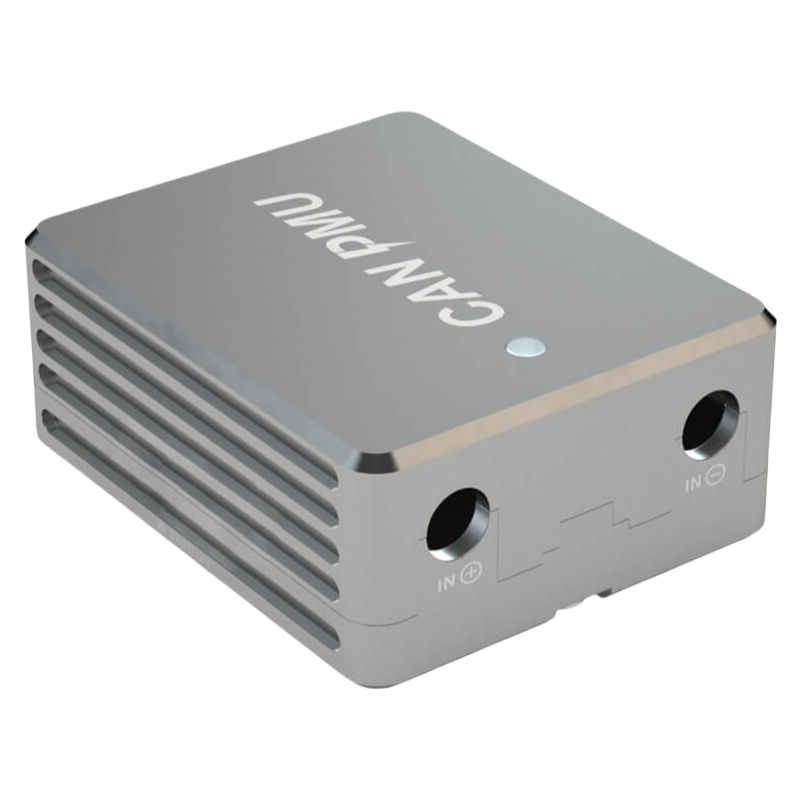

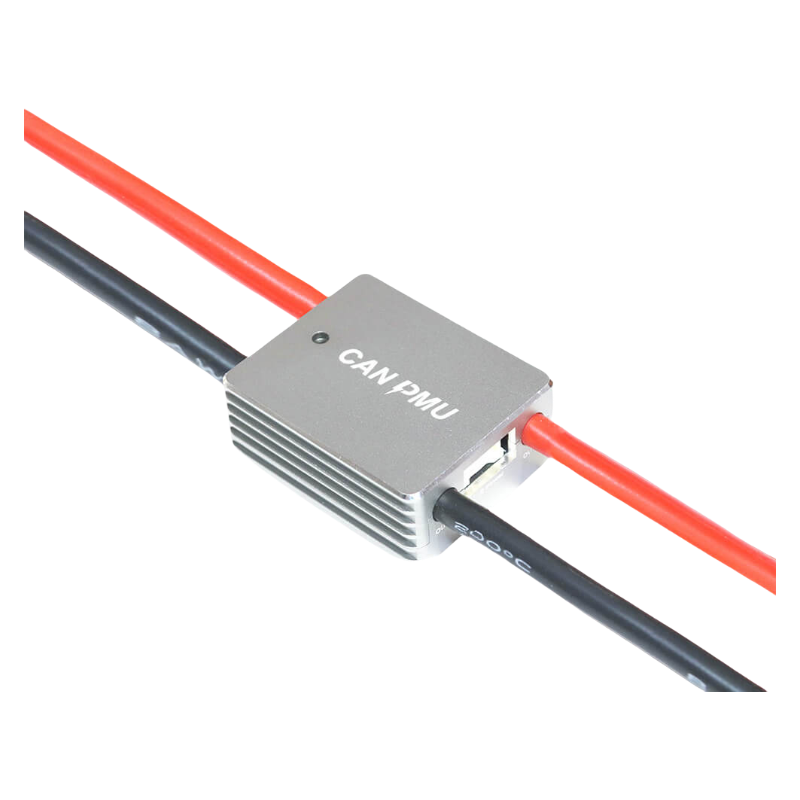

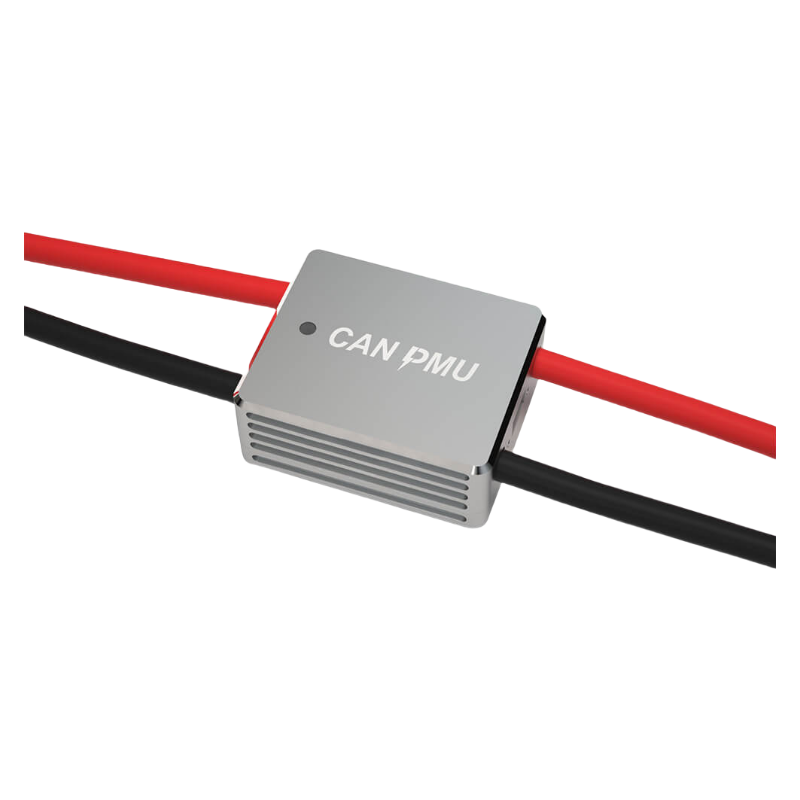

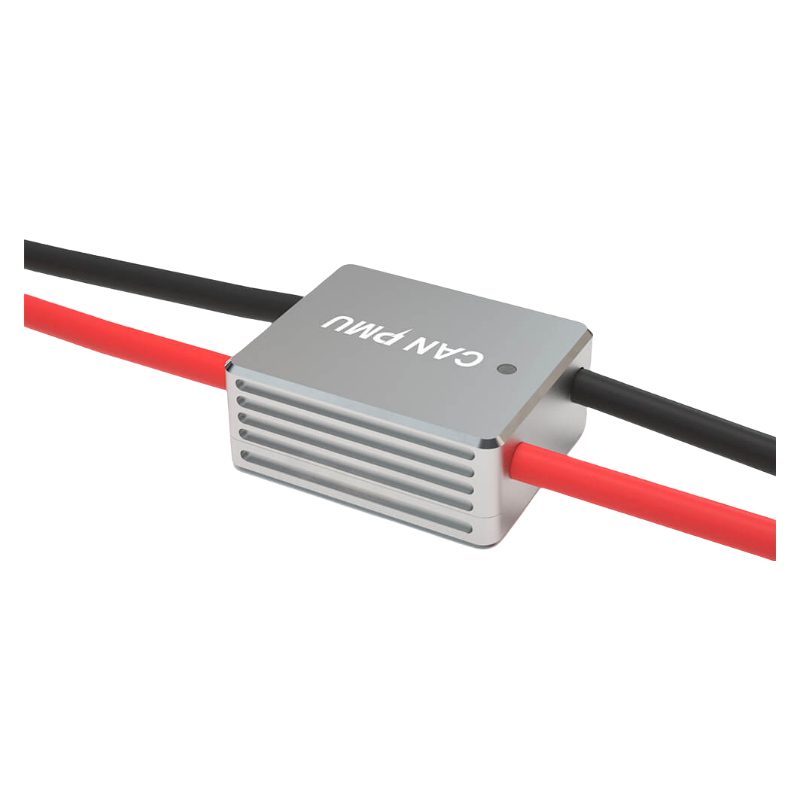

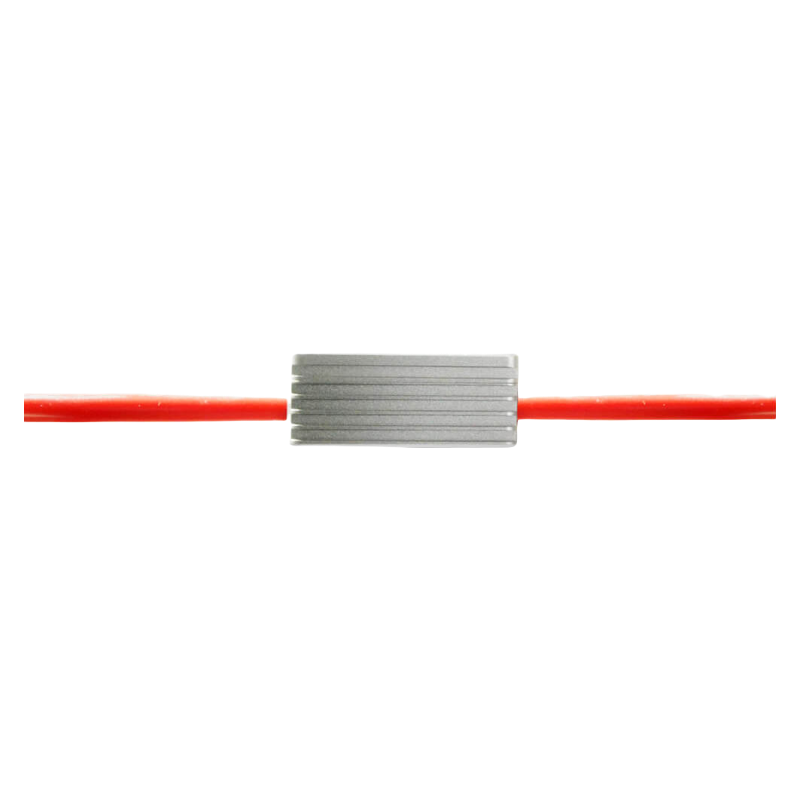

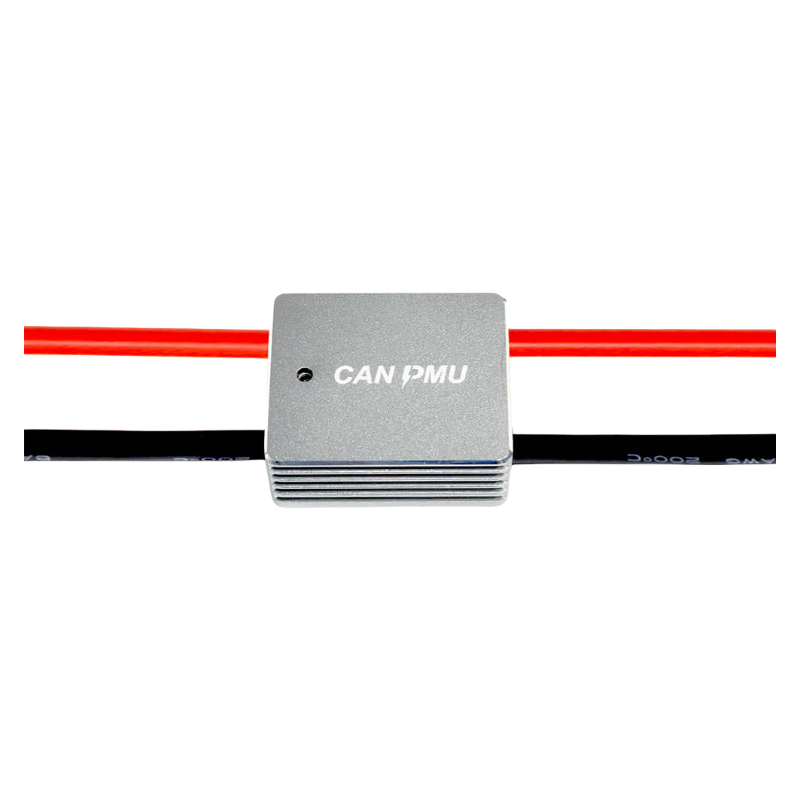

CAN PMU is a drone power management module with built-in STM32F4 processor; running CUAV ITT compensation algorithm, can accurately measure the voltage and current of the drone; support 6~62V voltage input, and the POWER portcan output 5V/8A. It uses advanced CAN bus communication and supports the standard DroneCAN protocol; each PMU uses factory-level calibration to ensure good consistency and high accuracy.
CUAV CAN PMU Power Module Features:
1–0.05V 0.1A accuracy
2–5V/5A regulated output
3–Maximum support 62V voltage input, 110A current measurement

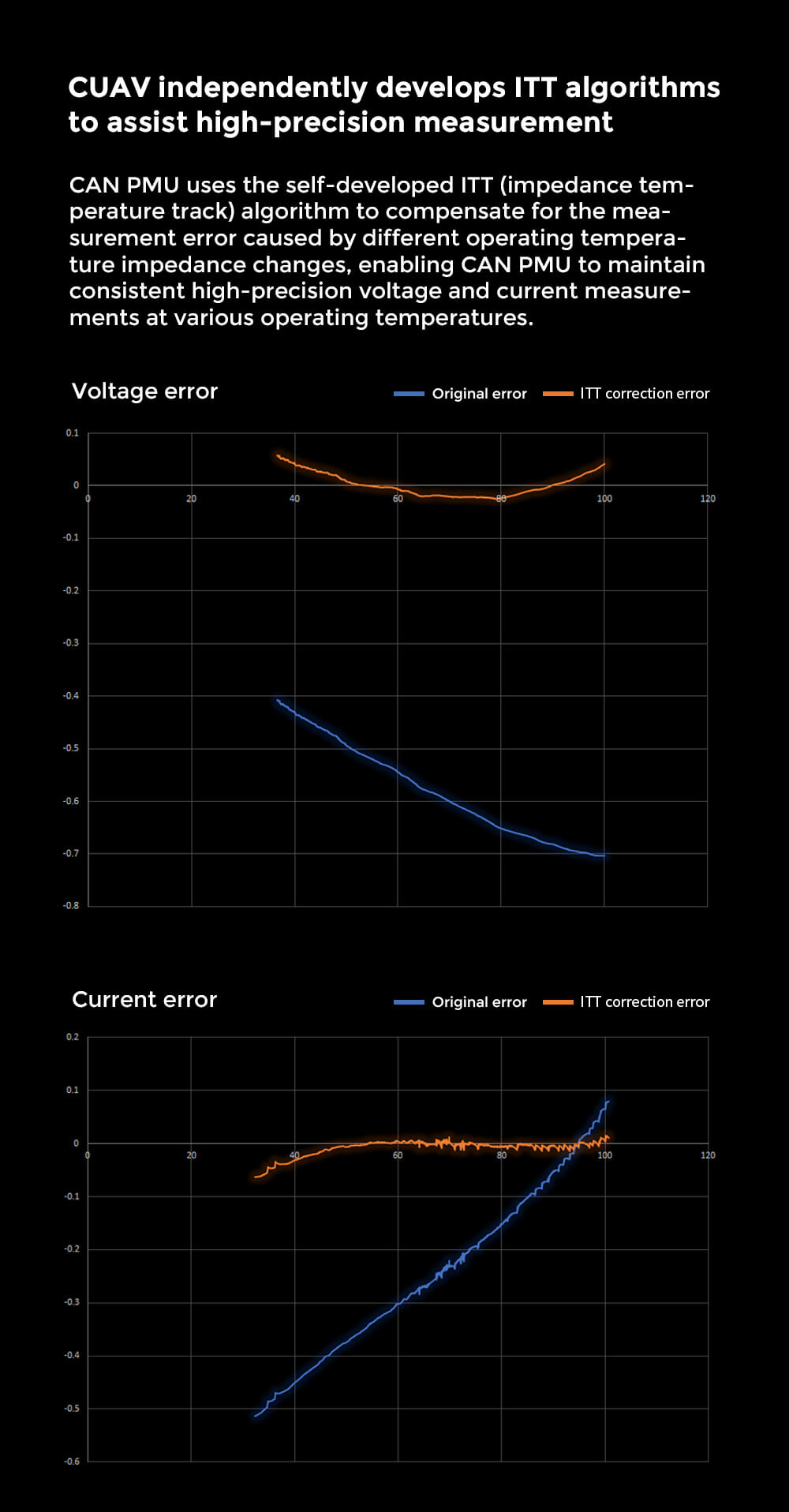

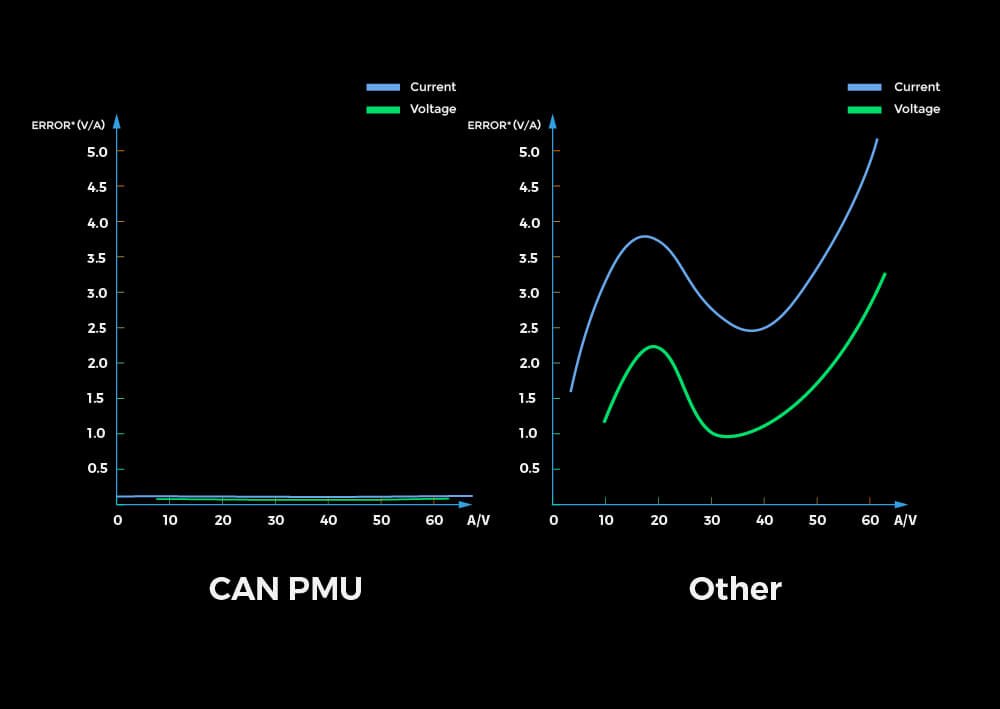

4–Self-developed ITT algorithm

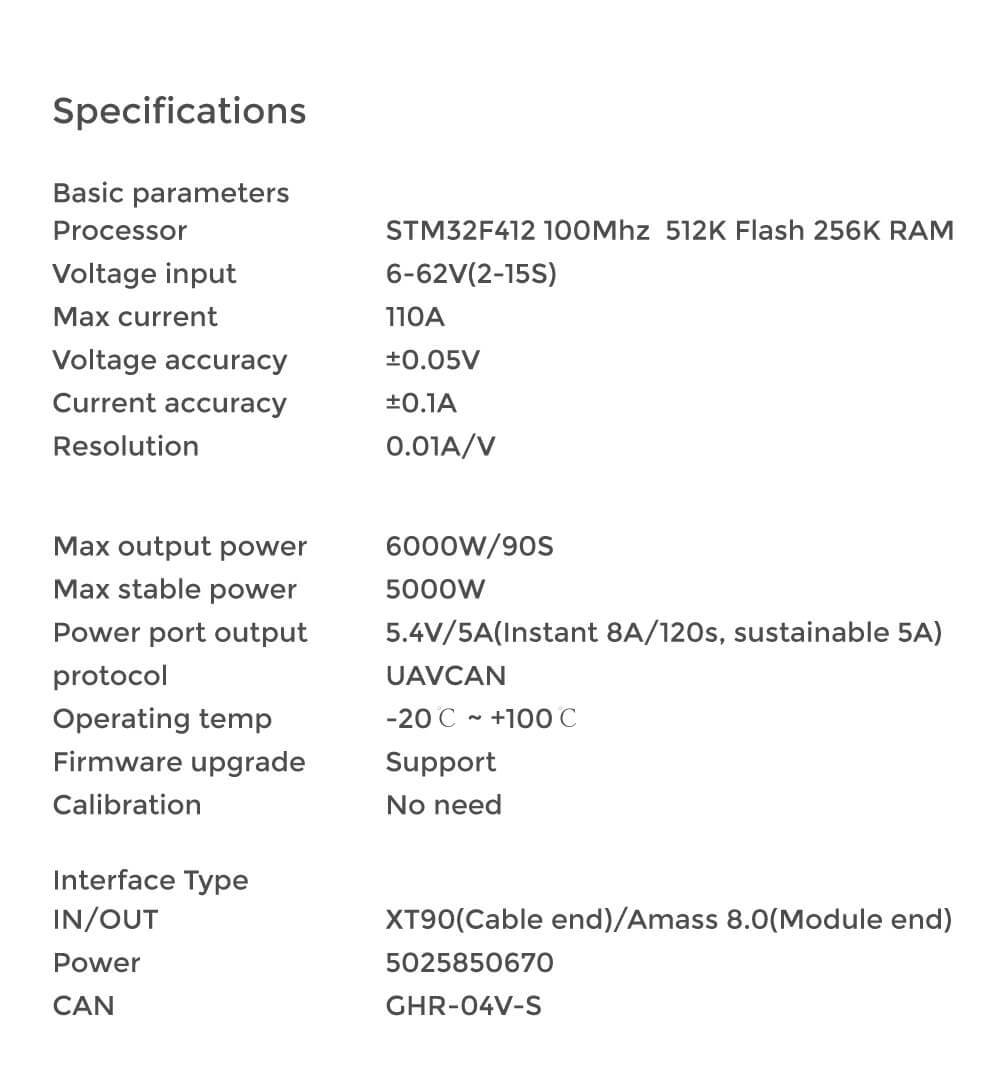

Main Parameter |
|
| Processor | STM32F412(32 Bit Arm Cortex -M4, 100MHz, 512KB FLASH, 256KB RAM) |
| Voltage Input | 6 ~ 62V(2 ~ 15S) |
| Max Current | 110A |
| Voltage Accuracy | ±0.05V |
| Current Accuracy | ±0.1A |
| Resolution | 0.01A/V |
| Max Output Power | 6000W/90s |
| Max Stable Power | 5000W |
| Power Port Output | 5.4V/5A |

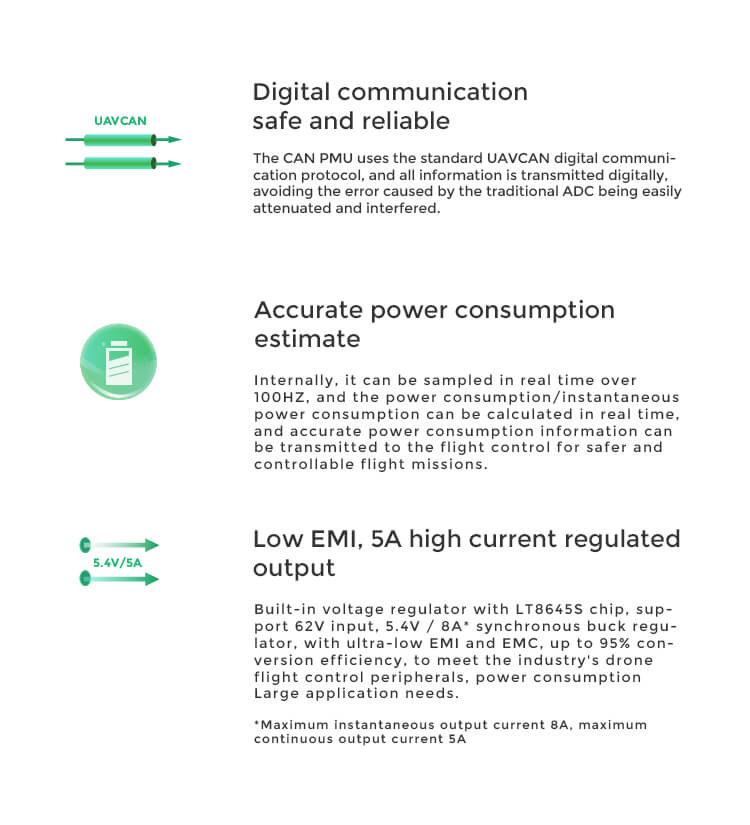

| Protocol | DroneCAN |
| Operating Temp | -20 ~ 100 ℃ |
| Firmware Upgrade | Support |
| Calibration | Factory calibration |

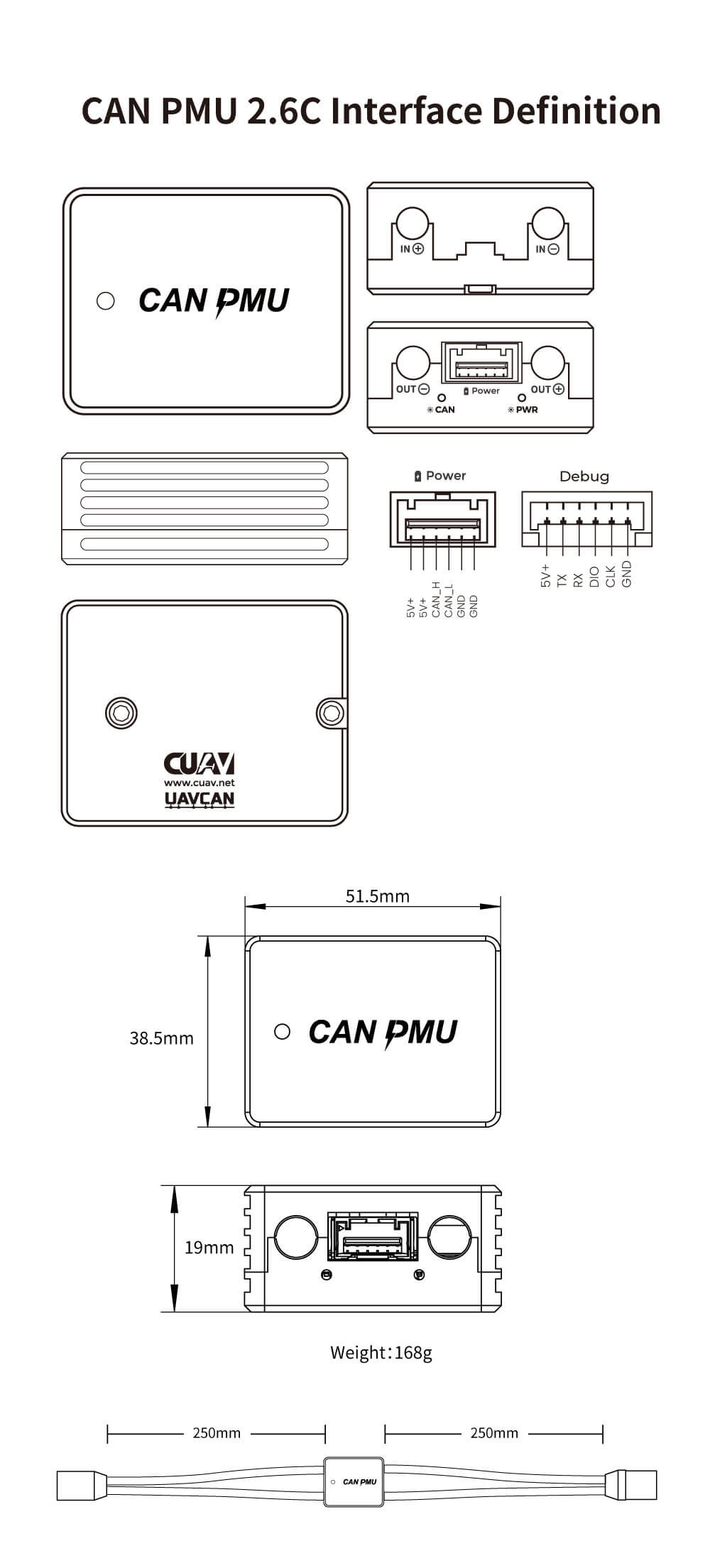

| Interface Type | IN/OUT：XT90(Cable）/Amass 8.0(Module） Power：5025850670 CAN：GHR-04V-S |
| Size | 46.5 × 38.5 × 22.5mm |
| Weight | 76g |
