CUAV New LBA 3 Industrial Micro Private Network 4G 5G Large Bandwidth Hybird One To Multiple Communication Base Station

Name: CUAV New LBA 3 Industrial Micro Private Network 4G 5G Large Bandwidth Hybird One To Multiple Communication Base Station
Brand: CUAV
Price: 25414 CNY
Availability: InStock

ACP6367

¥16,482.00 CNY 起

结账时计算运费

有货

Options

Base station Sky unit LW-1.4Ghz Sky unit LW-800Mhz Base+sky LW-800Mhz Base+sky LW-1.4Ghz

数量

CUAV LBA 3 Communication Micro Base Station Brief:

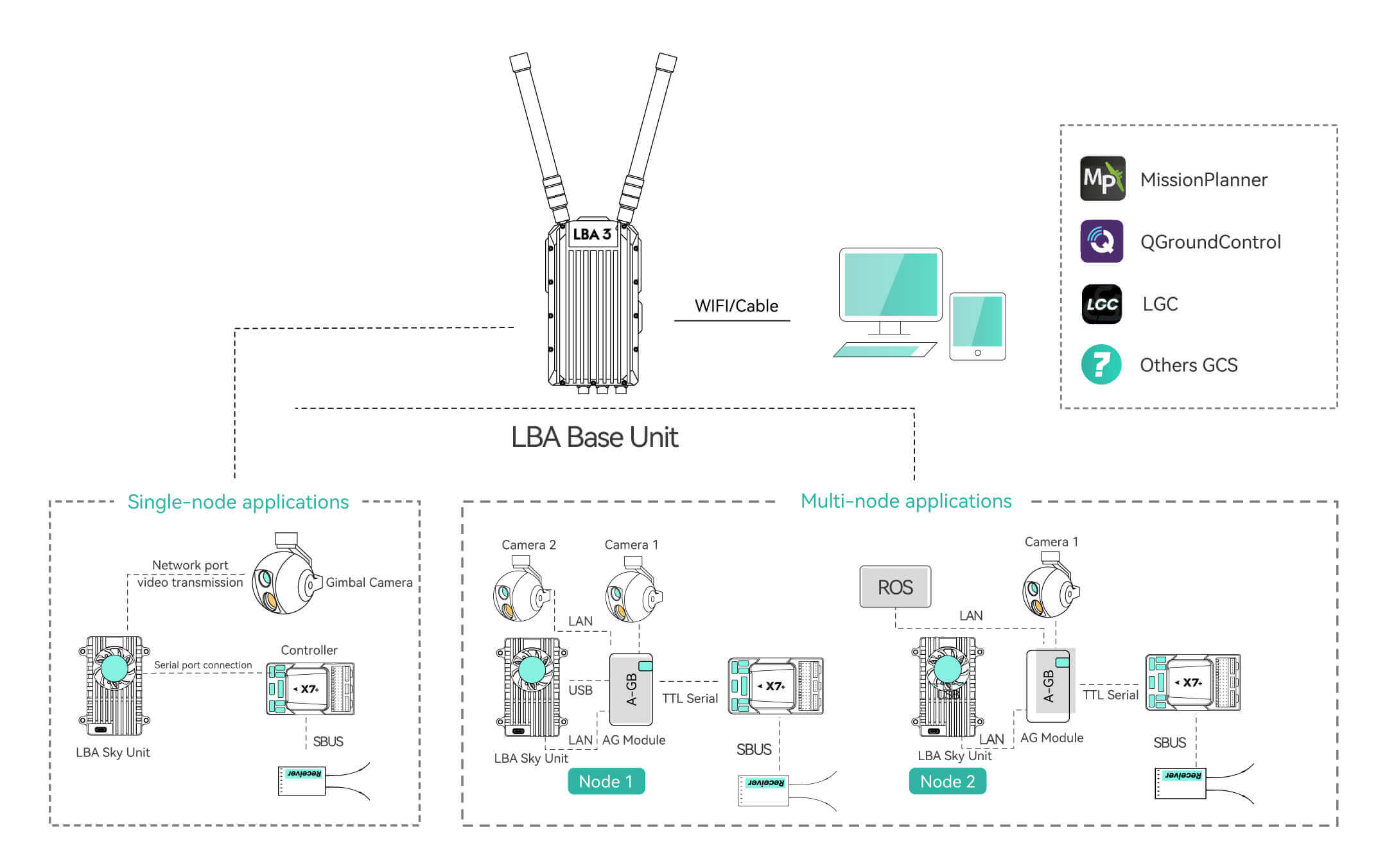

The LBA 3 private network micro-base station system is a high-performance long-distance and large-bandwidth link solution independently developed by Leixun Innovation. It consists of an LBA 3 Base, an air terminal, and an AG gateway. It has long-distance communication coverage capability and 30Mbps bandwidth. Equipped with ground stations such as CUAVLGC, it can realize formation flight.

It is ideal for long-distance communication links for industrial Unmanned Systems equipment.

CUAV LBA 3 Communication Micro Base Station Feature:

Developed based on advanced LTE technology30Mbps large bandwidth, support star networkAES encryption technologyIP67 industrial three-proof design, no pressure for outdoor workSupport formation flight

CUAV LBA 3 Communication Micro Base Station Specification:

Main Parameter
Technical Standard	Based on the LTE wireless communication standard
Anti-Jamming	Dynamic frequency hopping, intelligent frequency hopping within the frequency band
Frequency Band	1.4G version：1420-1448MHz 800M version：806-826MHz
Transmit Power	33dBm(Typical value）
Bandwidth	default：20Mbps(10MHz)；30Mbps(MAX, 20MHz)
Operating Modes	Star network, point-to-point
Encryption	AES265
Modulation	QPSK、16QAM、64QAM
Transmission Delay	≤ 150ms
Management Interface	LBA3 BASE is managed by WEB LW140/800, which is managed by AG (WEB) gateway
LTE Network Type	LBA3 BASE built-in full Netcom 4G module Support TD-LTE/FDD LTE/TD-SCDMA/WCDMA
Operating Temperature	-15 ~ +65°
Operating Voltage	LBA3 BASE：20~60V (Standard power consumption:24V 1.5A) POE module supports 100~240V Utility Power LW140/800：20~60V (Standard power consumption:24V 1A)

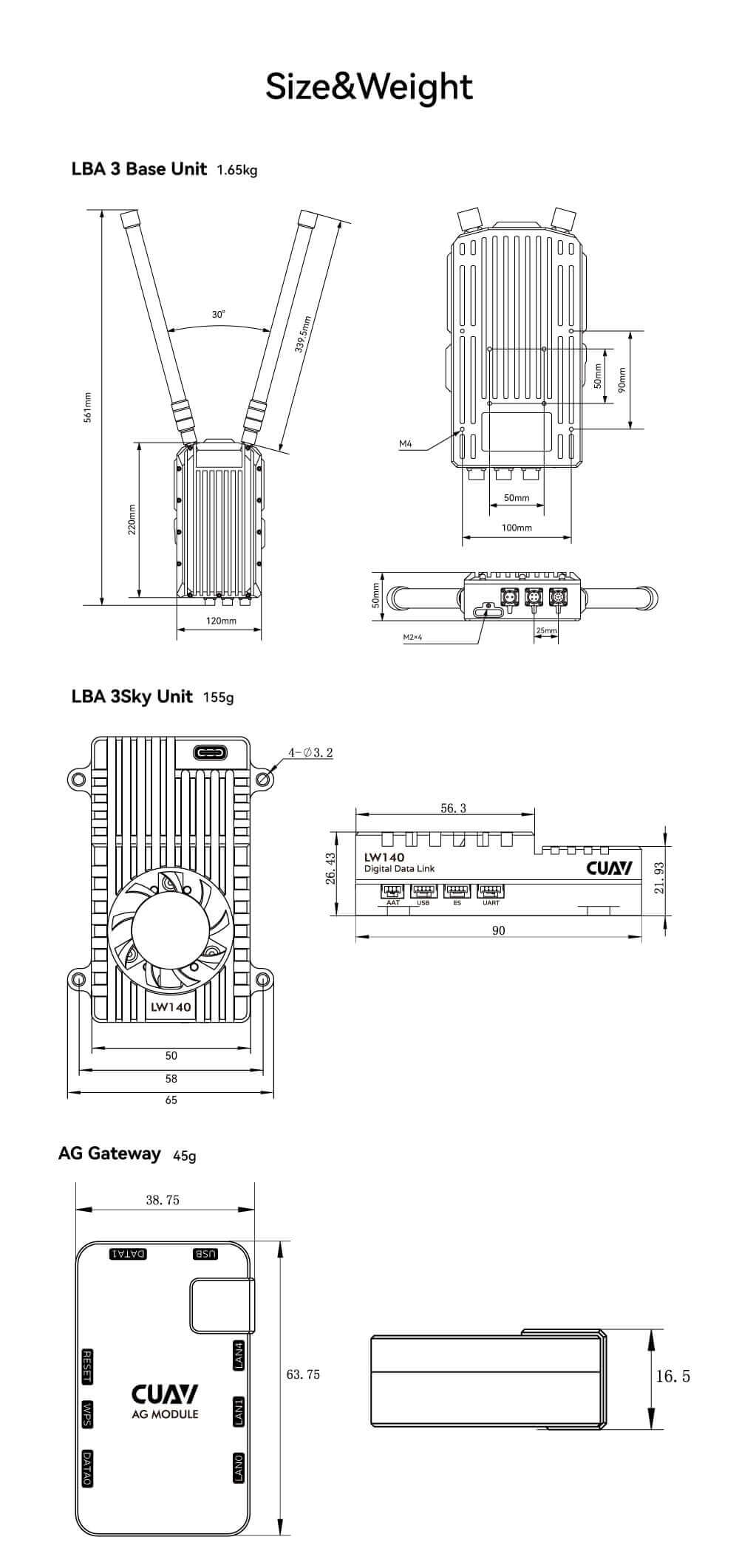

Size	LBA3 BASE：220.0 × 120.0 × 50.0mm LW140/800：90.0 × 65.0 × 26.4mm
Weight	LW140/800：155g LBA3 BASE：1.65kg
Interface	LW140/800： Antenna(MCX-KE) × 2 POWER(5023520200 to XT30) × 1 RJ45 × 1(5025850470) UART × 1 USB × 1 LBA3 BASE： N-type antenna × 2、 Power(SF12 to XT60) × 1 POE lan(SF12 to RJ45 Plug) × 1 LAN(SF12 to RJ45 Plug) × 1 AAT(SF12) × 1
Degree of Protection	LBA3 BASE: IP67 LW140/800: IP20

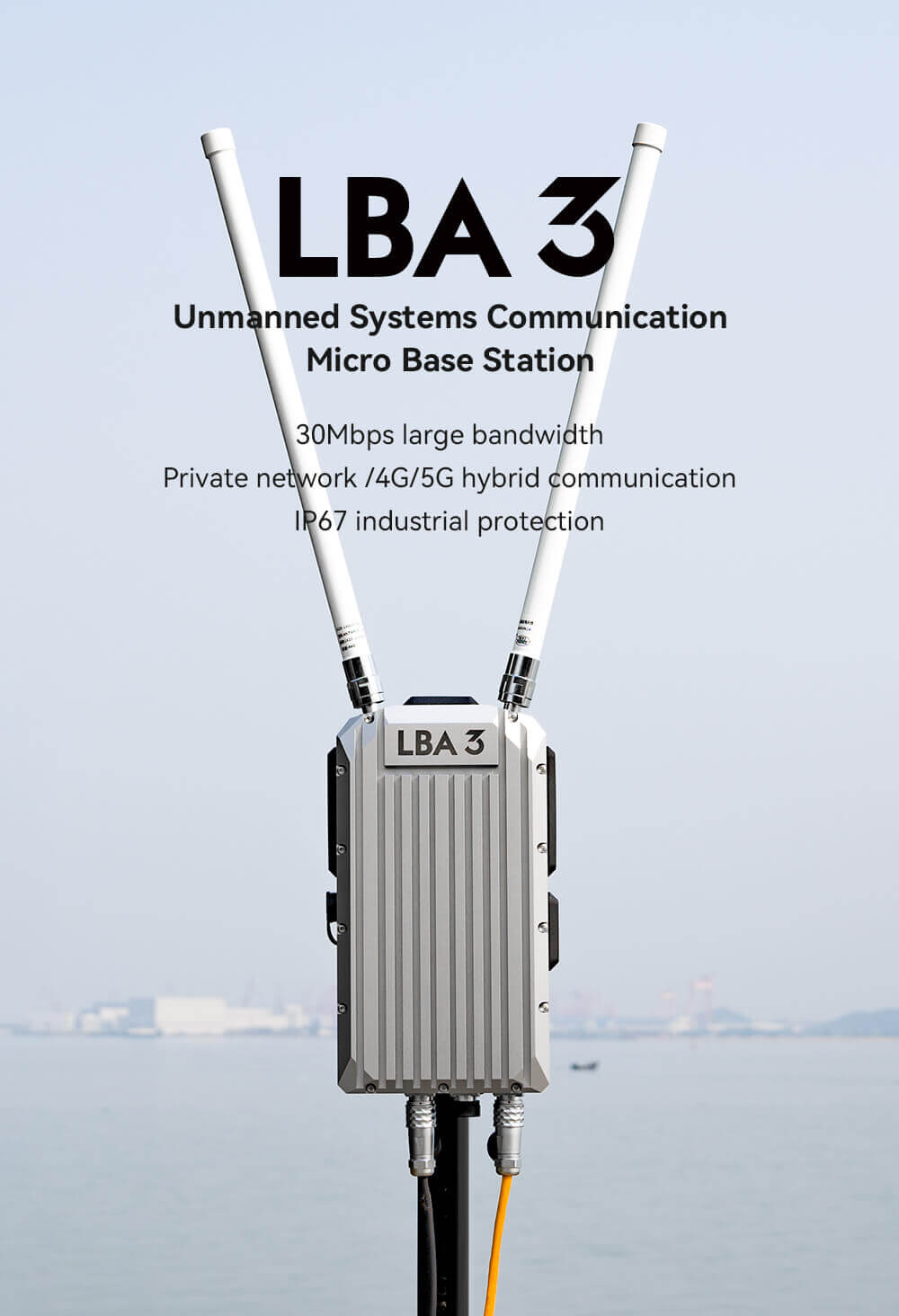

CUAV LBA 3 Communication Micro Base Station Description:

33dBM RE POWER

Developed with LTE communication technology, 33dBm RF power

Large Bandwidth、Support Star Networking AES Encryption Protection

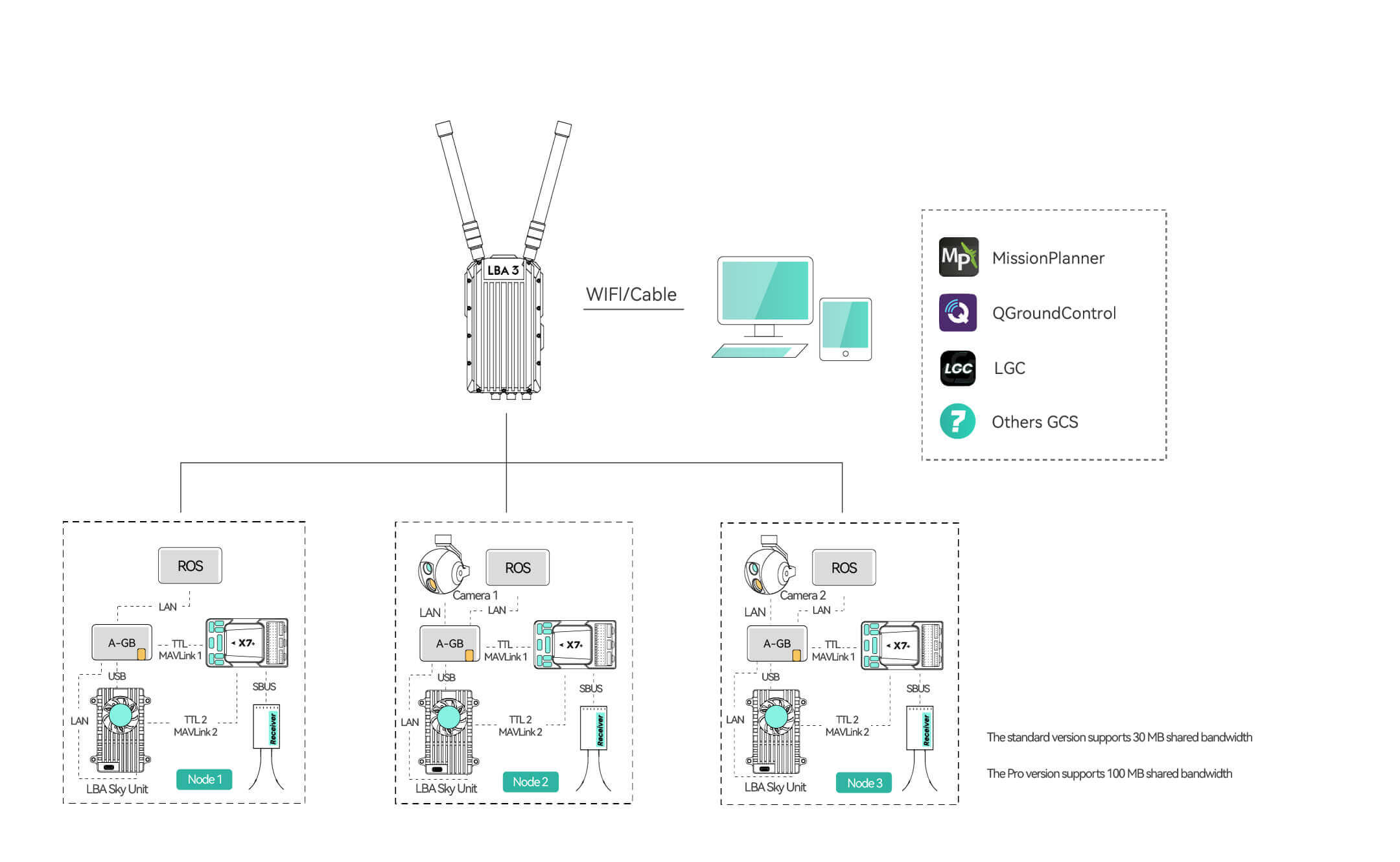

Realize the synchronous transmission of two-way data, improve the speed of data transmission while taking into account the stability. LBA 3 supports up to 30Mbps shared bandwidth. with faster access speed

Using the AES encryption algorithm, it has a good ability to resist differential cryptanalysis and linear cryptanalysis, ensuring communication security

LBA 3 Communication Base Station Feature: Large Bandwidth、Support Star Networking AES Encryption Protection

Industrial Protection Design to Meet Outdoor Operations

The LBA 3 micro base station adopts a dustproof, waterproof, and corrosion-resistant design, which can be placed outdoors for a long time without fear of wind and sun. It perfectly solves the problem of repeated installation in high-frequency and automated application scenarios, reduces repetitive work, and improves work efficiency
