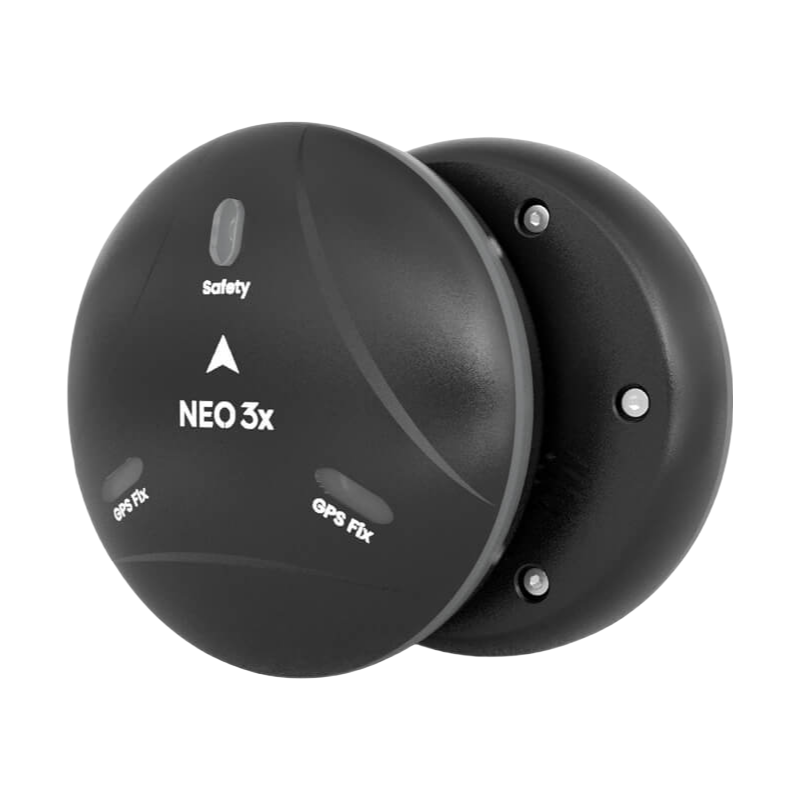

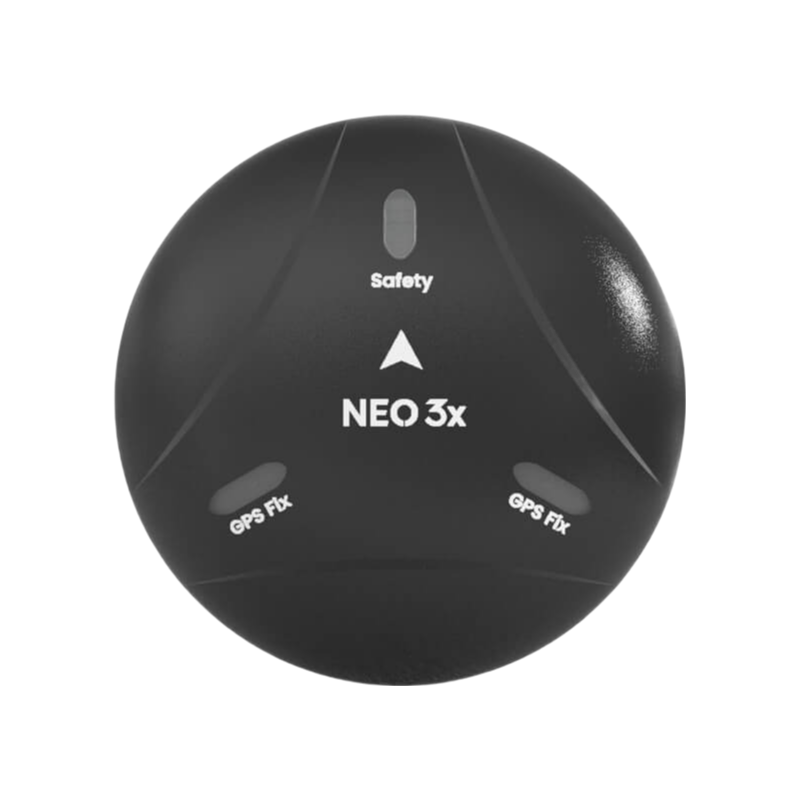

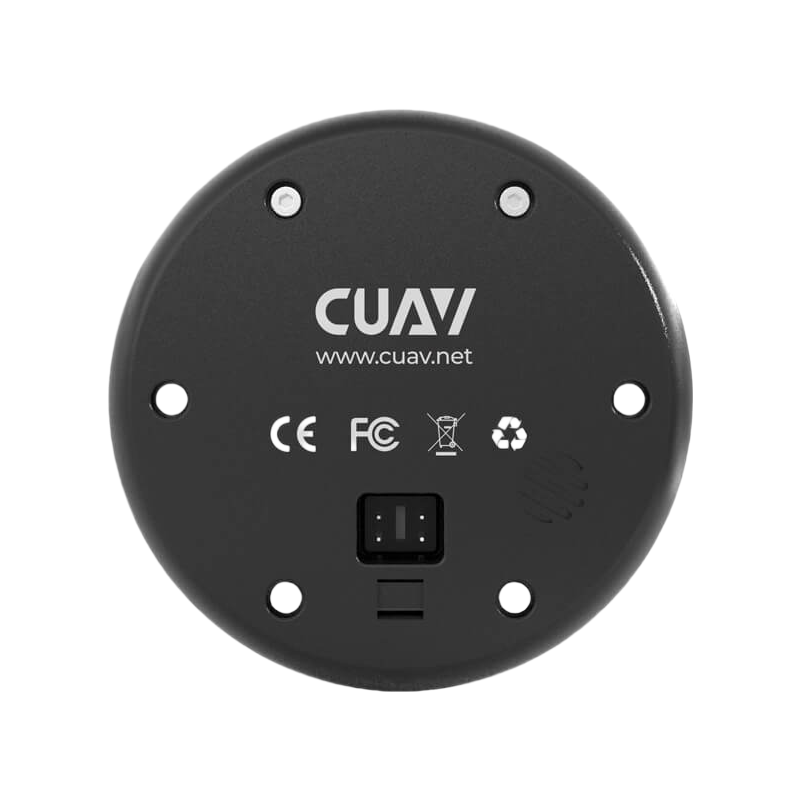

CUAV NEW NEO 3X GPS Module

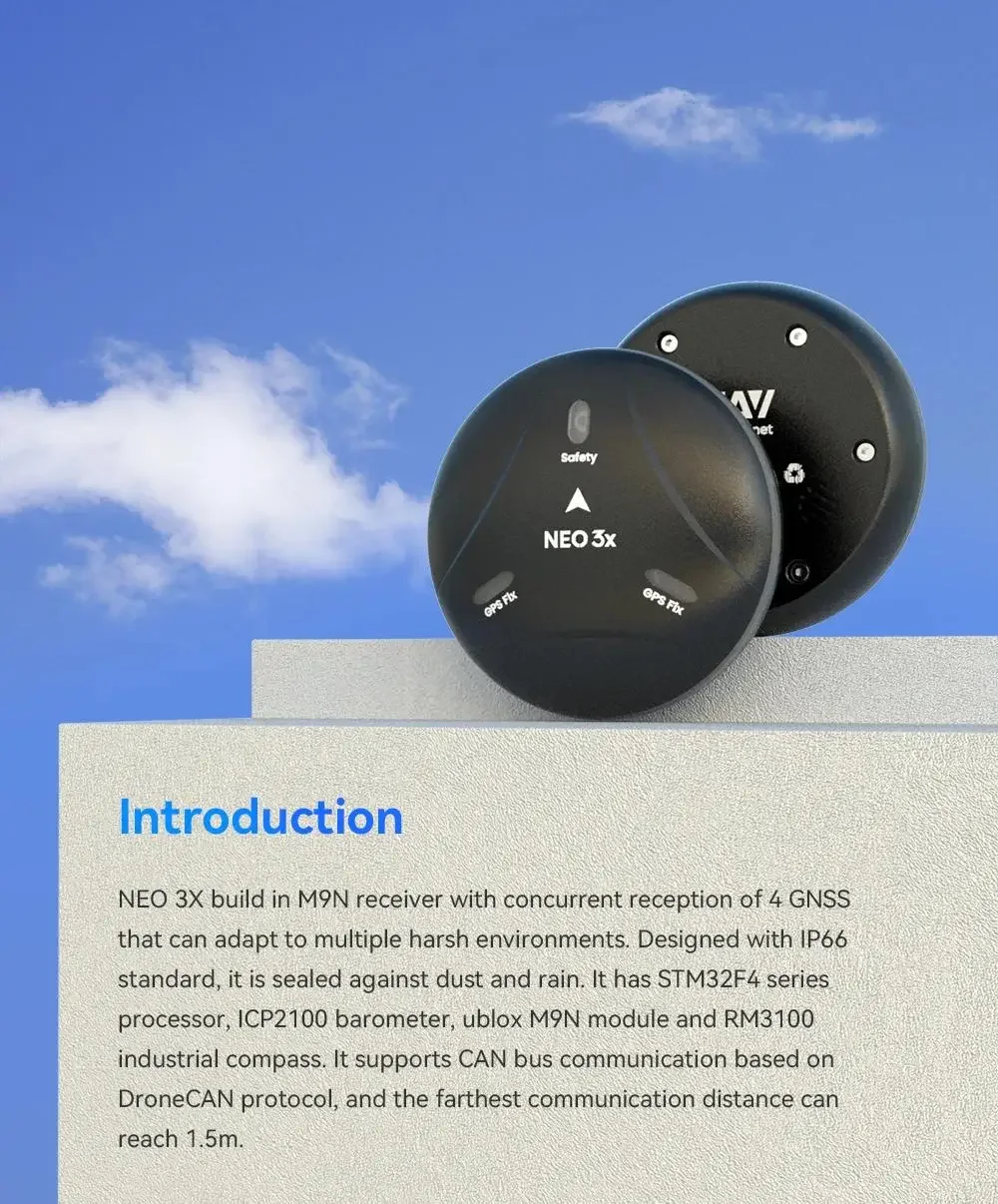

The CUAV New NEO 3X M9N GPS offers reliable positioning with GNSS technology, supporting DroneCAN and CAN Protocol for seamless integration. Ideal for advanced drones, it ensures precise navigation and robust communication for professional unmanned applications.

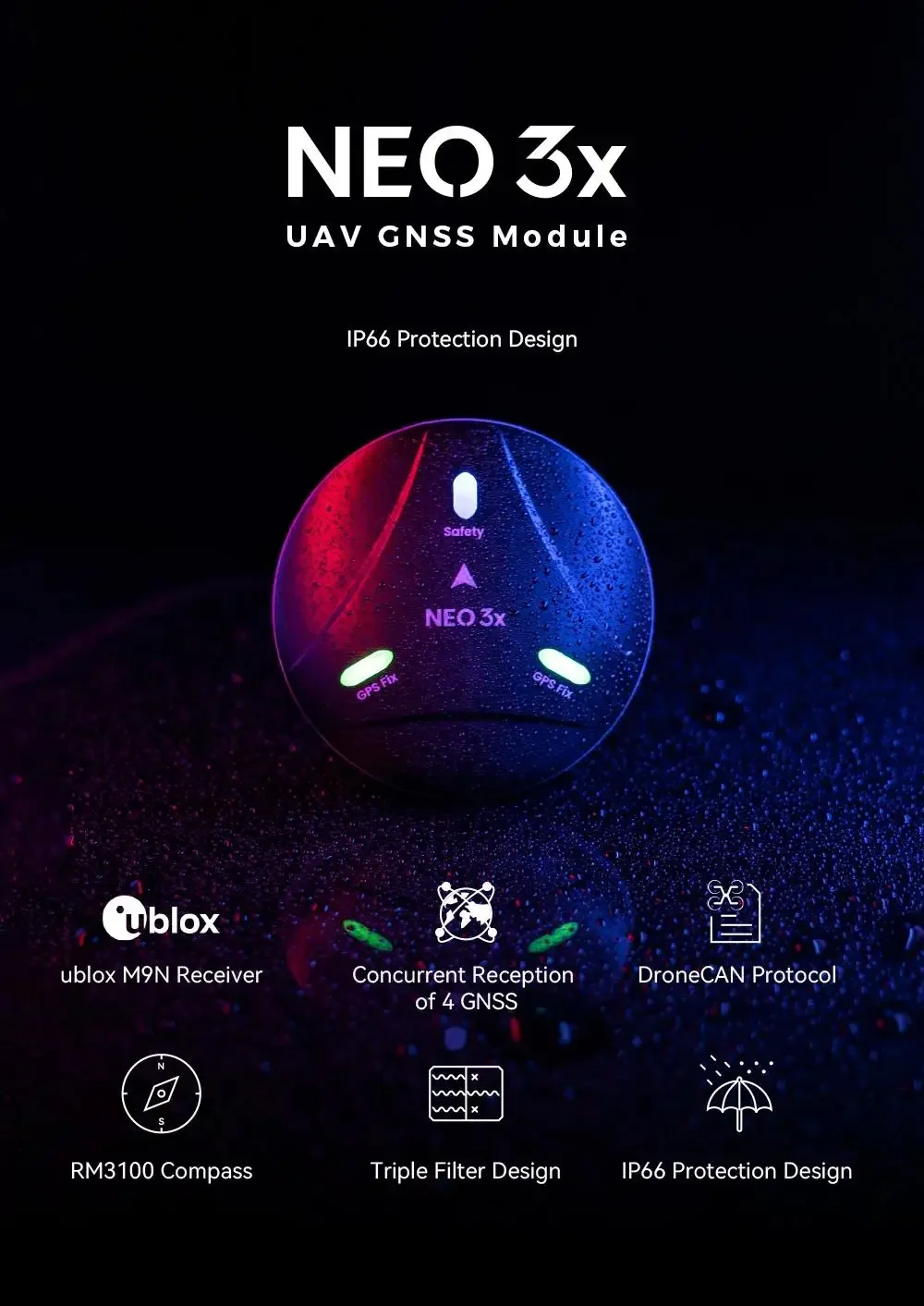

NEO 3X GPS Features:

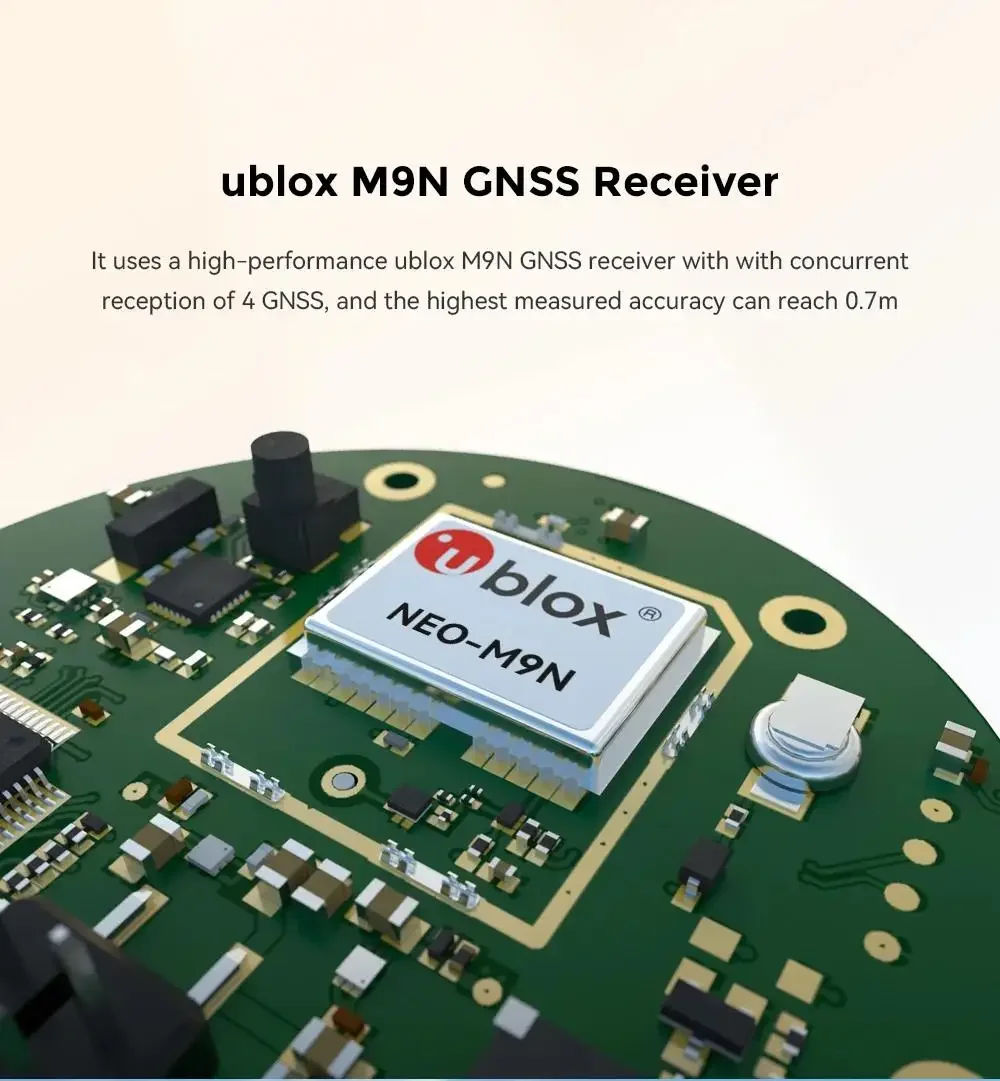

1–Ublox M9N satellite receiver, accuracy up to 0.7m

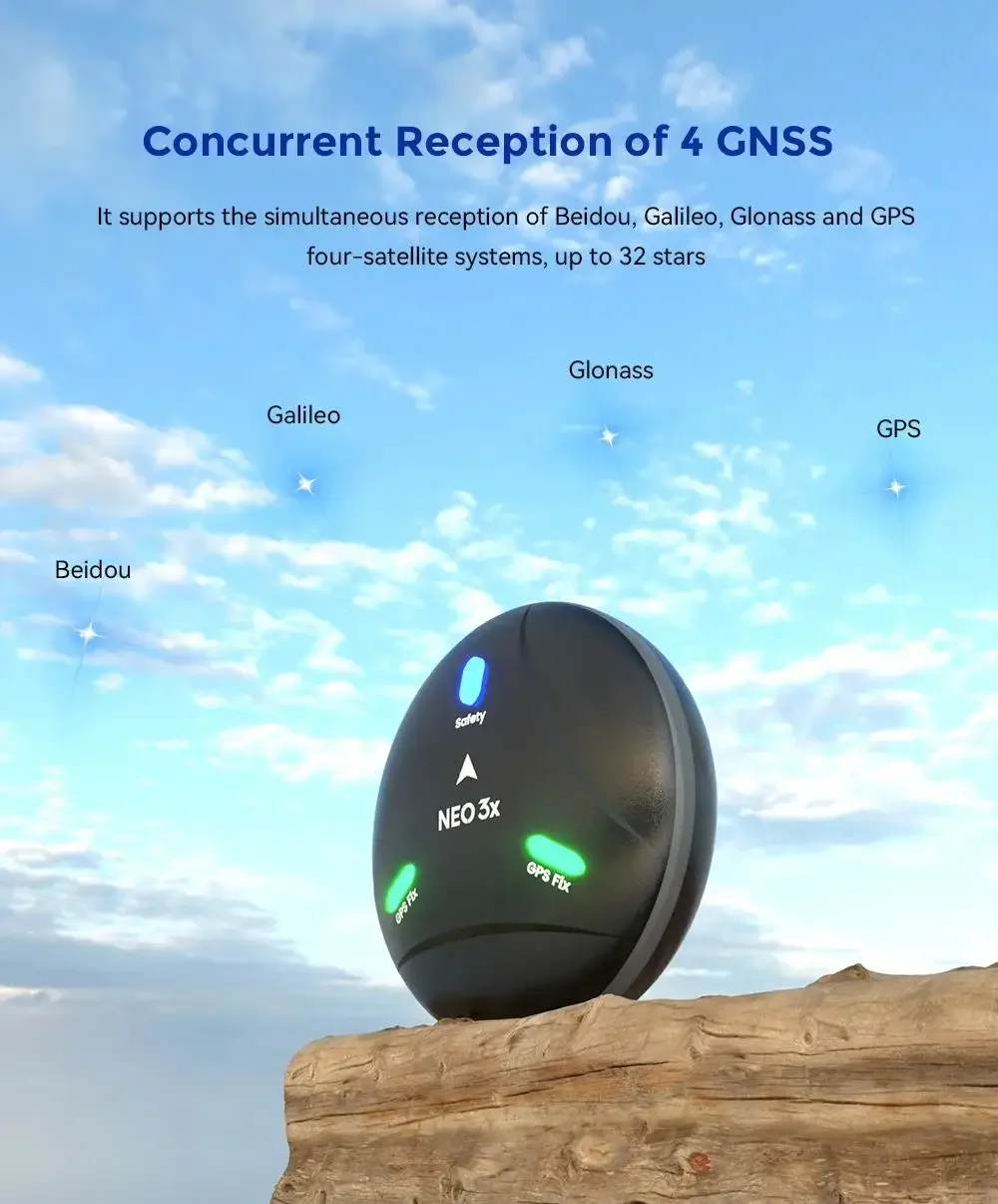

2–Support Beidou, Galileo, Glonas, GPS four satellite systems

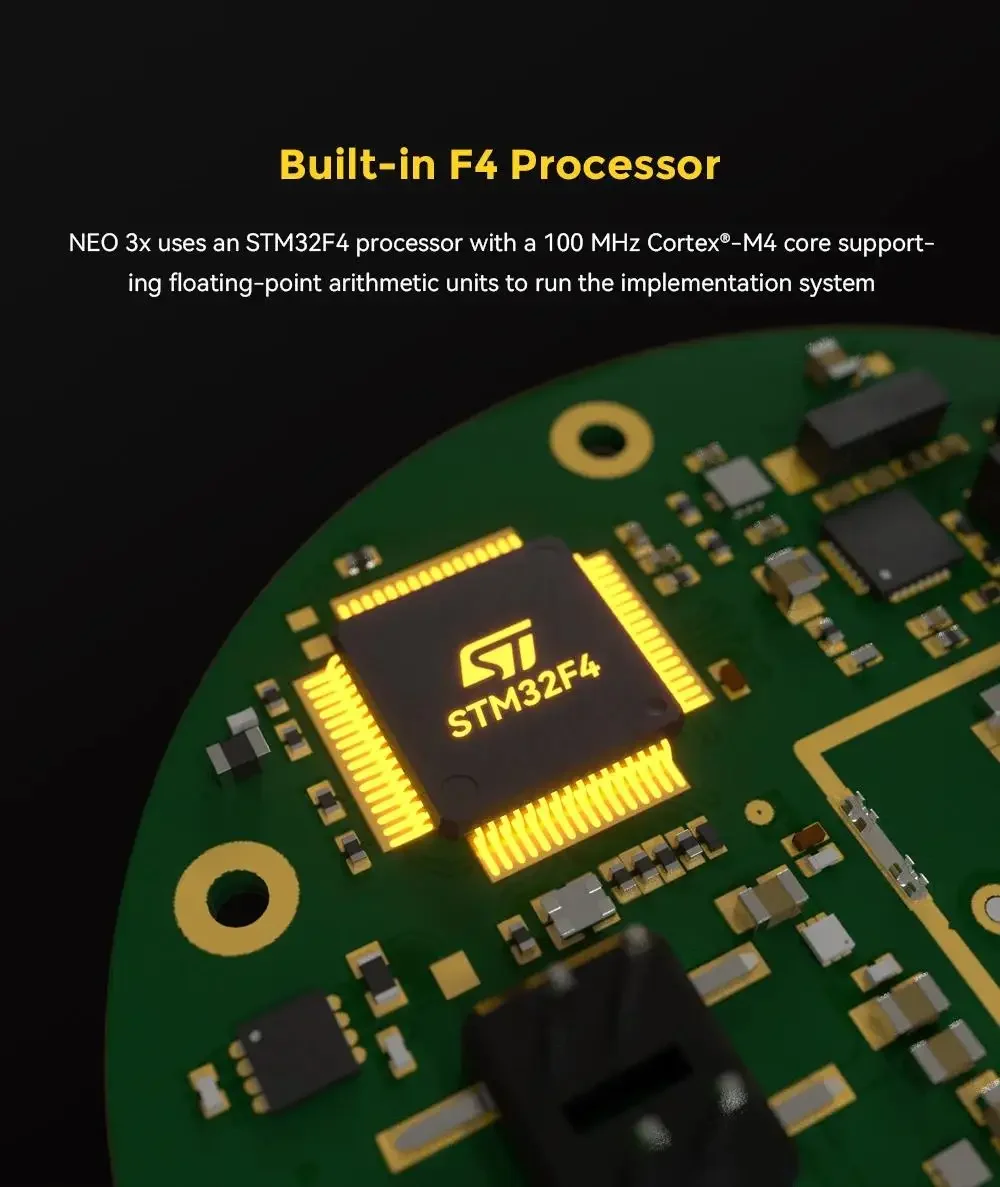

3–Built-in F4 Processor, with a 100 MHz Cortex®-M4 core supporting floating-point arithmetic units

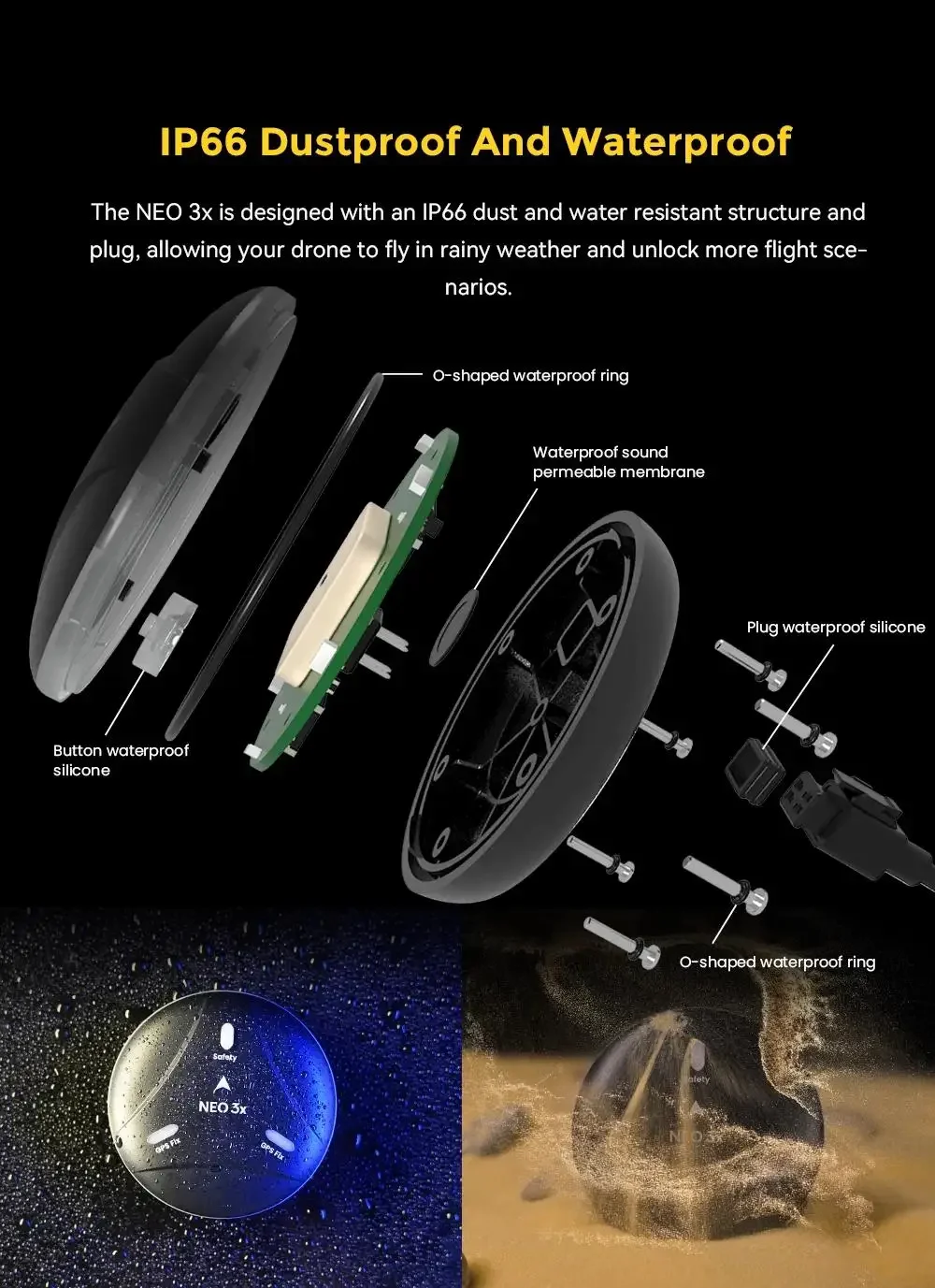

4–IP66 Dustproof And Waterproof

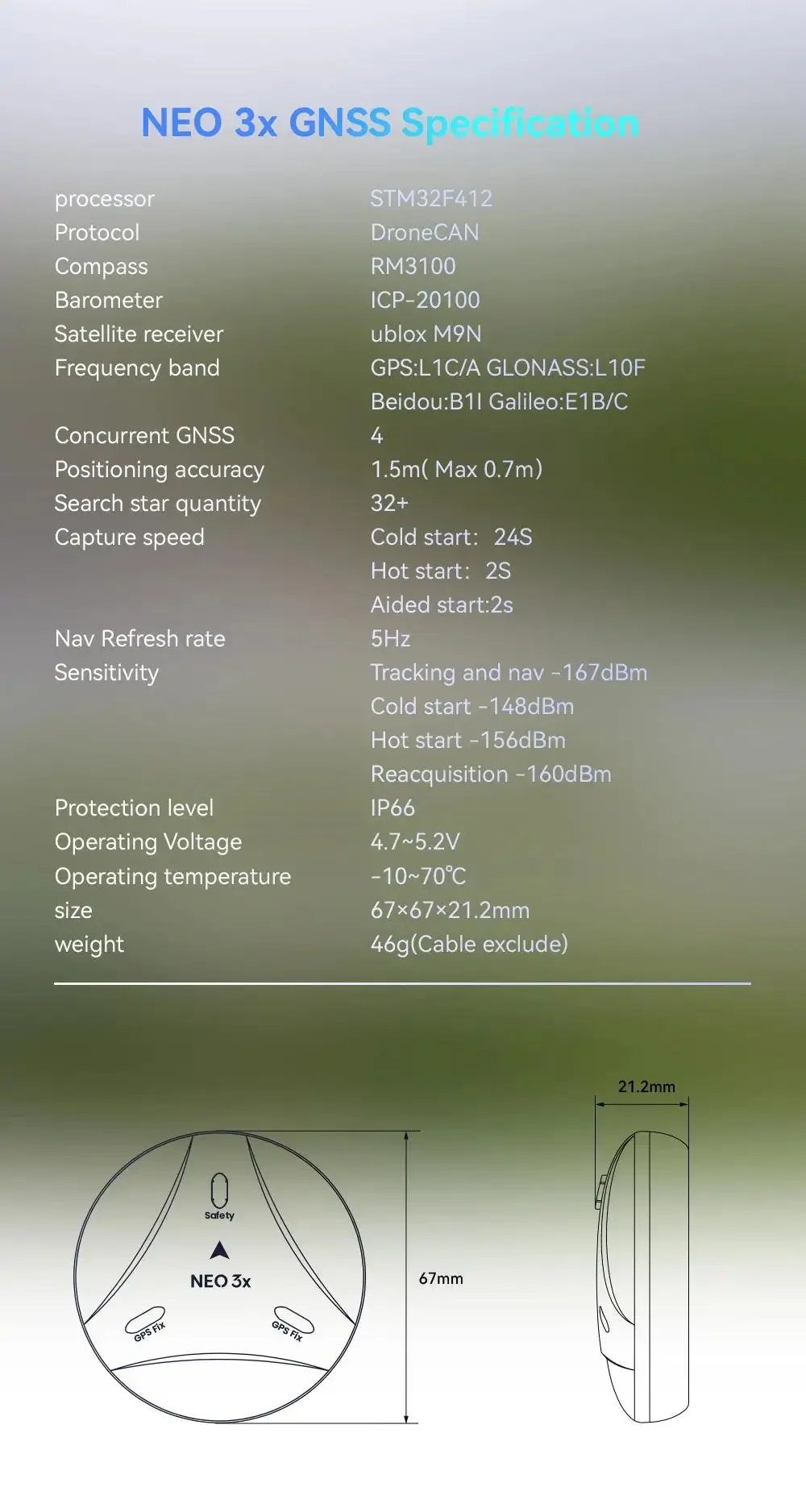

Specification:
- Processor: STM32F412
- Communication protocol: for DroneCAN

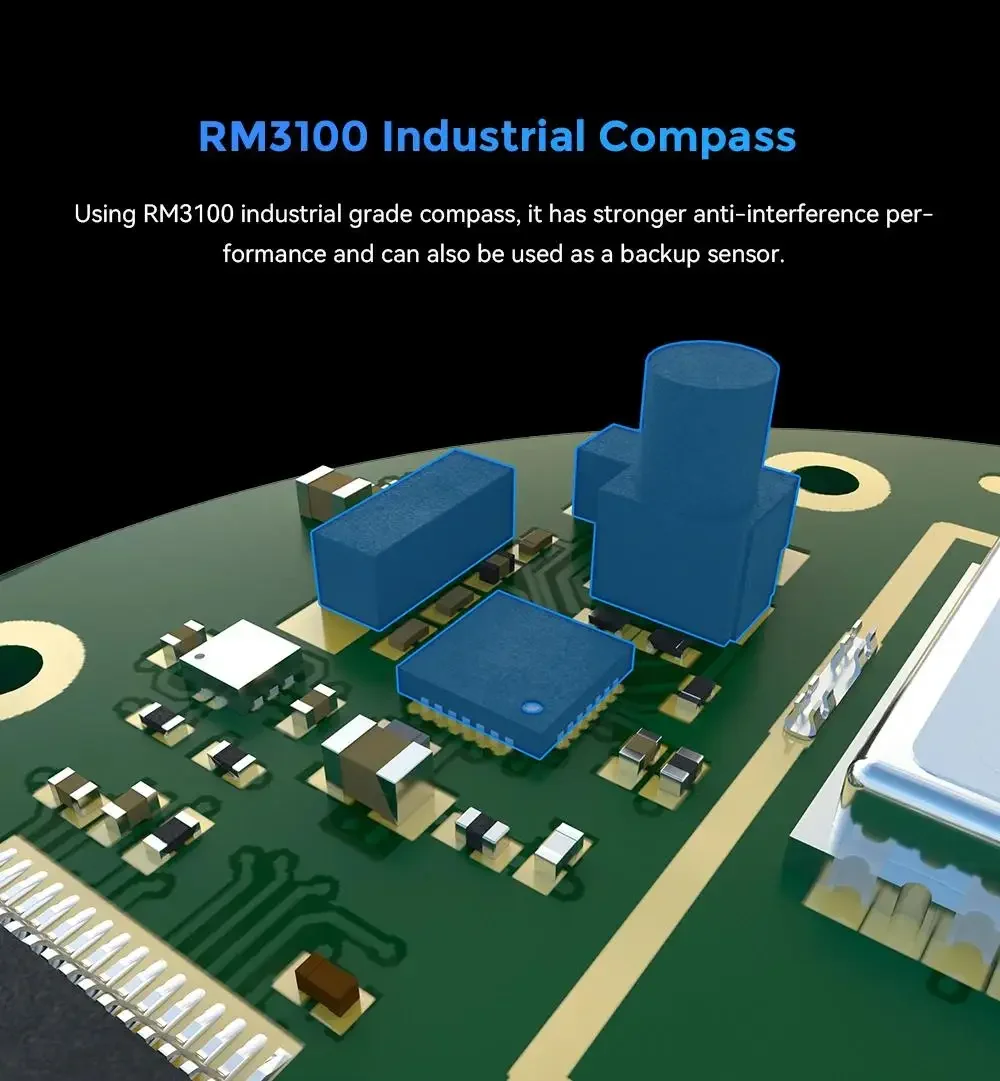

- Electric compass: RM3100
- Pressure gauge: ICP-20100
- Satellite Receiver: for ublox M9N
- Working frequency range: L1C/A for GPS; L10F for GLONASS; B1I for Beidou; E1B/C for GALILEO
- Parallel receiver: 4
- Positioning accuracy: 1.5m (actual measurement up to 0.7m)
- Searching number: 32+
- Catching speed: 24s for cold start; 2s for re-catching; 2s for auxiliary start
- Navigation refresh rate: 5Hz
- Sensitivity: -167dBm for tracking and navigation; -148dBm for cold start; -156dBm for hot start; -160dBm for re-catching
- Protection level: IP66
- Working voltage: 4.7 - 5.2V
- Working temperature: -10℃ ~ 70℃
- Product size: 67 x 67 x 21.2mm
- Net weight: 46g

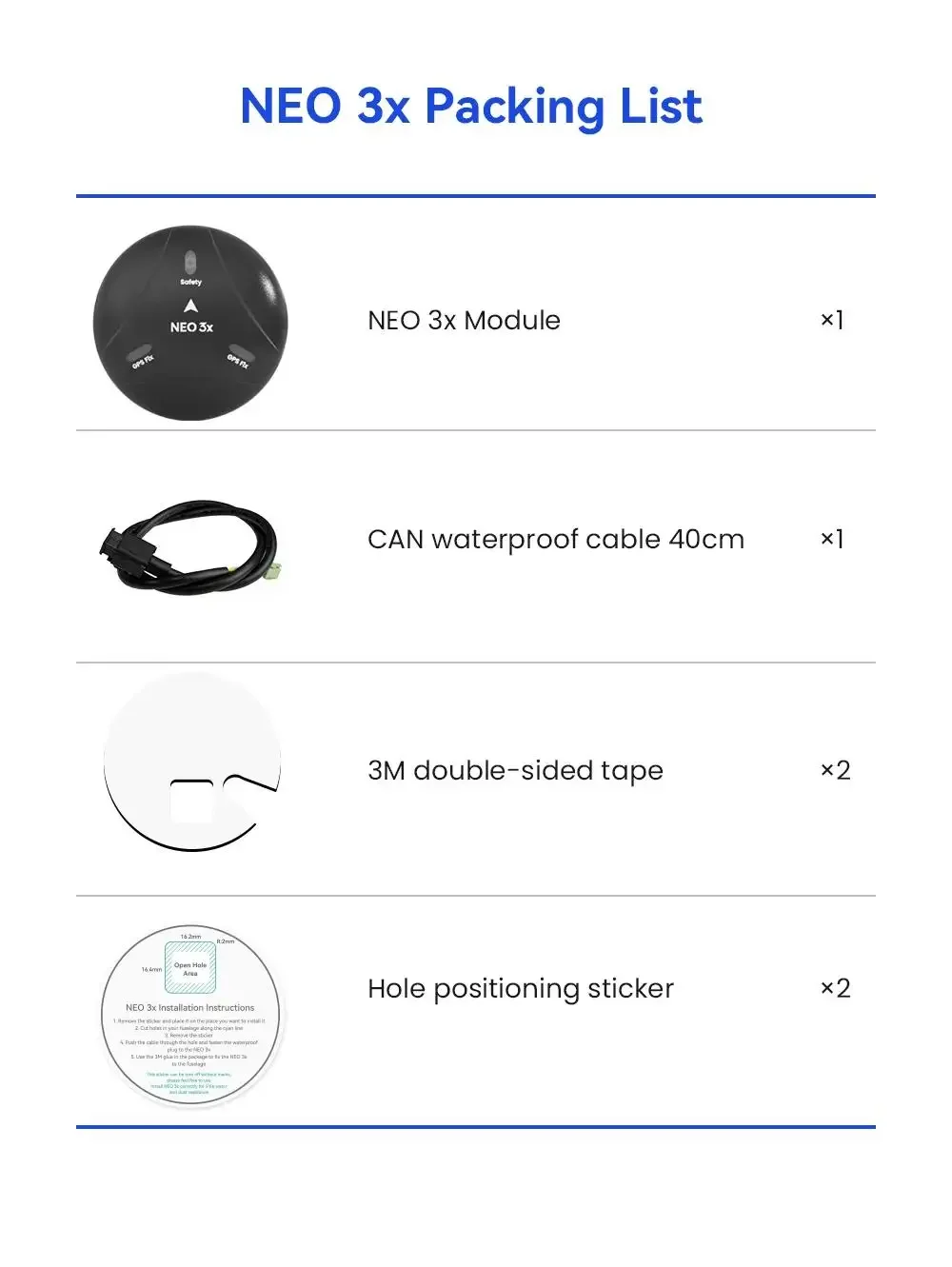

Package Included:
- 1 x NEO 3x Module
- 1 x 40cm CAN Waterproof Cable
- 2 x 3M Double-sided Adhesive
- 2 x Hole Positioning Sticker
