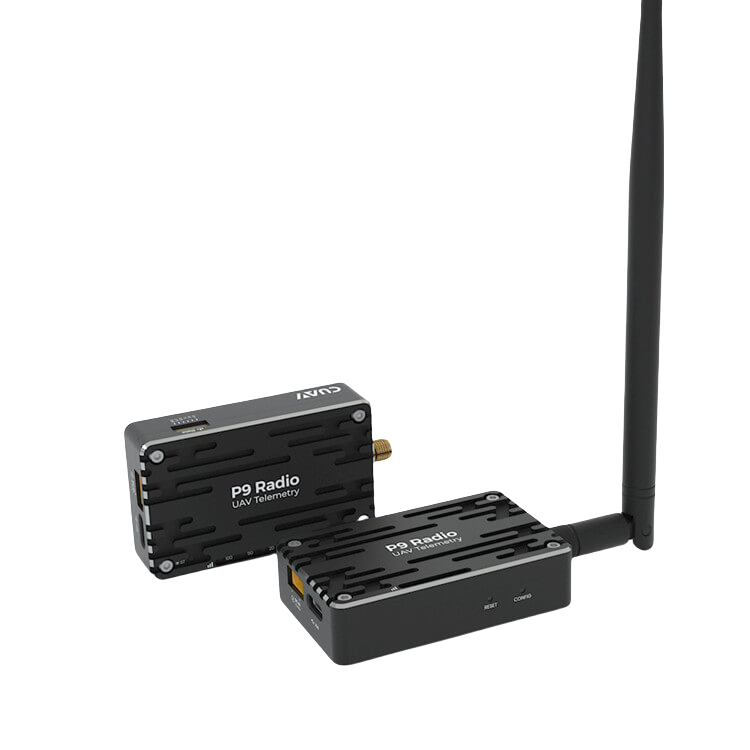

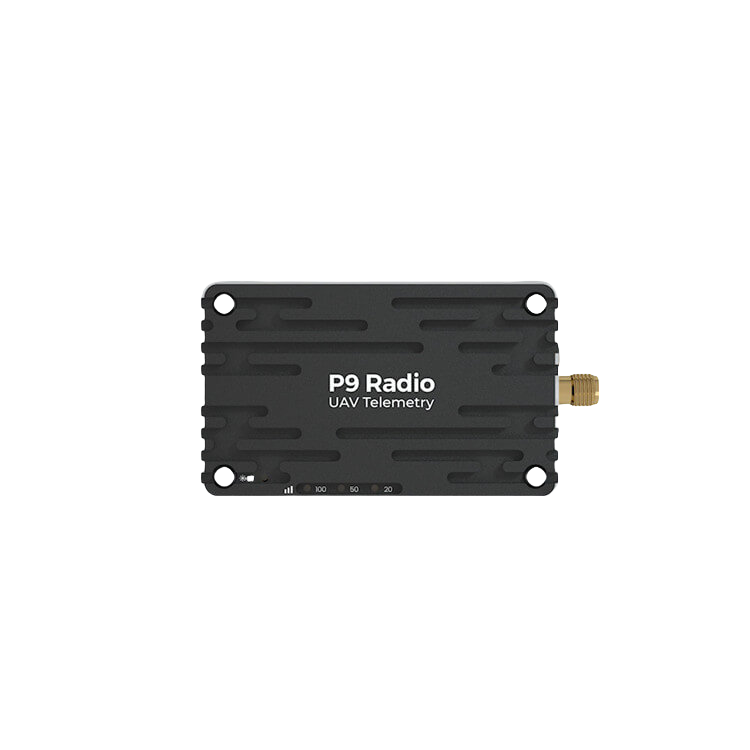

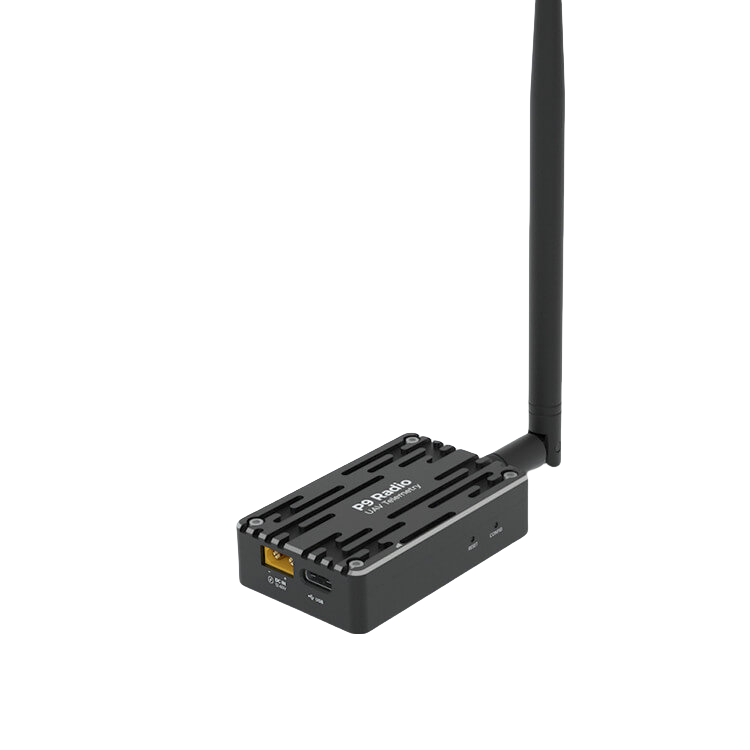

P9 Module is an ultra-long data telemetry module of Unmanned Systems. It adopts the communication frequency band of 902～928MHz. It has a transmission distance of 40km and a link rate of 276kbps. P9 Module supports 3～12S wide voltage input. It supports relay communication, meeting communication requirements in multiple application scenarios.
CUAV P9 telemetry features:
1–902-928MHz frequency band
2–276kbps Link Rate
3–40km Range.

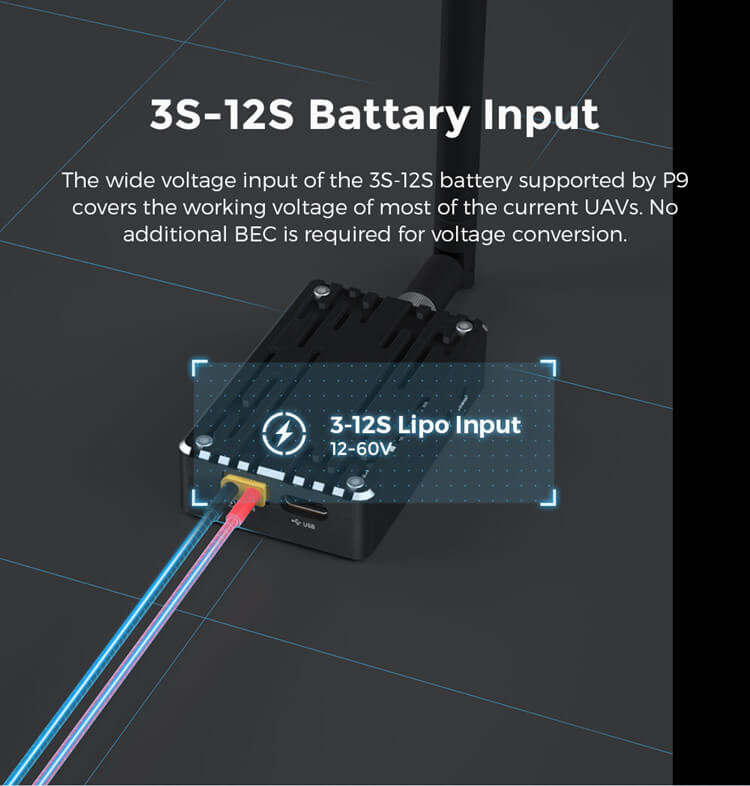

4–Support 3S-12S Battary Input.

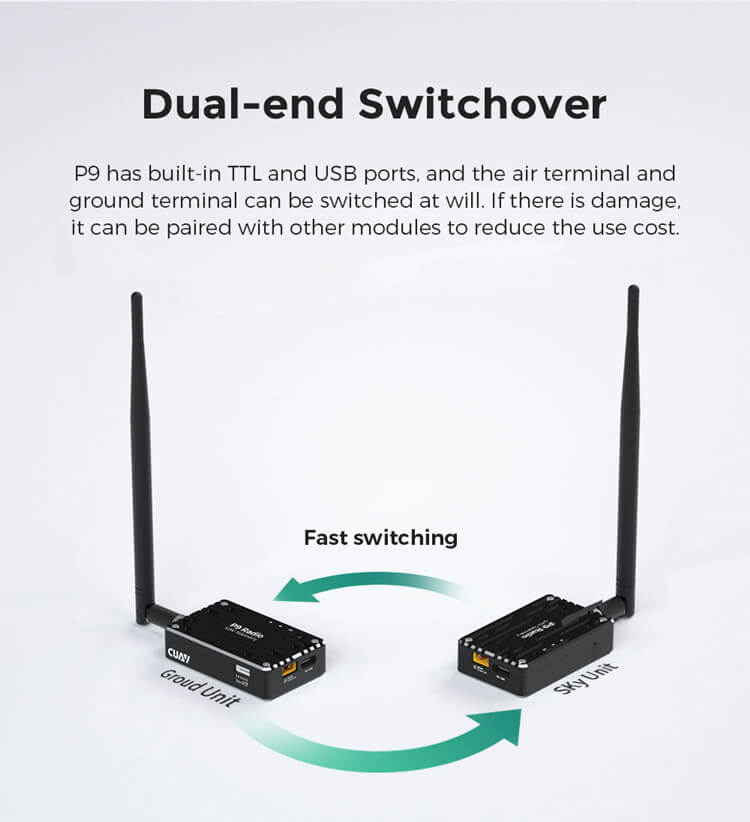

5–Dual-end Switchover design reduced costs
Main Parameter |
|
| Working Frequency | 902 ~ 928 MHz |
| Transmission Technology | Frequency Hopping |
| Transfer Protocol | Transparent Transmission |
| Forwarding Error Detection | Hamming /BCH/Golay/Reed-Solomo |
| Error Detecting | Error Detection 32 bits of CRC, ARQ |
| Encrypt | Optional (see –AES option) |
| Range | Reference distance: 40km(The transmission distance is different under different environments/ configurations, please refer to actual use) |
| Sensitivity | -110 dBm @ 115.2 kbps -108 dBm @ 172.8 kbps -107 dBm @ 230.4 kbps |
| Output Power | 100mW ~ 1W (20 ~ 30dBm)（Default：1W) |
| Antenna Gain | 5dBi |
| Serial Interface | 3.3V CMOS TTL |
| Baud Rate | Up to 230.4kbps;57600（Default） |
| Link Rate | 115 ~ 276 kbps |
| Operating Modes | Auto Routing, Store and Forward,Self Healing, Packet Routing Modes |
| Operating Voltage | 12 ~ 60V |
| Power Consumption | Sleep < 1mA Idle < 3.5mA RX：35mA ~ 80mA TX：800mA ~ 1200mA |

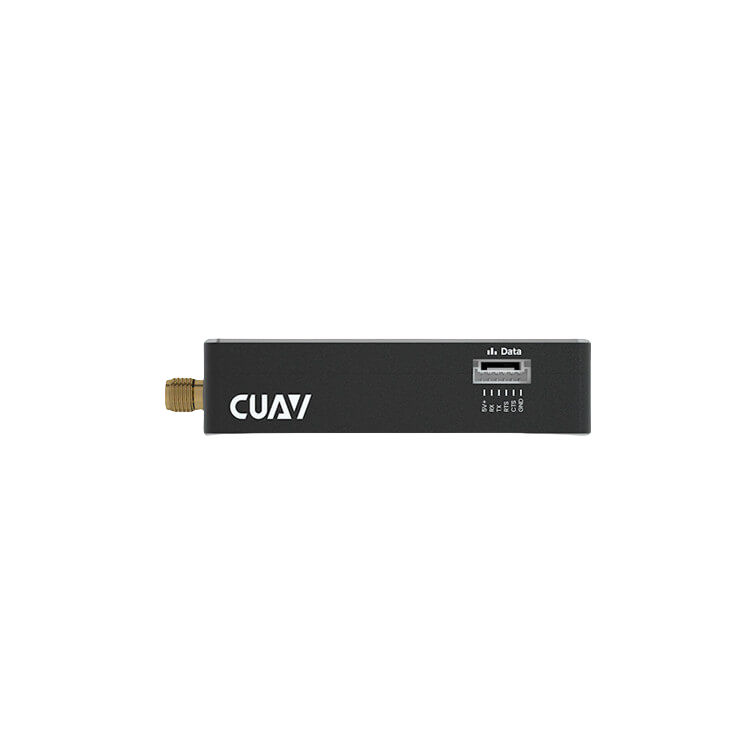

| Interface | Serial：GHR-06V-S Antenna：SMA inner needle USB：Type-C Power：TX30PW-M |
| Operating Temperature | -40 ~ 85℃ |
| Humidity | 5% ~ 95%(Non-condensing) |
| Size | 65.0 × 40.0 × 16.5 mm |
| Weight | 55g(Module);Antenna：31g |
