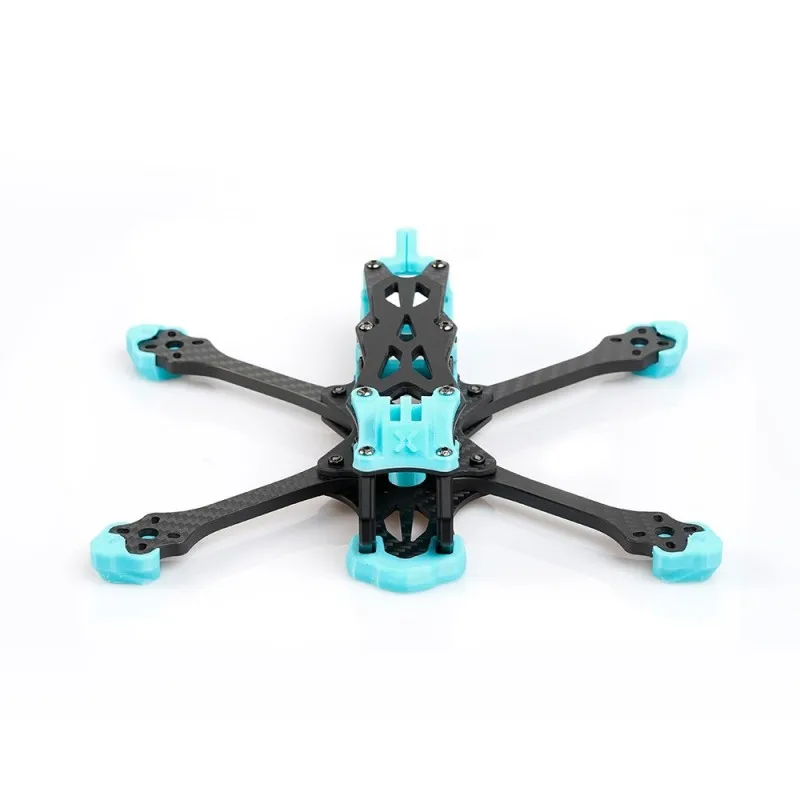

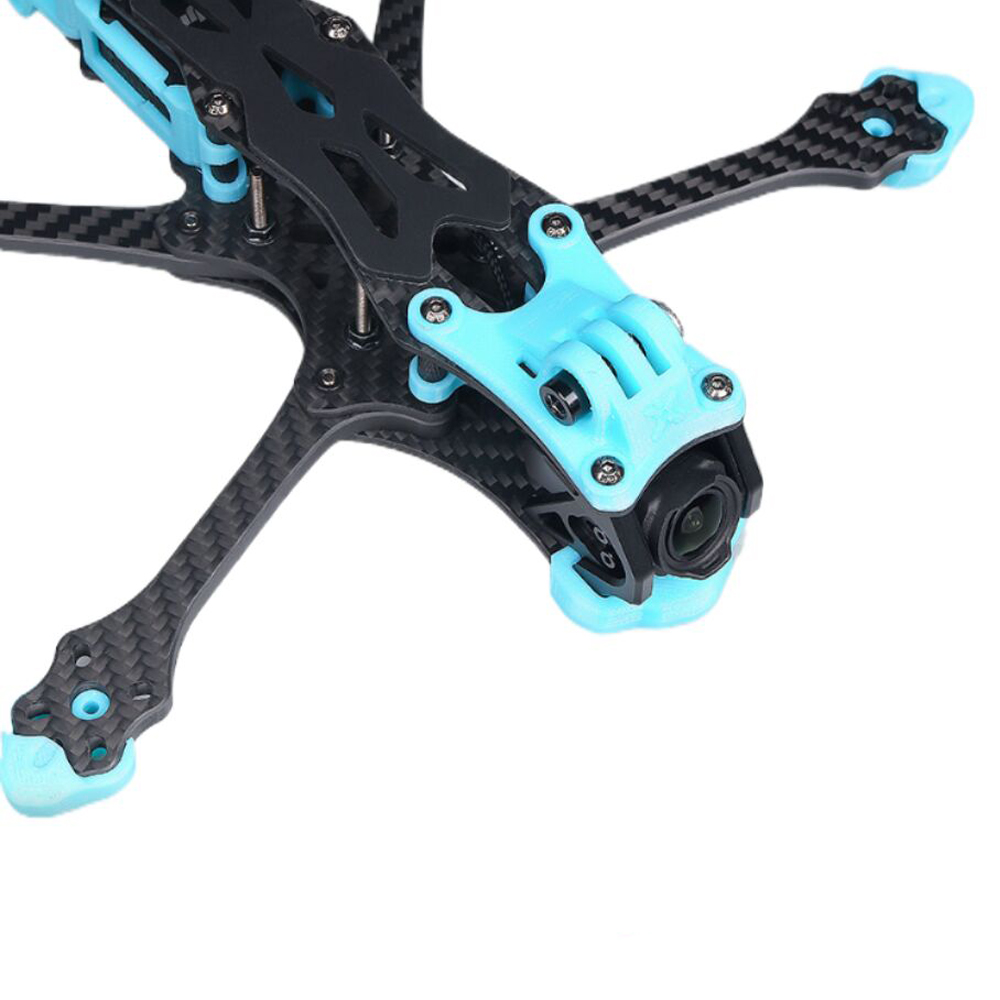

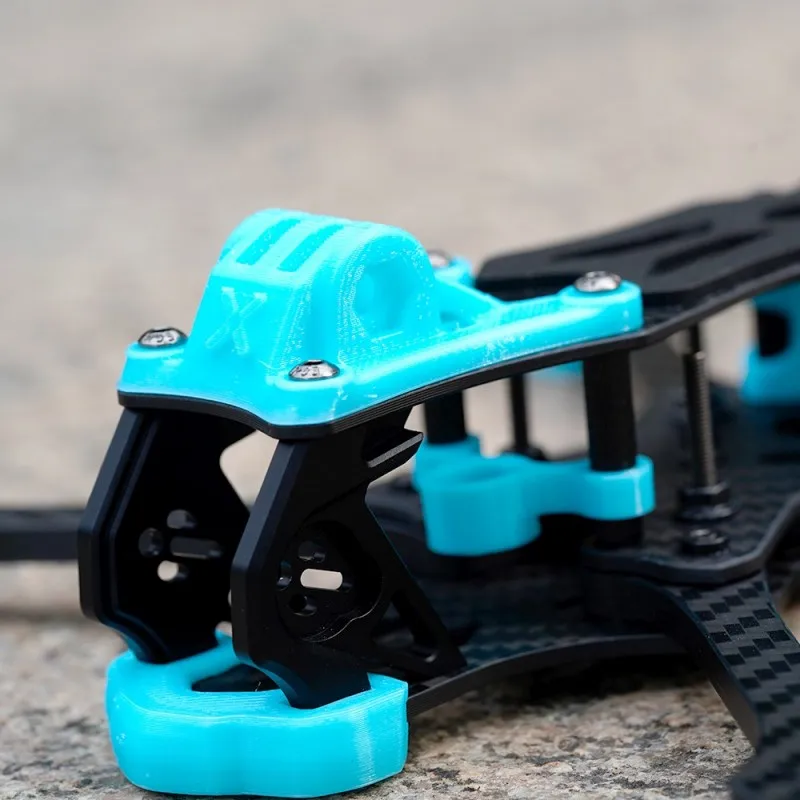

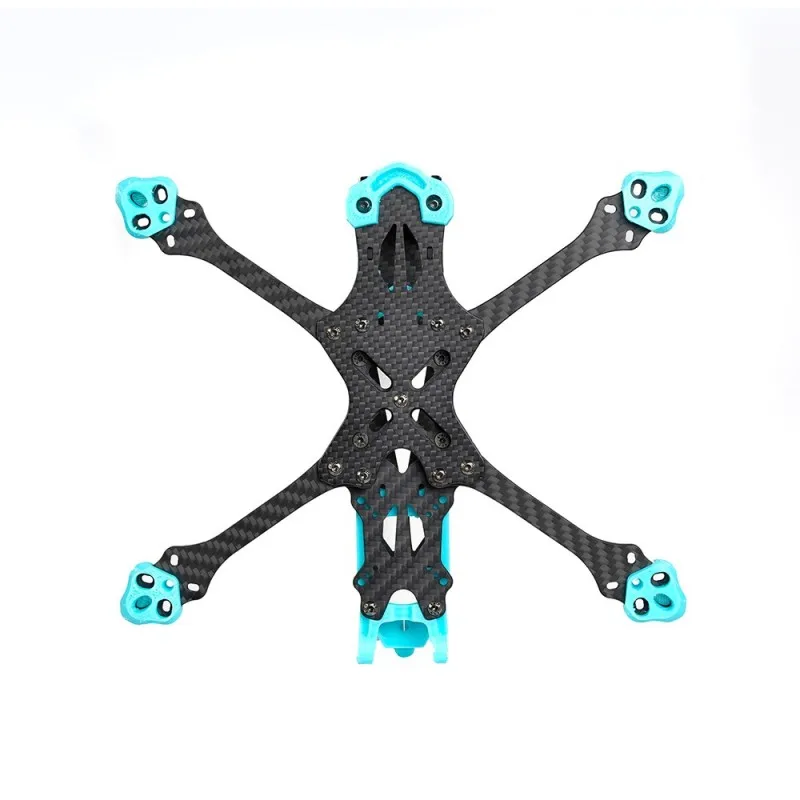

FOXEER MEGA 5" 238mm / 6" 269mm DC Frame

FOXEER MEGA 5" 238mm / 6" 269mm DC Frame is a drone frame designed by the FOXEER brand. It is suitable for FPV racing and free flight. The frame uses Toray T700 is made of high-quality carbon fiber material to provide excellent performance and durability. It is available in 5-inch (238mm) and 6-inch (269mm) wheelbase options to suit different flying styles and needs. The design may be compatible with a variety of cameras. and flight systems such as O3, Analog, Vista, Walksnail, HDZero, etc., the 5-inch version weighs about 136 grams, and the 6-inch version weighs about 152 grams (excluding TPU), which allows the frame to focus on lightweight design while maintaining strength.

Specifications:

• Material: Toray T700 carbon
• Wheelbase: 5": 238mm; 6": 269mm
• Middle Mounting Hole: 30.5x30.5mm
• Rear Mounting Hole: 20x20/25.5x25.5/30.5x30.5mm
• Camera Size: 19x19/20x20mm
• Supported System: O3/Analog/Vista/Walksnail/HDZero
• Weight: 5": 136g; 6": 152g (Excluded TPU)

Packing List:

• 5mm Arm 16~19mm mounting: 4
• 2mm Top Plate: 1
• 2.5mm Middle Plate: 1
• Balance Pole for 6": 2
• 2.5mm Bottom Plate: 1
• CNC Side Plate: 2
• Aluminum Column M3Φ5.523: 6
• SMA Antenna Mount: 1
• Bottom Plate Front Protective Mount: 1
• M5 Gopro Mount: 1
• Arm Guard: 4
• 915 Rx Antenna Mount: 1
• Isolation Column: 2
• Capacity Supporter: 1
• 5" DJI O3 VTX Mount: 1
• 6" DJI O3 VTX with 250GPS Mount: 1
• 6": 250GPS Mount: 1
• UFL Antenna Mount: 1
• Cam Spacer: 2
• M5 Nut: 1
• M5*20 Screw: 1
• Battery Anti-slip Mat: 1
• 250*20mm Strap: 1
• 220*20mm Strap: 1
