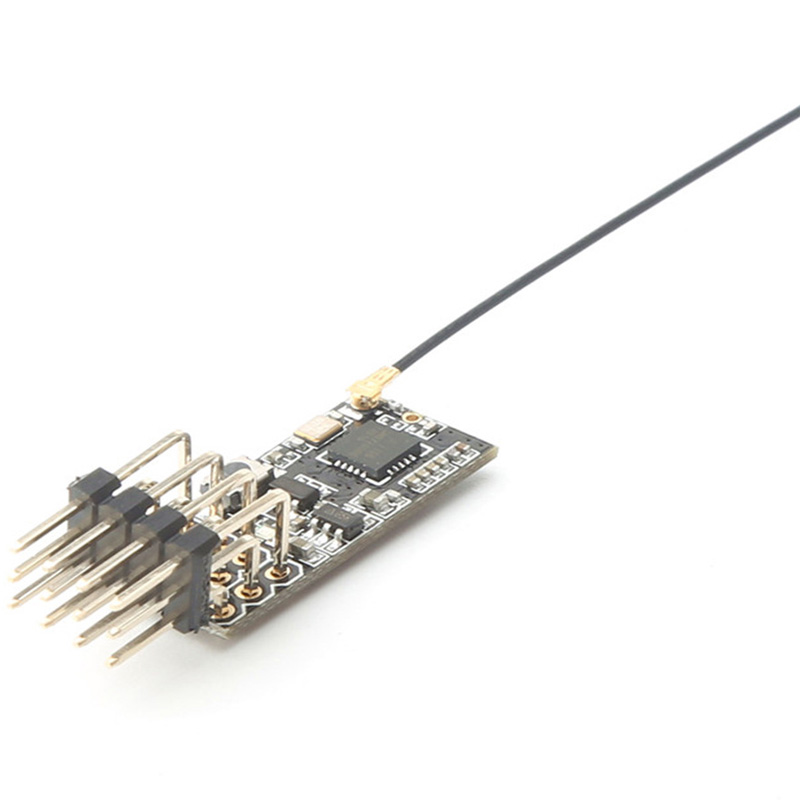

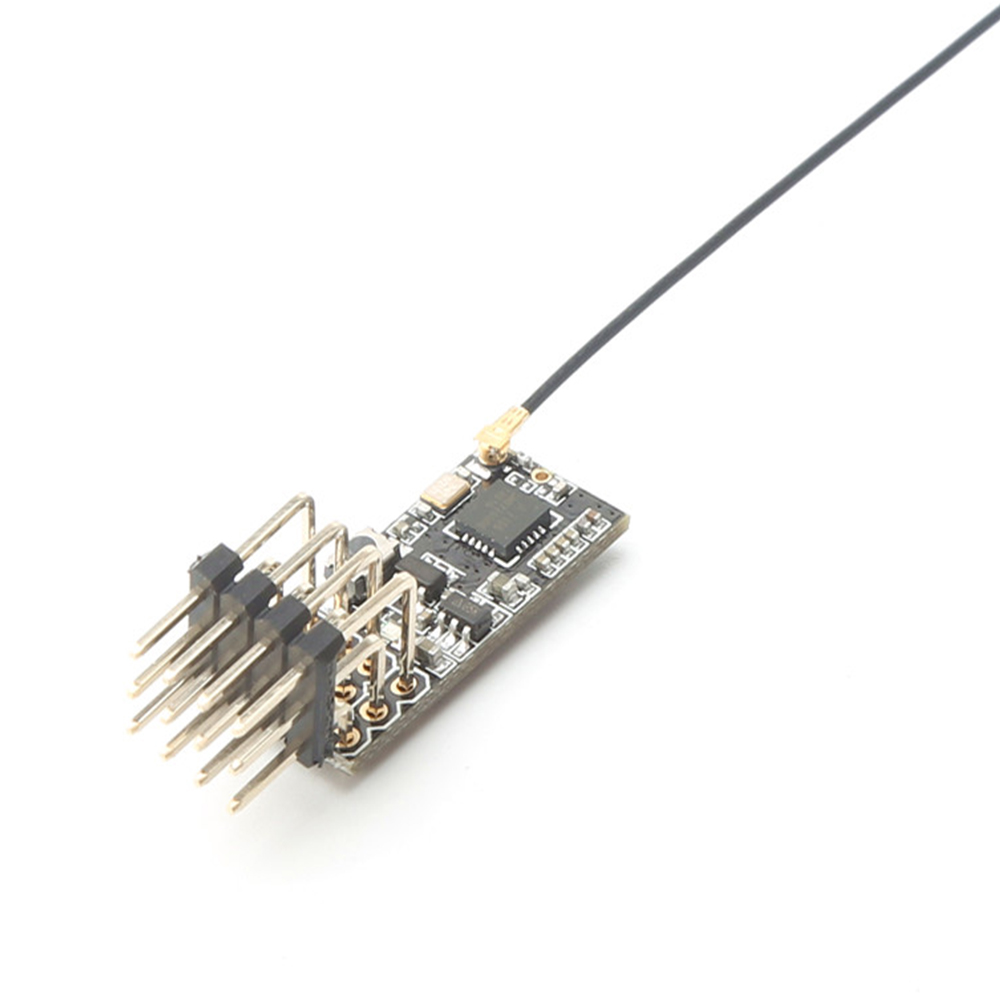

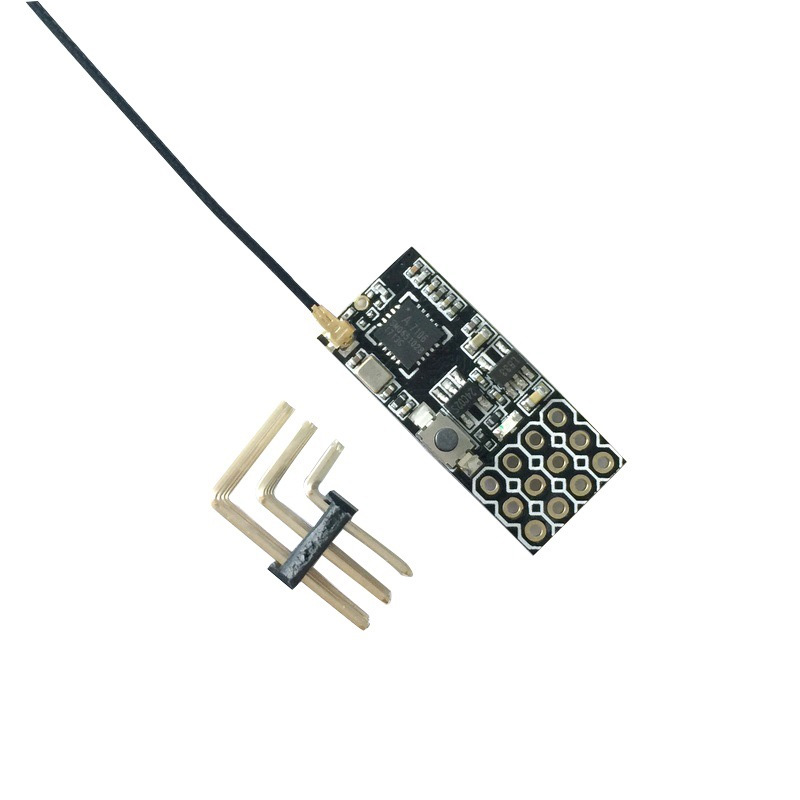

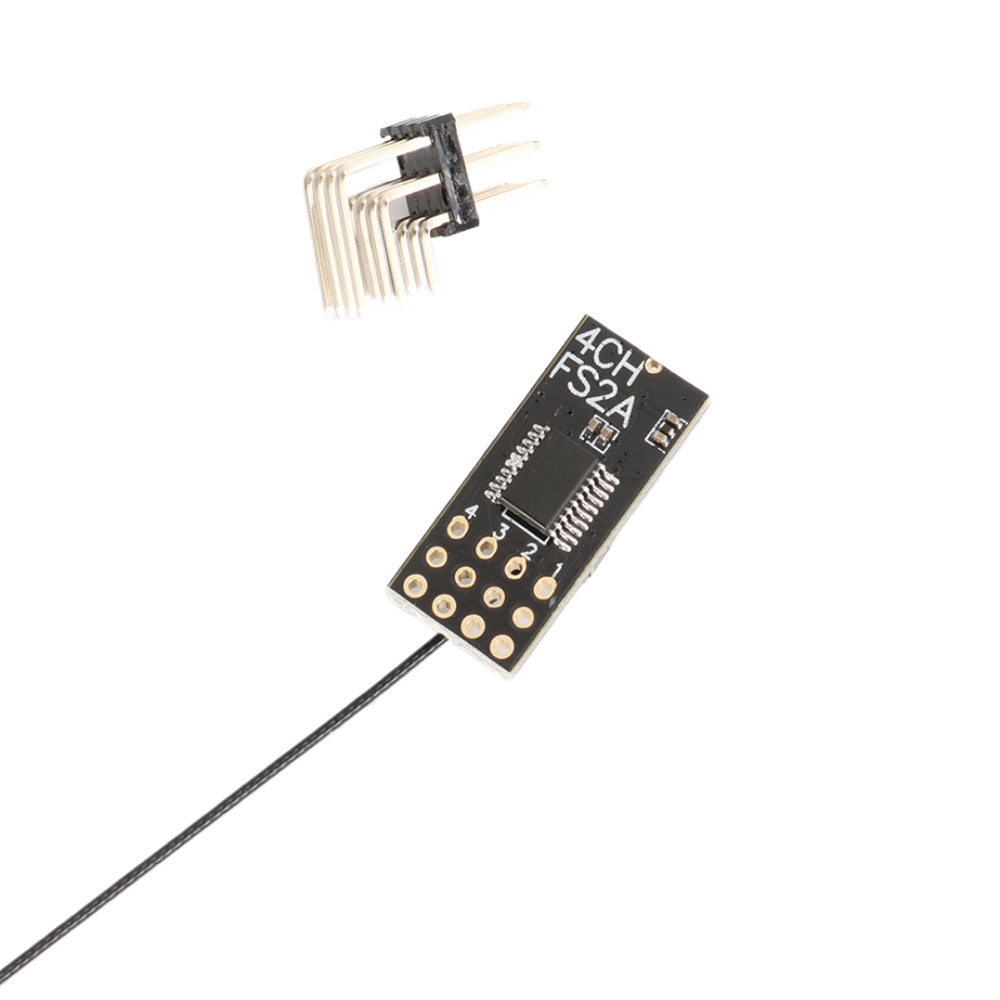

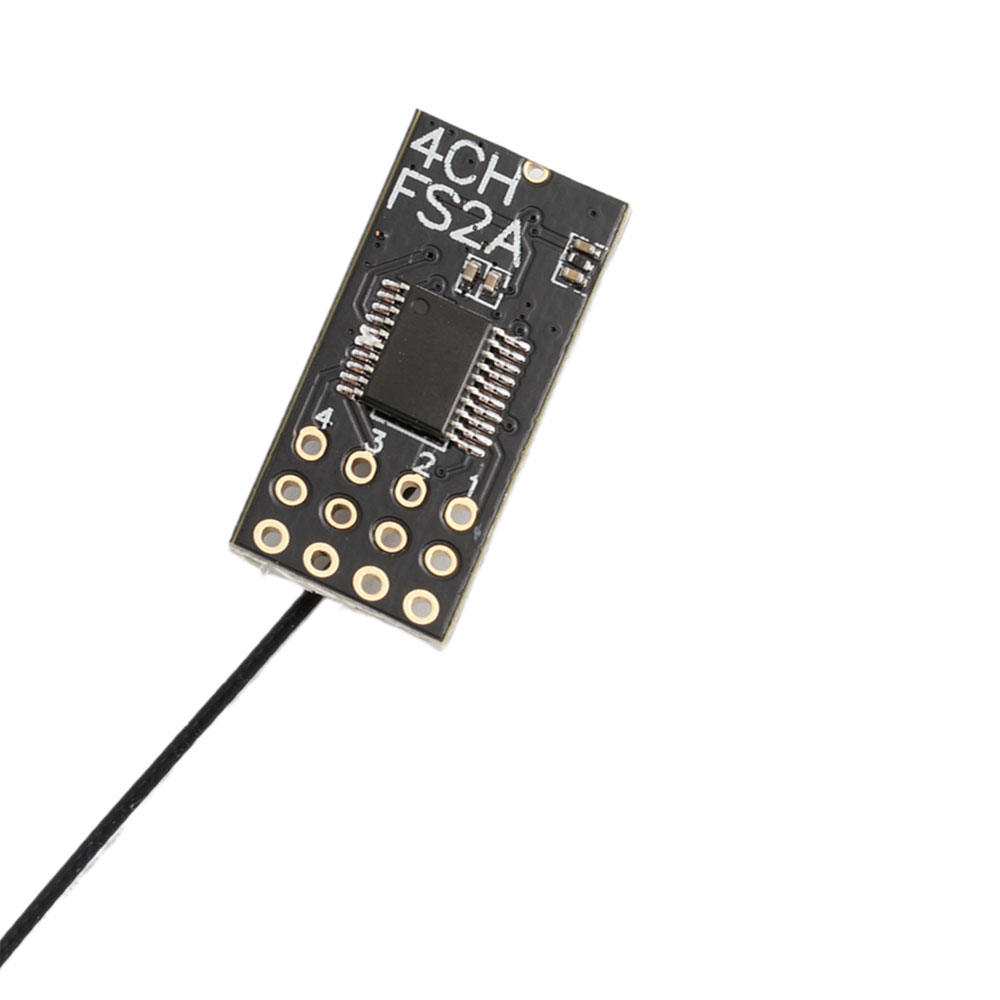

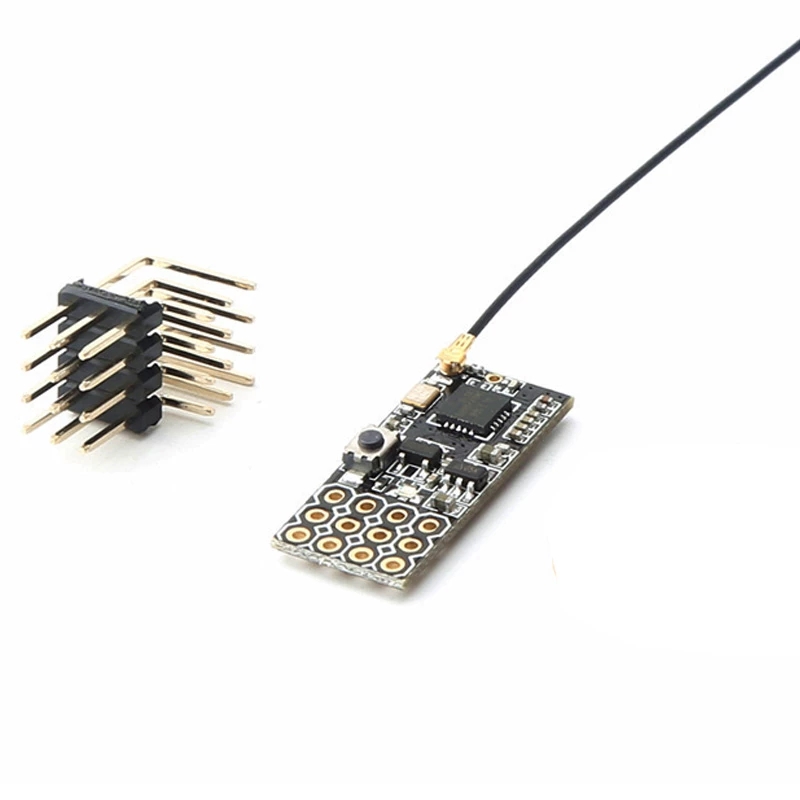

FS2A 4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S / FS-i6 FS-i6X FS-i6S Transmitter

Description:

• Item name: Flysky FS2A 4CH receiver
• Channels: 4CH
• Output signal: PWM
• Frequency range: 2.408-2.475 GHZ
• Band width: 135
• Receiver sensitivity: -92DBM
• 2.4G mode: AFHDS 2A
• Failsafe: Yes
• Supply voltage: 3.3-10 V
• Distance: 400+ meters
• Working current: 20MA
• Size: 11 * 25 MM
• Weight: 0.9 grams
• Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitters

Binding Process:

1. Press and hold the button on the receiver and connect the power to the receiver. The blue light on the receiver flashes, indicating it is in binding mode.
2. Set the transmitter in bind mode (confirms AFHDS 2A protocol). After entering bind mode, the receiver changes from flashing to a slower flash.
3. Exit bind mode on the transmitter, then the receiver blue light will remain bright. This indicates that the signal reception is successful.

Failsafe settings:

• The receiver can usually receive the transmitter signal, push the rocker to the failsafe, set, long press the receiver binding button, the blue light will flash quickly several times and then remain bright, indicating failsafe settings are successful.

Package Included:

• 1 Pcs FS2A 4CH AFHDS 2A Mini Compatible Receiver
