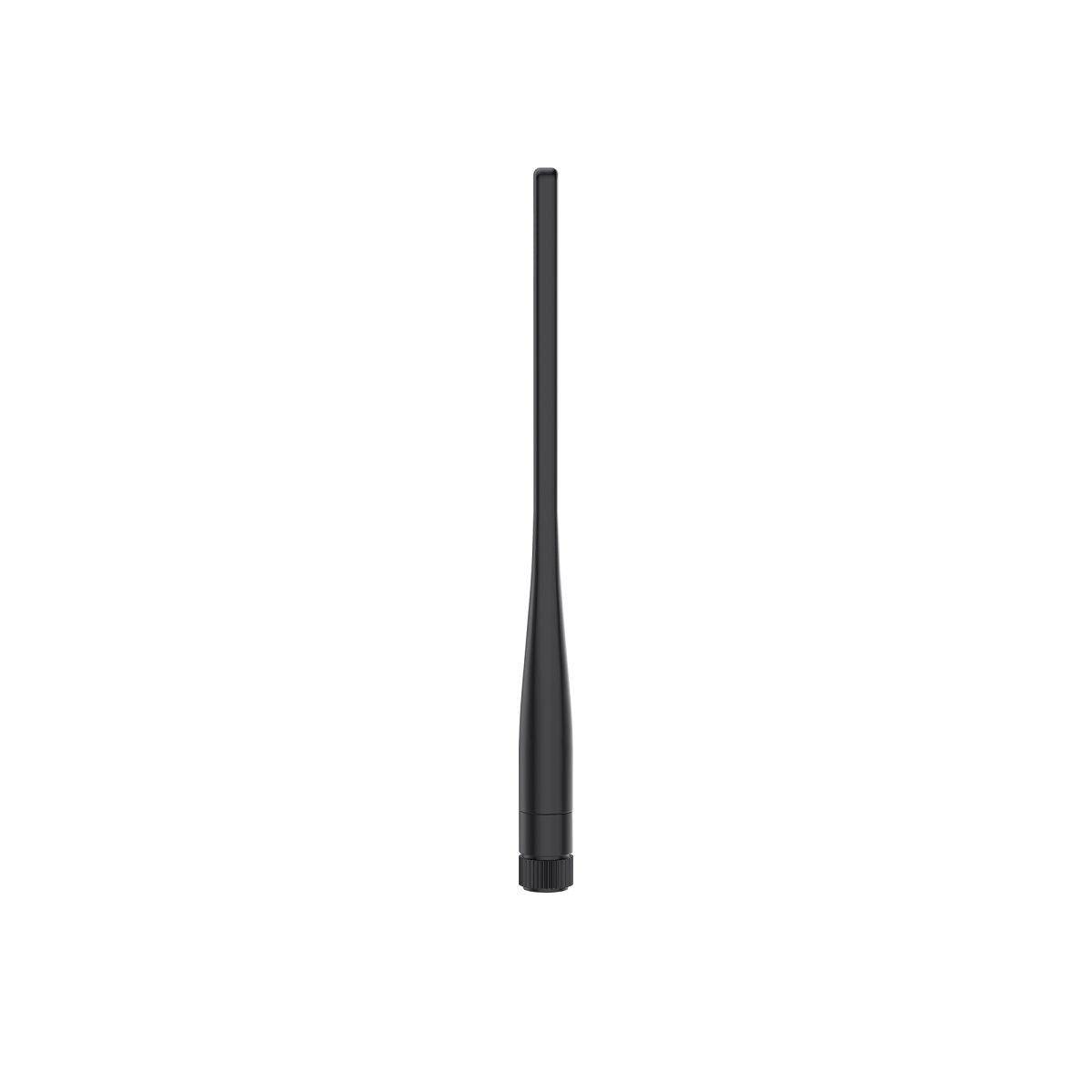

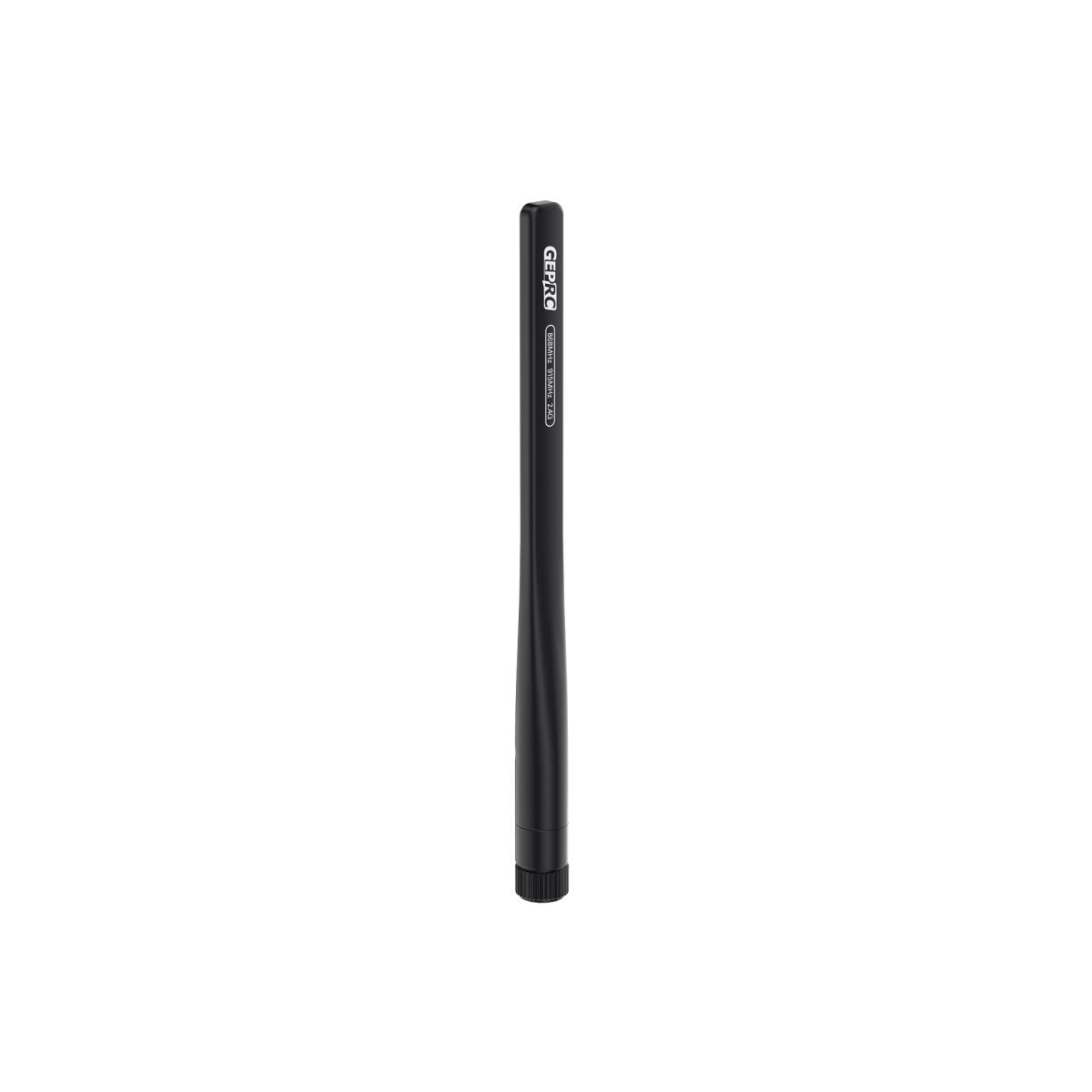

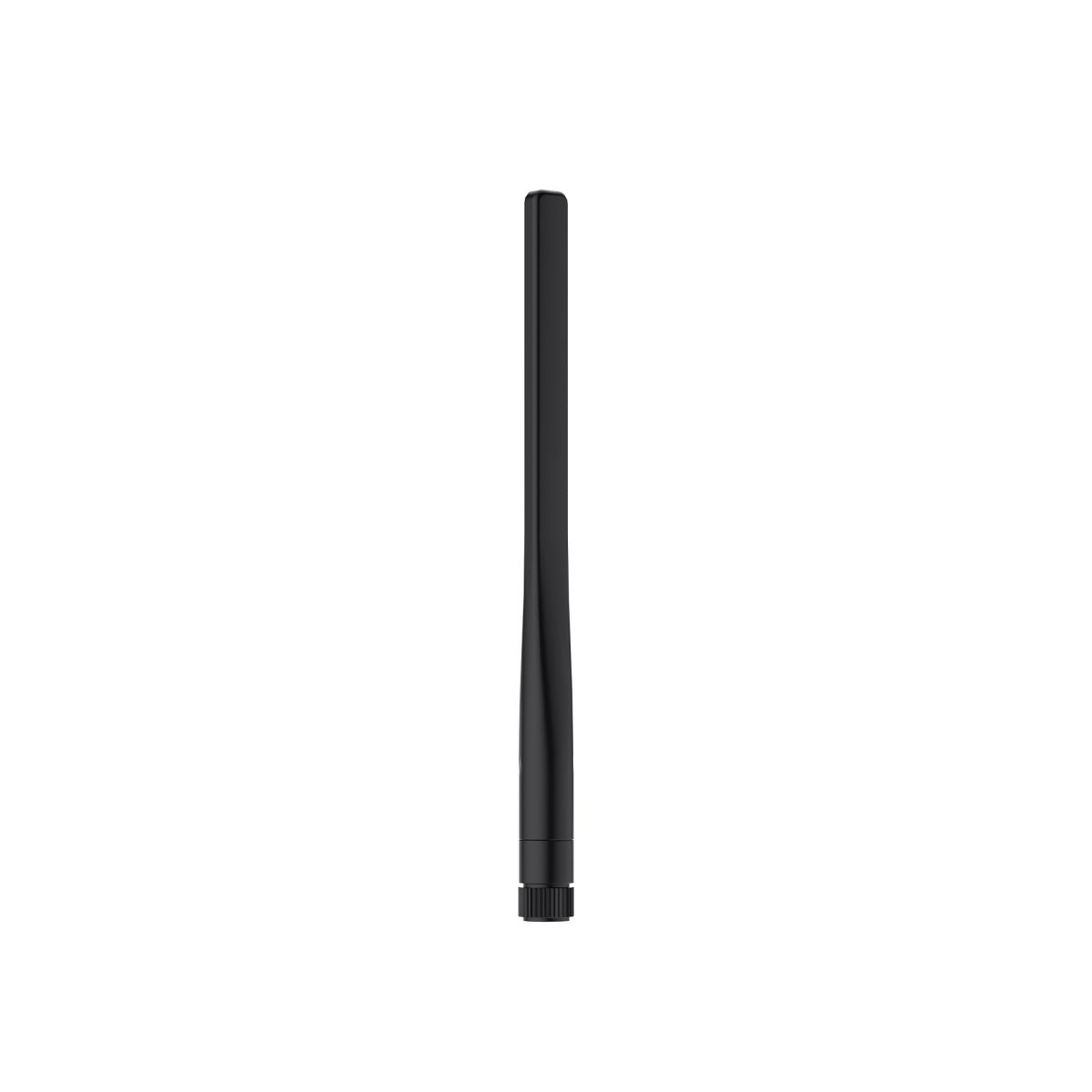

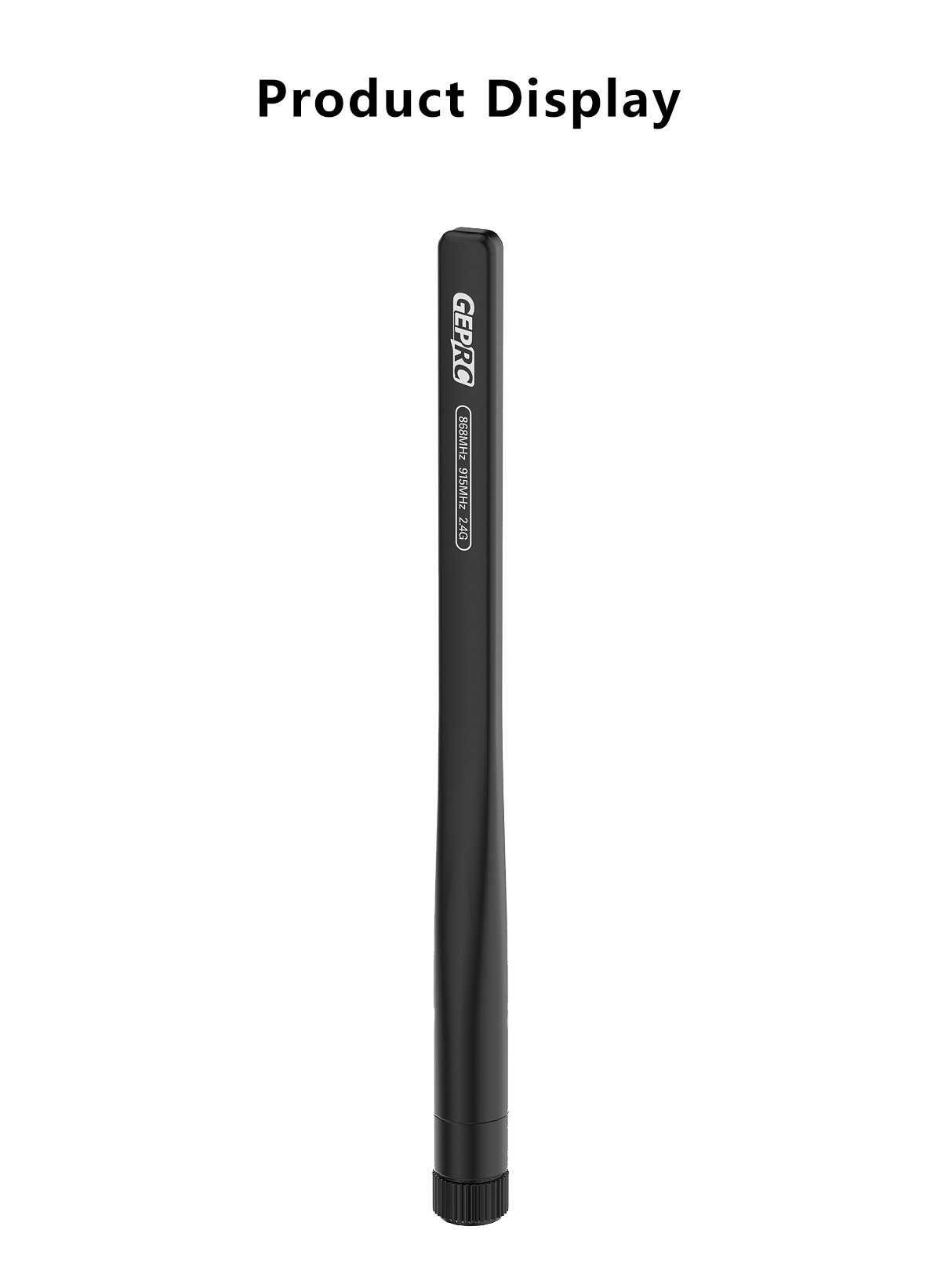

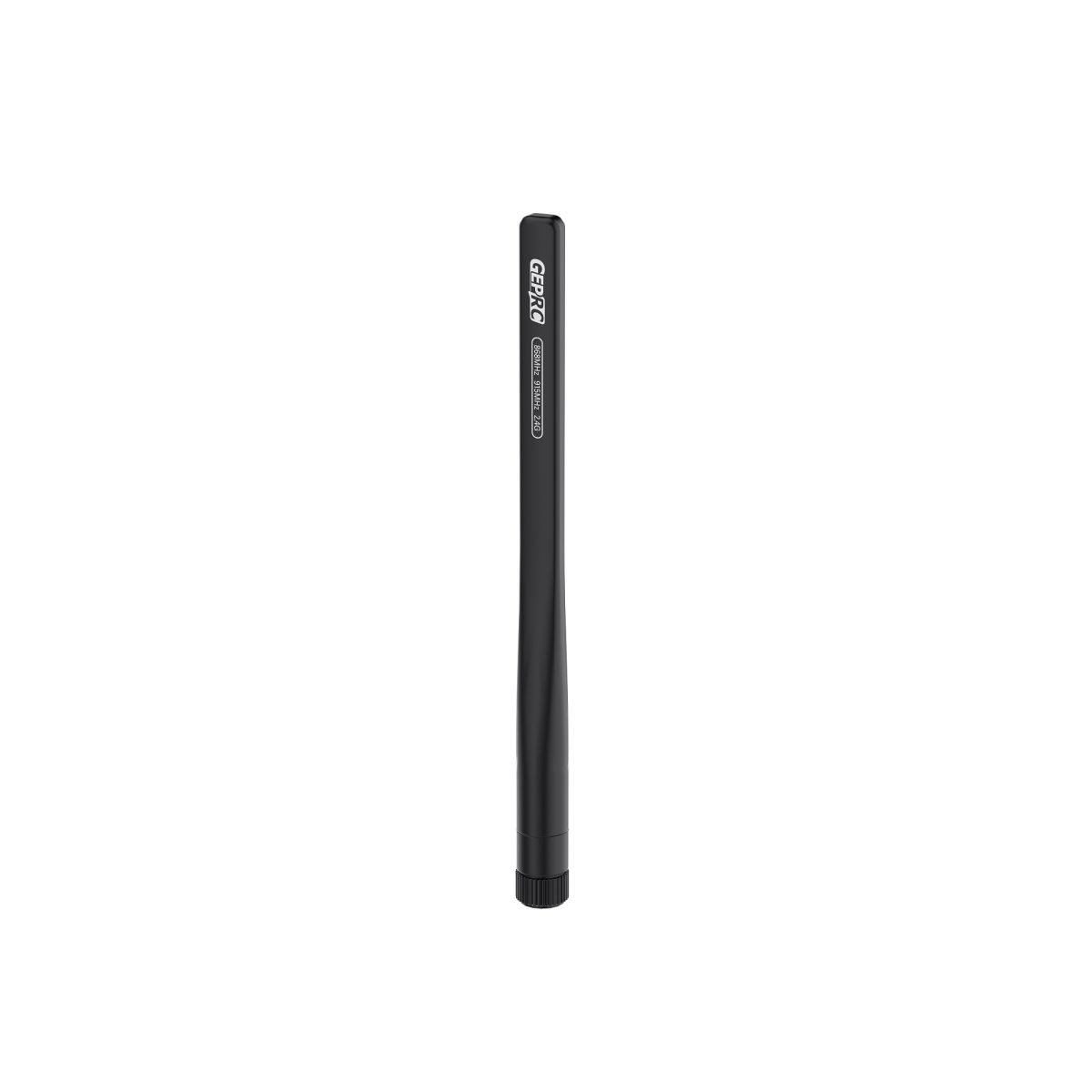

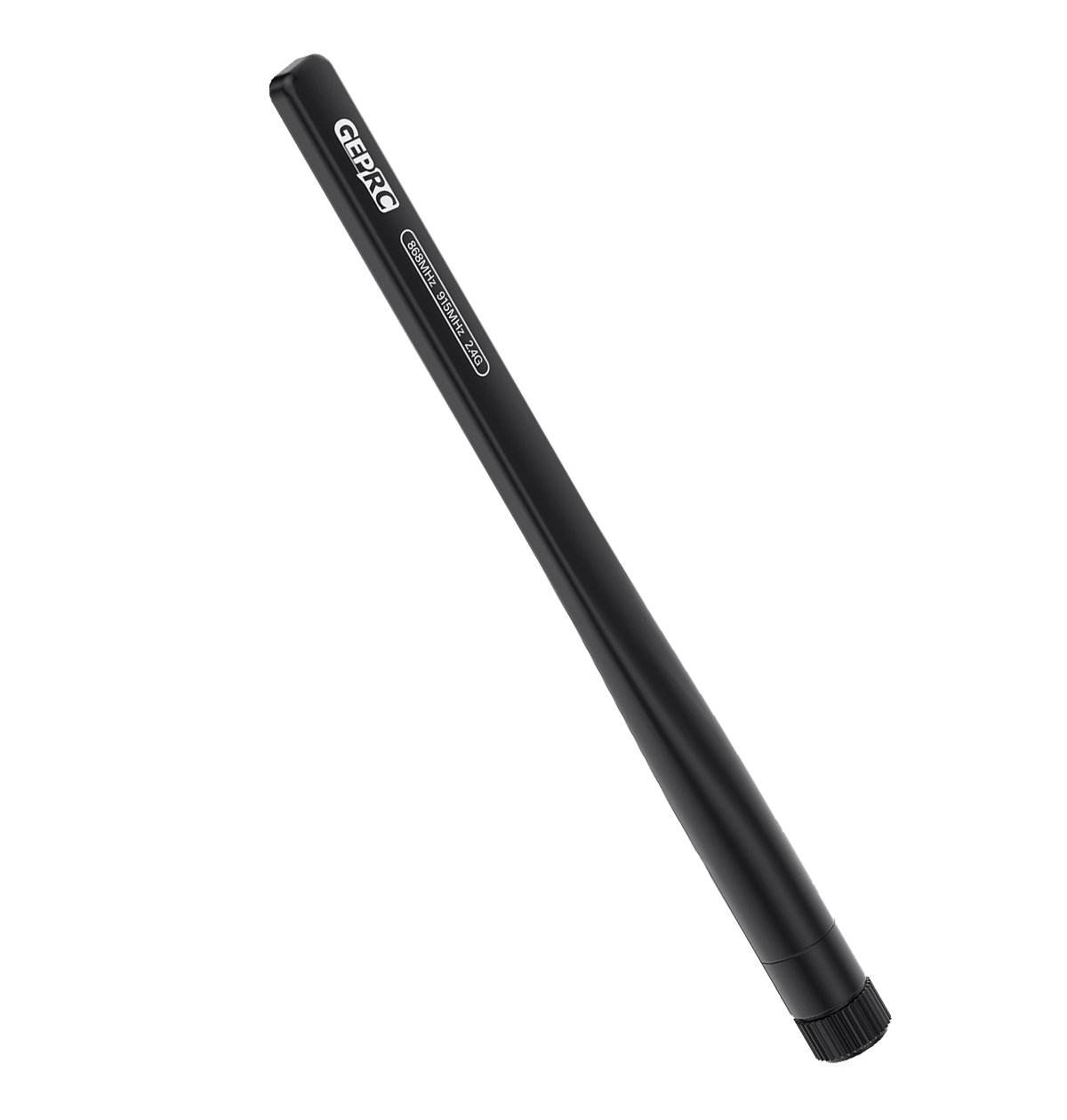

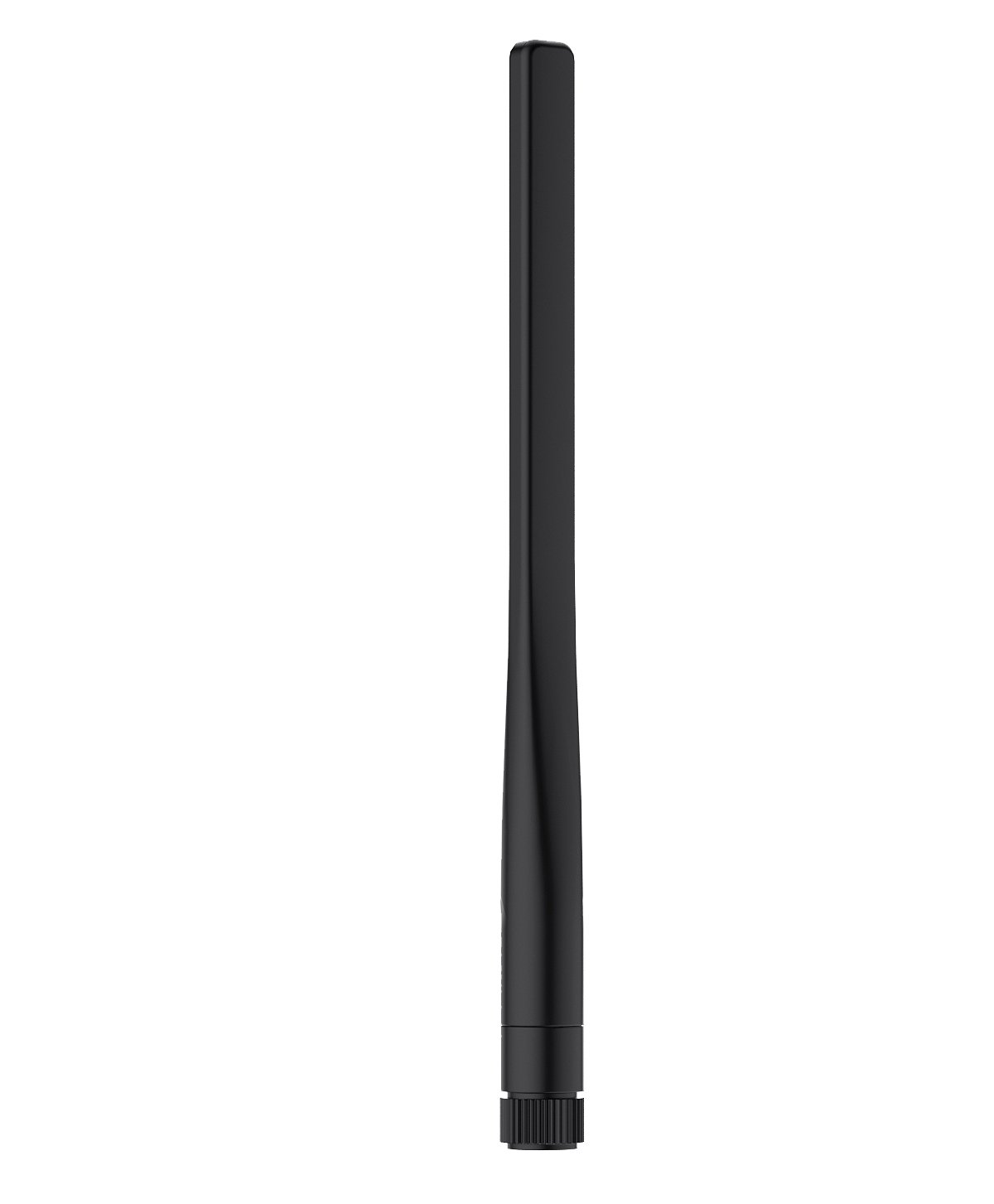

GEPRC 868MHz/915MHz 2.4G Tri-Band Stick Antenna

Summary

The GEPRC 868MHz/915MHz/2.4GHz tri-band stick antenna features a PCB design with linear polarization for omnidirectional signal reception. It maintains strong connectivity during dynamic flight maneuvers. With excellent cross-polarization suppression, it performs well in high-interference environments, minimizing signal disruption.

Features

1.Triple-band design, 868MHz covers 860-870MHz, 915MHz covers 900-930MHz, 2.4Gz covers 2400-2500MHz

2. Optimized for stronger signal reception at a vertical angle

3. Durable, low-drag oval shape with an injection-molded ABS shell

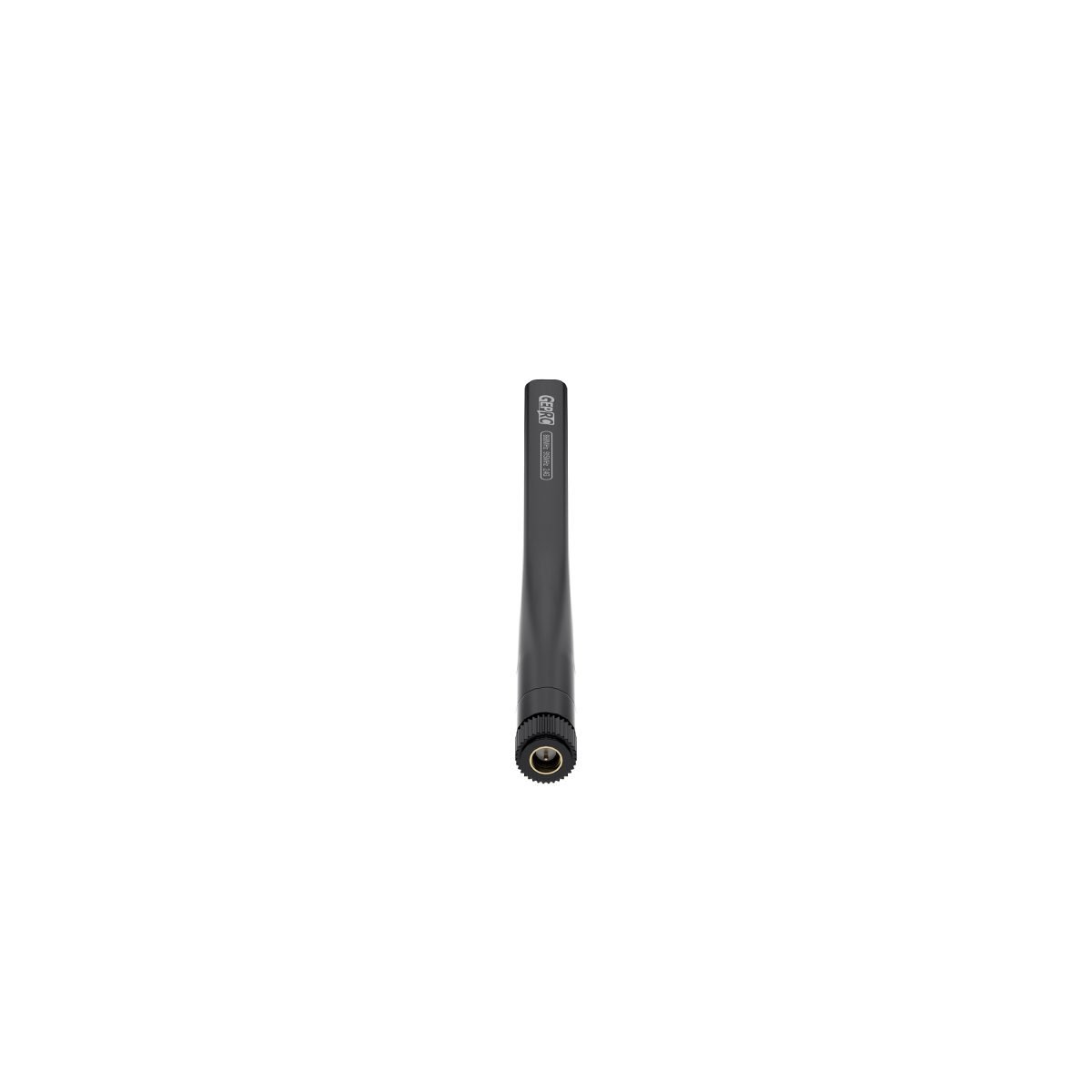

4. High-quality SMA connector minimizes signal loss

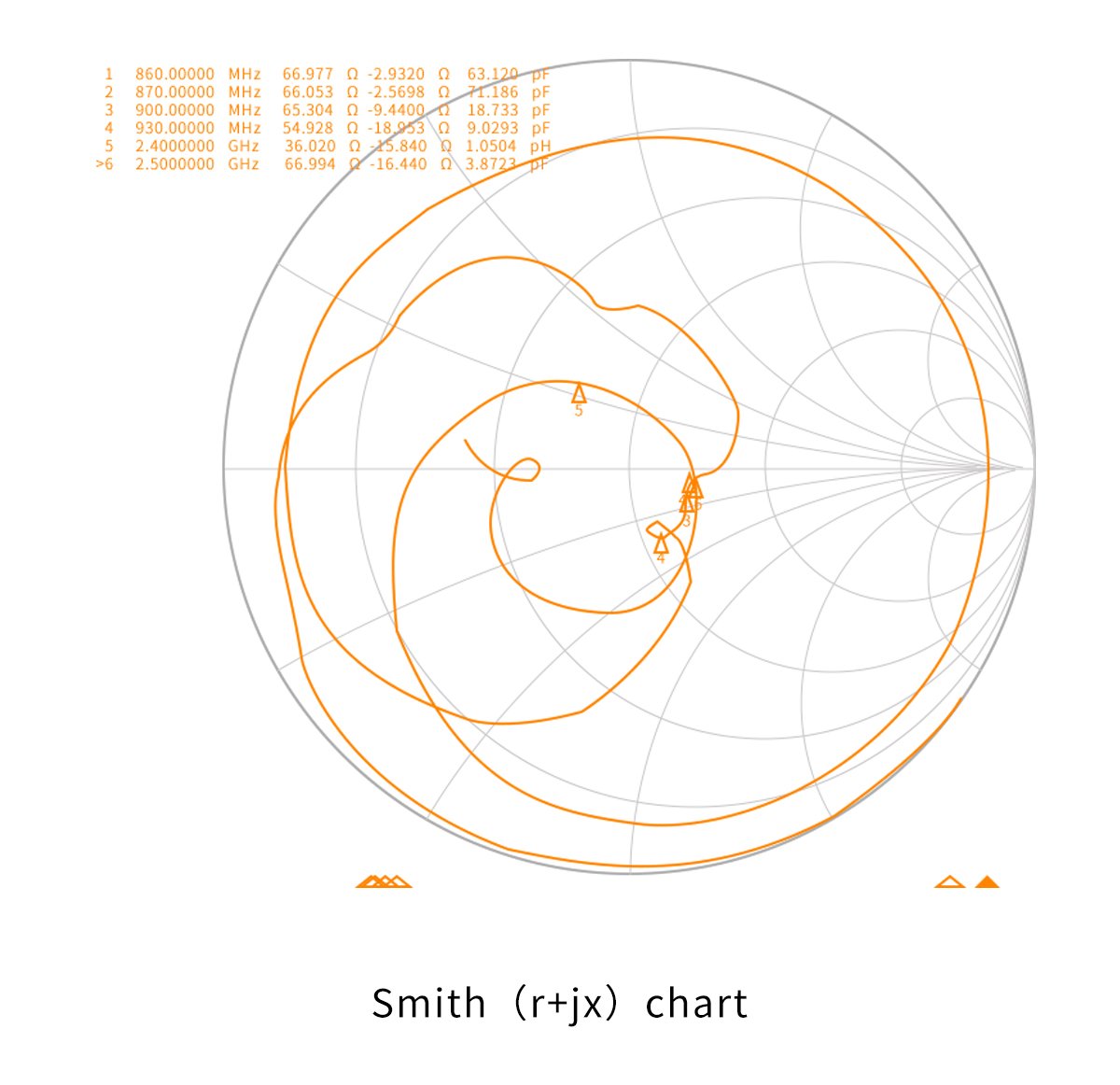

5. Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standards

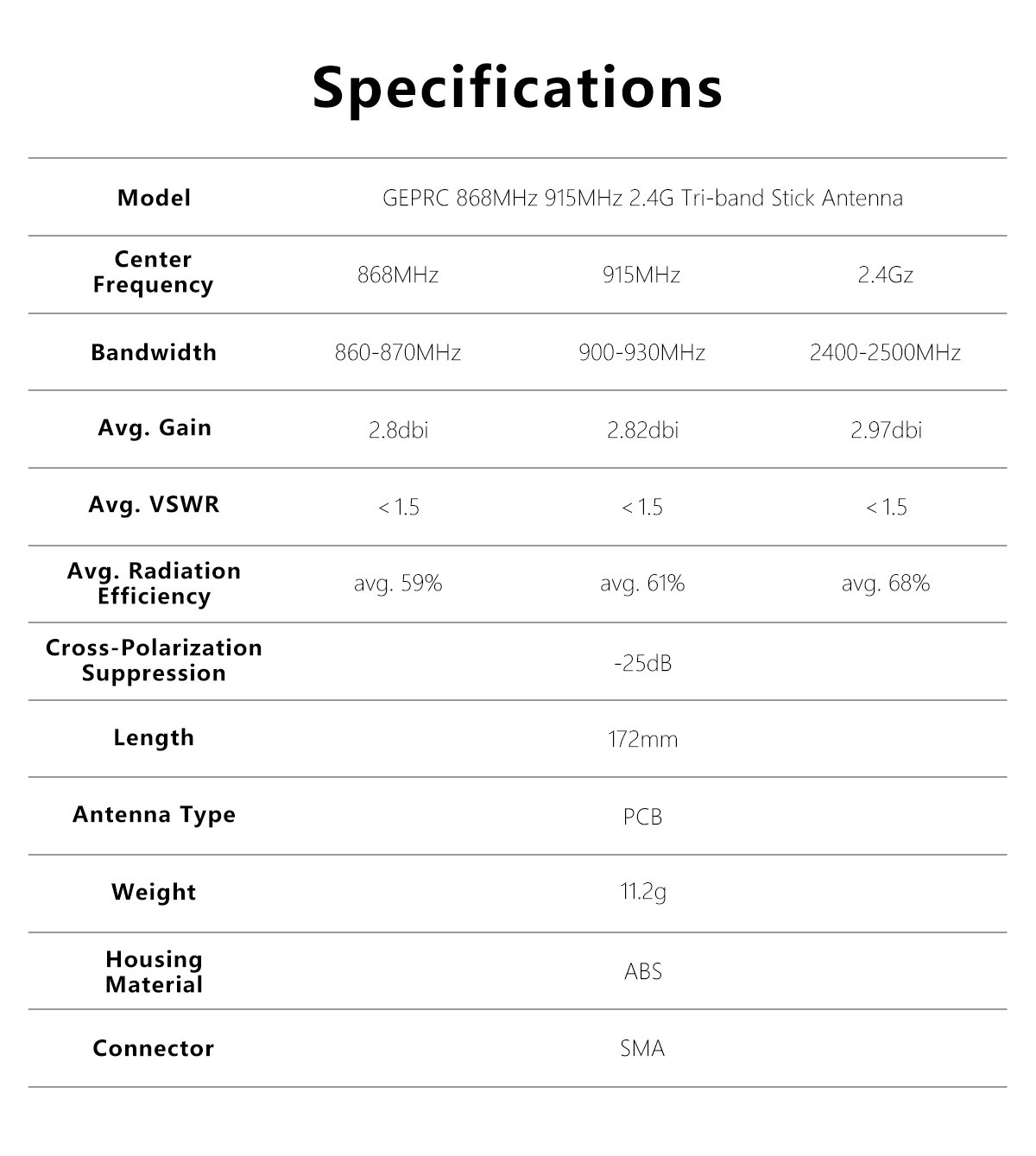

 Specifications

• Model: GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna

• 868MHz Center Frequency: 865MHz

• 915MHz Center Frequency: 915MHz

• 2.4Gz Center Frequency: 2450MHz

• Frequency Range: 868MHz / 915MHz / 2.4Gz

• Polarization: Linear

• 868MHz Gain: 2.8dBi

• 915MHz Gain: 2.82dBi

• 2.4Gz Gain: 2.97dBi

• VSWR: ≤1.5

• 868MHz Radiation Efficiency: 49%

• 915MHz Radiation Efficiency: 51%

• 2.4Gz Radiation Efficiency: 68%

• Cross-Polarization Suppression: -25dB

• Length: 172mm

• Antenna Type: PCB

• Weight: 11.2g

• Housing Material: ABS

• Connector: SMA

Include

GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna x1
