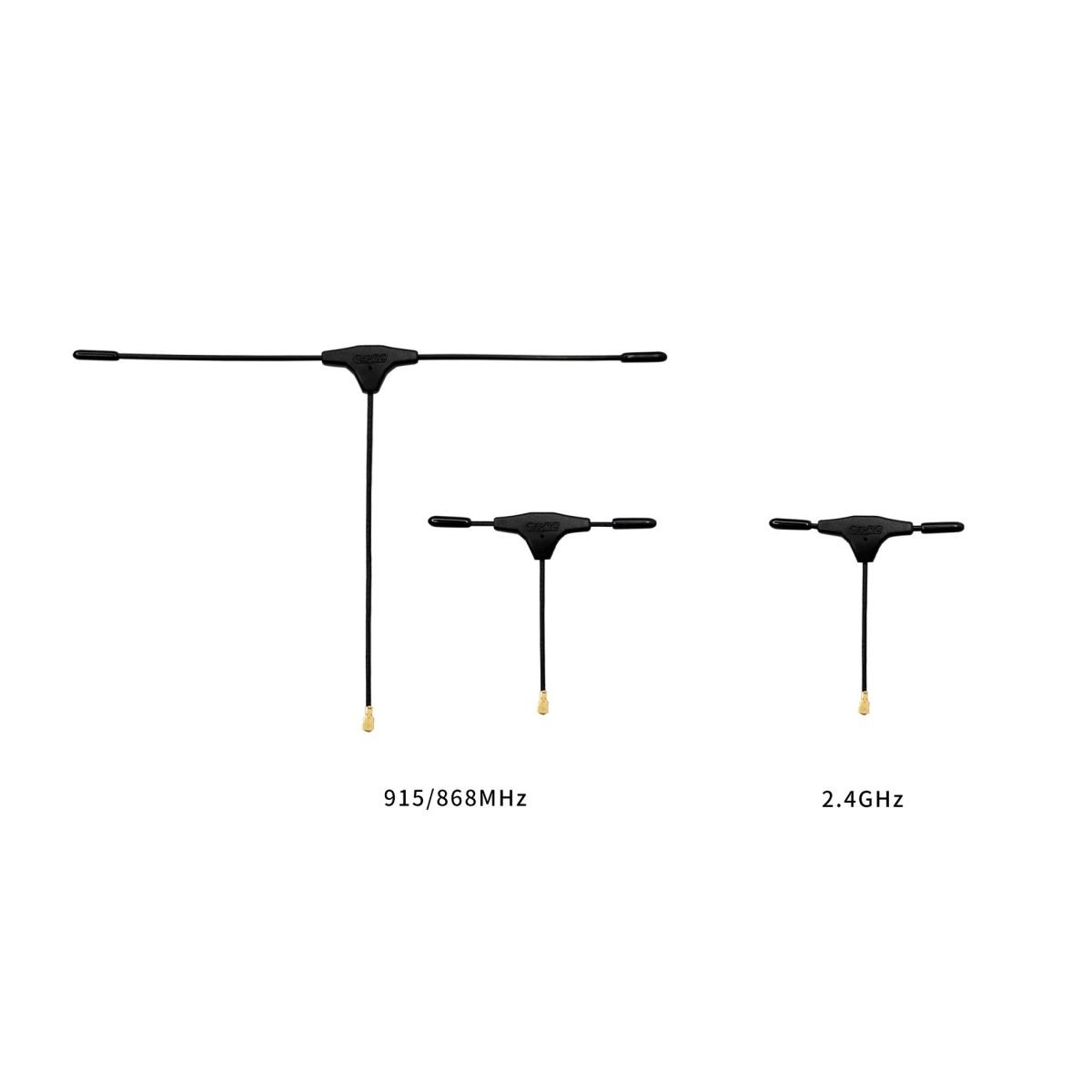

GEPRC 915MHz/2.4GHz T Antenna

Summary

The T antenna is designed and manufactured by GEPRC team.Each antenna is repeatedly tested to ensure correct use.

Specifications

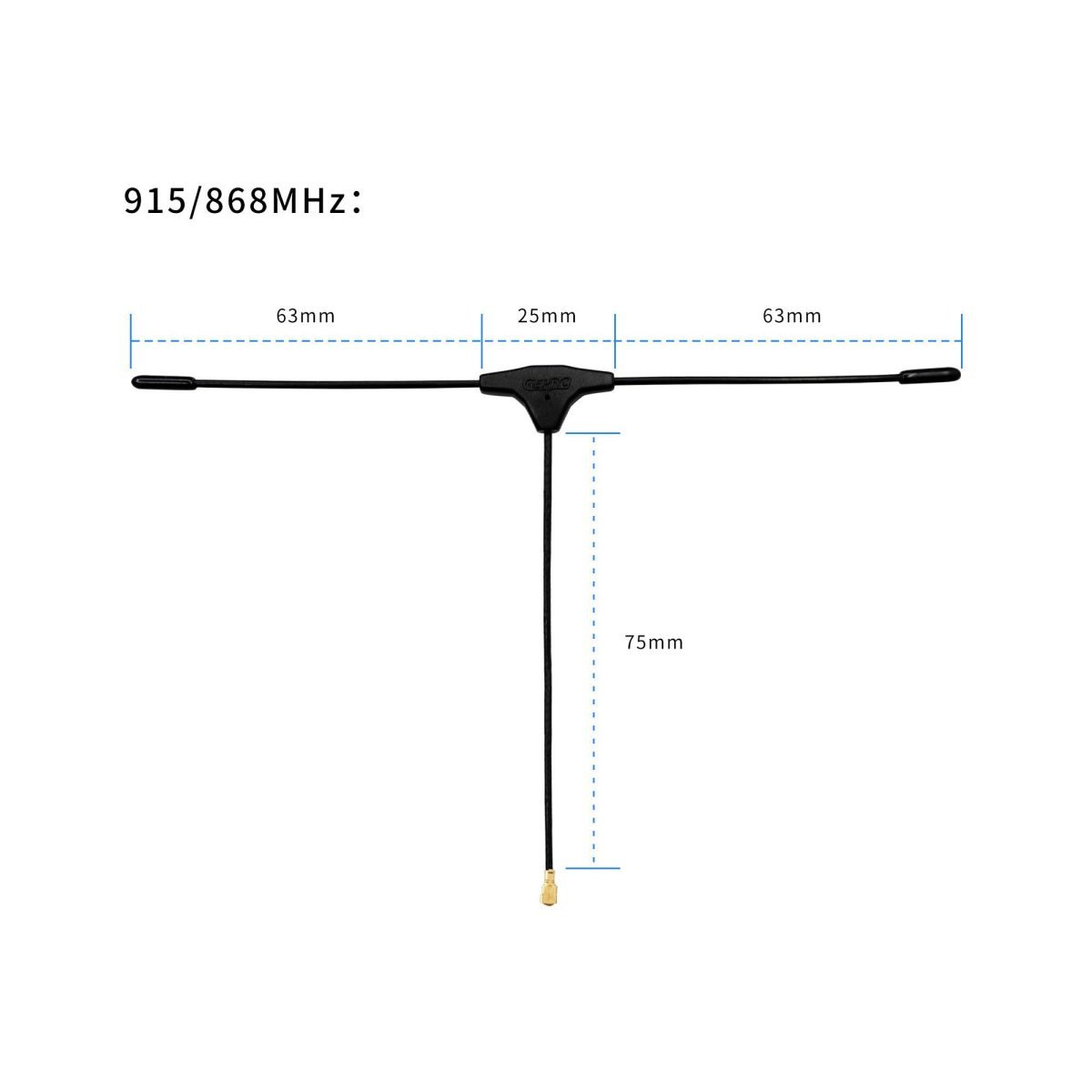

915MHz T Antenna

• Antenna length：151mm

• Coaxial cable length：75mm

• Weight：2.6g

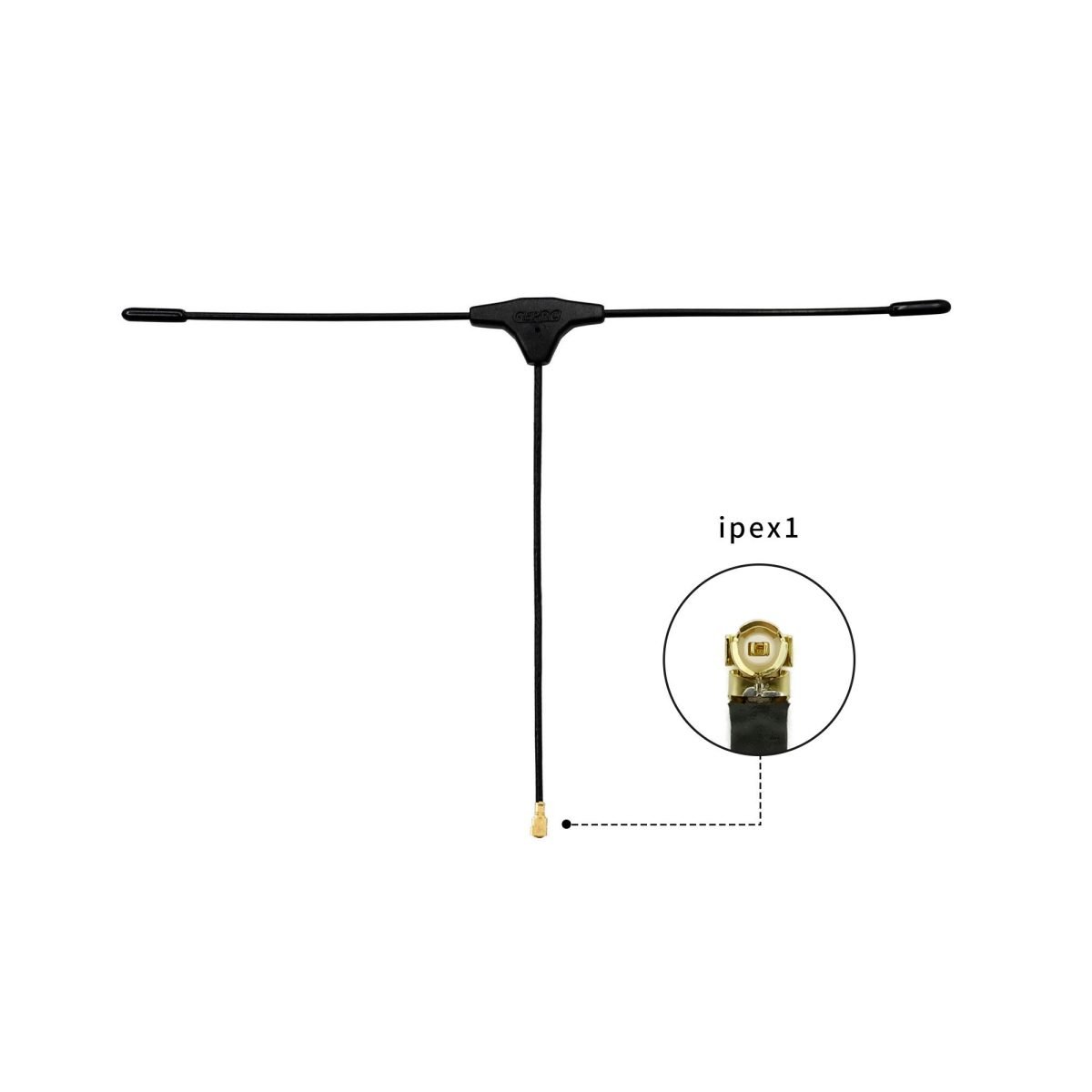

• Connector：ipex1

• Gain：2dBi

• Frequency：868-915MHz

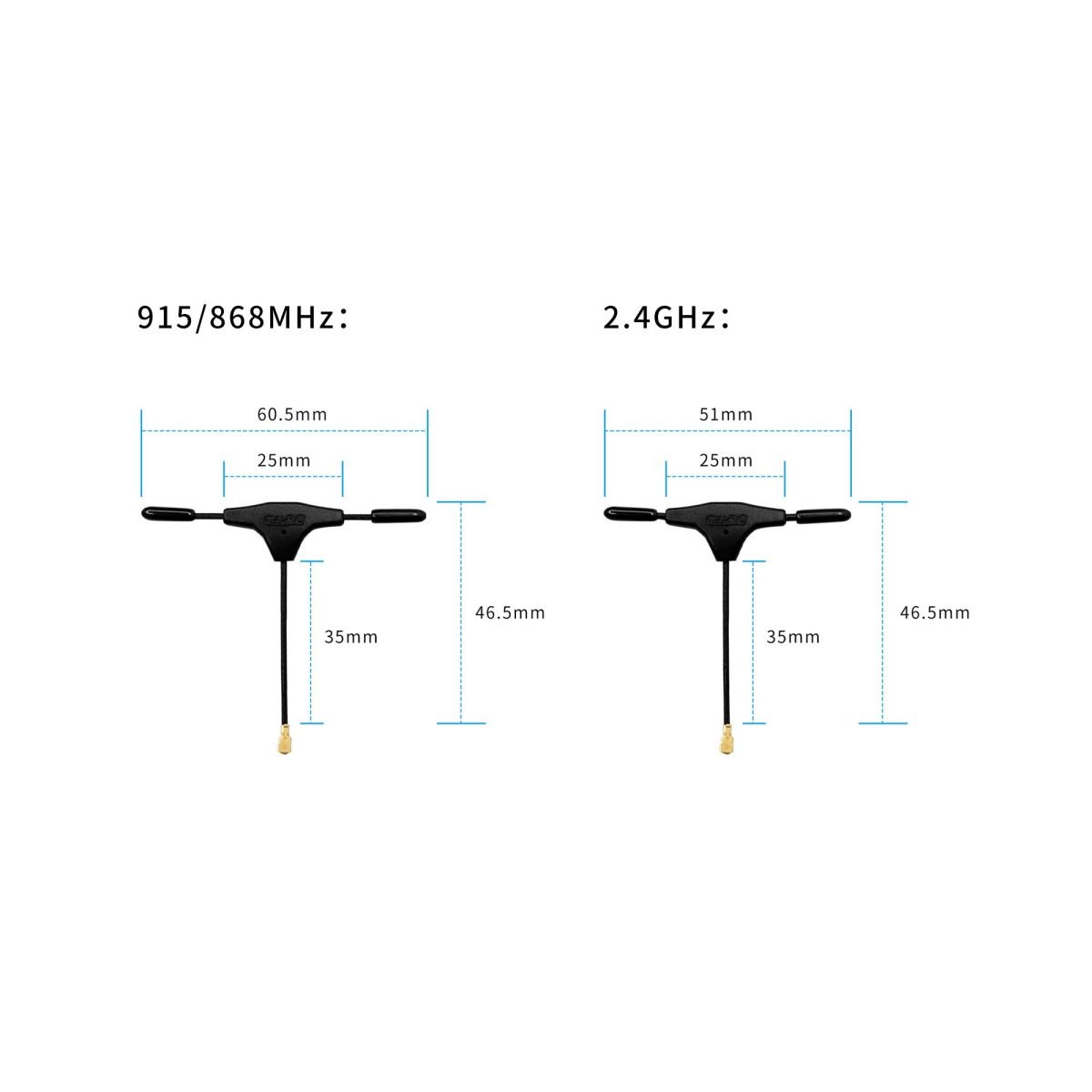

915MHz Mini T Antenna

• Antenna length：60.5mm

• Coaxial cable length：35mm

• Weight：1.7g

• Connector：ipex1

• Gain：2dBi

• Frequency：868-915MHz

2.4GHz Mini T Antenna

• Antenna length：51mm

• Coaxial cable length：35mm

• Weight：1.6g

• Connector：ipex1

• Gain： 2dBi

• Frequency：2.4-2.5GHz

Package Included

1 x T Antenna / Mini T Antenna

When choosing a 915MHz T-antenna, consider the size of your quadcopter. For models larger than 5 inches, choose a standard T-antenna for better signal reception. For smaller quadcopters smaller than 3 inches, the mini-T-antenna is a suitable option.
Also, while this antenna is typically used with the GEPRC ELRS receiver, its compatibility extends beyond that. Both the GEPRC T-antenna and the mini-T-antenna utilize an IPEX1 connector, making them compatible with other receivers (such as the TBS Nano and R9mm) as long as their operating frequency and antenna connector match this antenna. This means you can confidently use this antenna with a variety of receivers.
