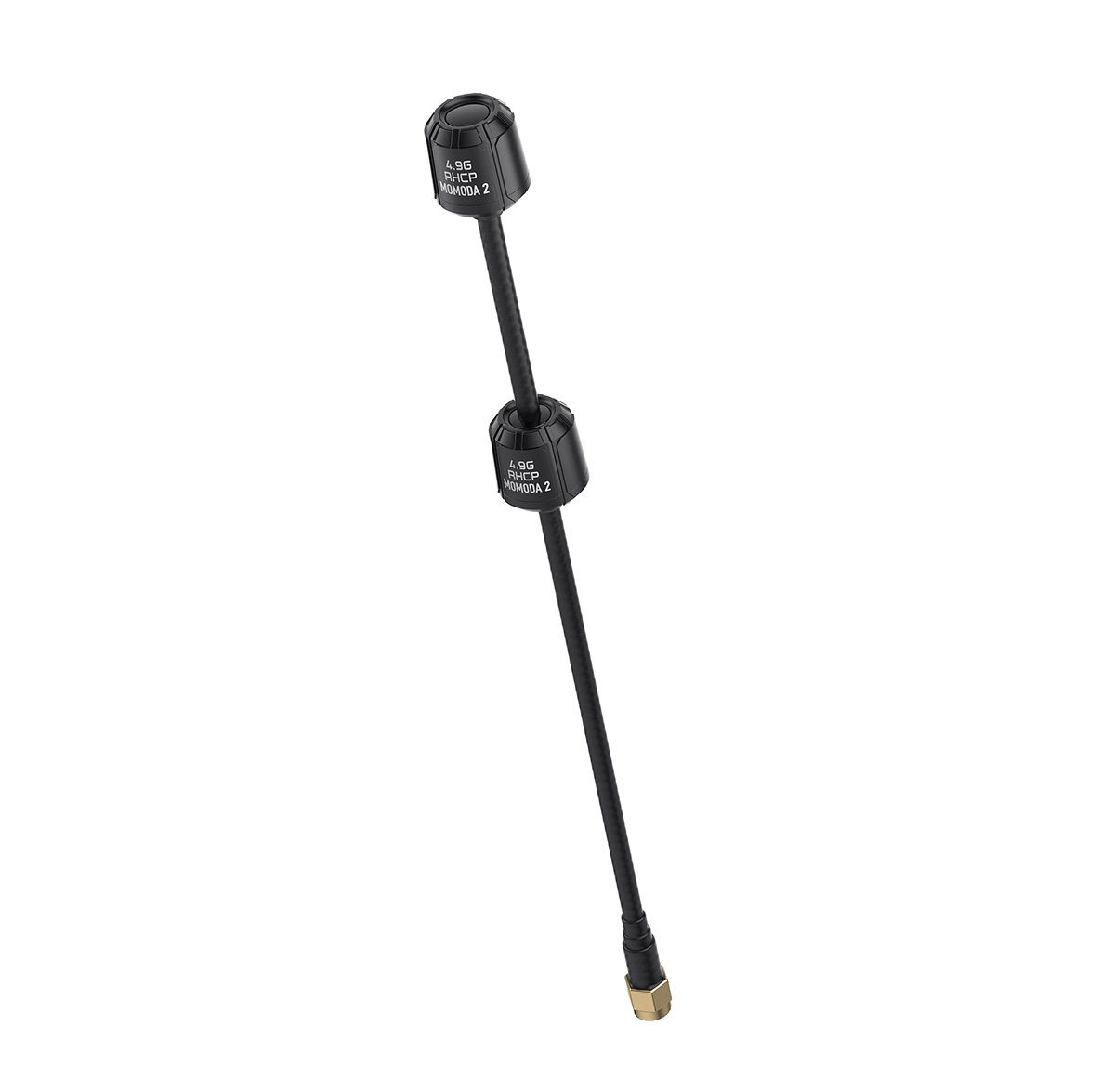

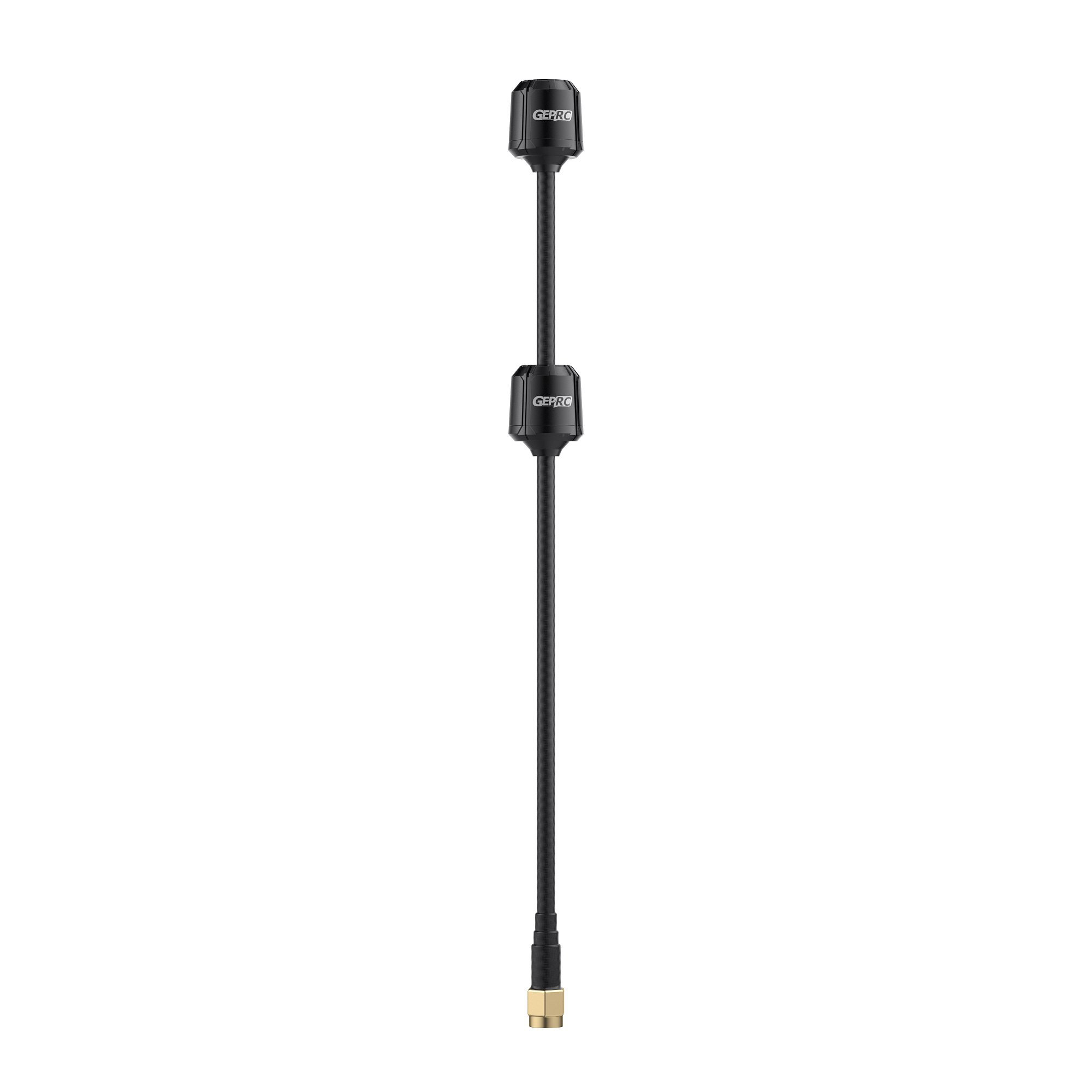

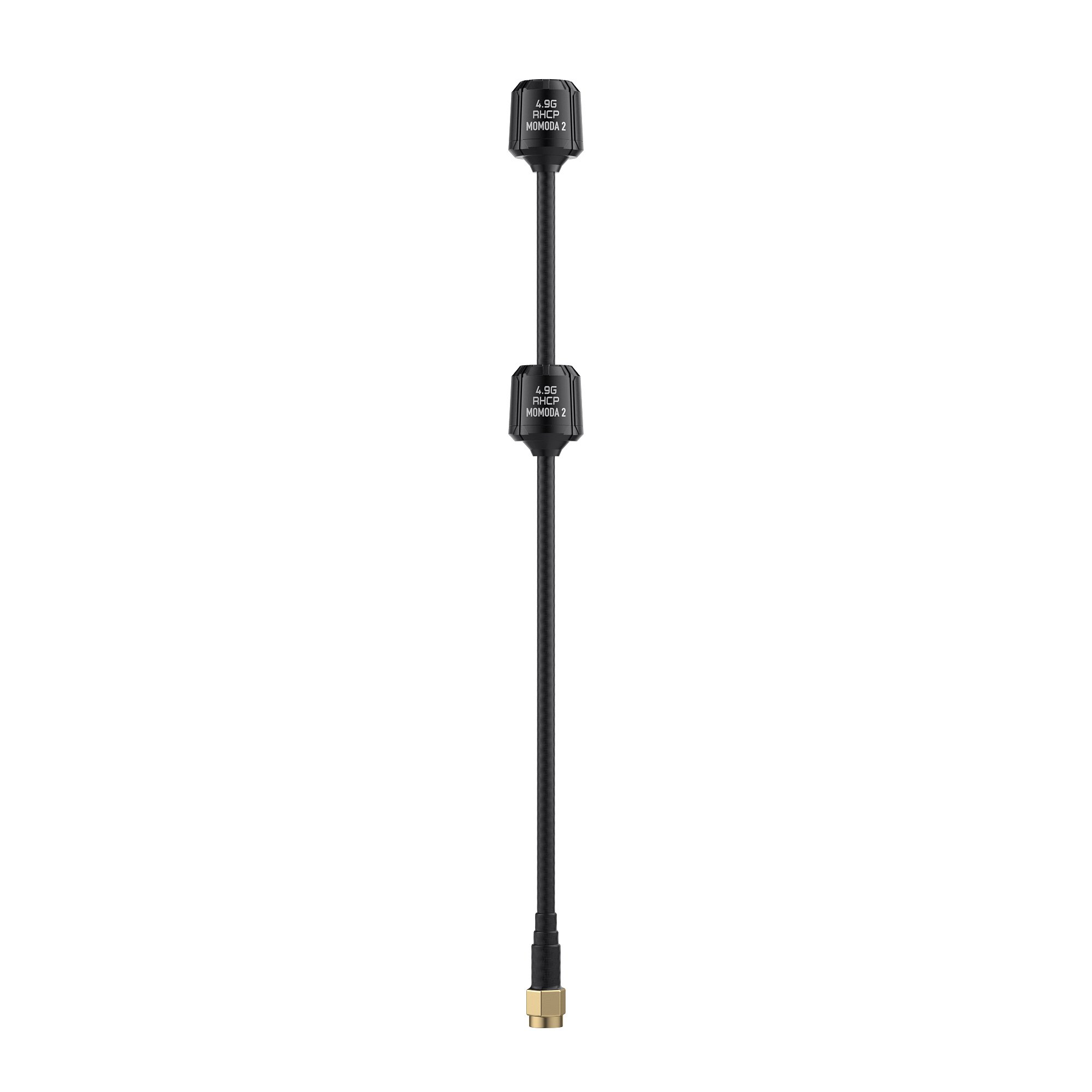

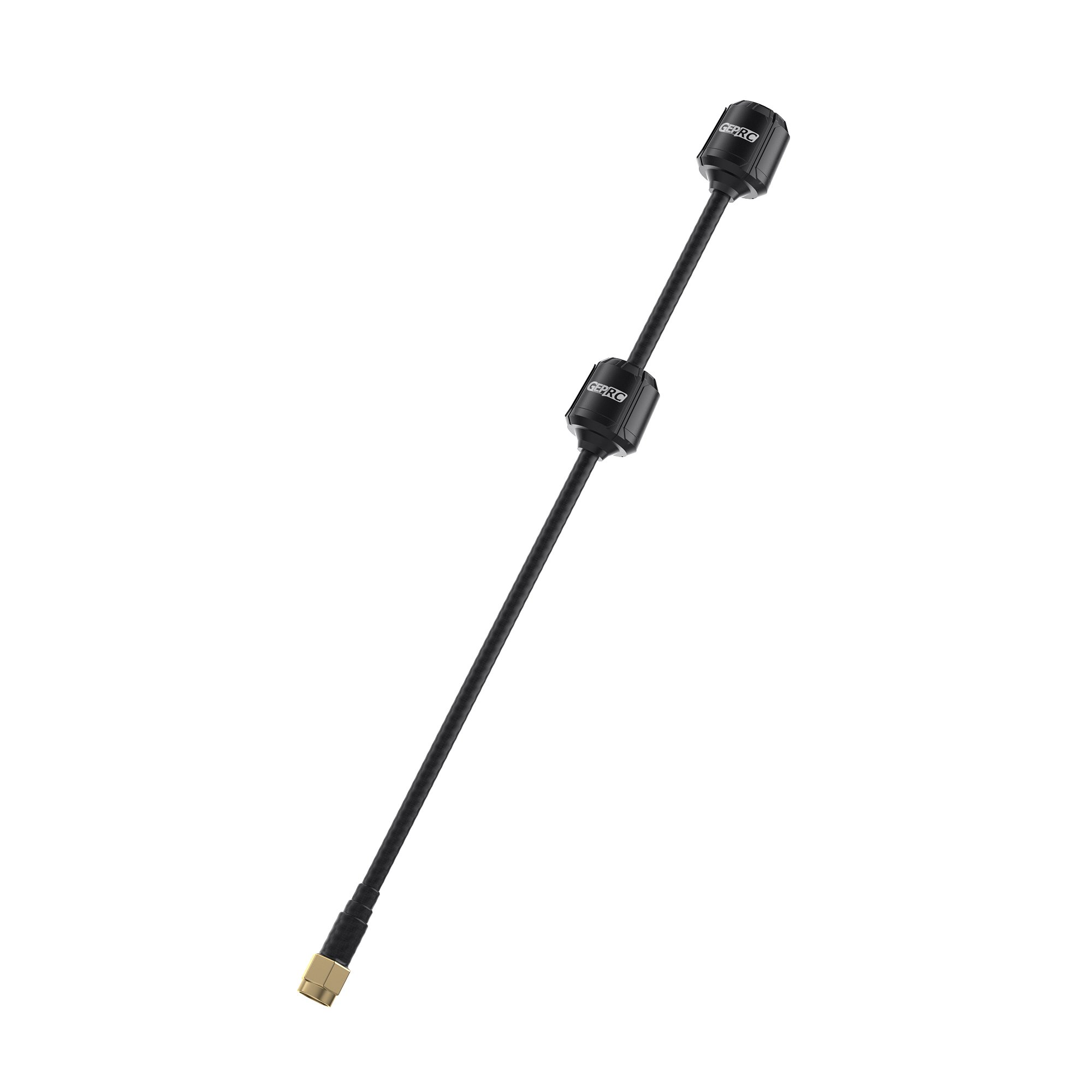

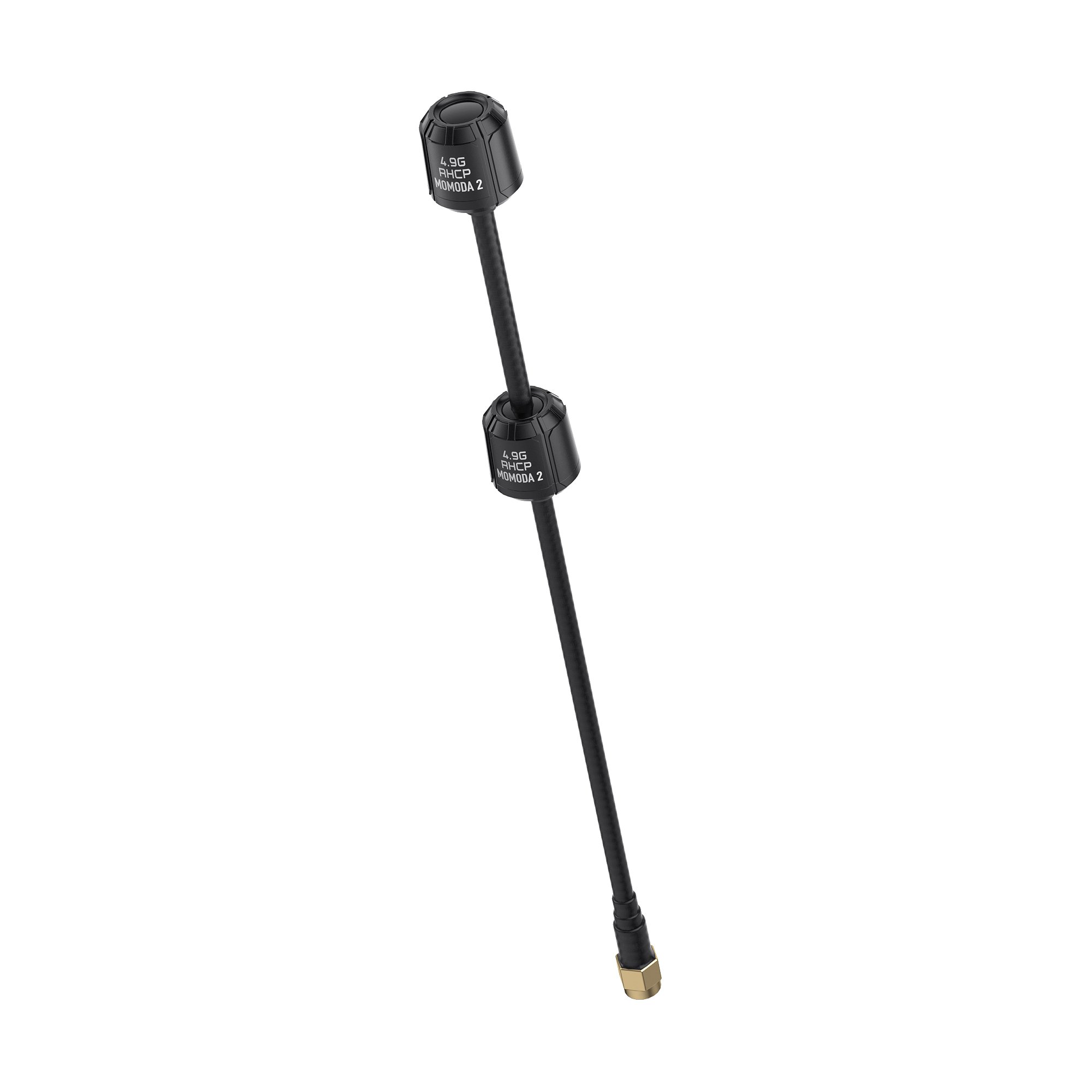

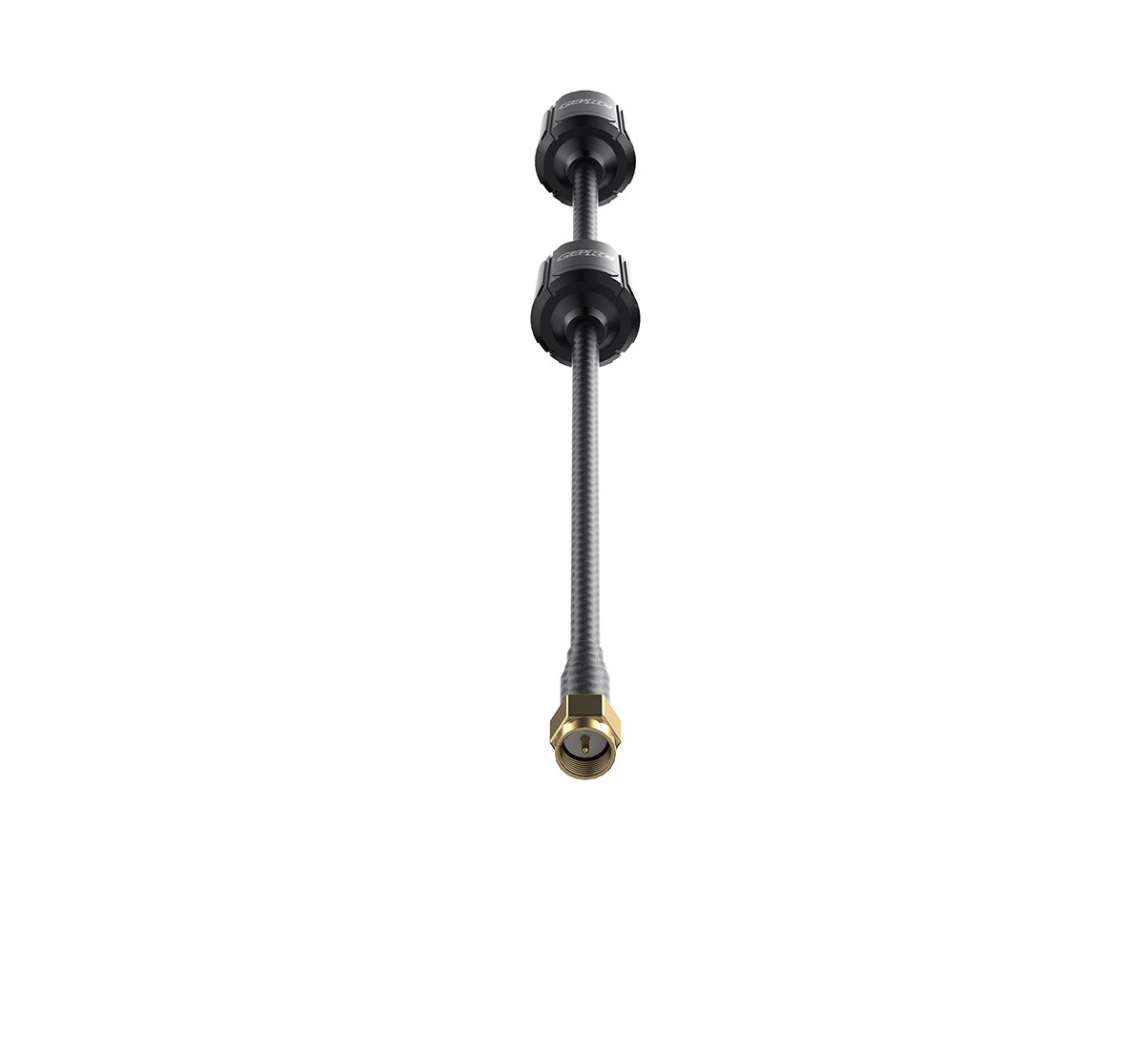

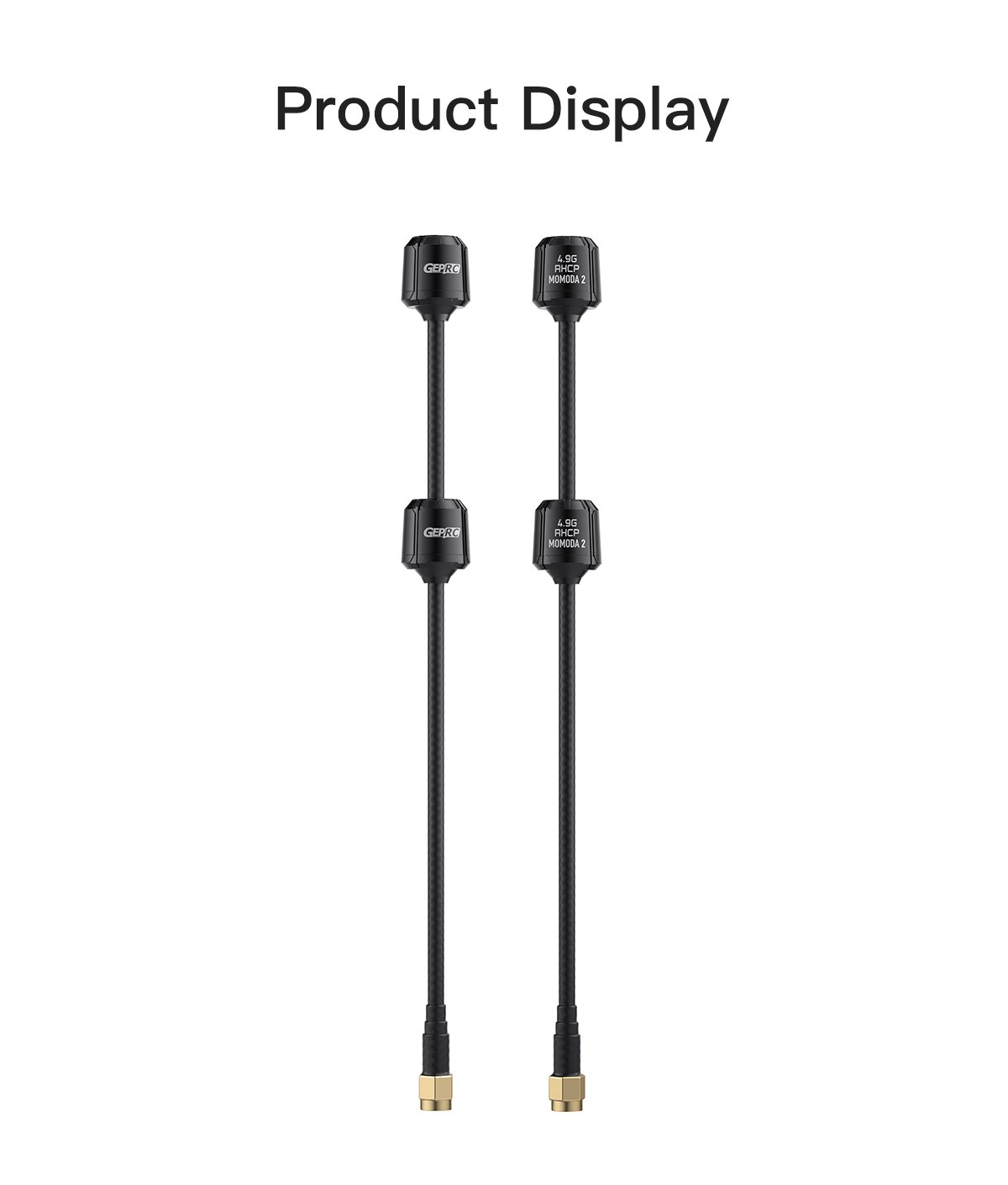

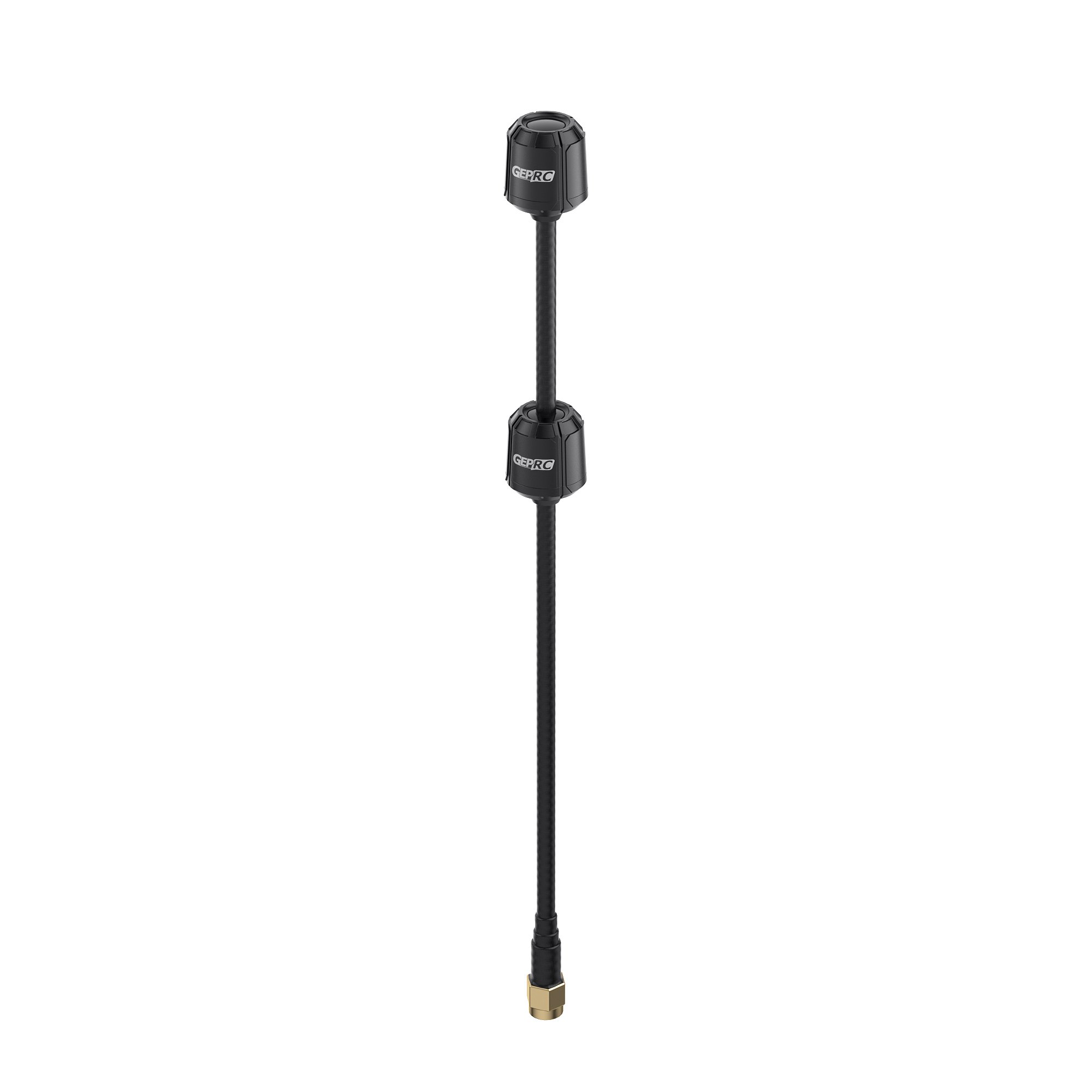

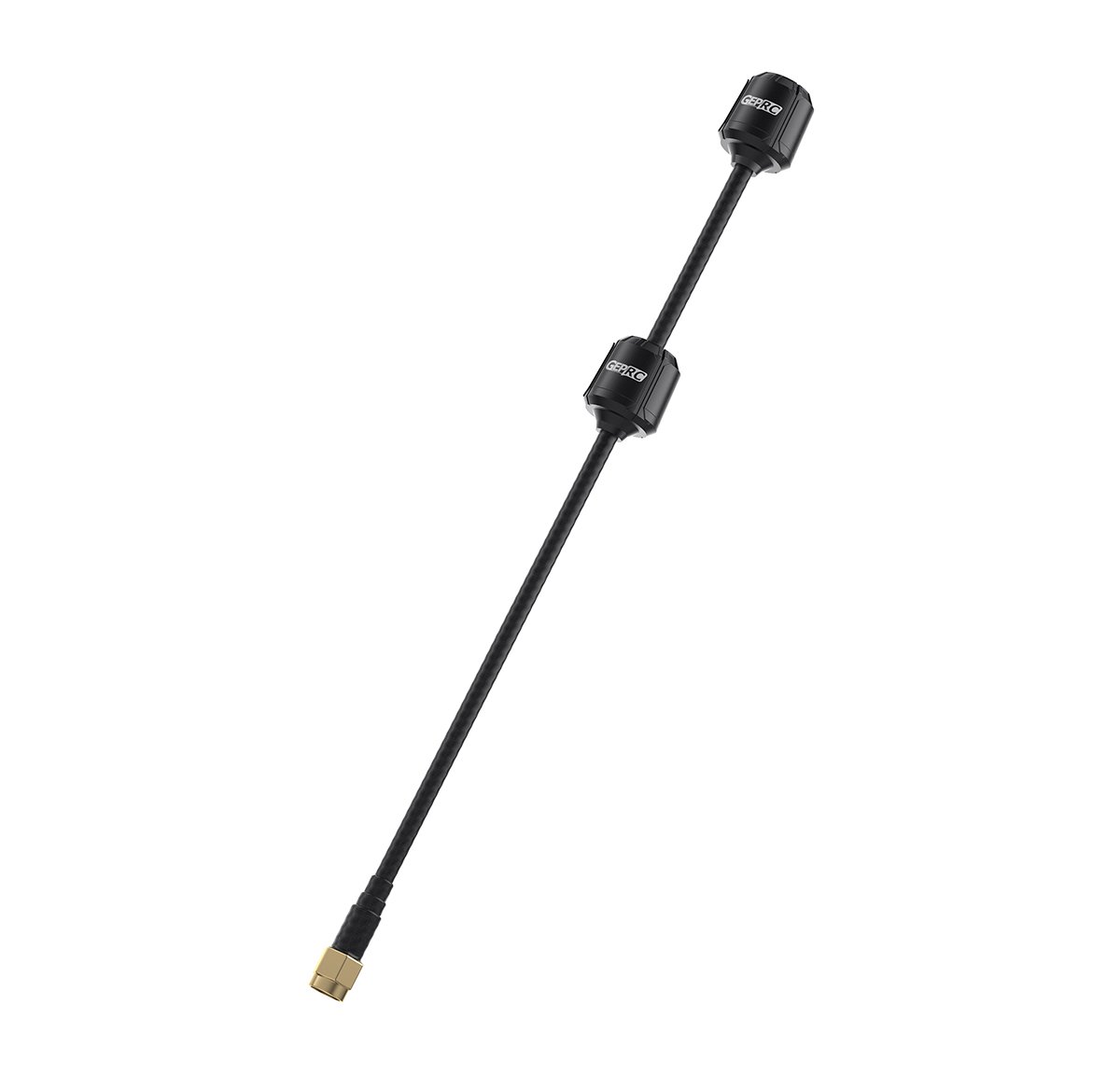

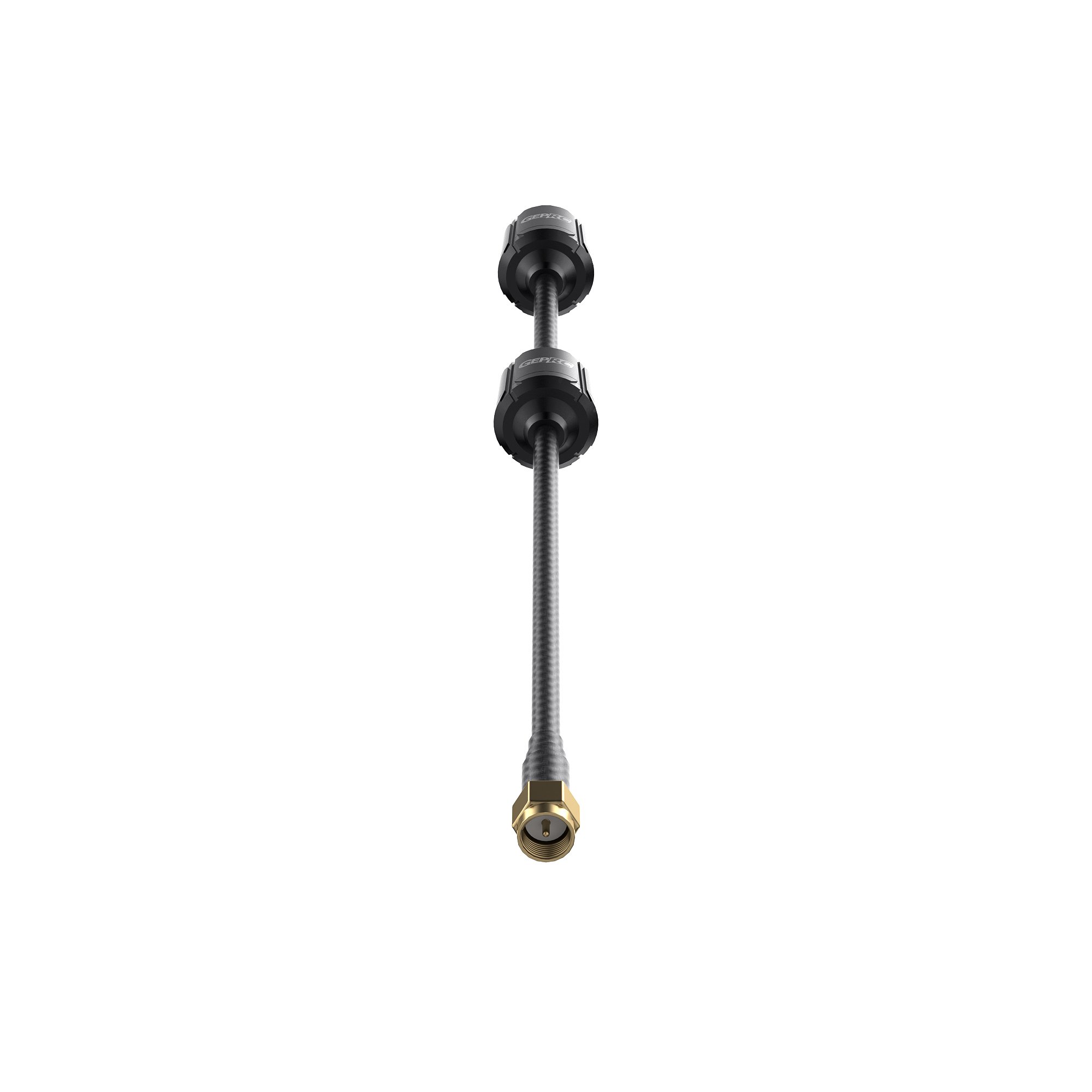

GEPRC Momoda2 4.9G DUAL Antenna

Summary

 The GEPRC Momoda2 4.9G DUAL antenna features a dual RF solution with a gain of up to 3.65dBi, providing comprehensive signal coverage and effectively reducing FPV image instability caused by signal dead spots. This antenna is ideal for video transmission solutions within the 4.9GHz-5.3GHz frequency band.

Features

1.  Stylish mechanical design with visual appeal.

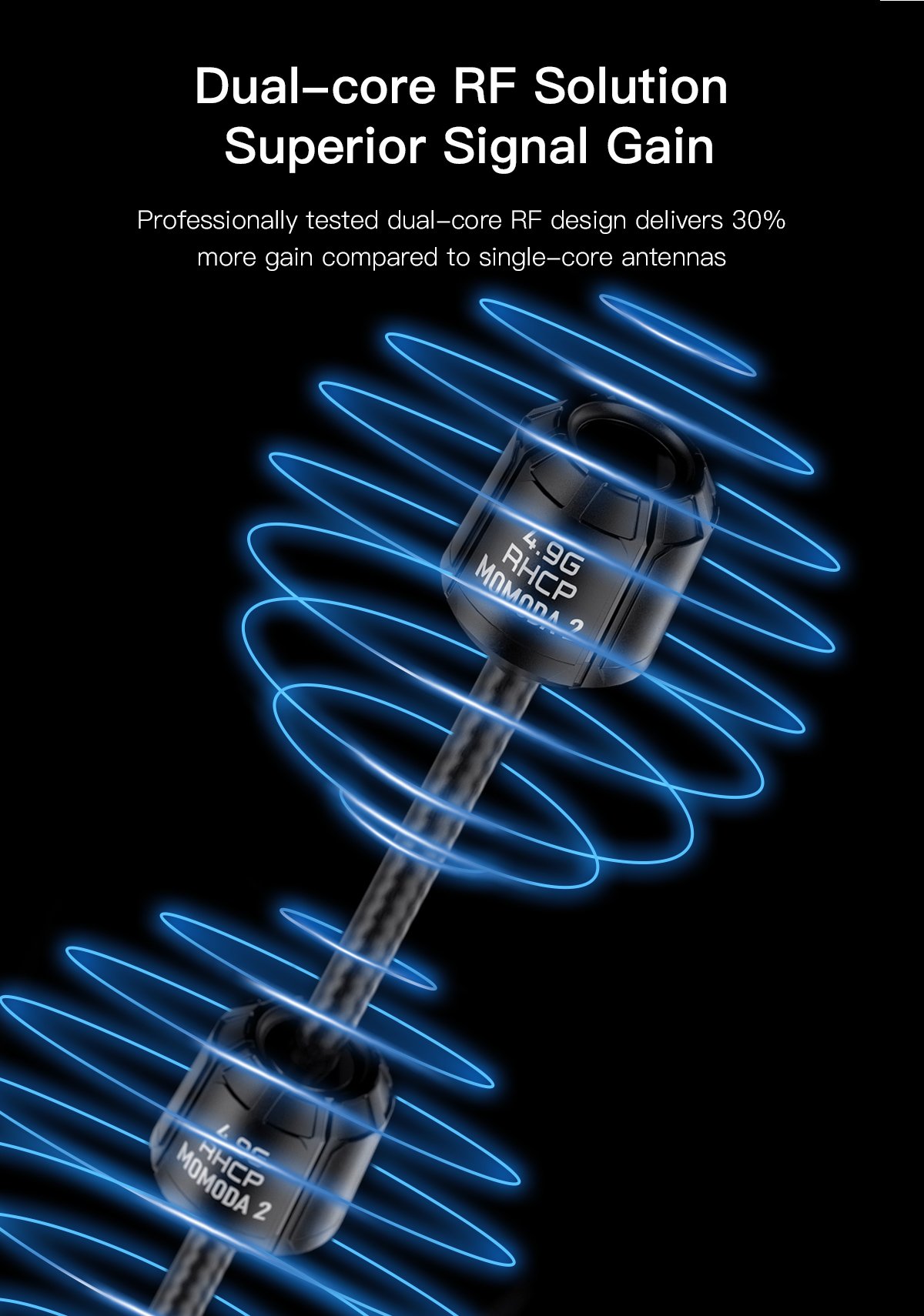

2.  Compact dual RF solution with ultra-high gain.

3.  Superior signal coverage with no dead zones.

4.  Each antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.

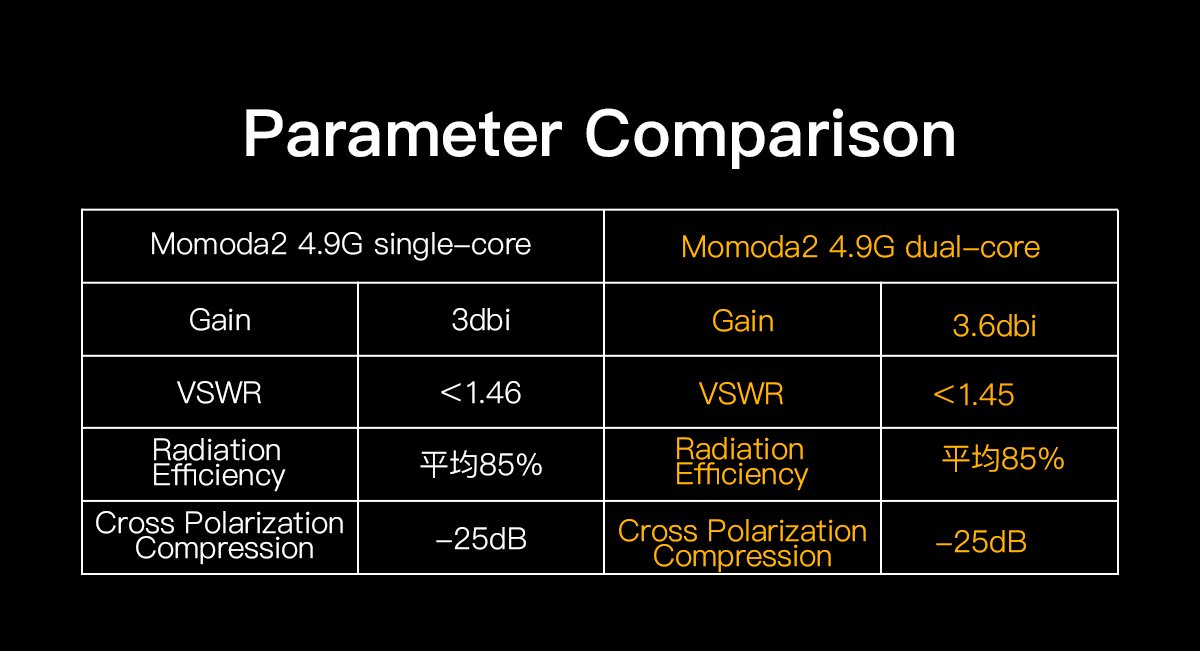

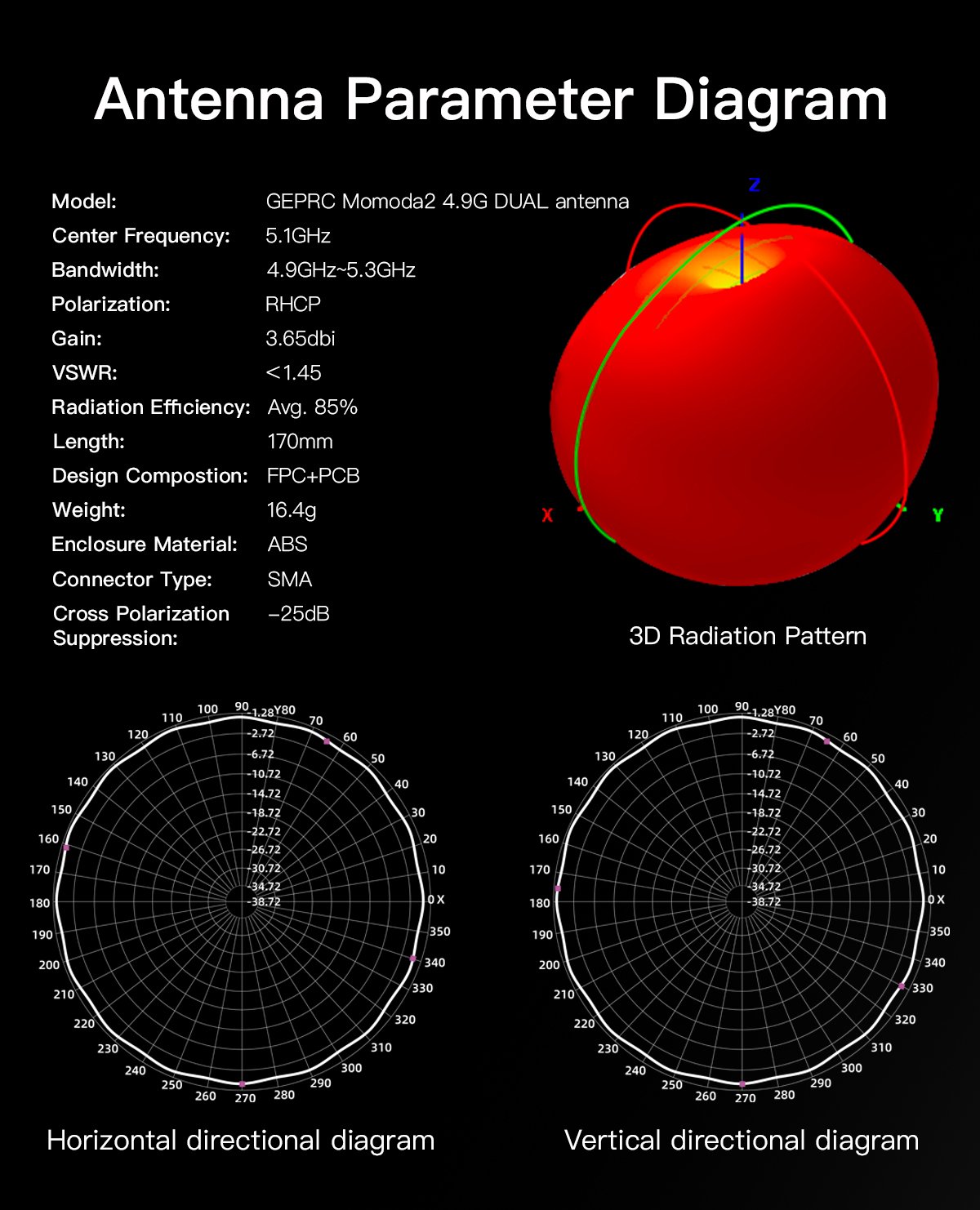

Specifications

• Model: GEPRC Momoda2 4.9G DUAL antenna

• Center Frequency: 5.1GHz

• Bandwidth: 4.9GHz~5.3GHz

• Polarization: RHCP

• Gain: 3.65dbi

• Axial Ratio: ≤3

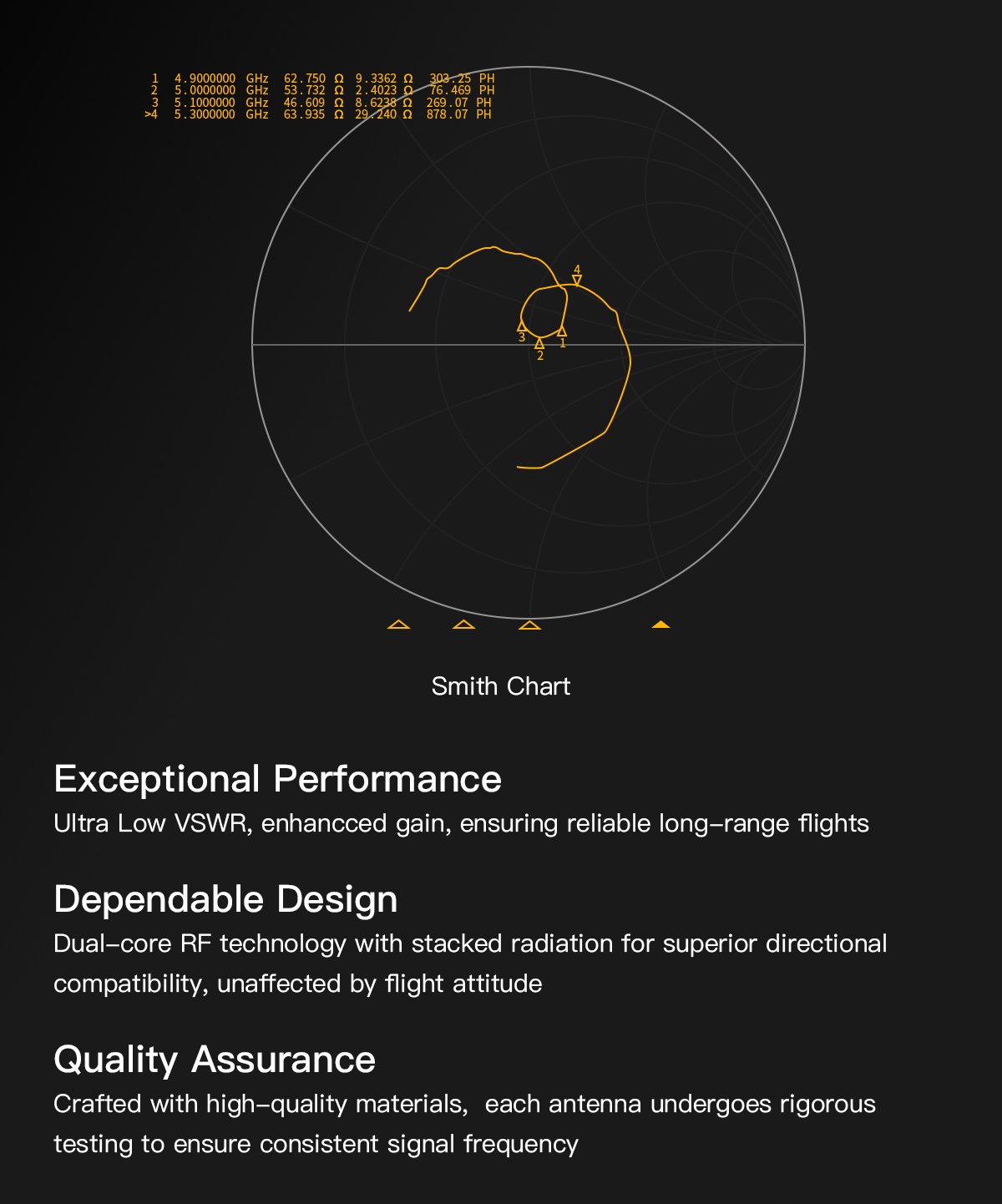

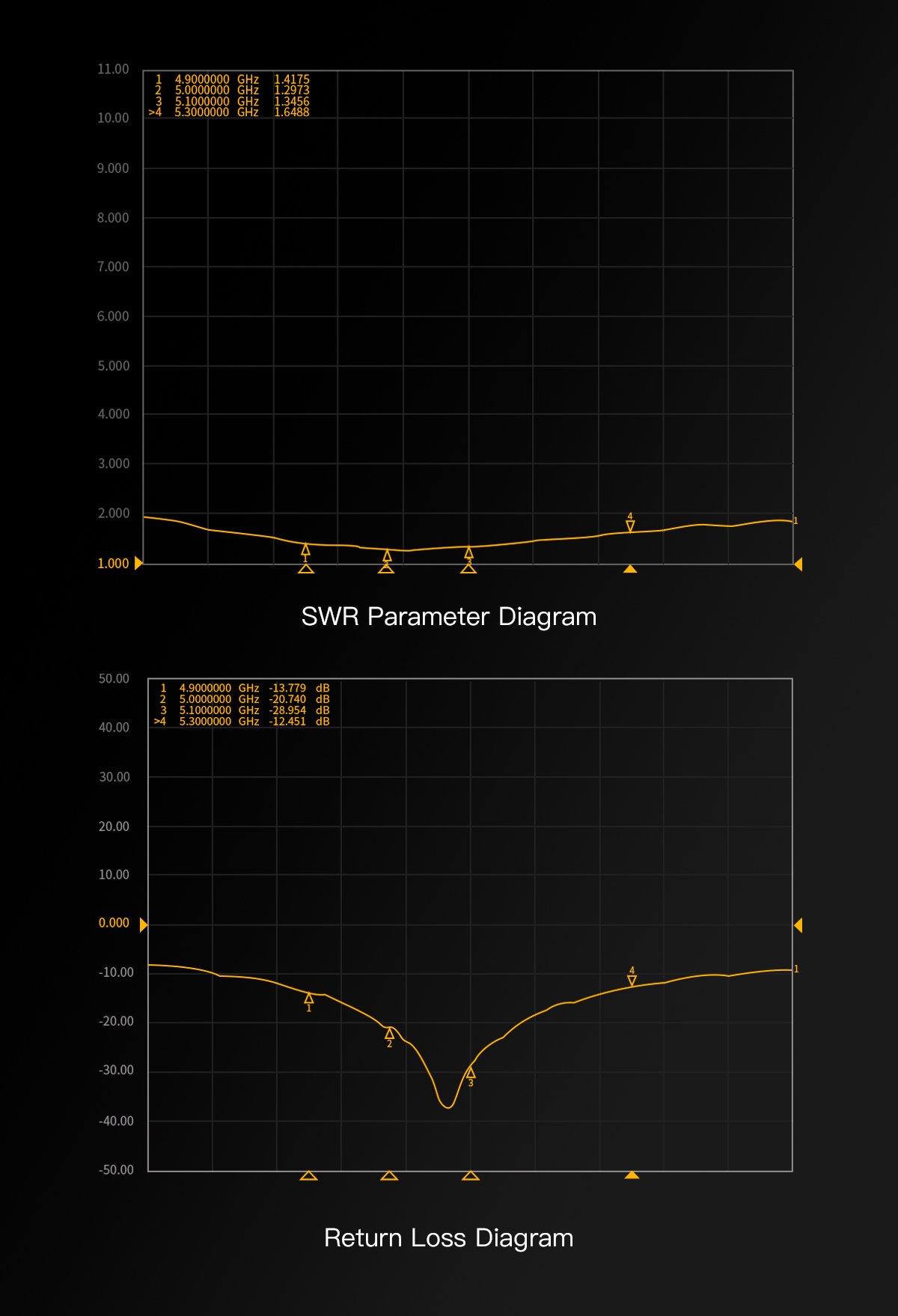

• SWR: ≤1.45

• Radiation Efficiency: 85%

• Cross Polarization Suppression: -25dB

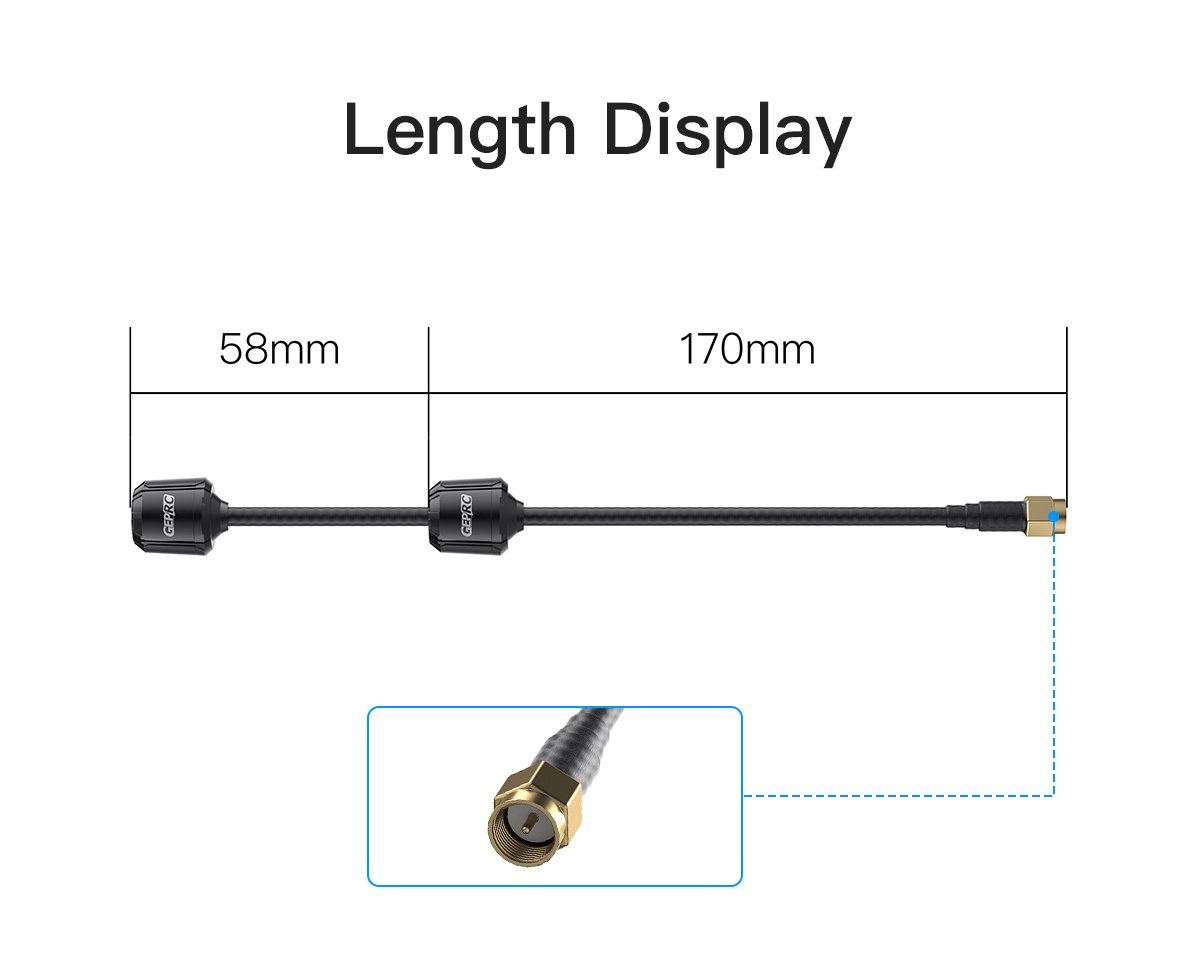

• Length: 170mm

• Antenna Design: FPC+PCB

• Antenna Weight: 16.6g

• Enclosure Material: ABS

• Connector Type: SMA

Includes

1*Momoda 4.9G DUAL antenna
