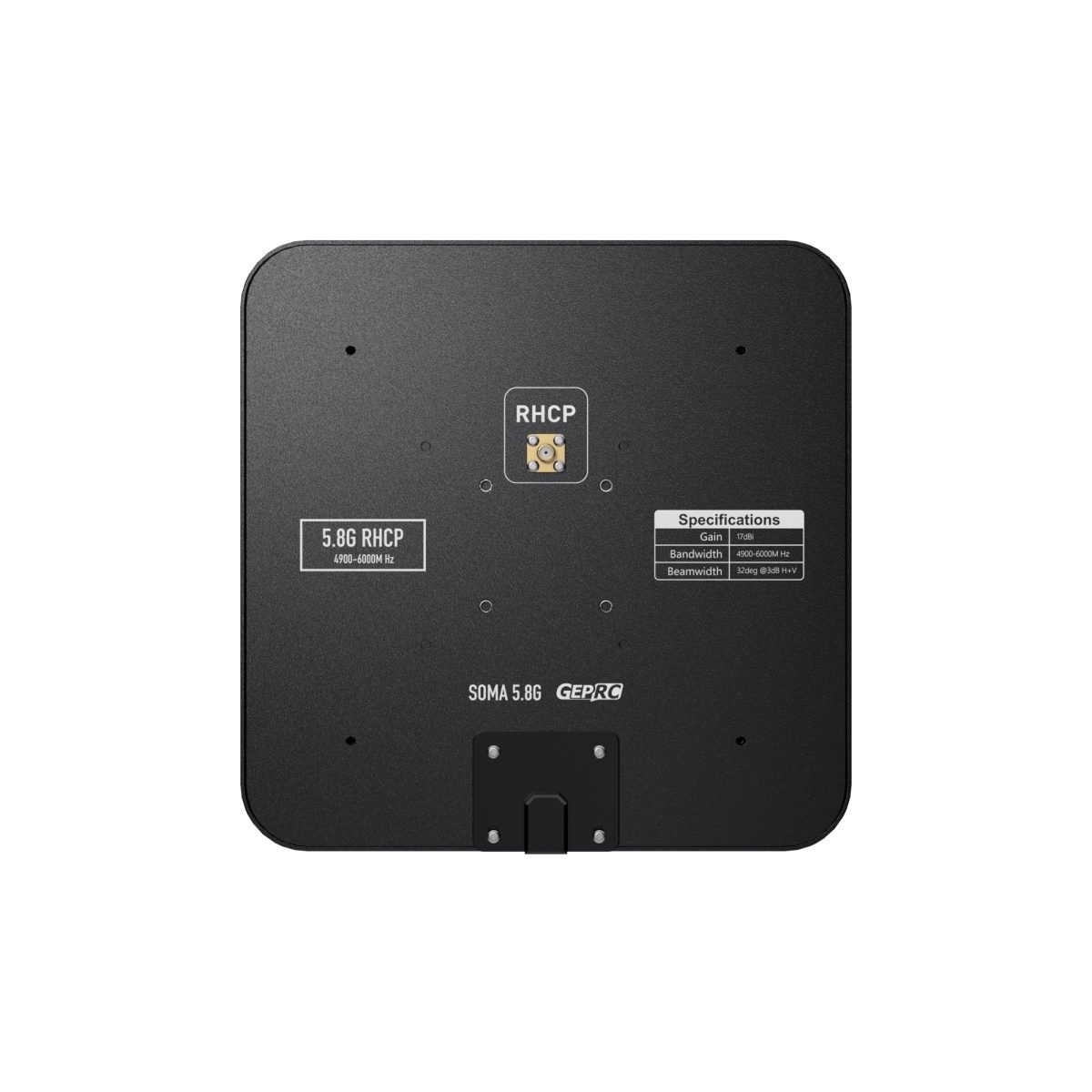

GEPRC SOMA 5.8G Directional Flat-Panel Antenna

Summary

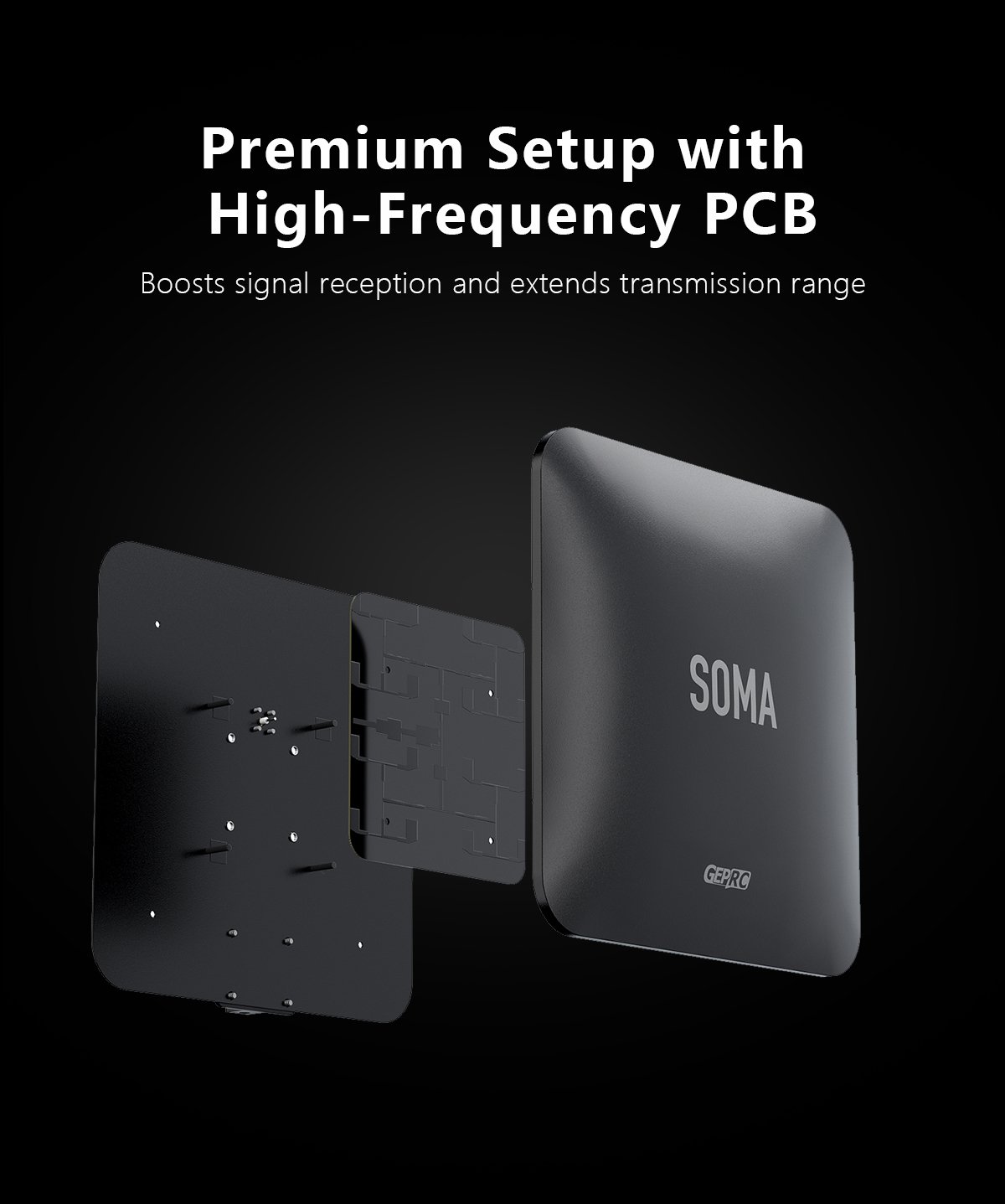

The GEPRC SOMA 5.8G Directional Flat-Panel Antenna features a high-frequency PCB RF solution, offering a high gain of up to 17dBi and a low average VSWR of 1.5, ensuring excellent signal reception.

It’s compatible with various brackets and is built with a durable 1/4 aluminum alloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity

Features

1.  Smooth, ultra-thin design.

2. Low VSWR, high gain directional antenna, up to 17dBi.

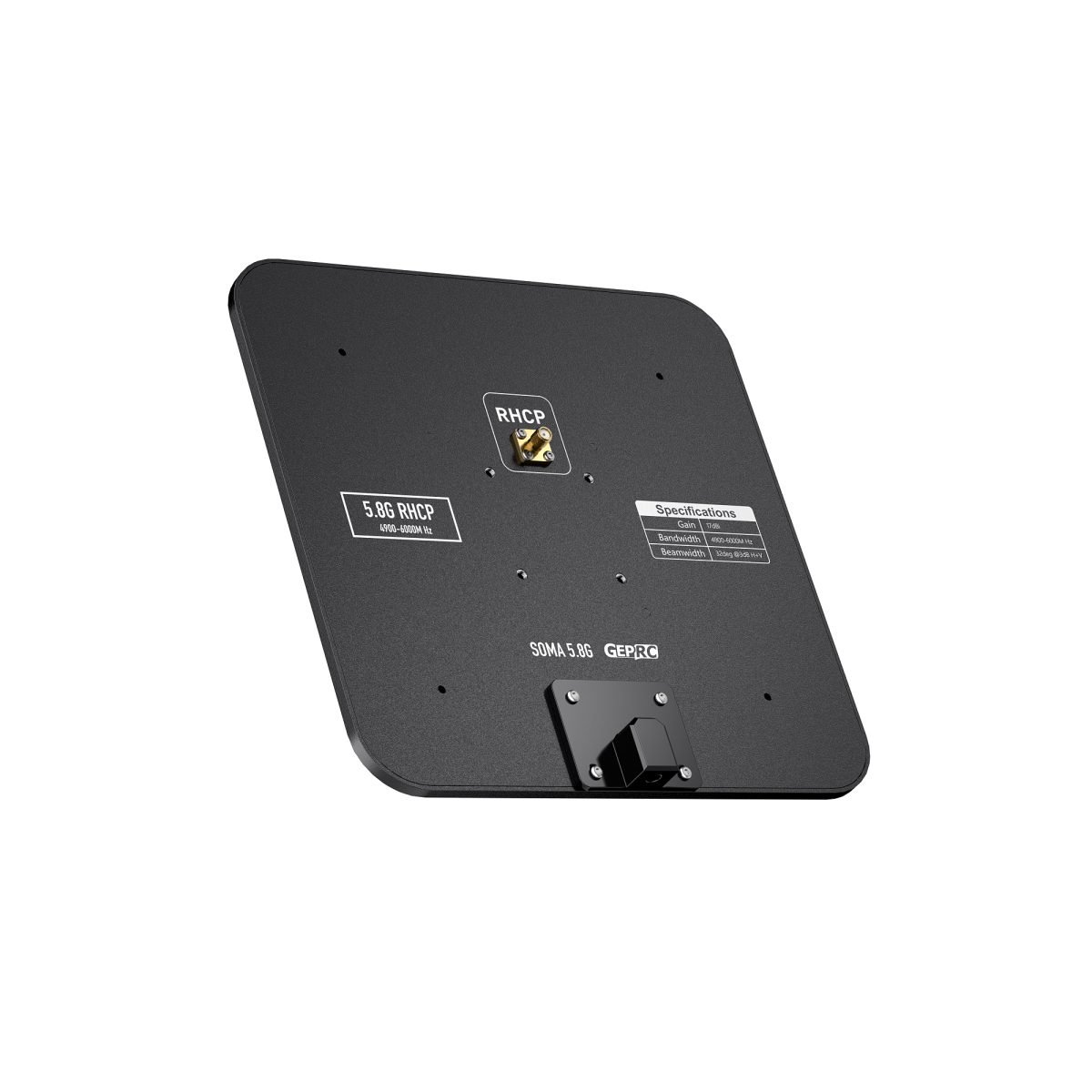

3.  1/4 aluminum alloy base, compatible with various brackets.

4.  High-quality SMA connector for lower impedance and better transmission efficiency.

5.  Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

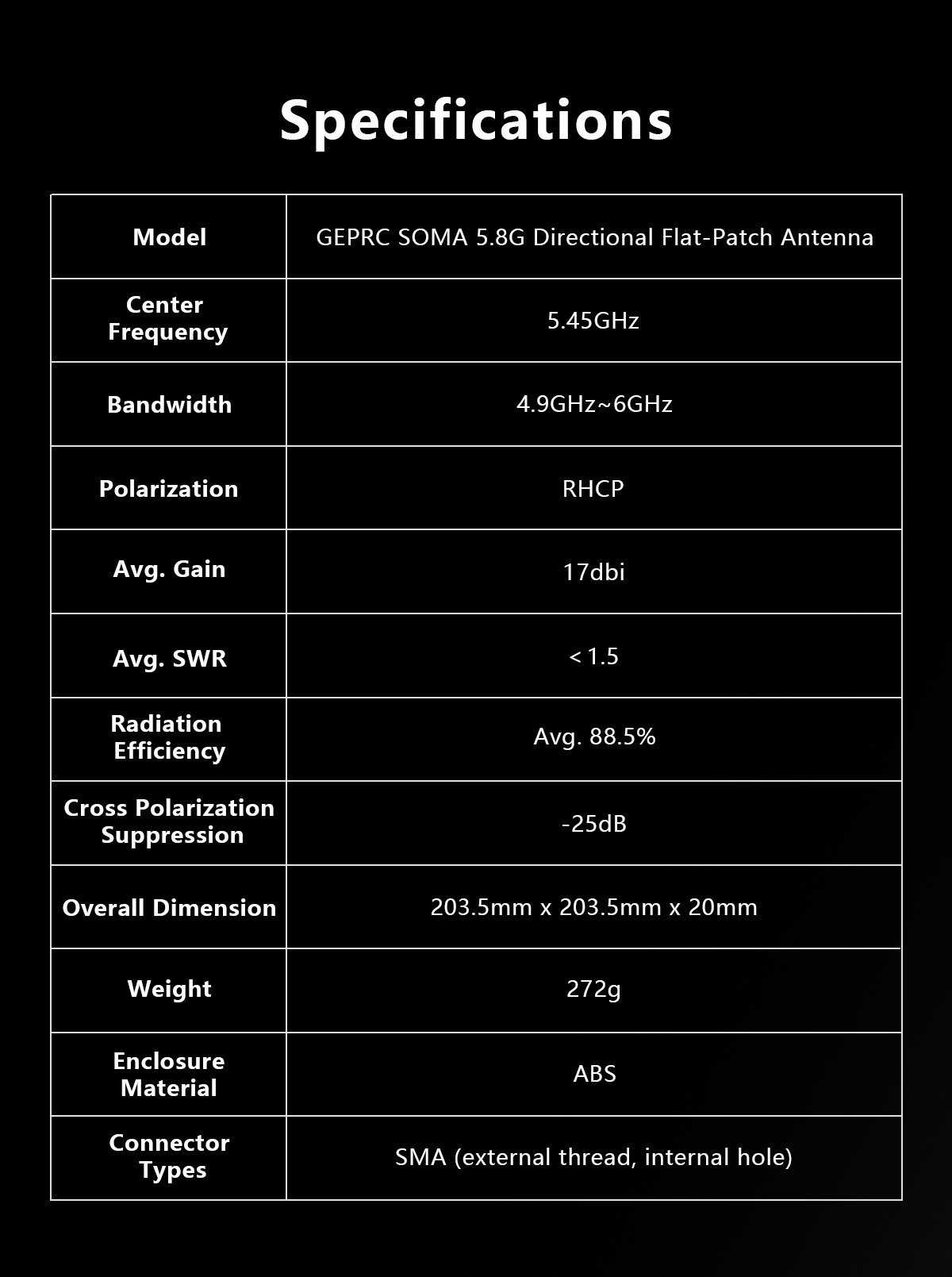

Specifications

• Model: GEPRC SOMA 5.8G Directional Patch Antenna

• Center Frequency: 5.45GHz

• Bandwidth: 4.9GHz~6GHz

• Polarization: RHCP

• Gain: 17dBi

• Axial Ratio: ≤3

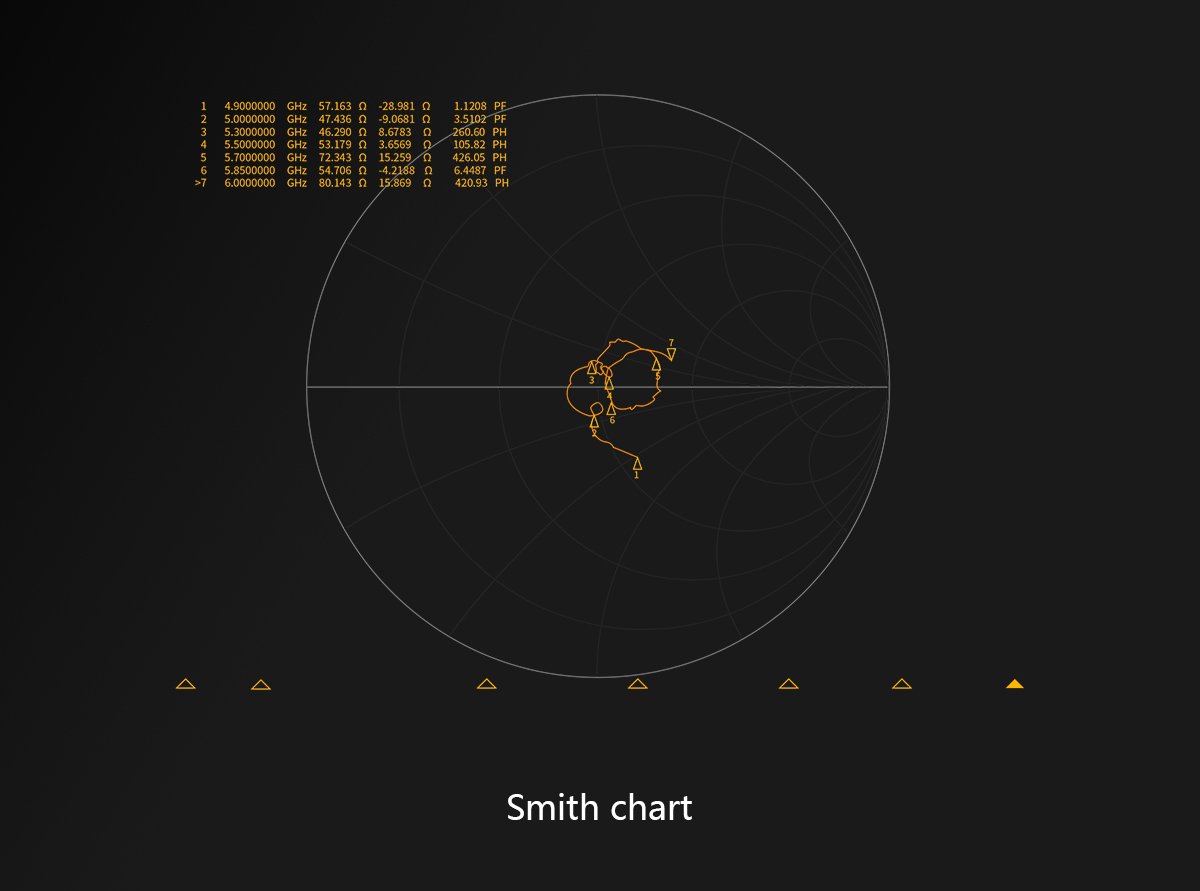

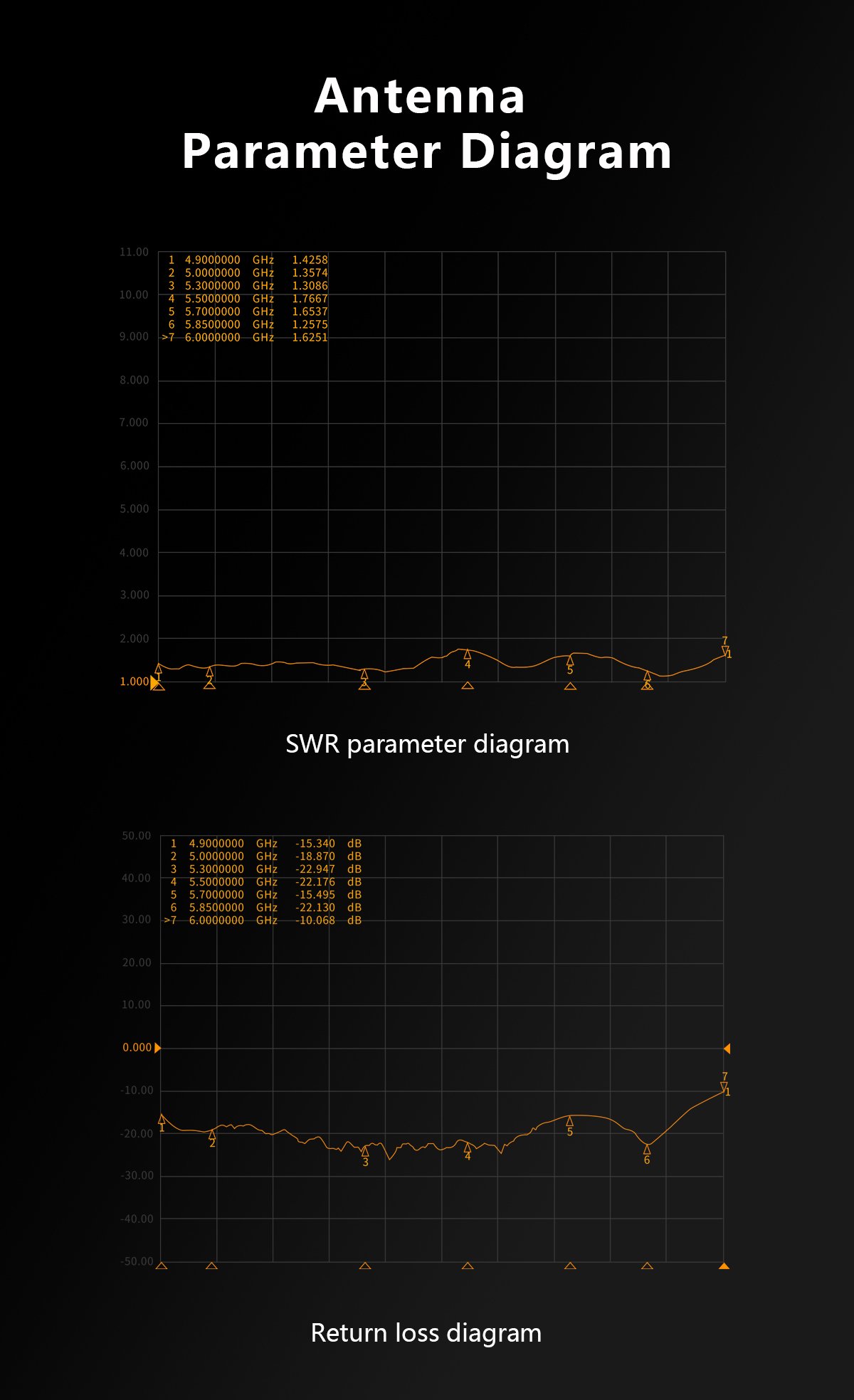

• SWR：≤1.5

• Radiation Efficiency: 88.5%

• Cross polarization suppression: -25dB

• Overall Dimension: 203.5mm x 203.5mm x 20mm

• Antenna Weight: 272g

• Enclosure Material: ABS

• Connector Type: SMA (external thread, internal hole）

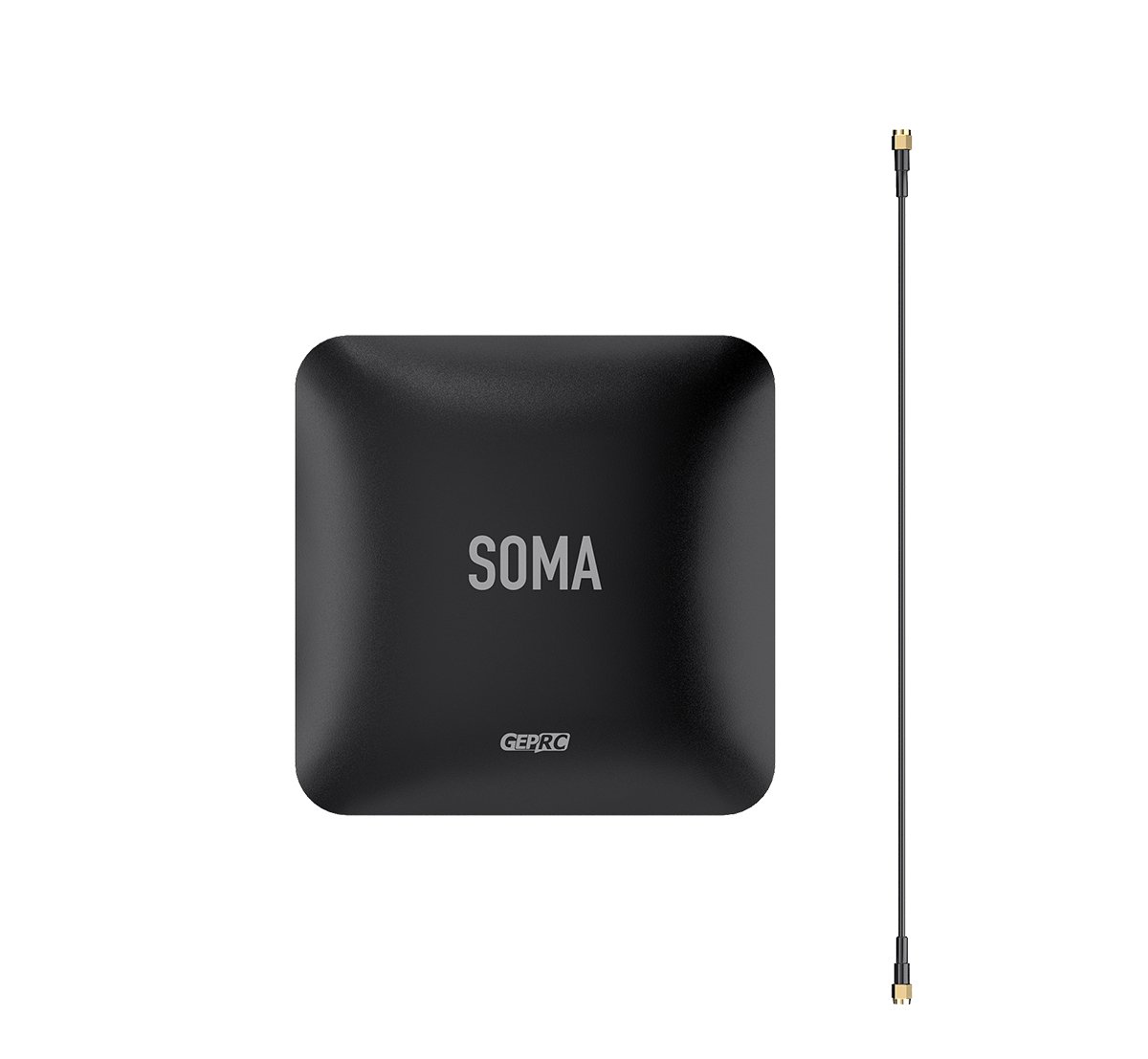

Includes

1 x SOMA 5.8G Directional Patch Antenna
