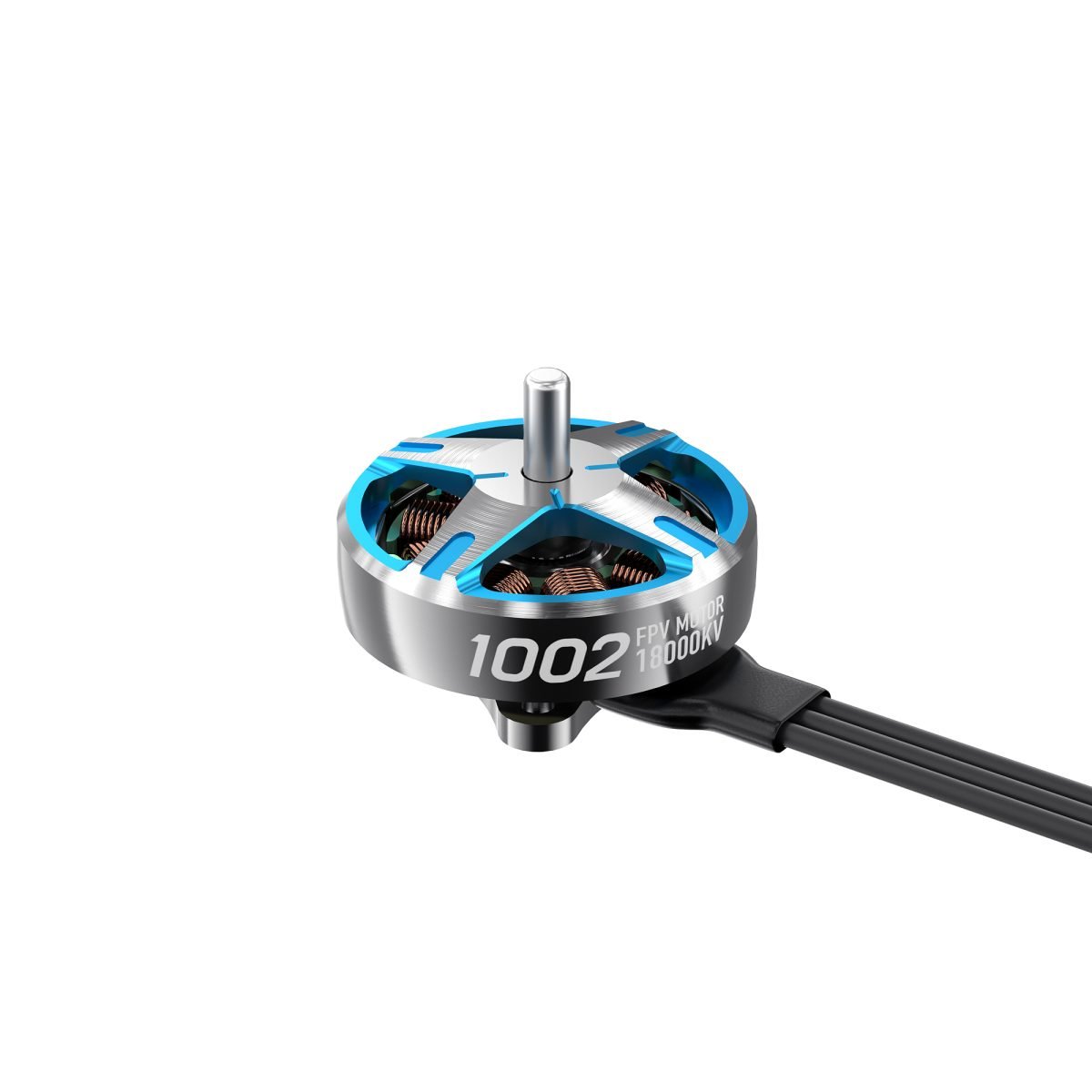

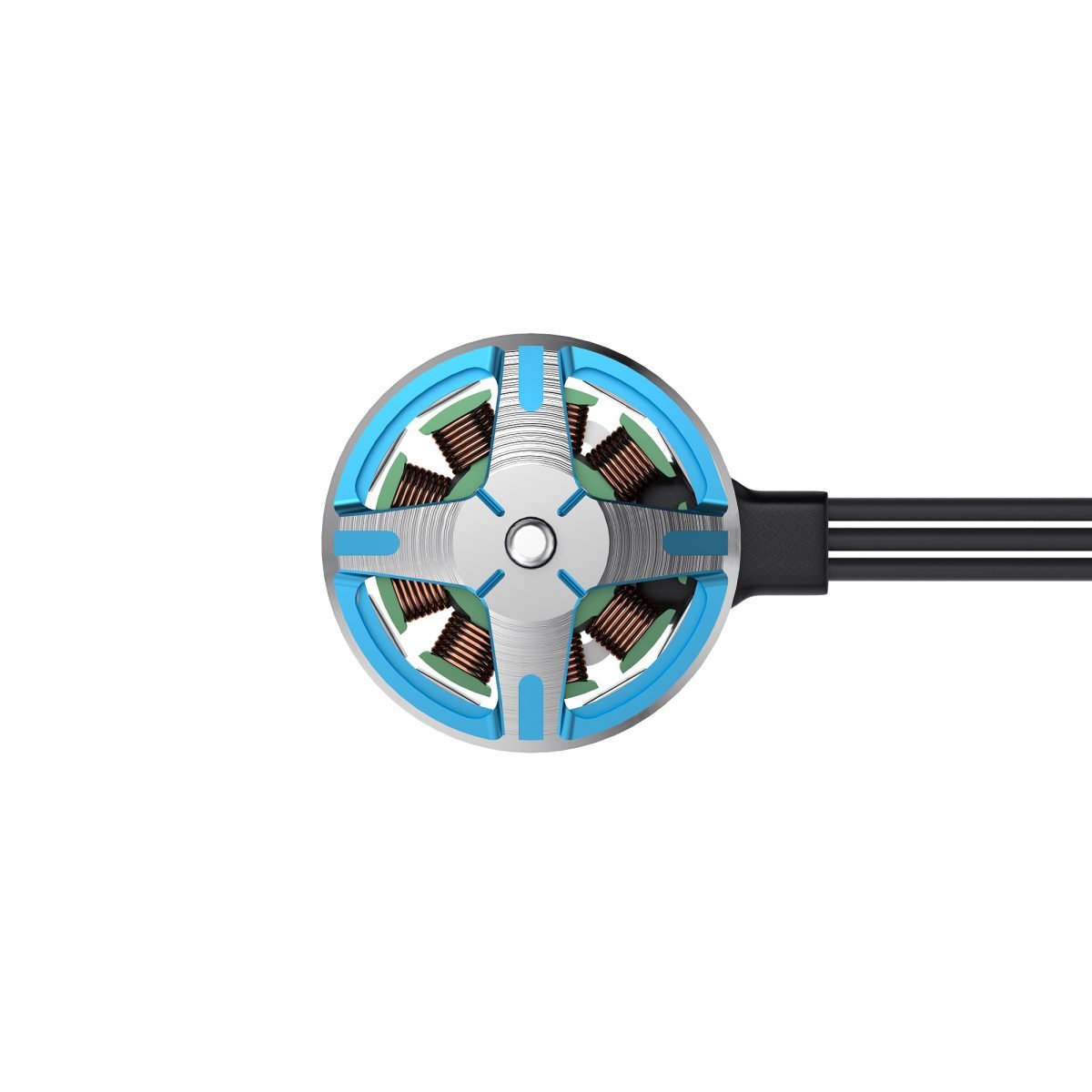

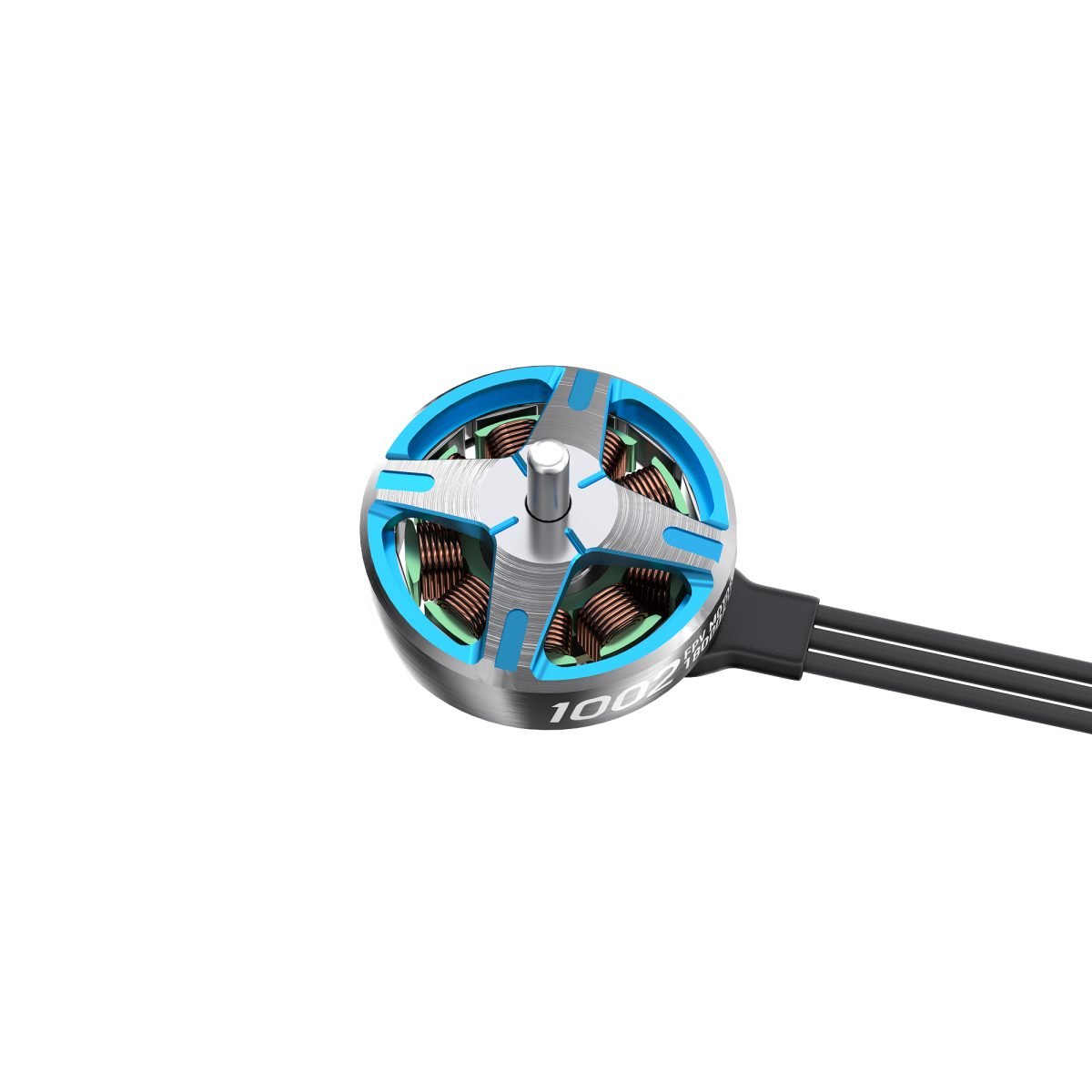

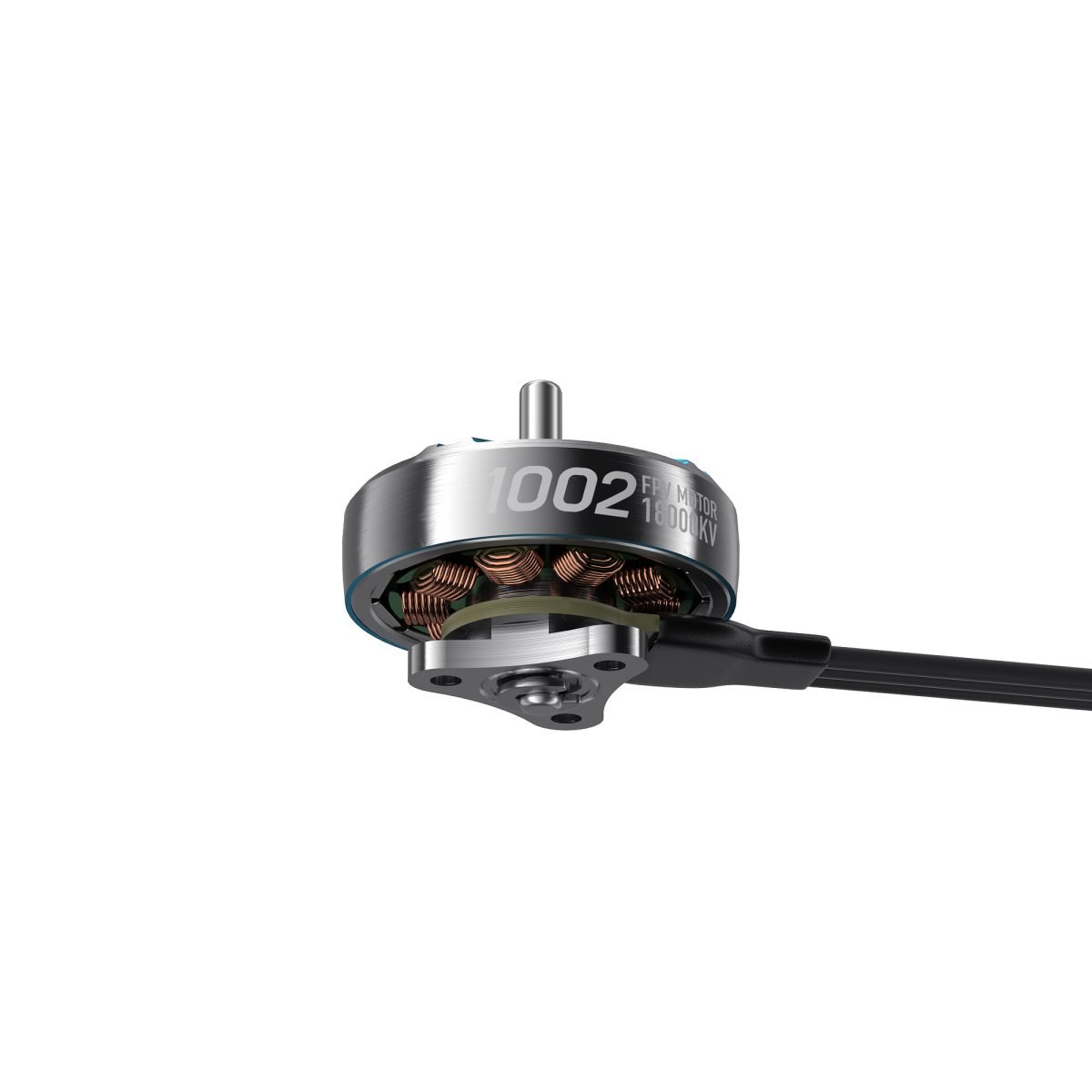

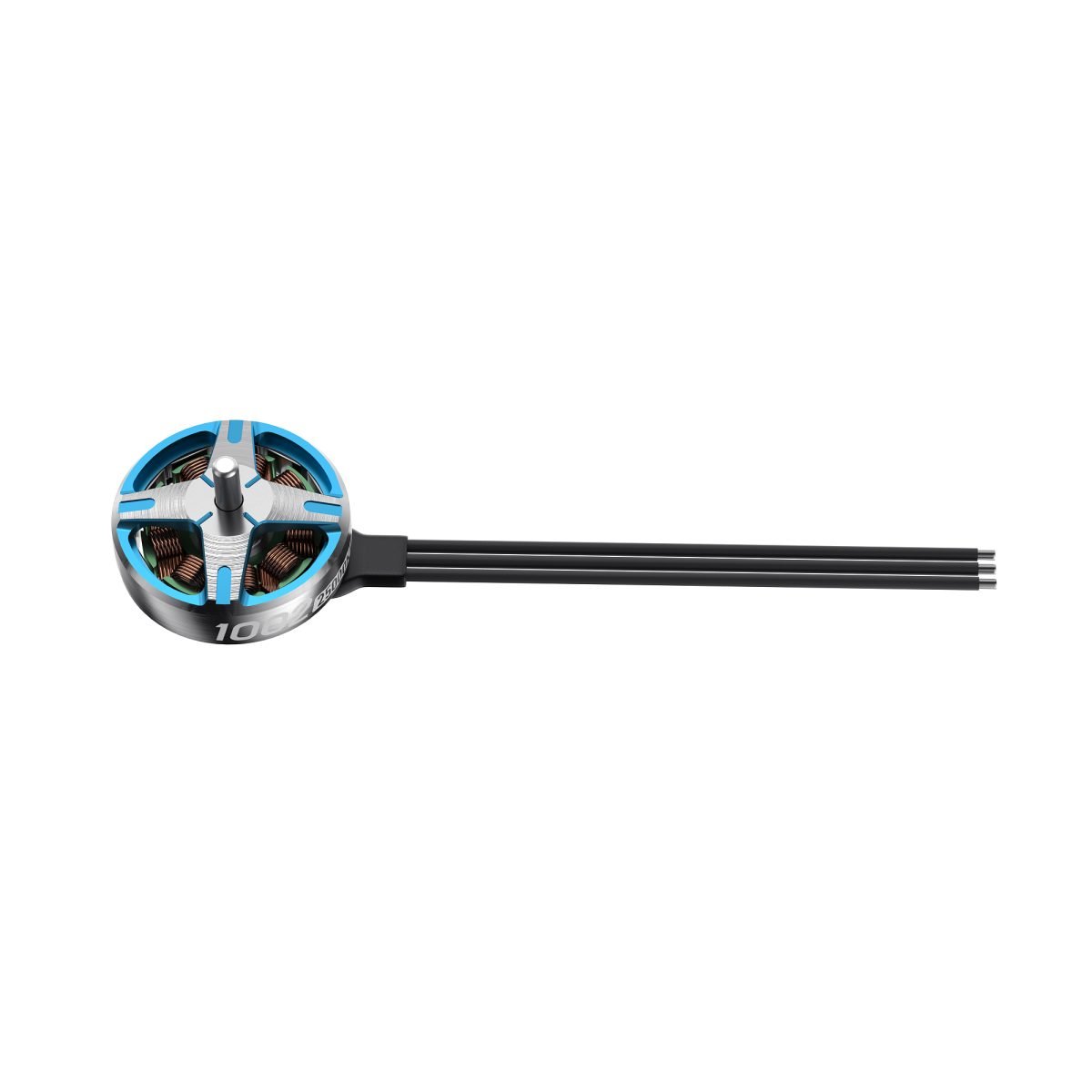

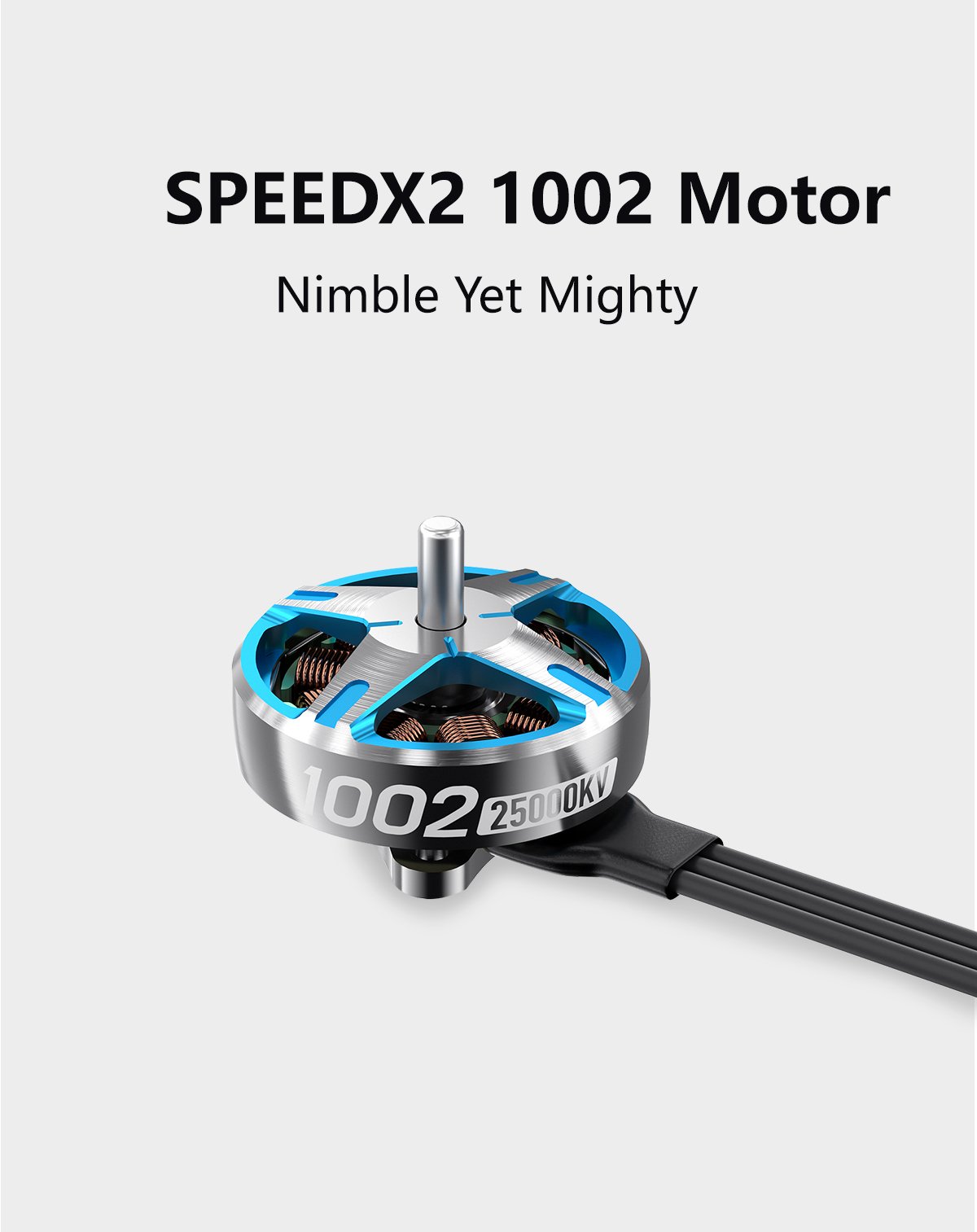

GEPRC SPEEDX2 1002 25000KV/18000KV Motor

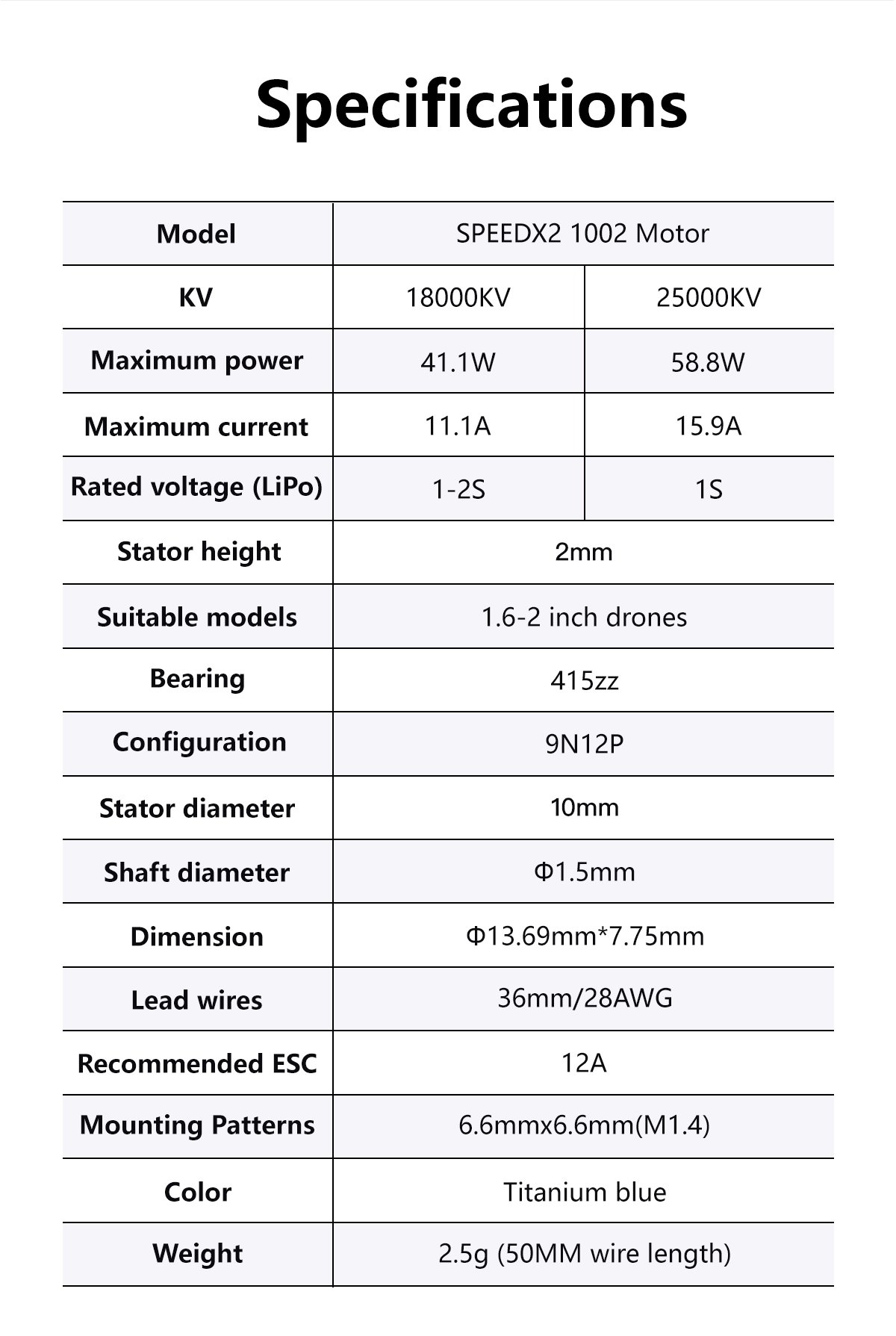

Specifications

SPEEDX2 1002 25000KV Motor

• Model: SPEEDX2 1002-25000KV
• Configuration：9N12P
• Bearing: 415zz
• Stator Diameter: 10mm
• Stator Height: 2mm
• Shaft Diameter: Φ1.5mm

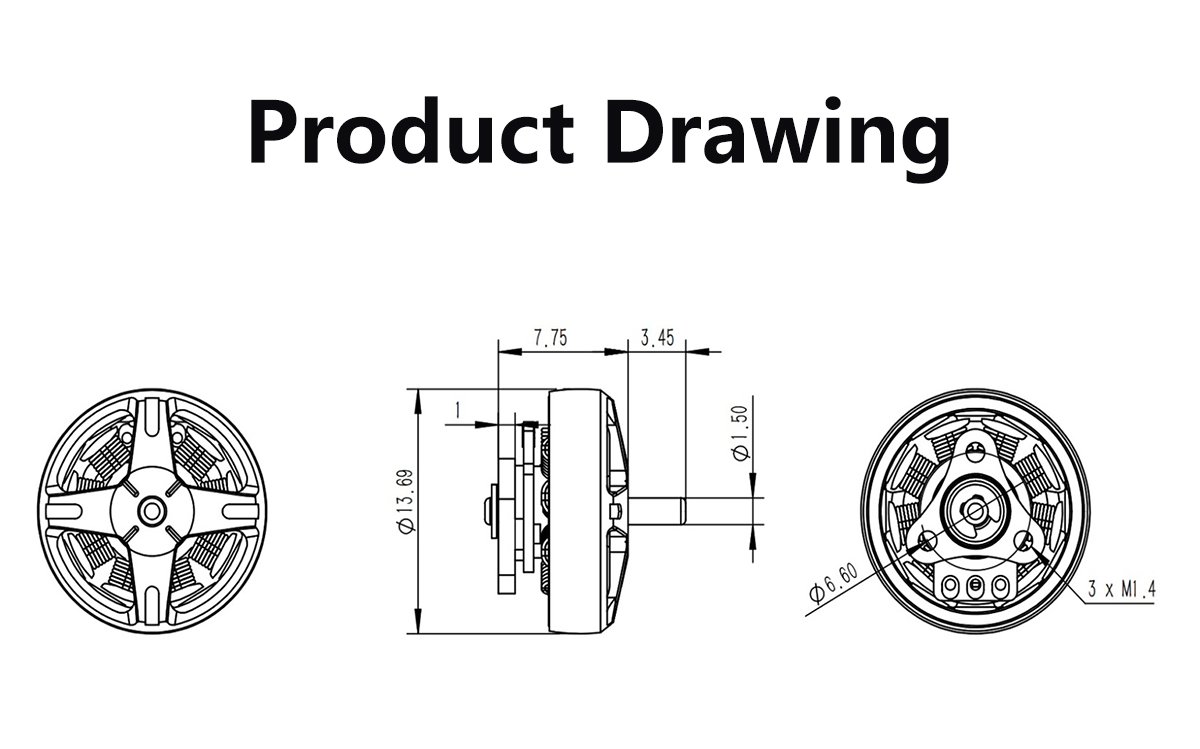

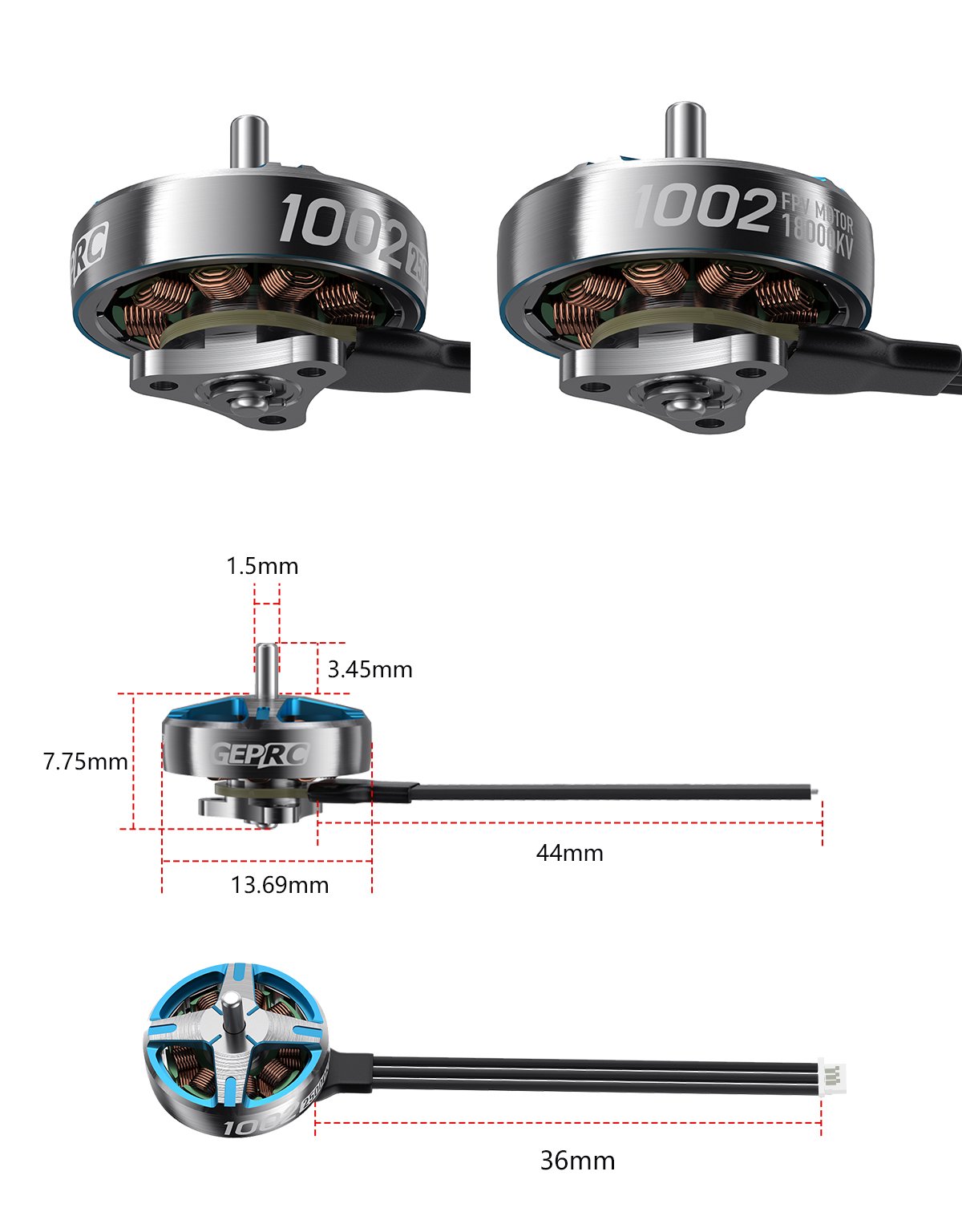

• Dimension: Φ13.69mm*7.75mm
• Lead Wires: 28#AWG 36mm
• Rated Voltage (LiPo): 1S

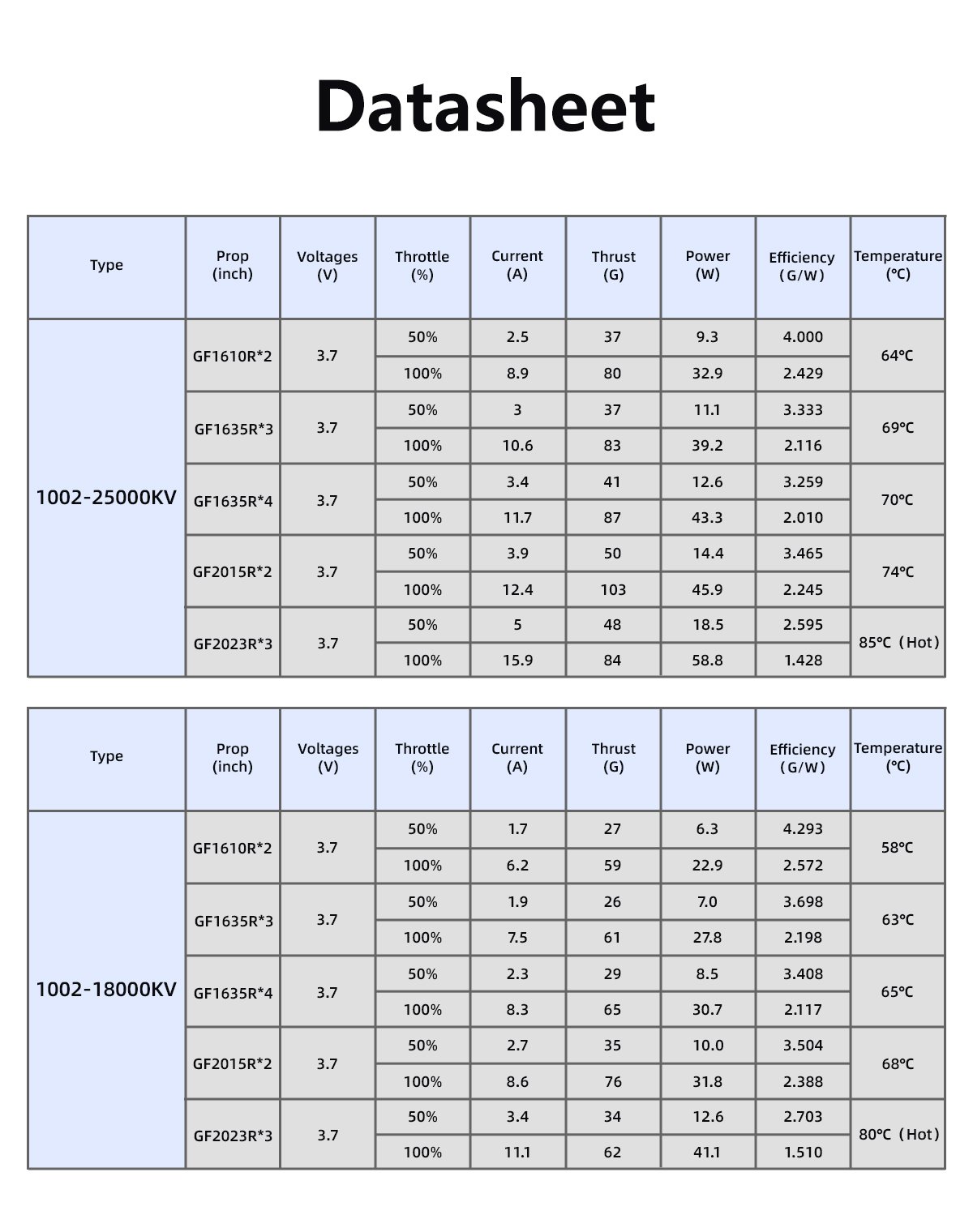

• Maximum Power: 58.8W
• Maximum Current: 15.9A
• Recommended ESC: 12A
• Mounting Patterns: 6.6mmx6.6mm(M1.4)
• Color: Titanium Blue
• Weight: 2.5g (50MM wire length)
• Compatible Models: 1.6-2 inch drones

SPEEDX2 1002 18000KV Motor

• Model: SPEEDX2 1002-18000KV
• Configuration：9N12P
• Bearing: 415zz
• Stator Diameter: 10mm
• Stator Height: 2mm
• Shaft Diameter: Φ1.5mm
• Dimension: Φ13.69mm*7.75mm
• Lead Wires: 28#AWG 36mm
• Rated Voltage (LiPo):1-2S
• Maximum Power: 41.1W
• Maximum Current:11.1A
• Recommended ESC: 12A
• Mounting Patterns: 6.6mmx6.6mm(M1.4)
• Color: Titanium Blue
• Weight: 2.5g (50MM wire length)
• Compatible Models: 1.6-2 inch drones

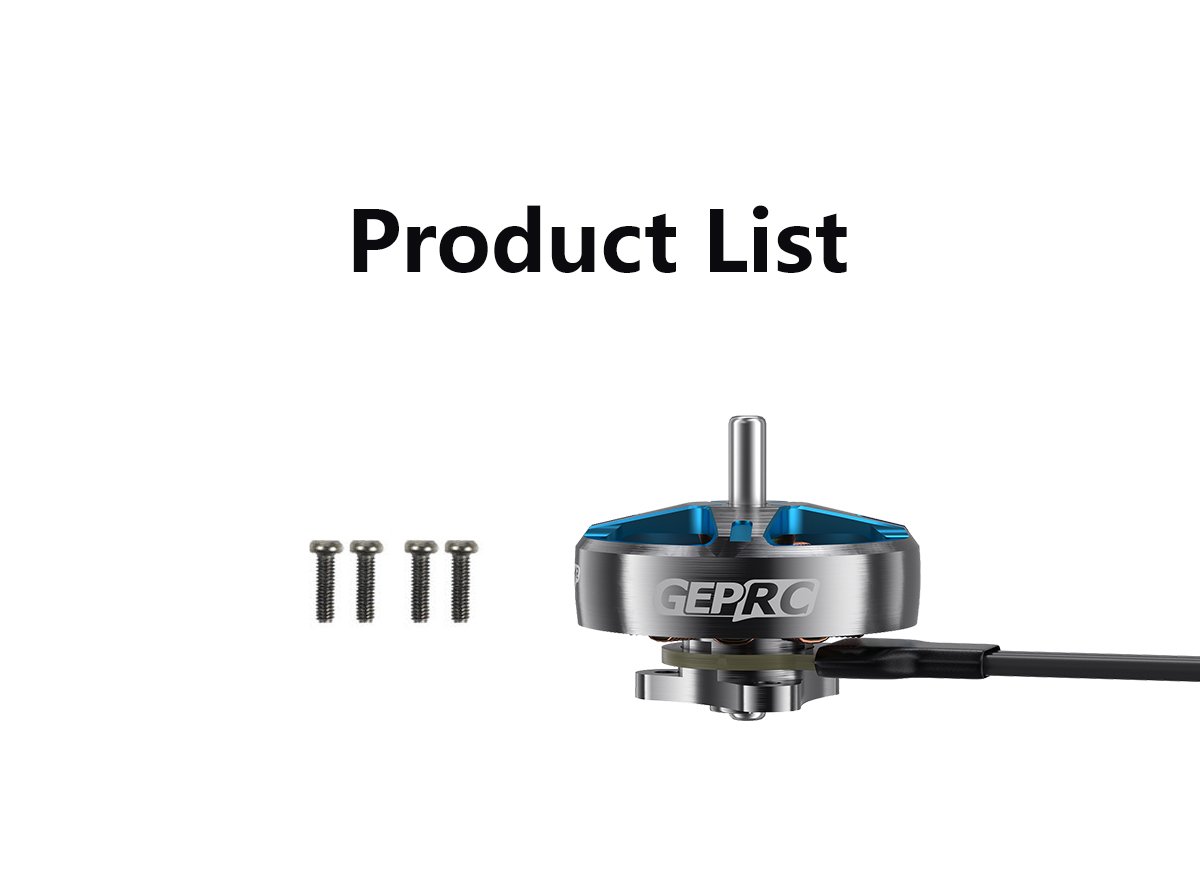

Inlcudes

1 x SPEEDX2 1002 motor
6 x M1.4*3mm screws
