About this product

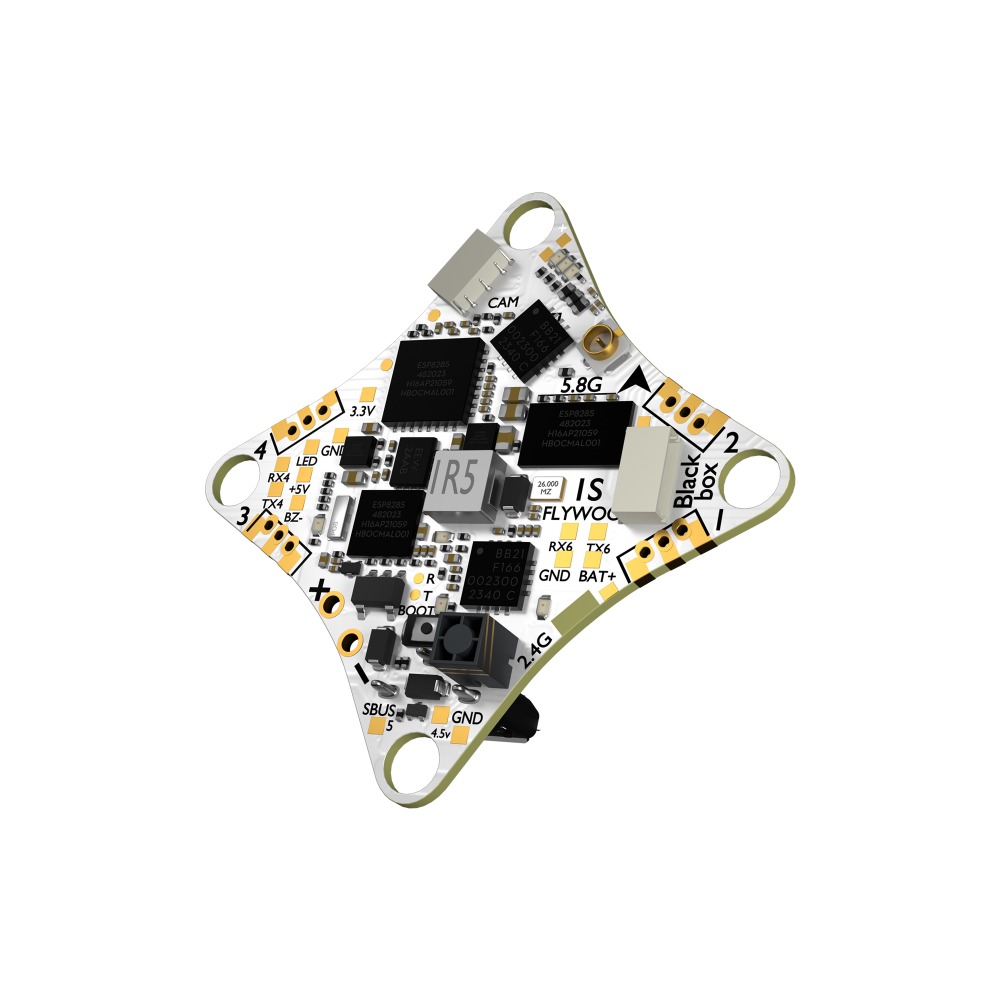

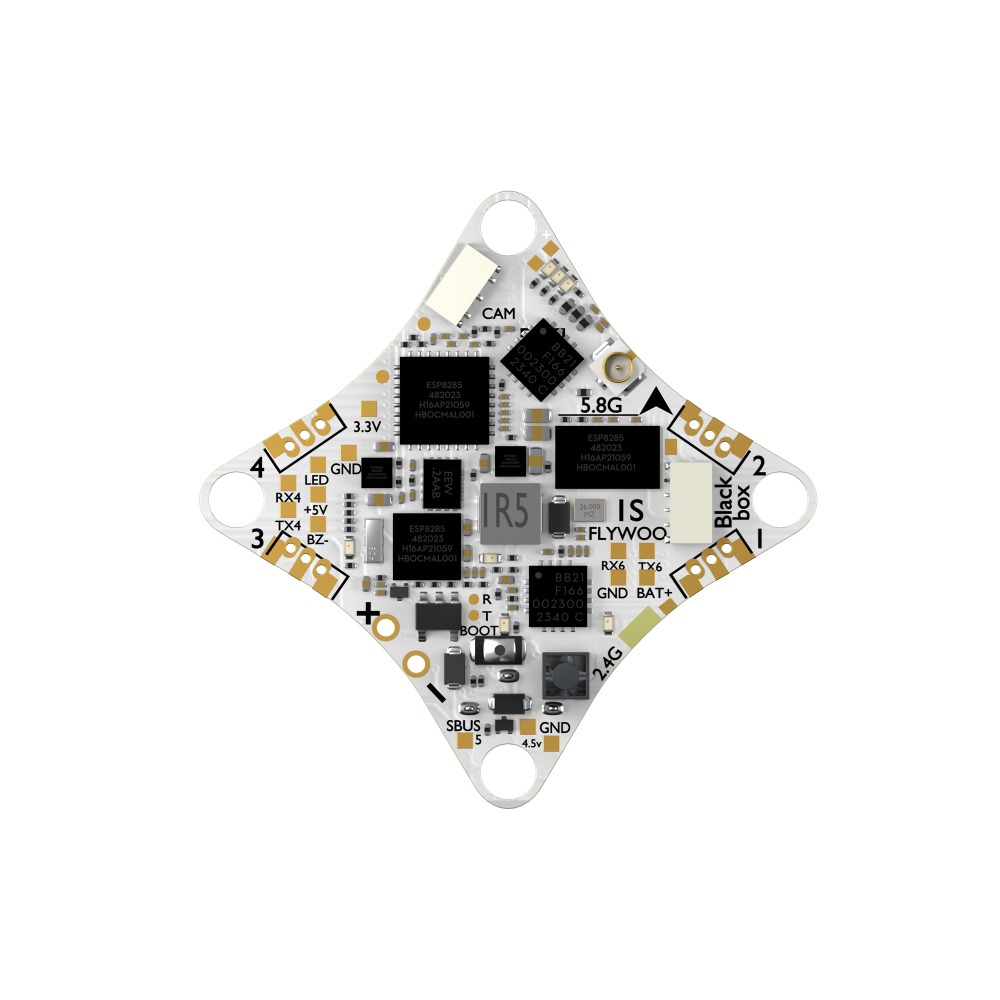

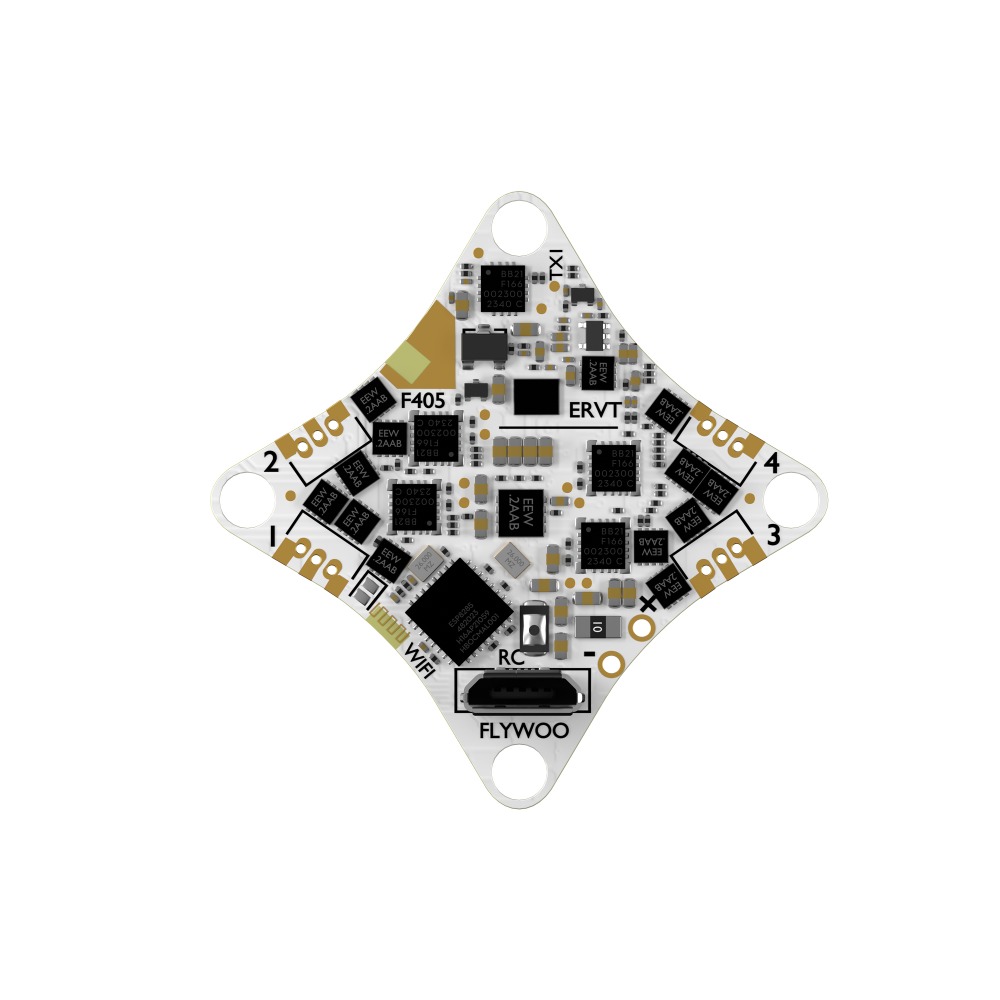

GOKU F405 ERVT 1S 5A 5-in-1 AIO Flight Controller – A revolutionary all-in-one solution integrating flight controller, ESC, VTX, receiver, and OSD. Powered by an F405BGA MCU , it delivers 68% higher processing power than traditional F411 chips, enabling ultra-low latency for competitive racing and acrobatic maneuvers.
Highlights
- Integrated Design ：Modular plug-and-play interfaces for solder-free installation of motors, cameras, and blackbox.
- Unmatched Processing：
- F405BGA chipset with 68% faster clock speed for lightning-fast response.
- 1S LiPo, 5A continuous current output ensures stable power delivery (supports Bluejay firmware).
- Built-in 4kHz gyro
- Video Transmission Switch：
-Featuring adjustable 25-400mW transmission power and electronic switch
-The pagoda-style integrated antenna delivering ≥1.5km range
-1S-optimized circuitry for sub-50ms video latency
- Professional Expandability
- Optional Flywoo plug-and-play Flight Blackbox (512MB storage) .
- Fully compatible with Betaflight, INAV, and other mainstream firmware
configuration
- MCU: STM32F405BGA
- IMU: ICM42688P
- Barometer: No
- Black Box: No (Up to 512M external)
- OSD Support: AT7456E (LGA16)
- UART:UART1 (VTX IRC),UART2(Blackbox),UART3 (ELRS RX),UART4,UART5 (SBUS),UART6
- Supported Protocols: CRSF, SBUS, iBus, Spektrum
- BEC: 5V 2.0A max
- RX: Flywoo EL24E 2400 RX 3.0.0
- FC Firmware: FLYWOOF405S_AIO

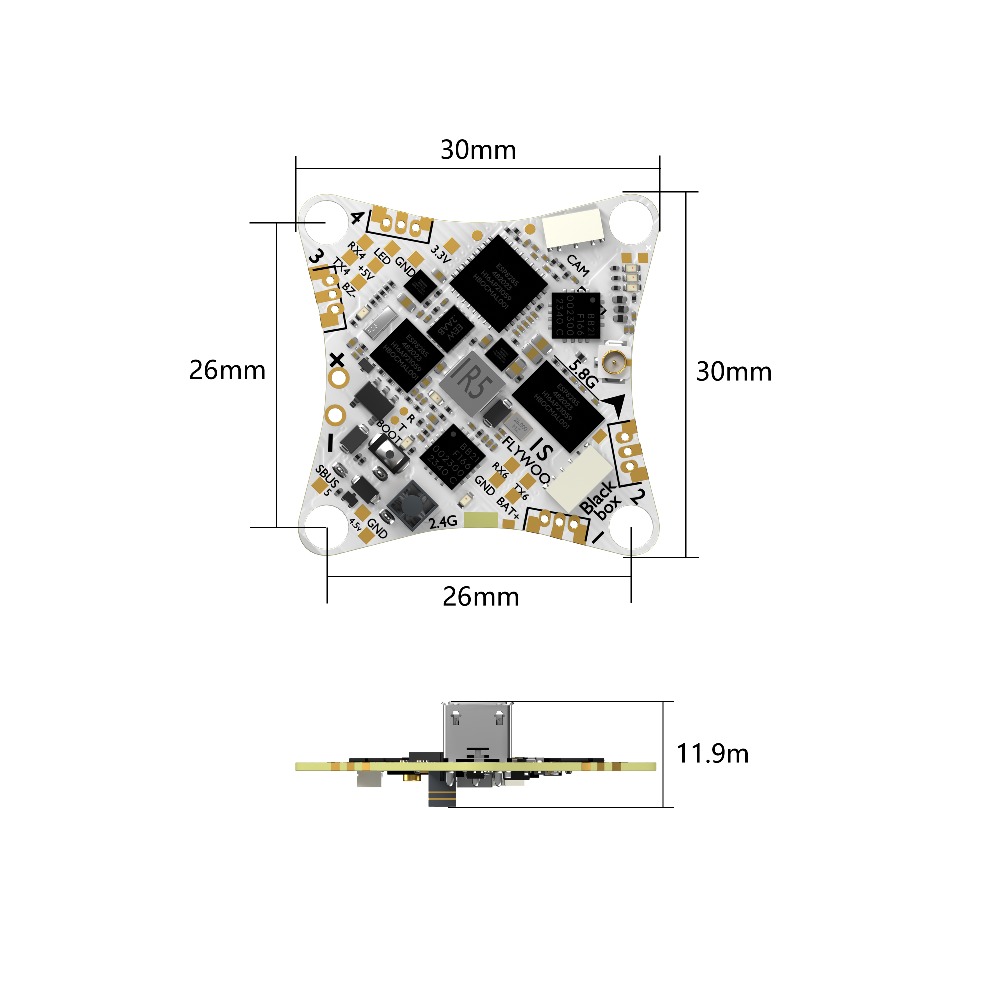

- Dimensions: 30.5 x 30.5mm
- Mounting Holes: Standard 25.5/25.5mm square to center of holes

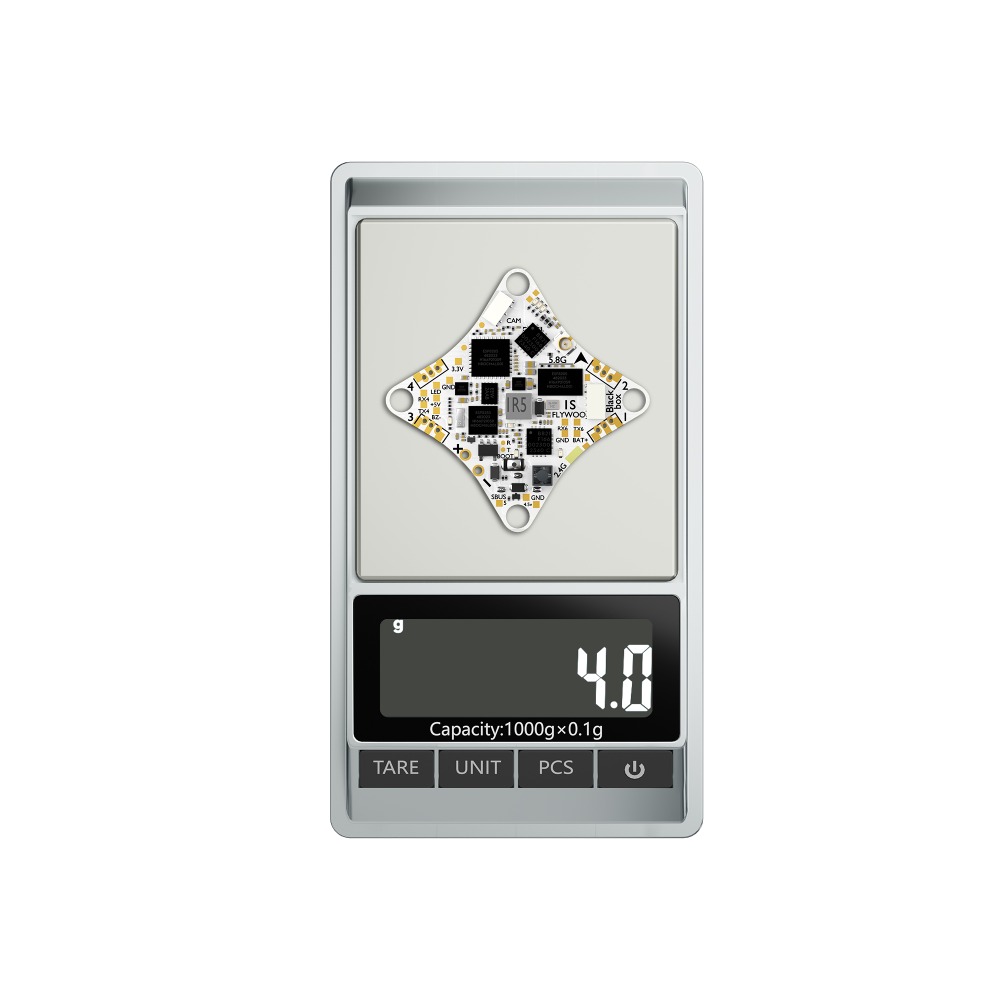

- Weight: 4g
Onboard 4in1 ESC
- Power input: 1S Only
- Current: 5A continuous, 8A peak
- ESC firmware: O_H_5_48KHz_V0.19.hex Bluejay firmware
- Digital signal protocol: DShot300, DShot600
- Motor Connector: JST1.25
- Battery connector: A30
Onboard analog VTX
- Built-in VTX : 25/50/100/200/400/0mw
- VTX Protocol : IRC Tramp
- Frequency:5.8GHz 40 channels
- Raceband: 5658-5917MHz
- Operating temperature:-15°~+80°
In the box
- 1x GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
- 1x A30 power cable
- 1x JST-0.8 3pin 50mm camera cable
- 1x Flywoo Black box connector cable
- 4x 1.25mm 3-Pin Vertical Straight Socket
- 4x M2x6.6 Shock-Absoring Ball
Wiring diagram
