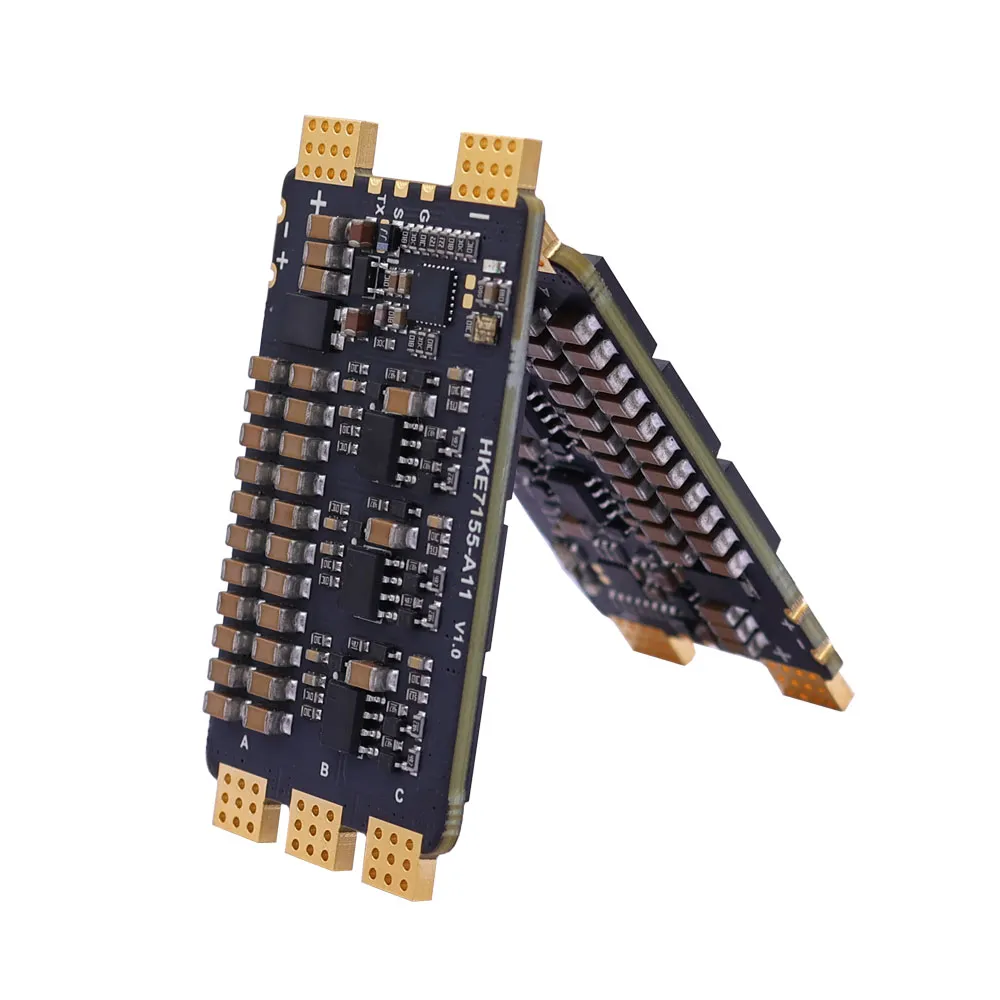

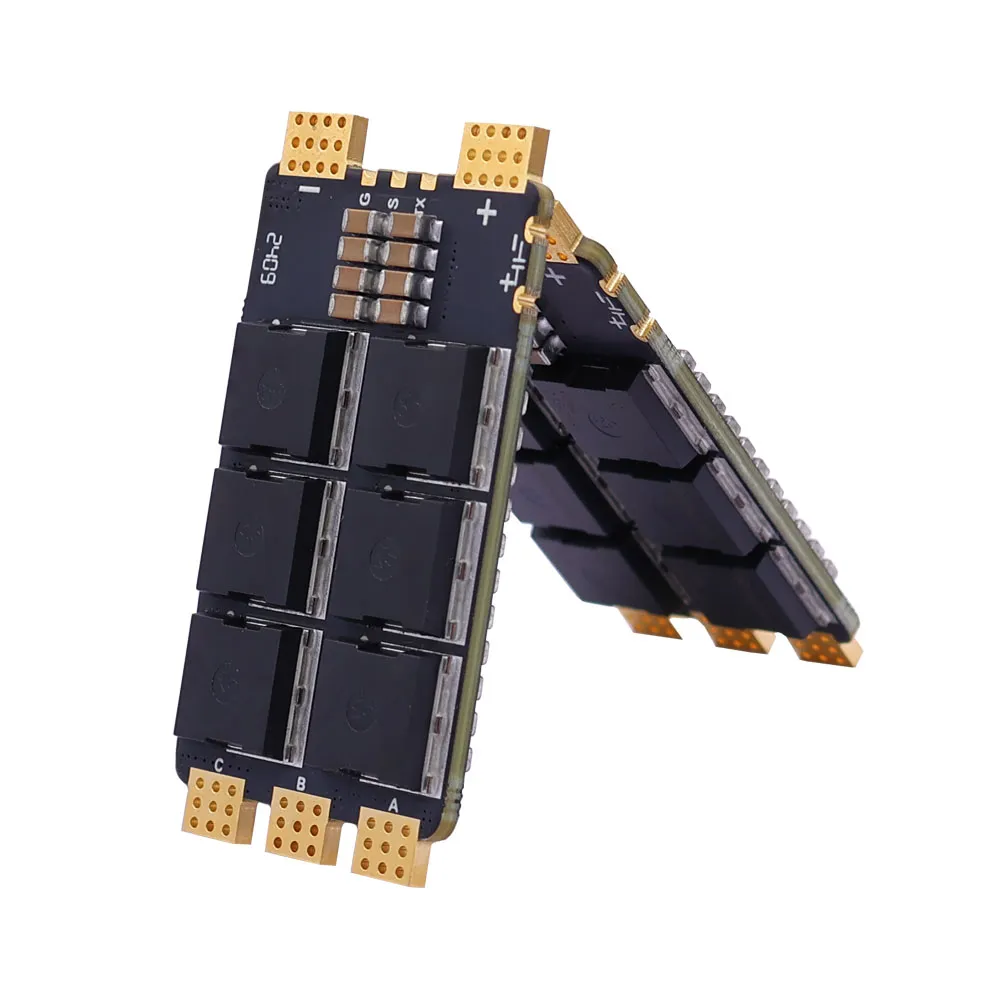

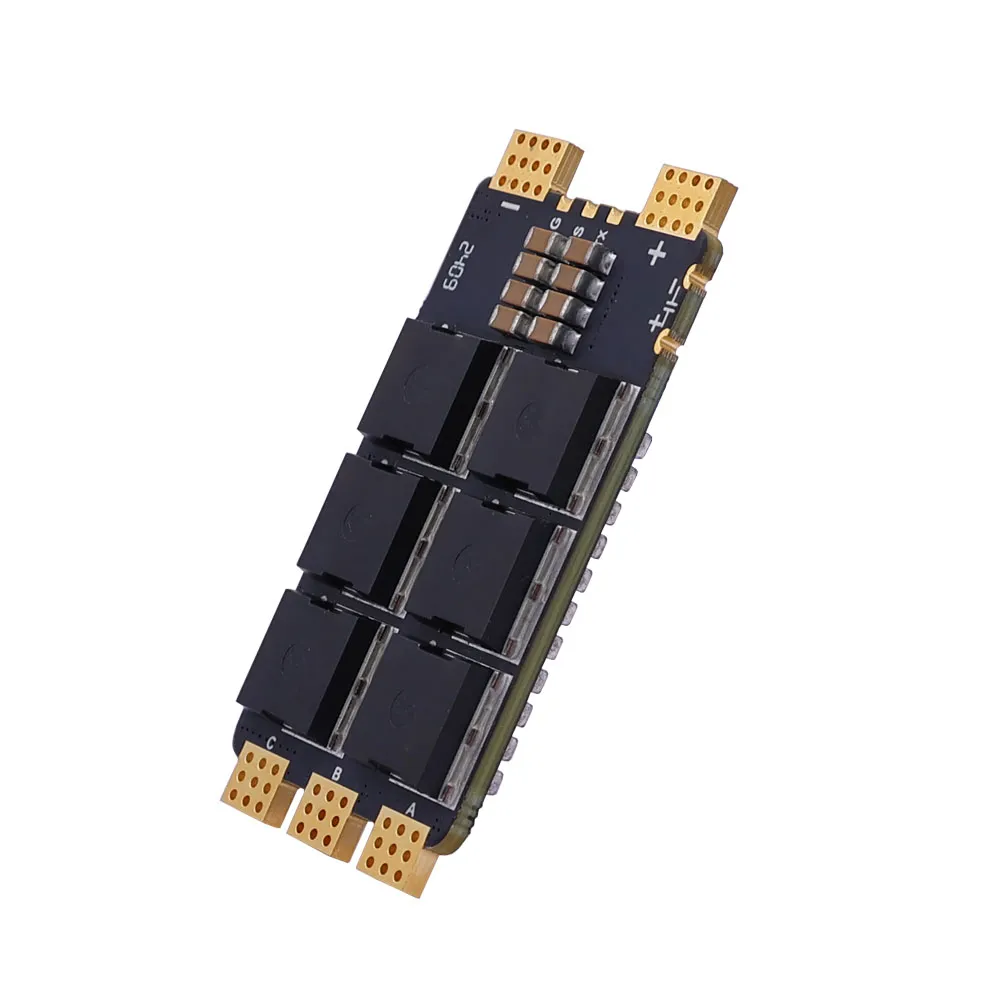

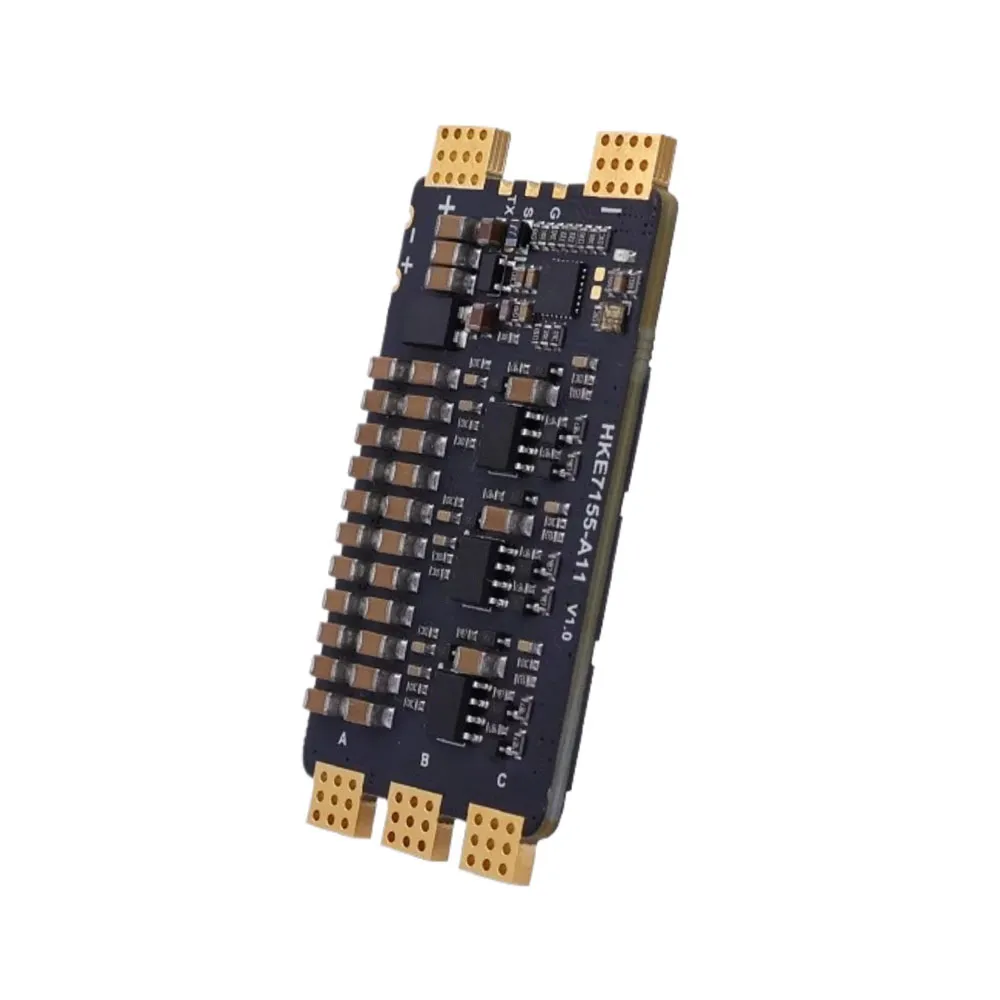

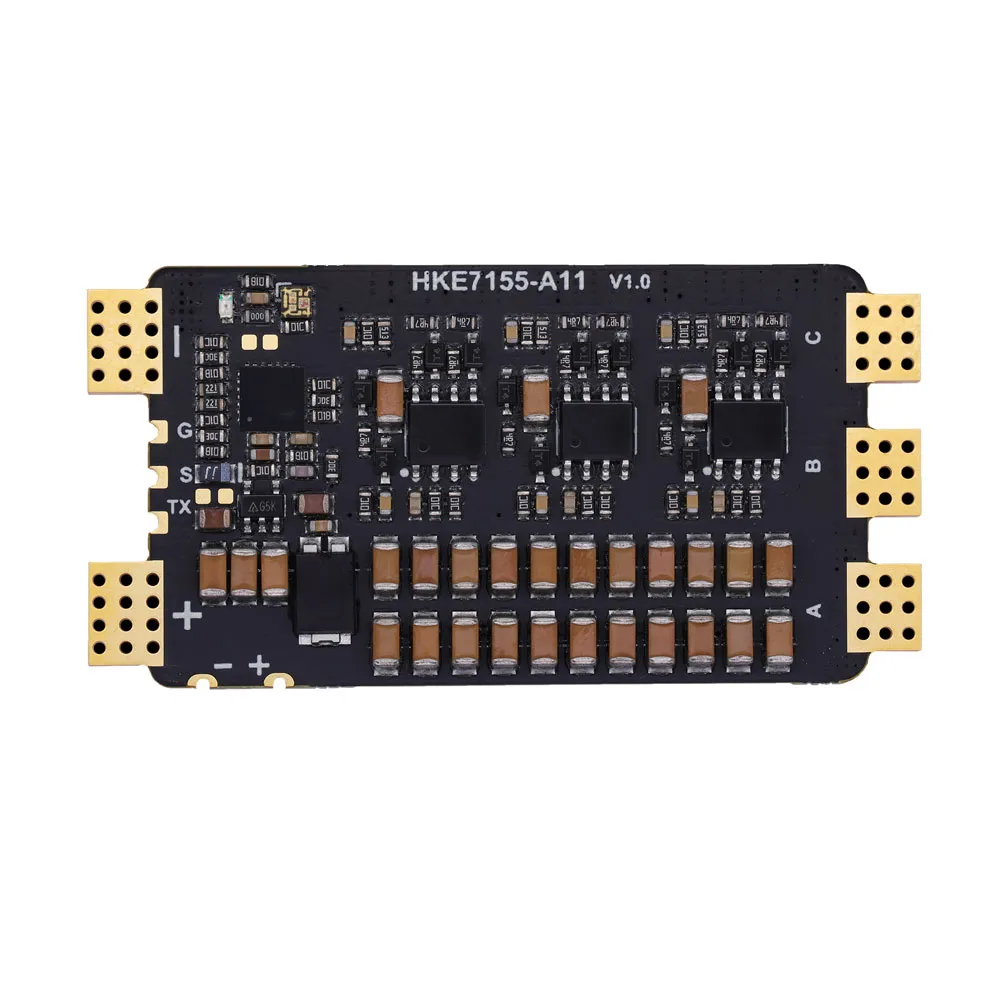

HAKRC 7155 80A/120A ESC

The HAKRC 2025 New 7155 Single ESC delivers industrial-grade performance with 80A/120A support, 8-layer 4oz PCB, and advanced LDO for stable operation. Compatible with 6-12S, 85V systems, and high current MOS, it's ideal for demanding applications.

 HAKRC 7155 80A ESC

1. The PCB adopts high-end 8-layer 4oZ thickened copper skin, the application of high-end resin plugged hole PCB production process, double pad design, stronger overcurrent capacity and good heat dissipation.

2. The MOS adopts imported 85V high current resistant mos, which has a long life and strong load capacity.

3. Adopt industrial-grade LDO, high temperature resistance.

4. Adopt high-quality Japanese Murata capacitors, with strong filtering performance

5. Programmable magic LED light

ESC Specifications

Size: 55* 28mm

Net weight of product: 21g

Electric adjustment firmware:HAKRC_G071-2023_Multi_32_100.Hex

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600

Input voltage: 6S-12S Lipo

Continuous current: 80A

Peak current: 100A

HAKRC 7155 120A ESC

1. The PCB adopts high-end 8-layer 4oZ thickened copper skin, the application of high-end resin plugged hole PCB production process, double pad design, stronger overcurrent capacity and good heat dissipation.

2. The MOS adopts imported 80V high current resistant mos, which has a long life and strong load capacity.

3. Adopt industrial-grade LDO, high temperature resistance.

4. Adopt high-quality Japanese Murata capacitors, with strong filtering performance

5. Programmable LED magic lights

ESC Specifications

Size: 55 * 28mm

Net weight of product: 21g

Electric adjustment firmware: HAKRC_G071-2023_Multi_32_100.Hex

Hardware: SLM21867CA-DG+SMT32G071G8U7+NCEP016N85LL

Protocol support: PWM, Oneshot125， Oneshot42, Multishot, Dshot150， Dshot300， Dshot600

Input voltage: 6S-12S Lipo

Continuous current: 120A

Peak current: 140A
