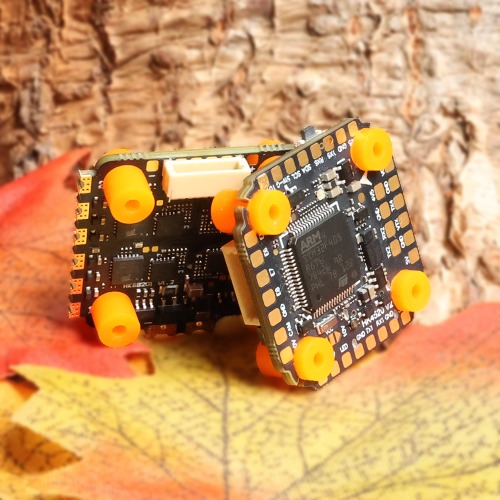

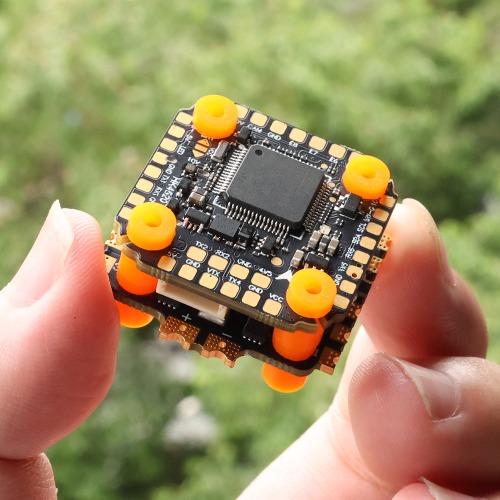

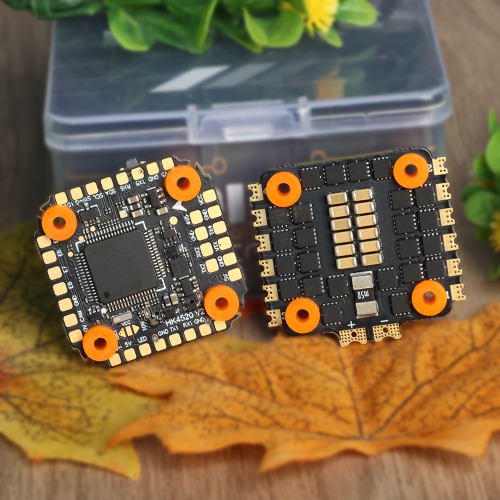

HAKRC 35A Mini F4V2 Stack

About this product

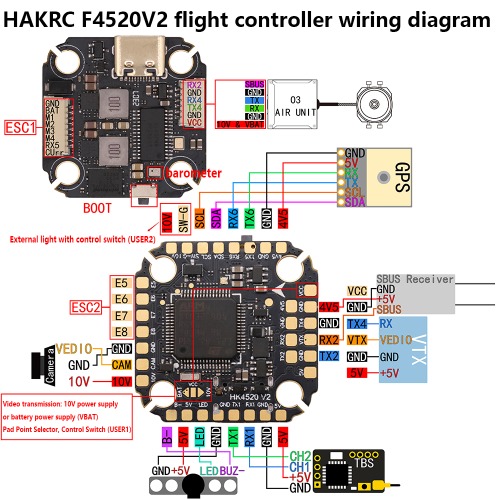

HAKRC 35A Mini F4V2 Stack is equipped with BLS 35A four-in-one ESC and F405 flight control, Installation hole spacing of 20 * 20mm.F405 flight controller is equipped with 5 UARTs, MPU6500 IMU, OSD, F.Port and many other functions!Built-in plug-in allows you to easily connect to the DJI FPV Air System.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life and reduce the risk of poor contact. Supports various receivers including Sbus,ELRS， PPM, CRSF, DSMX, iBus, DUMD, etc.

---

F405 FC Specifications

Size: 29 * 39mm (20mm-20mm mounting hole)

package size: 64 * 64 * 35mm

input voltage: 2S-6S LIPO

product net weight: 6g

package weight: 37g

CPU: STM32F405RET6

IMU: ICM42688

OSD: AT7456E

barometer: Integrated

Black Box: 16MB

EC: 5V/2A

BEC: 10V/2A

LED: support external adjustable LED

sensor: built-in current sensor

firmware version: HAKRCF405V2

receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

---

BLS 35A ESC Specifications

Size: 31 * 30mm (20mm * 20mm mounting hole)

packing size: 64 * 64 * 35mm

product net weight: 6g

packing weight: 40g

input voltage: 2S-6S Lipo

galvanometer ratio: 300

continuous current: 35A

peak current: 40A

Electric Firmware: g-rev. 16.7-Multi

protocol support: PWM, Oneshot125, Oneshot42, Multishot,

DSHOT150, DSHOT300, DSHOT600

---

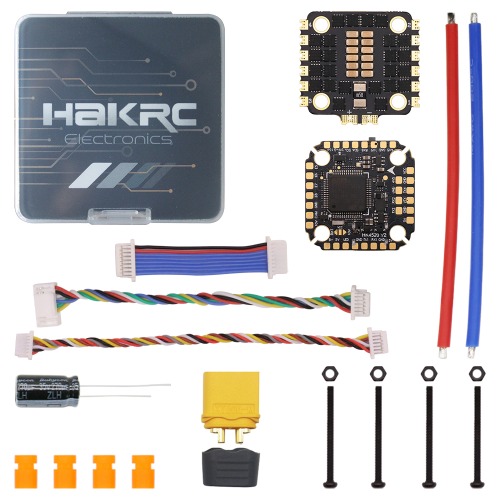

 Package includes

1x HAKRC 35A Mini F4V2 Stack
