The HAKRC 5139 90A/110A 4-in-1 ESC delivers powerful, efficient performance for demanding applications. With a robust 90A current rating, this ESC ensures reliable and smooth motor control in high-performance multirotor builds.

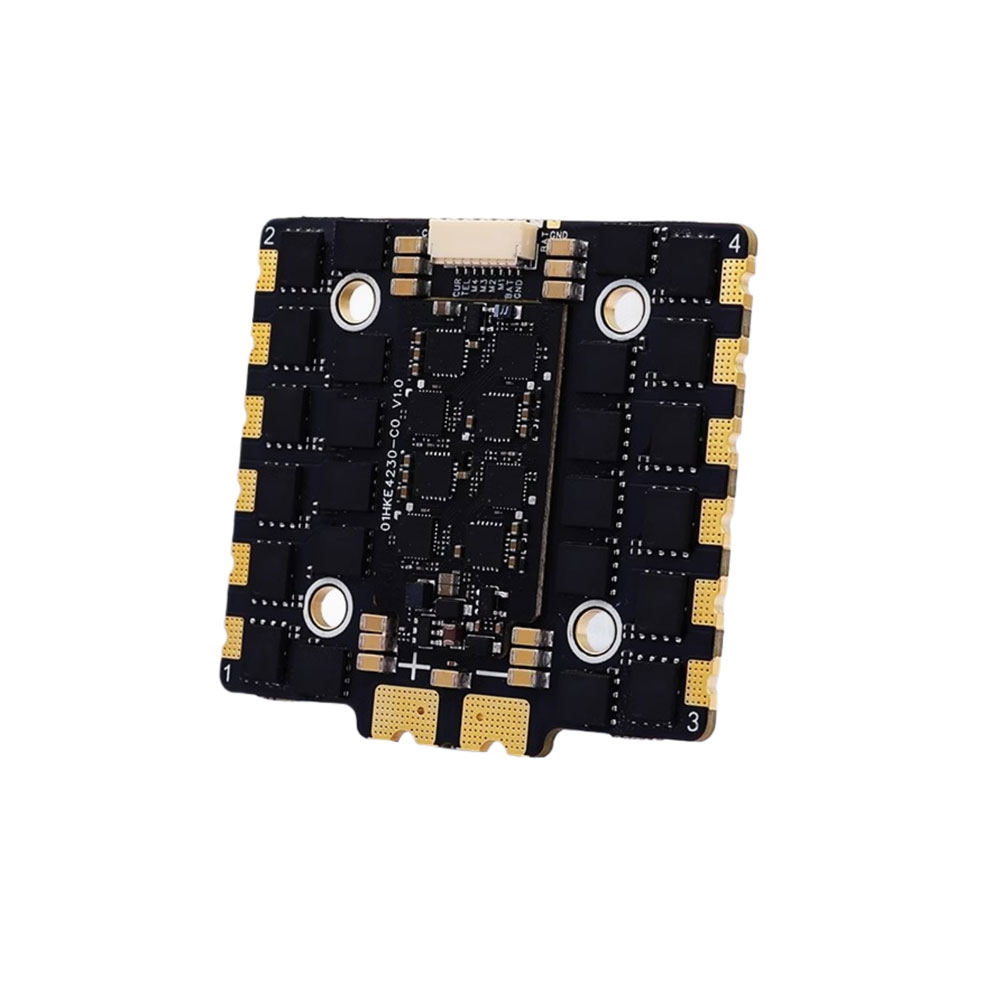

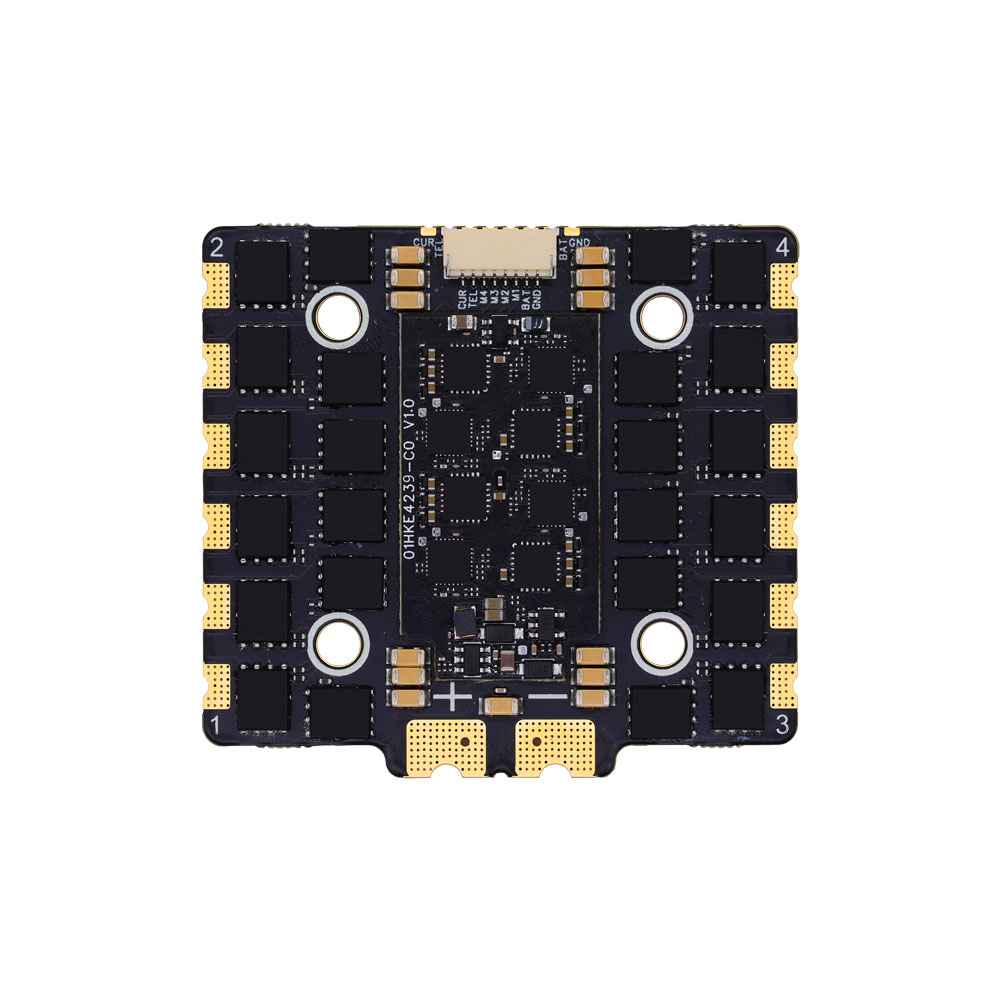

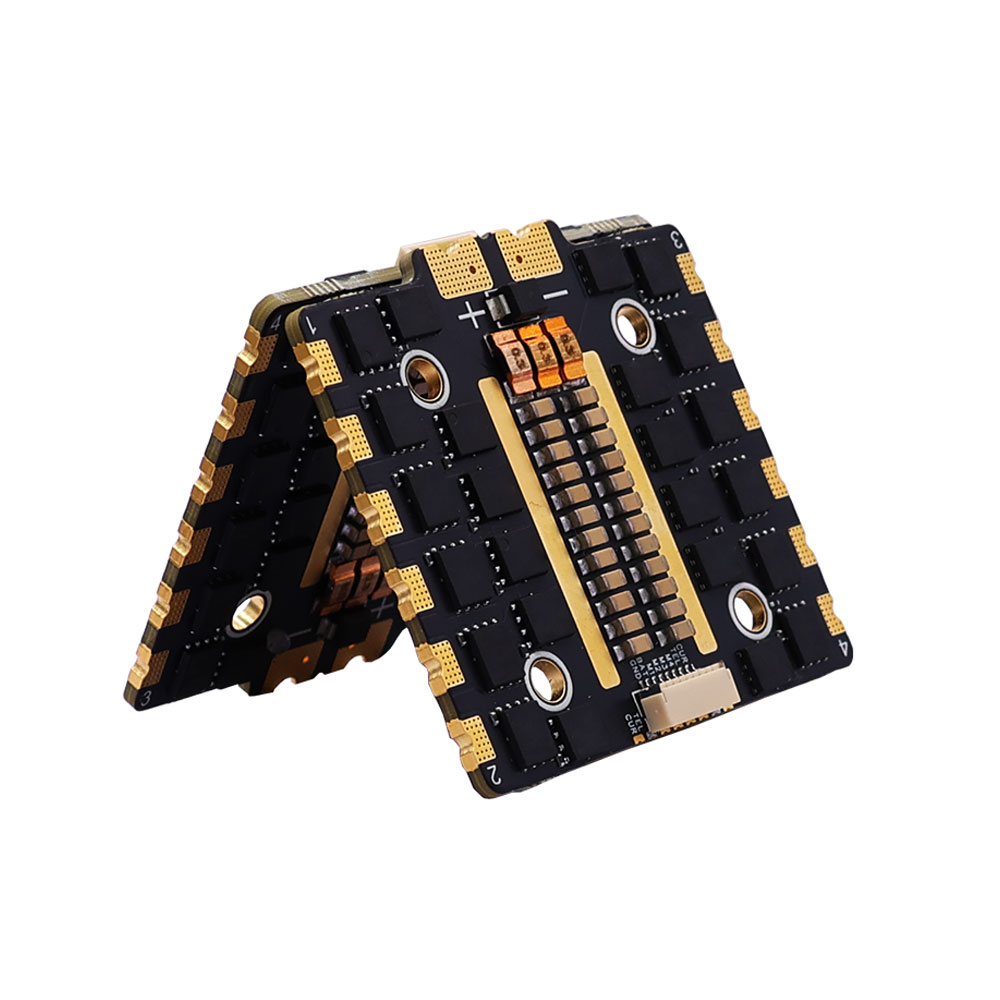

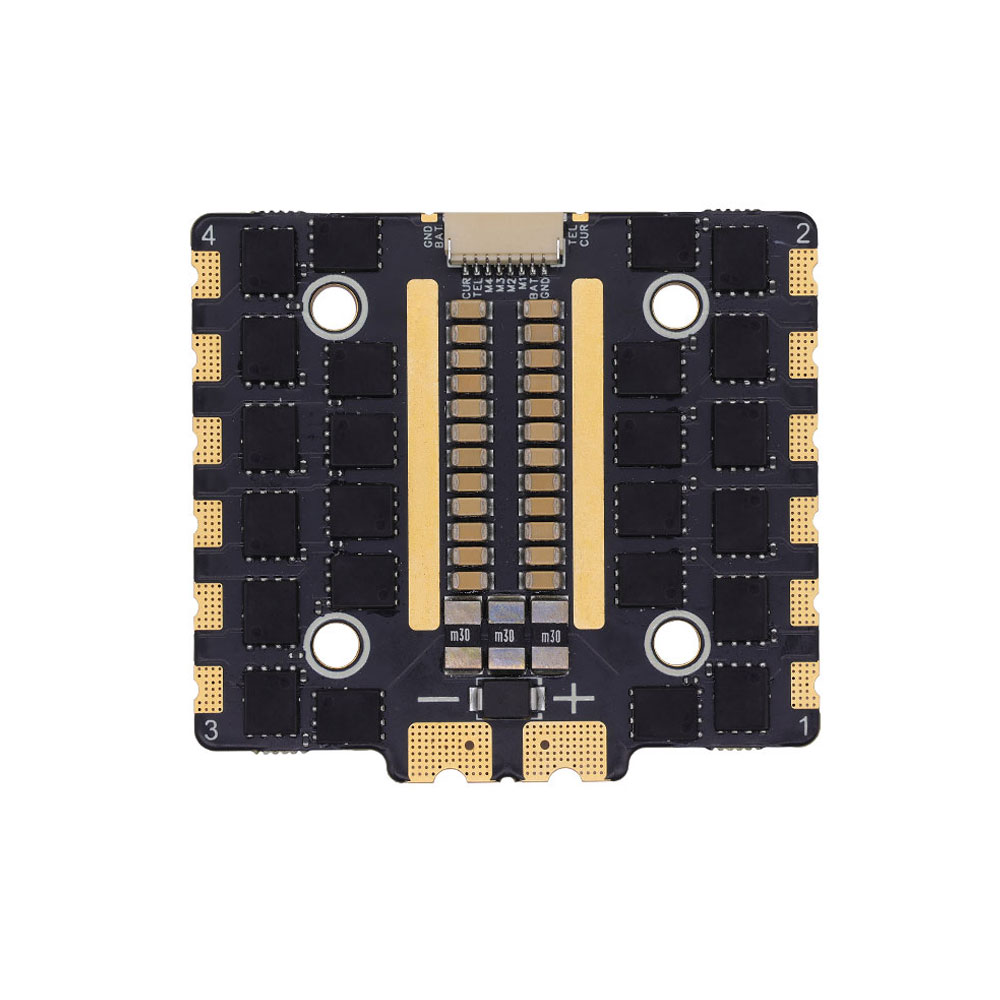

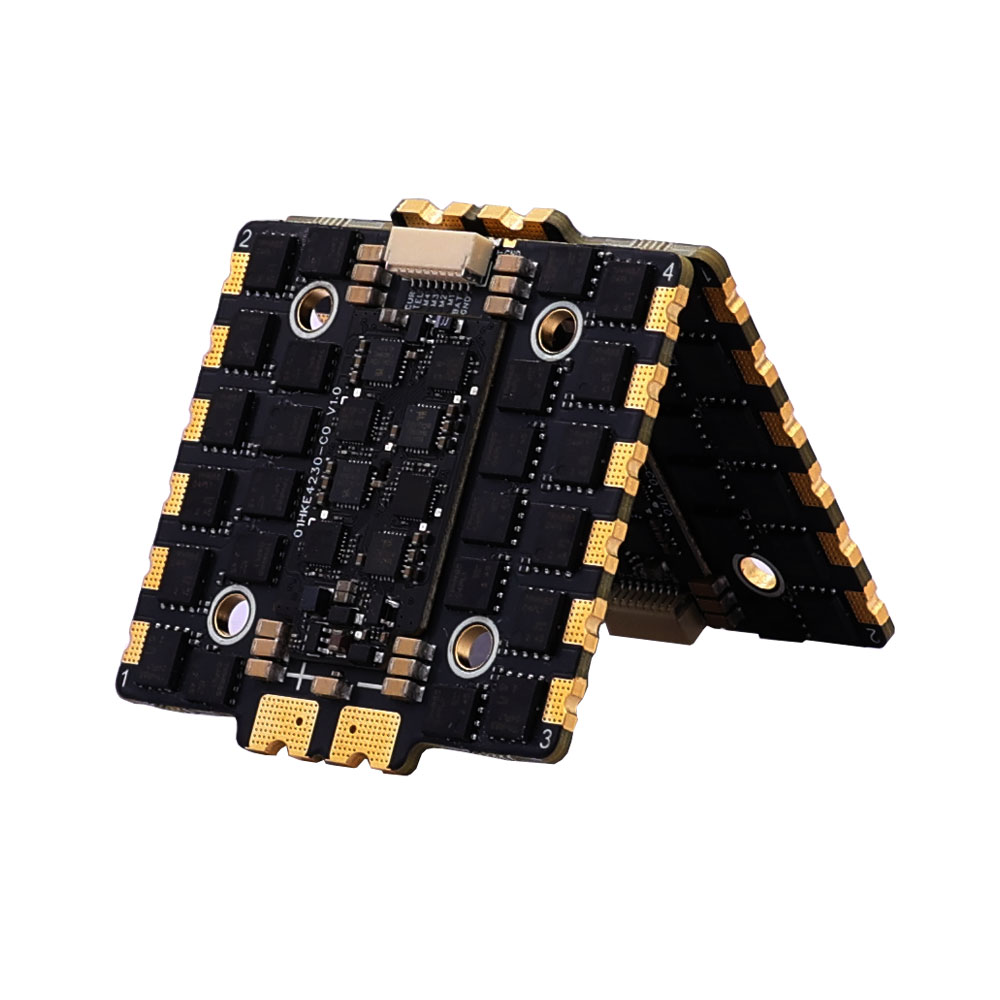

HAKRC 5139 90A 4-in-1 ESC
1. The PCB adopts high-end 8-layer 3oZ thickened copper skin, which has stronger overcurrent capacity and good heat dissipation.
2. MOS adopts 40V high current withstand MOS, which has a long life and strong load capacity.
3. Adopt industrial-grade LDO, high temperature resistance.
4. Adopt high-quality Japanese Murata capacitors, with strong filtering performance
Size: 56*52mm
ESC Specifications
Size: 56*52mm
Net weight of product: 33g
Electric adjustment firmware:E_X_40-BLHeliSuite16714902A_Beta
Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-8S Lipo
Continuous current: 90A
Peak current: 100A
HAKRC 5139 110A 4-in-1 ESC
1. The PCB adopts high-end 8-layer 3oZ thickened copper skin, which has stronger overcurrent capacity and good heat dissipation.
2. MOS adopts 40V high current withstand MOS, which has a long life and strong load capacity.
3. Adopt industrial-grade LDO, high temperature resistance.
4. Adopt high-quality Japanese Murata capacitors, with strong filtering performance
Size: 56*52mm
ESC Specifications
Size: 56*52mm
Net weight of product: 33g
Electric adjustment firmware:E_X_40-BLHeliSuite16714902A_Beta
Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-8S Lipo
Continuous current: 110A
Peak current: 120A
