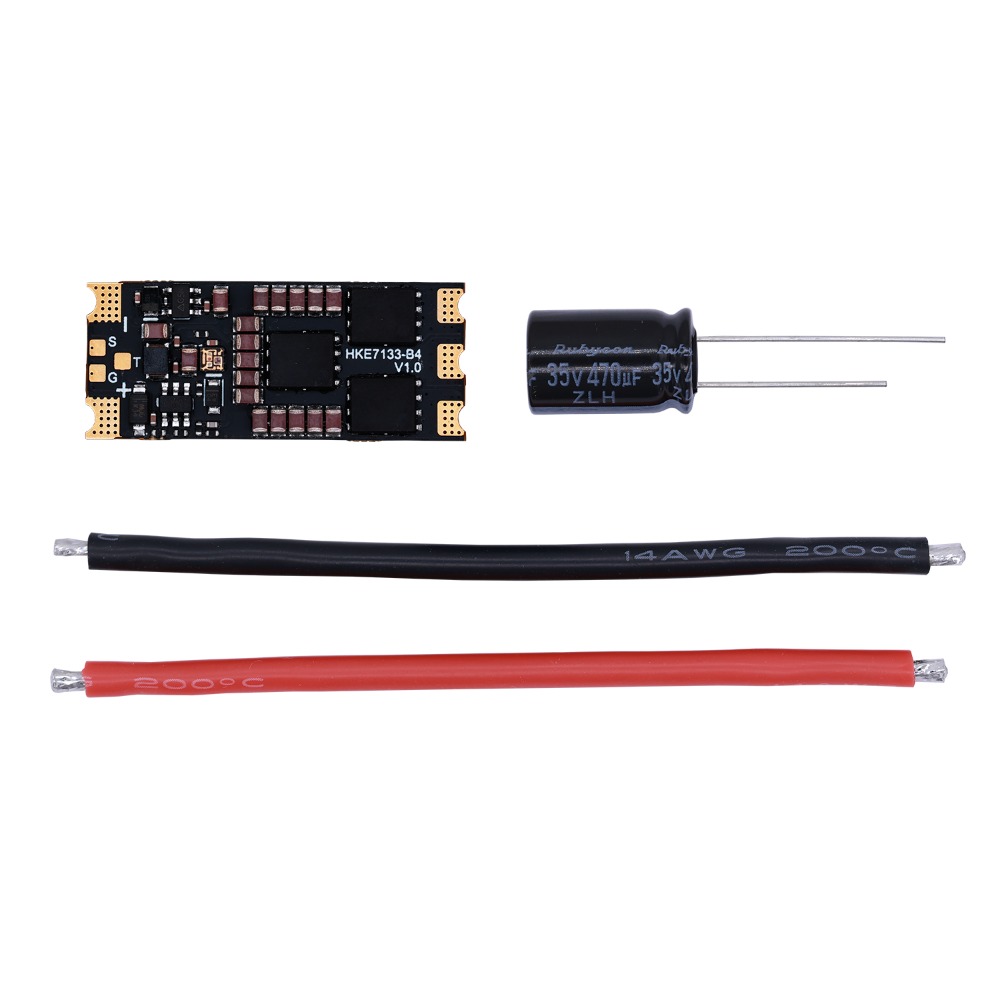

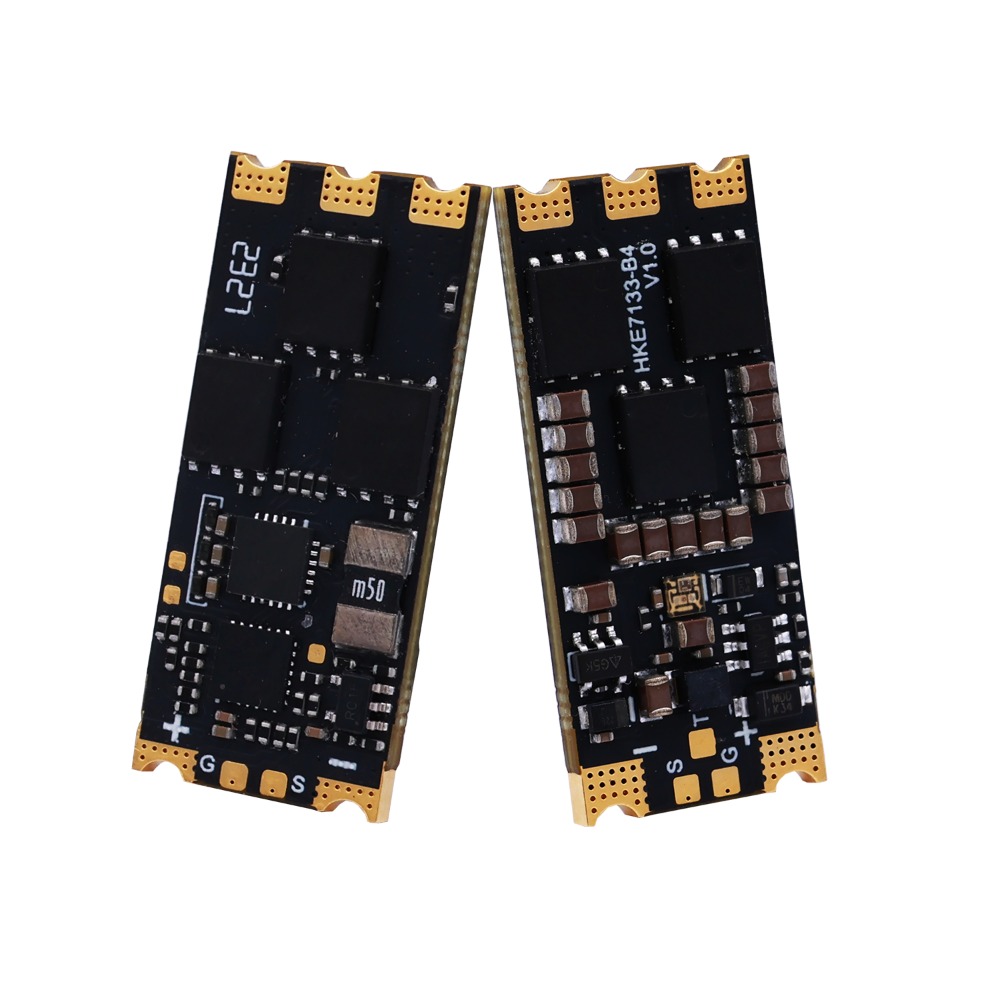

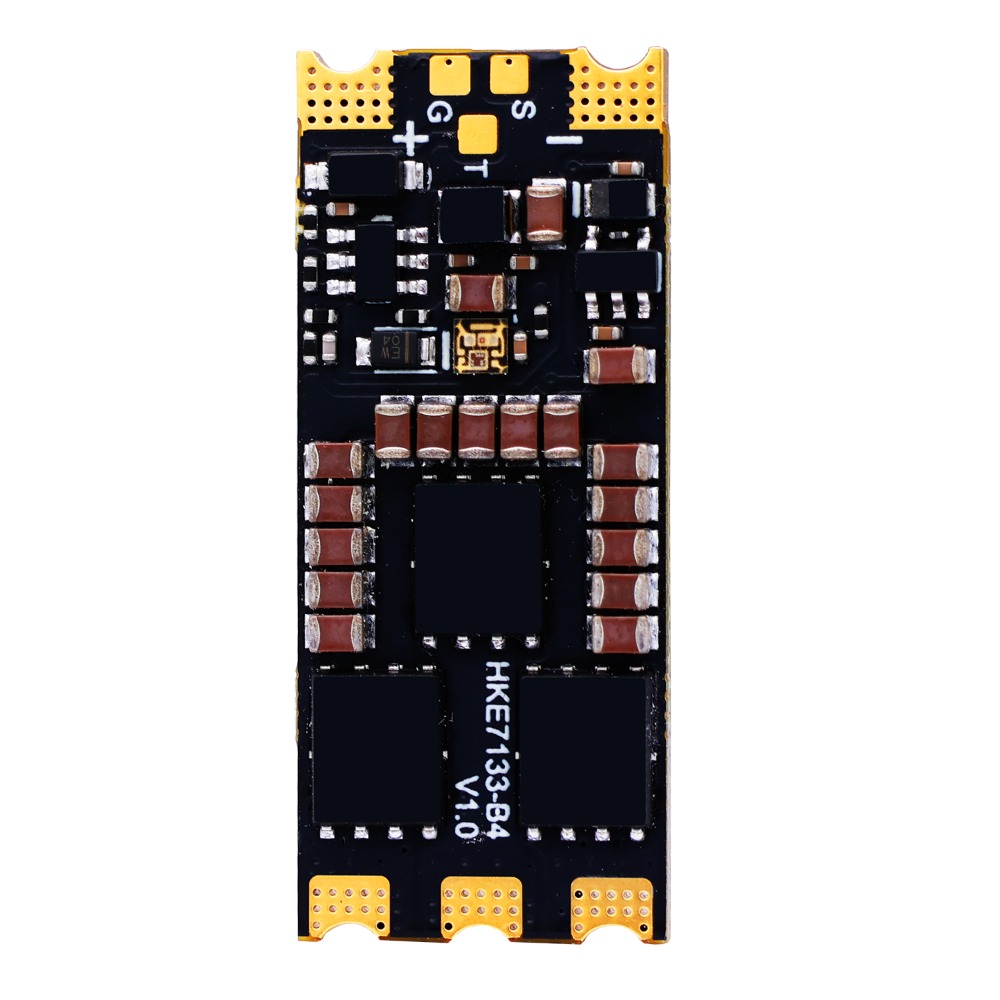

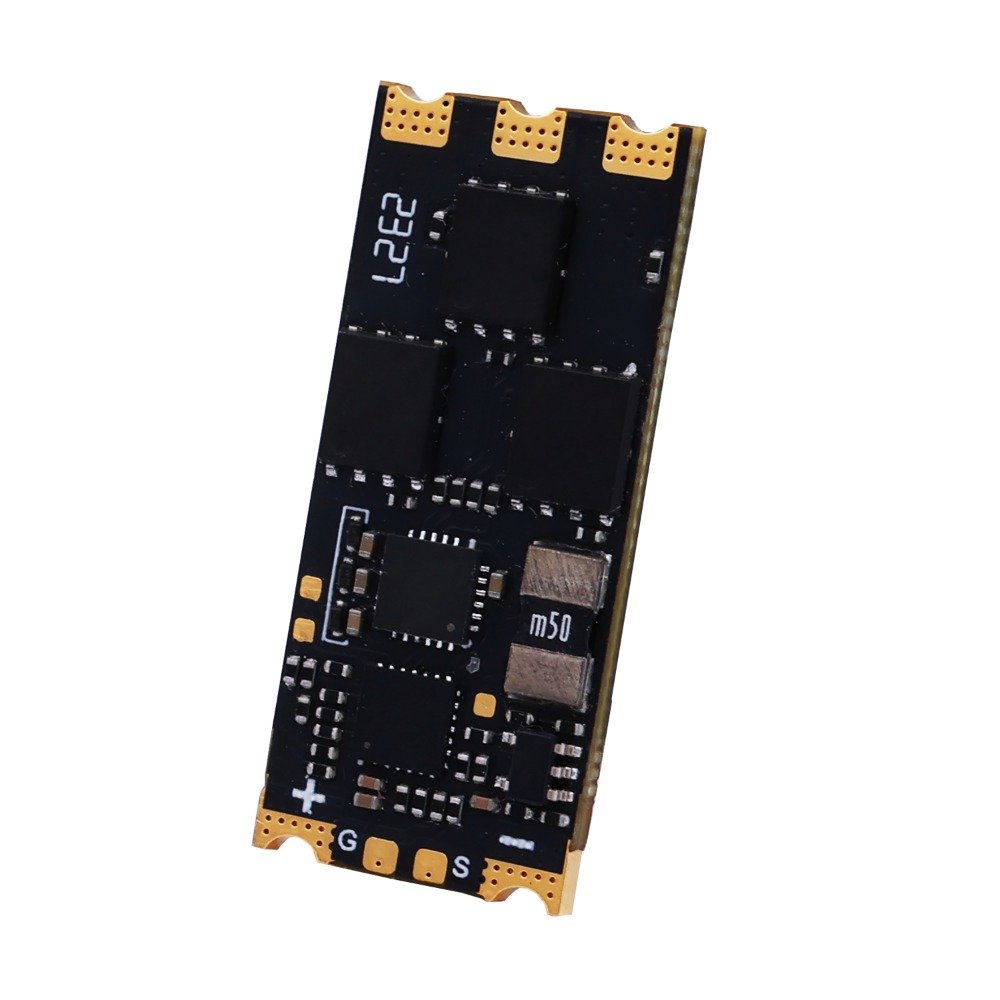

HAKRC 7133 50A Single ESC

HAKRC 7133 50A Single ESC

1. The PCB adopts high-end 8-layer 3oZ thickened copper skin, double pad design, stronger overcurrent capacity and good heat dissipation.

2. The MOS adopts imported 40V high current resistant mos, which has a long life and strong load capacity.

3. High density and compact, built-in ammeter, with programmable LED lights, small size, high integration, simple installation, reasonable wiring.

4. Adopt industrial-grade LDO, high temperature resistance.

5. Adopt high-quality Japanese Murata capacitors, with strong filtering performance.

6. Support ESC telemetry data image transmission.

ESC Specifications

Size: 14*33mm

Packing size: 130*190*1.5mm

Product net weight: 5g

Package weight: 12g

Input voltage: 2S-8S Lipo

Current ratio: 300

Continuous current: 50A

Peak current: 55A

ESC firmware: HAKRC_G071-2023_Multi_32_9.Hex

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
