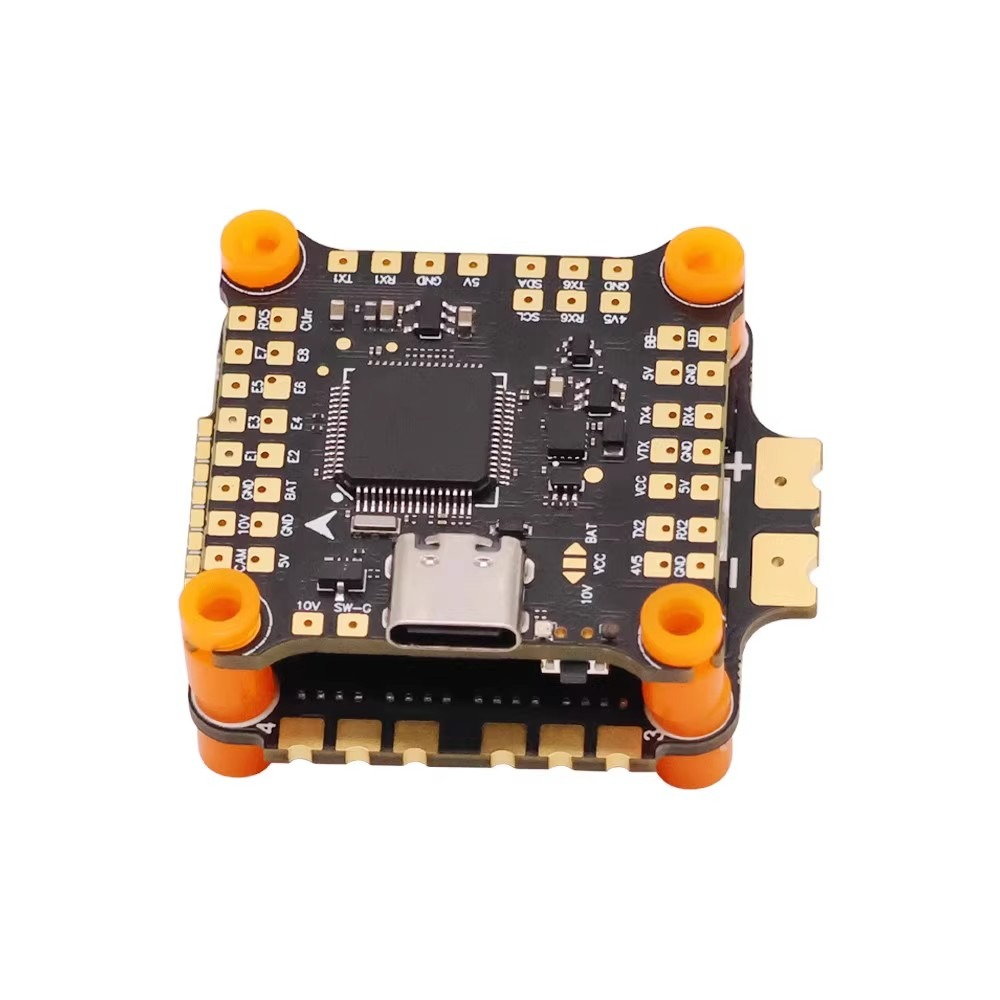

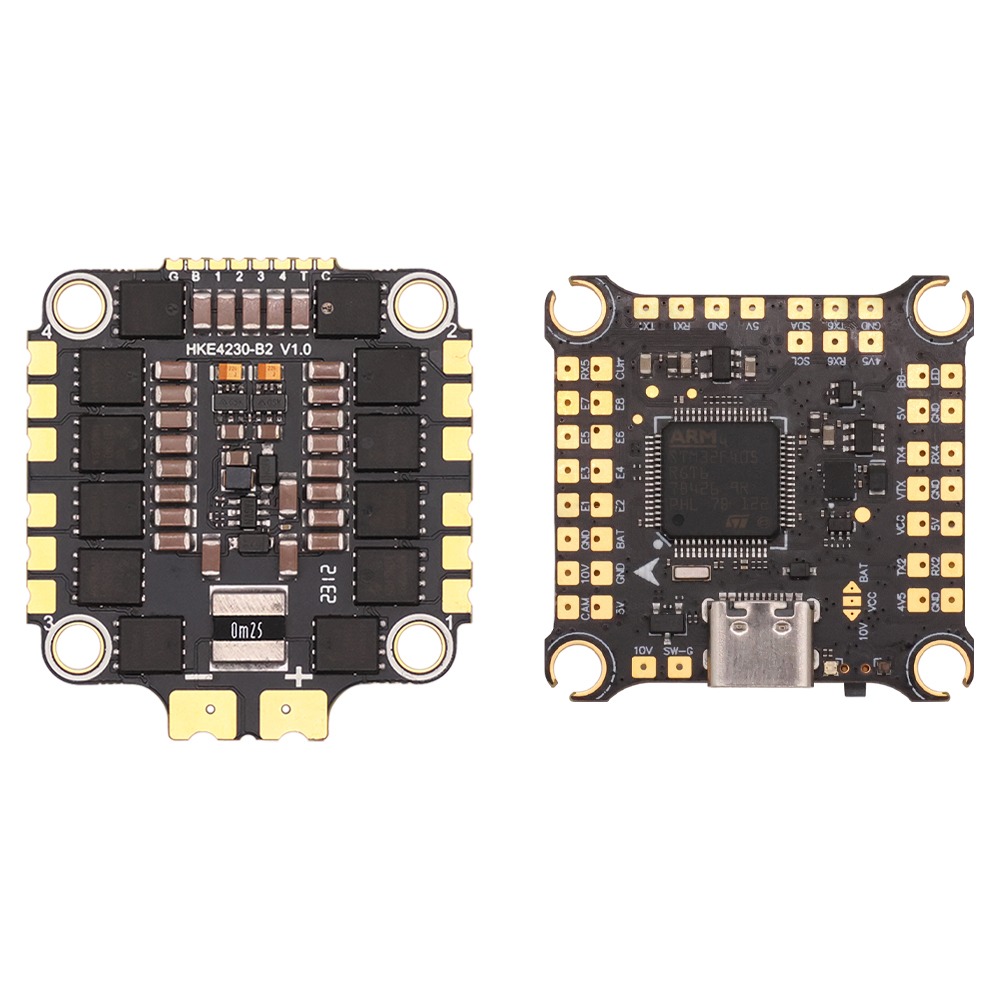

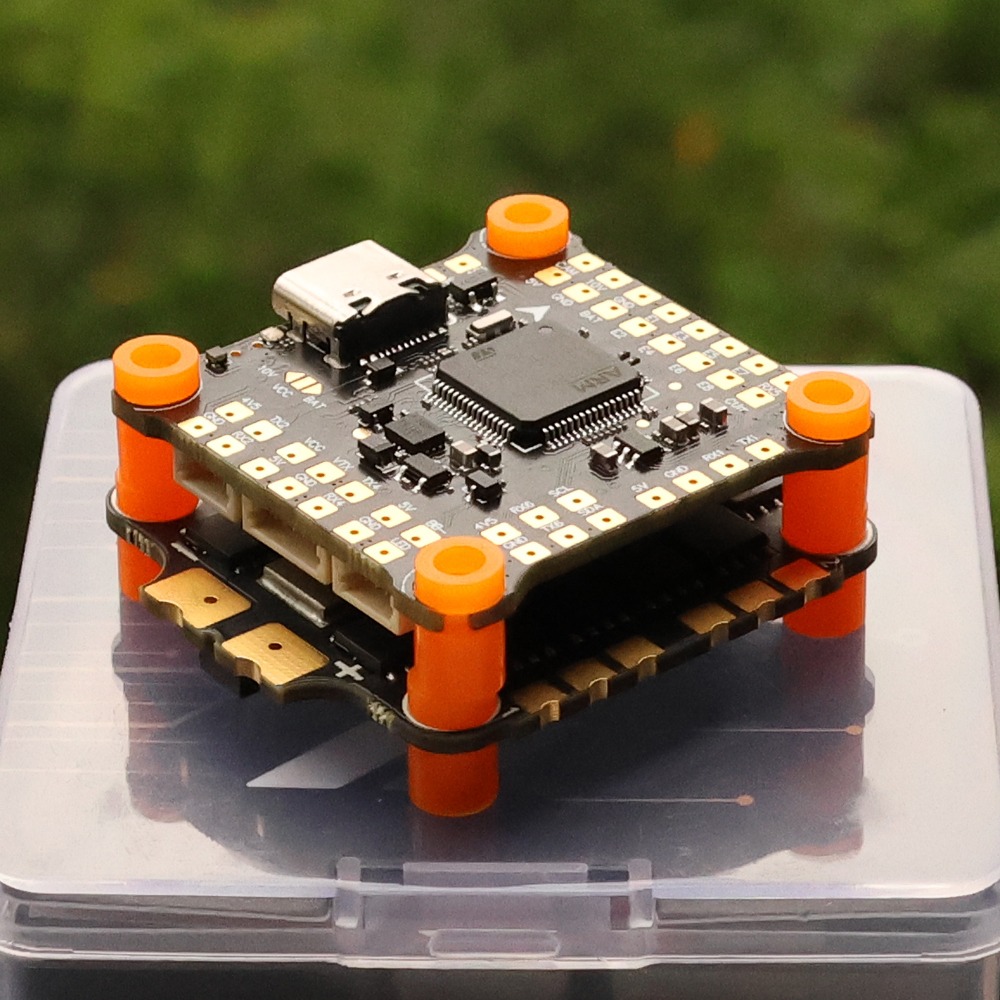

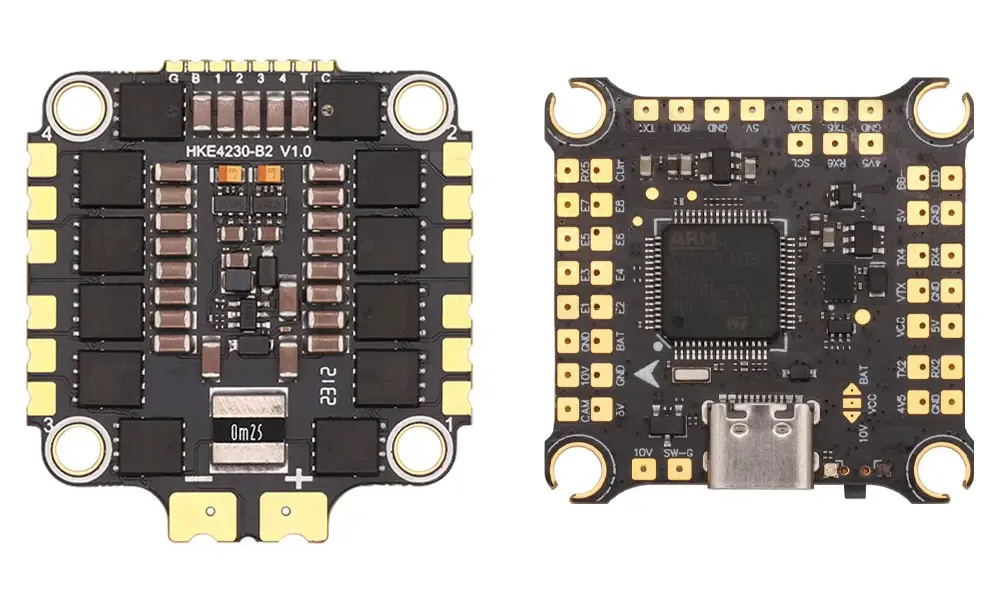

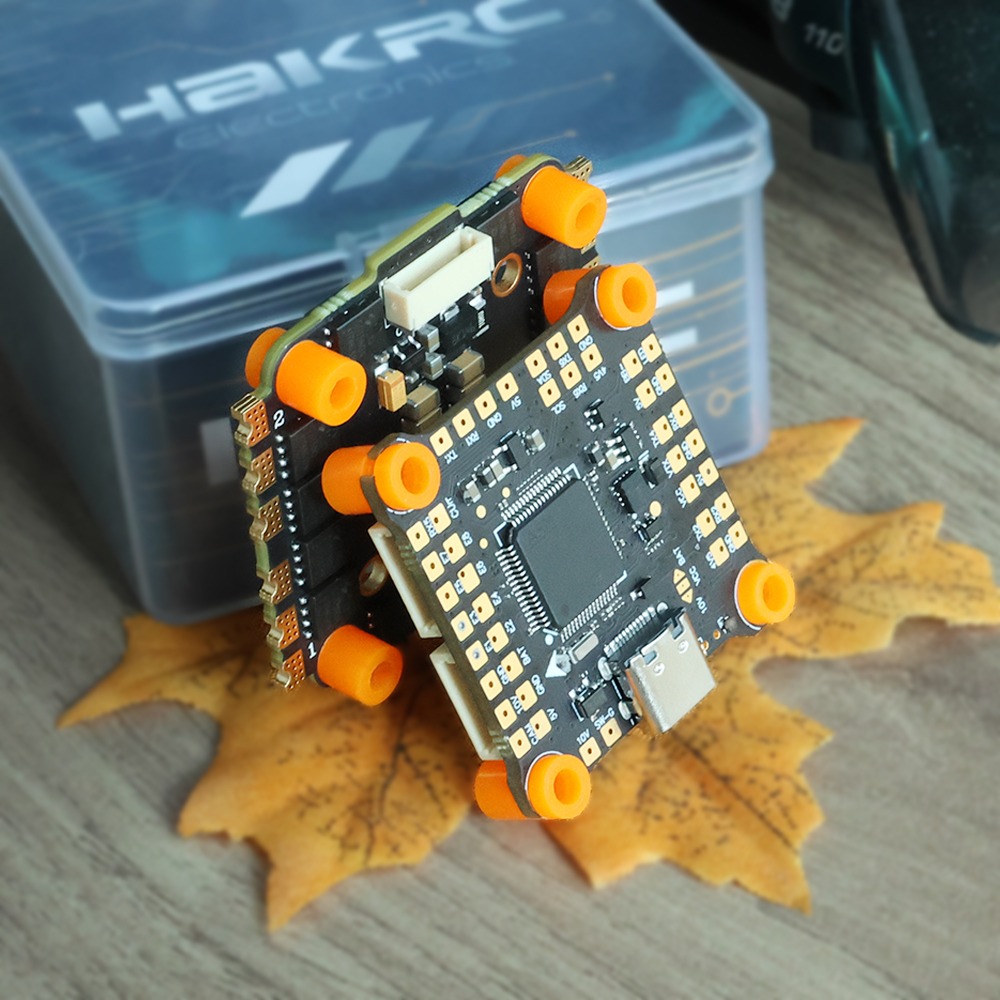

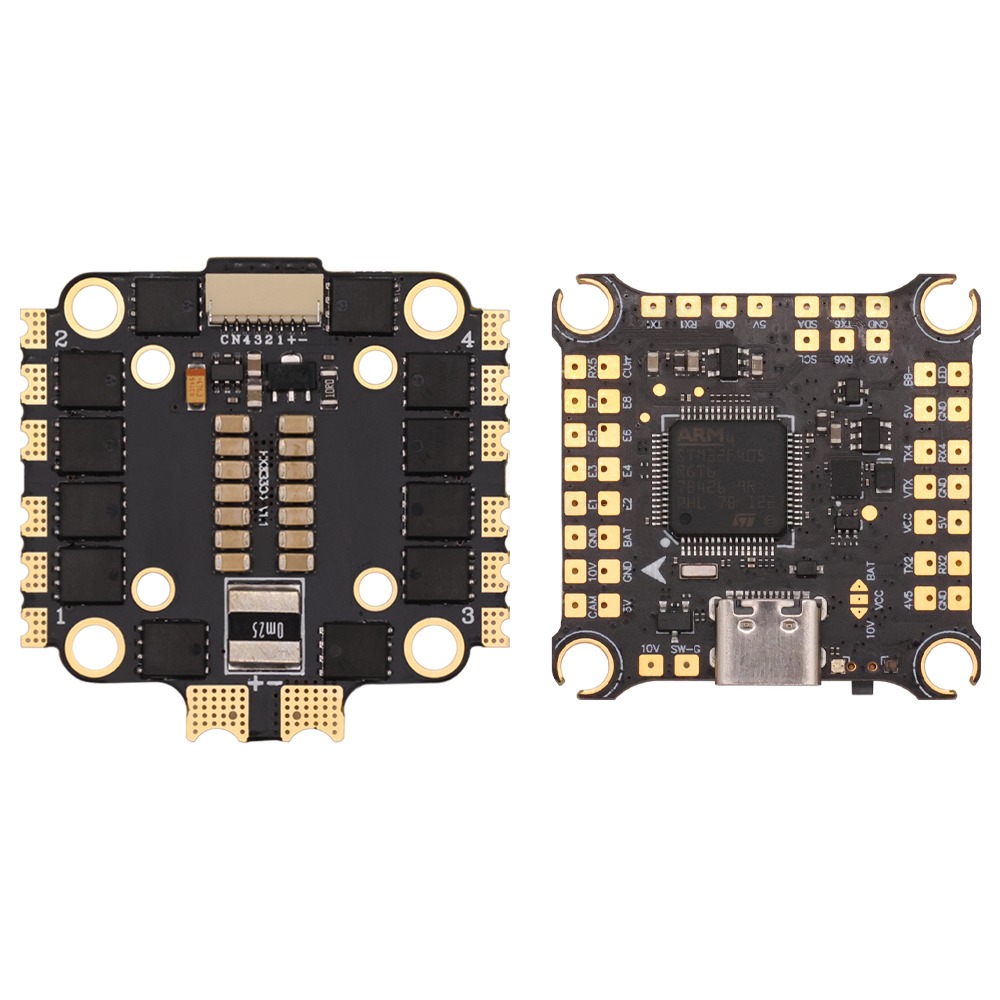

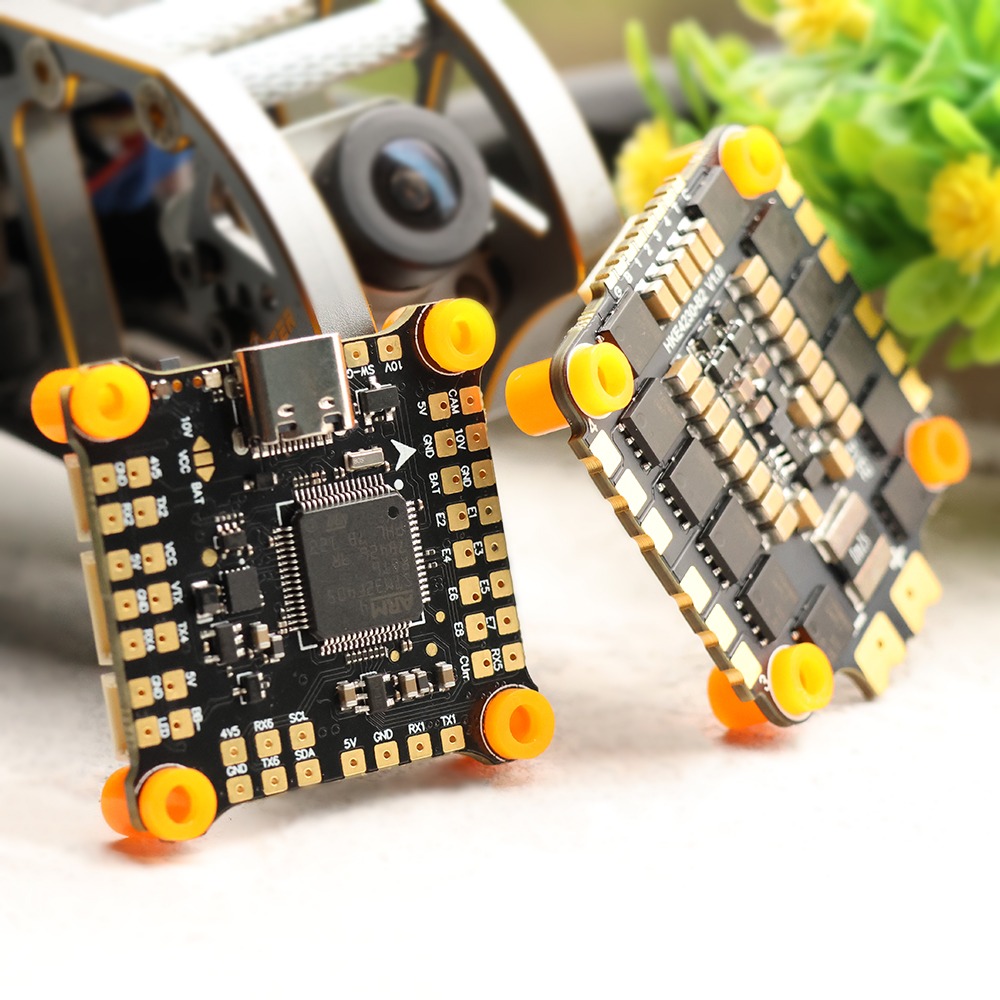

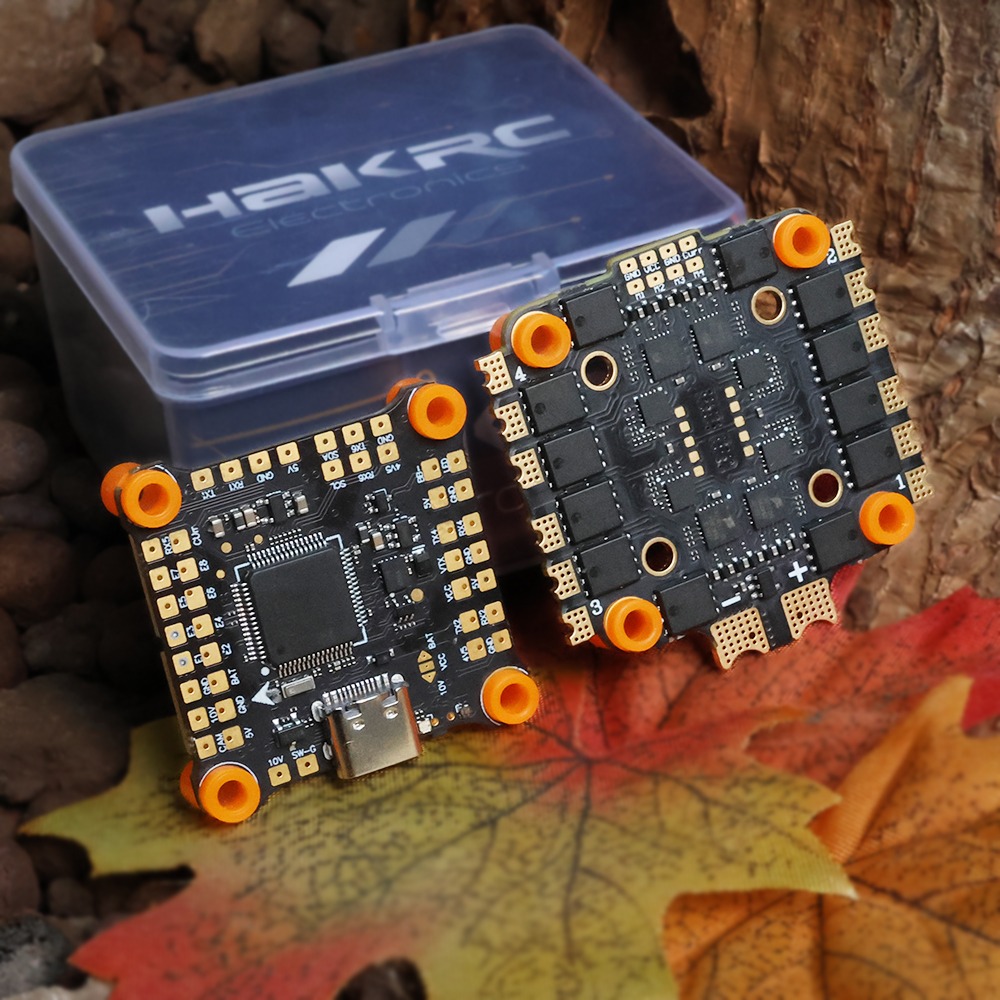

HAKRC F405 V2 Stack F4 F4530V2 Flight Controller Dual BEC With 45A/50A/60A/65A 4in1 Brushless ESC

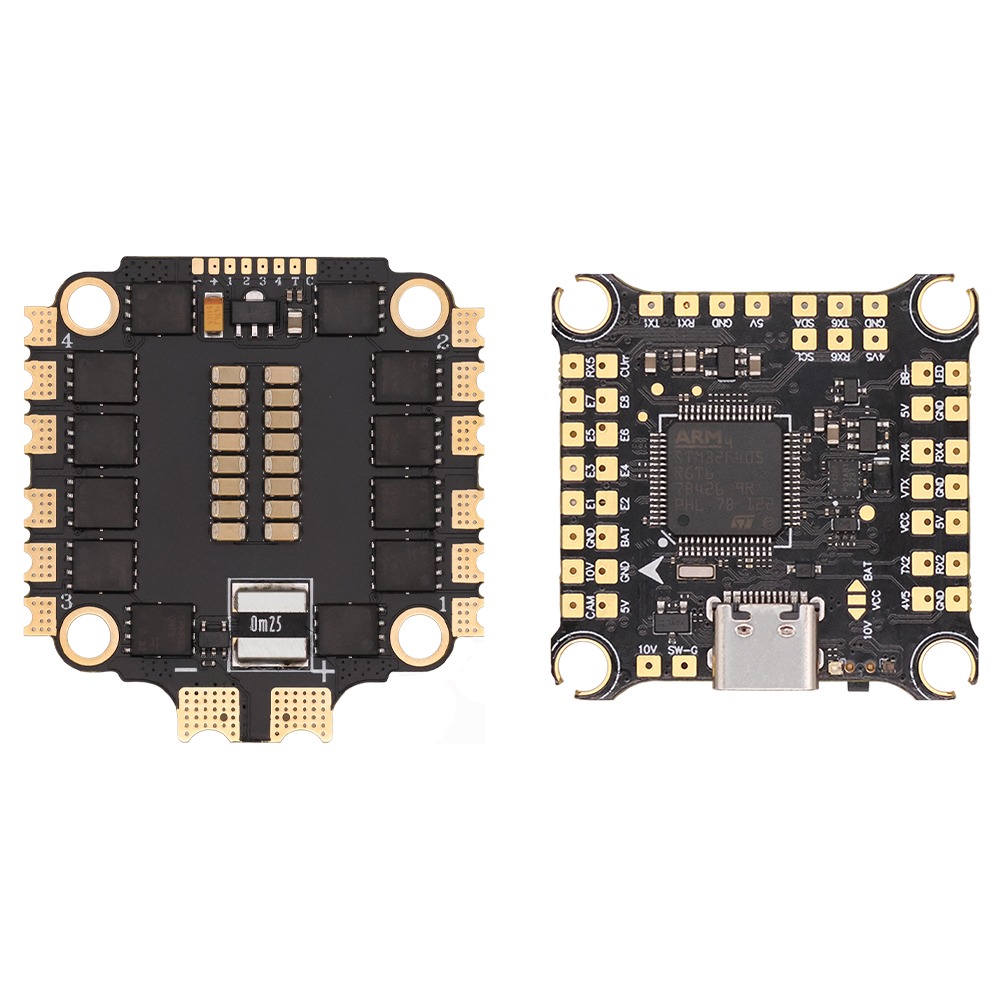

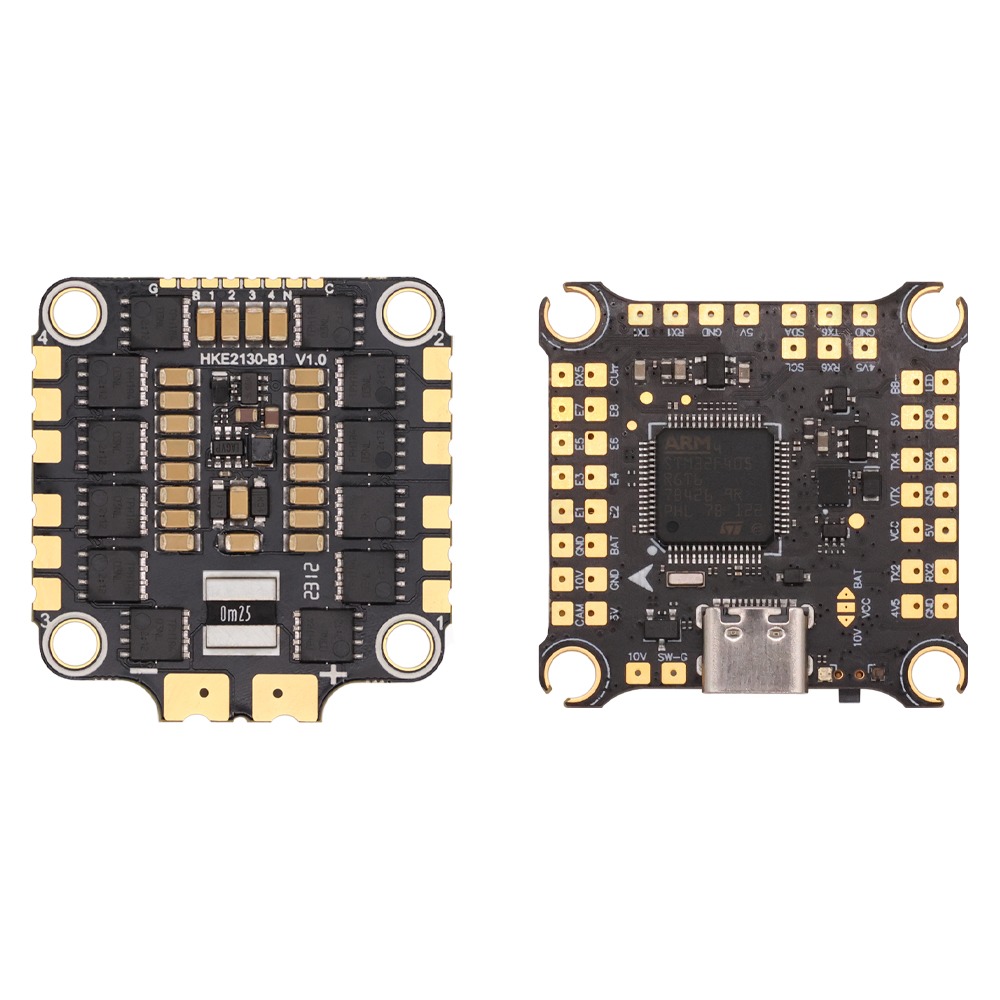

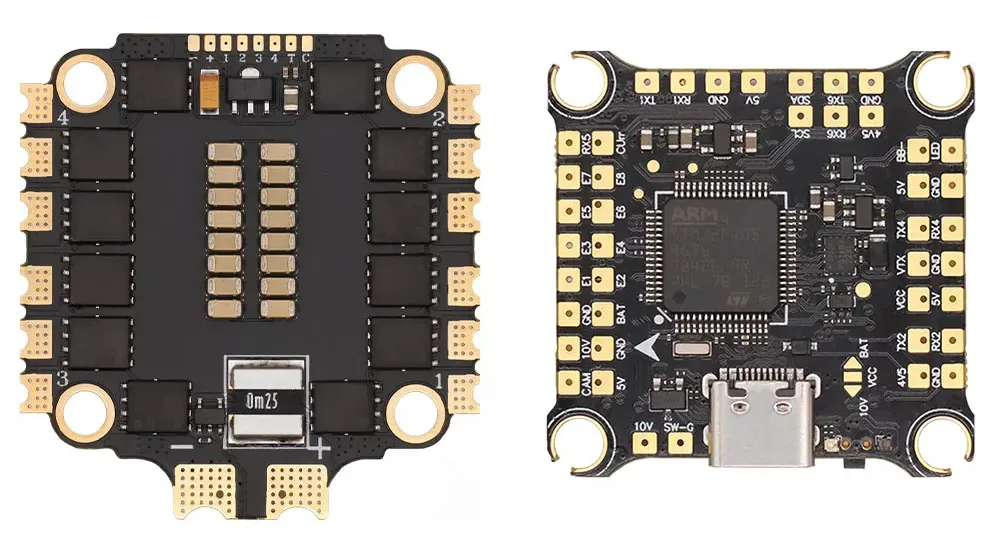

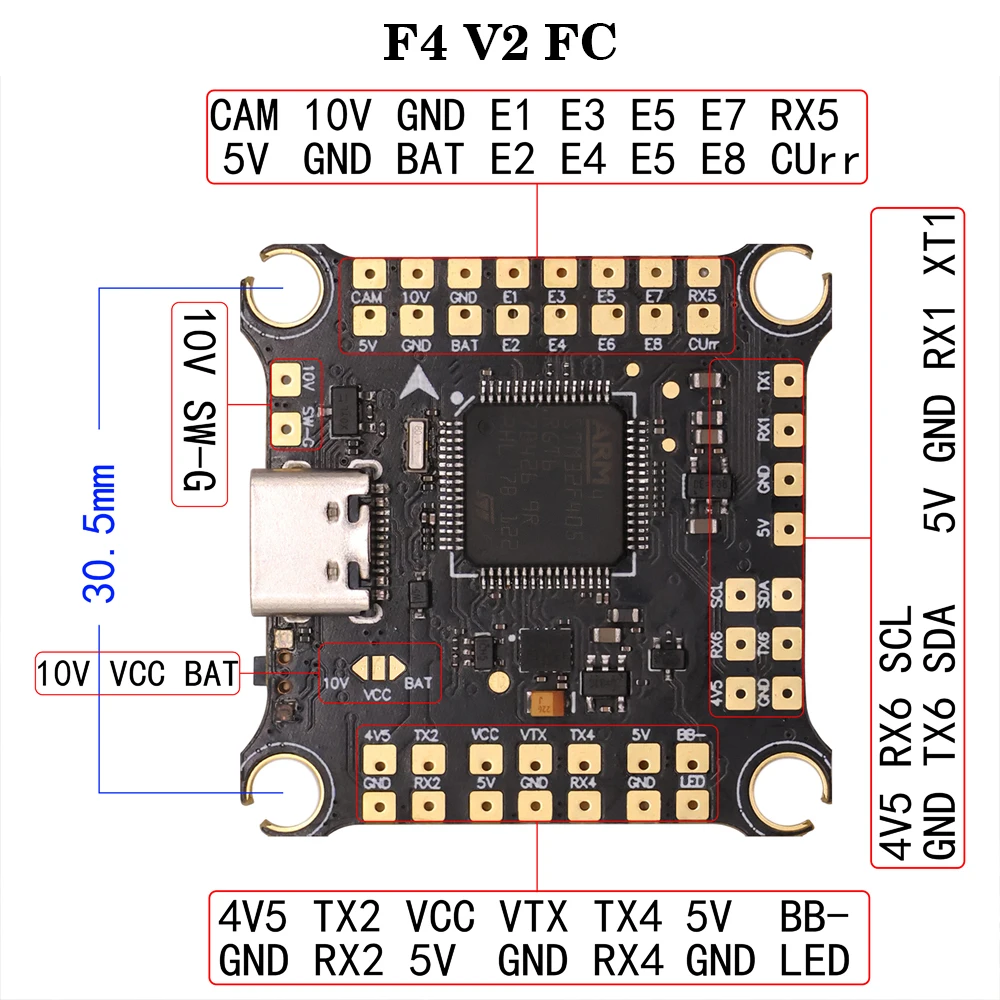

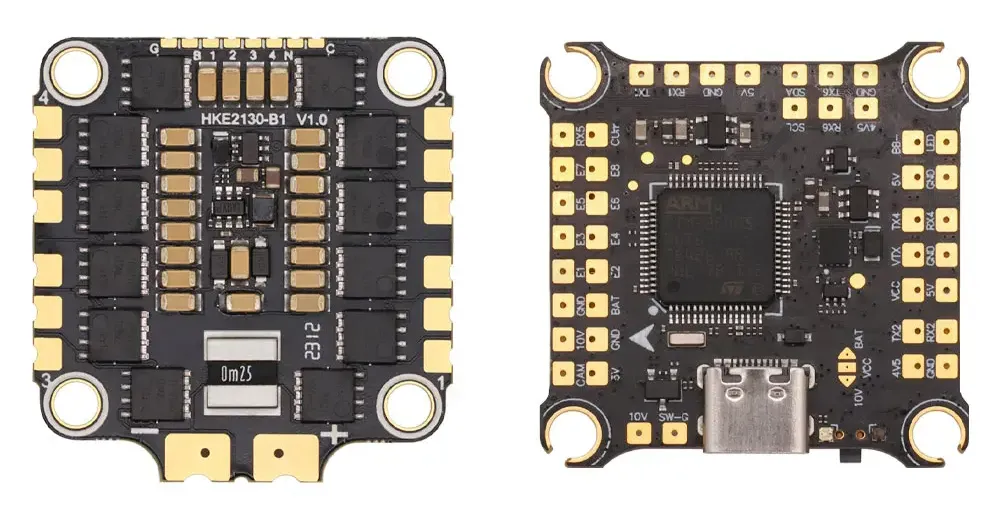

HAKRC F405 V2 Flight Control
Specifications
Size: 36x36mm
Packing size: 62*58*17mm
Installation hole distance: 30.5×30.5mm φ4mm
Weight: 6g
Package weight: 20g
CPU:STM32F405RET6
IMU:ICM42688
OSD:AT7456E
BEC: 5V/3A; 9V/2.5A
Memory: 16MB
Input voltage: 3-6S
Firmware: HAKRCF405V2
Uart serial port: 5

Note
There are many integrated functions of flight control, and the components are very dense. During installation, please do not use tools (such as needle-nose pliers or sockets) to tighten the nuts, which may easily scratch the fly tower hardware and cause unnecessary losses. The correct method is to press the nut with your finger, and the screwdriver can quickly tighten the screw from the bottom. (Remember not to be too tight, so as not to damage the PCB)

Do not install the propeller when installing and debugging the flight control, try not to test flight indoors, so as not to cause a safety accident. Before installing the propeller for the flight test, please check the motor steering and propeller direction again. Safety Tips: Please do not fly near the crowd. Our company will not be responsible for any loss caused by the crash of the aircraft.

Do not use non-original aluminum columns or nylon columns to avoid damaging the flight control hardware. The official standard is a custom-sized nylon column to fit the flying tower.

Before the aircraft is powered on, please check whether the installation between the fly towers is correct (pins or cables must be aligned and installed), and then check whether the positive and negative electrodes of the welding are correct and whether the motor screws are against the motor stator to avoid short circuit.

Check whether there is any solder that is thrown out on the electronic original of the flying tower, which may cause a short circuit. If the short circuit occurs during the installation of welding, the buyer is responsible for it.

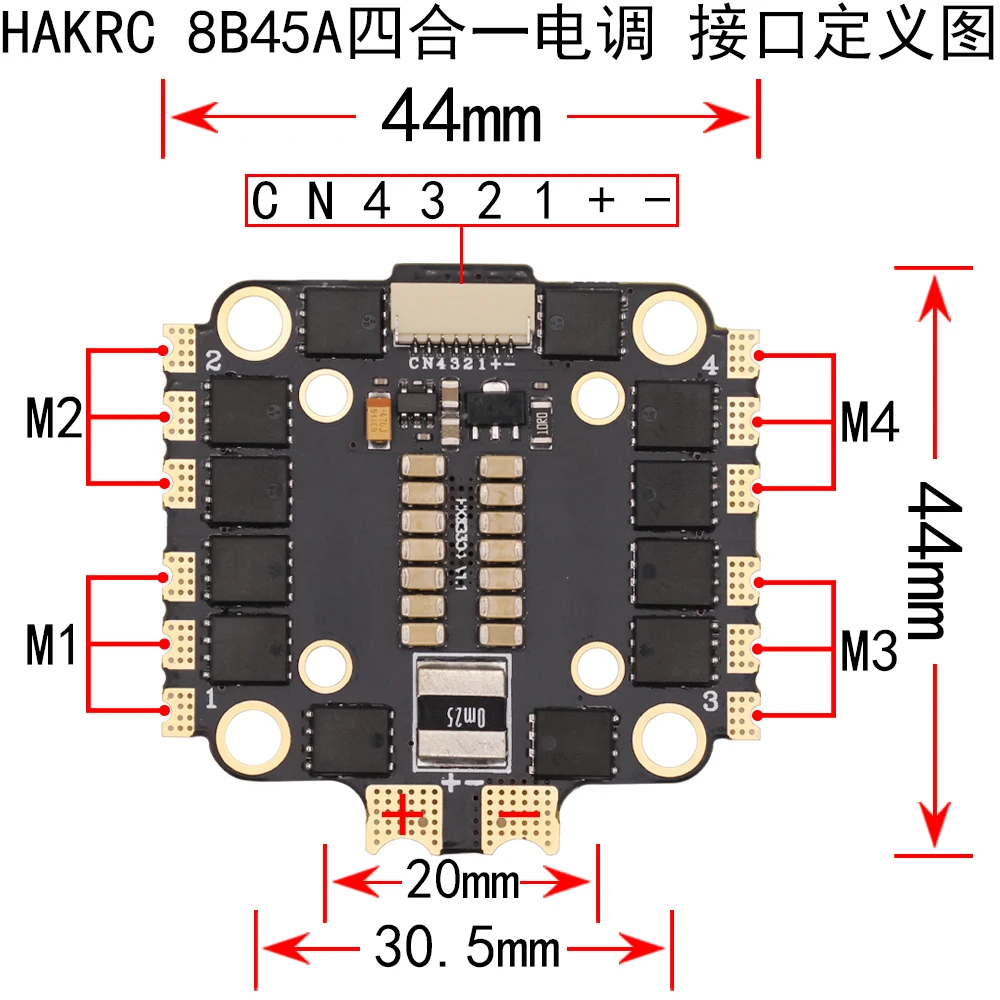

45A  ESC
45A electrical technical parameter
Electric size: 44*44*6mm
Power purposes: 14G
Fixed hole distance: 30.5*30.5mm φ4mm
Continuous current: 45A
Maximum current: 50A (Sustainable 10s)
Input voltage: 2--6s
Rathering software: Blhelisuite
Drive signal support: DSHOT150/300/600, Multishot, PWM, Oneshot.




50A  ESC
Electric parameters:
Size: 40* 41mm (30.5mm-30.5mm installation hole)
Product net weight: 12.5g
Packaging weight: 51.5g
Input voltage: 2S-8S LIPO
A current meter ratio: 160
Continuous current: 50A
Peak current: 60A
Hardware: PWM, Damped Light
Electric firmware: BLHELI-S 16.7
Protocol support: PWM, OneShot125, 0neshot42, Multishot, DSHOT150, DSHOT300.dshot600



60A  ESC
Electrical technical parameter
Input voltage: 2S-8S Lipo
A current meter ratio: 160
Continuous current: 60A
Peak current: 70A
Electric firmware: hakrc-60-k42_multi_32_8.hex
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600



65A  ESC
Electrical technical parameter
Input voltage: 2S-8S Lipo
A current meter ratio: 160
Continuous current: 65A
Peak current: 75A
Electric firmware: hakrc_at4g_multi_32.9 hex
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600
