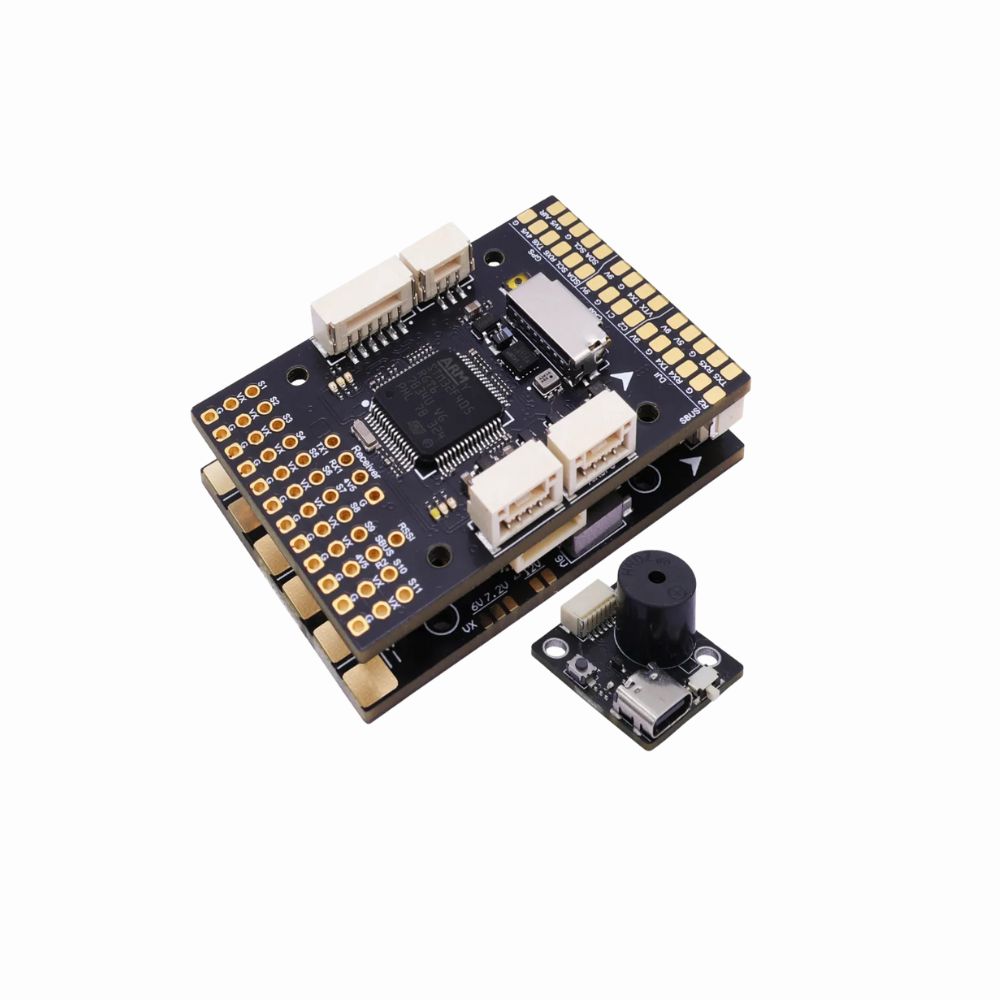

HAKRC F405 WING fixed-wing

HAKRC F405 WING fixed-wing

1. The PCB is made of high-end 6-layer 1oZ copper skin, and the high-end resin plugged PCB production process is applied, which has strong anti-interference ability.

2. Adopt industrial-grade LDO, high temperature resistance.

3. Adopt high-quality Japanese Murata capacitors, with strong filtering performance.

4. Support DJI HD video transmission direct plug-in and analog camera video transmission direct plug-in, which is more convenient to install.

5. INSERT AN EXTERNAL MICRO SD CARD

6. Support analog, digital airspeed meter and RSSI

7. Analog, digital airspeed meter, data transmission, receiver socket with anti-falling design, to avoid the equipment due to high-speed flight drop-off

8. Support common receiver types such as SBUS, DBUS, WBUS, iBUS, CRSF (Black Sheep or ELRS).

9. Support two-axis, three-axis, multi-axis, vehicle, helicopter, fixed-wing and vertical fixed-wing and other equipment types

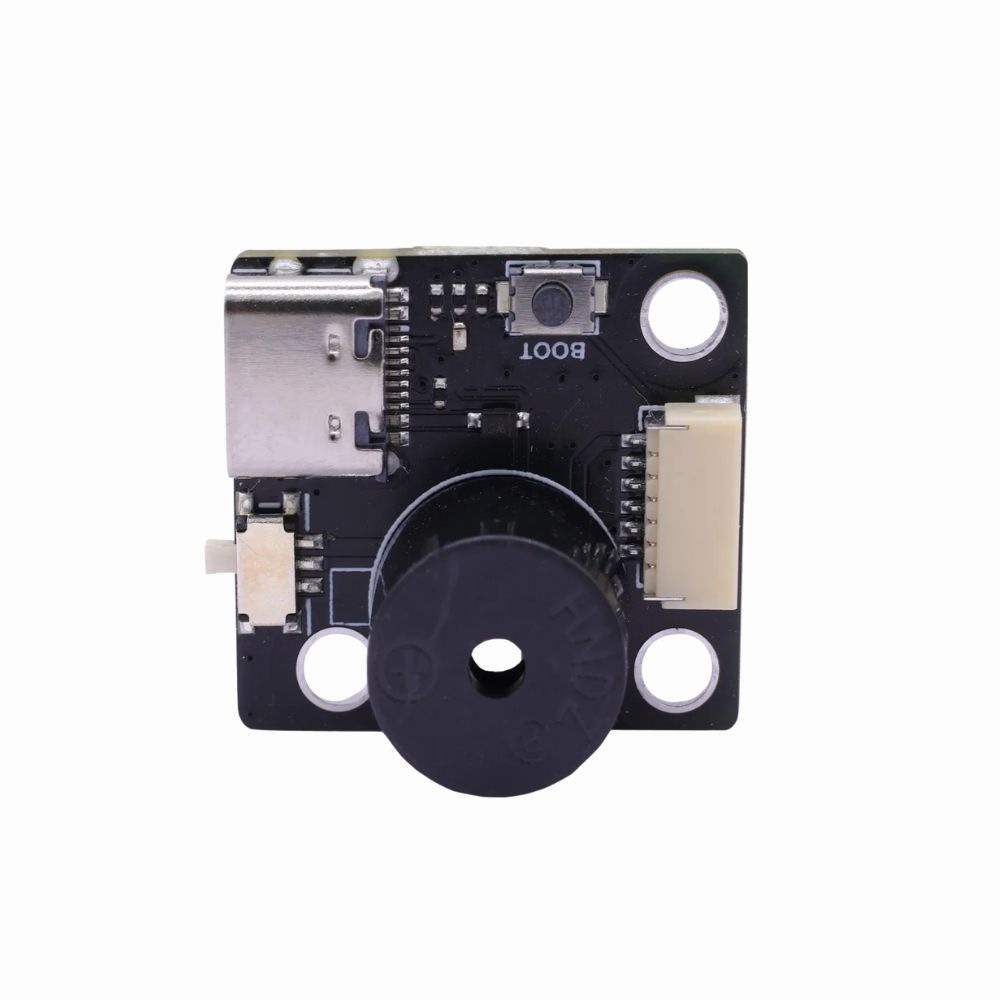

10. USB assistant board with high buzzer, can be switched on and off

11. C1, C2 dual camera input, support to switch dual cameras through the USER switch, bring a variety of viewing angles

12. Provide four-way light strip interface, which can switch the built-in LED preset and BF software control through the BOOT button

13. Provide the seat and pad to avoid the seat being damaged and unusable, and the player can choose freely

14. Up to 6 serial ports, a total of 11 PWM outputs: 1-8 channels support motor PWM or digital protocol, 9-11 channels only support PWM

15. Independent buzzer pad, external micro buzzer, if you need to find a machine more convenient

16. The layout is neat and clear, and the silk screen is clear, which is convenient for players to install various models

FC Specifications

Product size: 48*32.5mm

Total height of the equipment tower: 14mm

Input voltage: 2S-6S Lipo

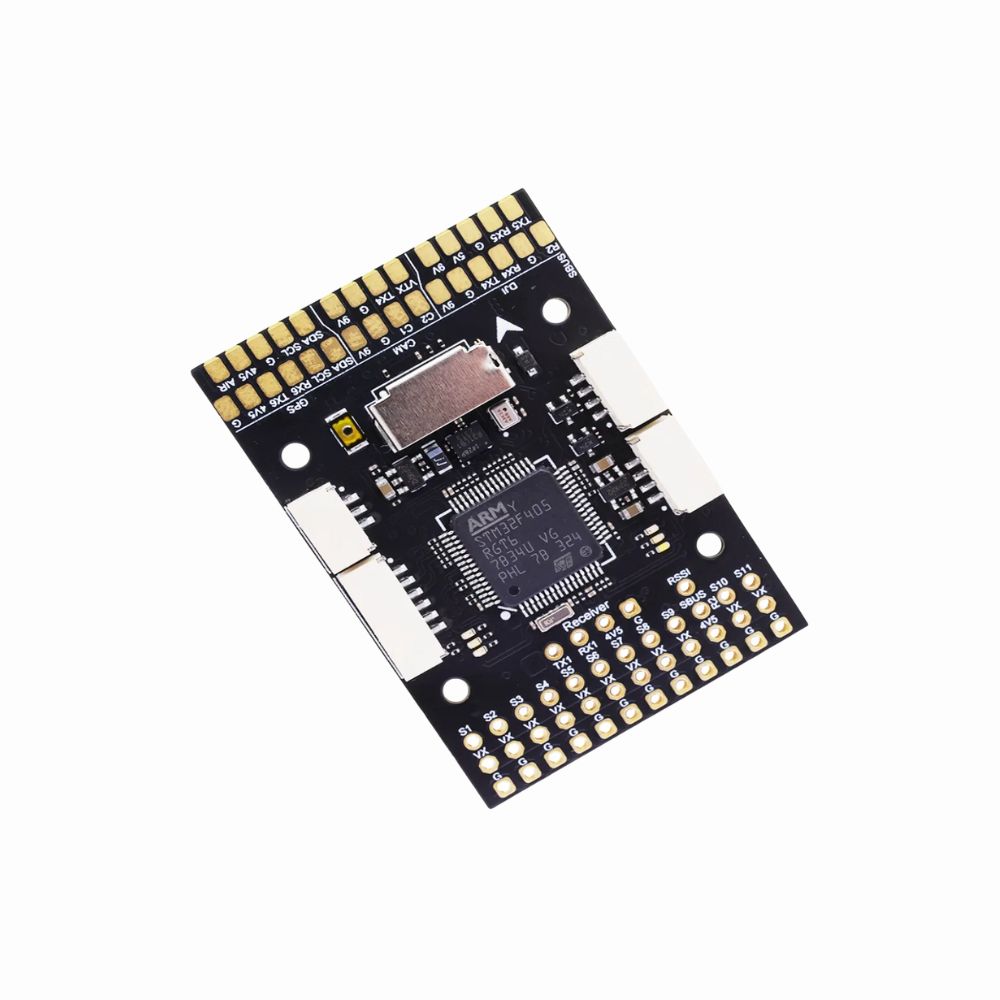

CPU：STM32F405RGT6
IMU ：ICM-42688-P

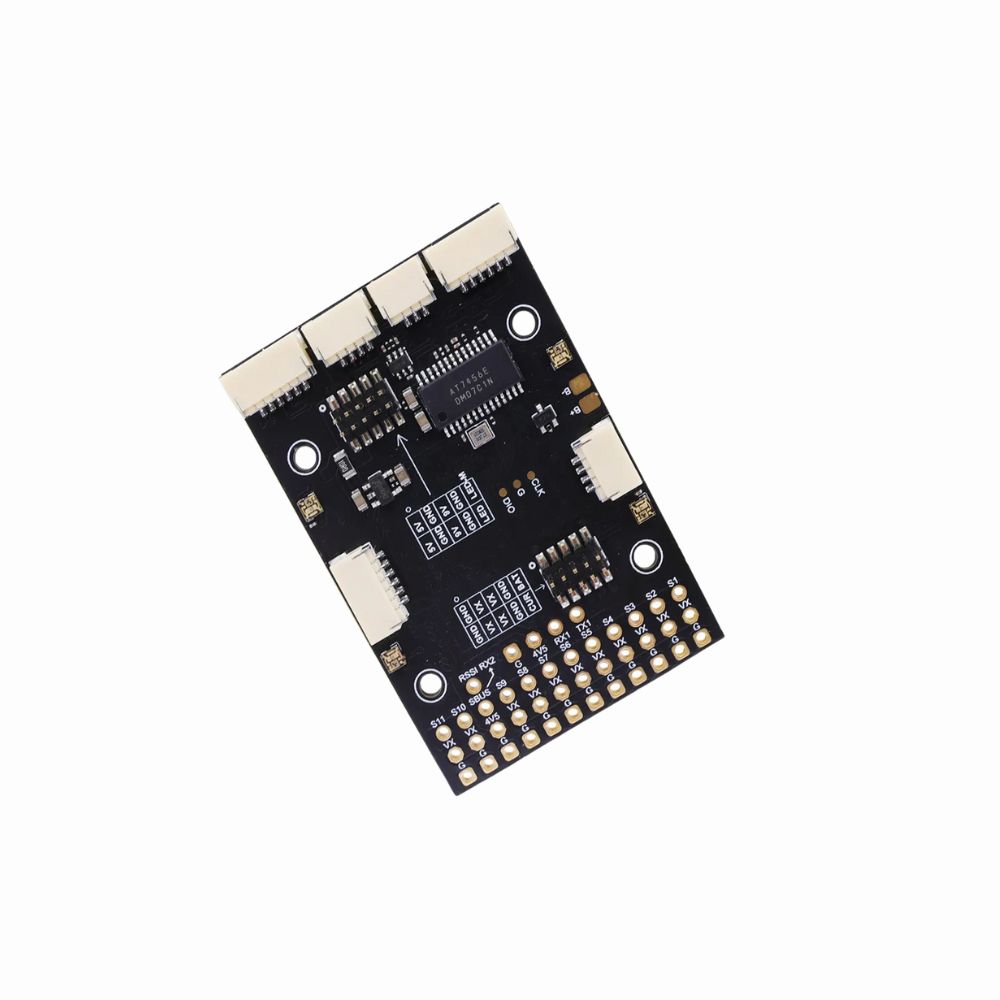

OSD chip: AT7456E
Barometer: SPL06
External storage: MicroSD card
Built-in BEC1: 5V5A
BEC2: 9V4A (12V3A with shorted pad variable)
BEC3: 5V10A (Short Pad Variable 6V8A or 7.2V7A)
Four-way LED programmable color LED interface
Firmware version: HAKRCF405 WING
Receivers: Receivers such as SBUS, DBUS, WBUS, iBUS, CRSF (Black Sheep or ELRS)
