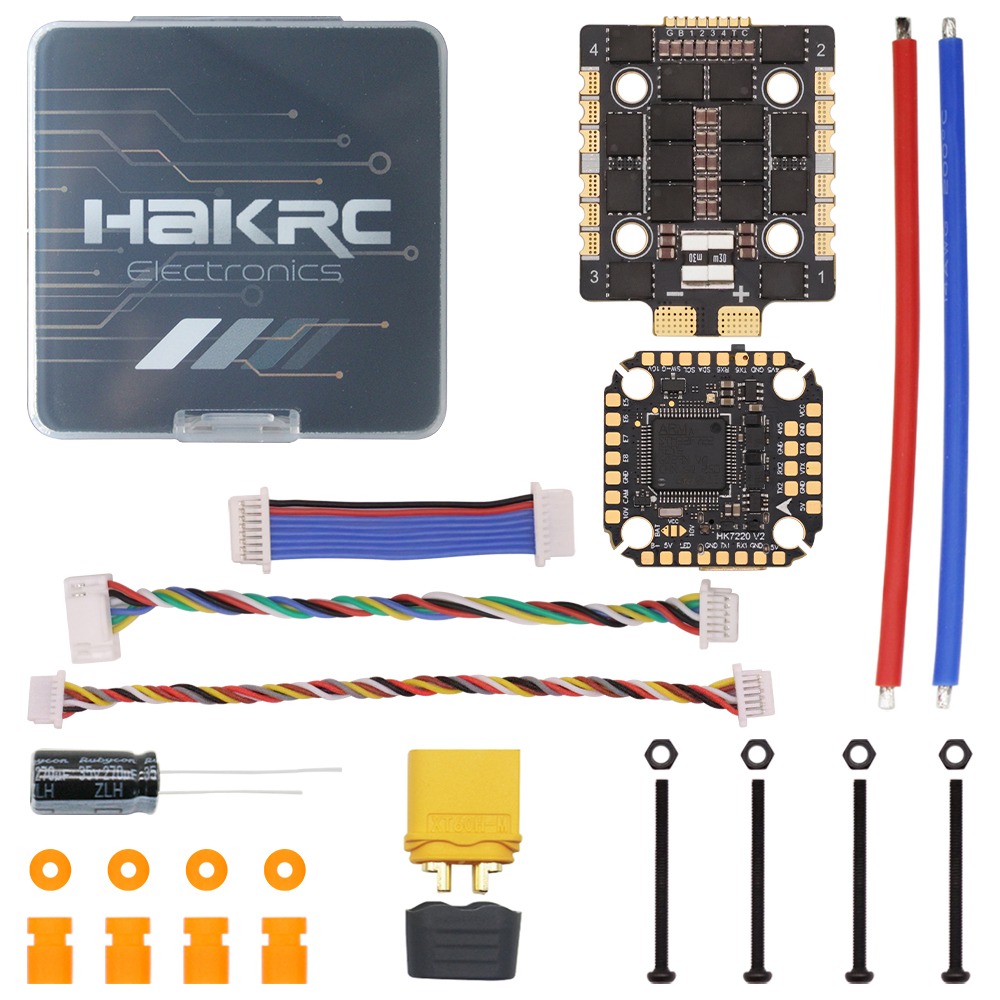

HAKRC F722 65A mini Stack

HAKRC 65A Mini F7  Stack is equipped with BLHeli-32 65A four-in-one ESC and F722 flight control, Installation hole spacing of 20 * 20mm.F722 flight controller is equipped with 6 serial ports,ICM-42688 IMU,OSD,F.Port and many other functions!Built-in plug-in allows you to easily connect to the DJI O3 Air Unit.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life and reduce the risk of poor contact. Supports various receivers including SBUS,ELRS, PPM, CRSF, DSMX, iBus, DSM2, etc.

F722 FC Specifications

Size: 29 * 39mm (20mm-20mm mounting hole)

package size: 64 * 64 * 35mm

input voltage: 2S-6S LIPO

product net weight: 6g

package weight: 37g

CPU: STM32F405RET6

IMU: ICM42688 dual gyroscope

OSD: AT7456E

barometer: Integrated

Black Box: 16MB

EC: 5V/2A

BEC: 10V/2A

LED: support external adjustable LED

sensor: built-in current sensor

firmware version: HAKRCF722V2

receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

BLHeli_32 65A ESC Specifications

Size: 34 * 42mm (20mm-20mm mounting hole)

Packaging size: ø 64 * 64 * 35mm

Net weight of product: 11g

Packaging weight: 52g

Input voltage: 2S-8S Lipo

Current ratio: 90

Continuous current: 65A

Peak current: 70A

Supporting the transmission of electrical dispatch telemetry data maps

Electric adjustment firmware: HAKRC_ AT4G_ Multi_ 32.9 Hex

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
