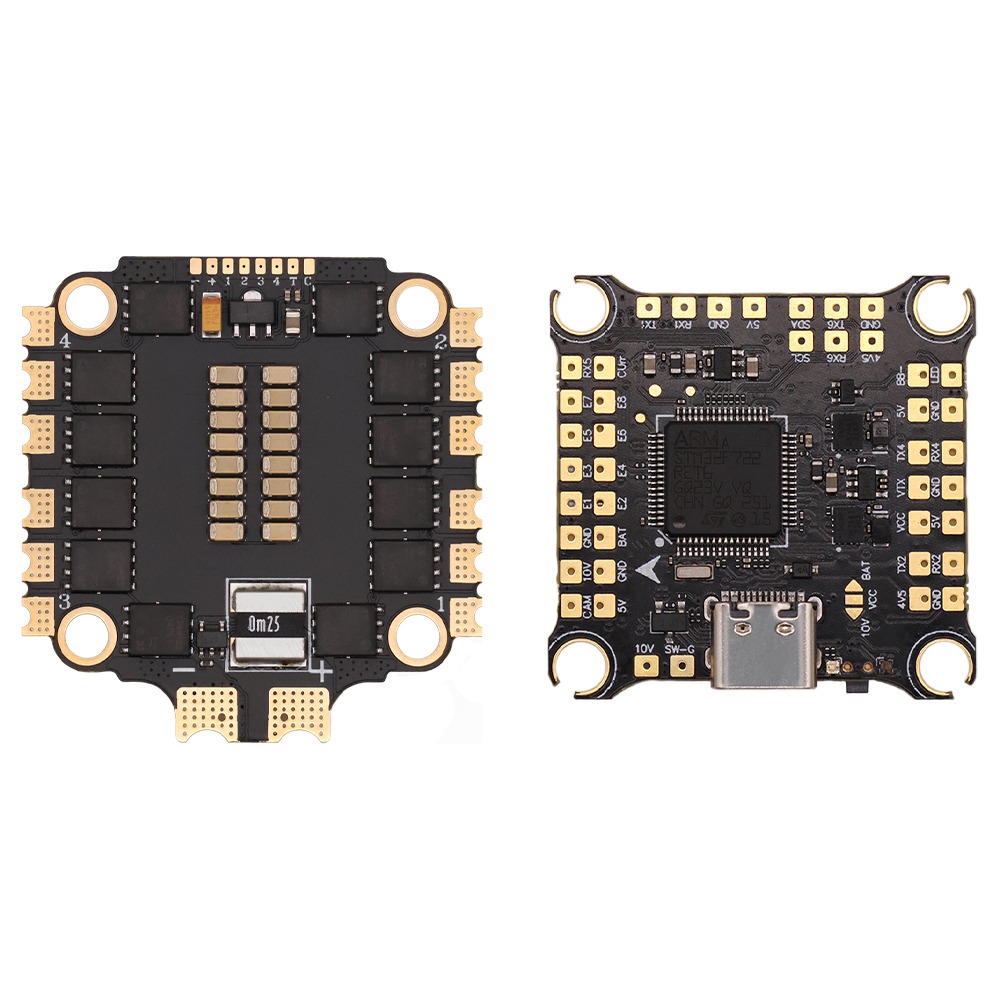

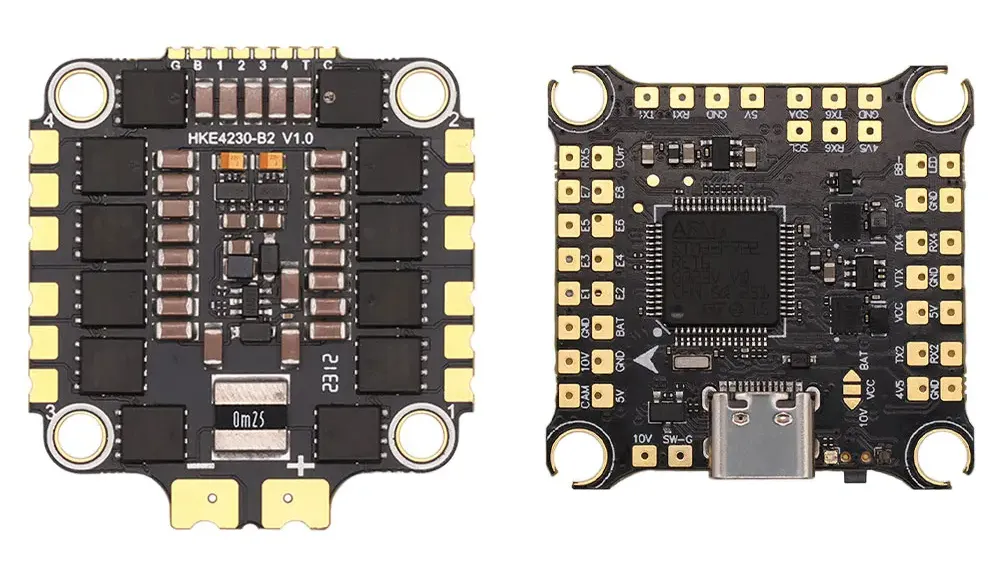

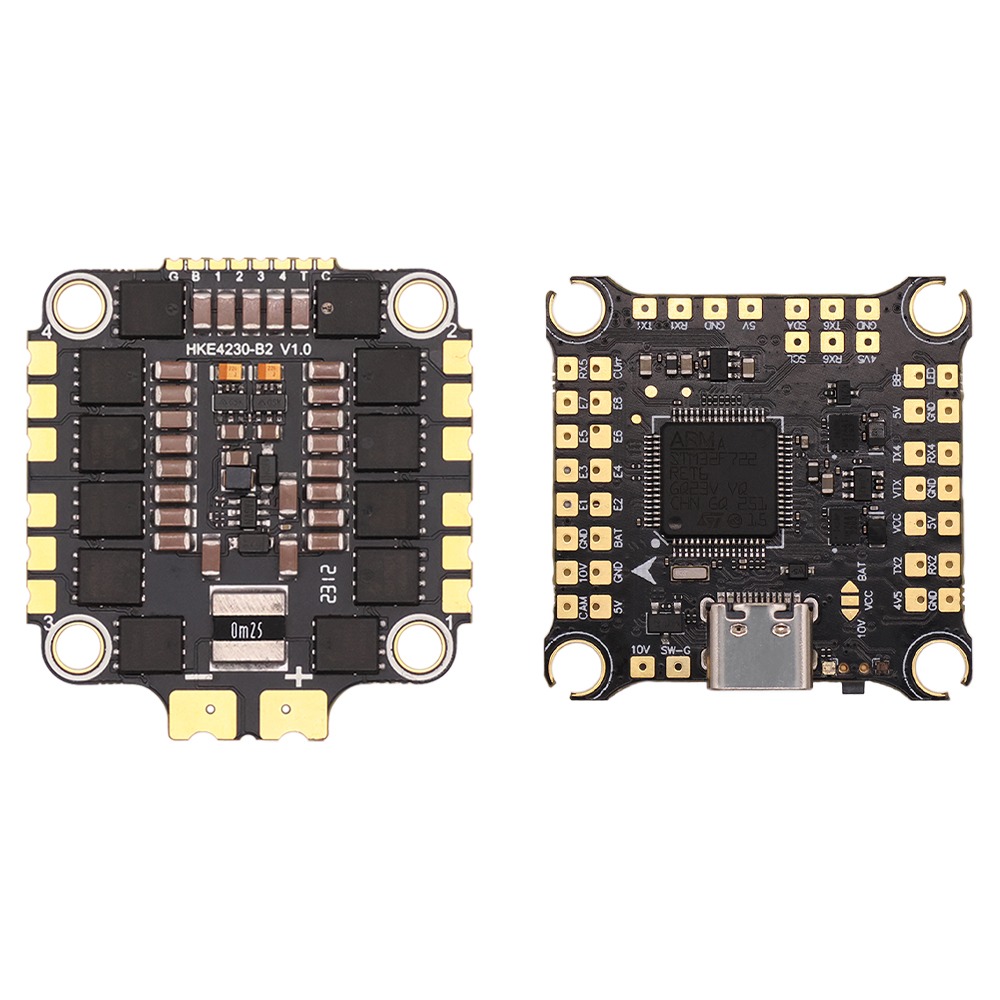

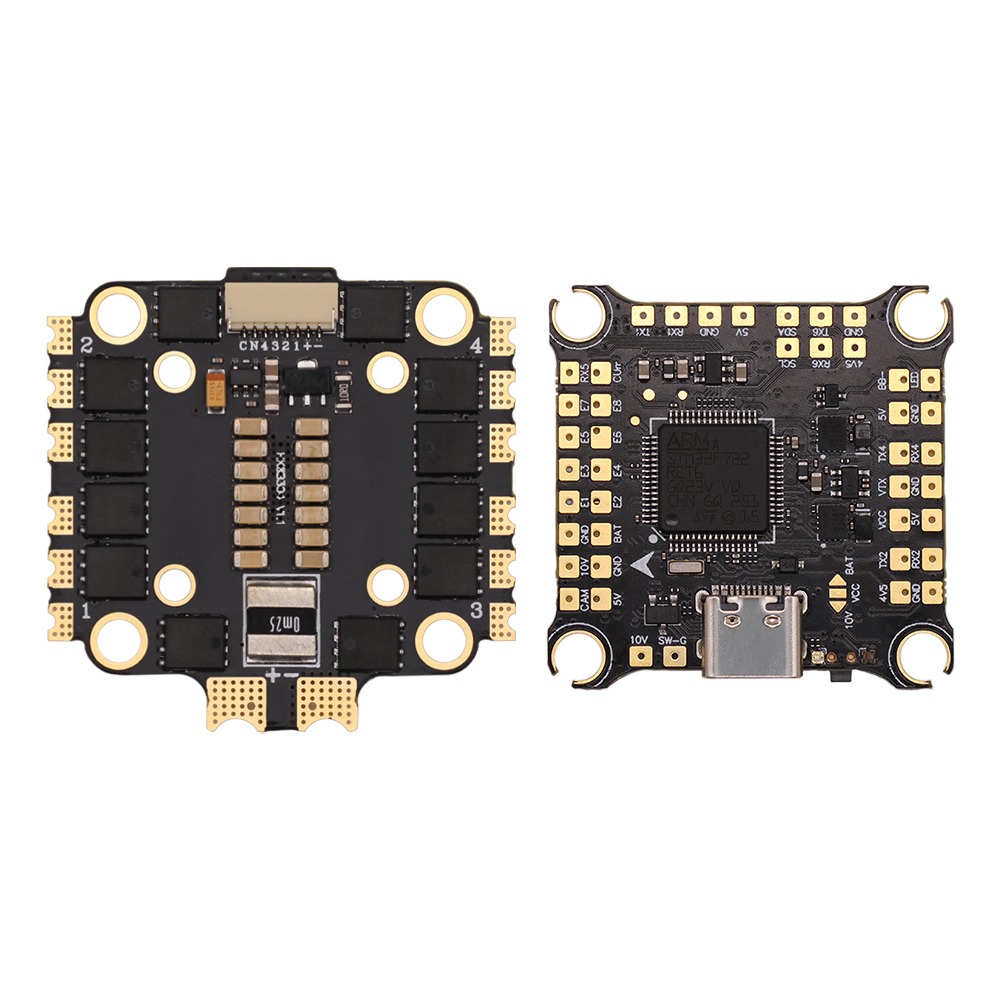

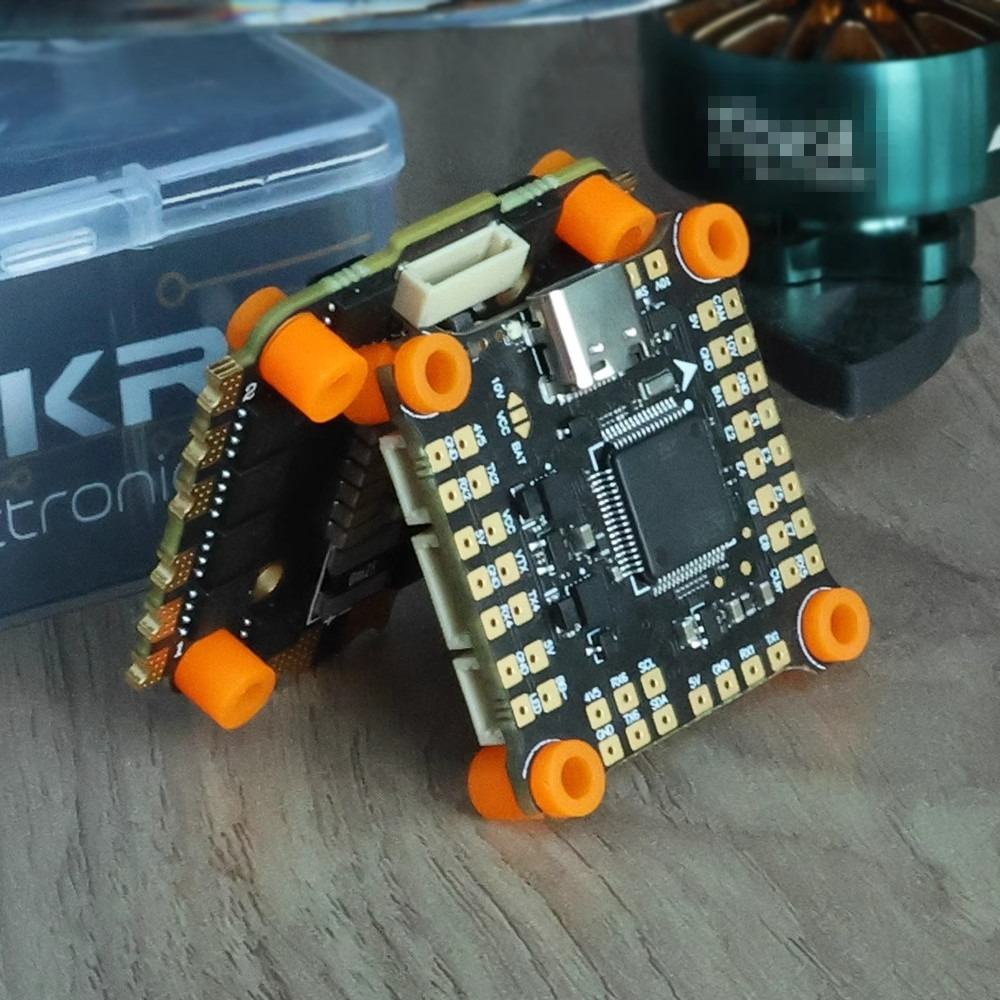

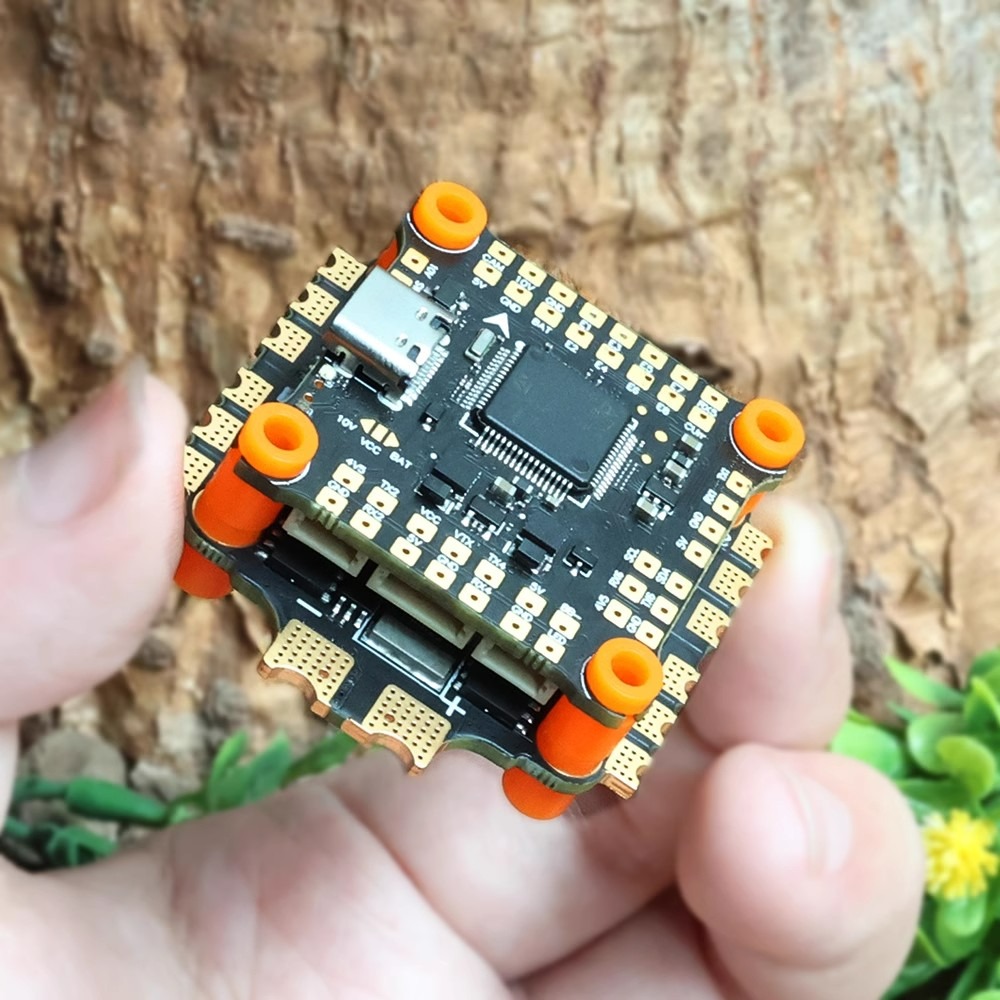

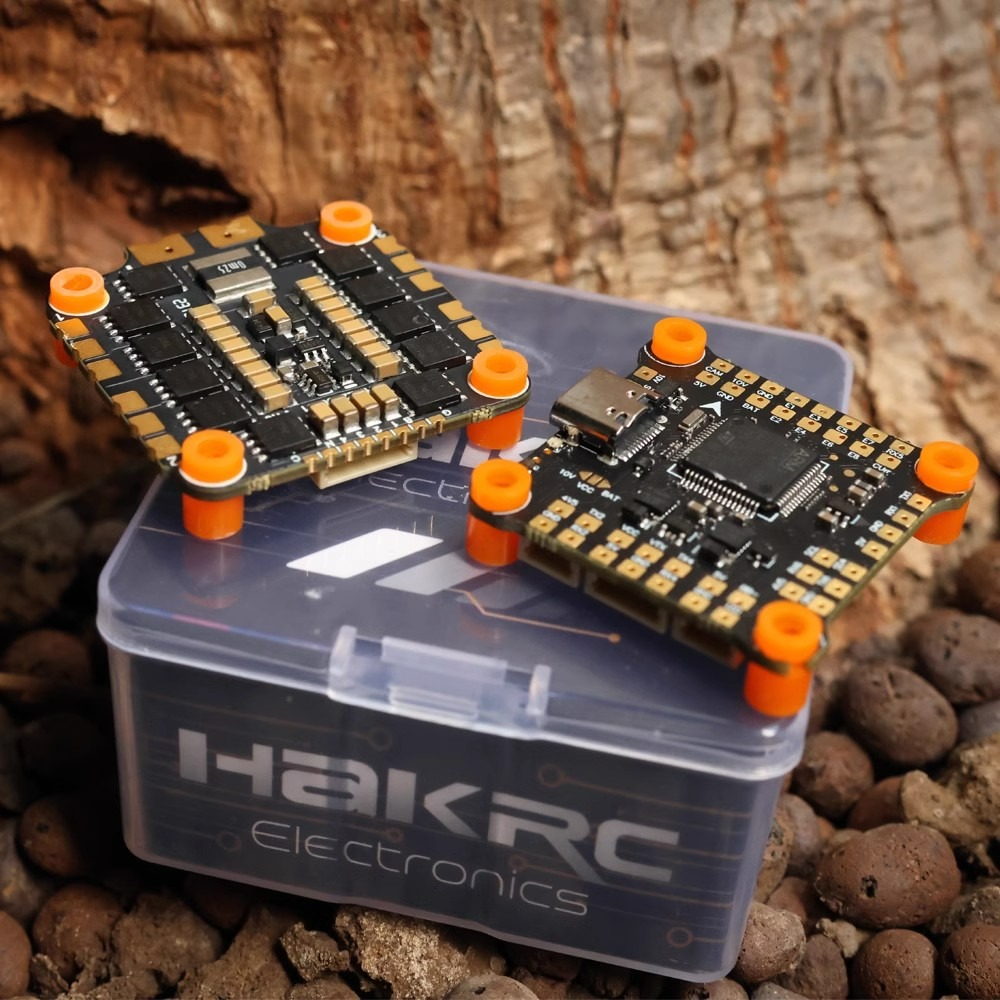

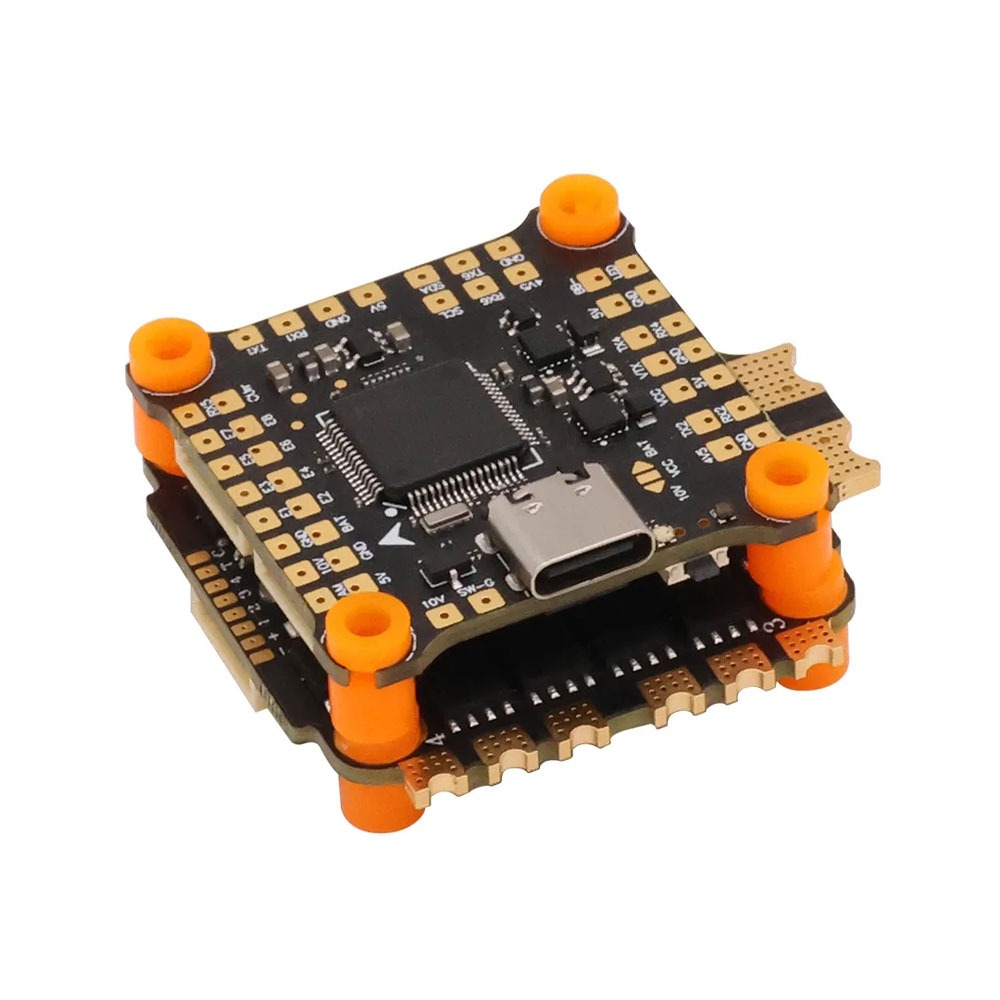

HAKRC F722 V2 Stack F7 Flight Controller Dual BEC With 45A/50A/60A/65A 4in1 Brushless ESC

HAKRC F723OV2 Flight Control Specification

Product Features:
1.PCB adopts high-end 6-layer 1oZ thick copper skin, strong anti-interference ability.
2. Using double gyroscope design to reduce the error of one gyroscope.
3. Industrial grade LDO, high temperature resistance.
4. Use in-line connector, easy to install, no solder,
5. Onboard with 4 programmable LED lights, you can freely switch the LED lighting effect
5. Reserve the external LED light with 10V power supply, you can customize the remote control channel for the switch control of the light belt.
7. Diagram transmission power supply, you can set the switch channel through the ground station, freely open or close the group diagram transmission power, easy to adjust the ground.
8. High quality Japanese Murayu capacitor, strong filtering performance.

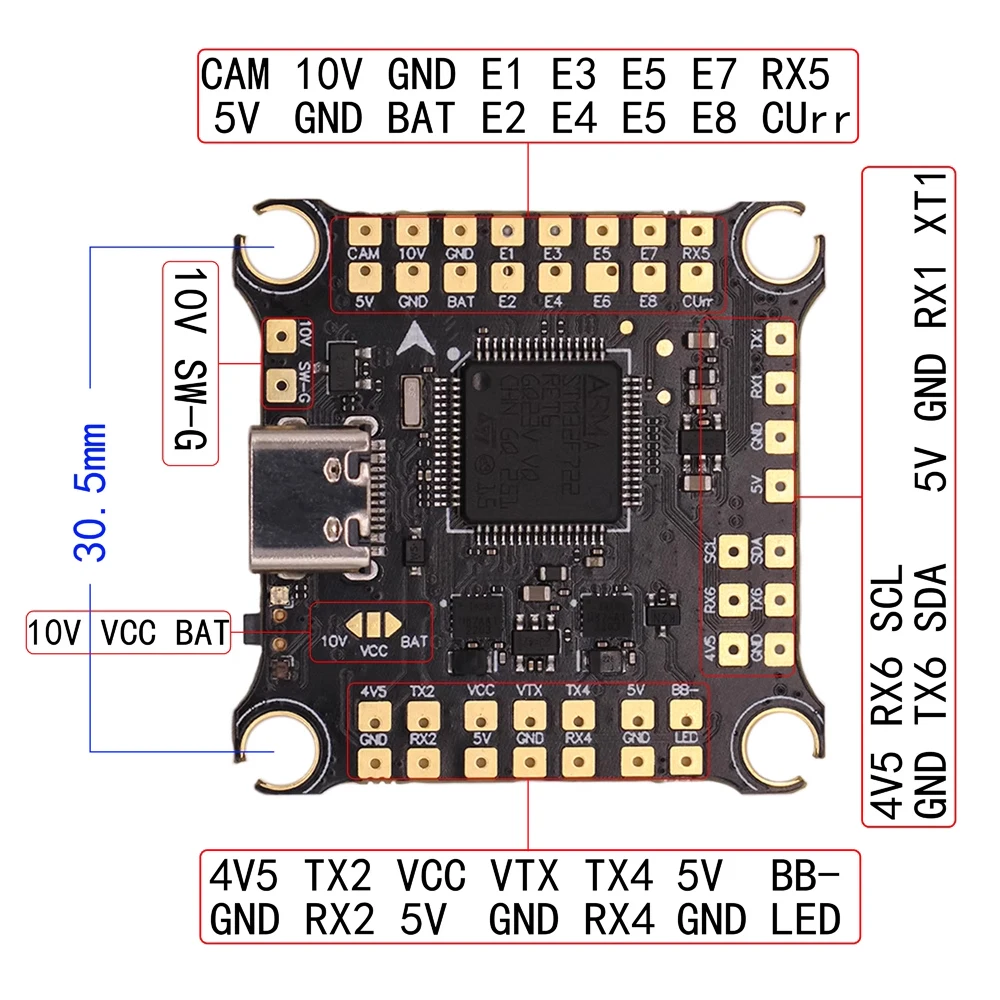

Size: 36*36mm (30.5mm-30.5mm mounting hole)
Packing size: 64*64*35mm
Net weight: 8.5g
Packing weight: 38.5g

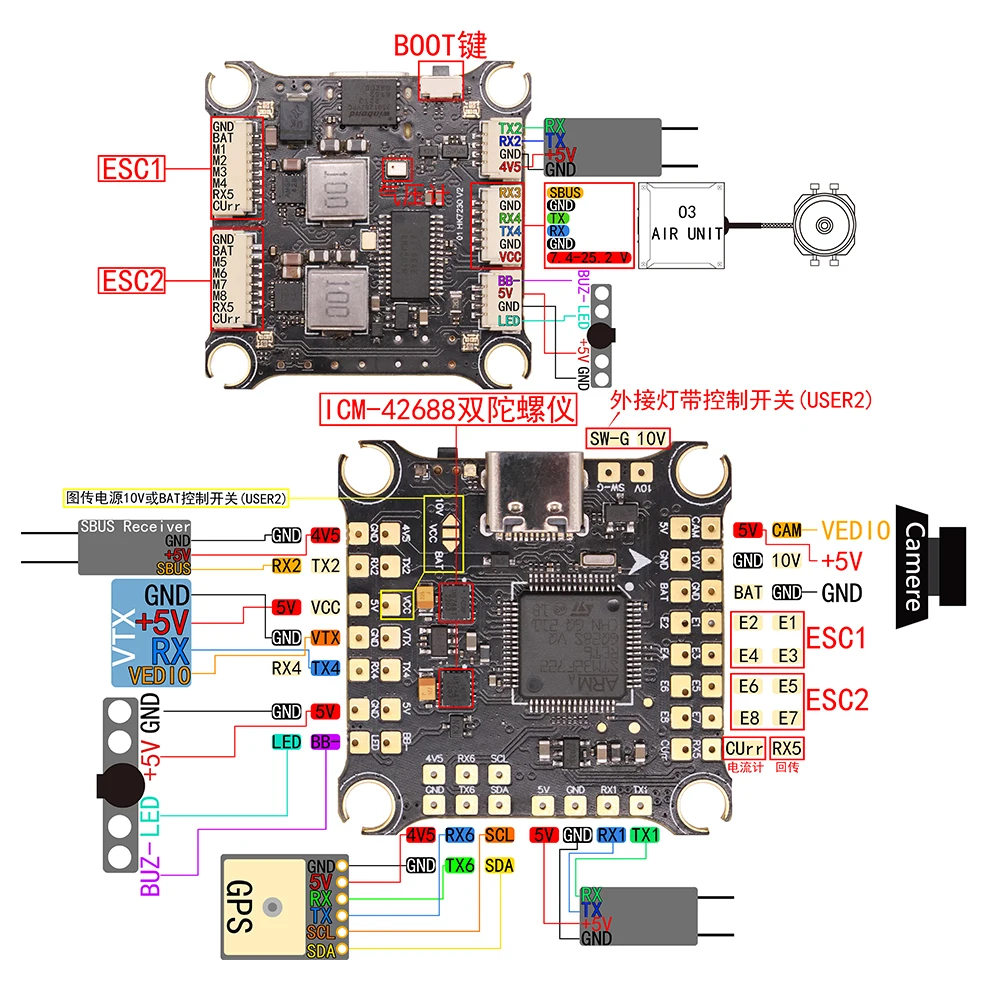

Flight Control Parameters:
CPU:STM32F722RET6
IMU:ICM42688 dual gyroscope
OSD:AT7456E
Barometer: Integrated
Black cherry: 16M
BEC:5V/3A
BEC: 10 v / 2.5 A
LED: Adjustable LED light
Sensor: Built-in current sensor
Firmware version: HAKRCF722V2
Receiver: Frsky Futaba/Flysky/TBSCrossfire/DSMX: DSM2 receiver

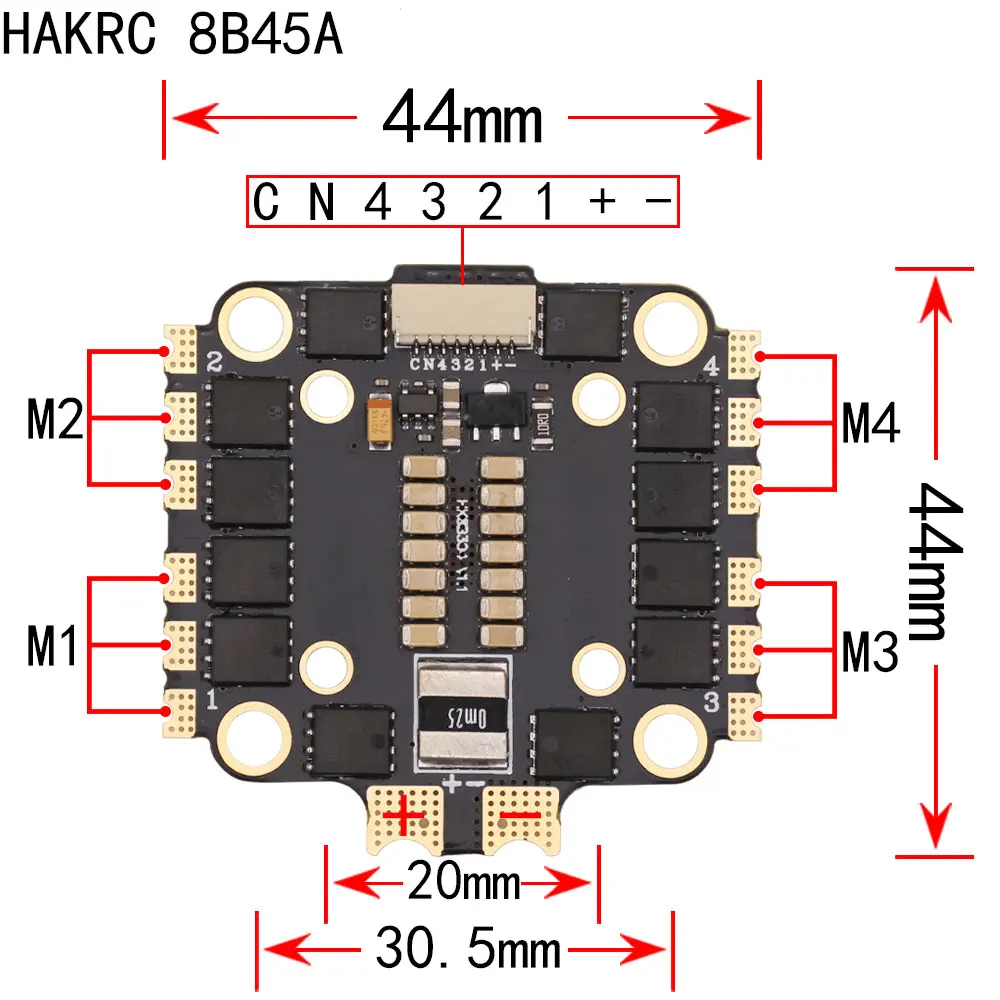

45A  ESC
45A electrical technical parameter
Electric size: 44*44*6mm
Power purposes: 14G
Fixed hole distance: 30.5*30.5mm φ4mm
Continuous current: 45A
Maximum current: 50A (Sustainable 10s)
Input voltage: 2--6s
Rathering software: Blhelisuite
Drive signal support: DSHOT150/300/600, Multishot, PWM, Oneshot.

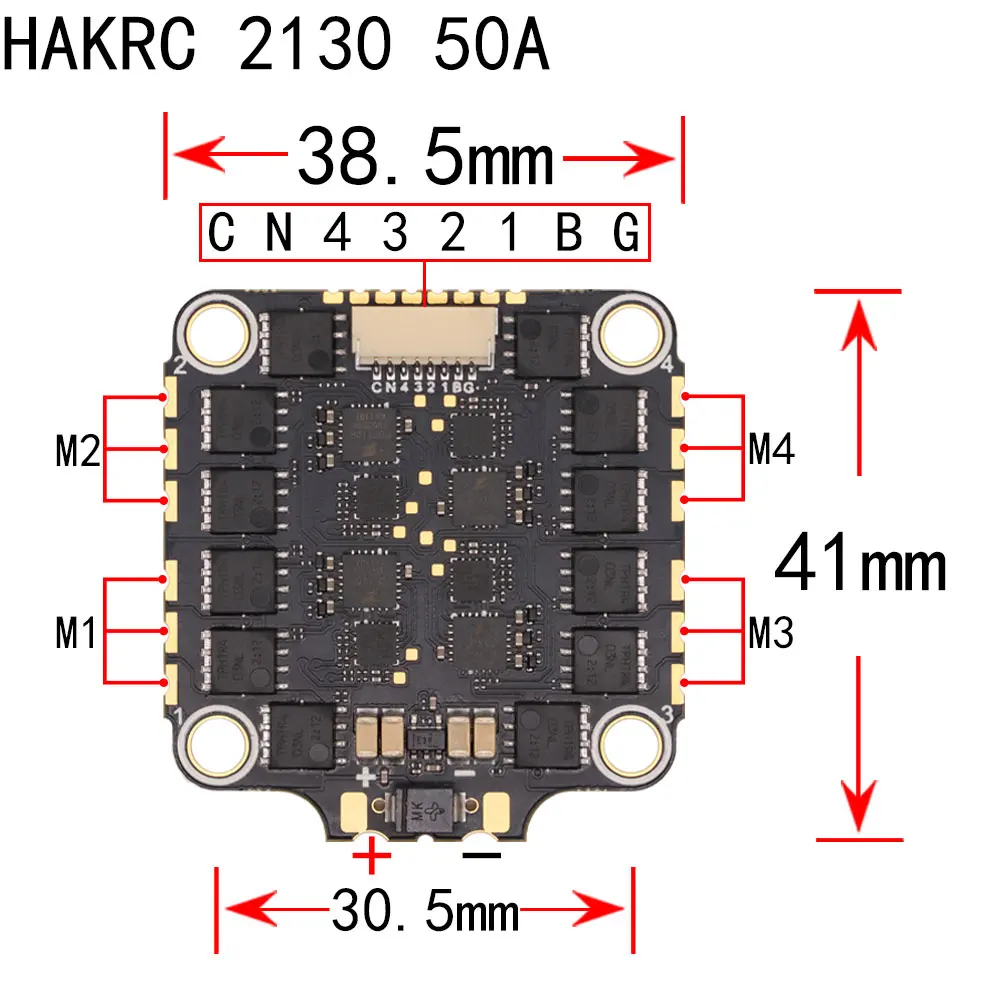

50A  ESC
Electric parameters:
Size: 40* 41mm (30.5mm-30.5mm installation hole)
Product net weight: 12.5g
Packaging weight: 51.5g
Input voltage: 2S-8S LIPO
A current meter ratio: 160
Continuous current: 50A
Peak current: 60A
Hardware: PWM, Damped Light
Electric firmware: BLHELI-S 16.7
Protocol support: PWM, OneShot125, 0neshot42, Multishot, DSHOT150, DSHOT300.dshot600

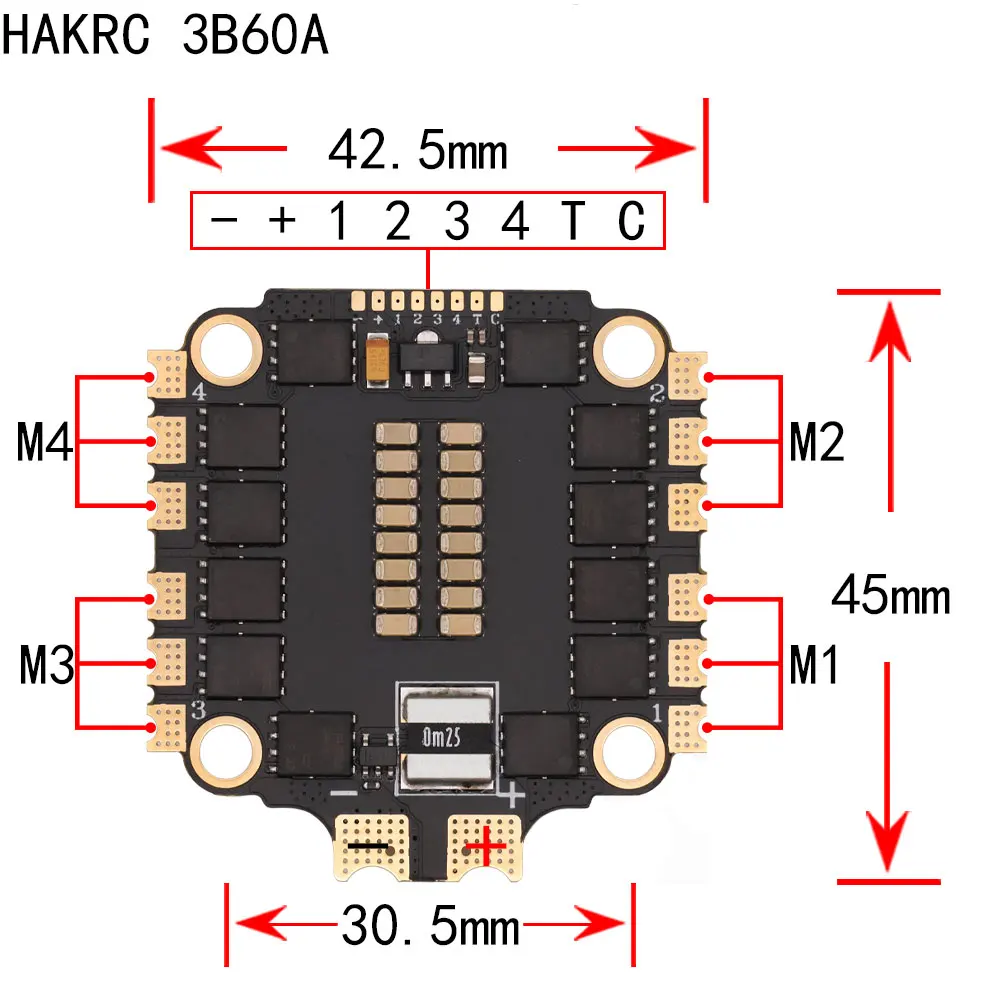

60A  ESC
Electrical technical parameter
Input voltage: 2S-8S Lipo
A current meter ratio: 160
Continuous current: 60A
Peak current: 70A
Electric firmware: hakrc-60-k42_multi_32_8.hex
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600

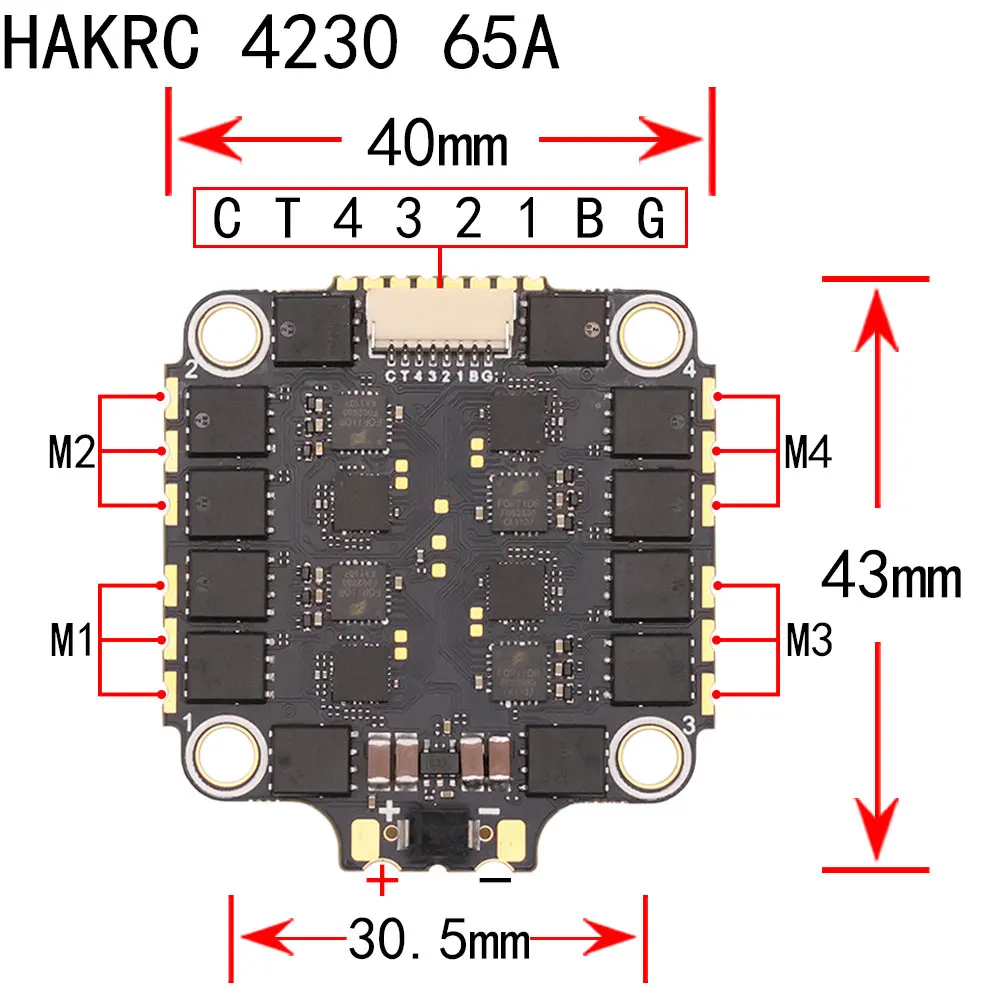

65A  ESC
Electrical technical parameter
Input voltage: 2S-8S Lipo
A current meter ratio: 160
Continuous current: 65A
Peak current: 75A
Electric firmware: hakrc_at4g_multi_32.9 hex
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600
