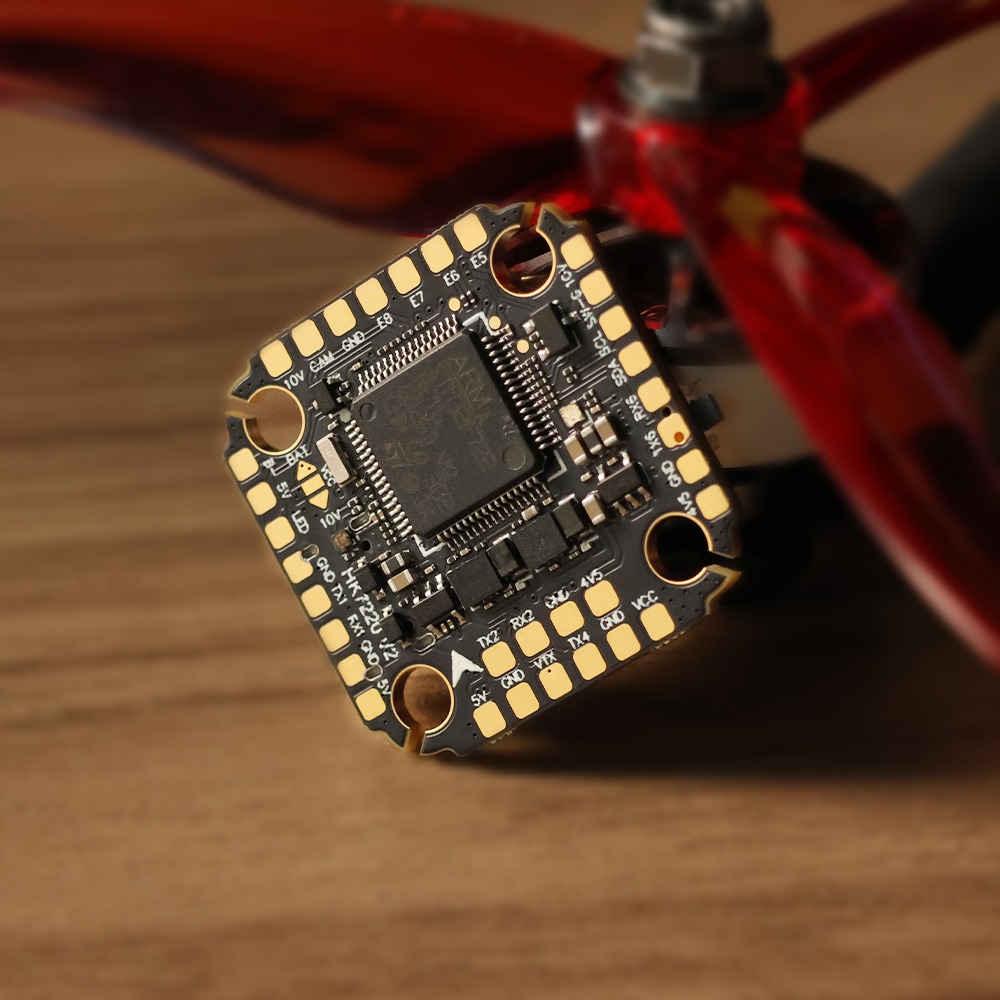

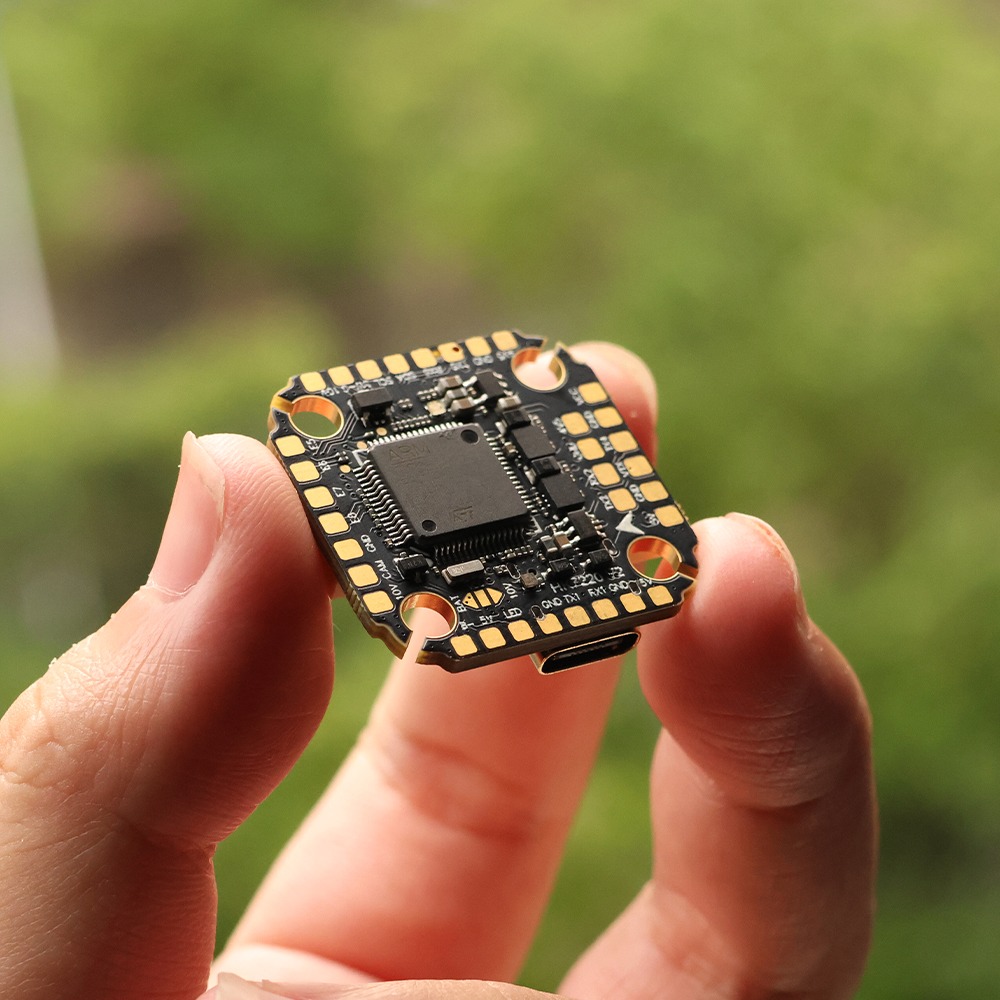

HAKRC F7220V2 2-6S Flight Controller

The PCB adopts high-end 6-layer 1oZ thick copper sheet, with strong anti-interference ability. Adopting a dual gyroscope design to reduce the error of one gyroscope. Adopting industrial grade LDO, resistant to high temperatures. Equipped with DJI sky end straight socket, easy to install and solder free. Reserve an external LED light strip with a 10V power supply, and customize the remote control channel for light strip switch control. The image transmission power supply can be freely turned on or off by setting a switch channel at the ground station, facilitating ground reference adjustment. Adopting high-quality Murata capacitors from Japan, with strong filtering performance. Eight motor control signal outputs.

FC Specifications

Size: 29 * 29mm (20mm-20mm mounting hole)

Packaging size: 64 * 64 * 35mm

Input voltage: 2S-6S Lipo

Net weight of product: 6g

Packaging weight: 37g

Flight control parameters

CPU: STM32F722RET6

IMU: ICM42688 dual gyroscope

OSD: AT7456E

Barometer: integrated

Black box: 16M

BEC: 5V/2A

BEC: 10V/2A

LED: Supports external adjustable LED

Sensor: built-in current sensor

Firmware version: HAKRCF722V2

Receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

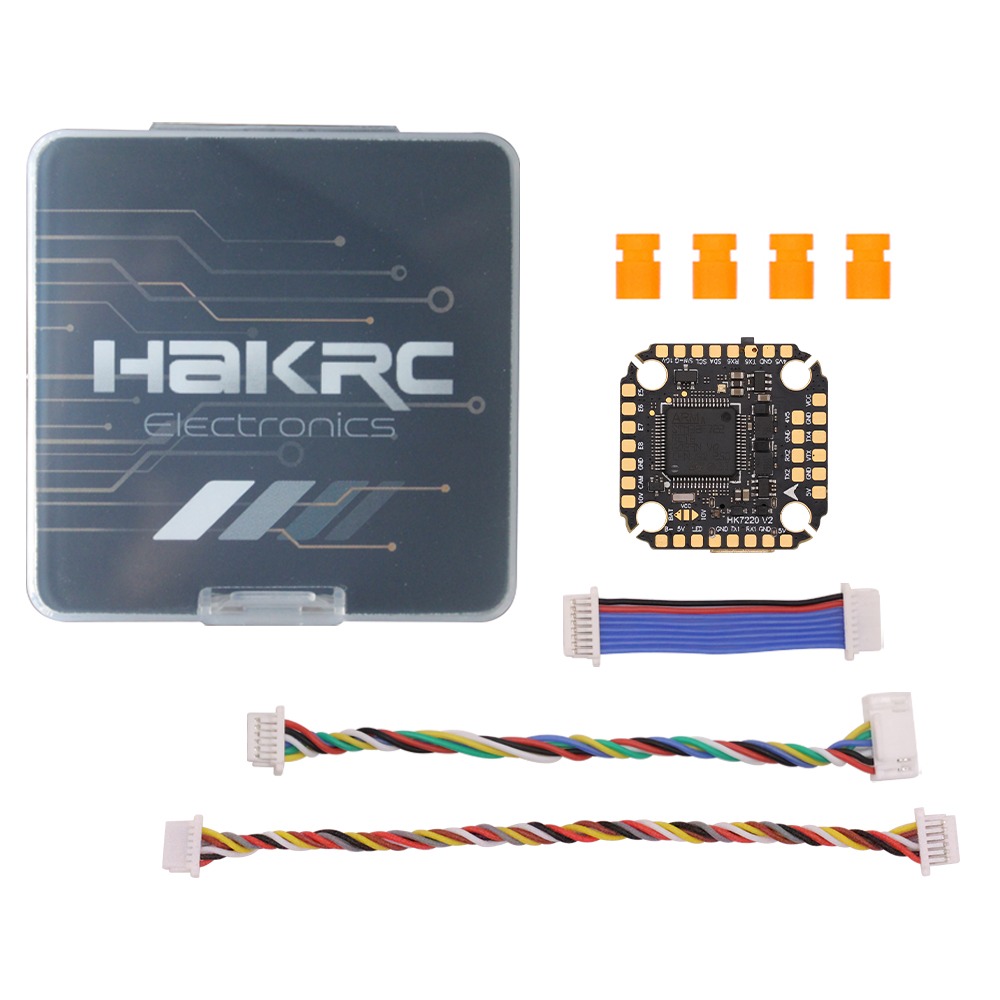

Packing list

1x F7220V2 flight controller

4x M2 shock absorber

1x 8 cables

1x DJI FPV cable

1x Dajiang O3 aviation crew three in one cable

1x instruction manual
