Product features:

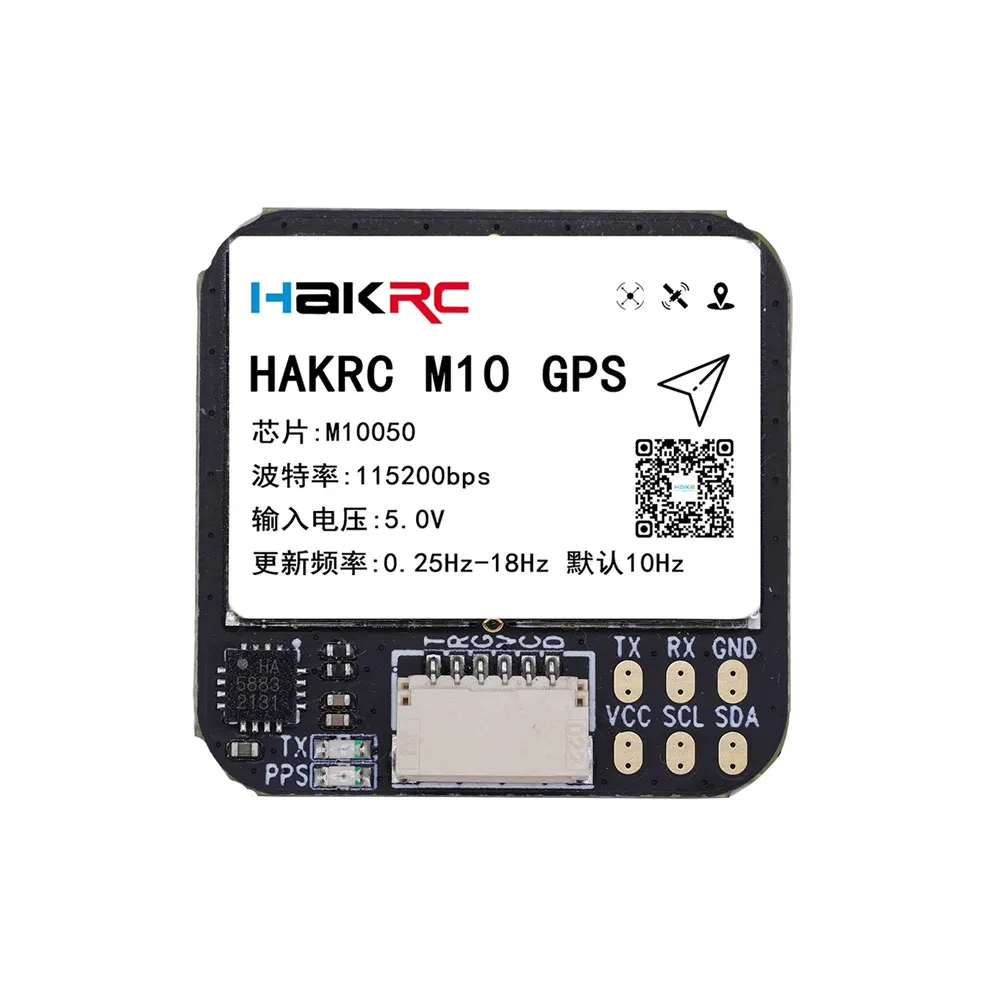

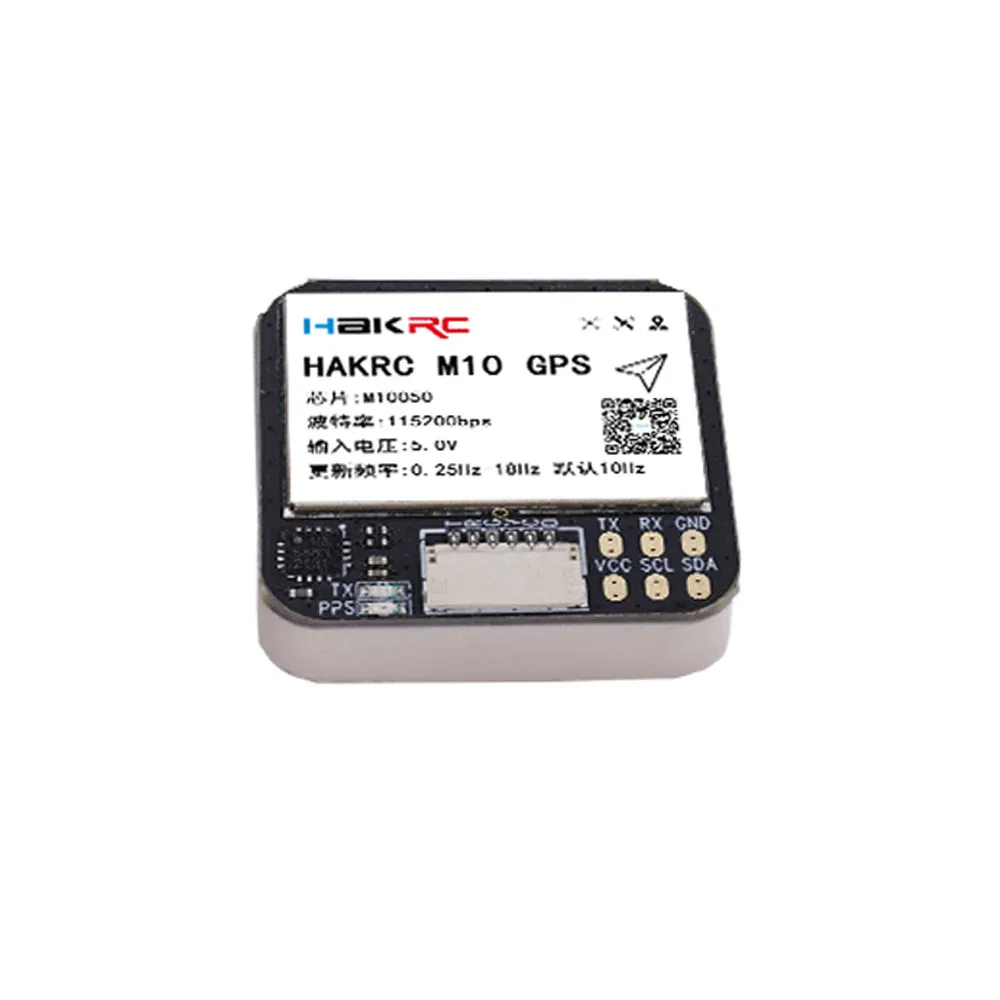

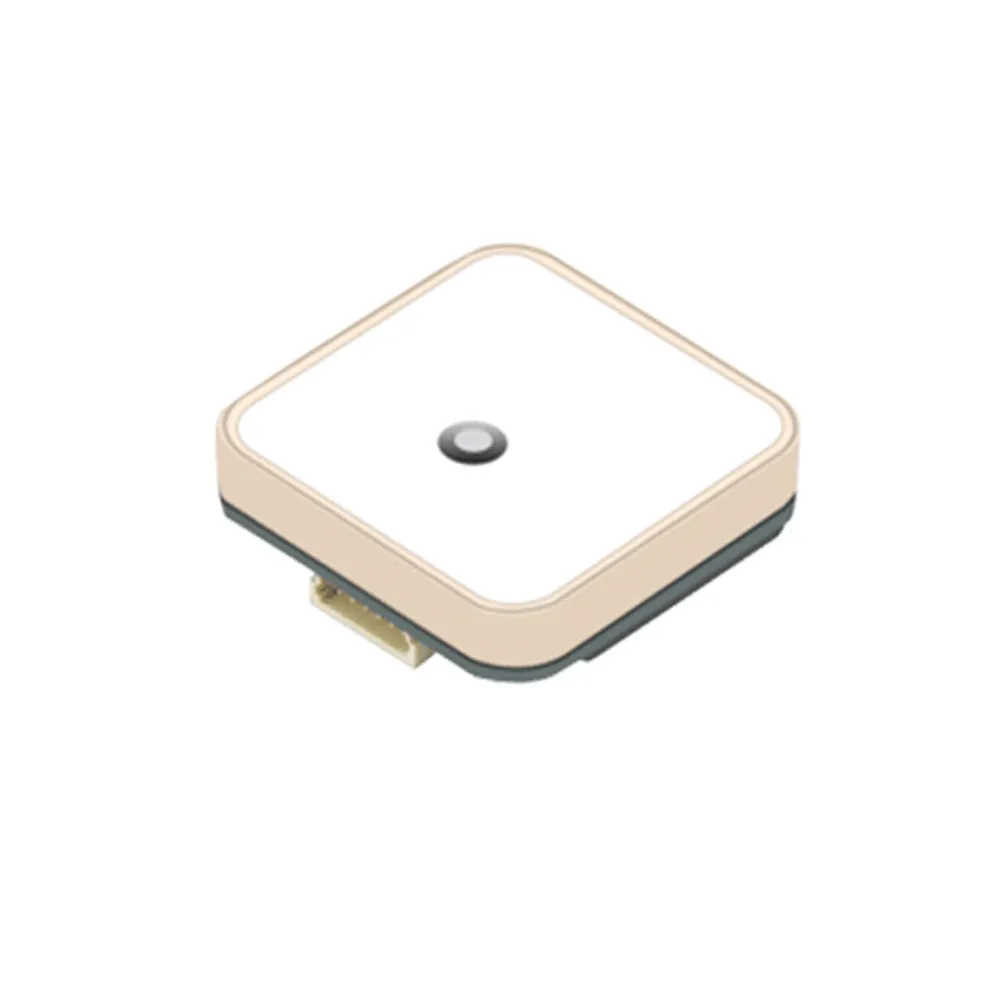

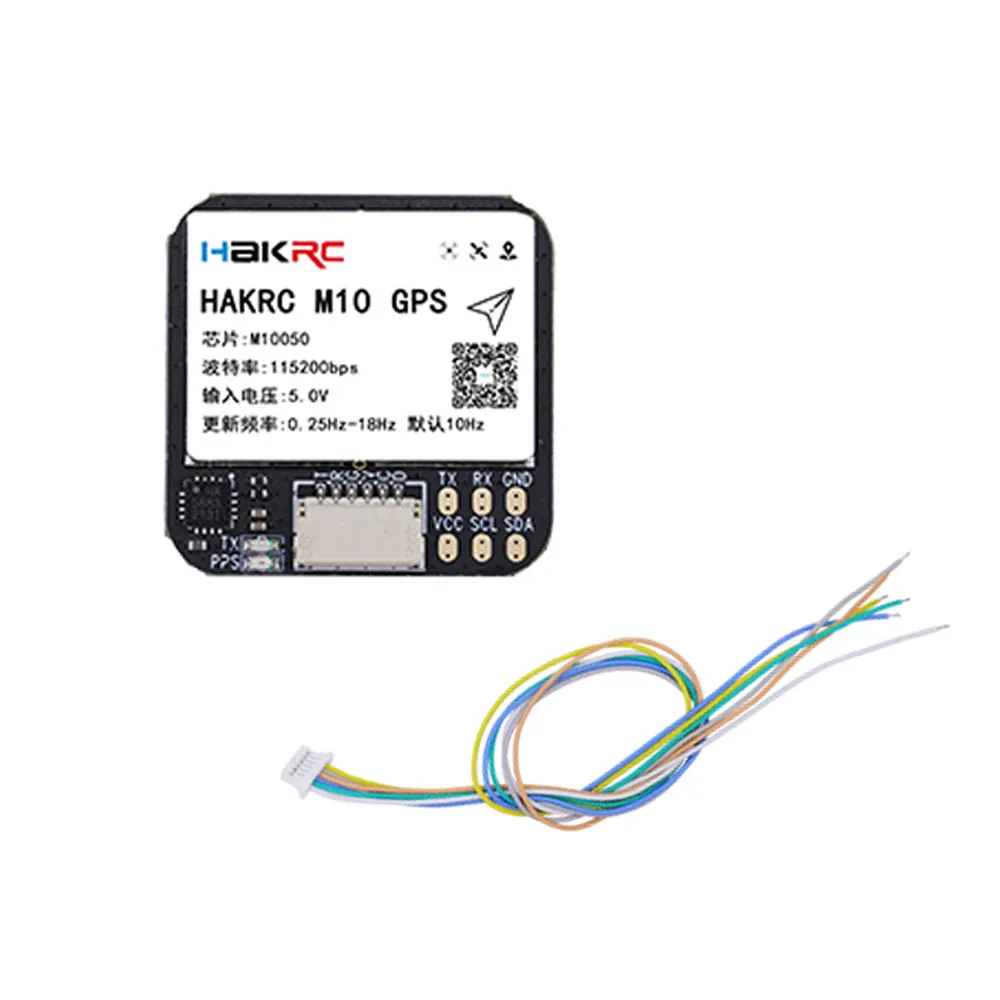

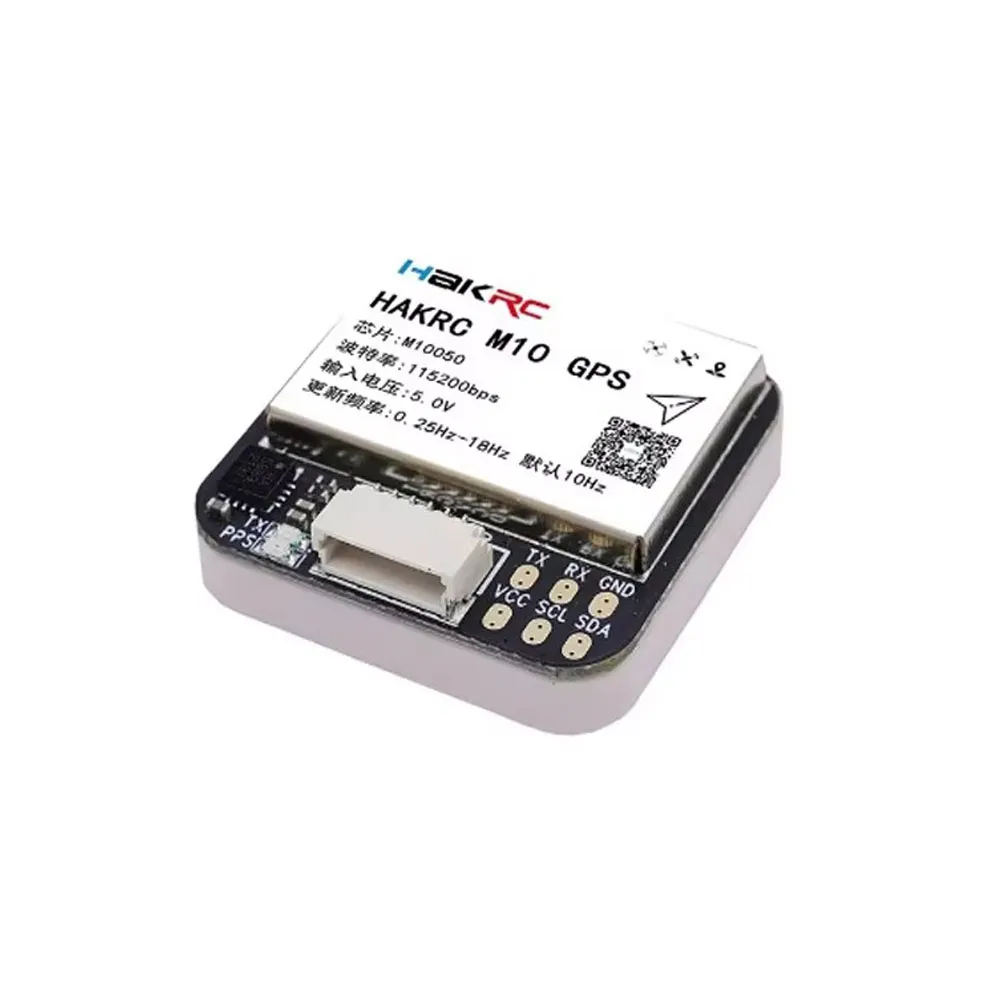

Model: HAKRC M10
Chip: M10050
Satellite systems: GPS, BDS, GALILEO
Baud rate: 4800bps- 921600bps, default: 115200bps
Output protocols: NMEA, UBX
Update frequency: 0.25Hz-18Hz, default 10Hz
Flash: With FLASH, the configuration can be changed, and the power is not lost when the power is off
Tracking sensitivity: -166dBm
Speed accuracy: 0.05m/s
Maximum speed: 500m/s
Acceleration due to gravity: <4G
Maximum height: 80,000m
Horizontal Accuracy: 2.0m CEP (Ideal Environment)
Cold start: 27s (ideal environment)
Hot start: 1s (ideal)
Input voltage: 5.0V
Input current: 15mA
Operating temperature: -40C~+85°C
Compass: QMC5883 with an electronic compass inside
Size: 25x25x8mm
Weight: 12.35g
