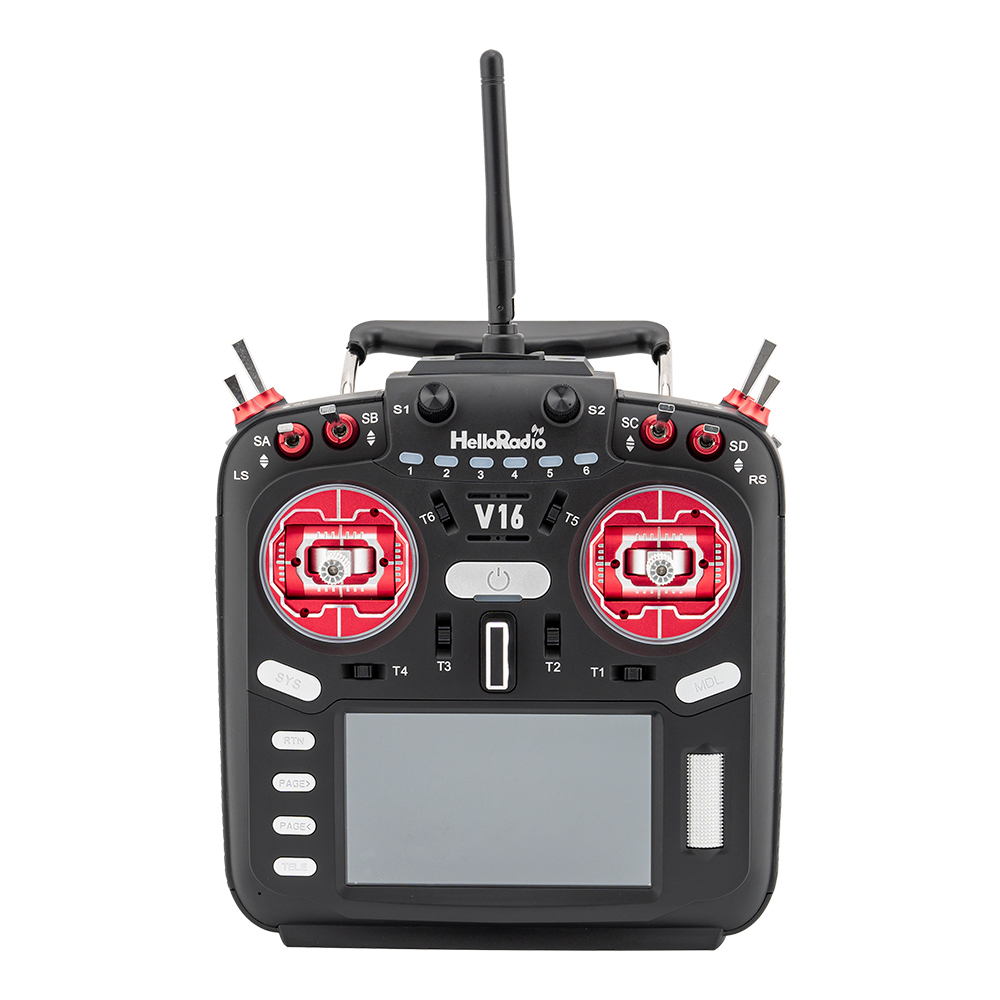

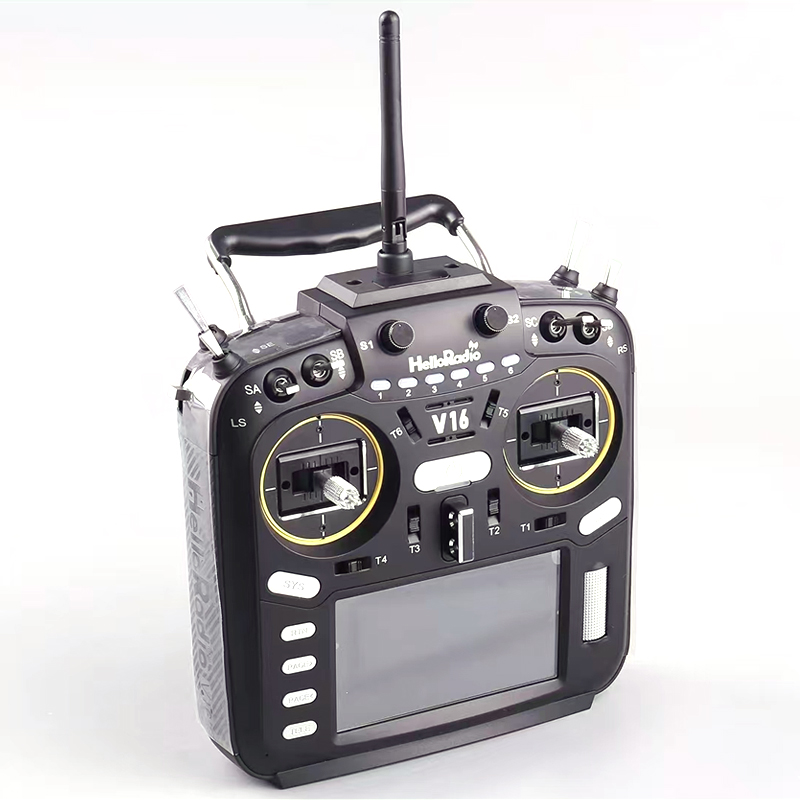

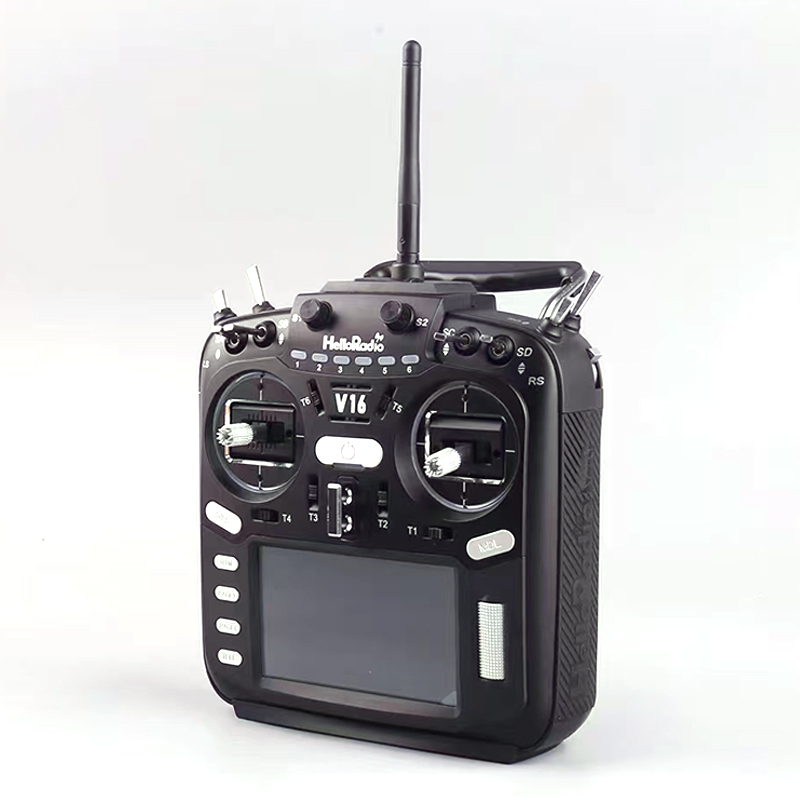

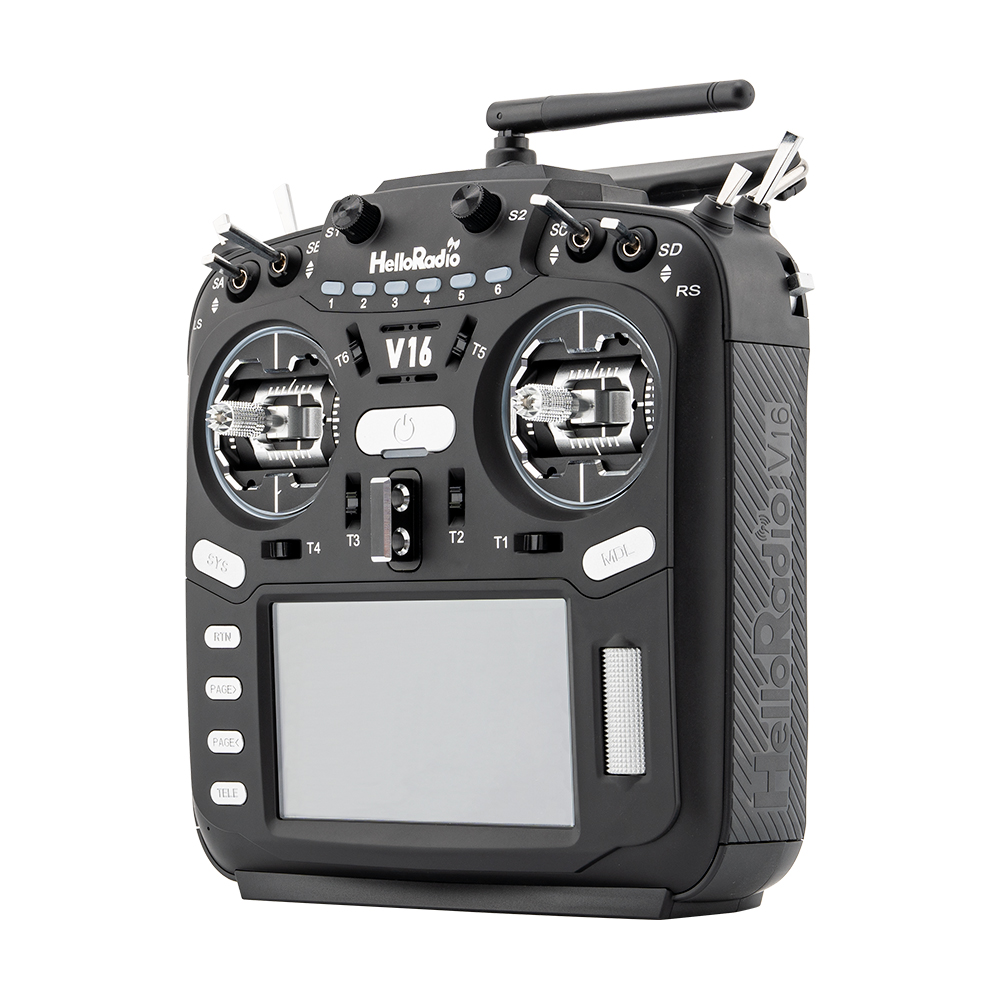

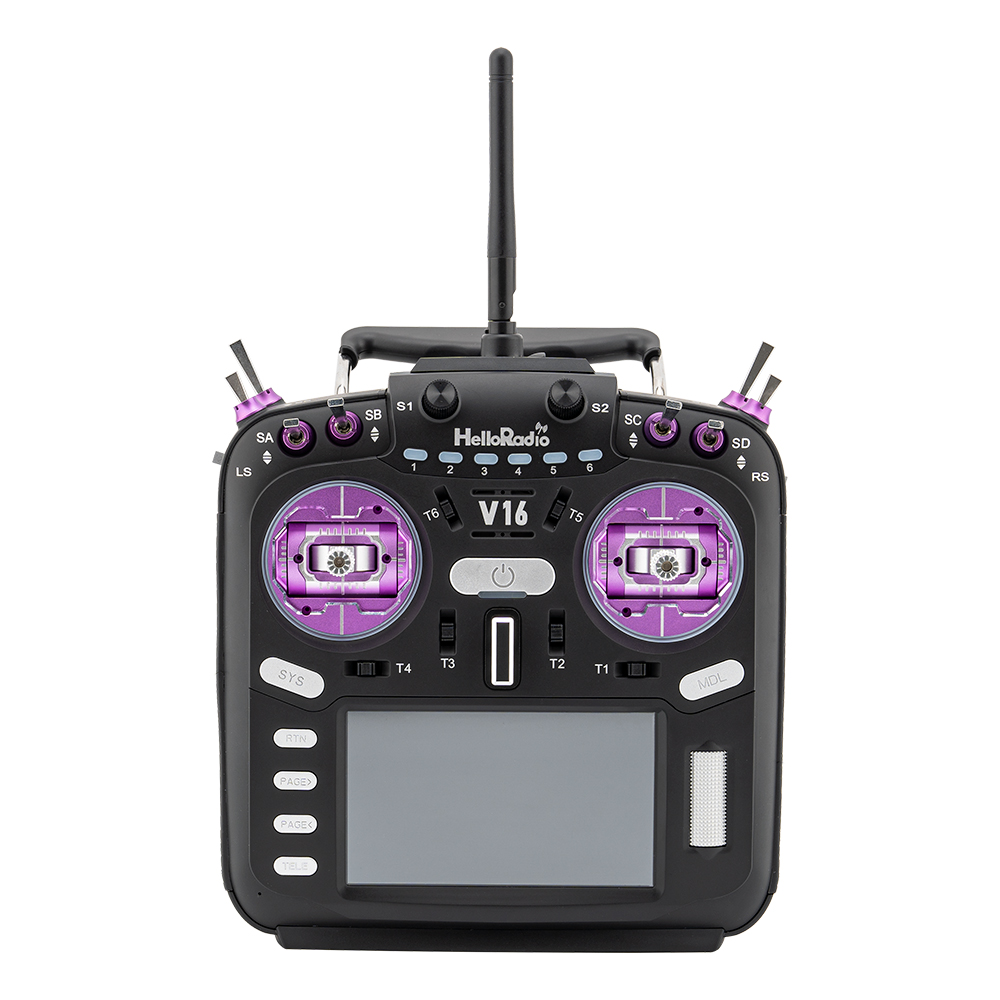

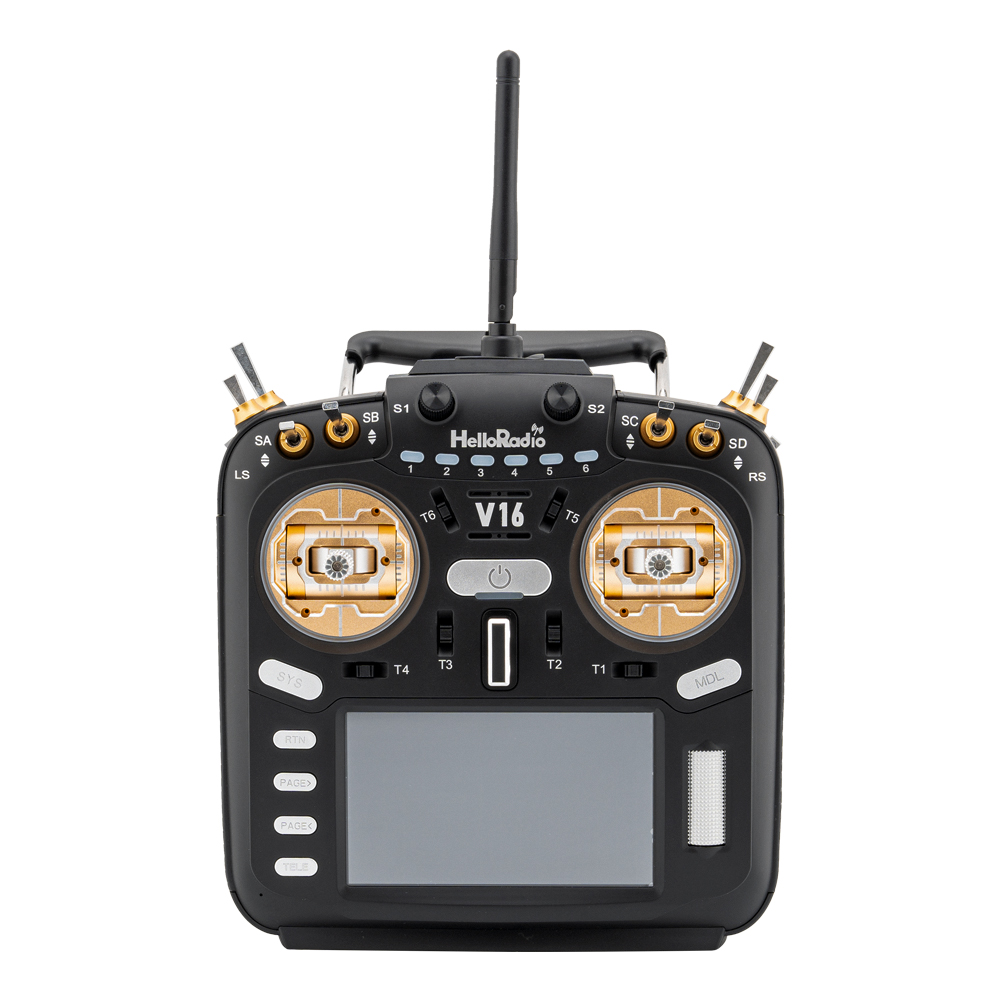

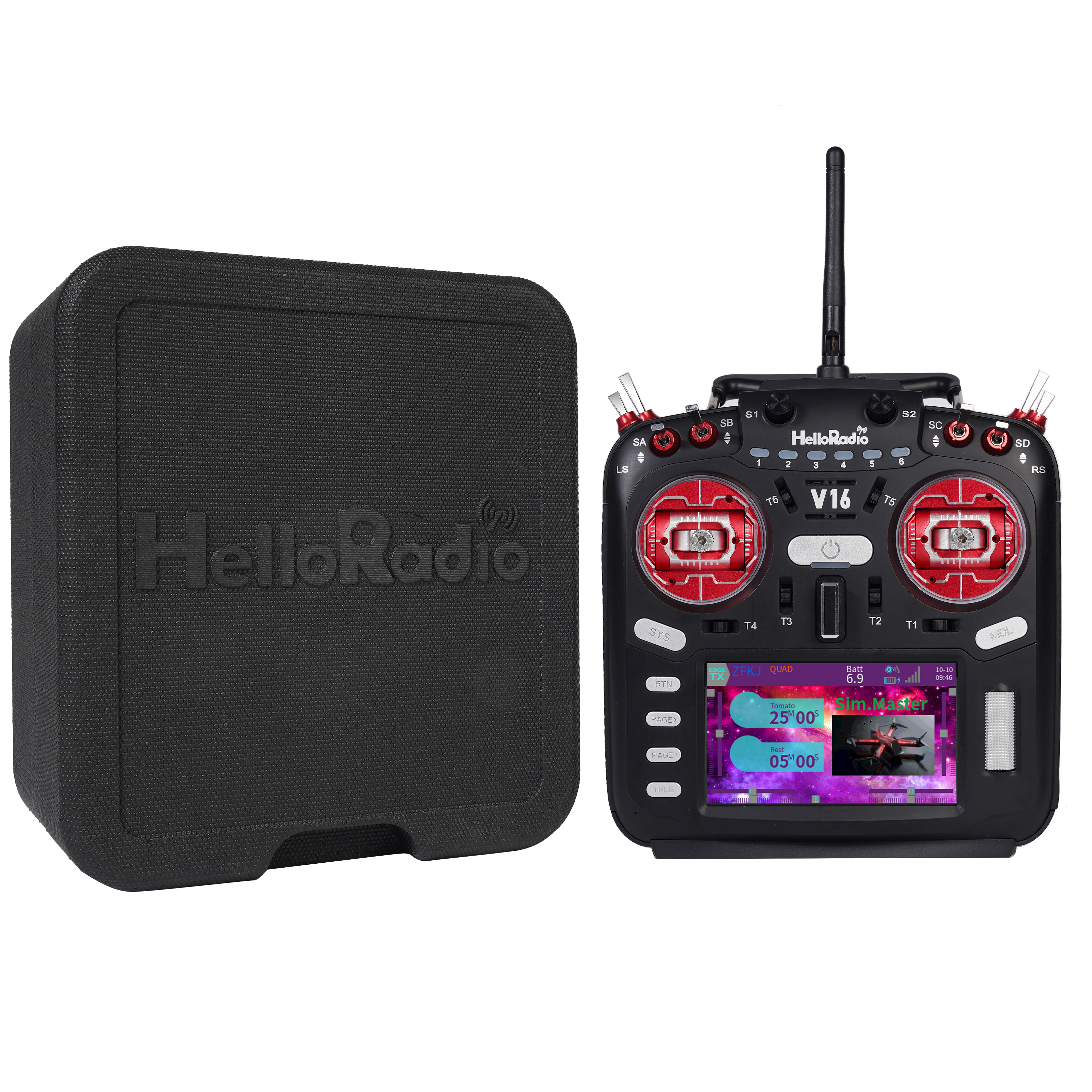

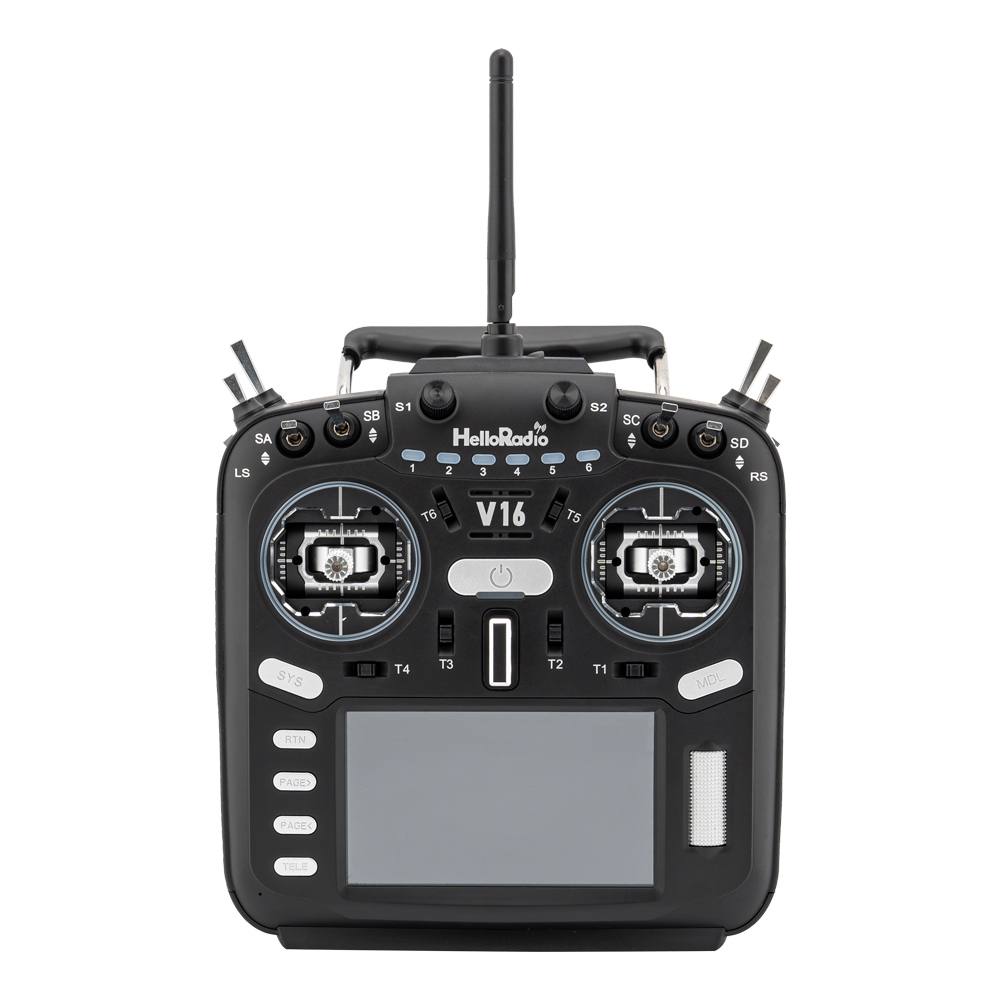

HelloRadio V16 PRO MAX Remote Control

V16 Main functions and features:
1. Comfortable touch panel experience
2. Place the headphone jack at the bottom of the radio for easier connection to the headset
3. Optimized LCD circuit design, releasing memory and CPU resources
4. Supports the currently popular ESP32-C3-MINI and XIAO ESP32-C3 Bluetooth modules, providing more possibilities for future applications

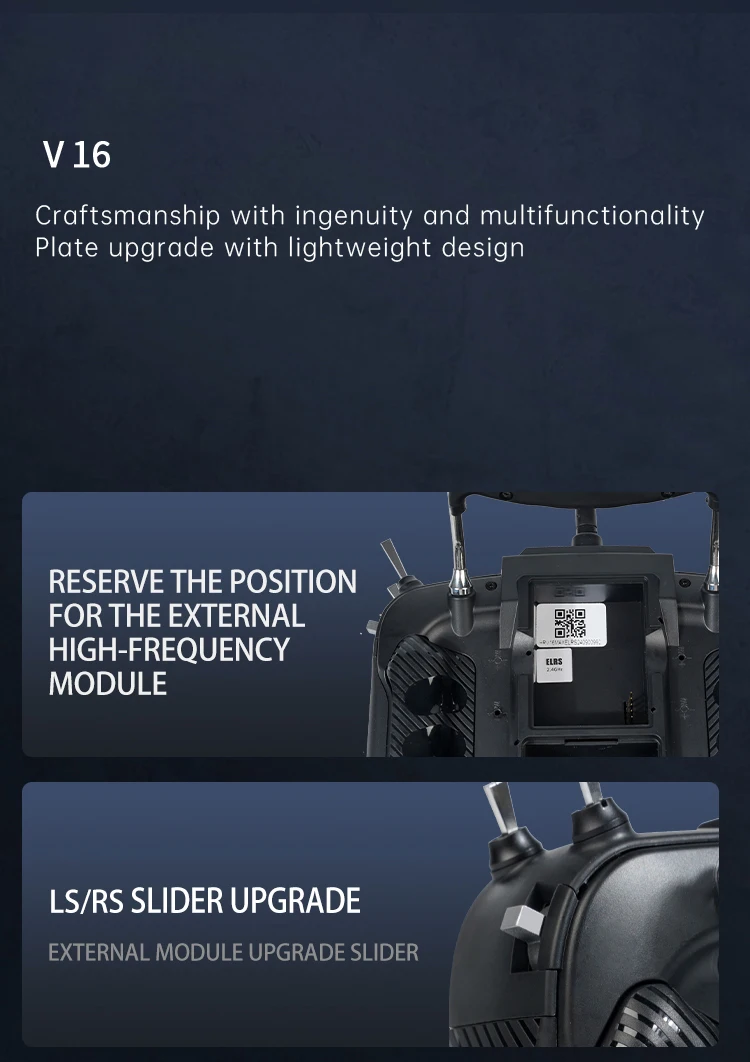

5. Hardware dual serial port is used to communicate with the external RF module. And a reverse control circuit is designed to support more types of external RF modules

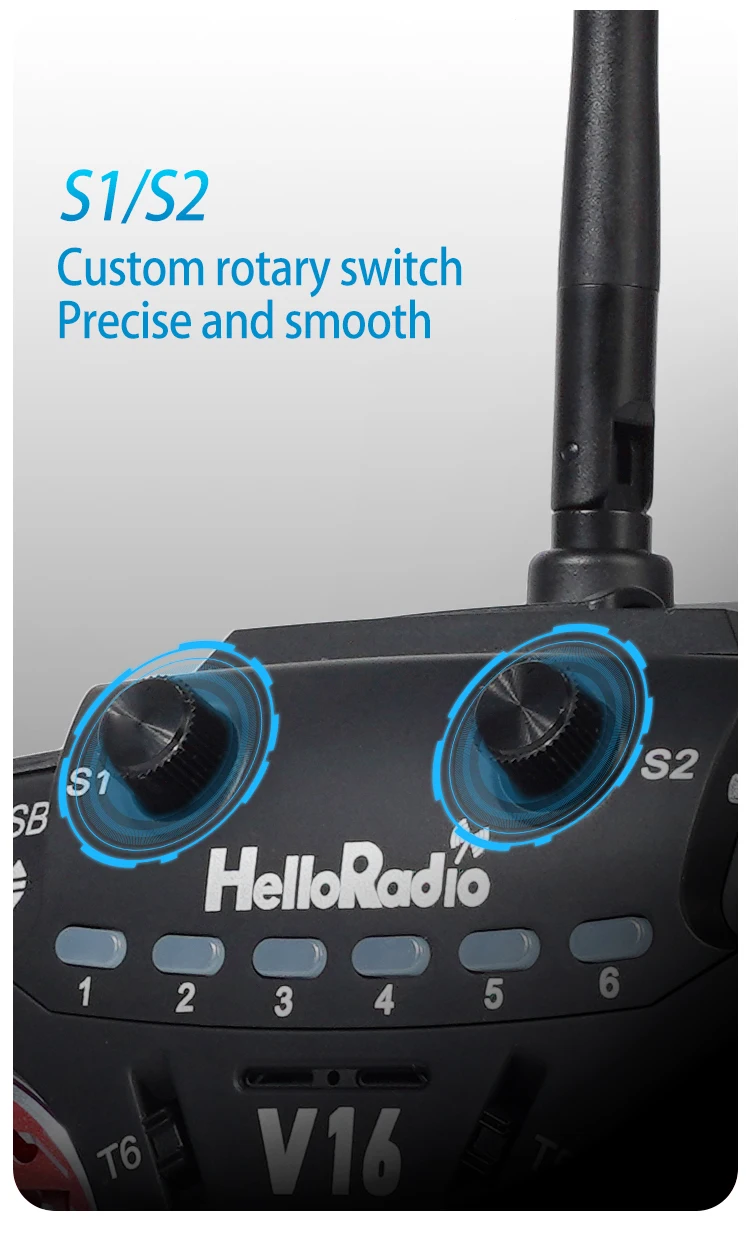

6. 6-mode switch can be defined at will. Users can program to customize their functions and corresponding LED colors. Multi-Color LEDs are used, and you can be assured to create your own favorite
7. The charging circuit will automatically stop charging when overvoltage is detected in the battery cells, protecting the battery
8. Protection circuit is used to avoid damage from any reverse-polarity connection of power supply

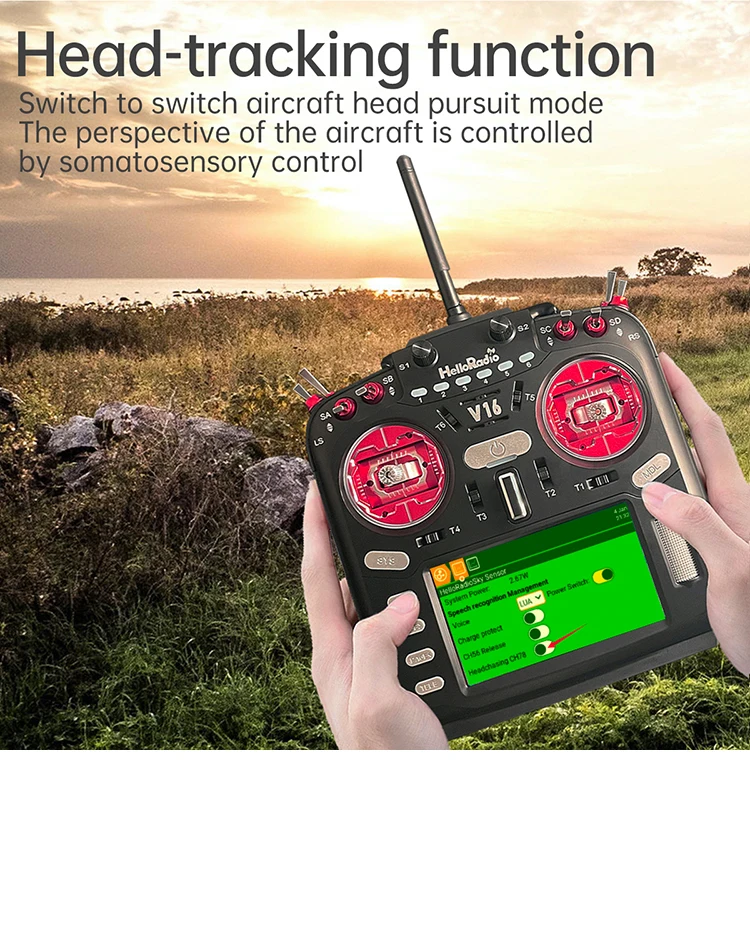

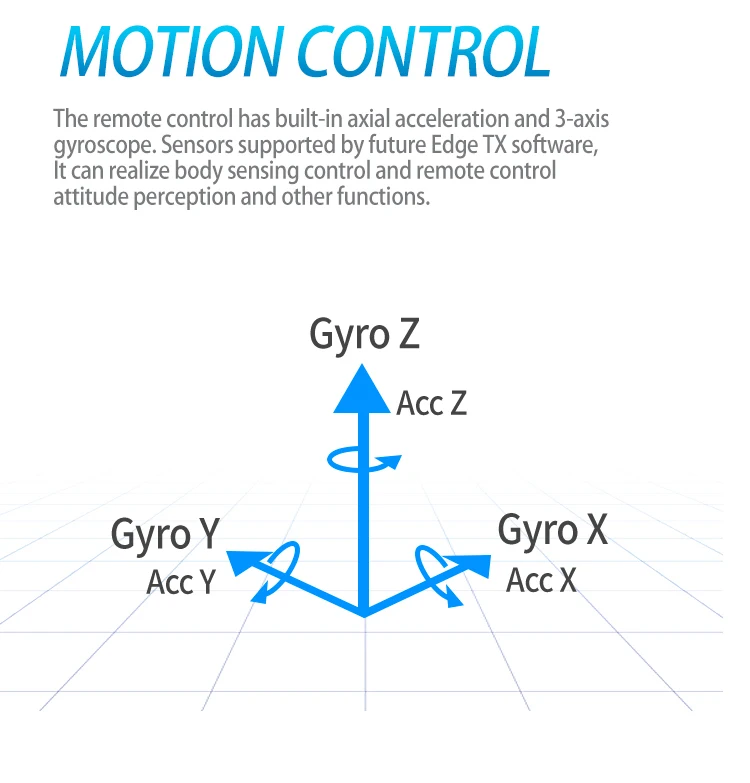

9. Equipped with a 6-axis gyroscope, it can achieve motion control and head chasing function. When the voice function is turned on, say 'motion control' to the radio, and the gyroscope attitude data will be immediately output to the corresponding control channel. Moving any joystick will immediately stop the motion control mode.

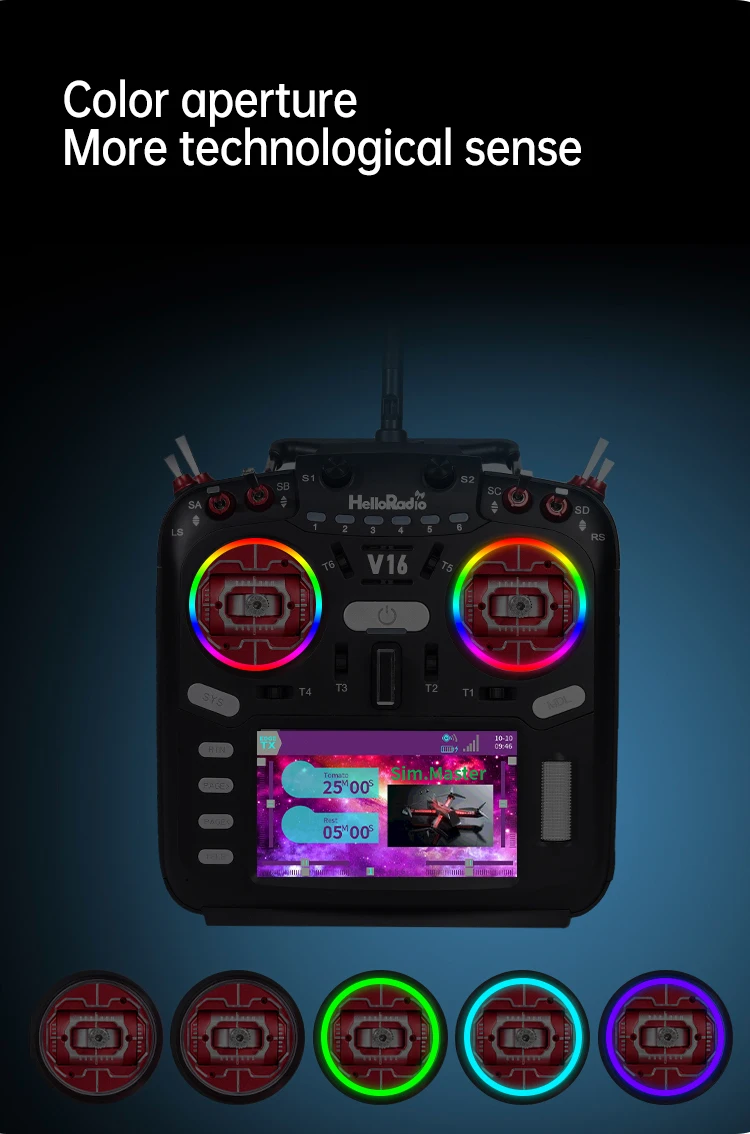

10. Programmable colorful gimbal LED, allows users to achieve the dazzling colors they want through simple programming, adding color to their flight

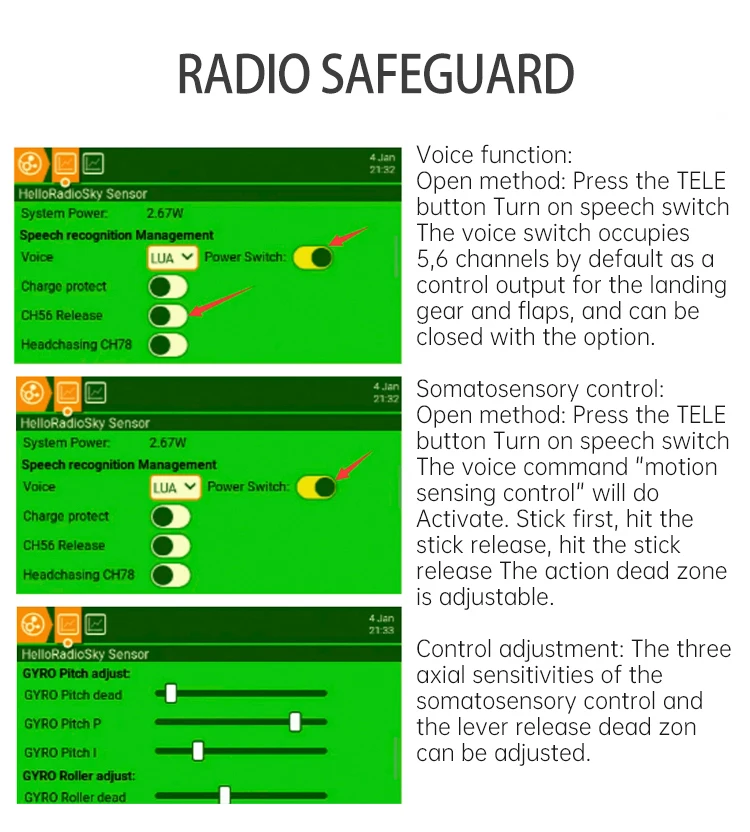

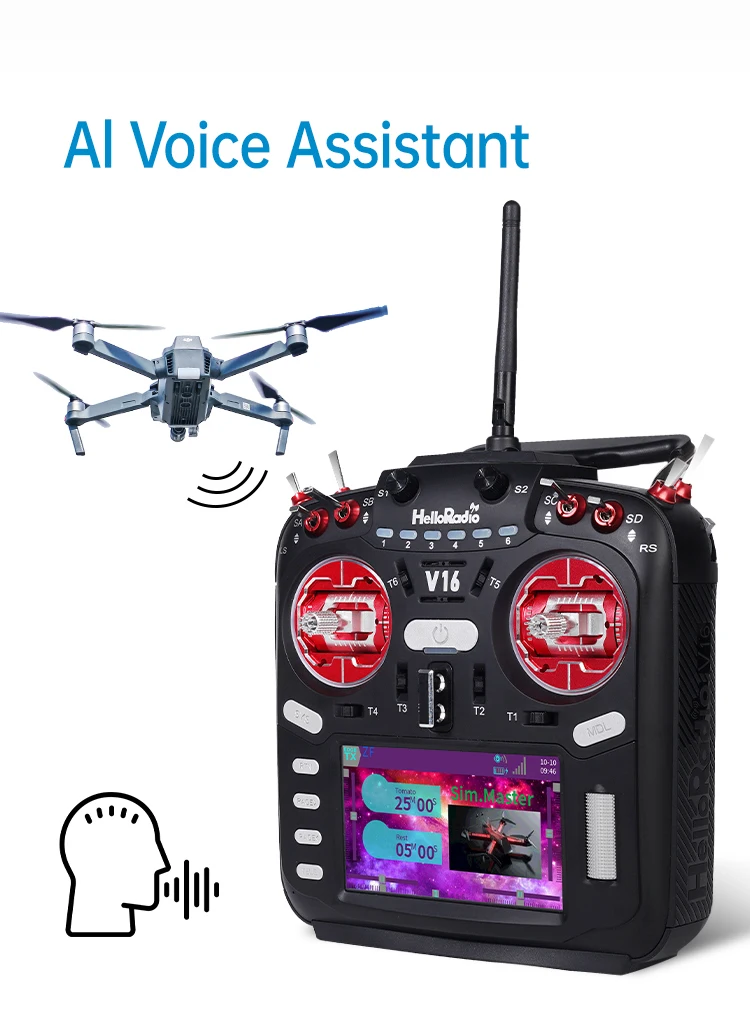

11. Intelligent voice interaction control circuit to achieve true human-machine interaction. Users can customize their voice and create their own style of voice control function
12. Equipped with 3 voltage and current measurement units with an accuracy of +-0.1%, which can independently measure the voltage of a single battery cell of the radio, monitor the charging voltage and current in real time to prevent overcharging of the single battery cell, and no longer require manual correction. They can measure and display the working voltage and current of the overall system, as well as internal/external RF module, in real time. It will give alarm or shut down the system, if abnormal voltage or current is detected. The radio and modules will always be in good protection.

Specification parameters
Size: 286 * 128 * 182 millimeters
Weight: 750 grams (excluding battery)
Transmission frequency: 2.400GHz-2.480GHz
Built in transmitter module: ELRS or 4N1
Working current: 450mA
Working voltage: 6.6-8.4V DC
Open source firmware: EdgeTX

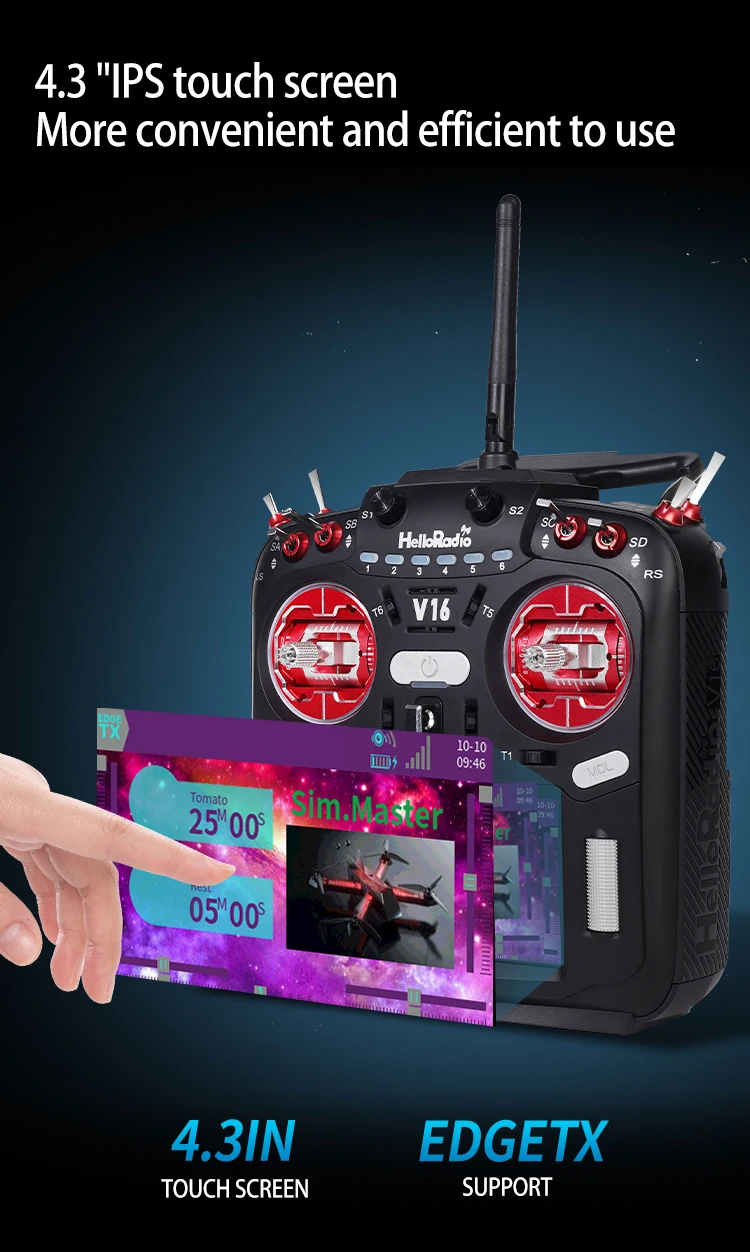

Display: 4.3-inch IPS full-color touch screen with a resolution of 480 * 272

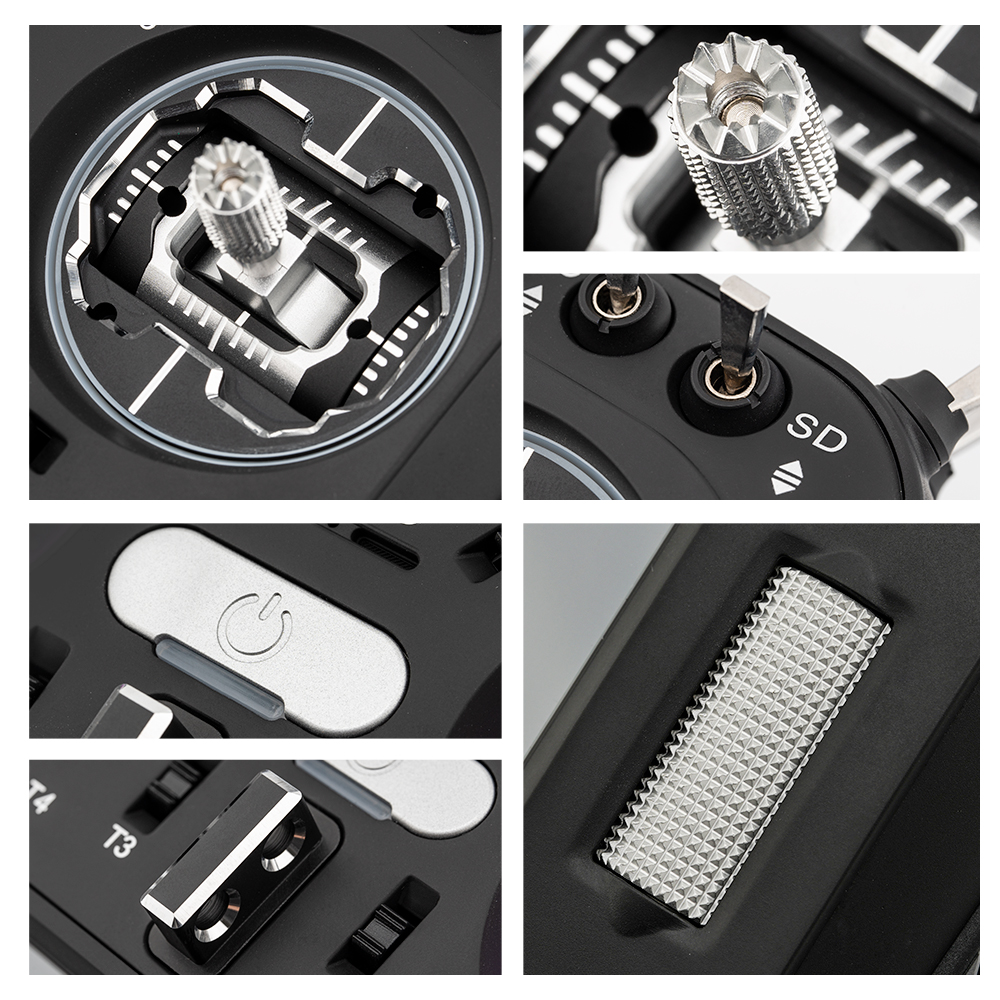

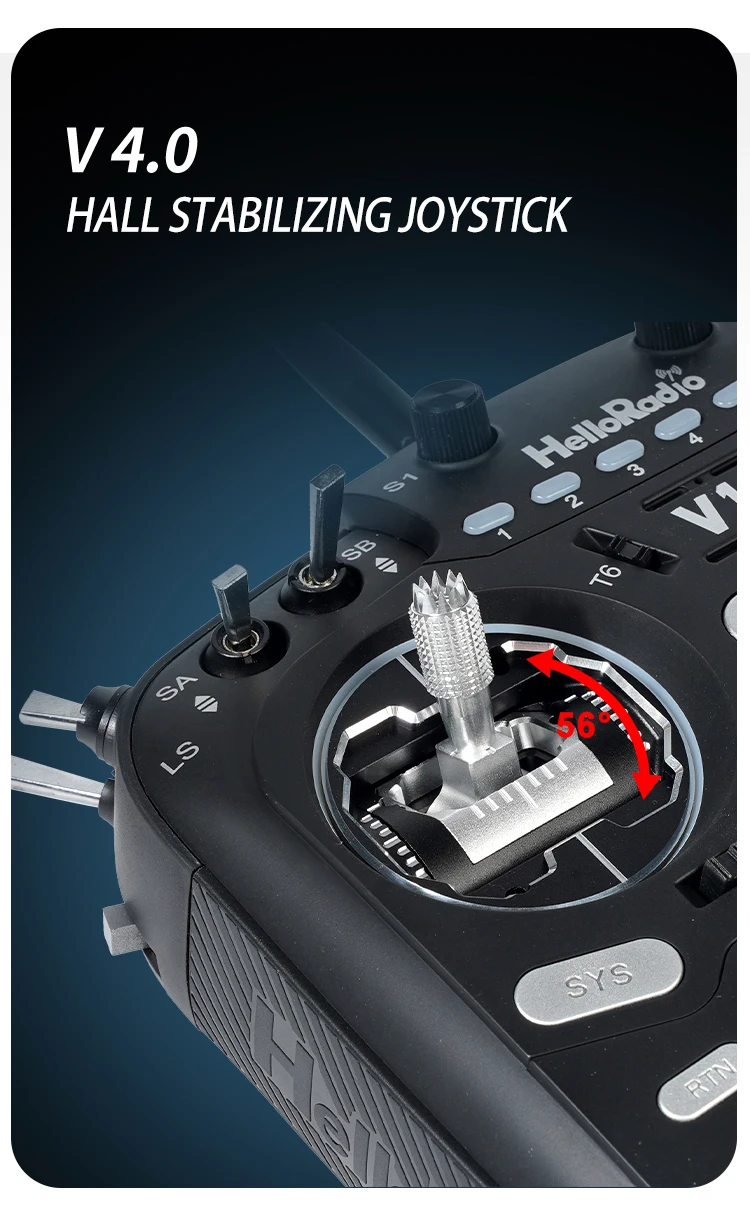

Joystick: 3D Hall joystick
Upgrade method: Supports USB online/SD card offline upgrade

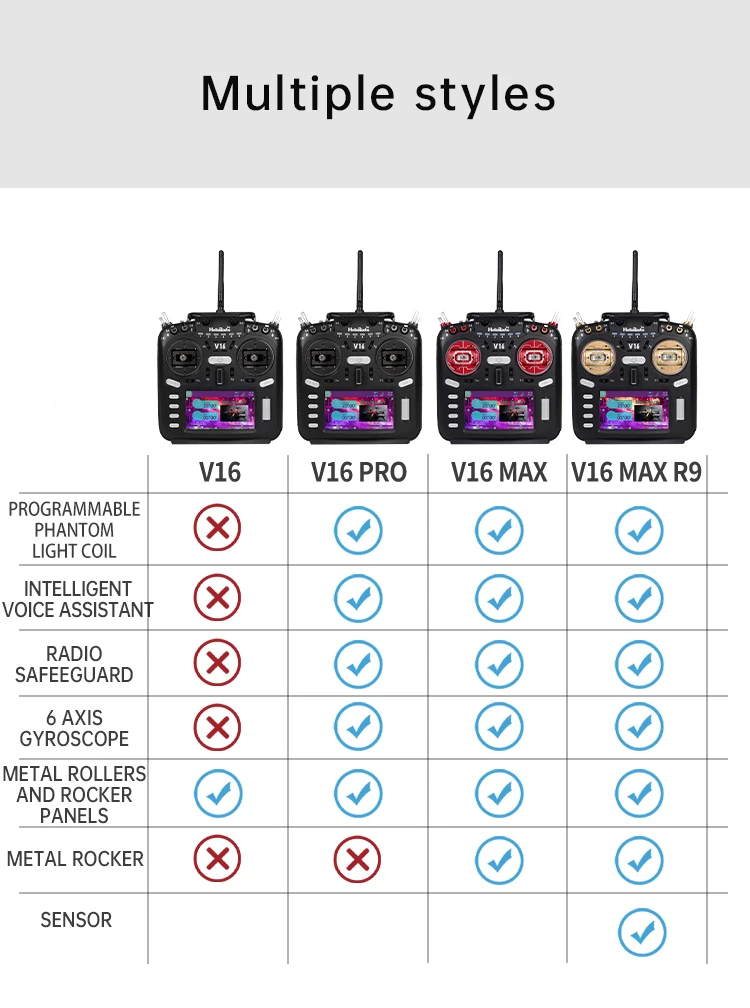

V16 Standard Edition FPV Remote Control option:
Supports EDGTX System
Metal Roller
Metal Panels
V16Max Edition FPV Remote Control option:
Supports EDGTX System
Metal Roller
Metal Panels
Metal Rocker
Programmable Intelligent Aperture
Intelligent Voice Assistant
Remote Control Security Guard
6-axis Gyroscope

V16Pro Edition FPV Remote Control option:
Supports EDGTX System
Metal Roller
Metal Panels
Programmable Intelligent Aperture
Intelligent Voice Assistant
Remote Control Security Guard
6-axis Gyroscope
