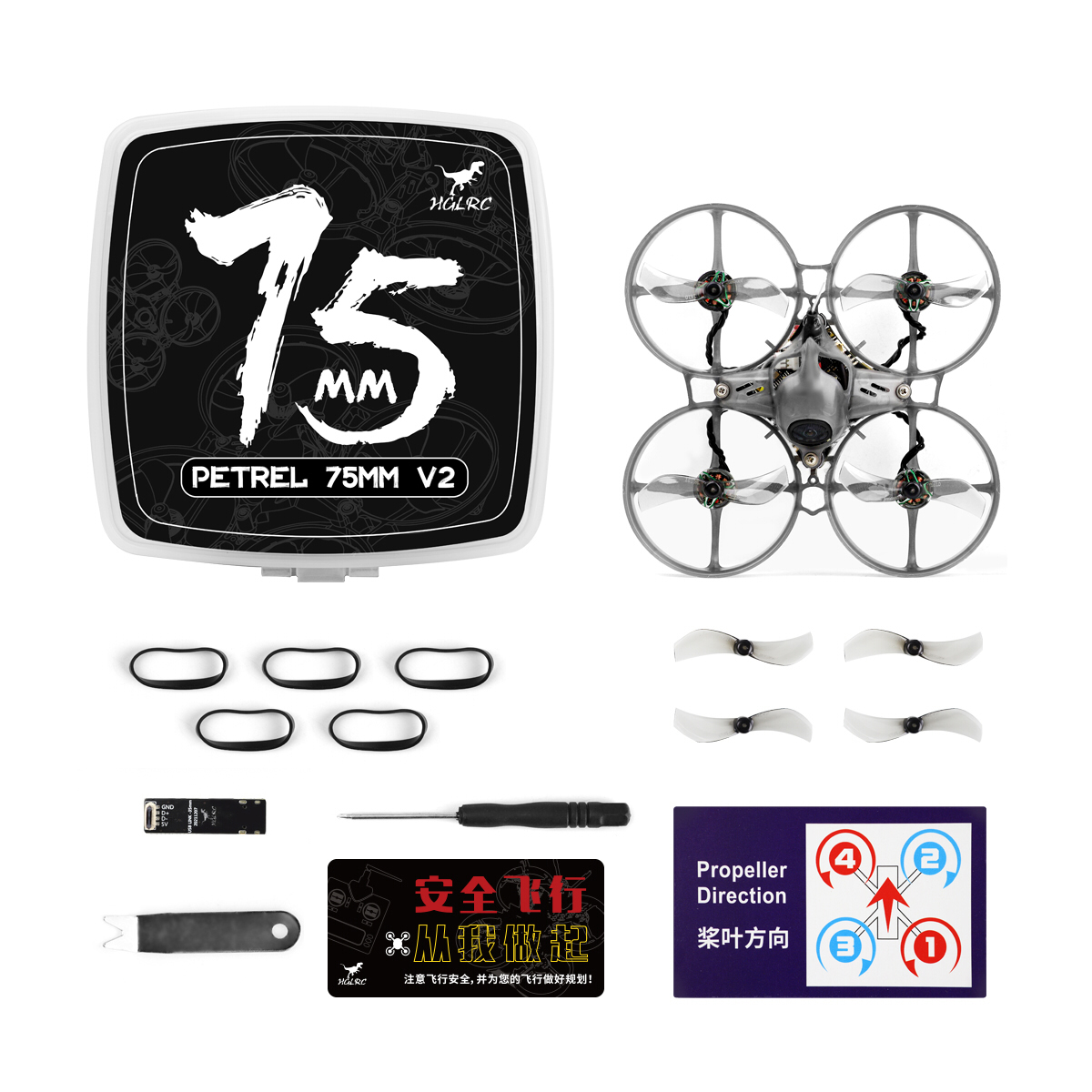

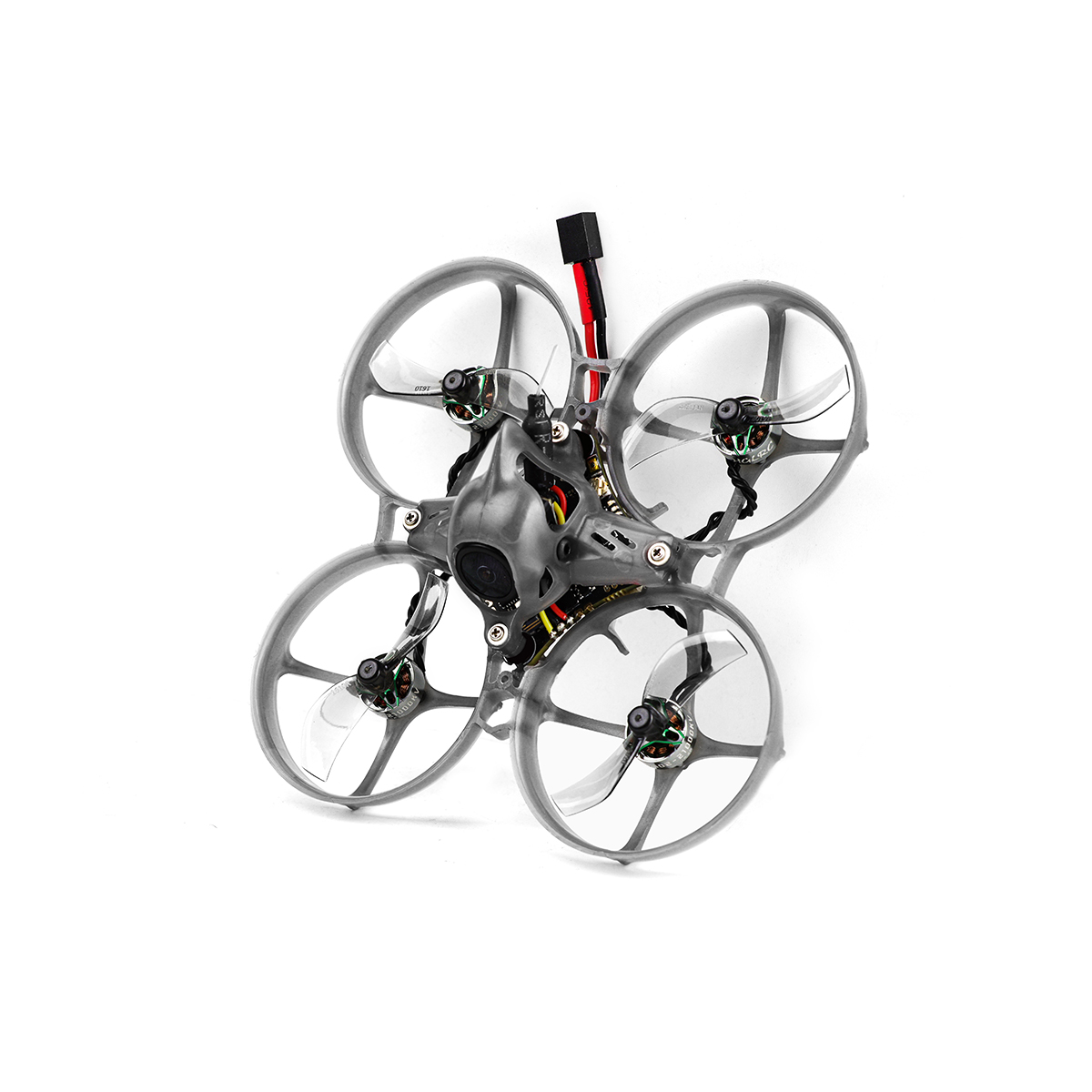

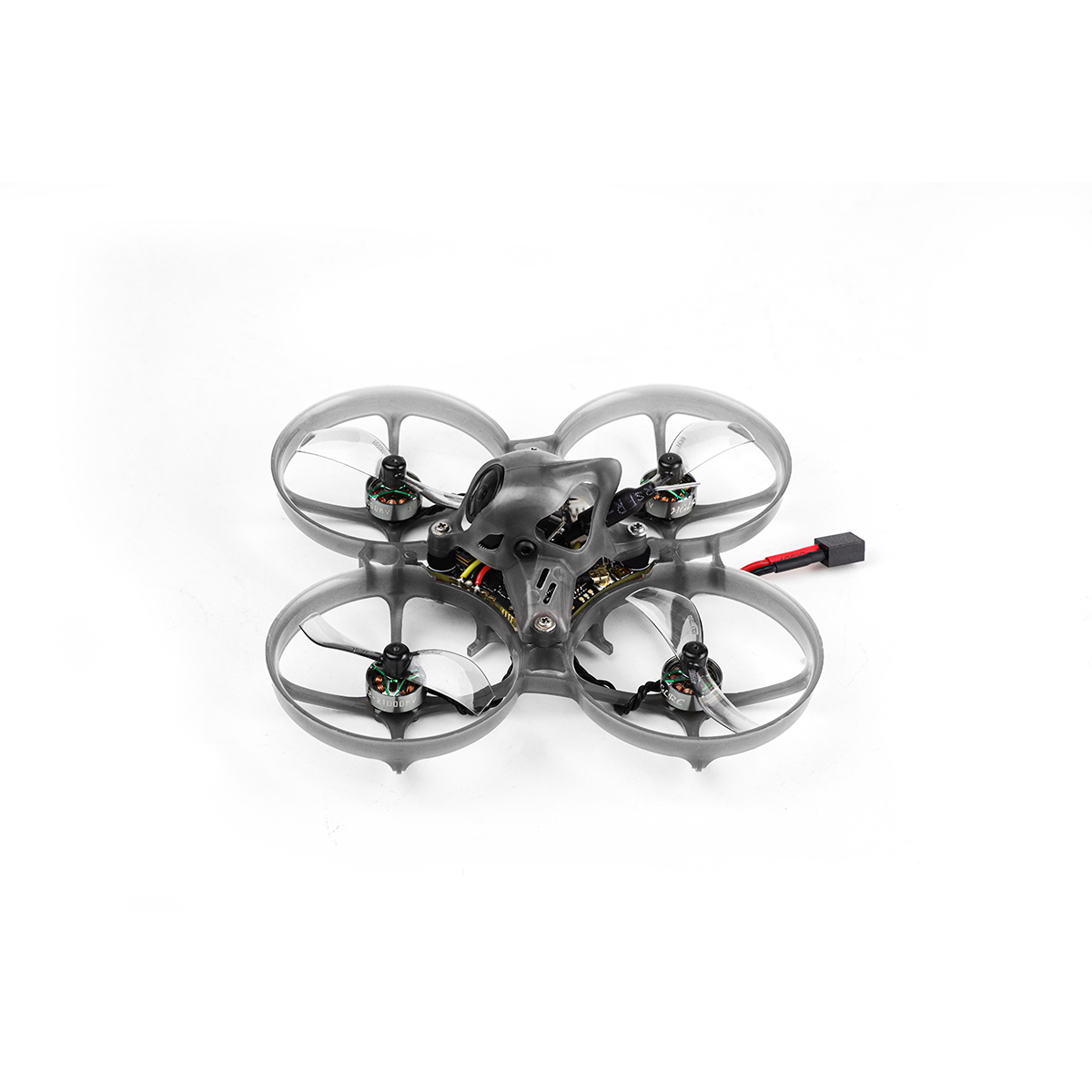

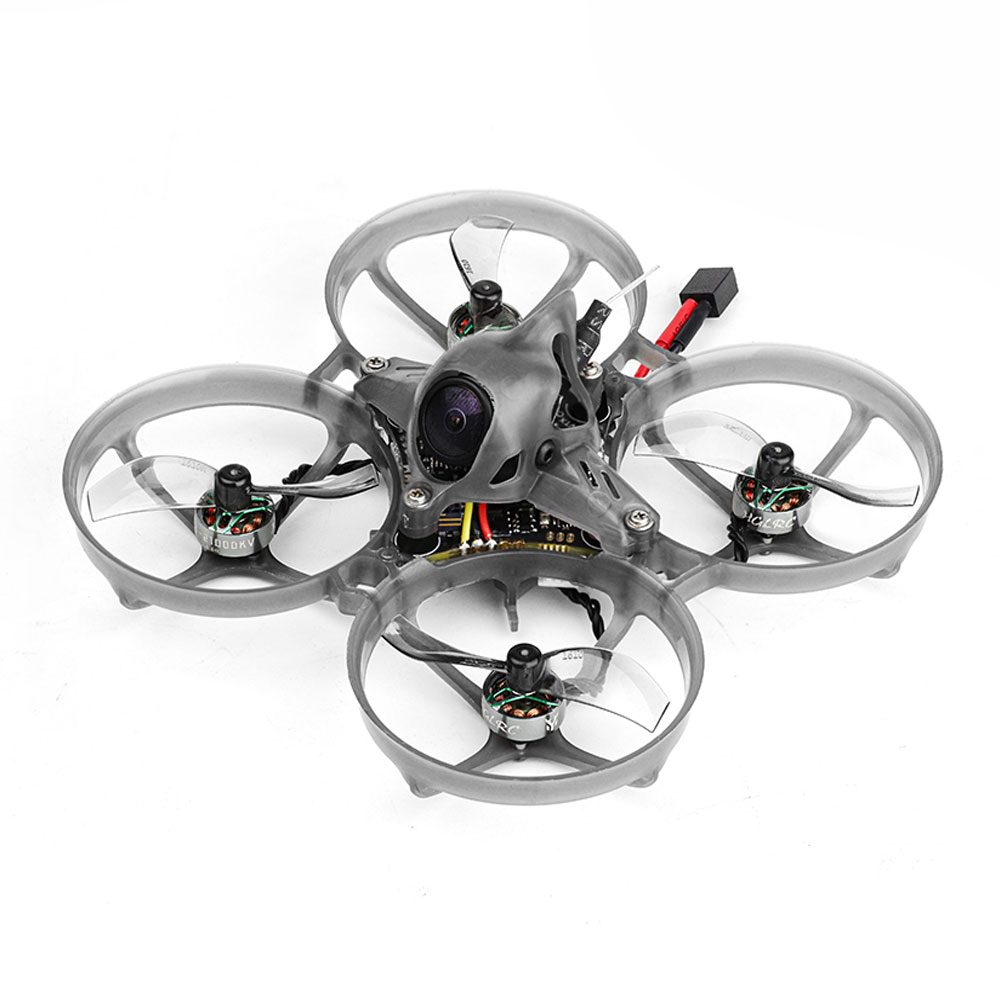

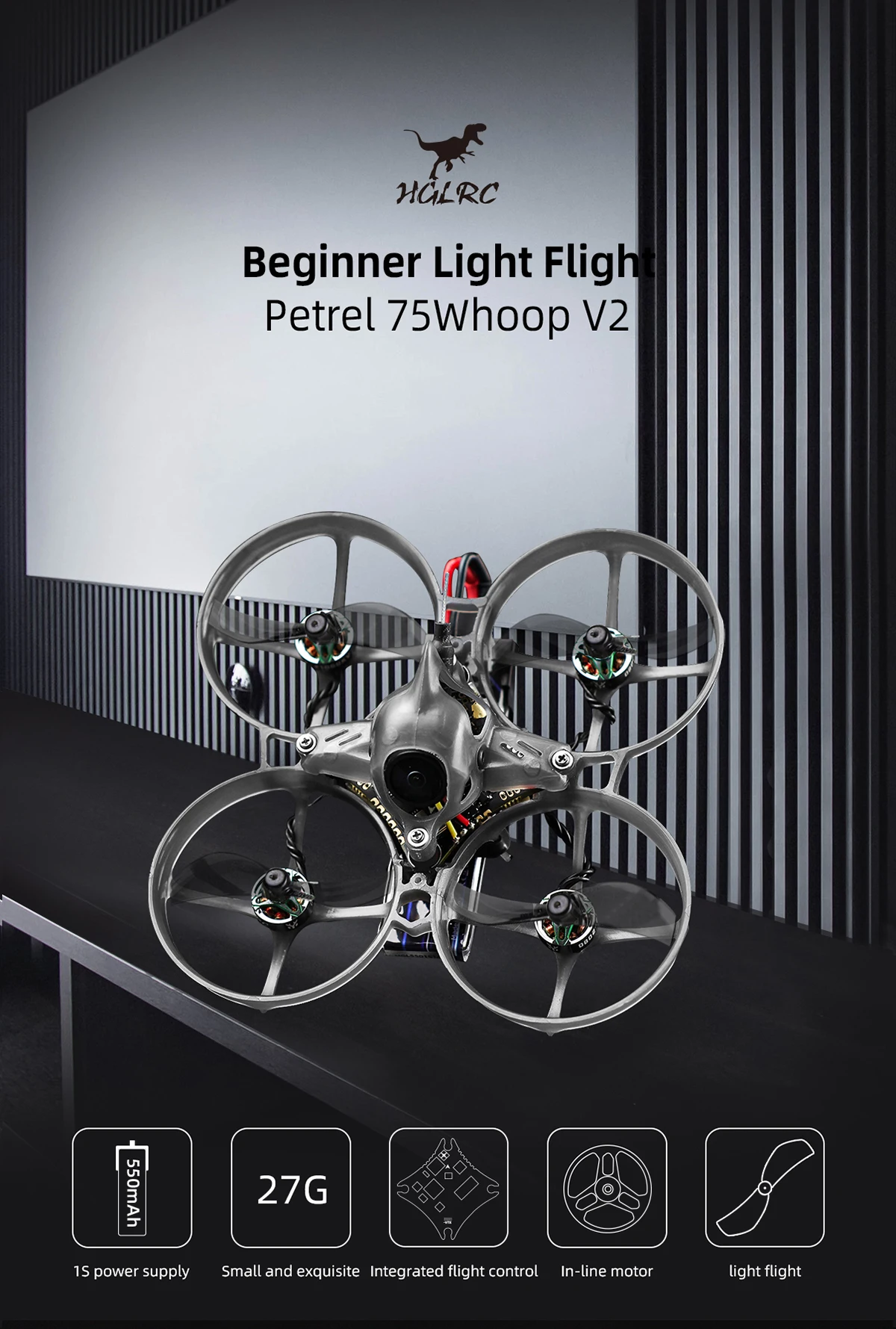

HGLRC Petrel 75Whoop V2 Brushless Motor Indoor FPV Drone Tinywhoop Quadcopter

Product Name: HGLRC Petrel 75Whoop V2

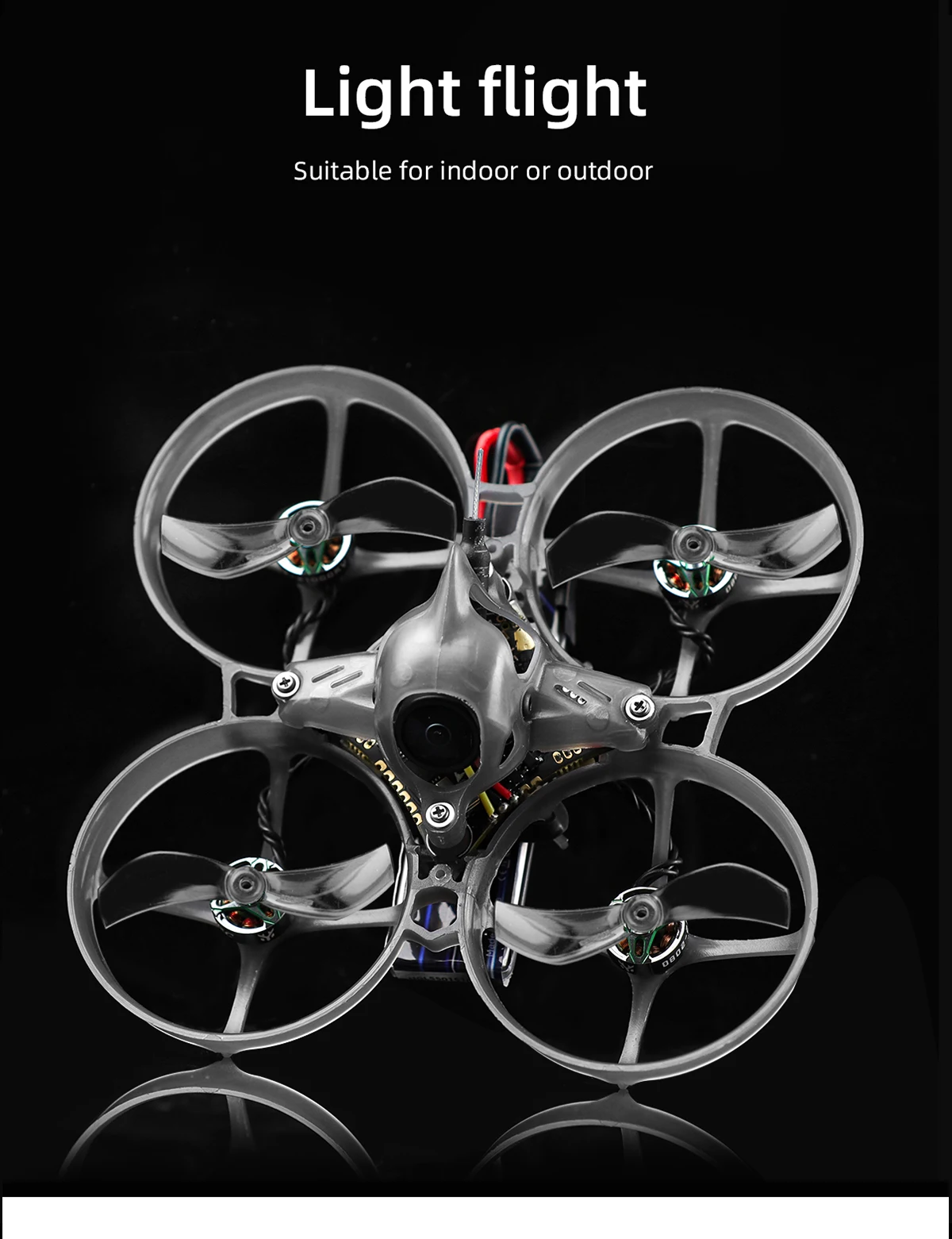

• Description: A four-axis 1S brushless motor indoor FPV beginner drone, suitable for indoor or outdoor light flying.
• Flight Controller: New SPECTER 10A 5-in-1 integrated flight control with 4-way ESC, flight control, image transmission, and ELRS receiver.
• Camera: RunCam nano4 lens for clear and sharp images.
• Video Transmission: Onboard 400mw analog video transmission with up to 48CH, stable and efficient.

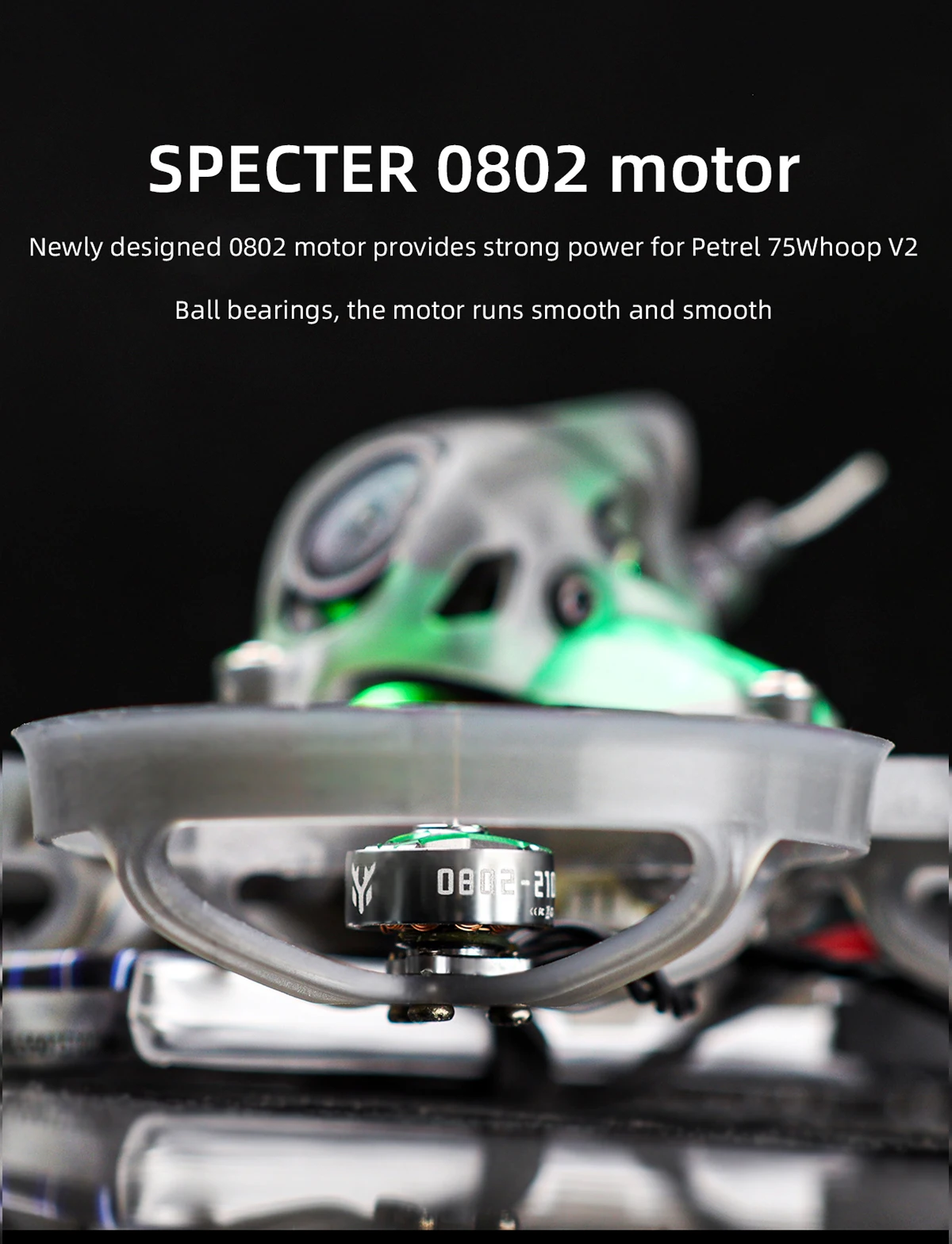

• Motor: Equipped with a new 0802 KV21000 brushless motor as standard, with strong power.
• Propeller: Comes with Gemfan 1610 two-blade propeller for silky flight.

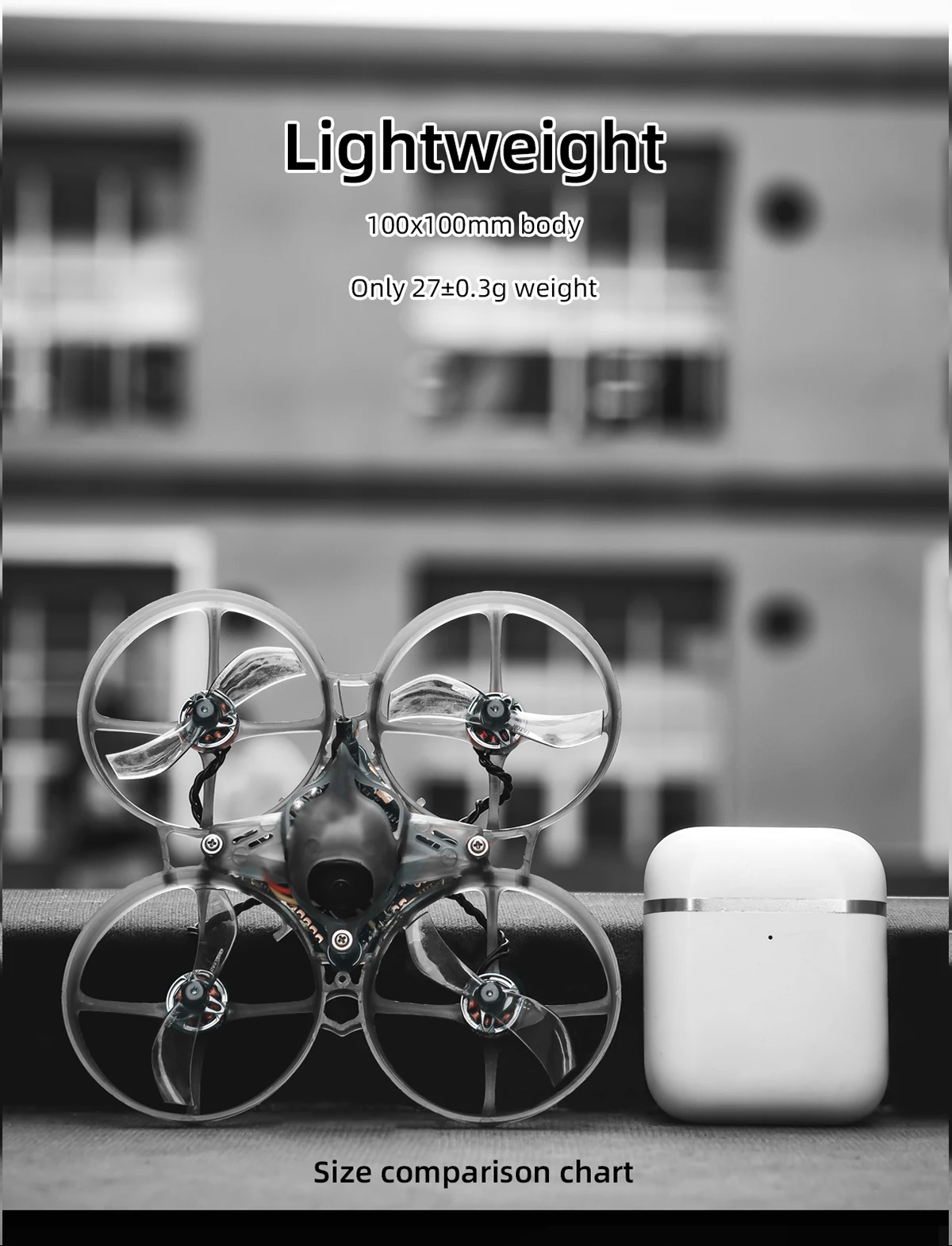

• Weight: Lightweight, approximately 30g, with a single battery lasting about 5 minutes.
• Motor Mounting: In-line motor for more convenient assembly without welding.

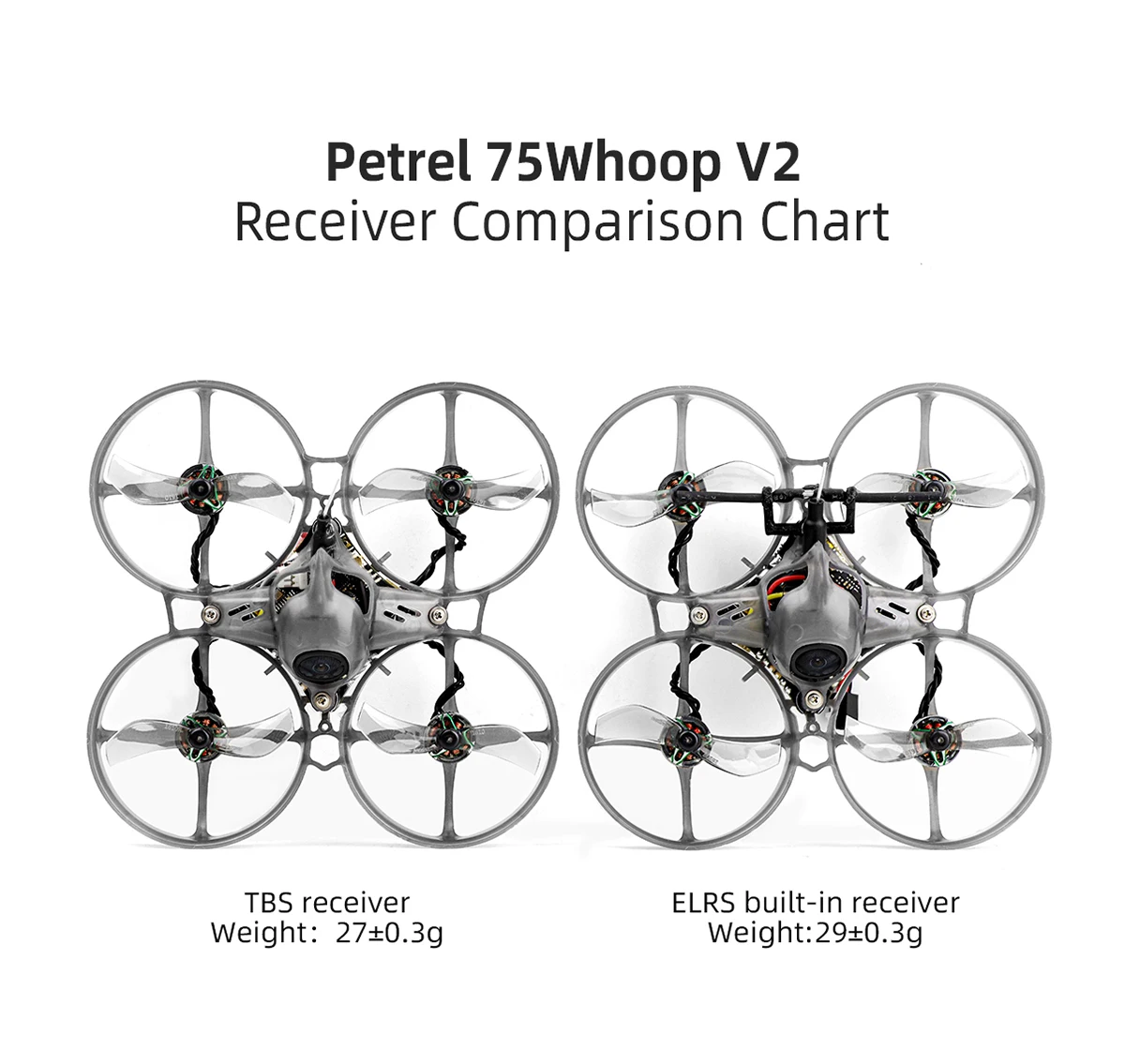

• Receiver: Onboard SPl ELRS3.0 receiver (optional), with built-in antenna, external tbs receiver, and customized miniature T-shaped antenna to reduce weight.

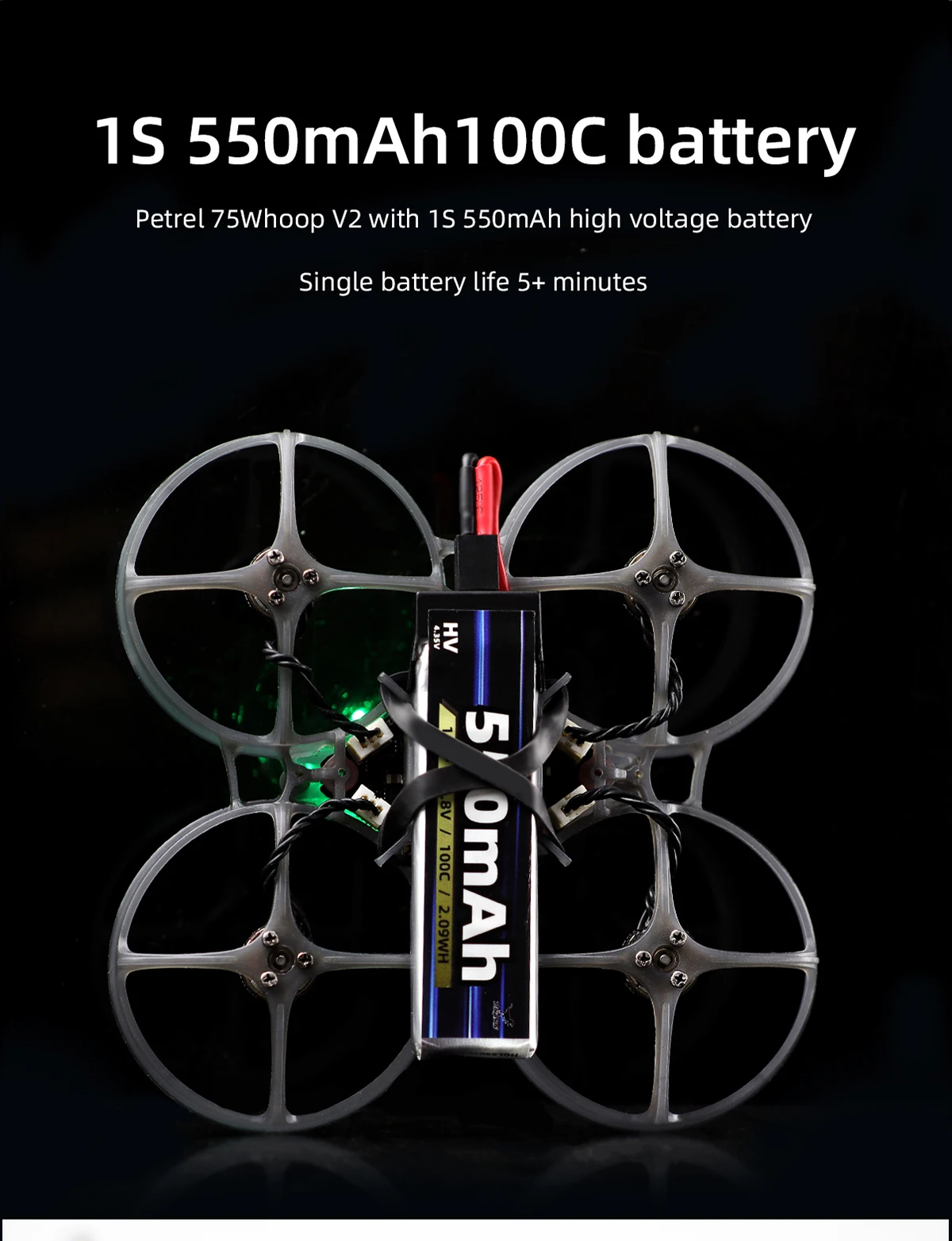

• Battery Recommendation: 1S: 450mAh-550mAh high-voltage battery, with the drone battery plug being A30 plug.

Note: SPI receiver does not support D (D250, D500), F (F500, F1000), Full Res (100Hz Full Res, 333Hz Full Res). If using an ELRS TX module and cannot get the frequency up, please set the Tx module PacketRate option to 50HZ-500HZ, and do not set the mode starting with D/F.

Drone Parameters:

• Frame: Petrel 75Whoop V2 frame
• Flight Controller: SPECTER 10A AIO
• MCU: STM32F411
• GYRO: BMI270
• Built-in Receiver: SPI ExpressLRS2.4G
• Built-in Image Transmission: 0-RCE-25-100-400mW (adjustable)
• Onboard ESC: Continuous current: 10A, Peak current: 13A (10s)
• ESC Protocol: Dshot600, Oneshot, Multishot
• ESC Firmware: Z_H_30/(Bluejay)
• Flight Control Firmware: HGLRCF411SX1280 V2
• Flight Control Input Voltage: 1S 3.7v-7.4v (Lipo)
• Mounting Hole: 25.5X25.5mm.M2
• Motor: SPECTER 0802 21000kv motor
• Propeller: Gemfan1610 two-blade propeller
• ELRS Version Weight: 27±1g
• TBS Version Weight: 29±1g
