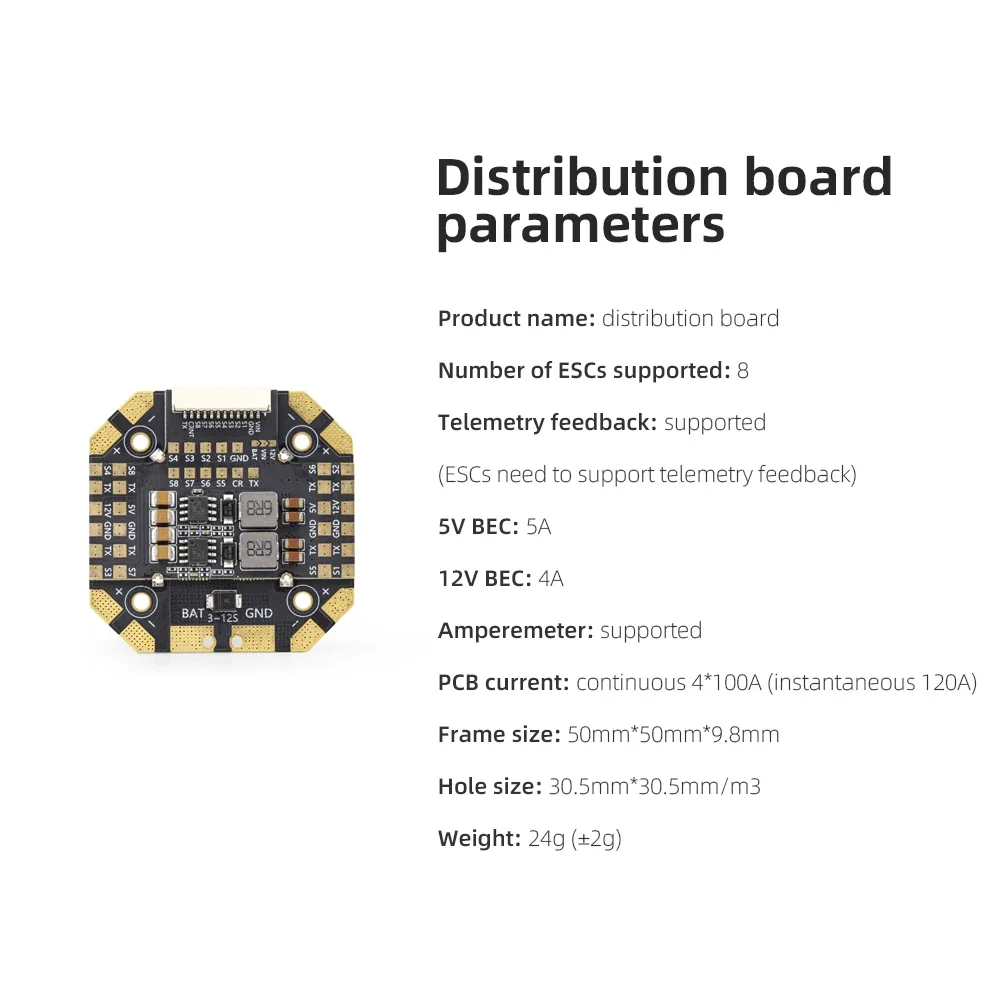

Distribution Board Parameters
Product name: distribution board
Number of ESCs supported:8
Telemetry feedback: supported
(ESCs need to support telemetry feedback)
5V BEC: 5A
12V BEC: 4A
Amperemeter: supported
PCB current: continuous 4*100A (instantaneous 120A)

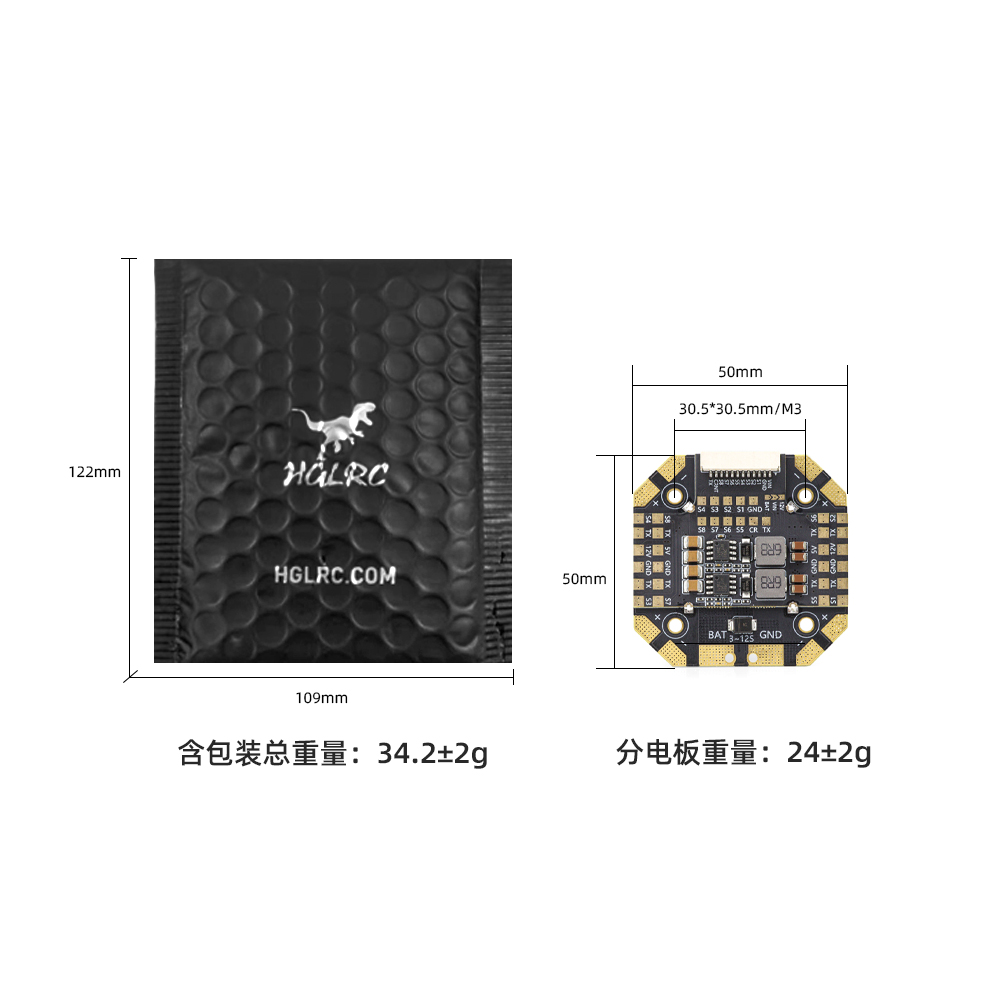

Frame size:50mm*50mm*9.8mm
Hole size:30.5mm*30.5mm/m3
Weight: 24g (±2g)
