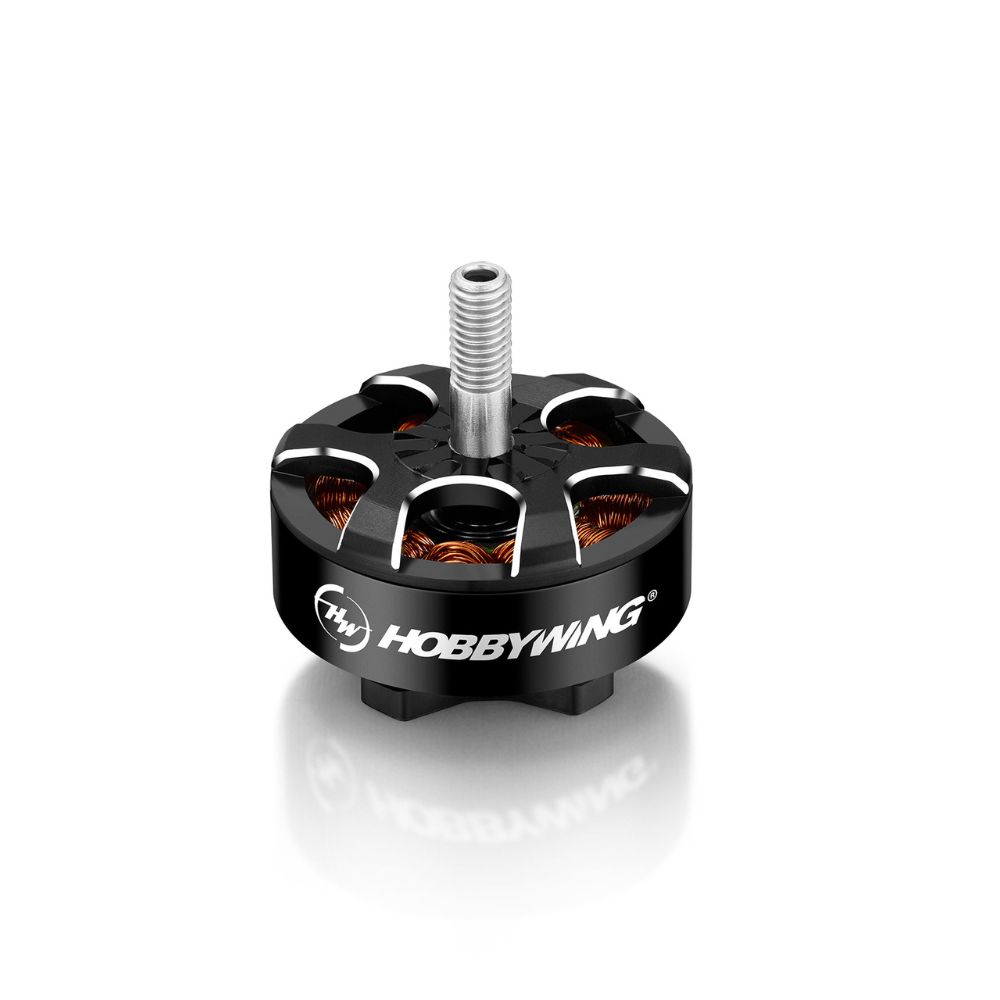

The Hobbywing 2807 FPV Brushless Motor is available in 900KV, 1100KV, and 1300KV options, delivering powerful, efficient performance for FPV drones. Engineered for reliability, this motor ensures smooth operation and optimal flight stability for hobbyists and professionals alike.

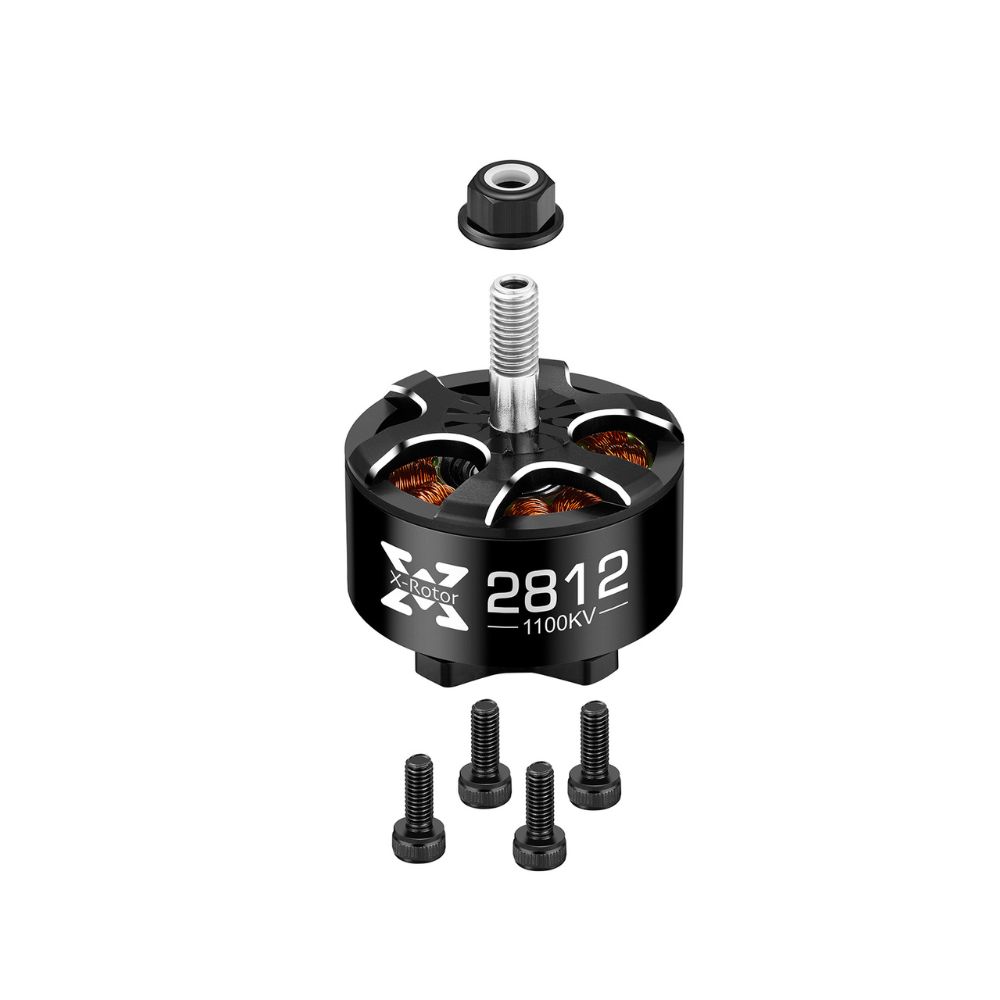

| Model |
| |
XRotor 2812 900KV |
XRotor 2812 1100KV |
|
| Specifications |
| Product Number |
30418003 |
30418004 |
| KV Rating |
900KV |
1100KV |
| LiPo Cells（LiPo） |
4-6S |
4-6S |
| No-Load Current |
1.5A/24V |
1.88A/24V |
| Maximum Continuous Current |
49.6A/9s |
64.1A/10s |
| Maximum Continuous Rating |
1191W/9s |
1538W/10s |
| Maximum Thrust |
3355g |
3722g |
| Motor Weight |
83.4g |
83.8g |
| Motor Size |
Φ34x25.5mm |
Φ34x25.5mm |
| Slot/Pole |
12N14P |
12N14P |
| Wire Size |
18AWG |
18AWG |
| Wire Length |
250mm |
250mm |
| Enamelled Wire Insulation Class |
220℃ High temperature Resistant, H Class insulation |
220℃ High temperature Resistant, H Class insulation |
| Internal Resistance |
63.9mΩ |
46.6mΩ |
| Shaft Diameter |
D5+M5 |
D5+M5 |
| Shaft Length |
15mm |
15mm |
| Screw Diameter / Thread |
Φ19mm-4xM3 |
Φ19mm-4xM3 |
|
Recommended
Props/ESCs |
| Recommended ESC |
XRotor FPV G2 65A 4in1 ESC |
XRotor FPV G2 65A 4in1 ESC |
| Propeller |
4-6S:HQ8x4.5x3;
HQ9x5x3 |
4-6S:HQ8x4.5x3 |
|

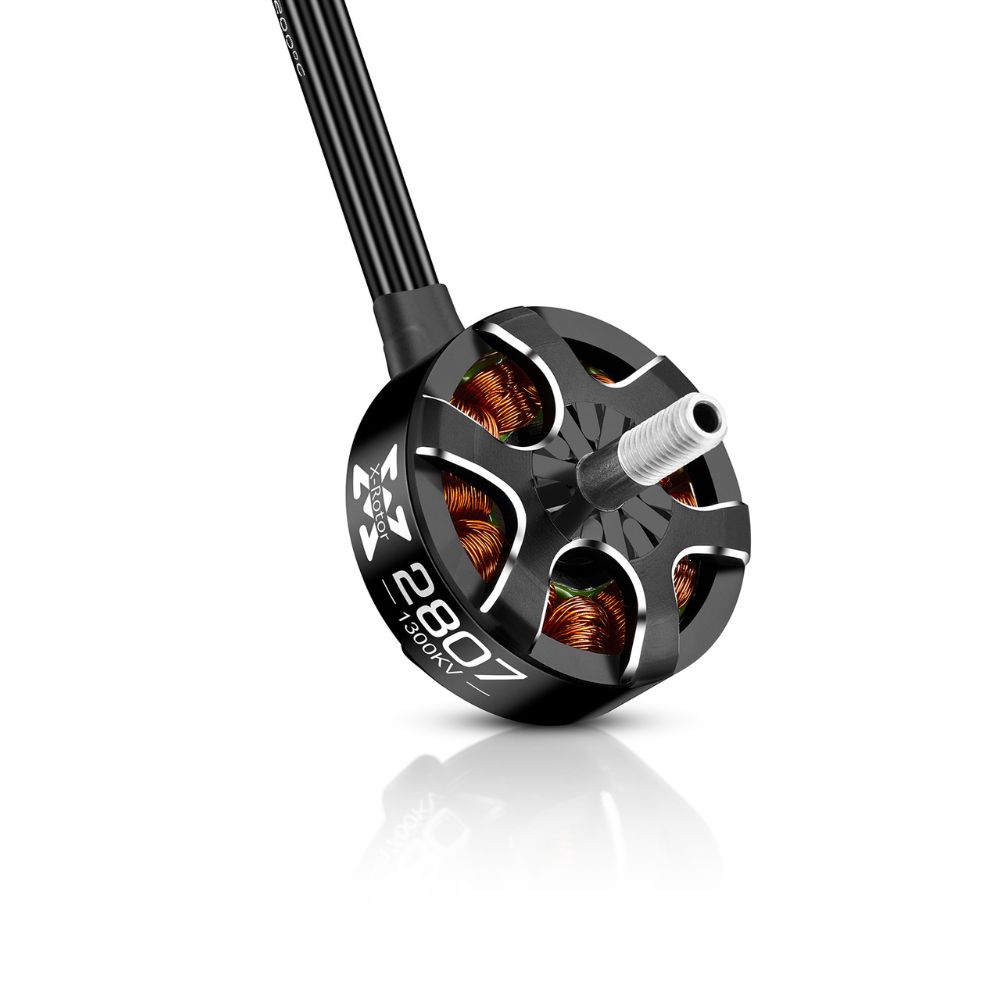

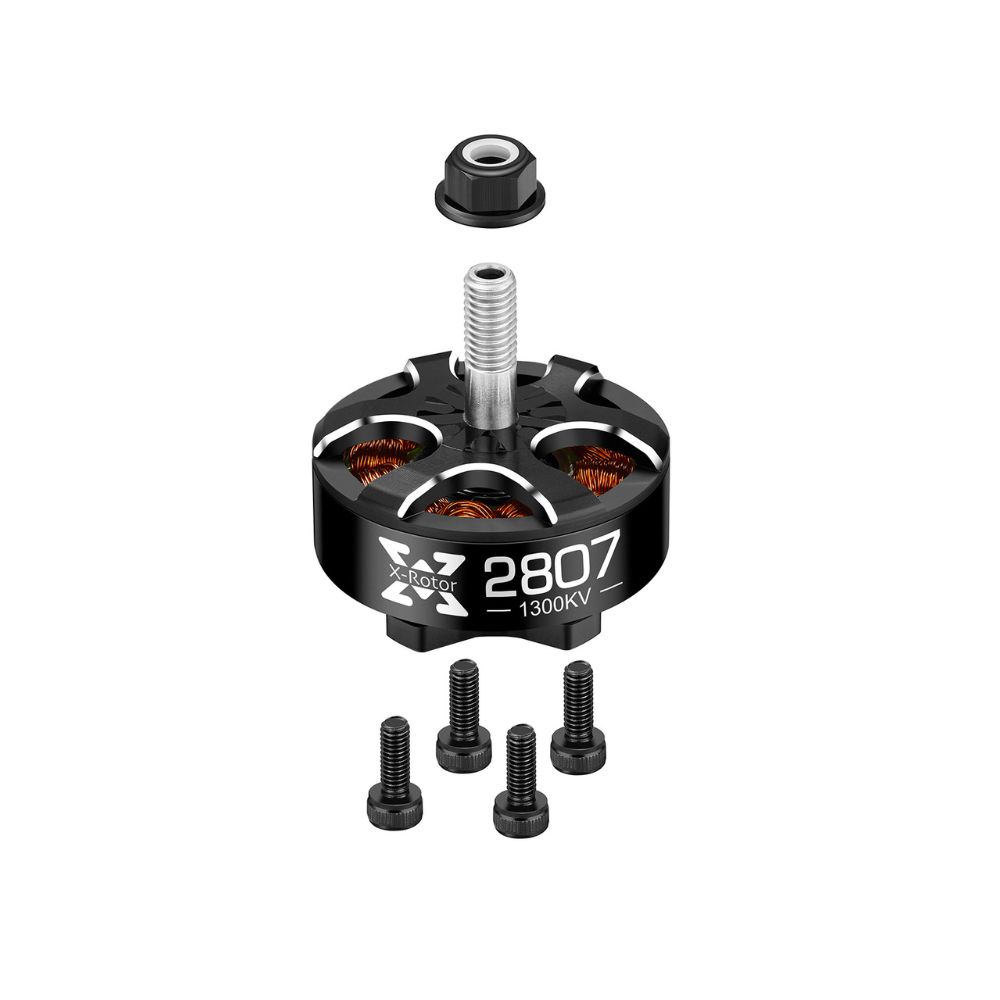

| Model |
| |
XRotor 2807 1300KV |
XRotor 2807 1500KV |
XRotor 2807 1700KV |
|
| Specifications |
| Product Number |
30418000 |
30418001 |
30418002 |
| KV Rating |
1300KV |
1500KV |
1700KV |
| LiPo Cells（LiPo） |
4-6S |
4-5S |
3-4S |
| No-Load Current |
2A/24V |
2.27A/20V |
2.13A/16V |
| Maximum Continuous Current |
56.7A/6s |
59.5A/7s |
53.9A/13s |
| Maximum Continuous Rating |
1361W/6s |
1195W/7s |
864W/13s |
| Maximum Thrust |
2818g |
2646g |
2205g |
| Motor Weight |
59g |
58.7g |
58.4g |
| Motor Size |
Φ34x20.5mm |
Φ34x20.5mm |
Φ34x20.5mm |
| Slot/Pole |
12N14P |
12N14P |
12N14P |
| Wire Size |
18AWG |
18AWG |
18AWG |
| Wire Length |
200mm |
200mm |
200mm |
| Enamelled Wire Insulation Class |
220℃ High temperature Resistant, H Class insulation |
220℃ High temperature Resistant, H Class insulation |
220℃ High temperature Resistant, H Class insulation |
| Internal Resistance |
53.8mΩ |
43.6mΩ |
37.5mΩ |
| Shaft Diameter |
D5+M5 |
D5+M5 |
D5+M5 |
| Shaft Length |
15mm |
15mm |
15mm |
| Screw Diameter / Thread |
Φ19mm-4xM3 |
Φ19mm-4xM3 |
Φ19mm-4xM3 |
|
Recommended
Props/ESCs |
| Recommended ESC |
XRotor FPV G2 65A 4in1 ESC |
XRotor FPV G2 65A 4in1 ESC |
XRotor FPV G2 65A 4in1 ESC |
| Propeller |
4-6S:HQ7x3.5x3;
HQ7x4x3 |
4-5S:HQ7x3.5x3;
HQ7x4x3 |
3-4S:HQ7x3.5x3;
HQ7x4x3 |
|
