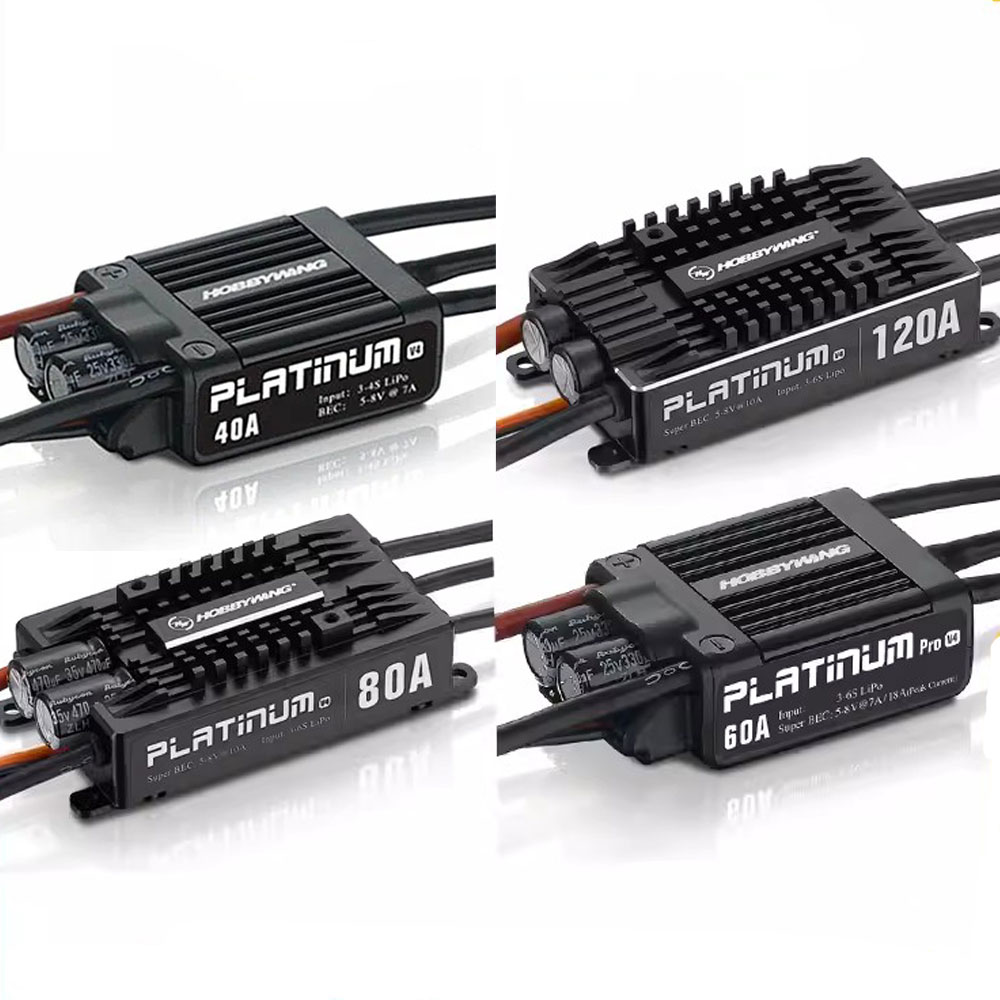

Hobbywing Platinum V4 25A 40A 60A 80A 120A Brushless ESC Electronic Speed Controller 3-6S Lipo Built-in BEC

Parameters:

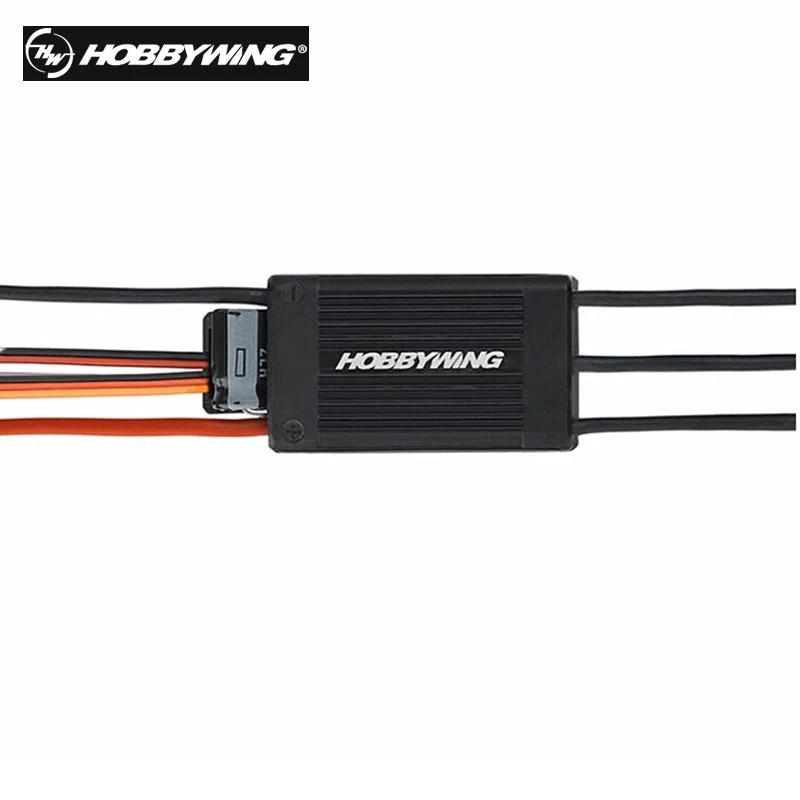

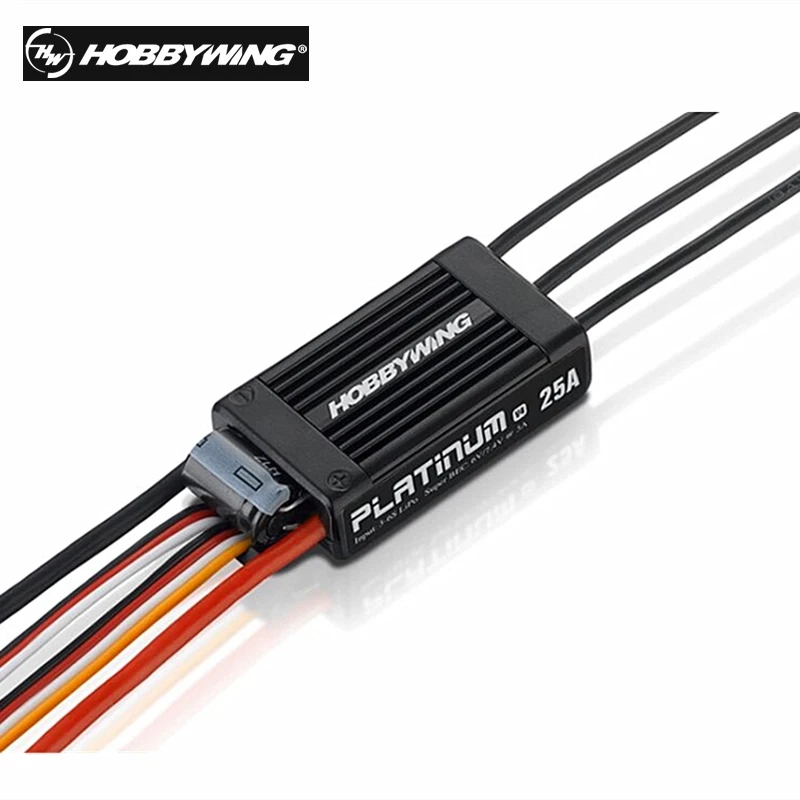

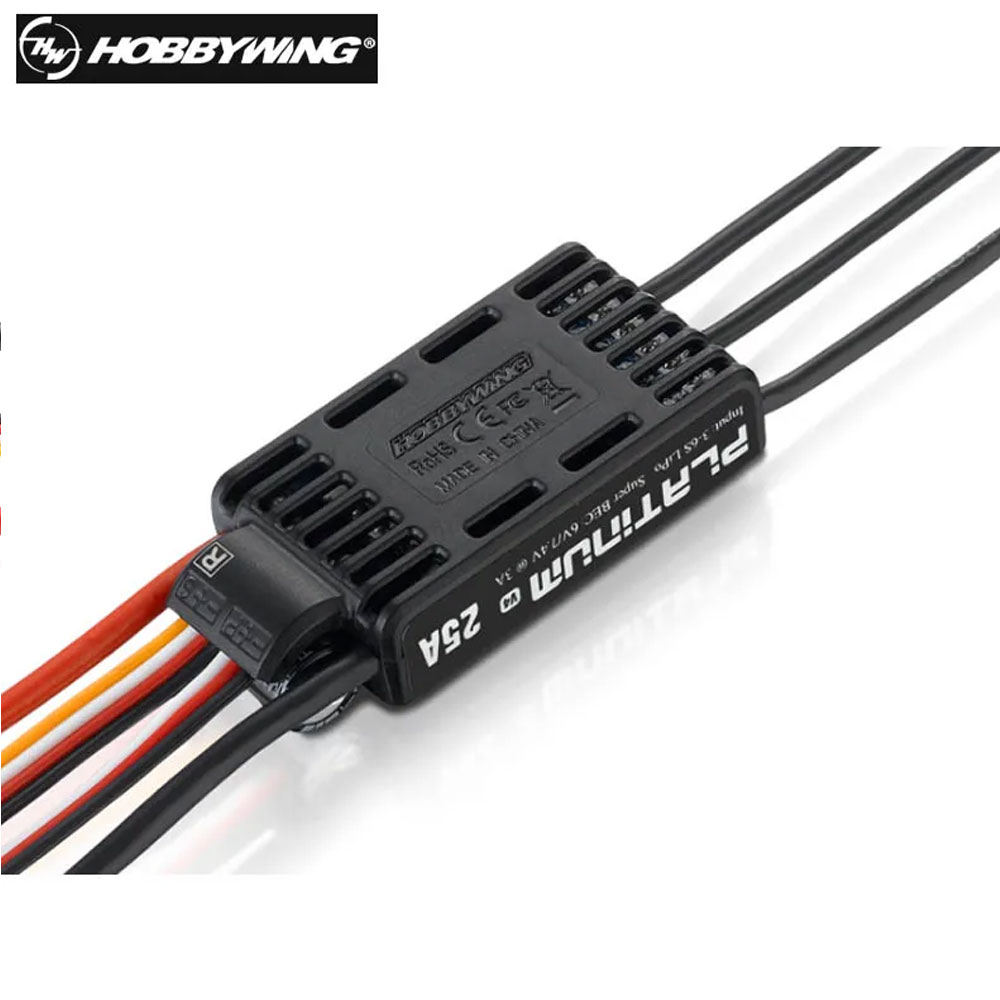

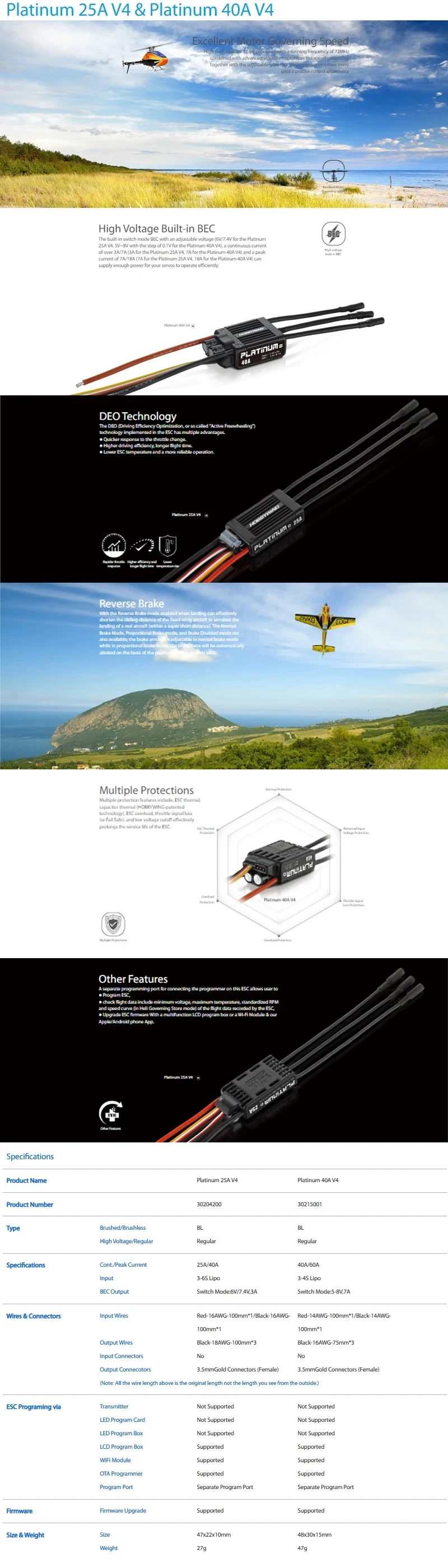

Platinum 25A V4:
Brushed/Brushless: Brushless;
High Voltage/Regular: Regular;
Cont./Peak Current: 25A/40A;
Input: 3-6S Lipo;
BEC Output: Switch Mode 6V/7.4V,3A;
Input Wires: Red-16AWG-100mm*1/Black-16AWG-100mm*1;
Output Wires: Black-18AWG-100mm*3;
Out Connectors: 3.5mm Gold Connectors(Female);
ESC Programing Via: LCD Program Box, WiFi Module, OTA Programmer, Separate Program Port;
Firmware Upgrade: Supported;
Size: 47*22*10 mm;
Weight: 27g;

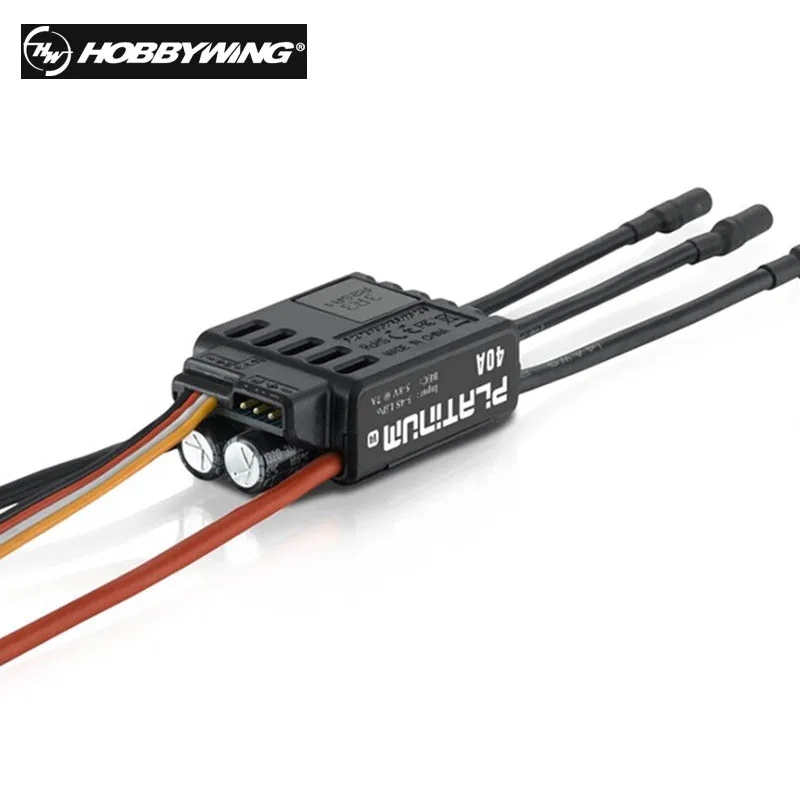

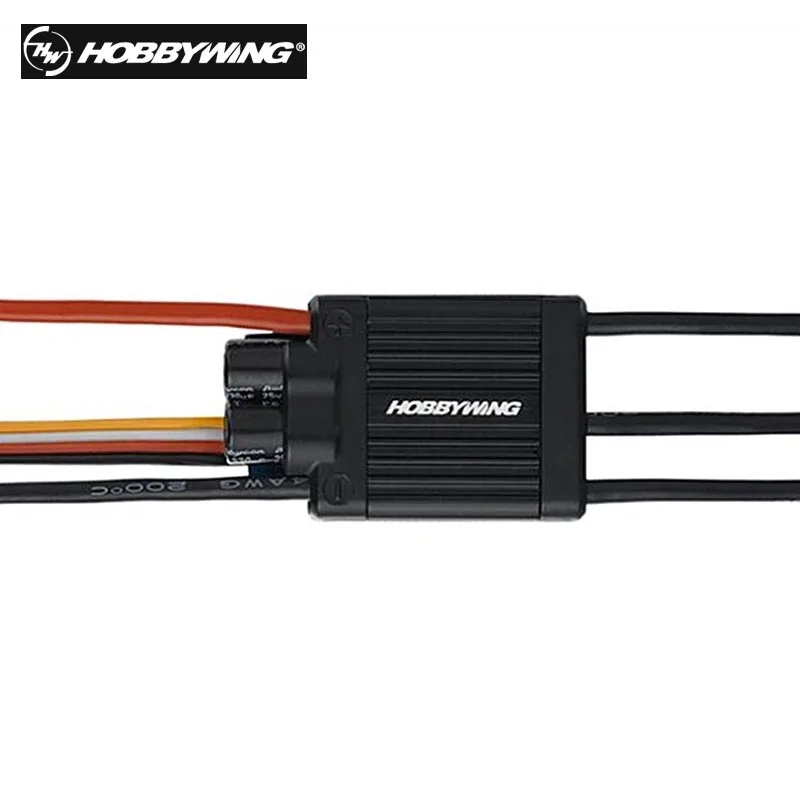

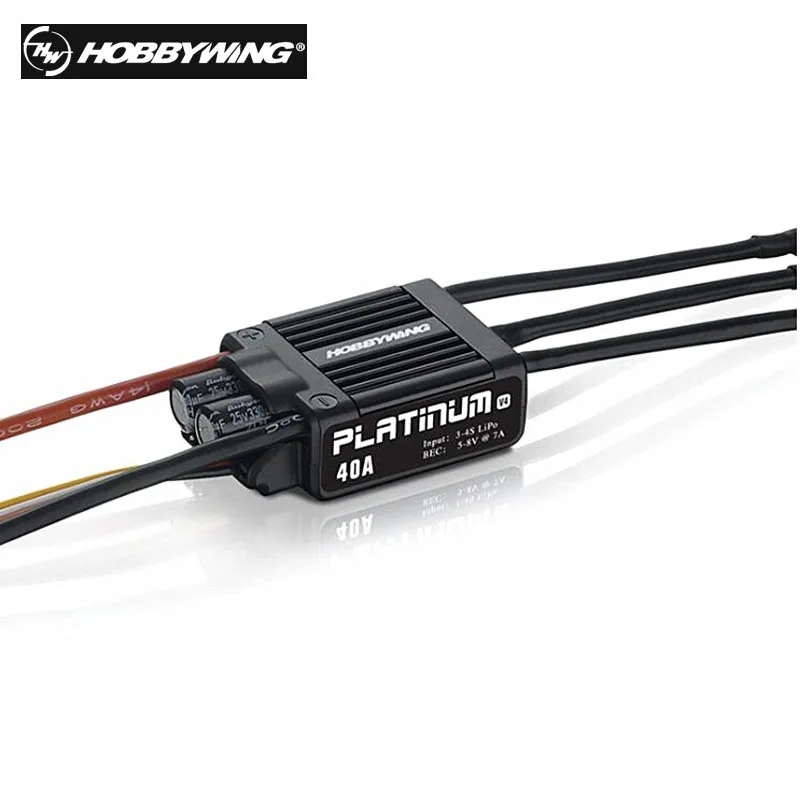

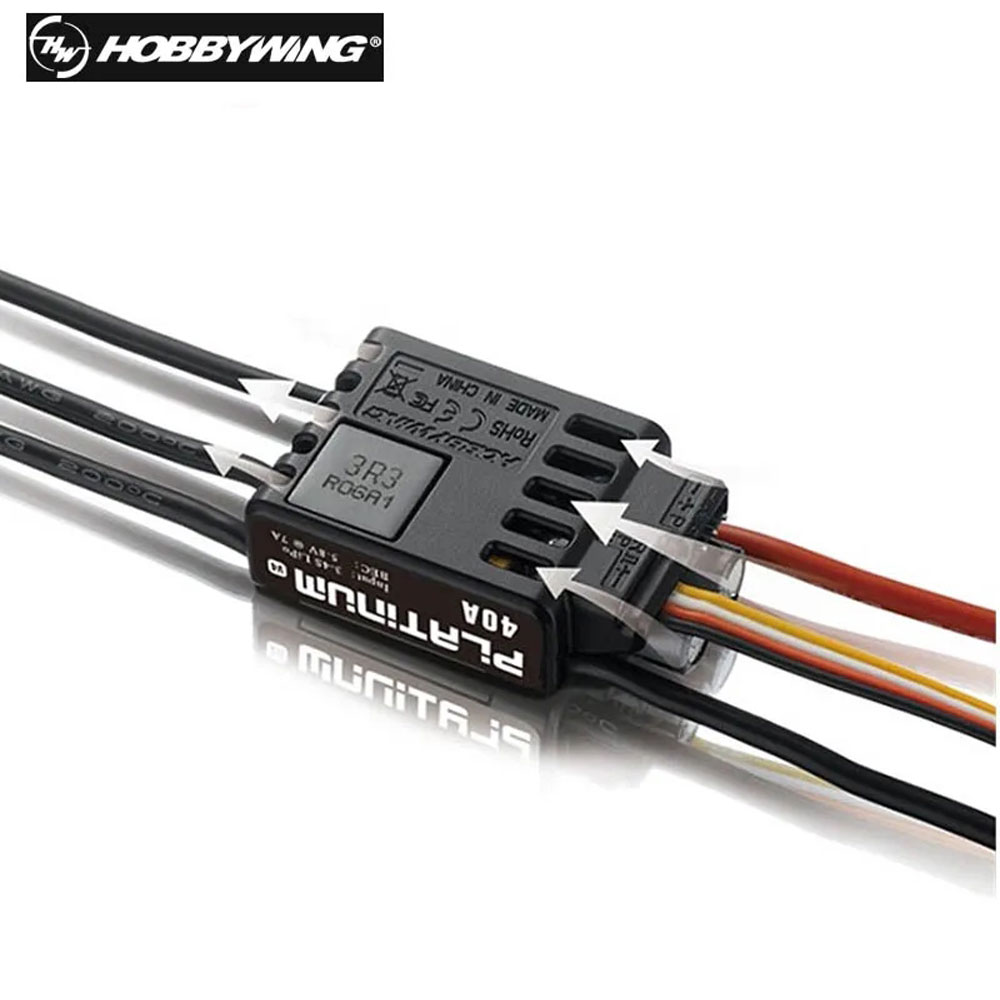

Platinum 40A V4:
Brushed/Brushless: Brushless;
High Voltage/Regular: Regular;
Cont./Peak Current: 25A/60A;
Input: 3-4S Lipo;
BEC Output: Switch Mode 5-8V,7A;
Input Wires: Red-14AWG-100mm*1/Black-14AWG-100mm*1;
Output Wires: Black-16AWG-75mm*3;
Out Connectors: 3.5mm Gold Connectors(Female) ;
ESC Programing Via: LCD Program Box,WiFi Module,OTA Programmer,Separate Program Port;
Firmware Upgrade: Supported;
Size: 48*30*15 mm;
Weight: 47g;

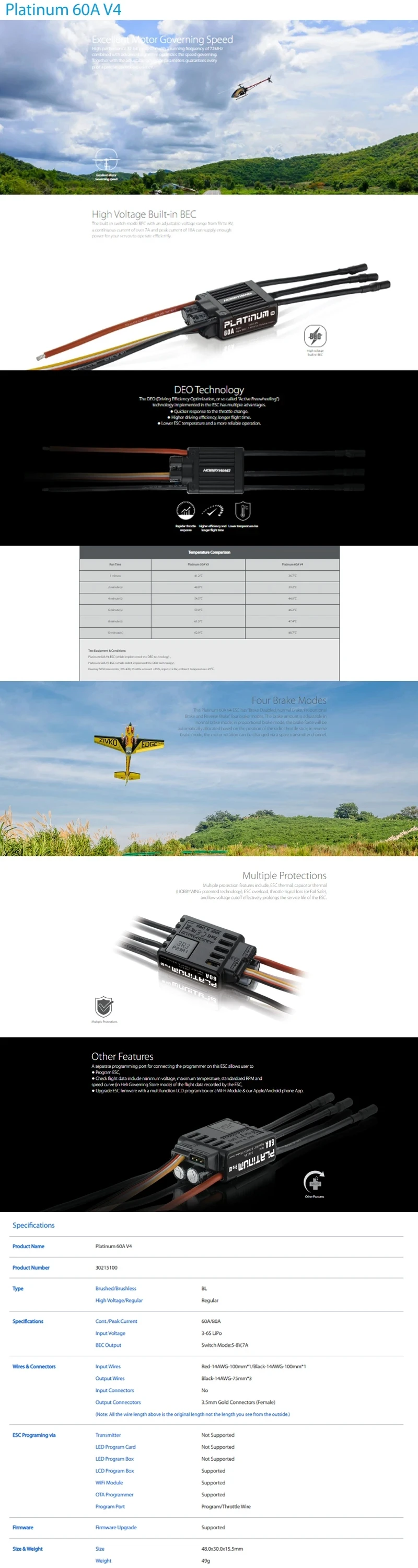

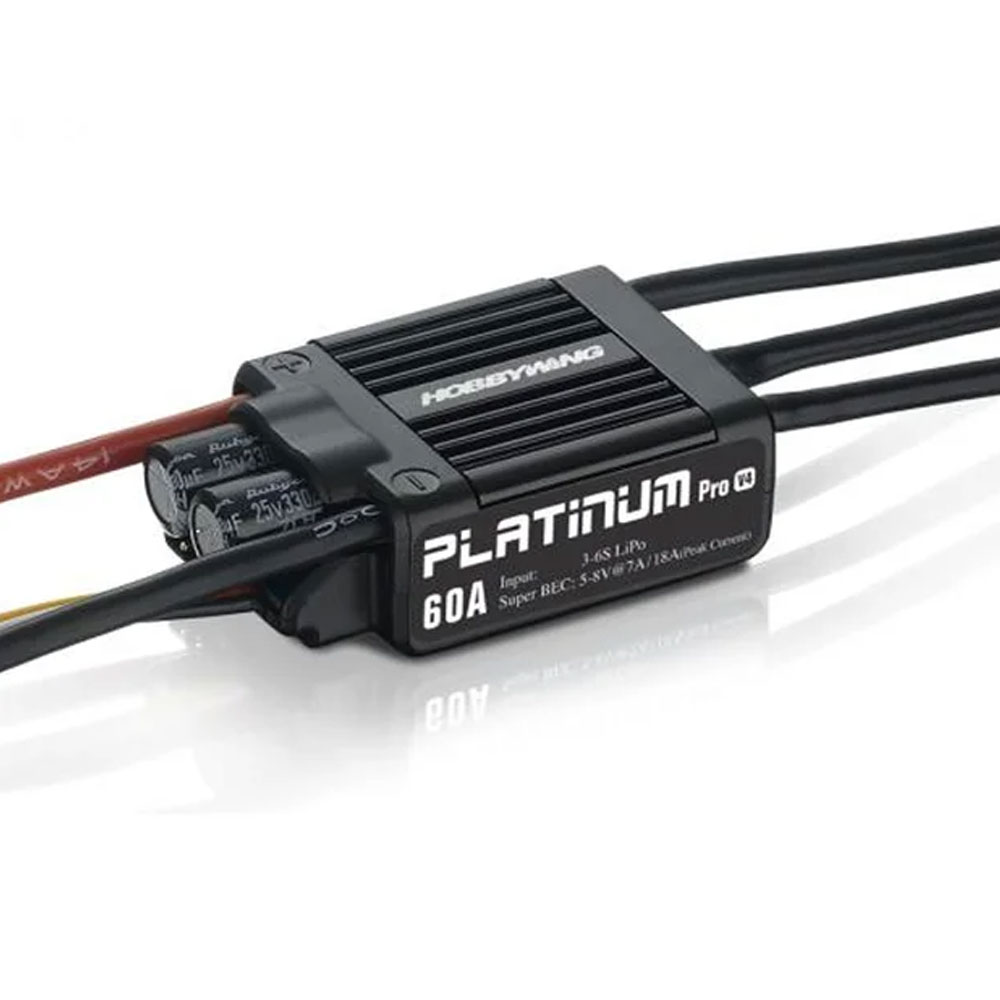

Platinum 60A ESC V4
Heli class 450-480 application (propeller: 325-360mm)
Input voltage 3-6S LiPo
Continuation.  / Maximum current (10s) 60A / 80A
(Switching mode) 5V-8V adjustable (step: 0.1V), 7A / 18 below.  /peak
Separate programming port for connecting the LCD / WIFI Express Program box
Throttle signal / BEC output / RPM signal transmission cables White throttle signal cable / BEC red and black output cables / Yellow RPM signal transmission cable
Input / output wires 14 AWG input / output wires
Weight / size 49g / x 30x48x15.5mm
100% brand new and brand

Platinum 80A ESC V4
Scale: 1 / 10th Brushless Sensored
Cont./max current: 160A / 1200A
Input: 2-3S LiPo / 4-9 NiMH cells
BEC output: rotary mode: 6V / 7.4V, 4A
Input cables: Black-12AWG-200mm x 2
Output Cables: Black-12AWG-200mm x 3
Input connectors: No
Output connectors: No
Size: 25.0x25.0x10.0mm
Voltage range: 5-7.4V
Powered By: Powered By BEC
Configuration button in ESC: Not supported
LED program box: Not supported
LCD program box: supported
WiFi module: supported
Program port: separate program port
Firmware update: supported
Size: 37.5x30.9x31.6mm (w / fan and fan cover)
Weight: 95g (with cables)
Applications: SL BL motors / SD BL motors
Vehicles: 1 / 10th car and Buggy and car and F1;  1 / 8th 1 / 10th Rock Crawler
KV Rating / T count: 2S LiPo / 6S NiMH: (auto) T≥ 3.5 T (Buggy) T≥ 4.5 T
LiPo 3S / 9S NiMH: (auto) T≥ 6.5 T (Buggy) T≥ 8.5 T

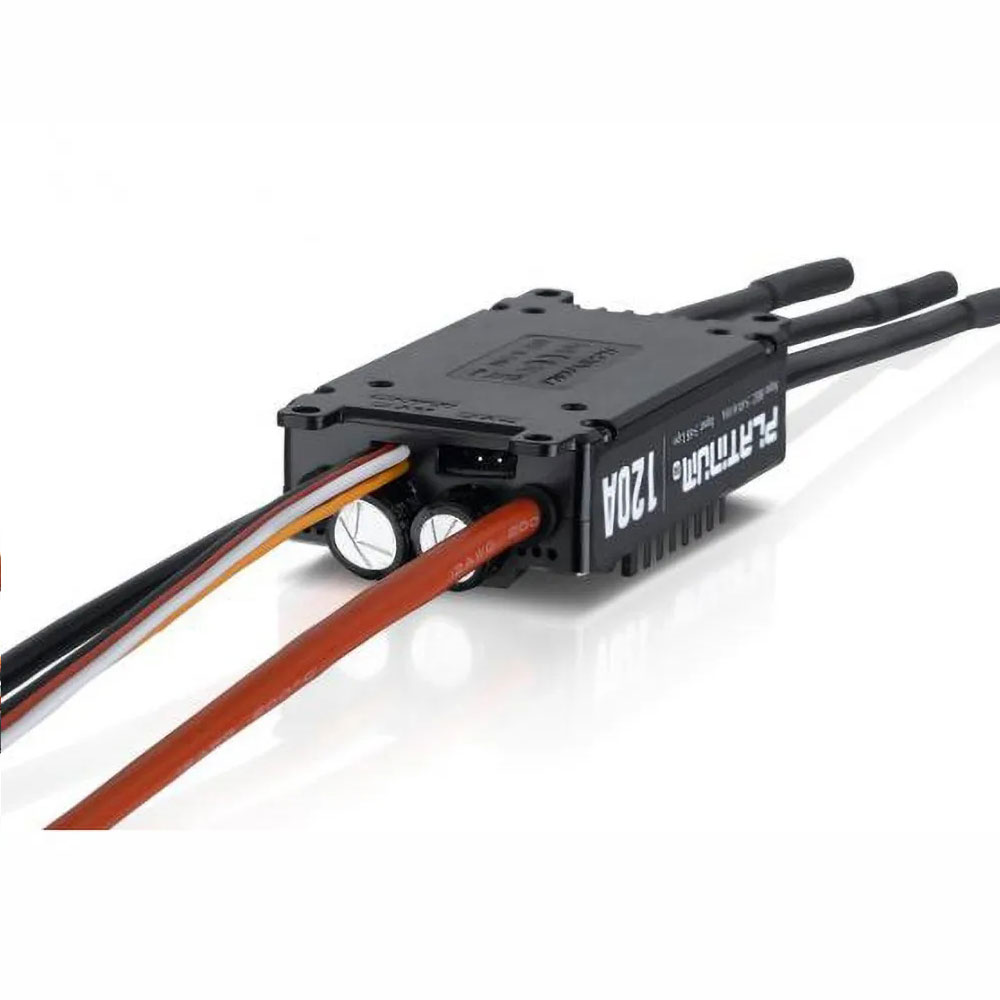

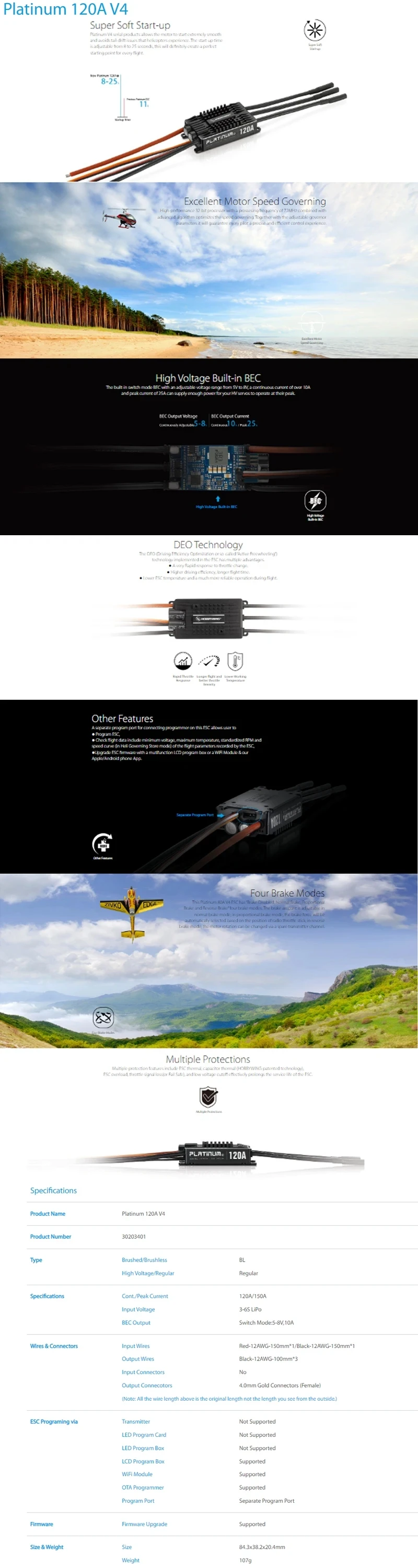

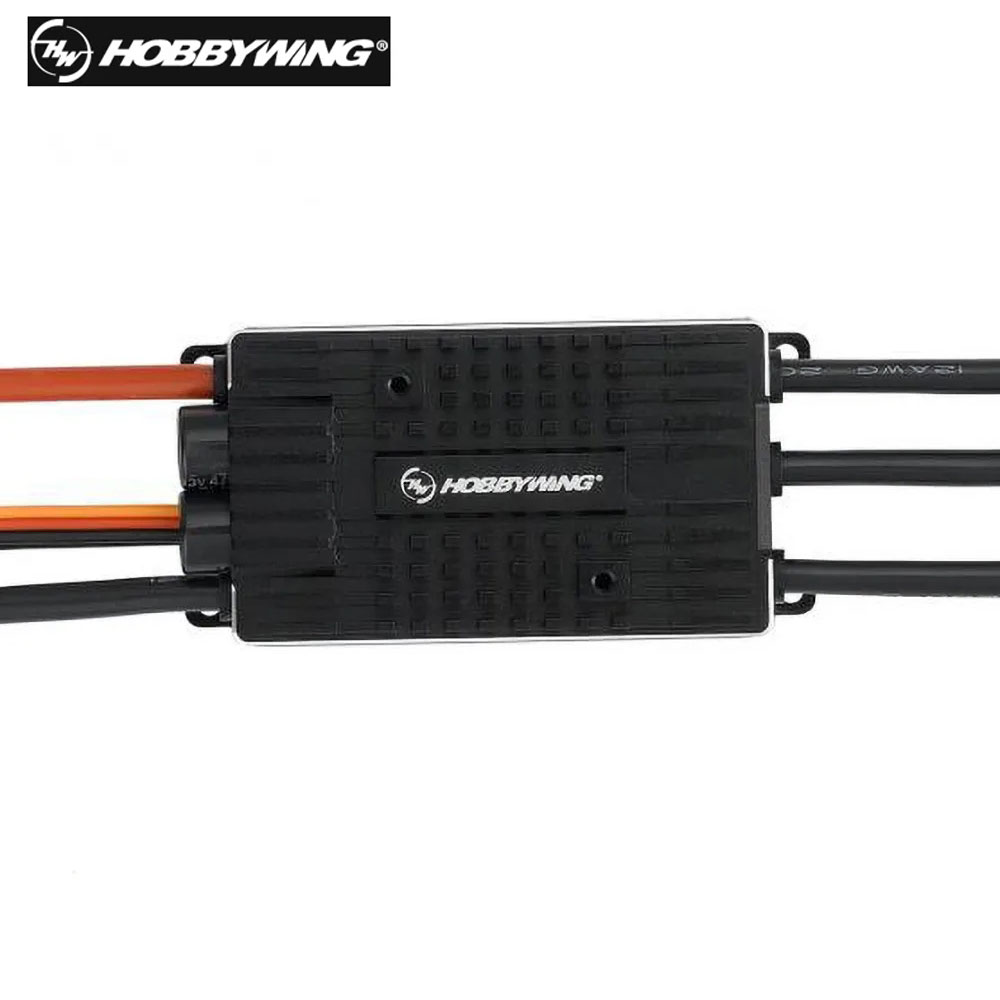

Platinum 120A V4 ESC
Helicopter application class 500- 550
Input voltage 3-6S Lipo
Cont./ max current (10s) 120A / 150A
(Switch mode) BEC 5V-8V adjustable (step: 0.1V), 10A / 25A Cont./Peak
Separate programming port to connect LCD / WIFI Express program box
Throttle signal / output BEC / RPM signal transmission cable white throttle / BEC brown red and black and red and output cables / yellow RPM signal transmission cable
Input cables Red-12AWG-150mm * 1 / Black-12AWG-150mm *
Output cables Black-12AWG-100mm * 3
Output connector 4.0mm gold connectors (female)
Size 84.3x38.2x20.4mm
Weight 107g / 3.77oz
