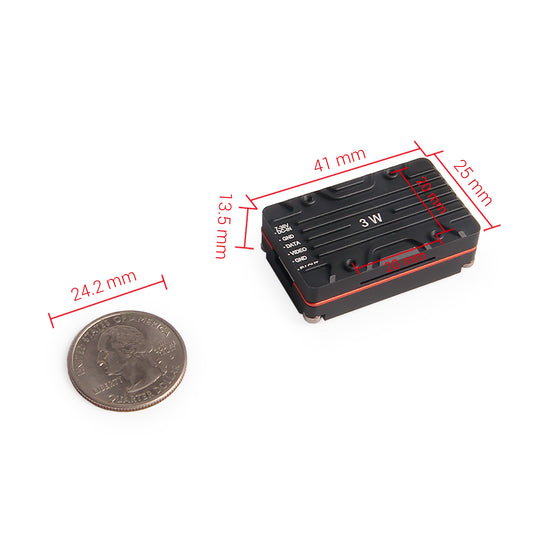

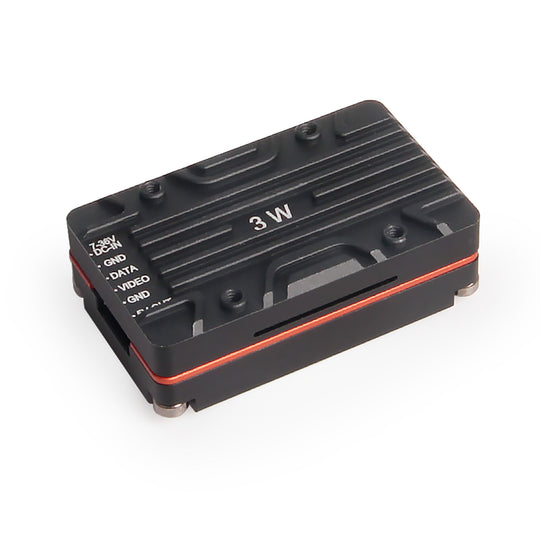

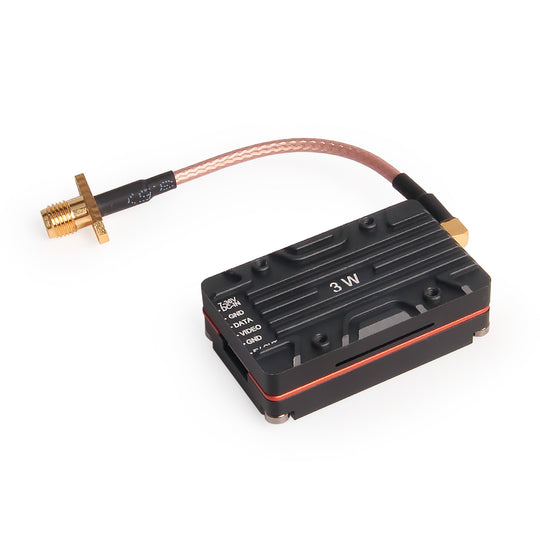

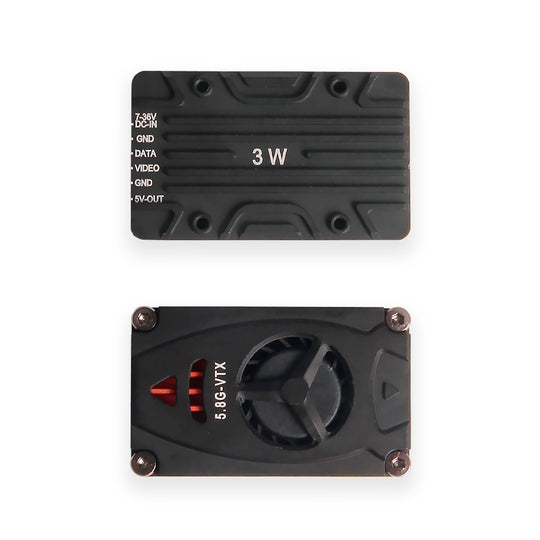

Holybro Atlatl HV 5.8G 3W VTx

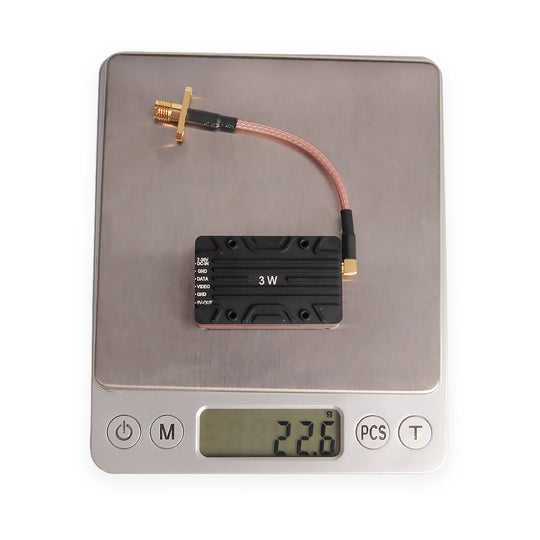

Specifications

WARNING: Make sure to install the antenna before turning on this video transmitter

Indicator Light Description

• Power light (Green)

  • Blink once per sequence - 25mW
  • 2 per sequence - 1.6W
  • 3 per sequence - 2W
  • 4 per sequence - 2.5W
  • 5 per sequence - 3W
• Frequency indicator light (Blue)

  • Binary indicator. No lights means CH1, all lights means CH7
• Frequency band lights (Red)

  • Blink once per sequence - Band A
  • 2 per sequence - Band B
  • 3 per sequence - Band E
  • 4 per sequence - Band F
  • 5 per sequence - Band R

Function Button Operation Instructions

• To switch frequency - Short press the button to switch channel.
• To switch the frequency band - Press and hold the button for 2 seconds to enter band changing mode. Short press the button to change the frequency band once enter the band changing mode.
• To switch power - Press and hold the button for 6 seconds to enter power changing mode. Short press the button to switch the power level. Green LED blinking times for each blinking sequence indicate the power level (25mW/1.6W/2W/2.5W/3W).
• Once finish configuration, wait 8 seconds for it to save the settings.

Frequency Table

Betaflight VTX table .jason file.

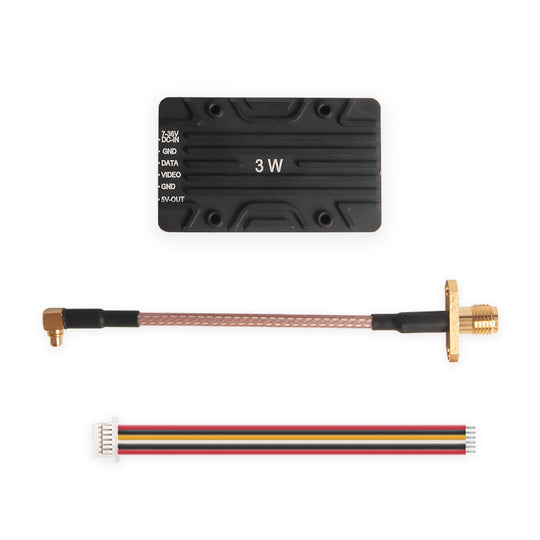

Package Includes:

• Atlatl HV 5.8G 3000mW VTx *1
• 80mm SMA--MMCX Cable *1
• 70mm 6pin JST SH wire *1
