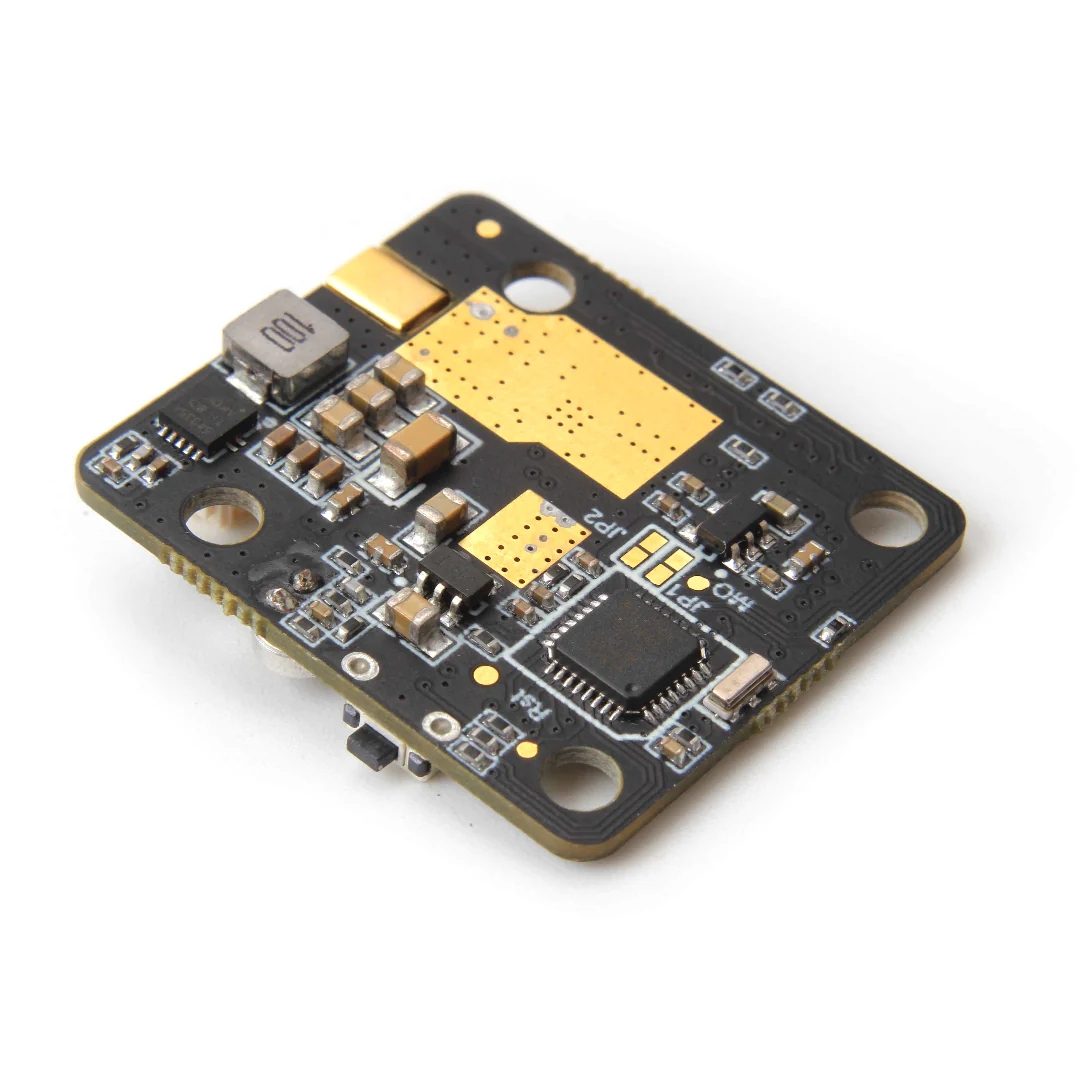

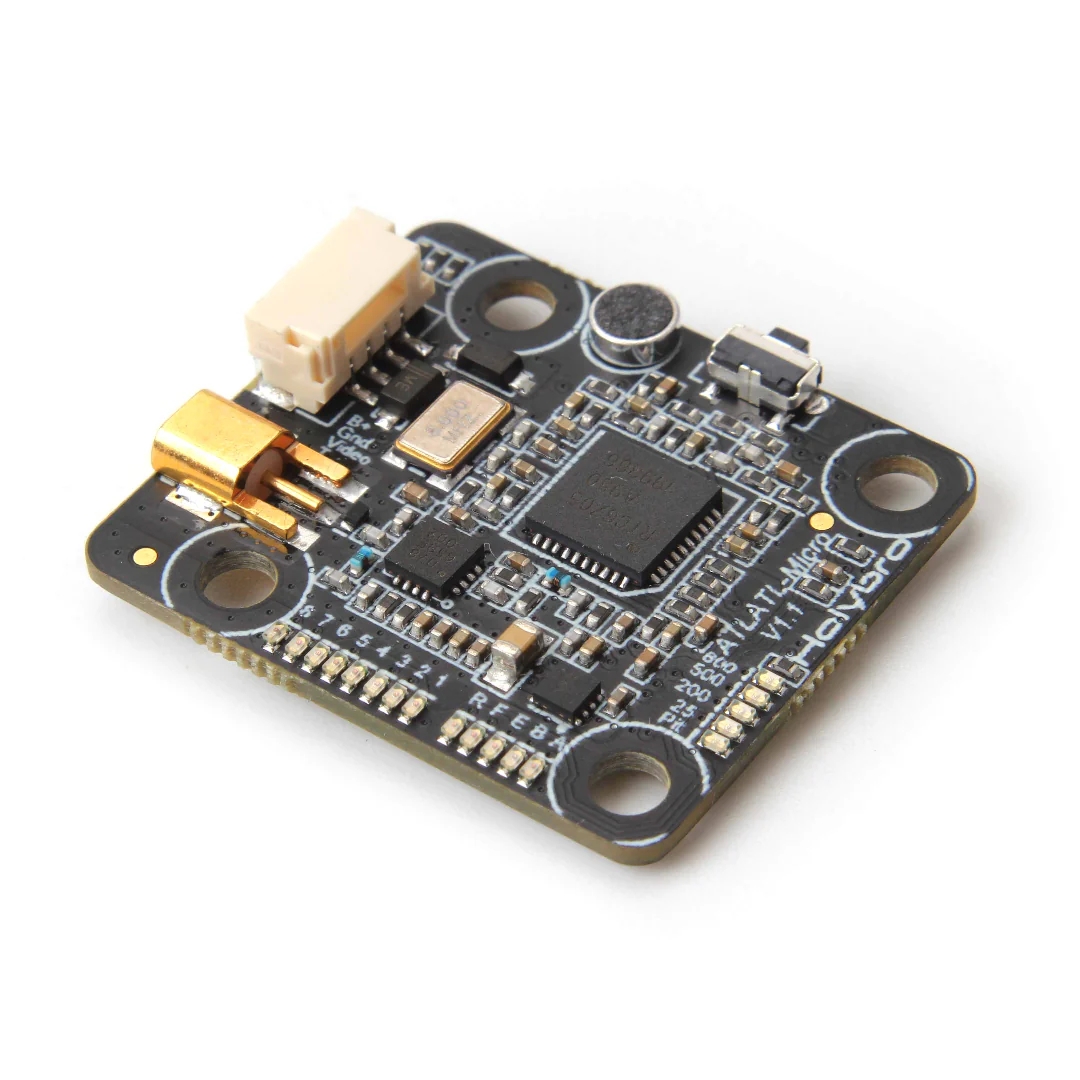

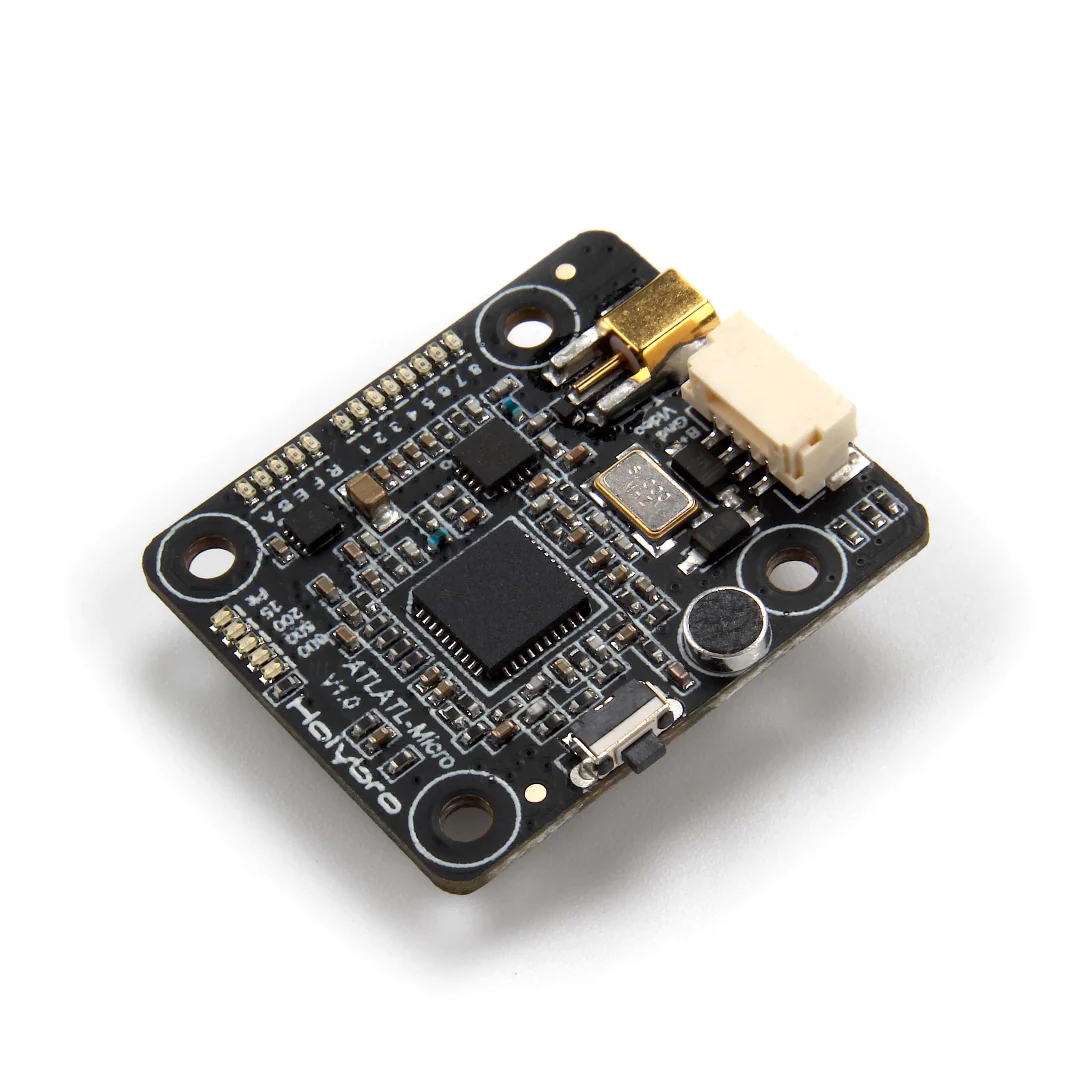

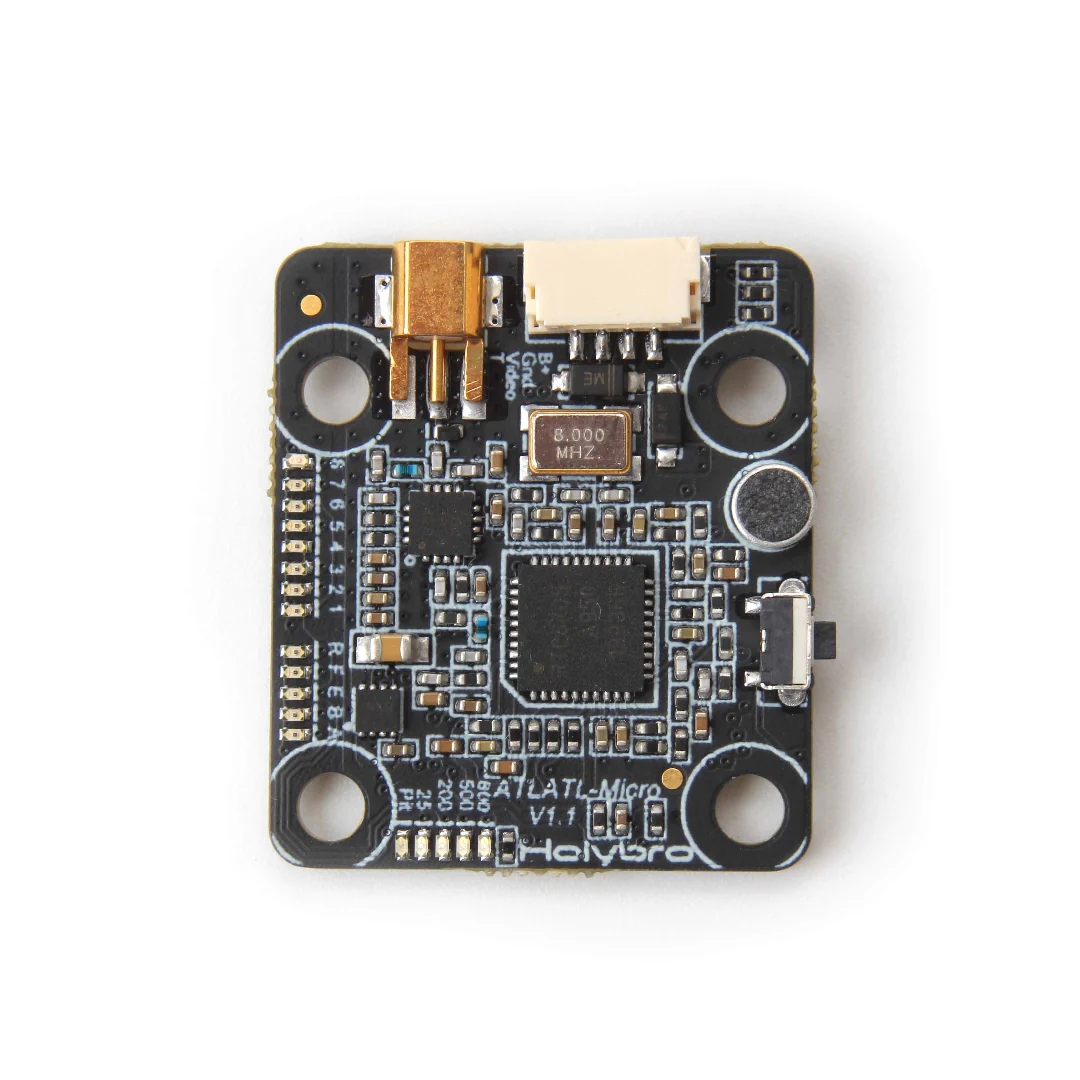

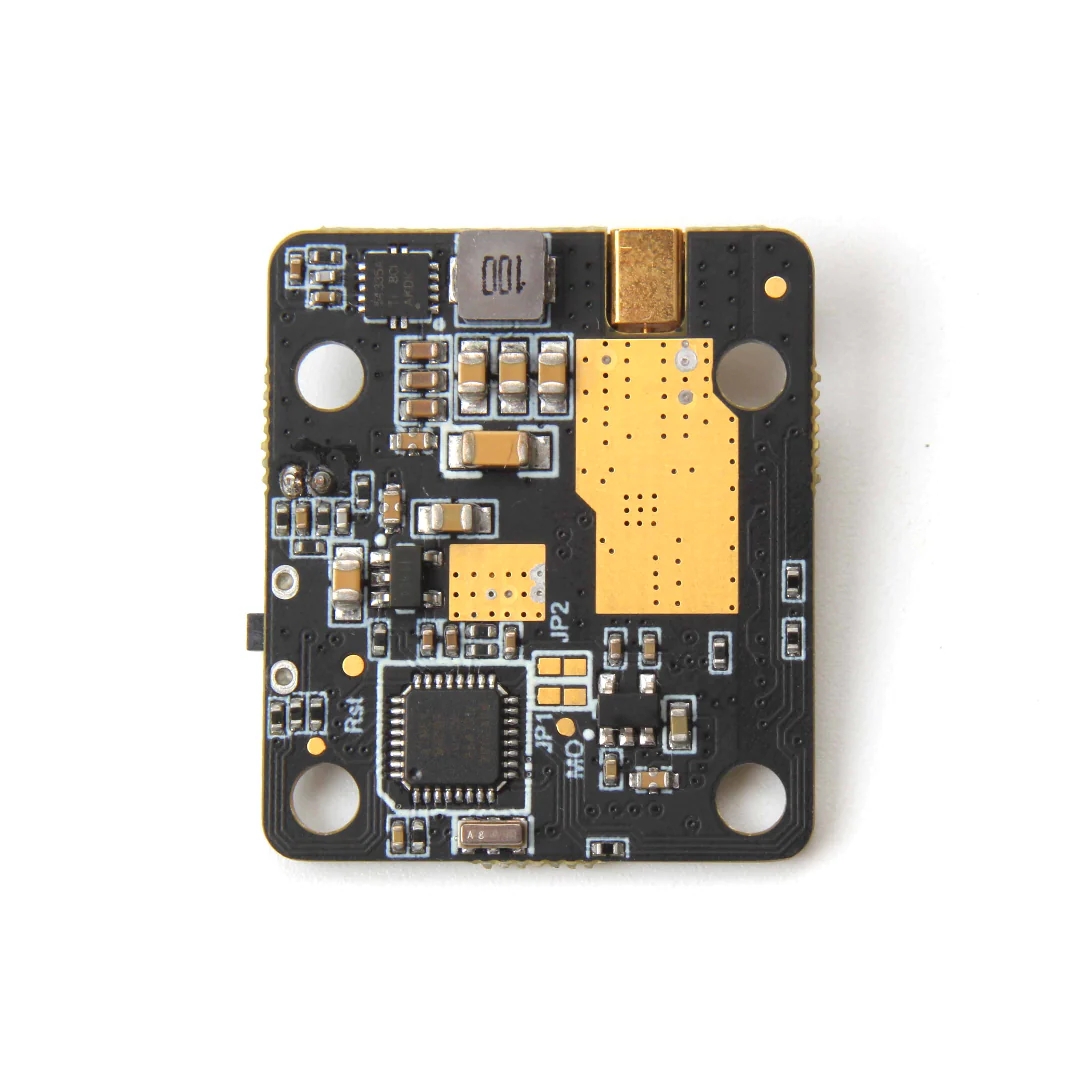

Holybro Atlatl HV Micro 5.8G FPV Video Transmitter

Features:

• Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.

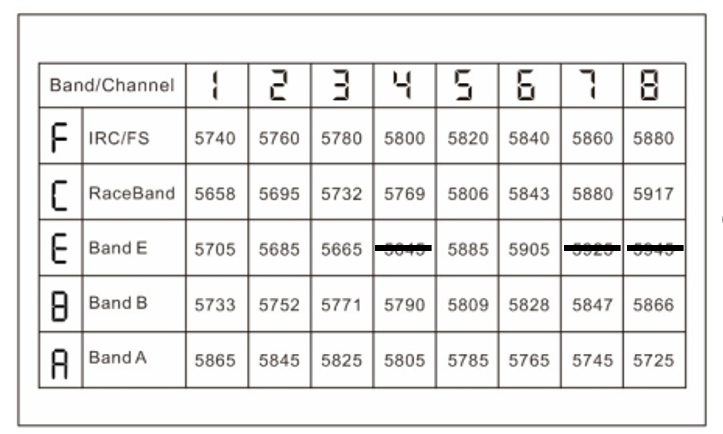

• Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.

• SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.

• All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.

• MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.

• LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.

• Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.

• 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.

• Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.

• Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.

Specifications:

• Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW

• Audio: 6.5 MHz Mono

• Protocol: smart audio2.0

• Antenna Connector: MMCX

• Input Voltage: 7 to 28 volts (2-6S LiPo)

• Dimensions: 30x26mm

• Mounting Holes: Standard 20mm square to center of holes (M3)

• Weight: 3.6g

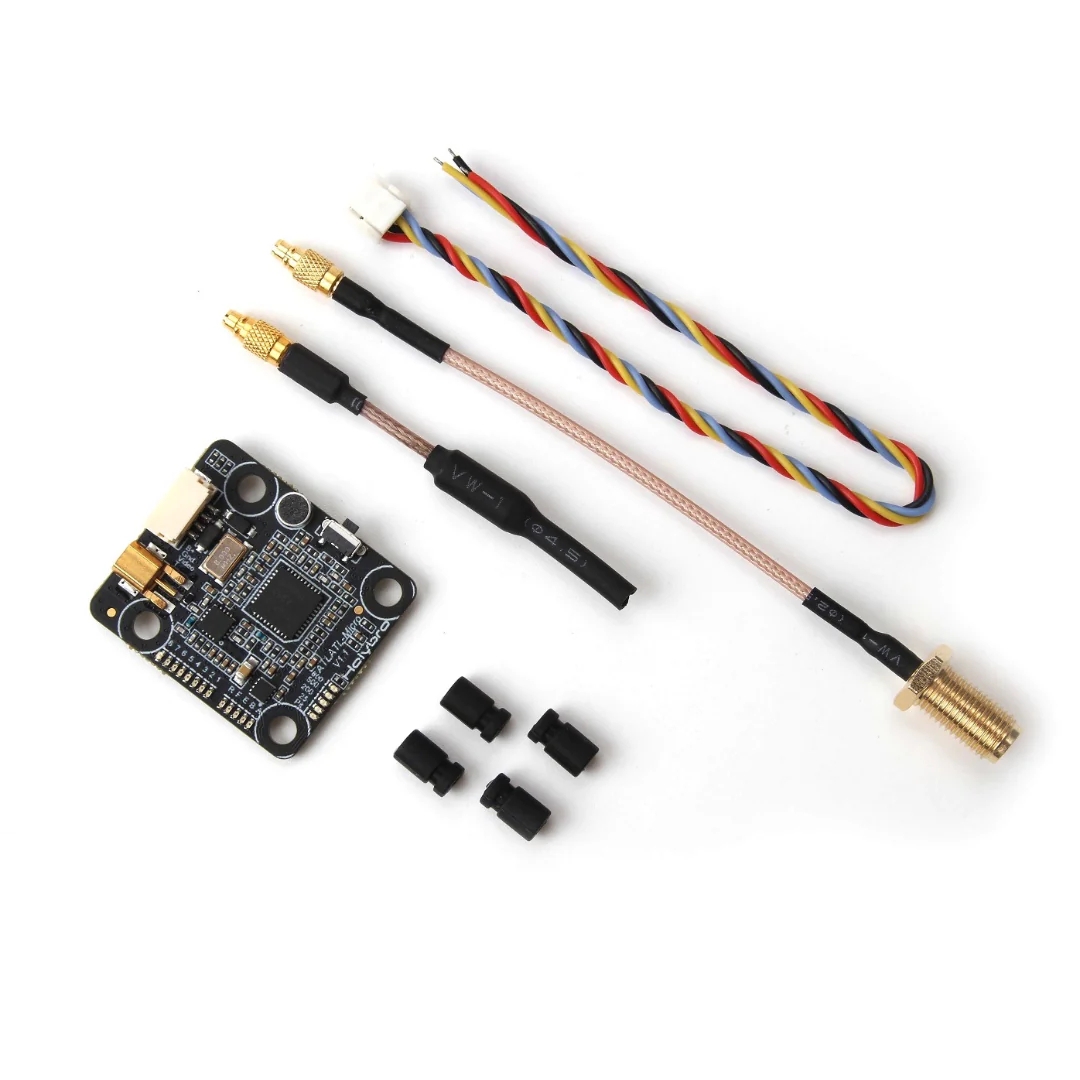

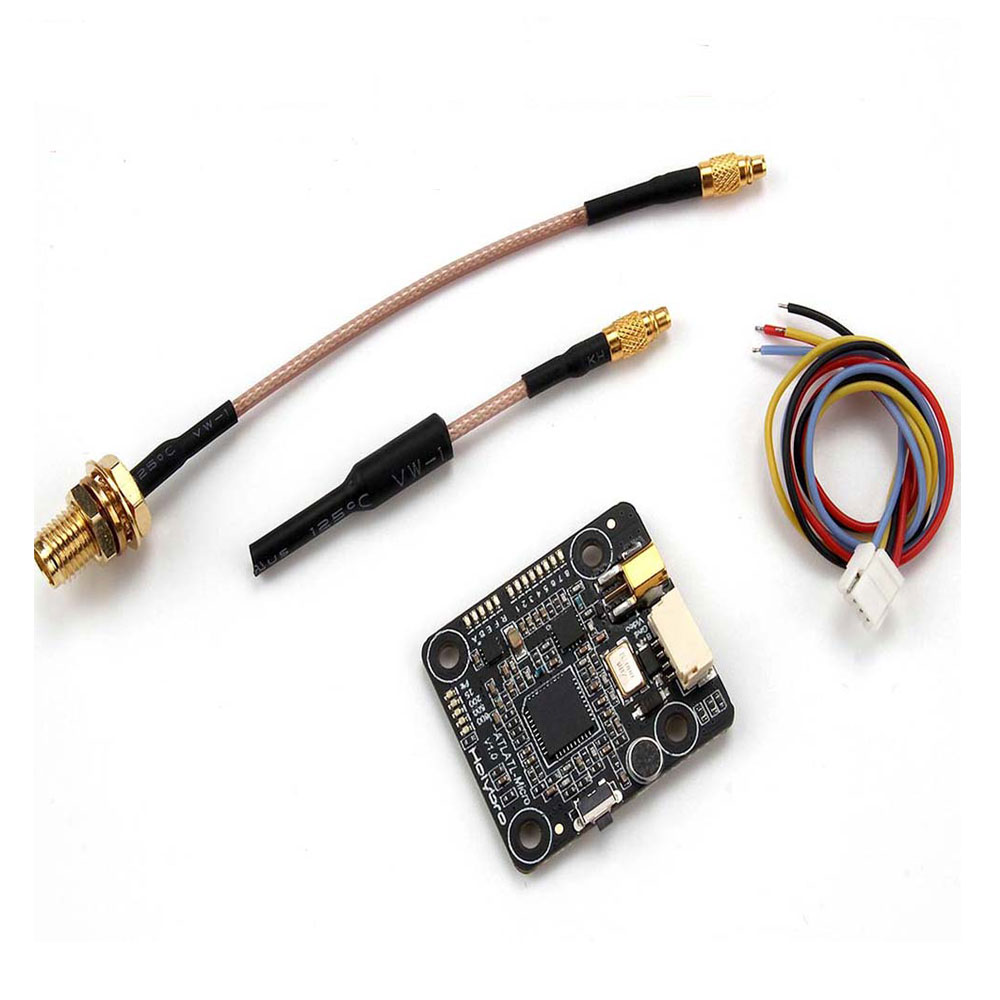

Package Includes:

• VTx Board *1

• 80mm SMA--MMCX Cable *1

• 60mm Antenna *1

• 150mm 4pin JST GH wire *1

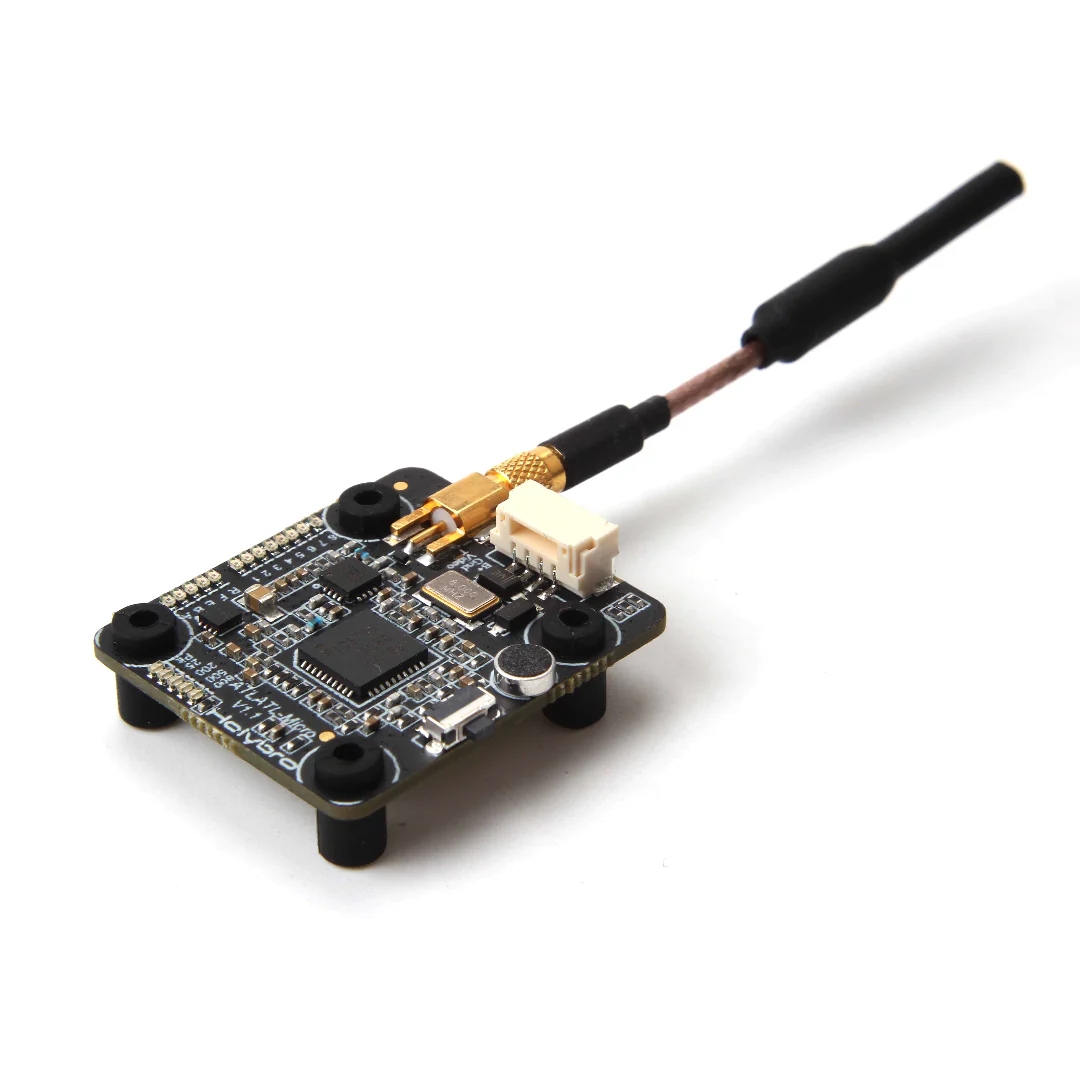

• M2 Anti-Vibration Silicone Grommet Insert *4

Manual:

Holybro_Atlatl_HV_micro_Manual

Download:

ATLATL HV V2-VTx table
