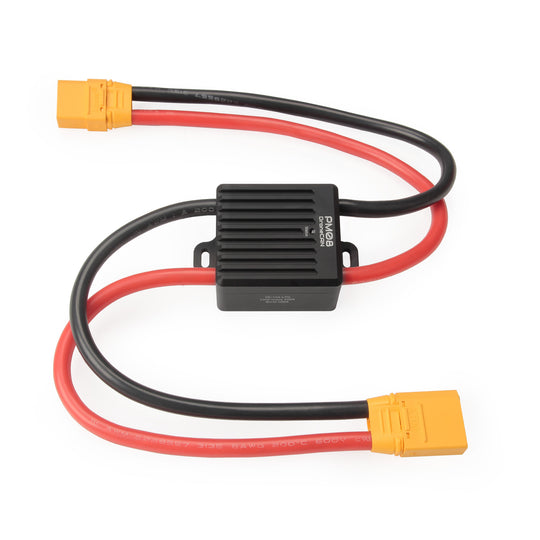

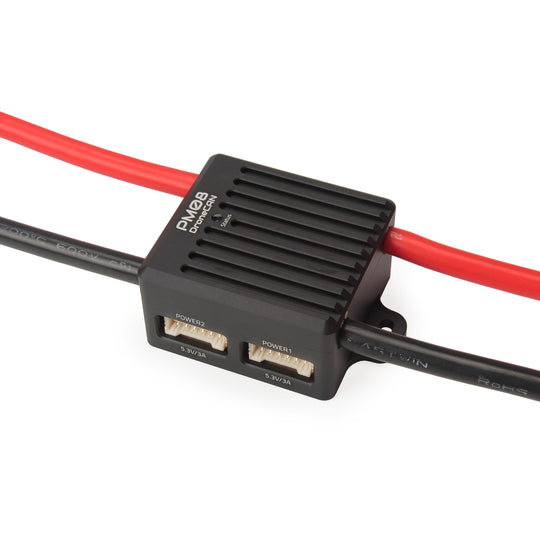

Holybro DroneCAN PM08-CAN Power Module 14S 200A Supports 2-14S & 200A Cont For RC Model/Airplane/Quadcopter

Feature

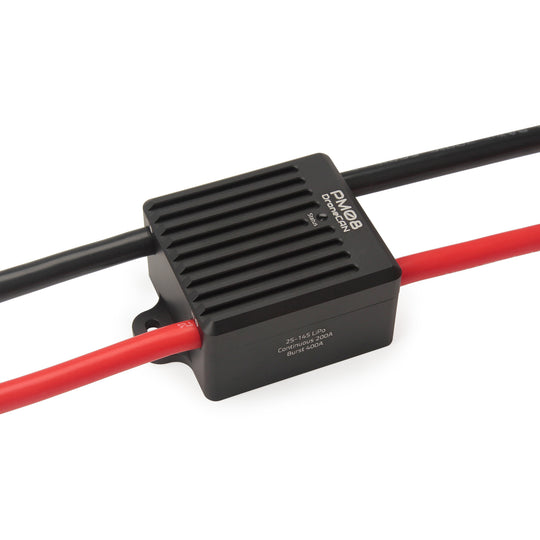

• Supports 2-14S & 200A Cont, 400A Burst

• DroneCAN Communication Protocol

• Small & Compact Design

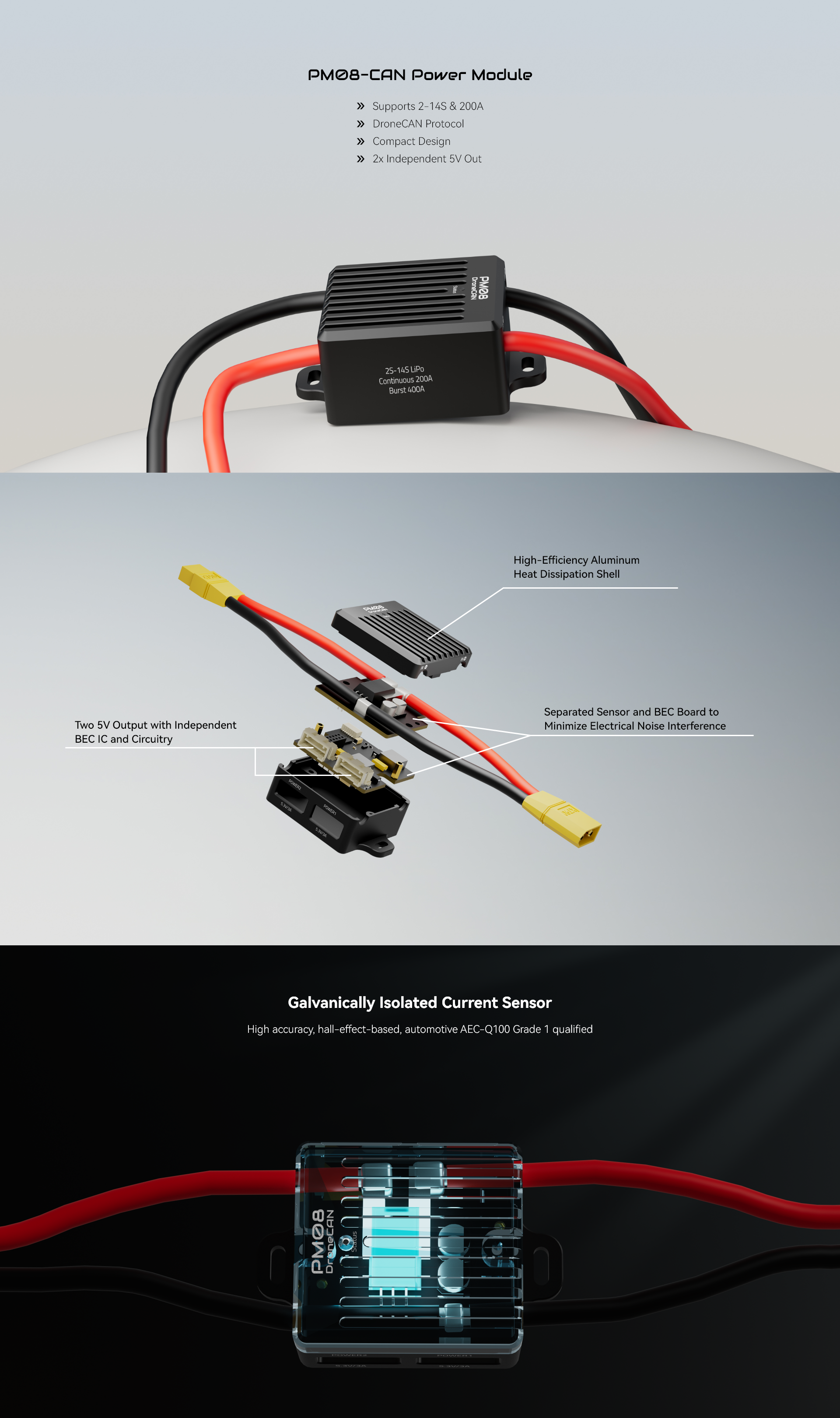

• Two 5V Output with Independent BEC IC and Circuitry

• Separated Sensor and BEC Board to Minimize Electrical Noise Interference

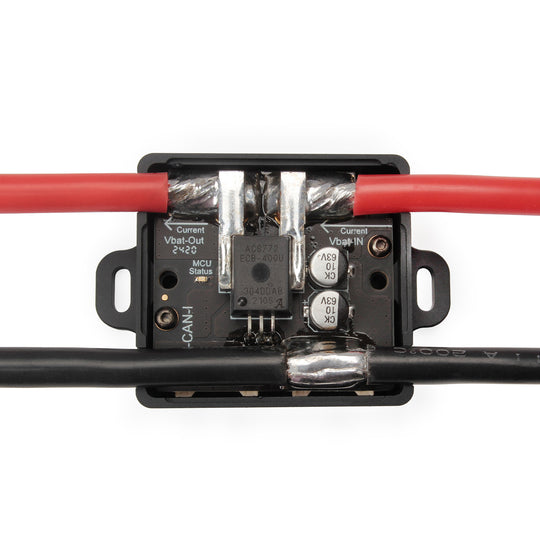

• Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)

• High Accuracy Temperature Sensor for Temperature Monitor

• High-Efficiency Aluminum Heat Dissipation Shell

Specifications

• Processor：STM32F405RG 168MHz 1024KB Flash  196KB RAM

• Voltage input: 7~60.9V (2S~14S)

• Continuous current:200A

• Burst current

  • 400A @ 25℃ 1 sec

  • 1000A @ 25℃ < 1 sec

• Max current sensing: 376A

• Voltage accuracy: ±0.1V

• Current accuracy: ±5%

• Temperature accuracy:±1℃

• Power port output: 5.3V/3A each port

• Protocol: DroneCAN

• Operating temperature :-25℃~105℃

• Firmware upgrade: Support

• Calibration:  Support

Pinout

Interface Type

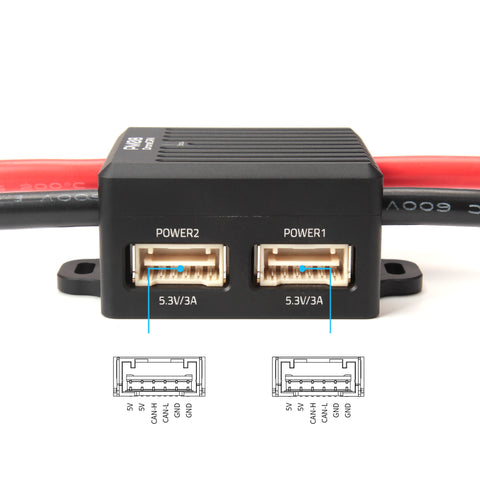

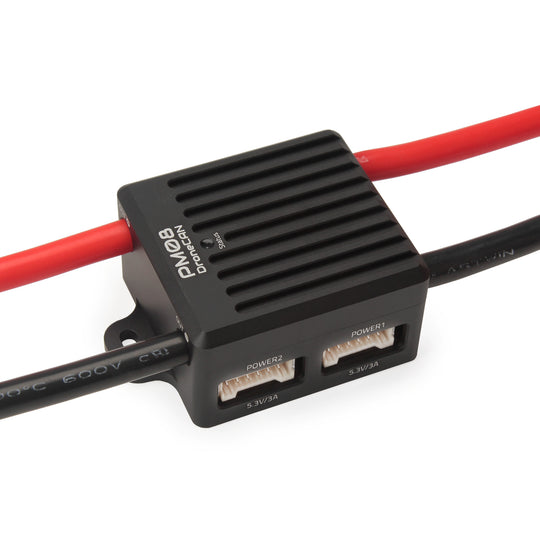

• Power & CAN Port: Molex CLIK-Mate 2mm 6Pin

• Battery IN/OUT Options:

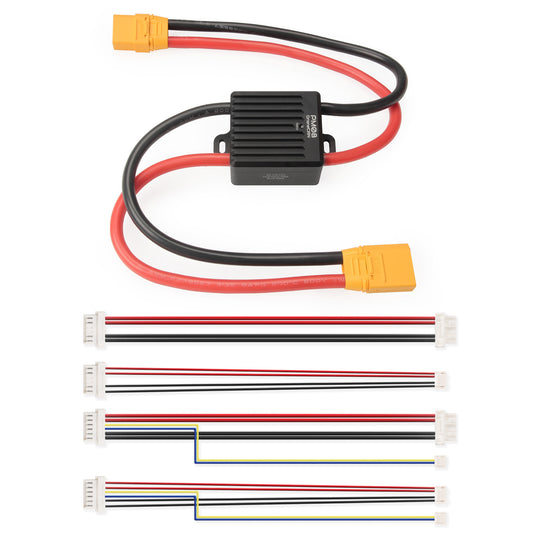

  • XT90 Connectors

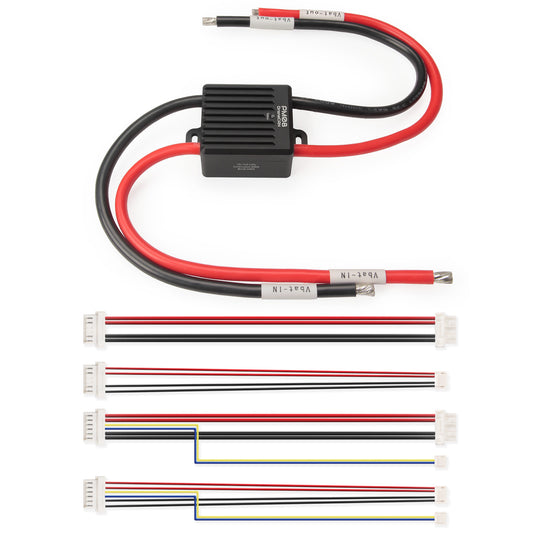

  • Tinned Wires

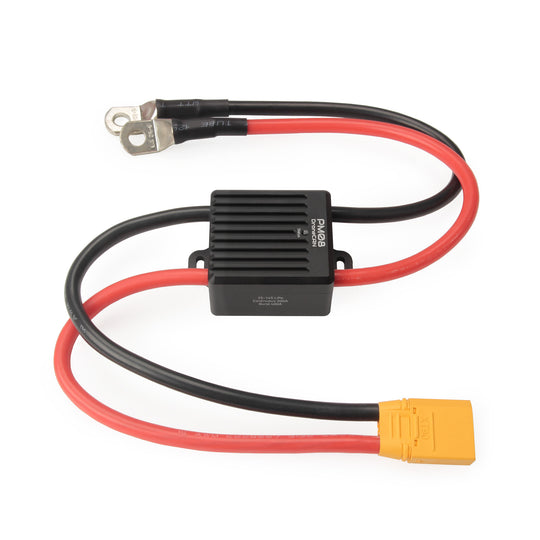

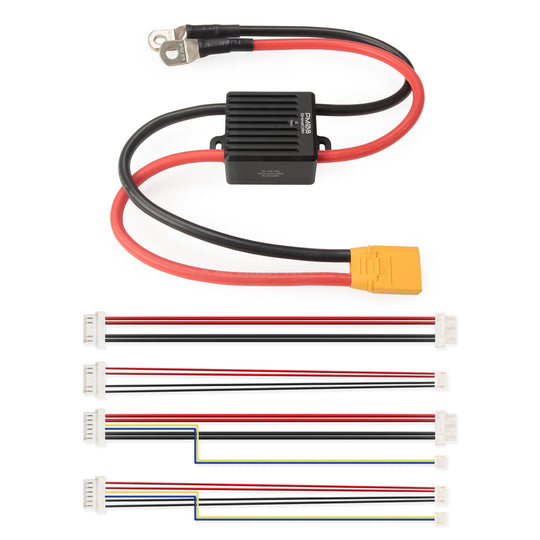

  • XT90 & Ring Terminals

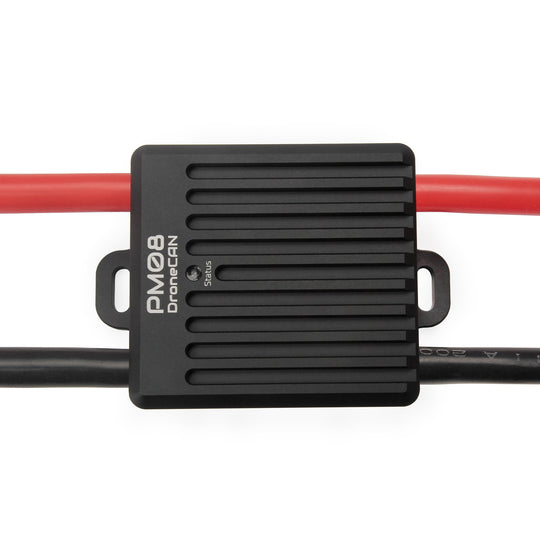

Status LED

• Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash

• Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection

• Flashing slowly (one-second intervals): CAN is successfully connected

Mechanical Spec

• Size: 45mm×41mm×26mm (Not Include Cable)

• Weight: 185g (Include Cable)

Reference Links

• PX4 & Autopilot Setup Instruction

• PM08CAN 3D CAD File Download

• Power Module Dimension
