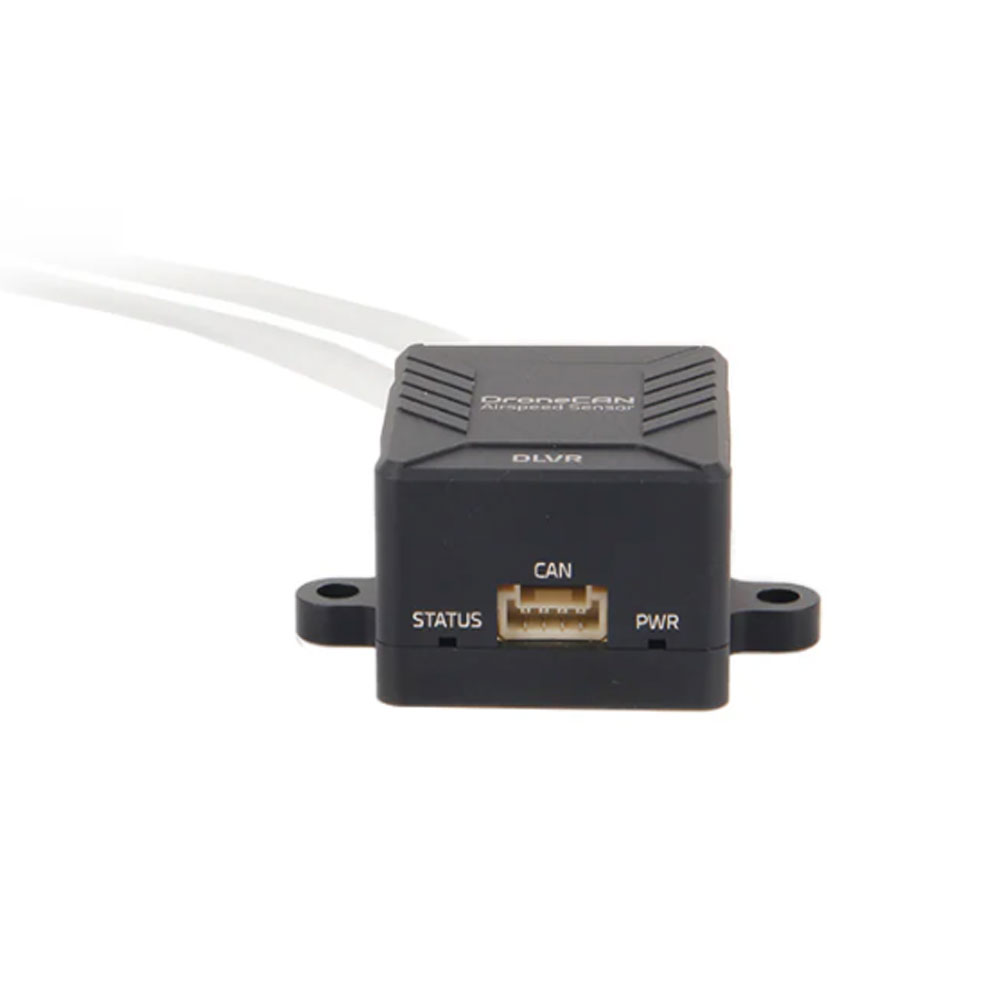

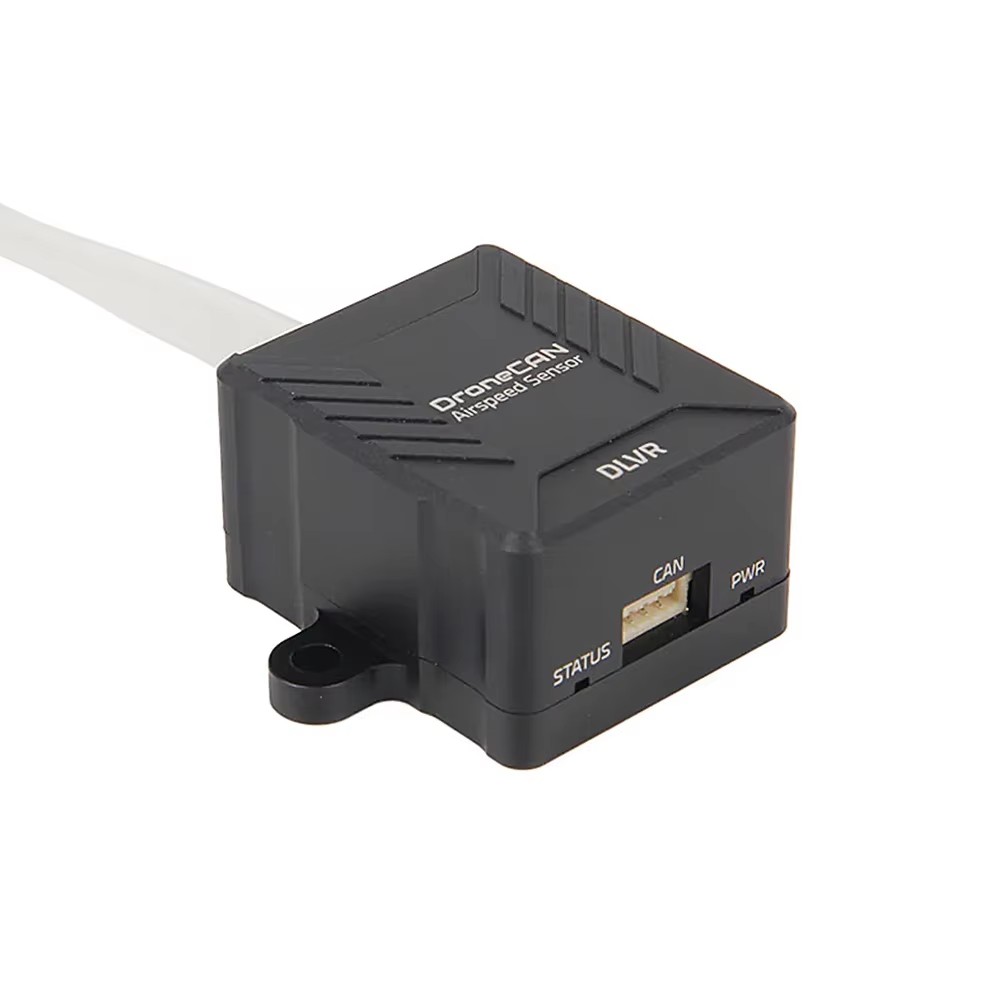

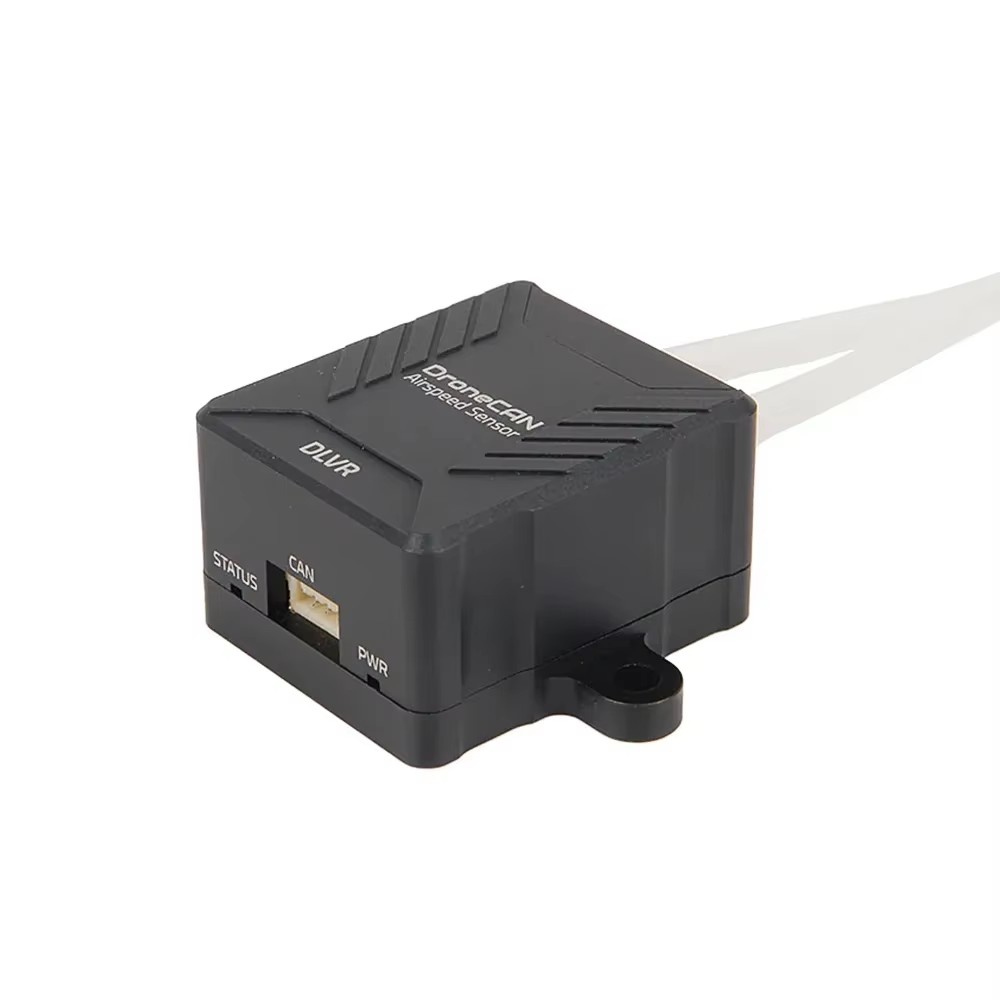

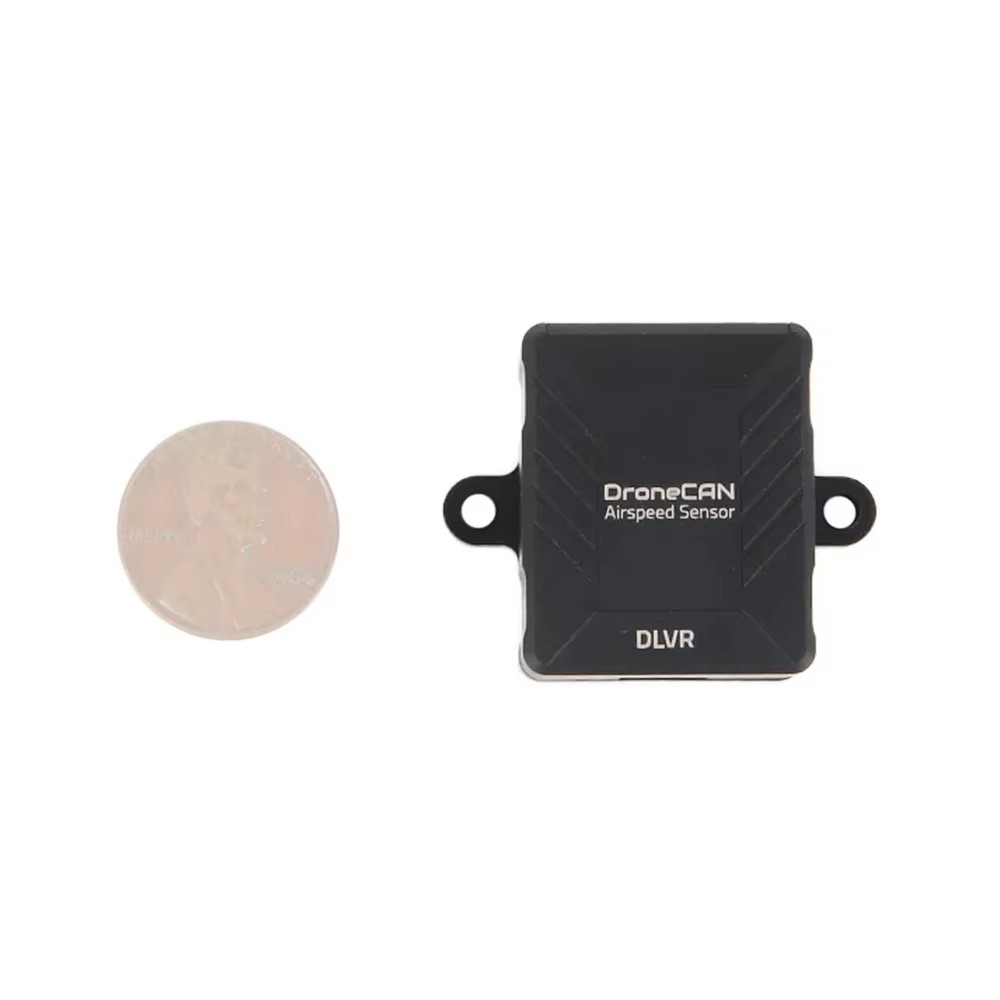

Holybro High Precision DroneCAN Airspeed Sensor - DLVR

Overview

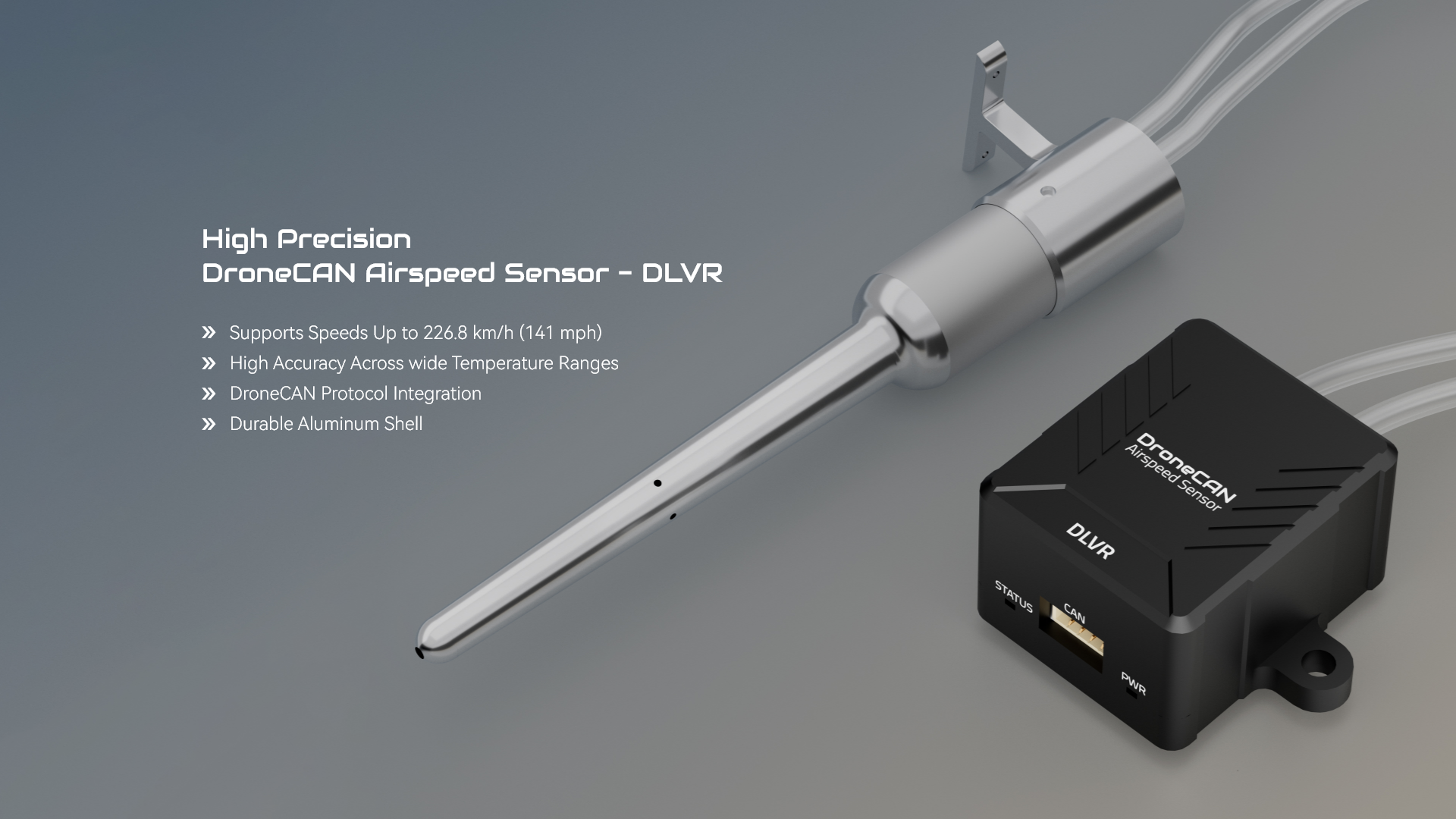

The Holybro DroneCAN Airspeed is an industrial-grade differential pressure measurement module designed for precision airspeed measurement in various UAVs, including planes, VTOLs, and other vehicles. Equipped with the DLVR-L10D Digital Pressure Sensor and running ArduPilot AP-Periph Firmware, this module ensures accurate and reliable airspeed data across different flight conditions.

Features

•  Wide Pressure Range: Supports up to 2500 Pa and 226.8 km/h (141 mph) airspeed measurement.

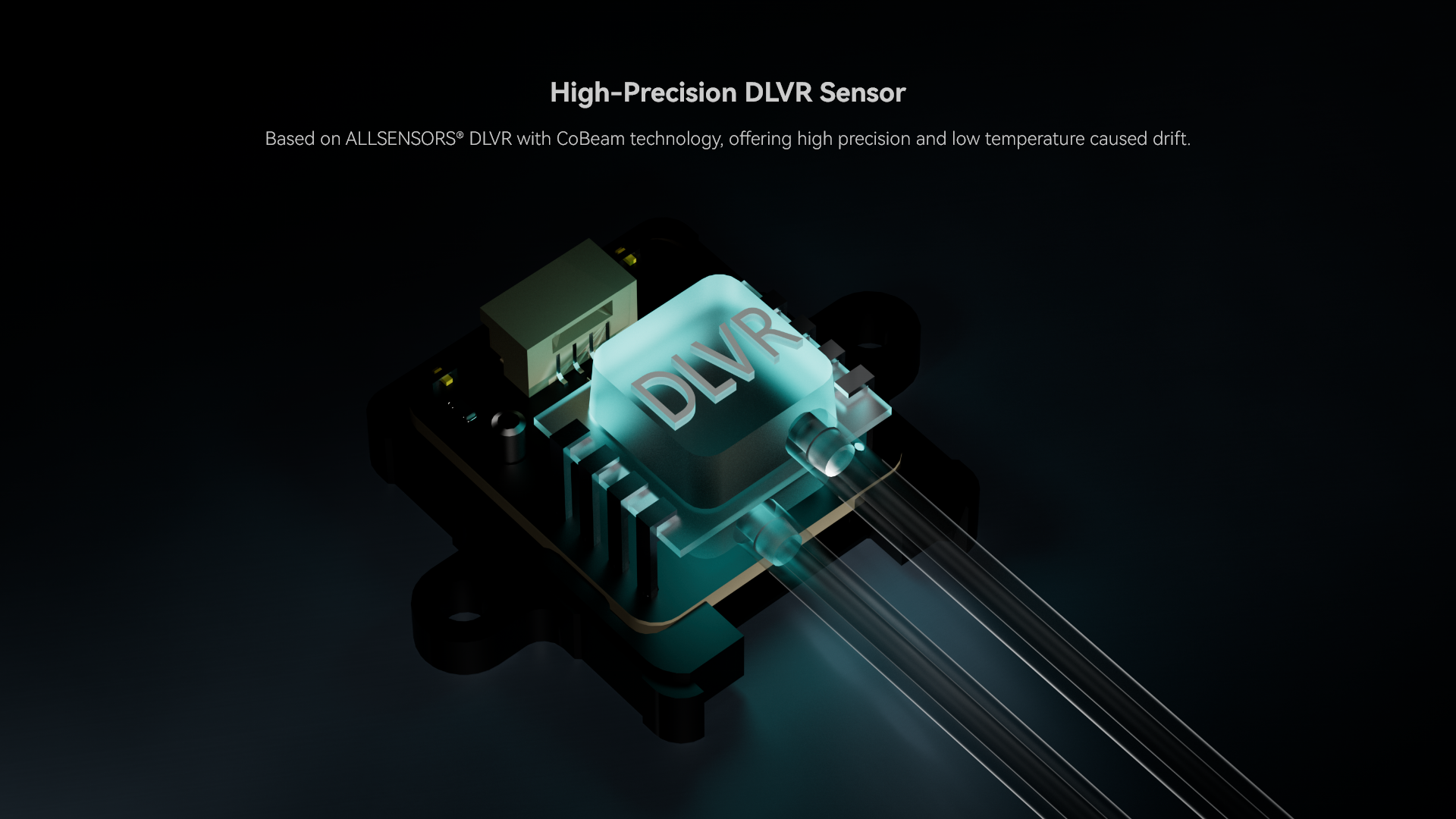

• High-Precision DLVR-L10DSensor : Based on ALLSENSORS® DLVR with CoBeam technology, providing high precision and low temperature drift.
• High Accuracy: Achieves better than 1% accuracy across a wide temperature range, ensuring reliable and accurate readings in demanding applications.
• DroneCAN Protocol: Compatible with both PX4 and ArduPilot platforms.

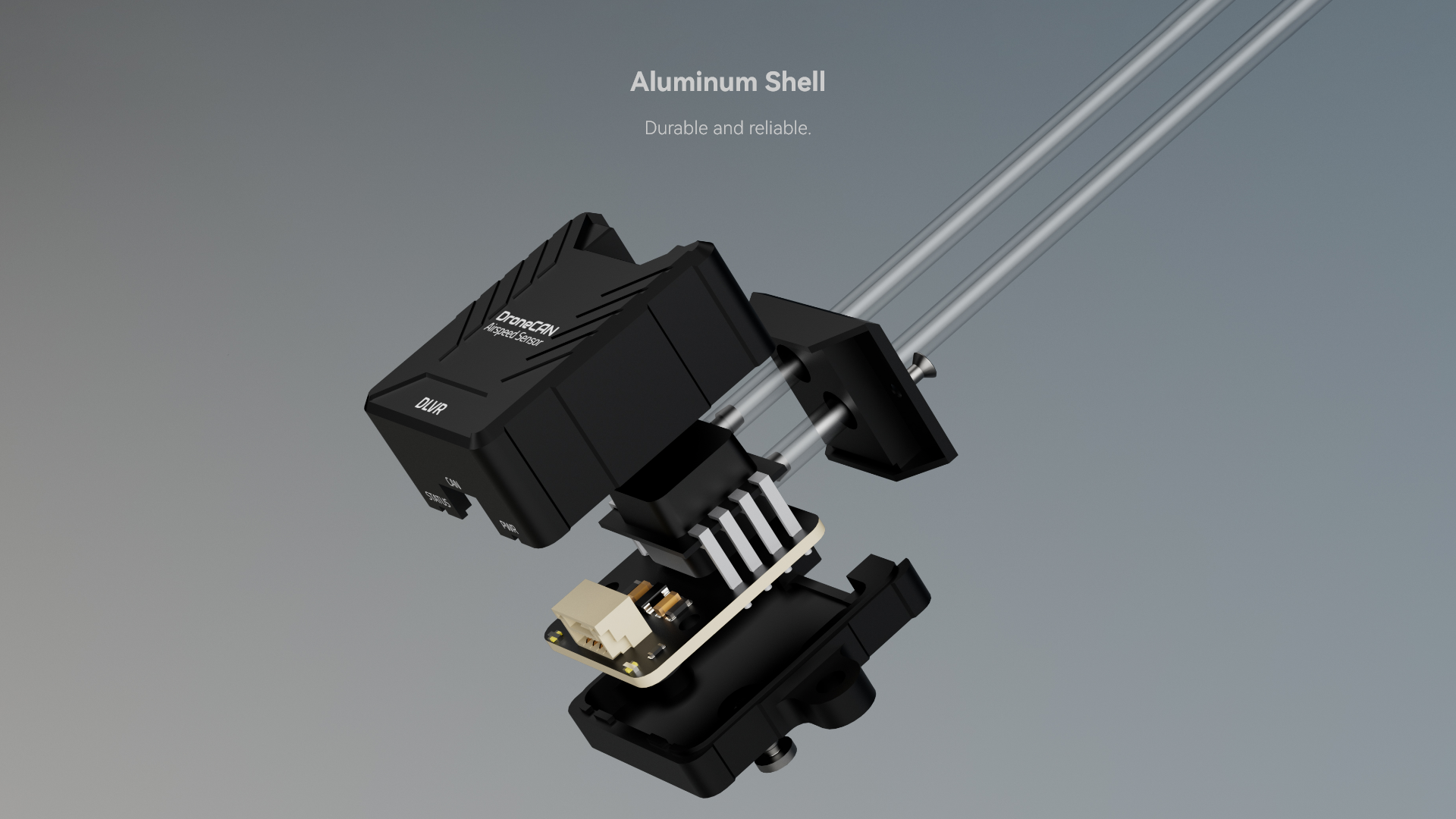

• Aluminum Shell: Durable and reliable construction

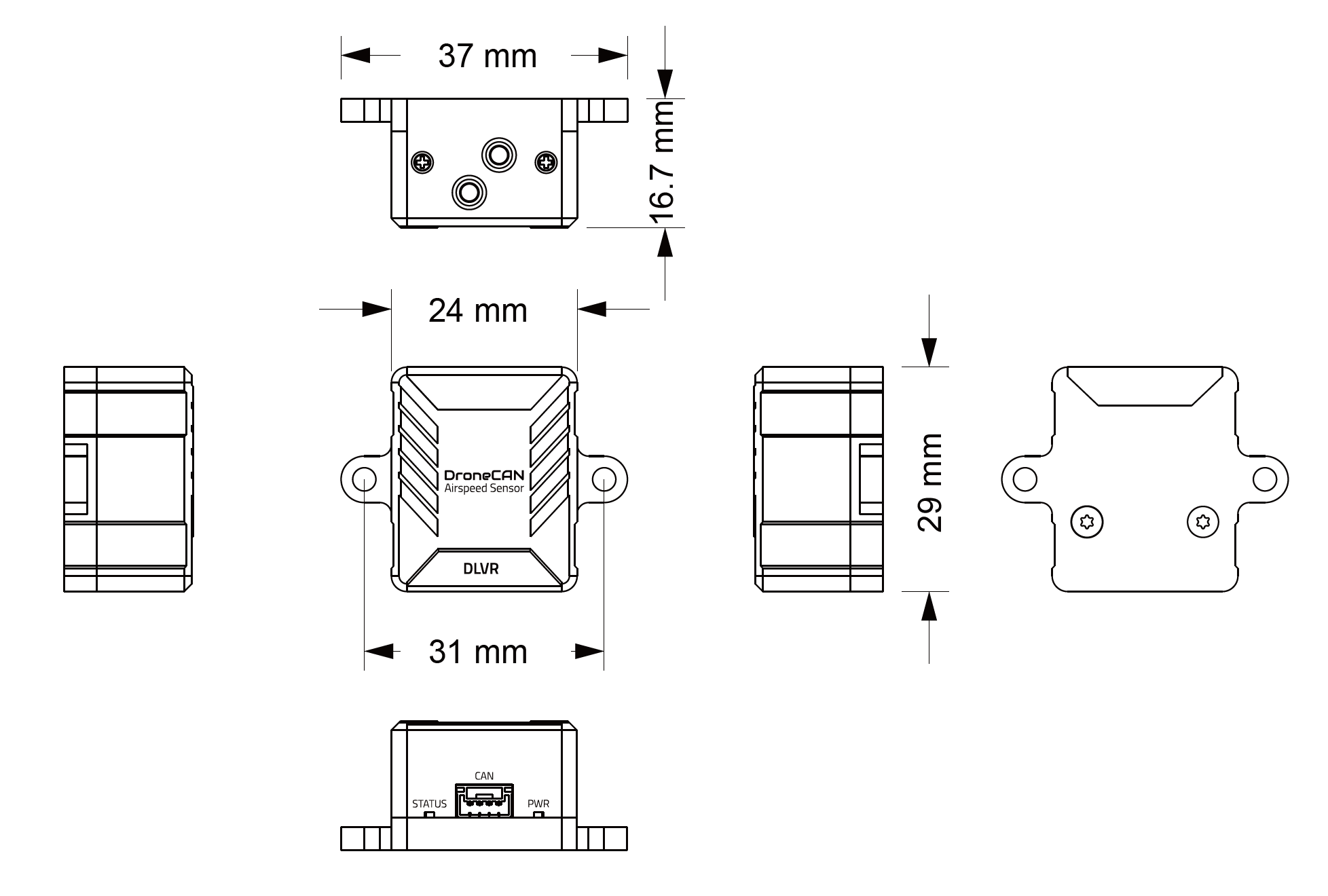

Dimensions

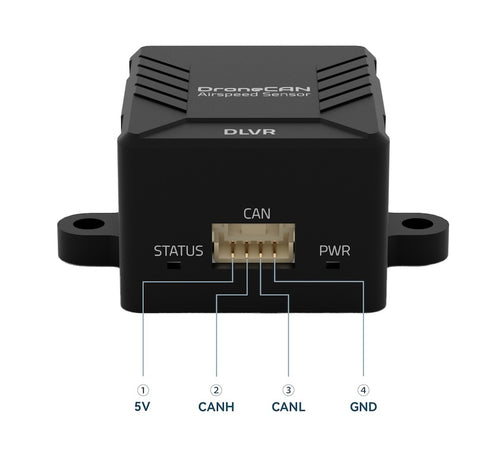

Pinout

SKU19012 Package Includes:

• 1x DroneCAN Airspeed Sensor-DLVR
• 1x Rubber tubing 100cm
• 1x GH 4P Cable

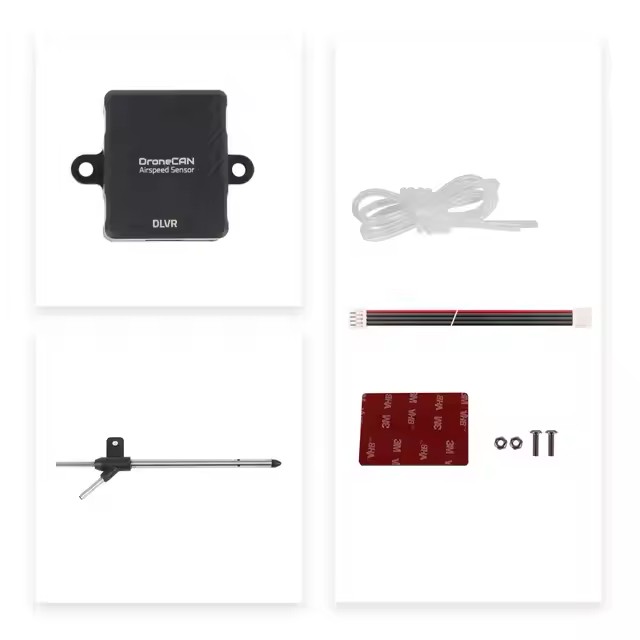

SKU19013 Package Includes:

• 1x DroneCAN Airspeed Sensor-DLVR

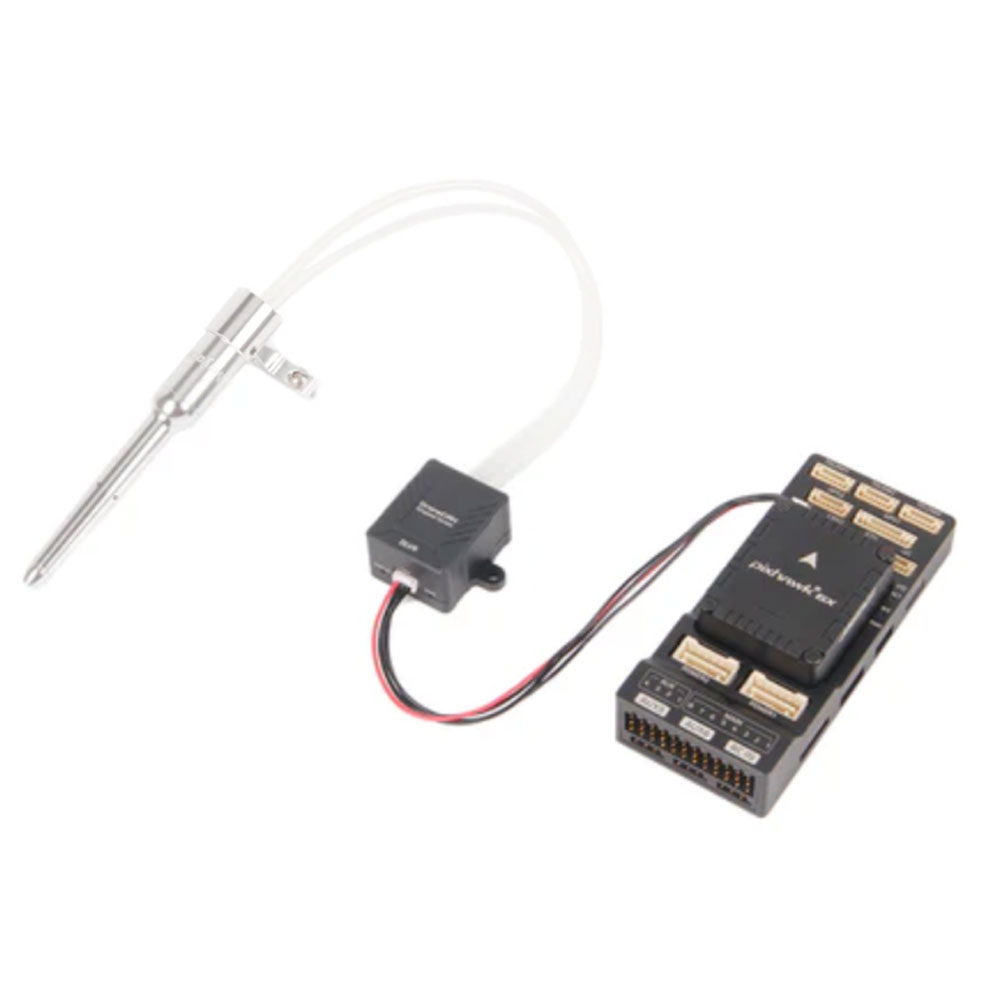

• 1x PT40 Pitot Tube
• 1x Rubber tubing 100cm
• 1x GH 4P Cable

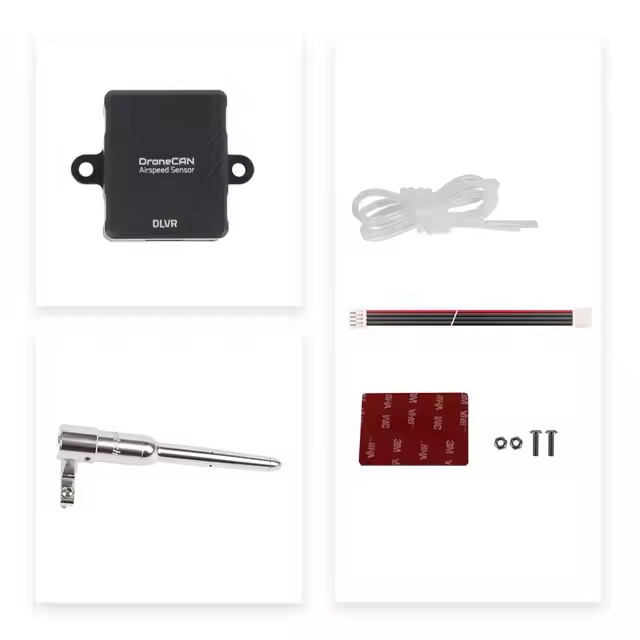

SKU19014 Package Includes:

• 1x DroneCAN Airspeed Sensor-DLVR
• 1x PT60 Pitot Tube
• 1x Rubber tubing 100cm
• 1x GH 4P Cable

Quick start Guide:

https://docs.holybro.com/peripherals/dronecan-airspeed/quick-start-guide

Datasheet:

DLVR-L10D Datasheet
