VTX & OSD
Specifications:
ATmega328P with Arduino bootloader
MAX7456 monochrome on-screen display
GHR connectors
Solder jumper for PAL video option
Exposed test points for HSYNC and LOS
Dimensions:17.5*35mm
Weight:3g
Note: BAT+ is directly connected with VTx and Camera (Pay attention to the maximum voltage of your equipment)

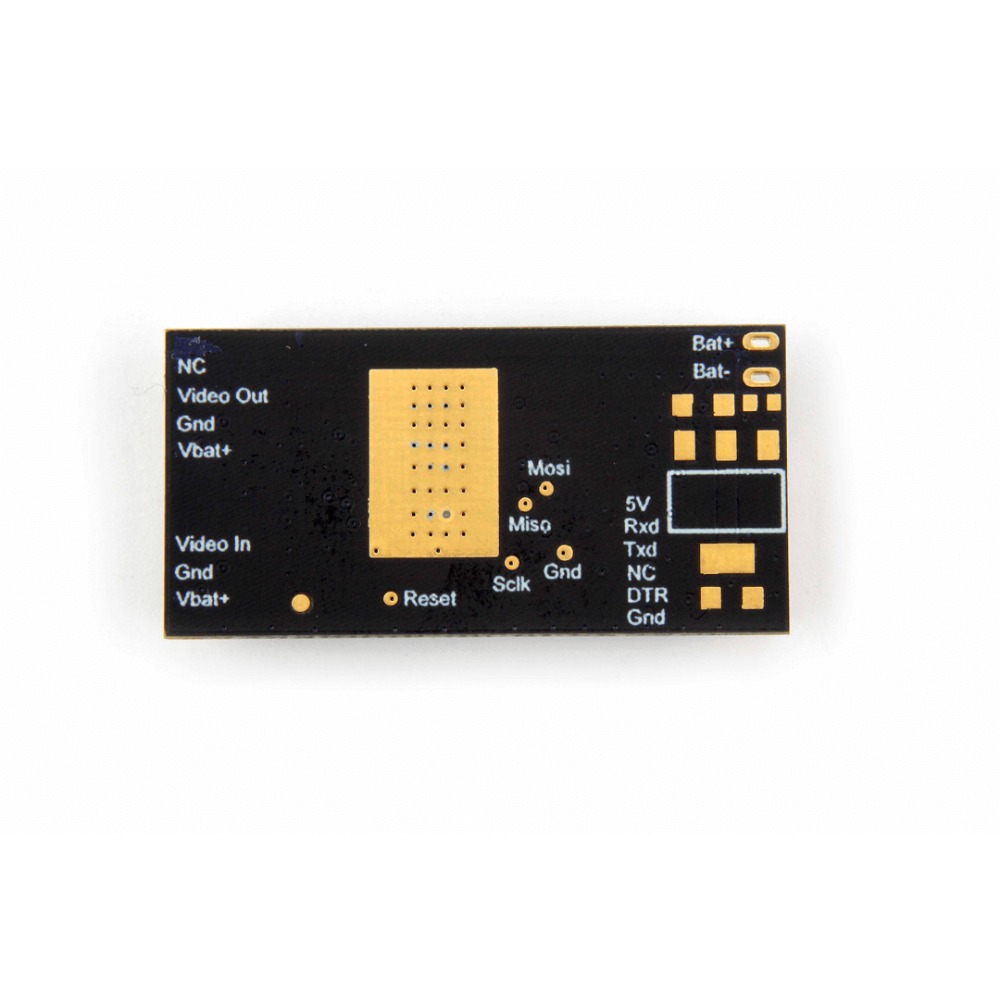

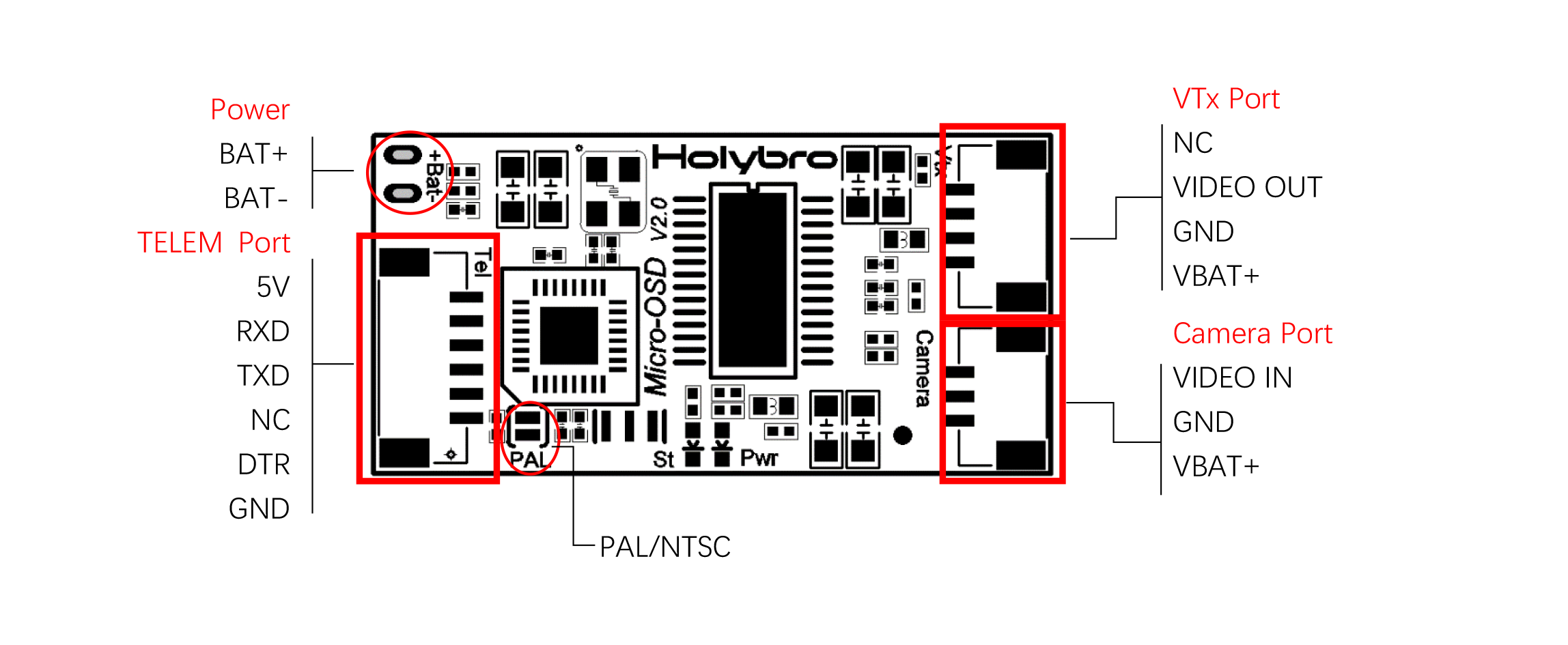

PIN MAP

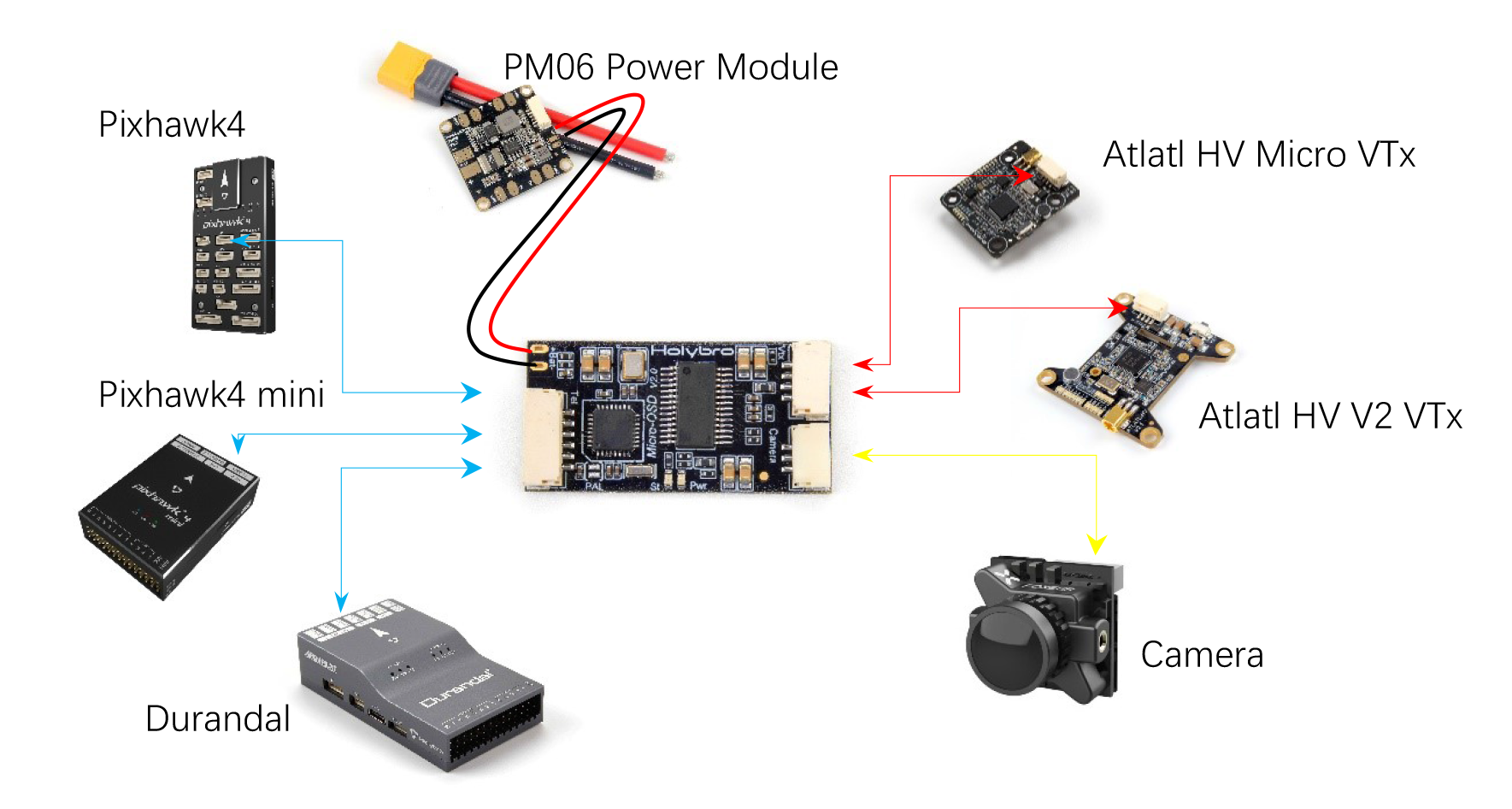

Diagram

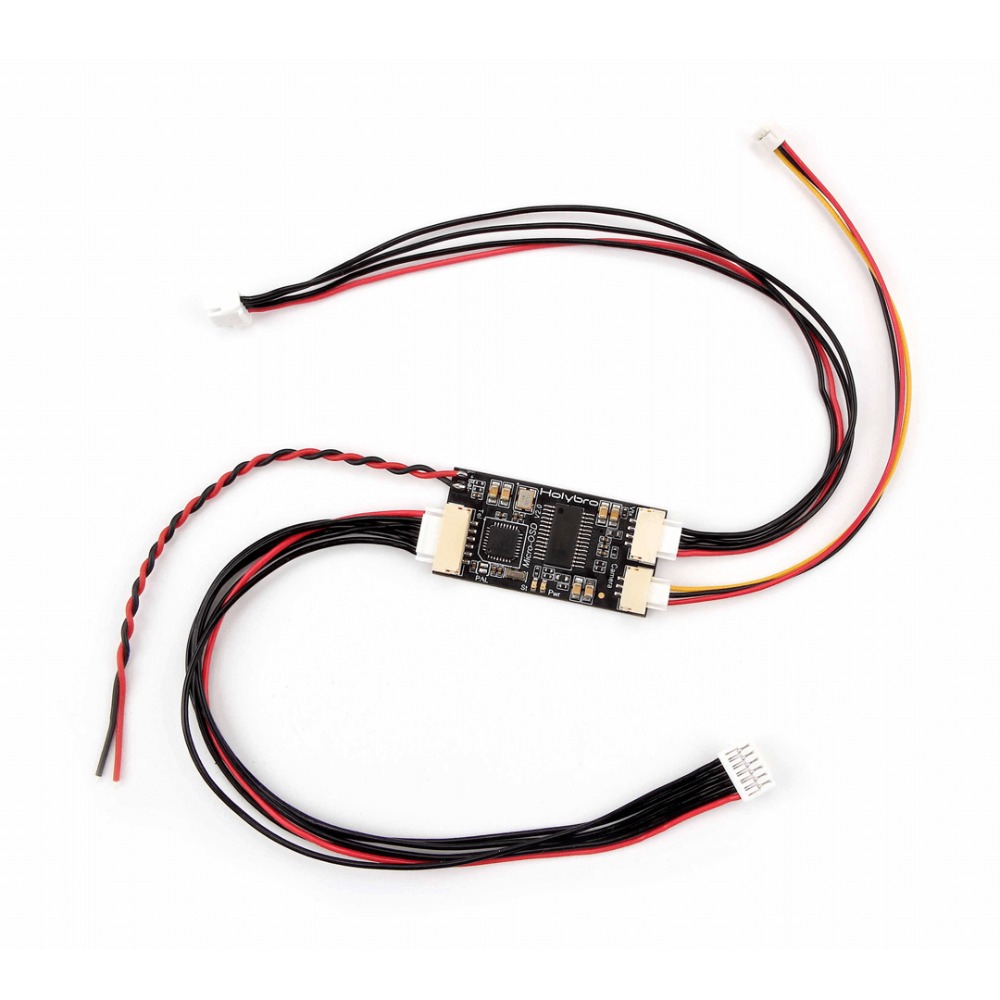

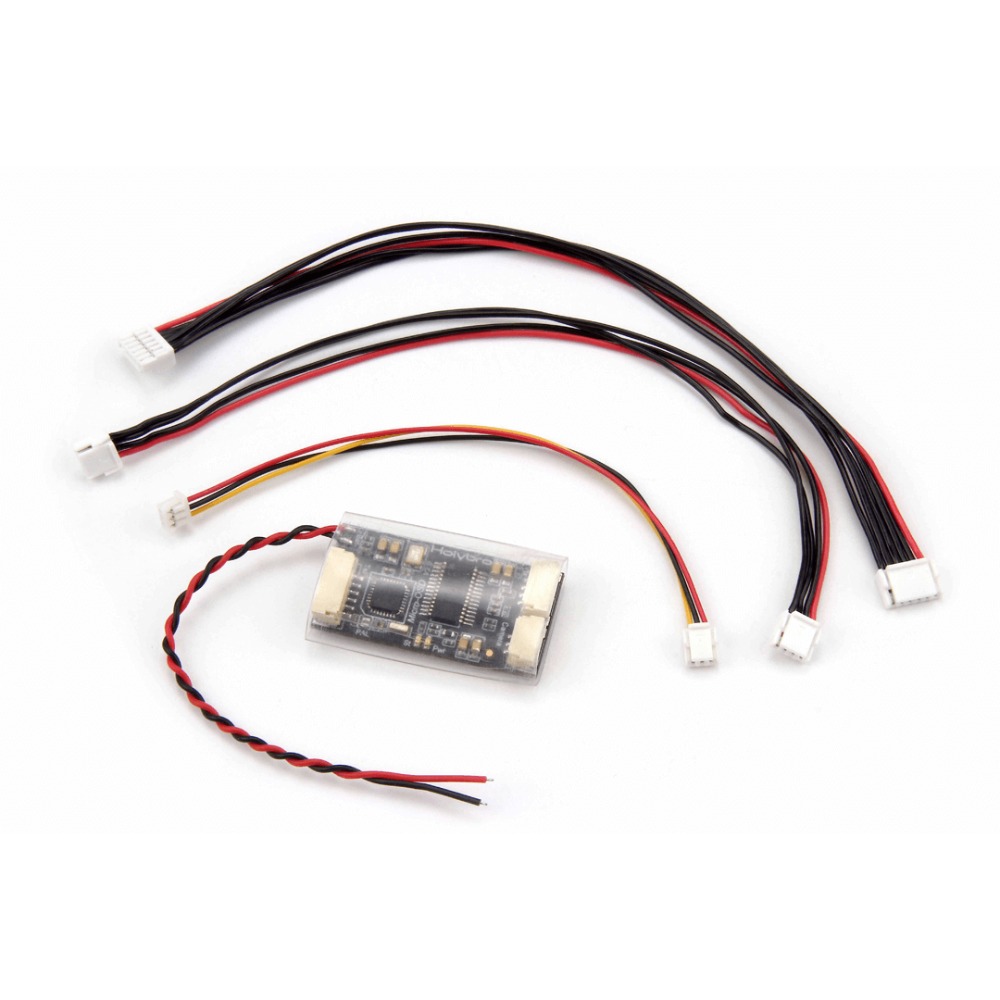

Included:
Micro OSD * 1
GH 6P cable * 1
GH 4P cable * 1
GH 3P cable * 1
Manual:
Holybro_Micro_OSD_V2_Manual.pdf
