VTX & OSD

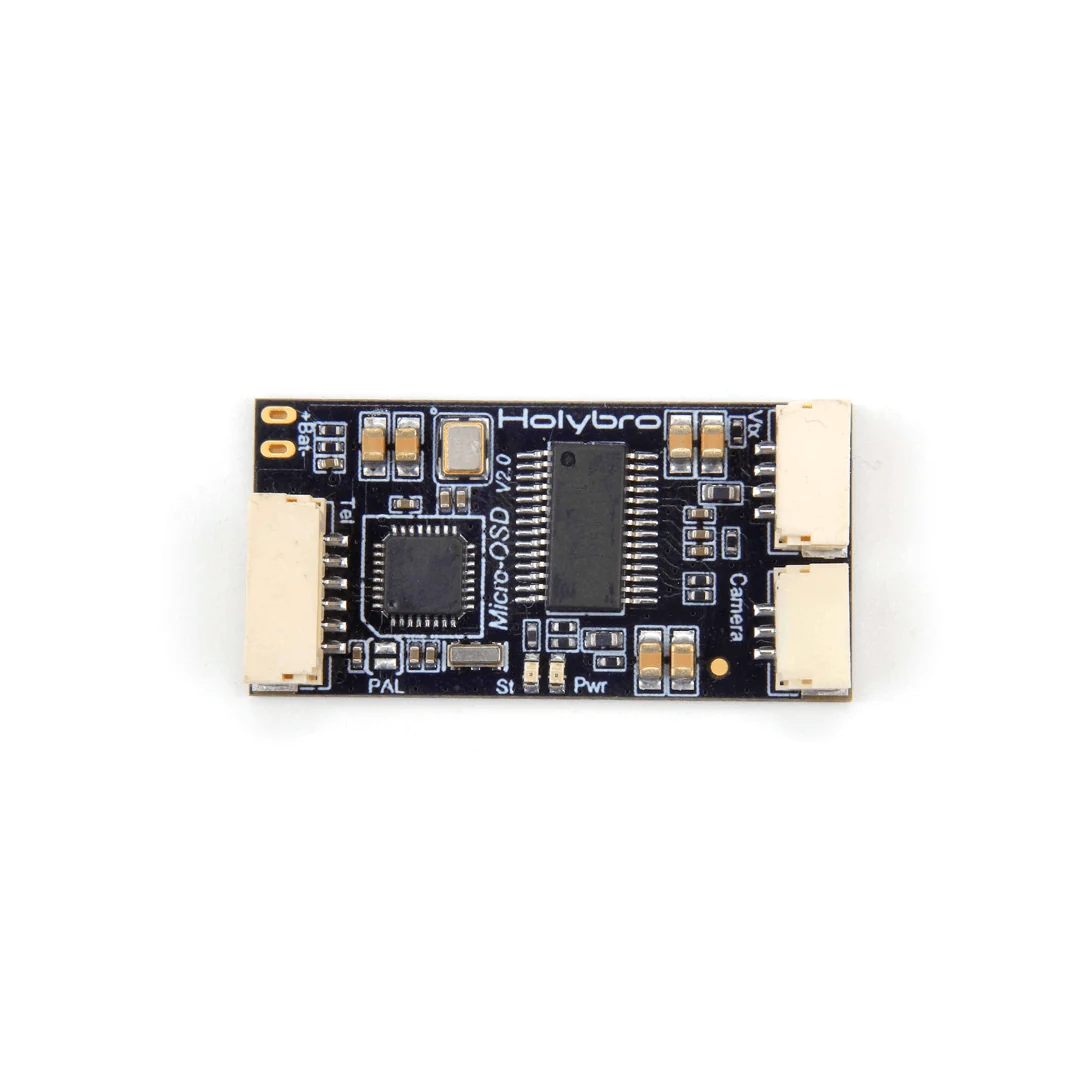

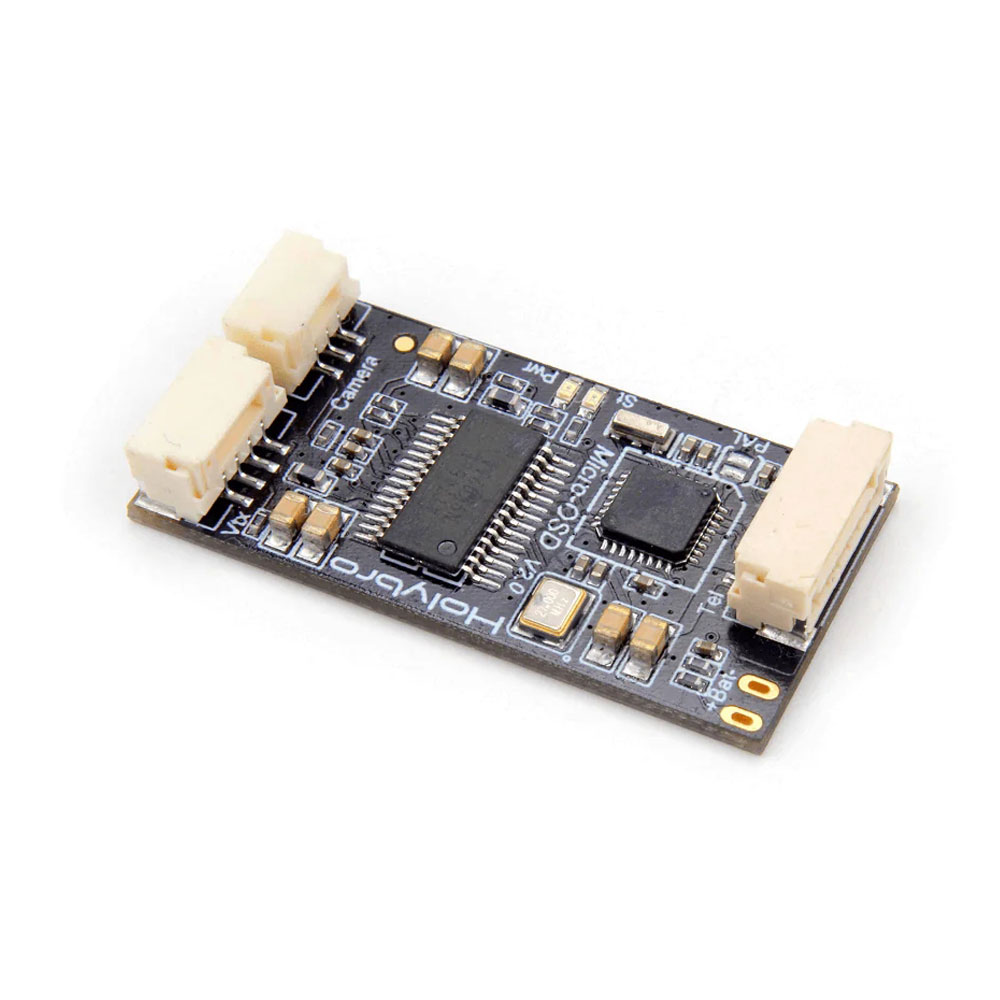

Specifications:
ATmega328P with Arduino bootloader
MAX7456 monochrome on-screen display
Standard 6-pin ISP header
Solder jumper for PAL video option
Exposed test points for HSYNC and LOS
Dimensions:17.5*35mm
Weight:3g
Note:BAT+ is direcrly connected with VTx and Camera (Pay attention to the max with stand voltage of your equipment)

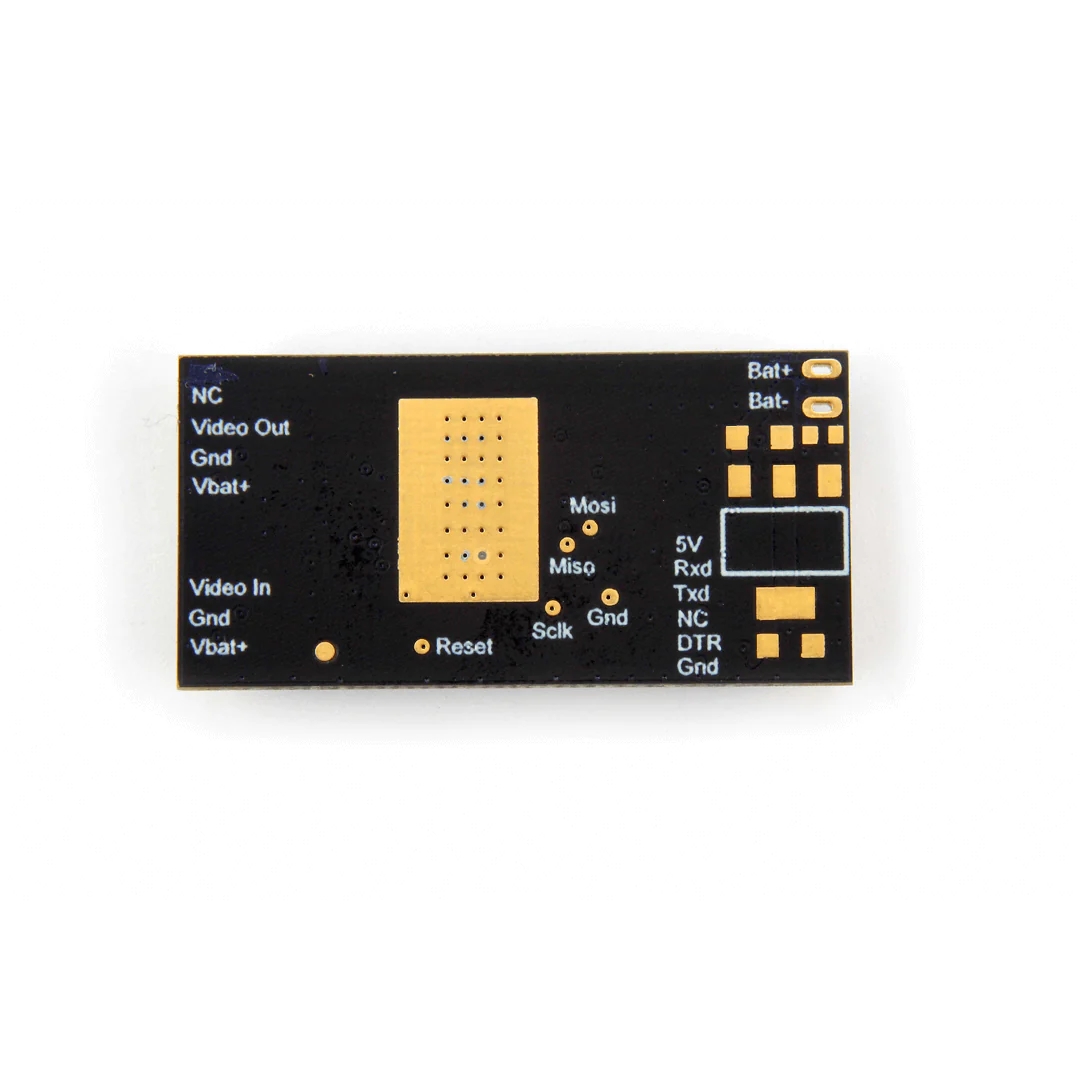

PIN MAP
Diagram

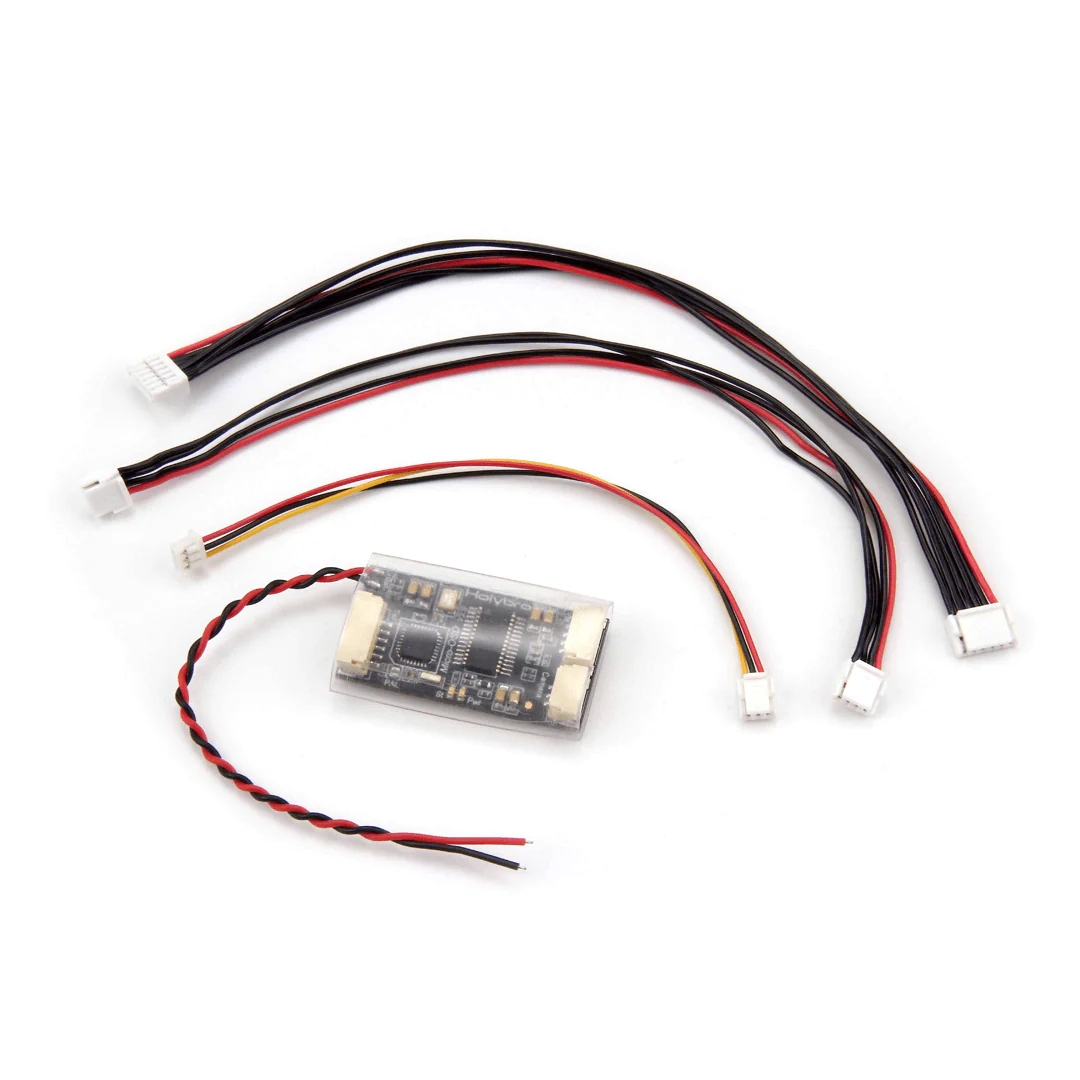

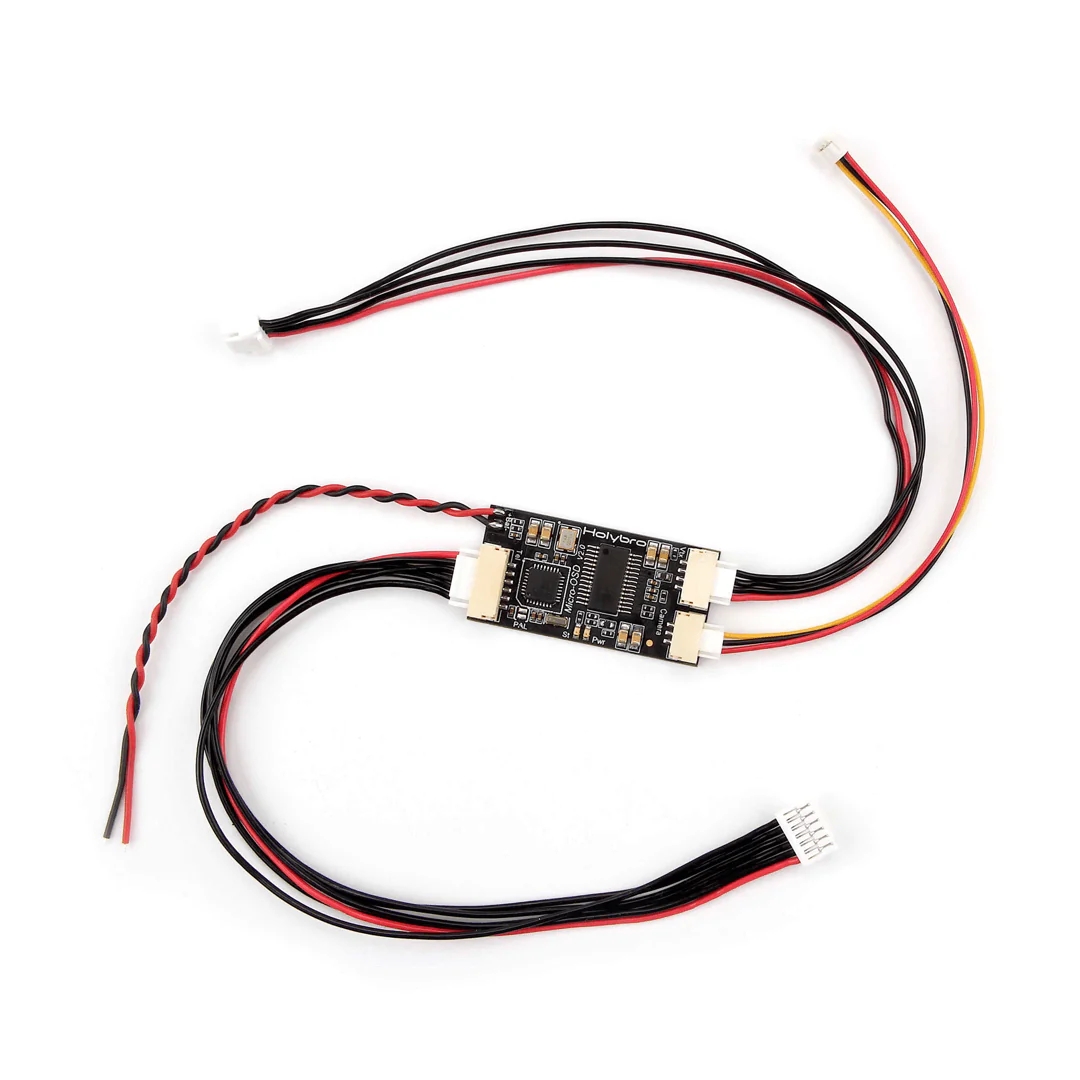

Included:
Micro OSD * 1
GH 6P cable * 1
GH 4P cable * 1
GH 3P cable * 1
Manual:
Holybro_Micro_OSD_V2_Manual.pdf
