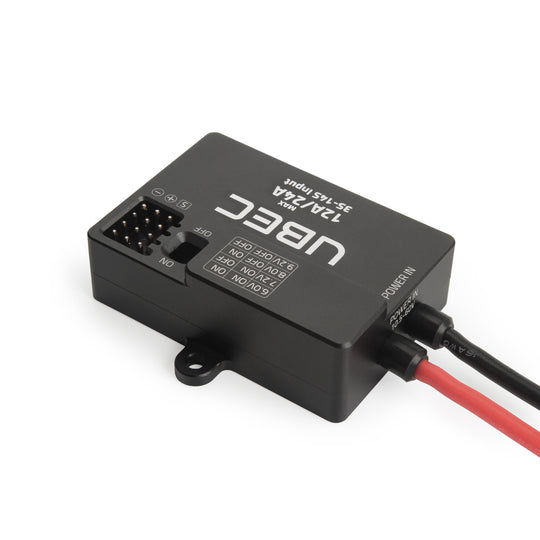

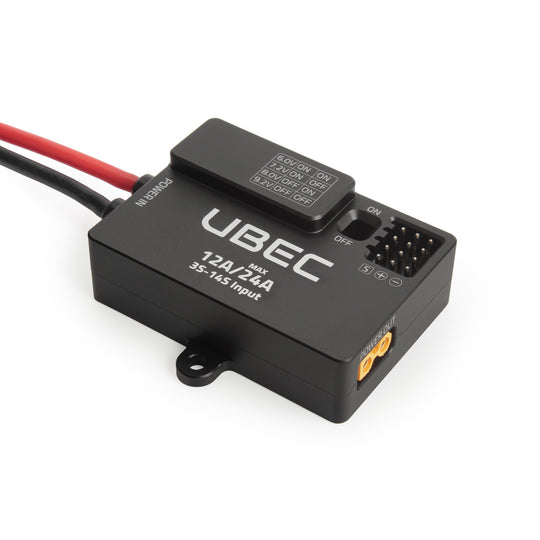

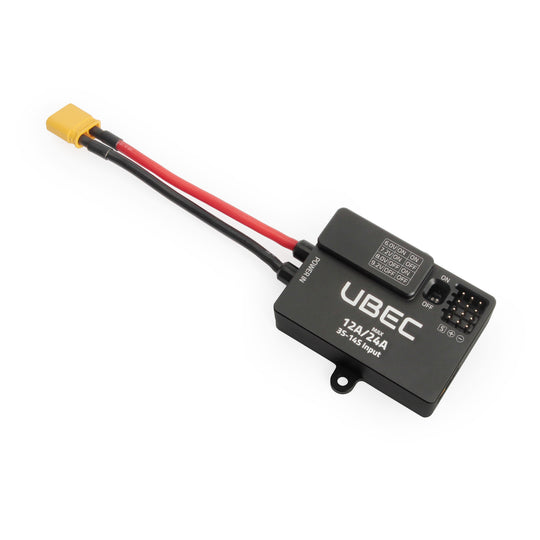

Holybro UBEC 12A (3-14S) Power Module

Overview

UBEC 12A (3-14S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-14S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices and keeps providing the stable current output of up to 12Amp. The output voltage can be adjusted by the onboard DIP switches.

Features

• High efficiency DC-DC regulator chip for transfer efficiency of over 90%
• Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) applicable for devices with different voltages
• 4-channel parallel header pin outputs for servos
• XT30 output for high current devices
• Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff
• Metal housing for quick heat dissipation and less electromagnetic interference.

Specifications

• Input voltage: 3~14S (XT30)
• Output voltage: 6.0V/7.2V/8.0V/9.2V (Adjustable by using onboard DIP Switches)
• Output Current

  • Continuous: 12A
  • Burst: 24A
• Size: 48x33.6x16.3 mm
• Weight: 47.8g

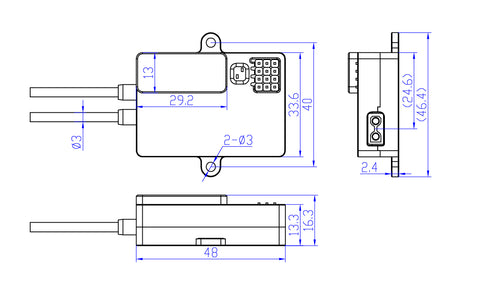

Dimension:

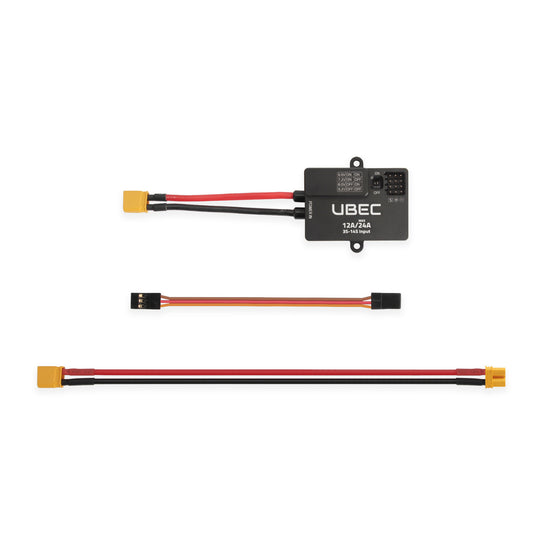

Package Includes：
