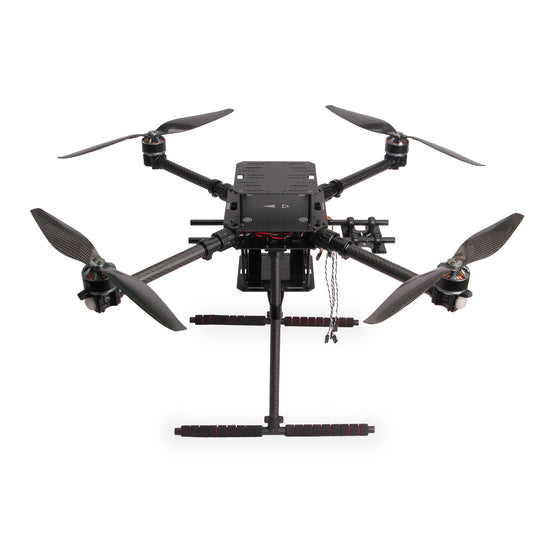

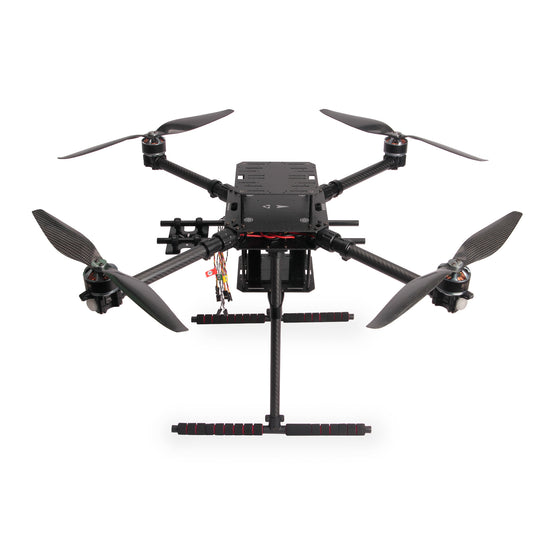

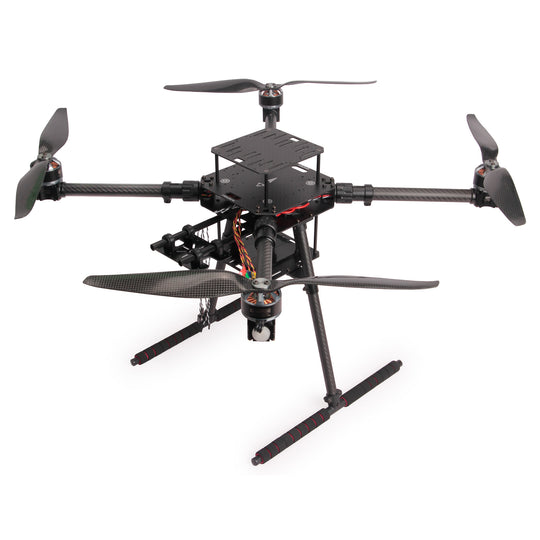

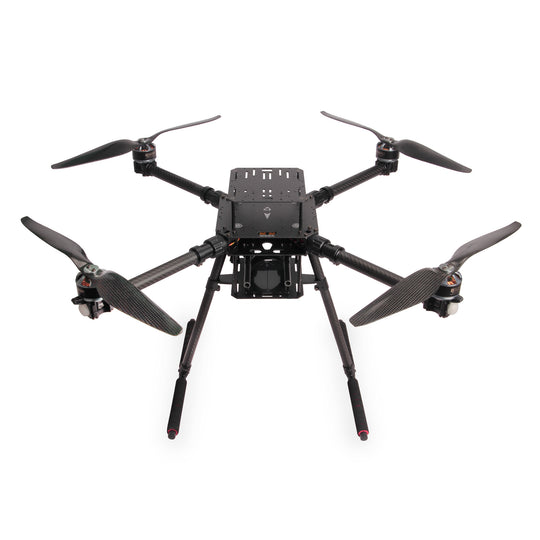

Holybro X650 Kits

Almost Ready-to-Fly (ARF) Kit Feature:

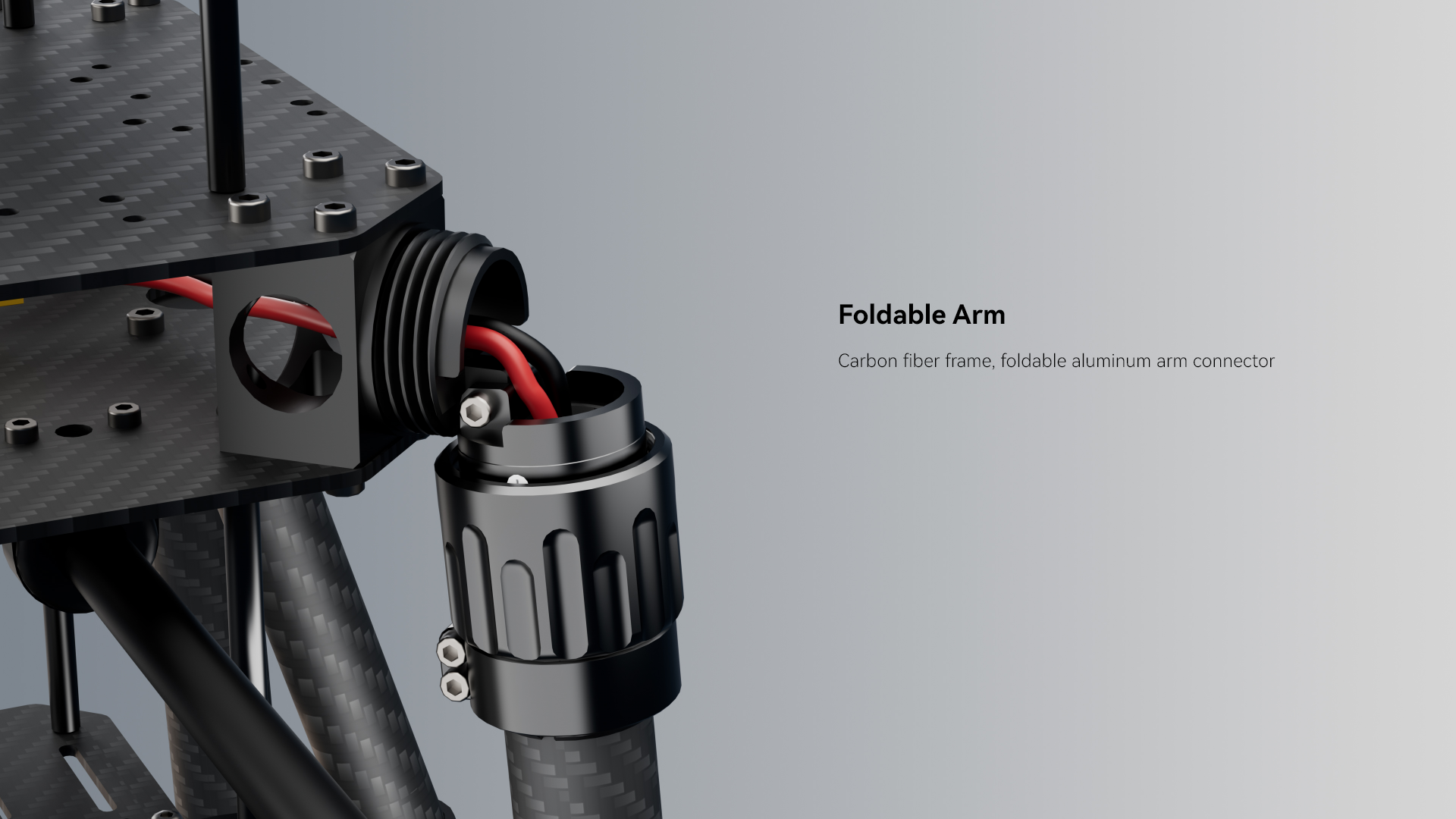

• Carbon Fiber frame with foldable aluminum arm connector

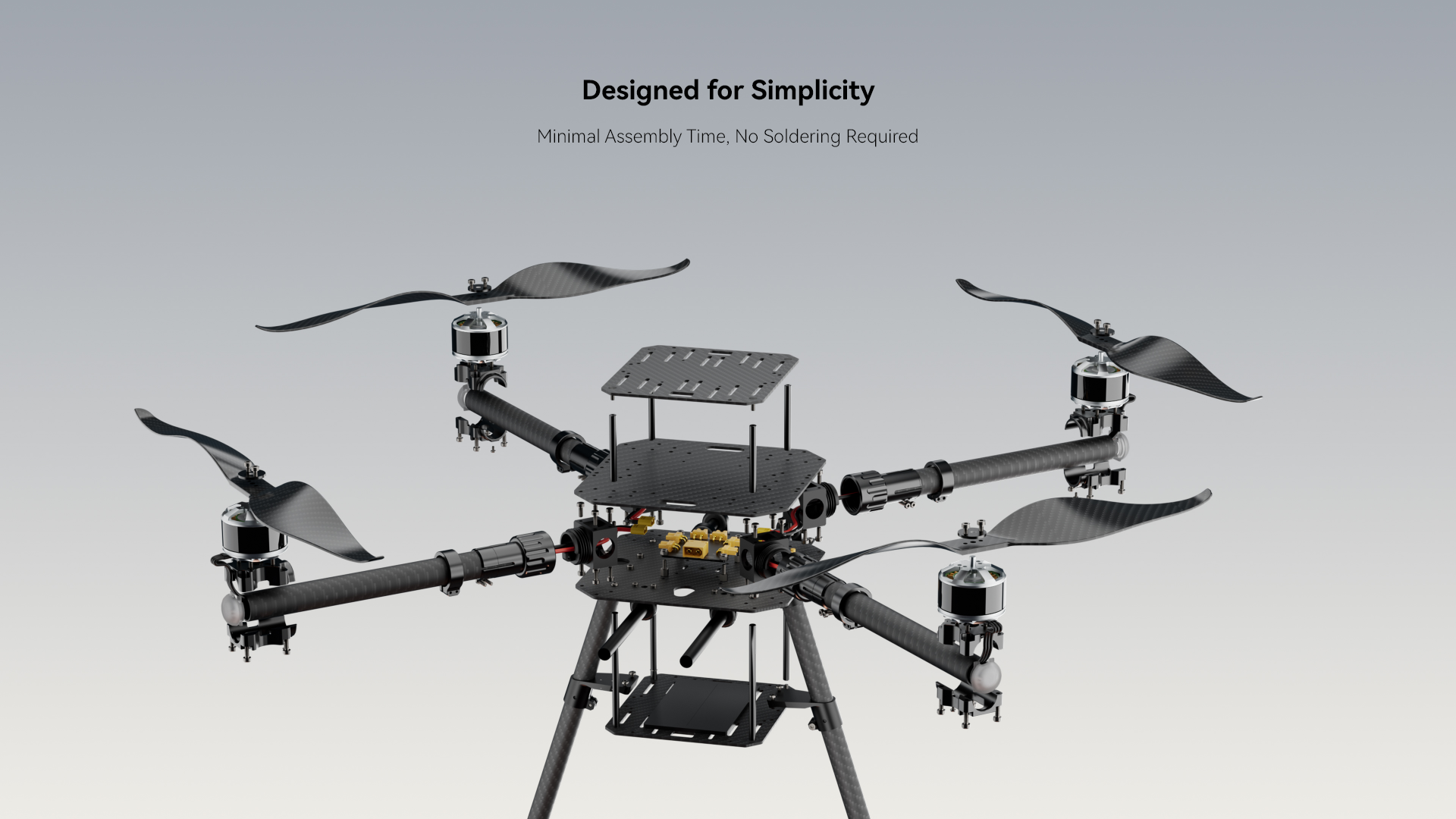

• New frame design with minimal assembly time, no soldering required
• Easy & straightforward installation

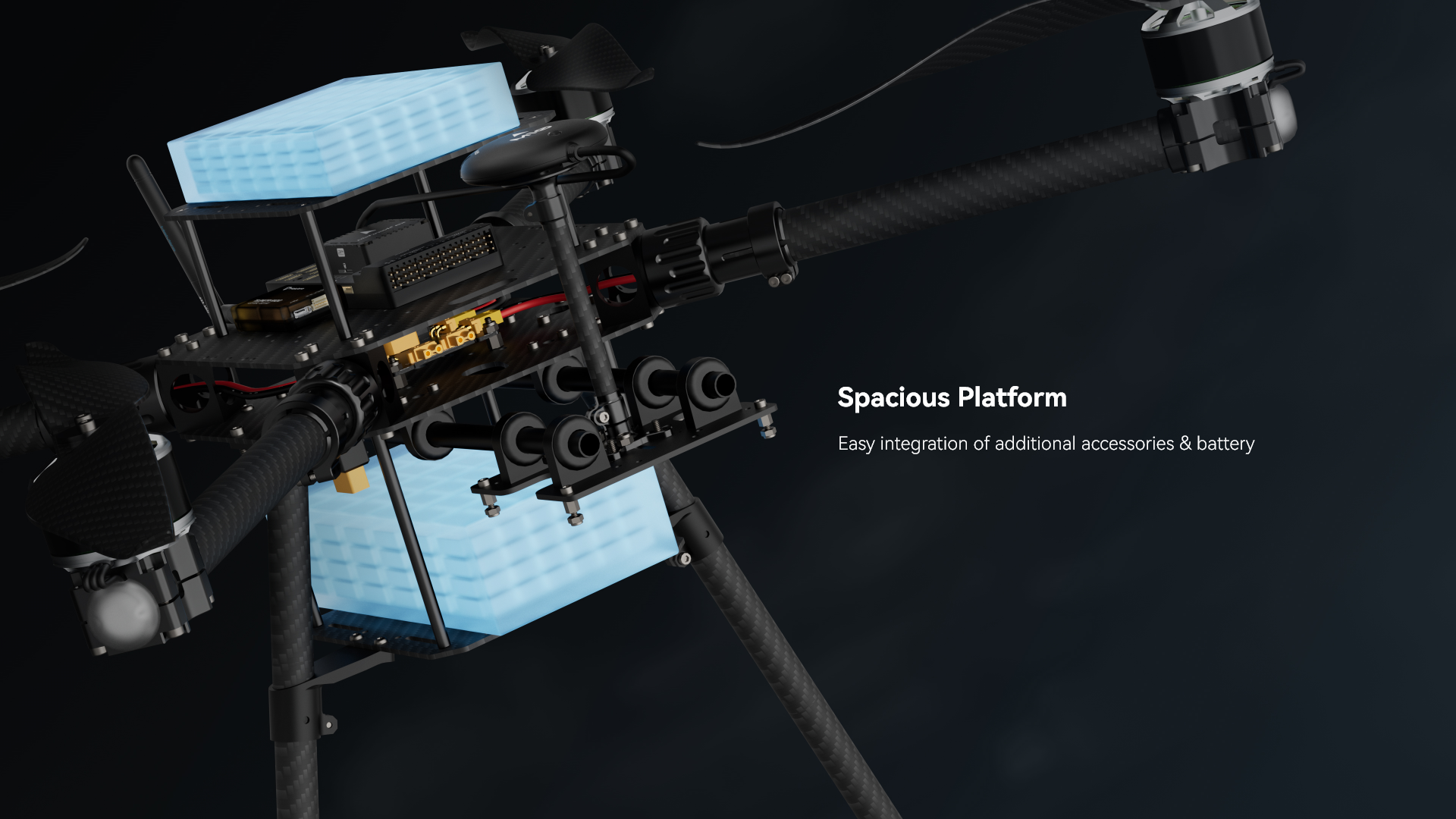

• Spacious platform for easy integration of additional accessories & battery

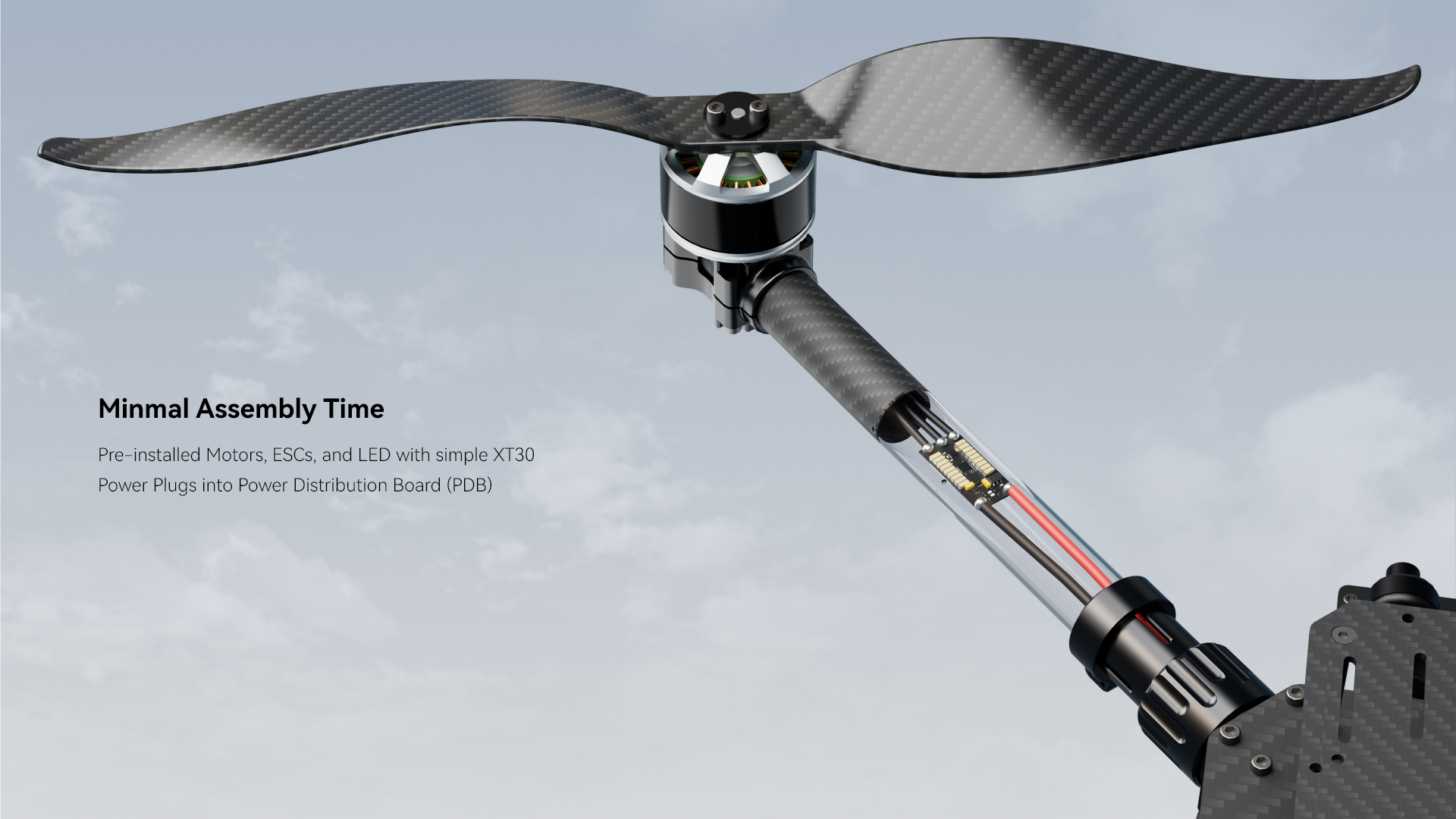

• Pre-installed motors, ESCs, and LED with simple XT30 power plugs for PDB

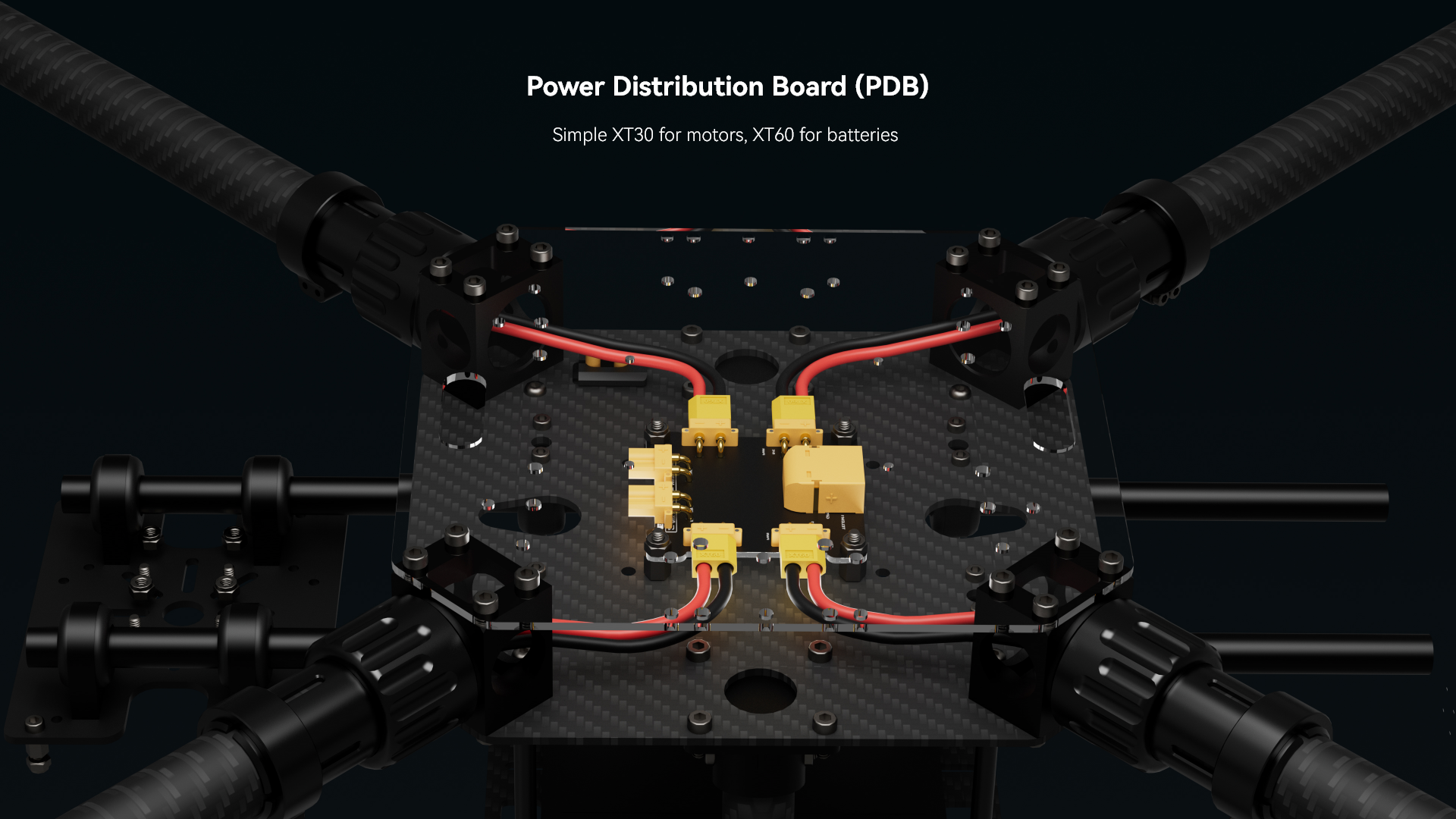

• Power distribution board (PDB) with XT60 & XT30 plugs
• Optional depth camera mount for Intel RealSense depth camera

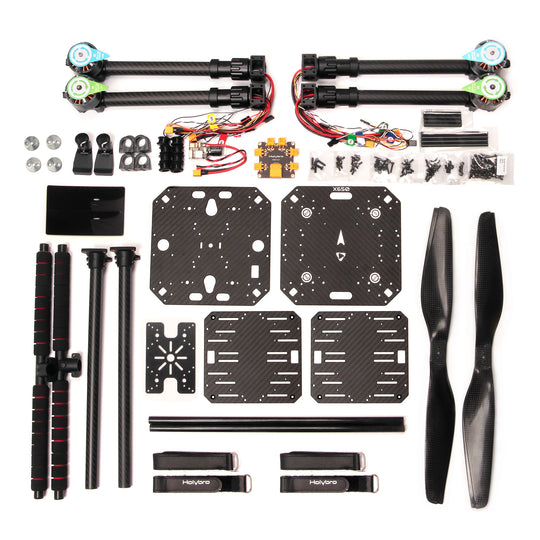

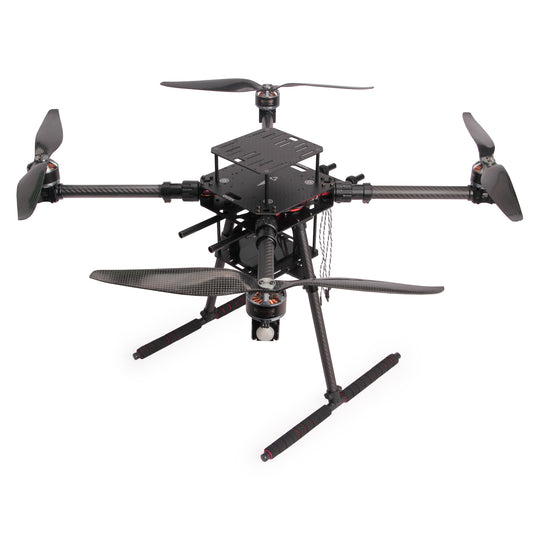

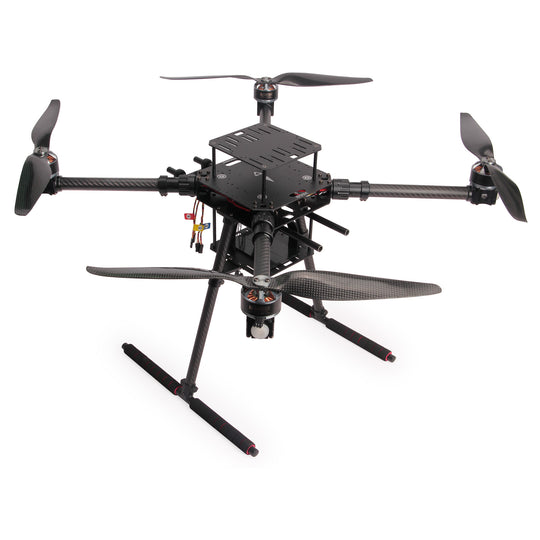

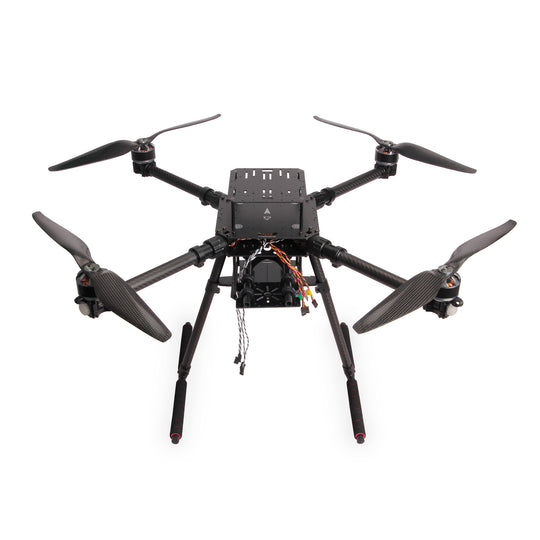

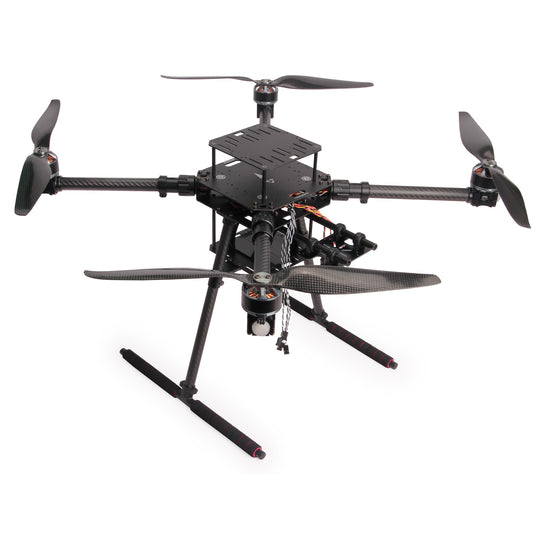

X650 ARF Kit Includes:

• X650 V2 Frame Kit
• Preinstalled Items:
  • 4 Motors - Tmotor MN4014 KV330 Motor with XT30 Plug
  • 4 ESCs - Tekko32 F4 45A ESC with XT30 Plugs
  • 4 LED - NeoPixel WS2812 LED (Setup Instruction)
• Gemfan 1555 Carbon Fiber Propellers (4 pcs)
• Power Distribution Board (XT60 plug for battery & XT30 plug for ESCs & peripherals)

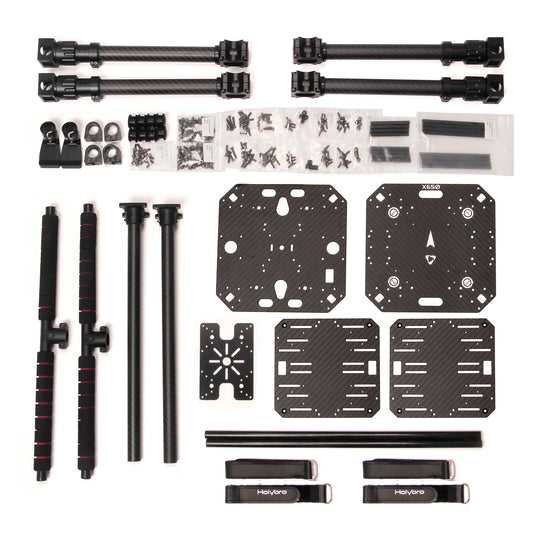

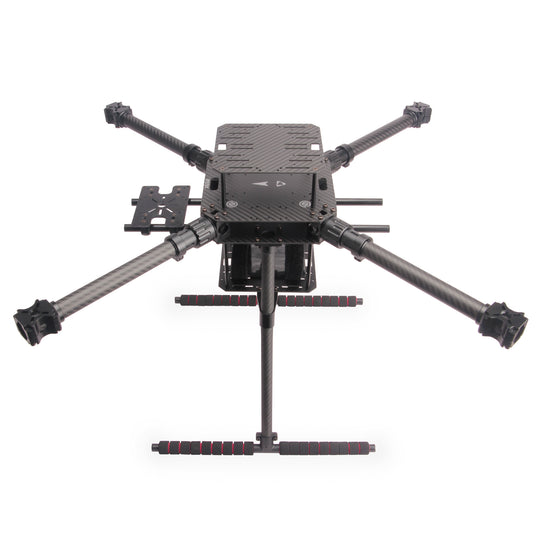

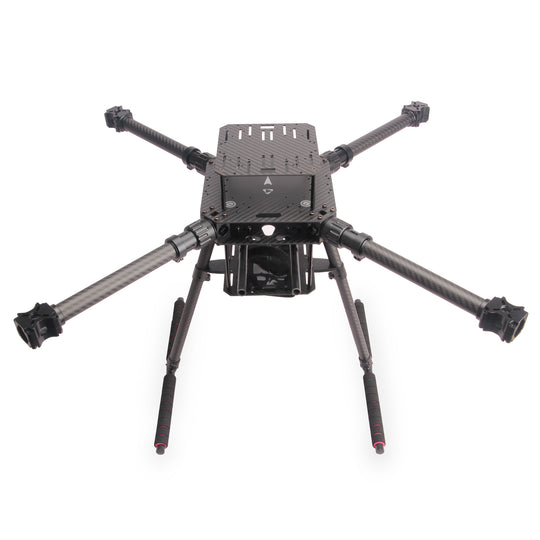

X650 Frame Kit Includes:

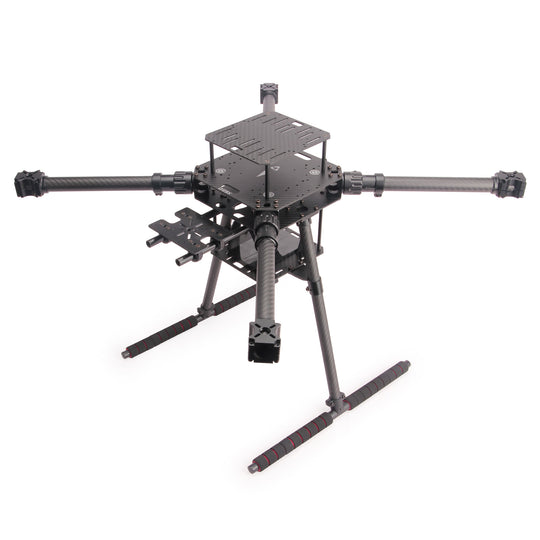

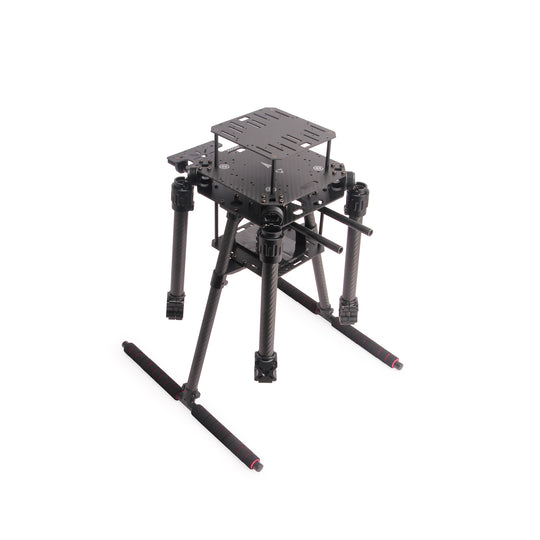

• X650 V2 Frame Only

Frame Details:

• Wheelbase: 650mm
• Motor mount
  • Mount pattern: 16-25mm
• Body - Full Carbon Fiber Top & Bottom plate (160 x 160mm, 2mm thick)

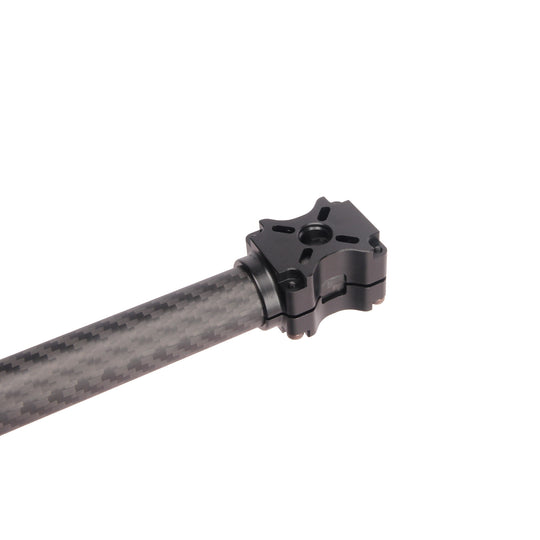

• Arm - High strength & ultra-lightweight 20mm carbon fiber tubes with newly designed aluminum foldable arm mount
• Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
• Upper & Battery Plate - 120mm x 128mm carbon fiber plate for various payload, accessories, or battery.
• Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano

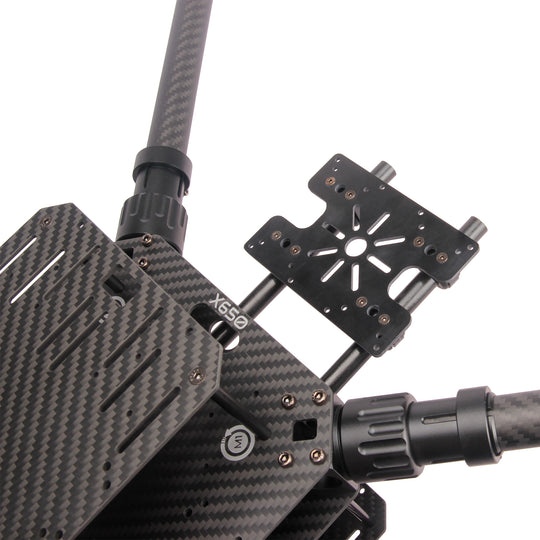

• Dual 10mm Ø rod x 320 mm long rail mounting system
• Two battery pads & Straps
• Hand tools for installation

Flight Time and Payload

• Flight time: 30 min (Hover with 6S 10000 mAh Battery, no additional payload)
• Full Kit Weight: 2000g (without battery)
• Payload:
  • 4.3kg (without battery)
  • 3.5kg (with 5200mAh 750 gram battery)
  • 3.1kg (with 10000mAh 1200 gram battery)
• Takeoff Weight Limit: 6300g (70% throttle)
• Battery Recommendation: 6S 5000-12000mAh Lipo Battery with XT60 (Not Included)

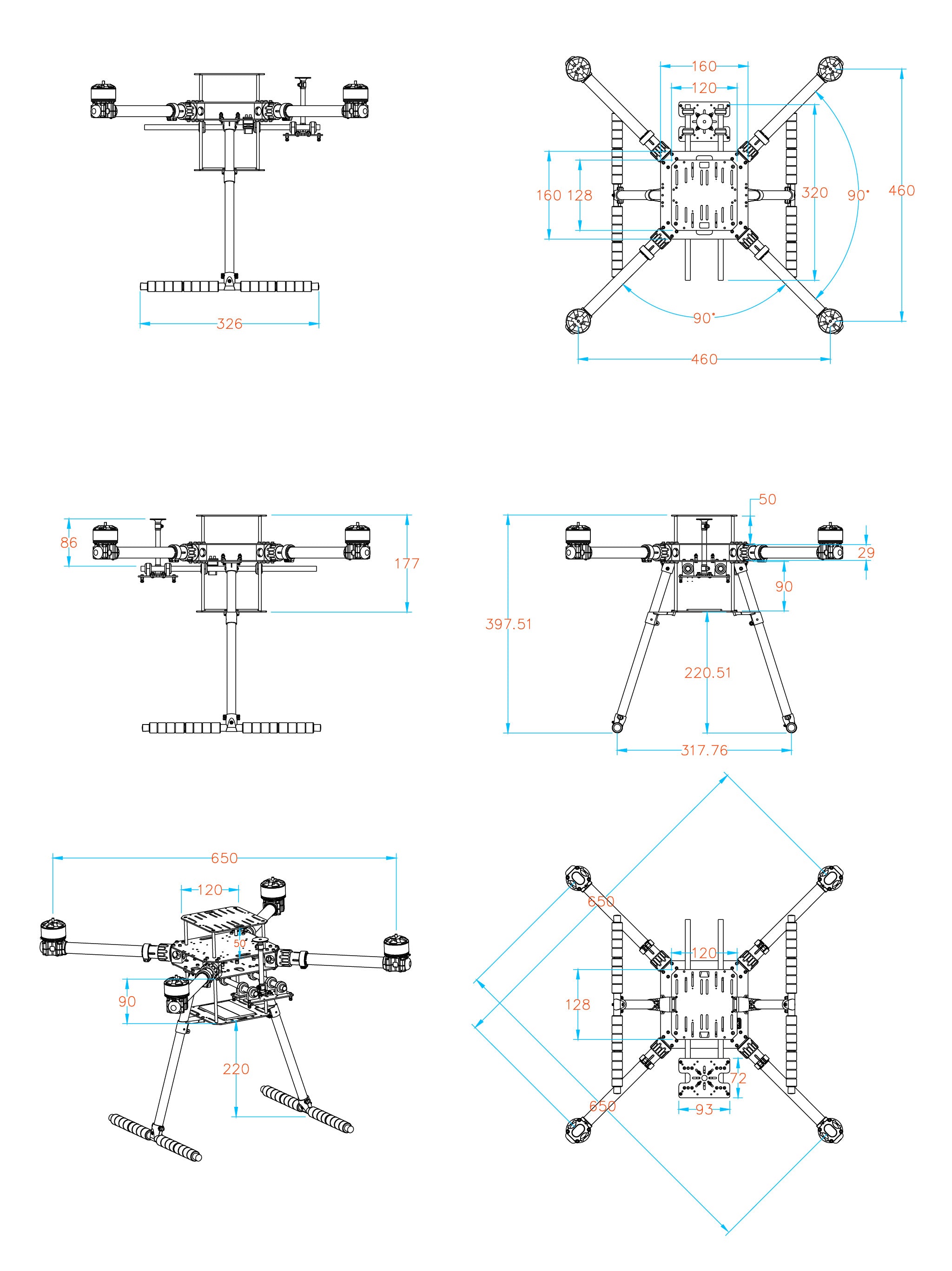

Dimension

Recommendation Combination (Not Included):
