Specifications:

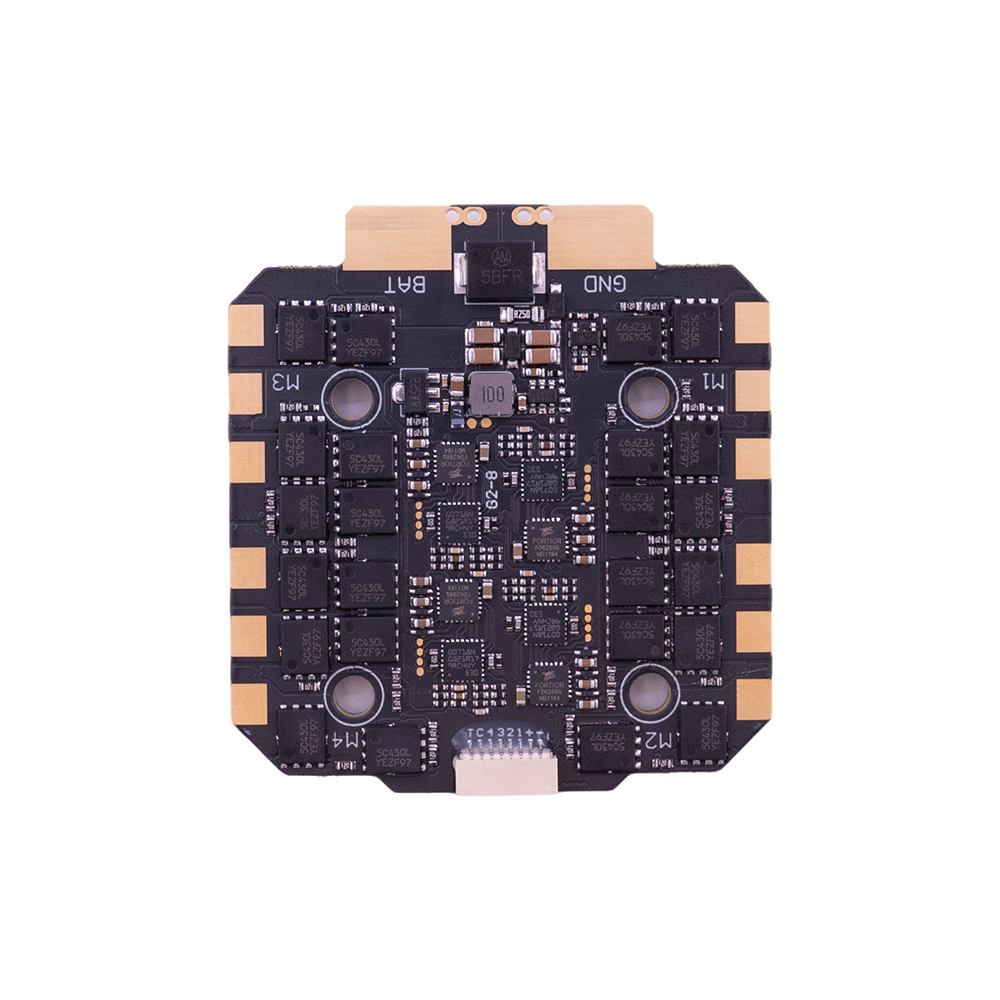

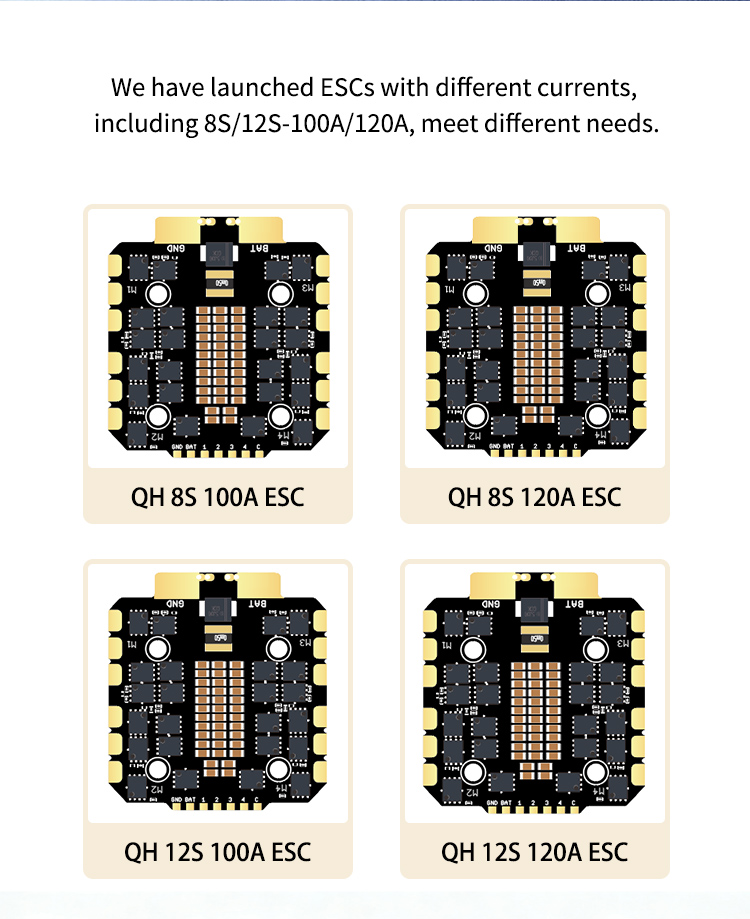

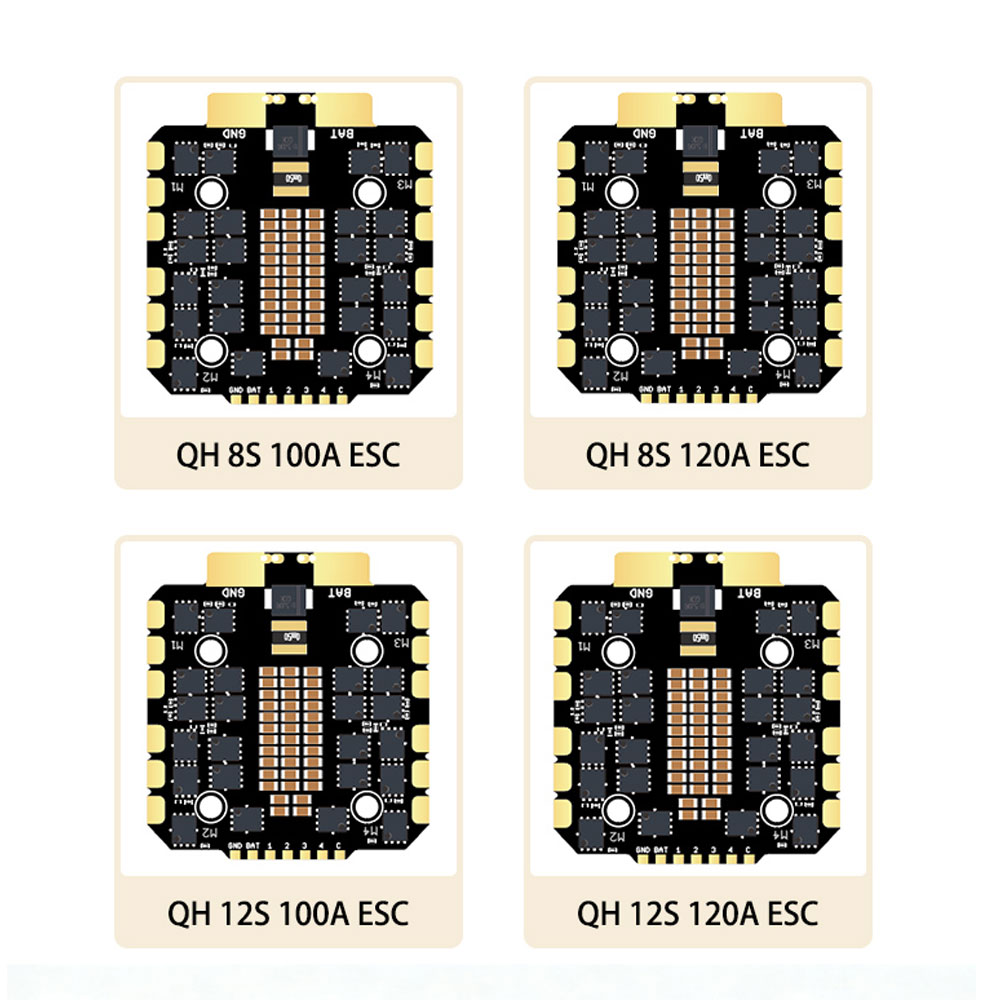

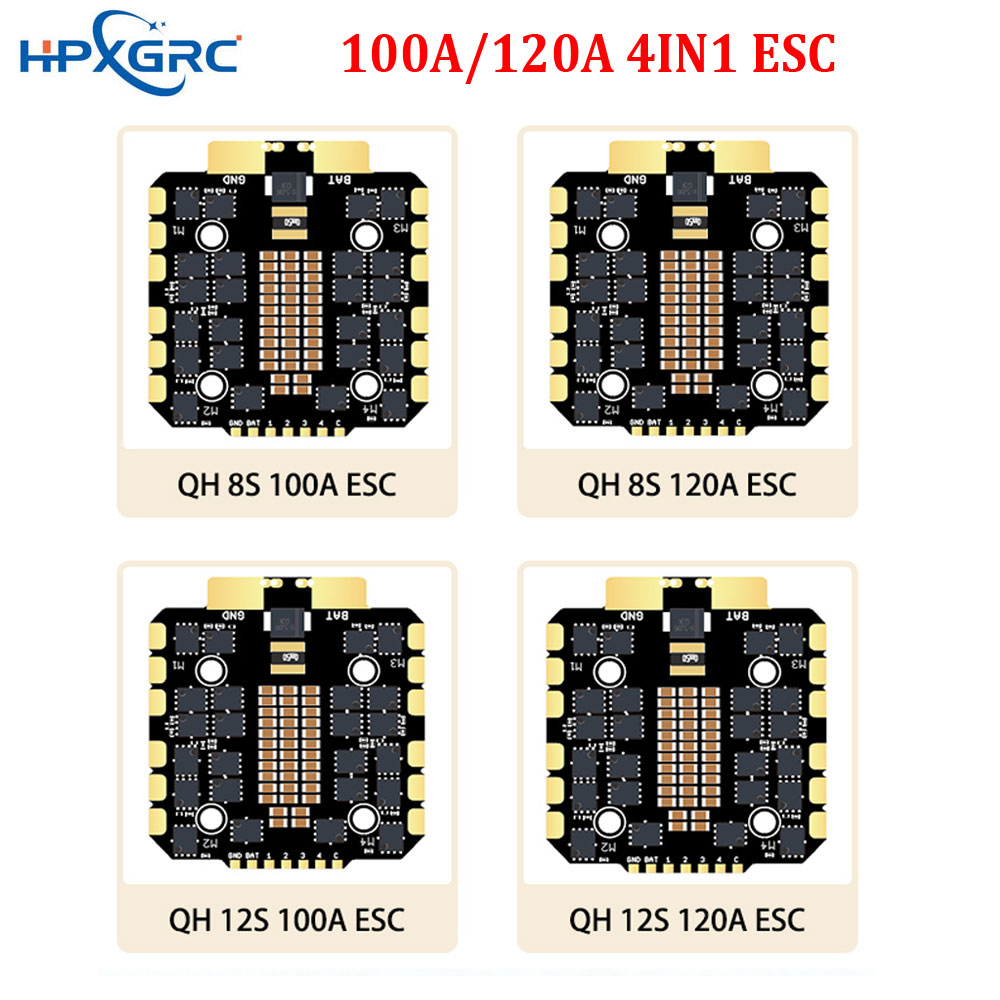

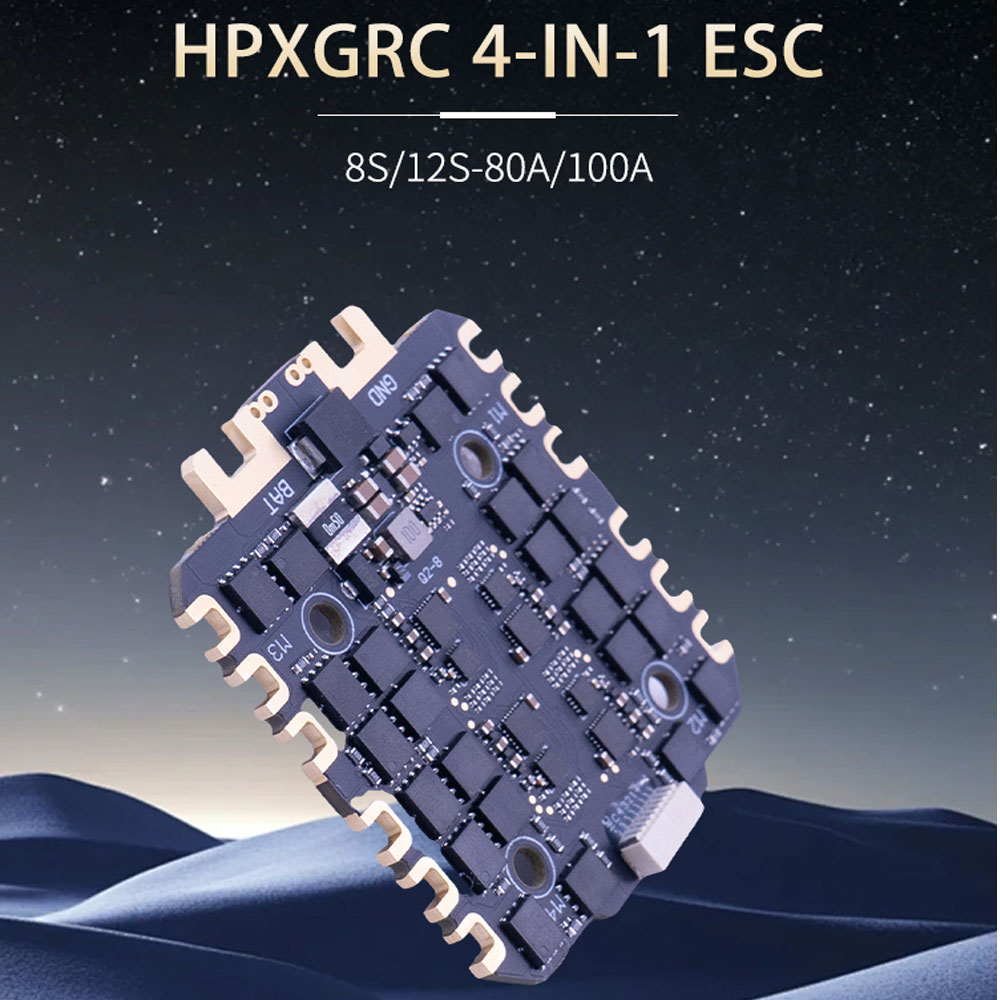

QH 8S 100A ESC

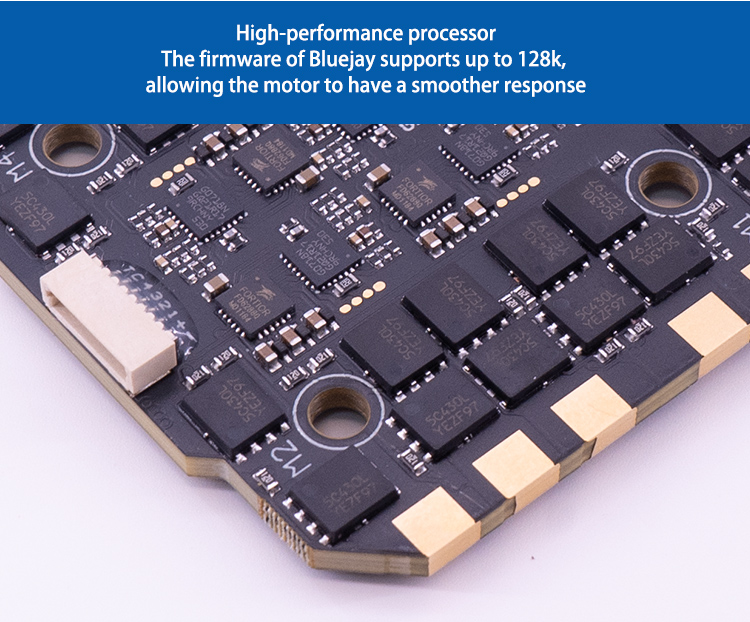

ESC FIRMWARE : BLHELI_S/BLUEJAY
FIRMWARE VERSION : Q_H_30_24_V0.19.2
MCU : EFM8BB2F16G-C-QFN20R

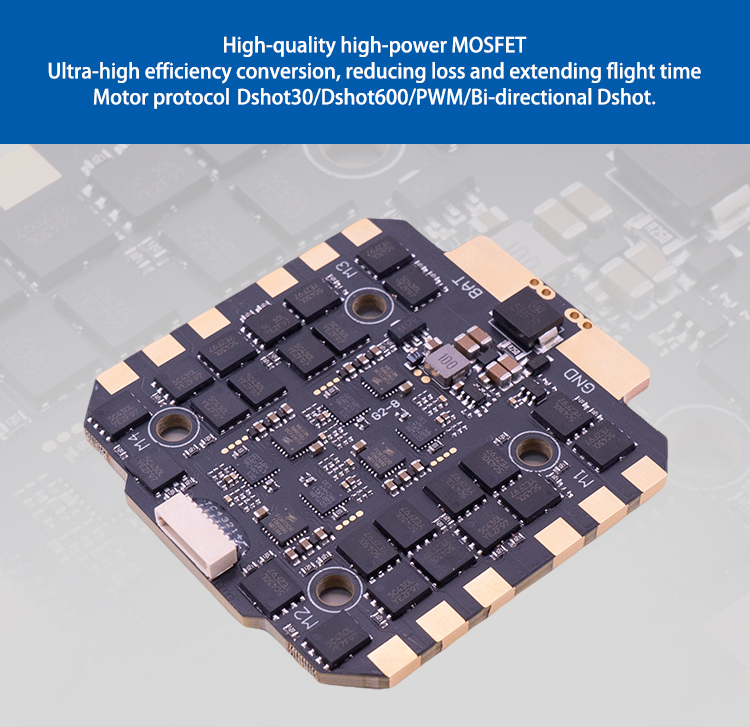

MOSFET : ON5C430NL
CONTINUOUS MAXIMUM CURRENT : 100AX4
INSTANTANEOUS MAXIMUM CURRENT : 105AX4-1S
TVS :Have
ELECTROLY CAPACITOR : 50V 47OOUF LOW ESR CAPACITOR X 1
MOTOR PROTOCOL : DSHOT300/DSHOT600/PWM/BIDIRECTIONALDSHOT.
BATTERY INPUT : 3-8S

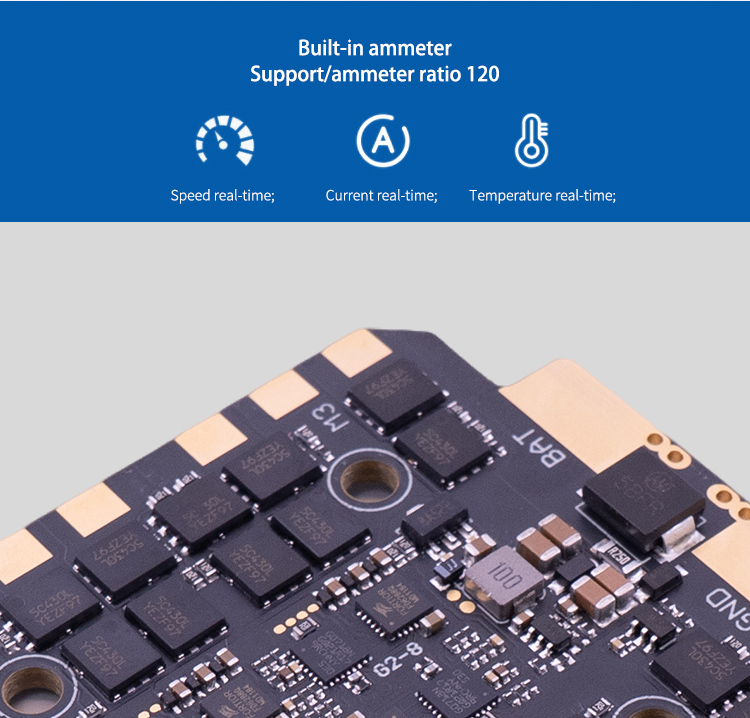

AMMETER : SUPPORT/CURRENT METER RATIO 120
POWER OUTPUT : VBAT

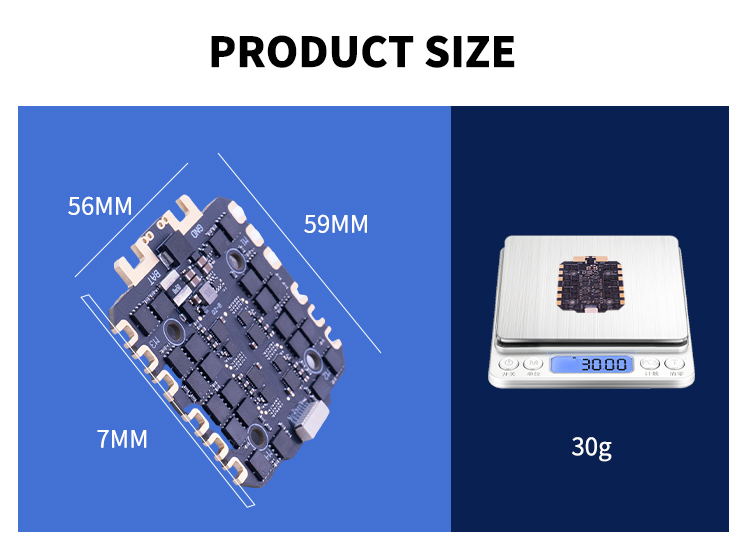

DIMENSIONS : 56MM*59MM*7MM

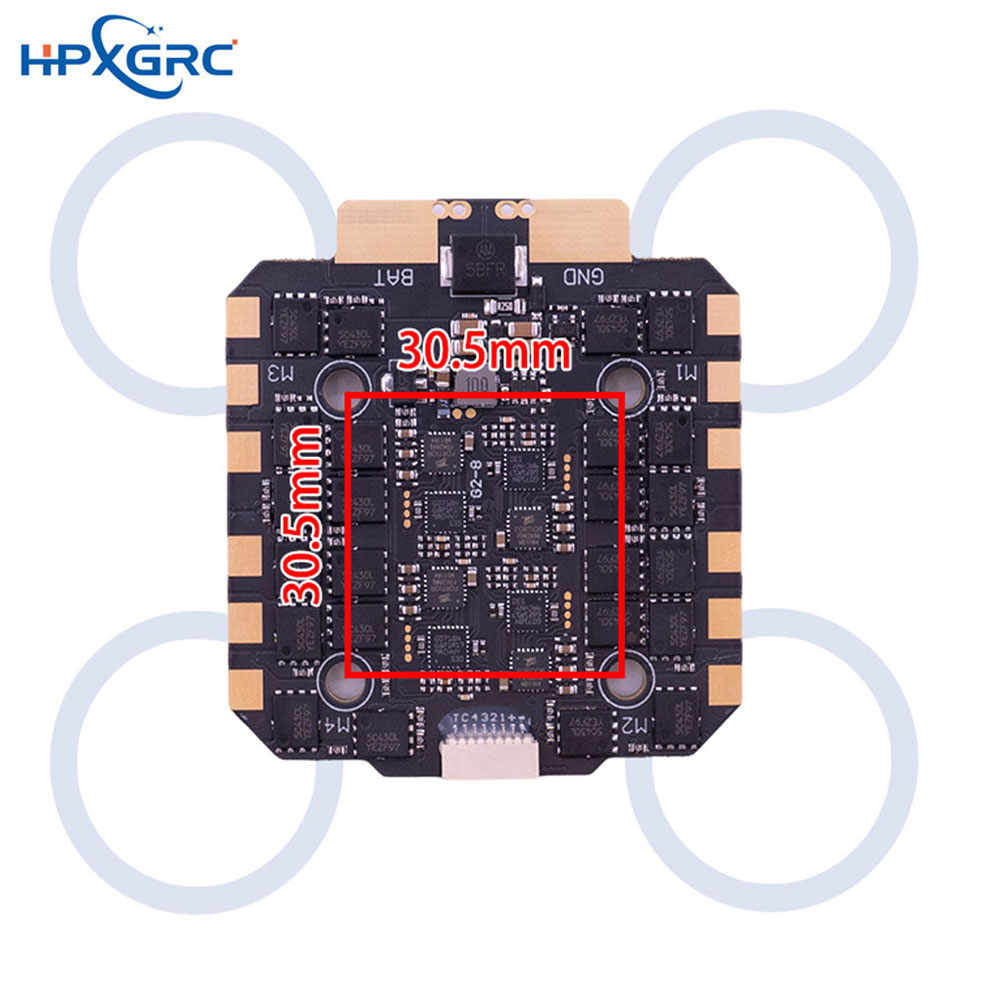

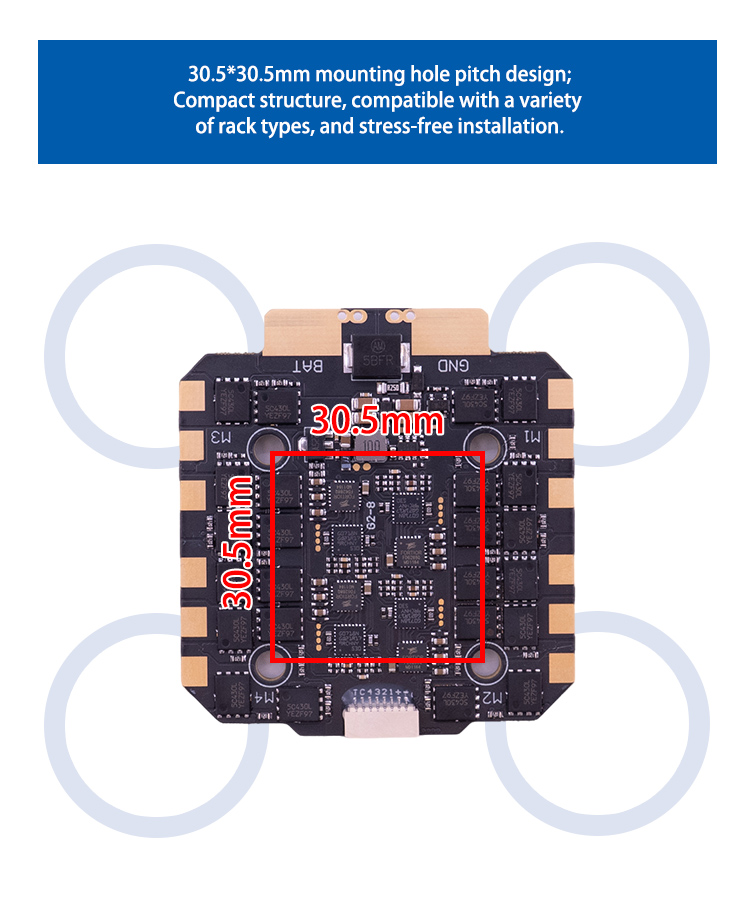

MOUNTING HOLES : 3.5MMX*30.5/M4
WEIGHT : 30G
OPERATING HUMIDITY : 20°℃~85℃
STORAGE HUMIDITY : 20°℃C~ 70²CC
OPERATING : 20-95%

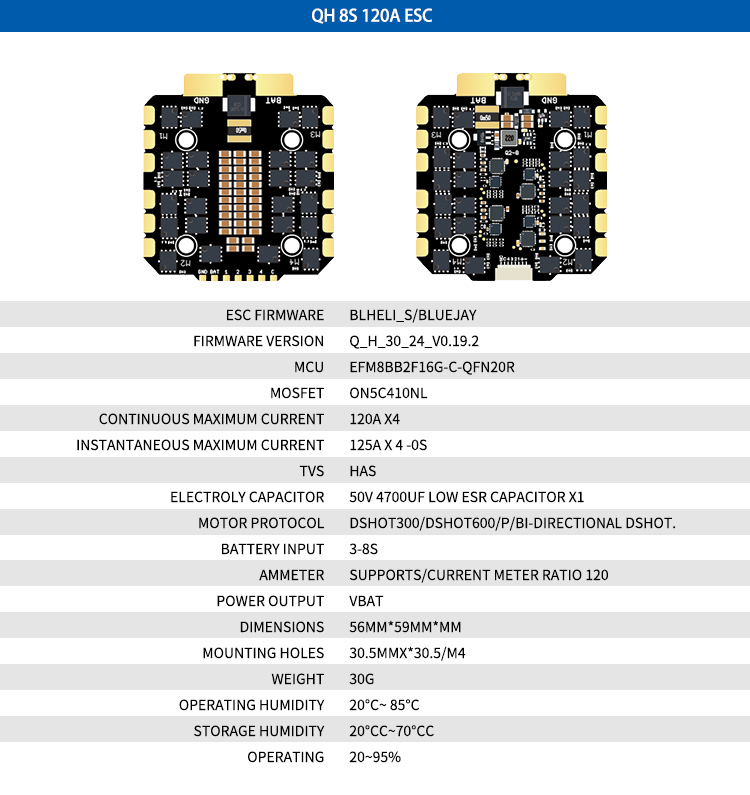

QH 8S 120A ESC
ESC FIRMWARE : BLHELI_S/BLUEJAY
FIRMWARE VERSION : Q_H_30_24_V0.19.2
MCU : EFM8BB2F16G-C-QFN20R
MOSFET : ON5C430NL
CONTINUOUS MAXIMUM CURRENT : 120AX4
INSTANTANEOUS MAXIMUM CURRENT : 125AX4-1S
TVS :Have
ELECTROLY CAPACITOR : 50V 47OOUF LOW ESR CAPACITOR X 1
MOTOR PROTOCOL : DSHOT300/DSHOT600/PWM/BIDIRECTIONALDSHOT.
BATTERY INPUT : 3-8S
AMMETER : SUPPORT/CURRENT METER RATIO 120
POWER OUTPUT : VBAT
DIMENSIONS : 56MM*59MM*7MM
MOUNTING HOLES : 3.5MMX*30.5/M4
WEIGHT : 30G
OPERATING HUMIDITY : 20°℃~85℃
STORAGE HUMIDITY : 20°℃C~ 70²CC
OPERATING : 20-95%

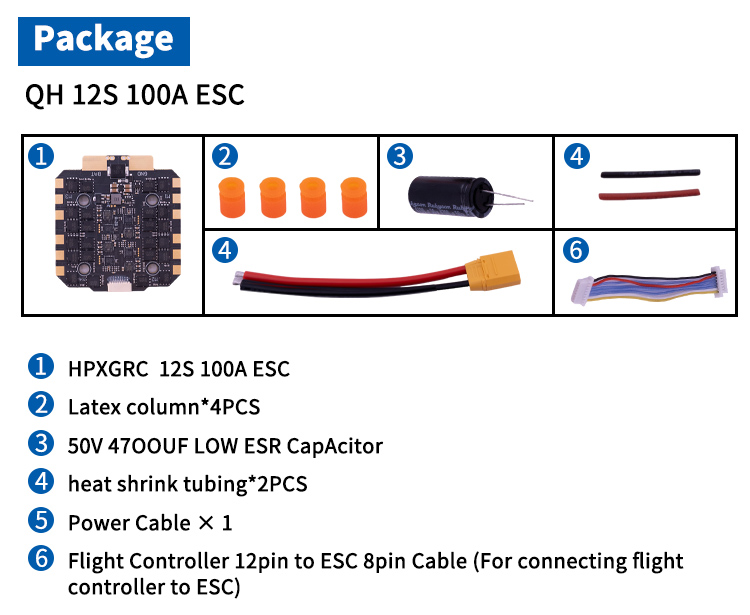

QH 12S 100A ESC
ESC FIRMWARE : BLHELI_S/BLUEJAY
FIRMWARE VERSION : Q_H_30_24_V0.19.2
MCU : EFM8BB2F16G-C-QFN20R
MOSFET : ON5C430NL
CONTINUOUS MAXIMUM CURRENT : 100AX4
INSTANTANEOUS MAXIMUM CURRENT : 110AX4-1S
TVS :Have
ELECTROLY CAPACITOR : 50V 47OOUF LOW ESR CAPACITOR X 1
MOTOR PROTOCOL : DSHOT300/DSHOT600/PWM/BIDIRECTIONALDSHOT.
BATTERY INPUT : 3-12S
AMMETER : SUPPORT/CURRENT METER RATIO 120
POWER OUTPUT : VBAT
DIMENSIONS : 56MM*59MM*7MM
MOUNTING HOLES : 3.5MMX*30.5/M4
WEIGHT : 30G
OPERATING HUMIDITY : 20°℃~85℃
STORAGE HUMIDITY : 20°℃C~ 70²CC
OPERATING : 20-95%

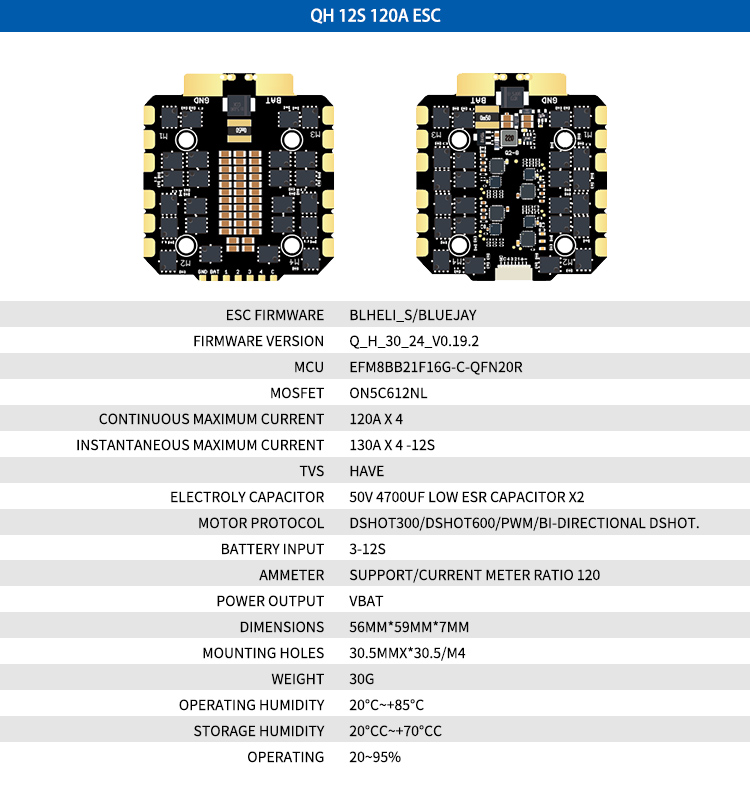

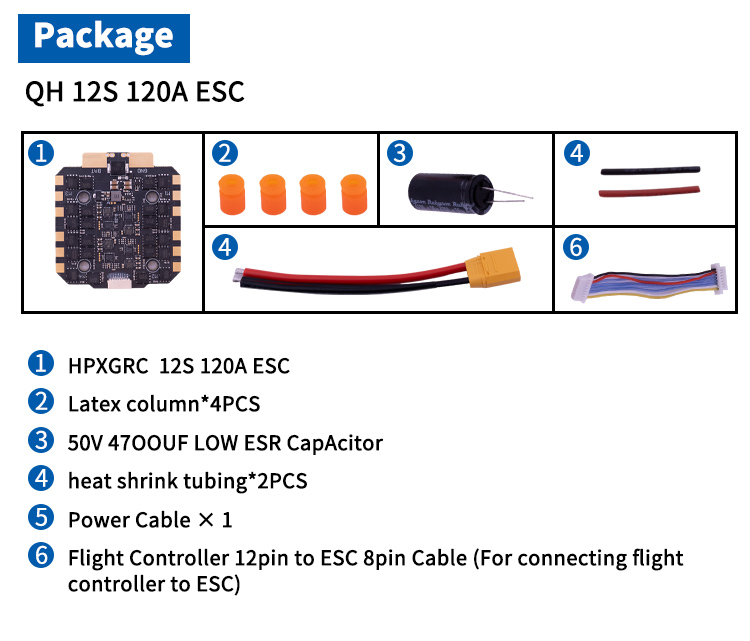

QH 12S 120A ESC
ESC FIRMWARE : BLHELI_S/BLUEJAY
FIRMWARE VERSION : Q_H_30_24_V0.19.2
MCU : EFM8BB2F16G-C-QFN20R
MOSFET : ON5C430NL
CONTINUOUS MAXIMUM CURRENT : 120AX4
INSTANTANEOUS MAXIMUM CURRENT : 130AX4-1S
TVS :Have
ELECTROLY CAPACITOR : 50V 47OOUF LOW ESR CAPACITOR X 1
MOTOR PROTOCOL : DSHOT300/DSHOT600/PWM/BIDIRECTIONALDSHOT.
BATTERY INPUT : 3-12S
AMMETER : SUPPORT/CURRENT METER RATIO 120
POWER OUTPUT : VBAT
DIMENSIONS : 56MM*59MM*7MM
MOUNTING HOLES : 3.5MMX*30.5/M4
WEIGHT : 30G
OPERATING HUMIDITY : 20°℃~85℃
STORAGE HUMIDITY : 20°℃C~ 70²CC
OPERATING : 20-95%
