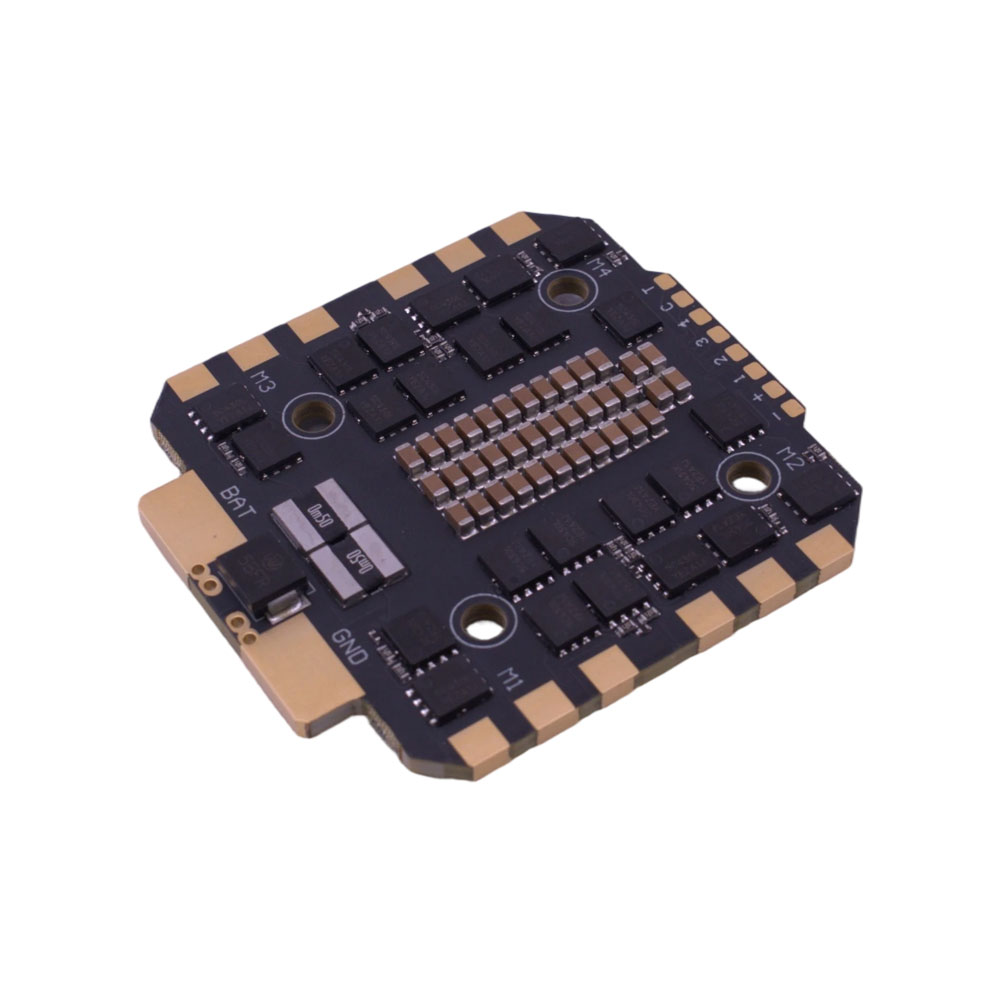

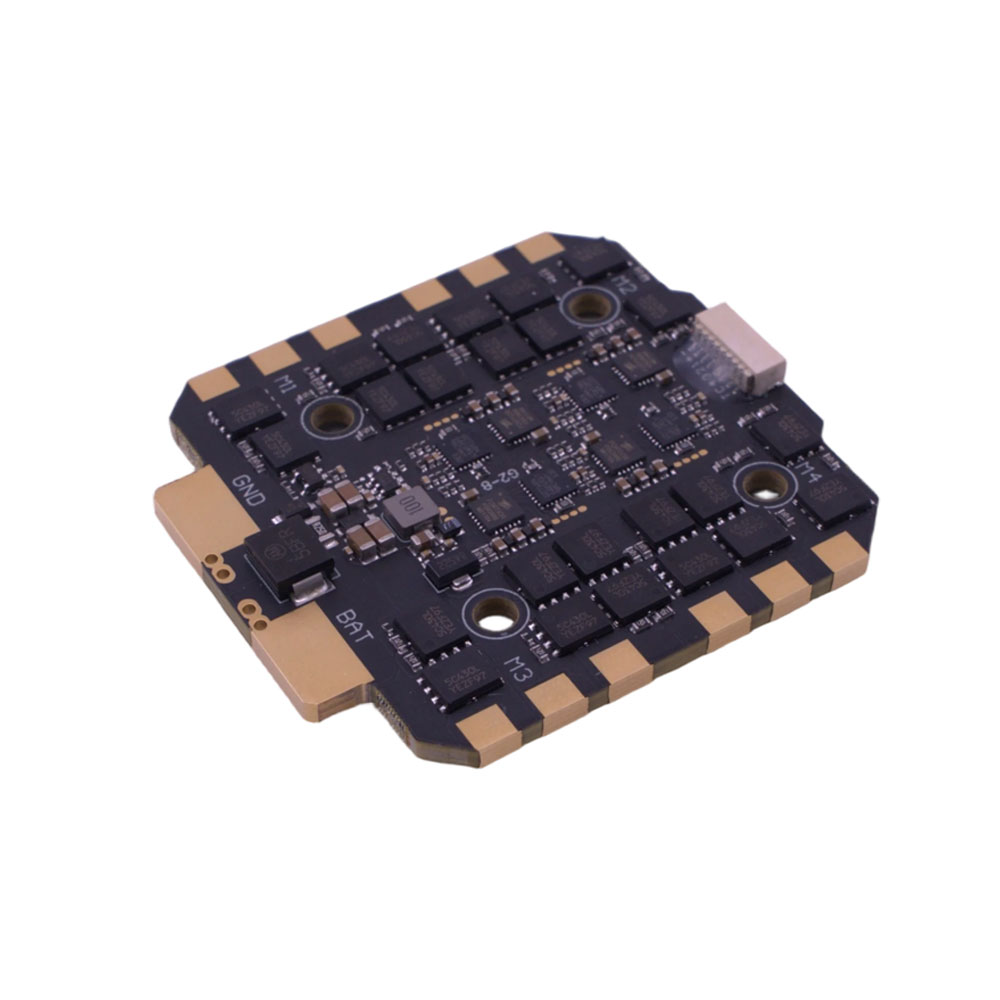

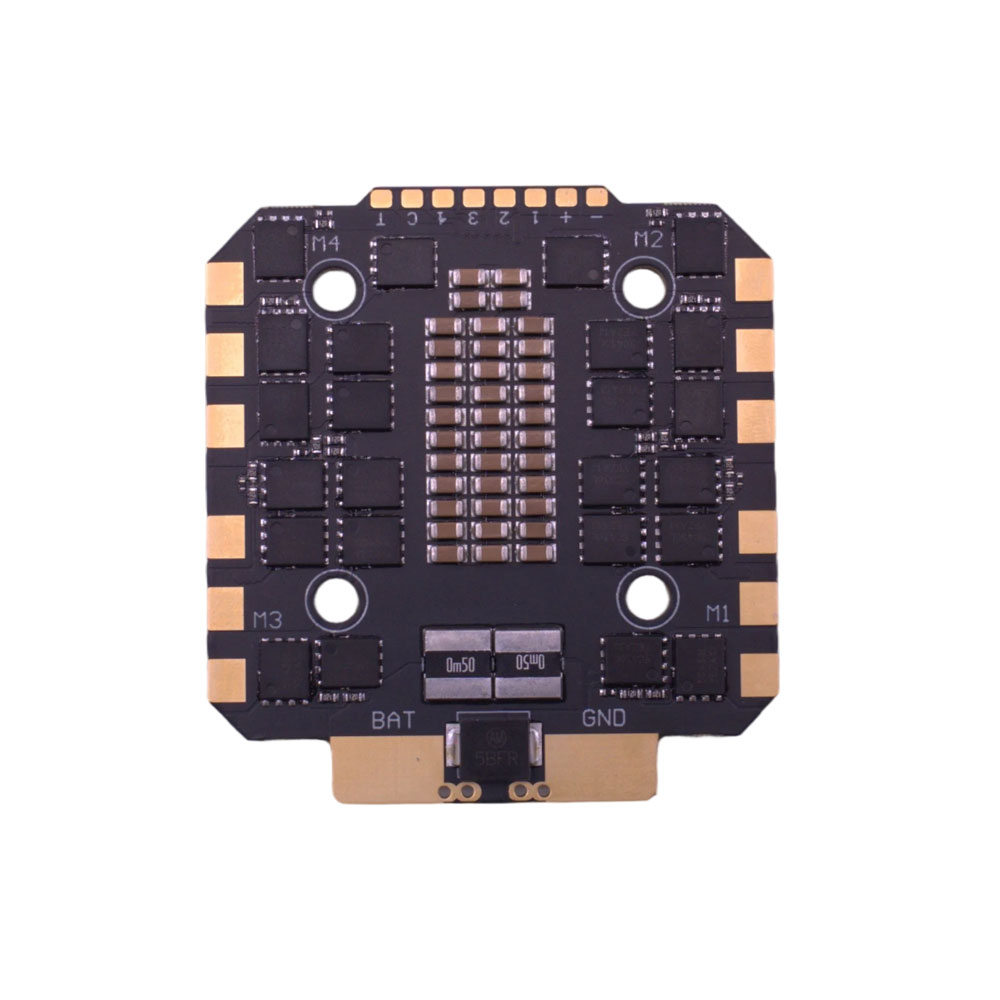

BLHeli-32 8S 80A ESC

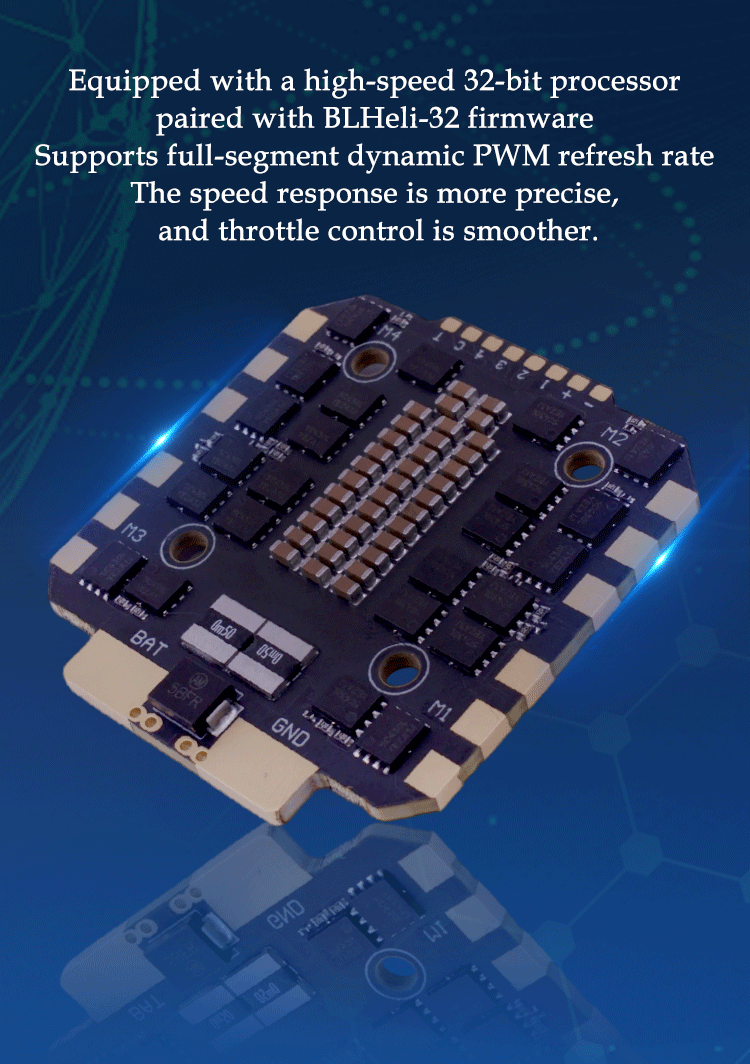

ESC firmware：BLHeli-32
Firmware Version：BLHeli-32.9
MCU：STM32G071G8U6N
MOS Transistor : ON5C430NL
Continuous Maximum Current : 80A X4
Peak Current : 85A X4-10S
TVS : Have
Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor x1

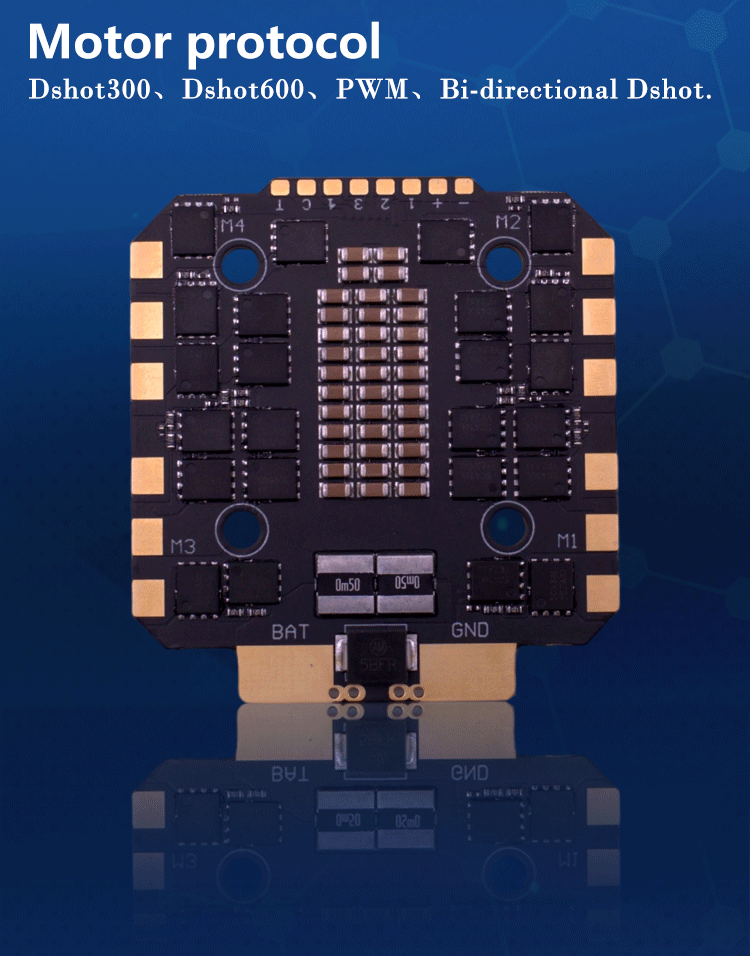

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot
Battery Input : 3-8S
Ammeter : Support / Ammeter ratio 120
Power Output : VBAT

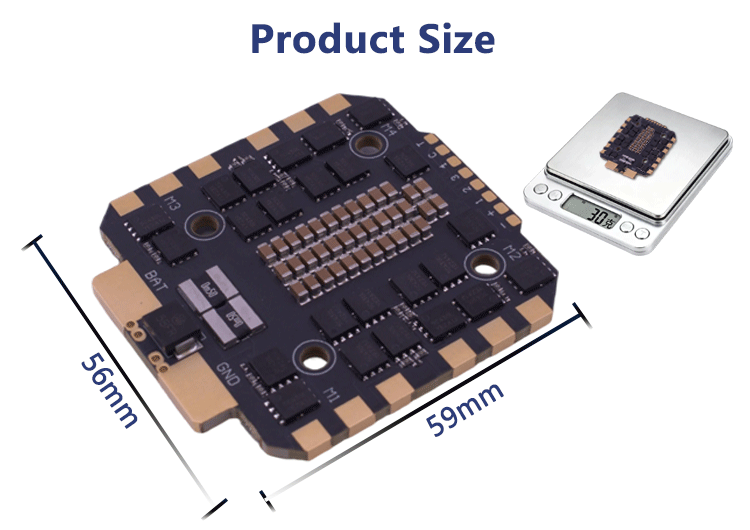

Dimensions : 56mm*59mm*7mm

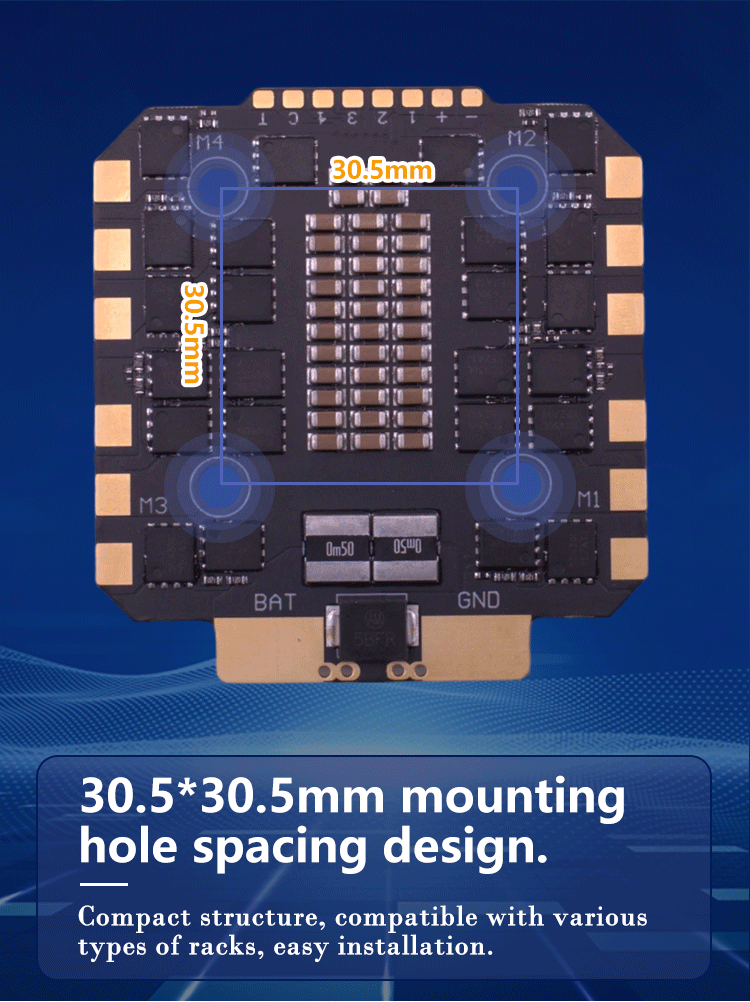

Mounting Hole Position : 30.5mmx*30.5/M4
Weight : 30g
Operating Temperature : 20℃~+85C
Storage Temperature : 20°CC~+70°CC
Working Humidify : 20~95%

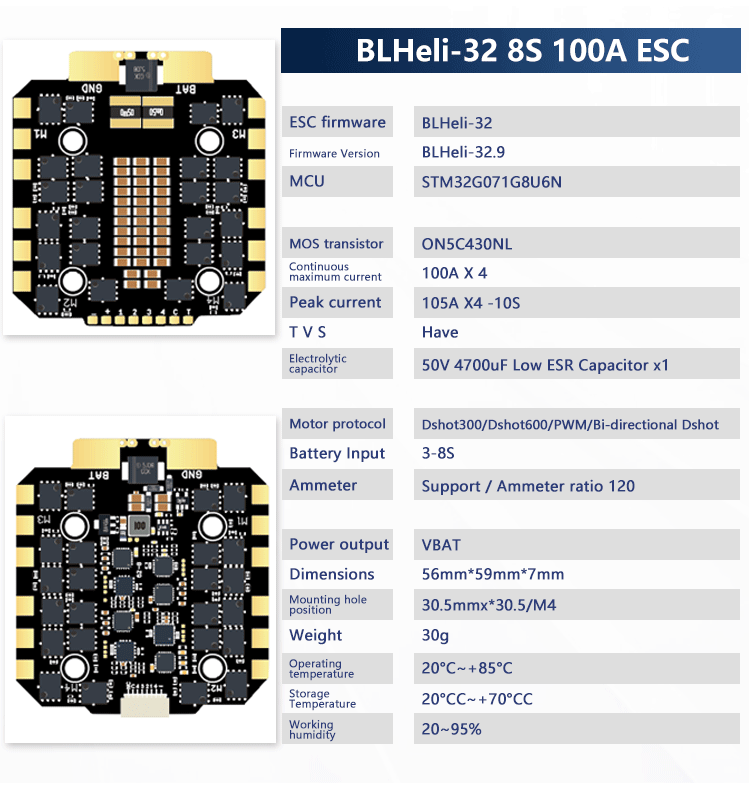

BLHeli-32 8S 100A ESC
ESC firmware：BLHeli-32
Firmware Version：BLHeli-32.9
MCU：STM32G071G8U6N
MOS Transistor : ON5C430NL
Continuous Maximum Current : 100A X4
Peak Current : 105A X4-10S
TVS : Have
Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor x1
Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot
Battery Input : 3-8S
Ammeter : Support / Ammeter ratio 120
Power Output : VBAT
Dimensions : 56mm*59mm*7mm
Mounting Hole Position : 30.5mmx*30.5/M4
Weight : 30g
Operating Temperature : 20℃~+85C
Storage Temperature : 20°CC~+70°CC
Working Humidify : 20~95%
