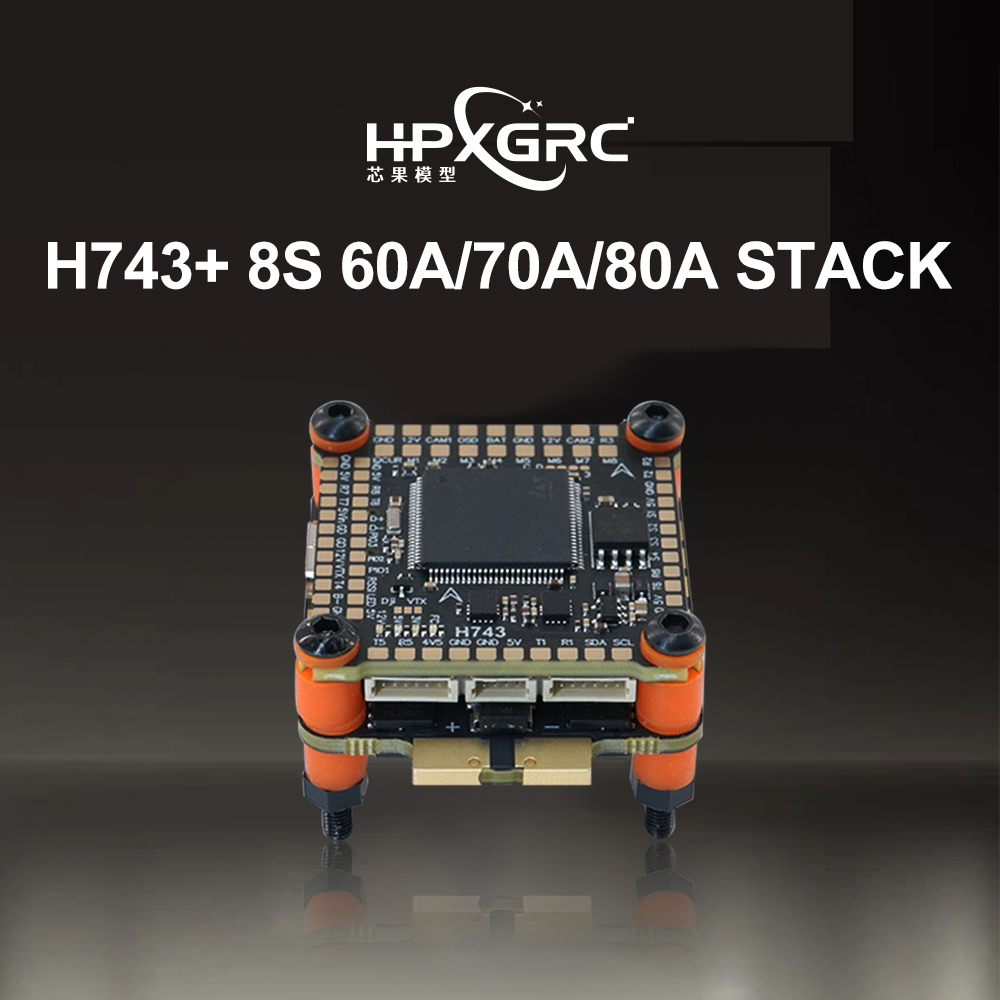

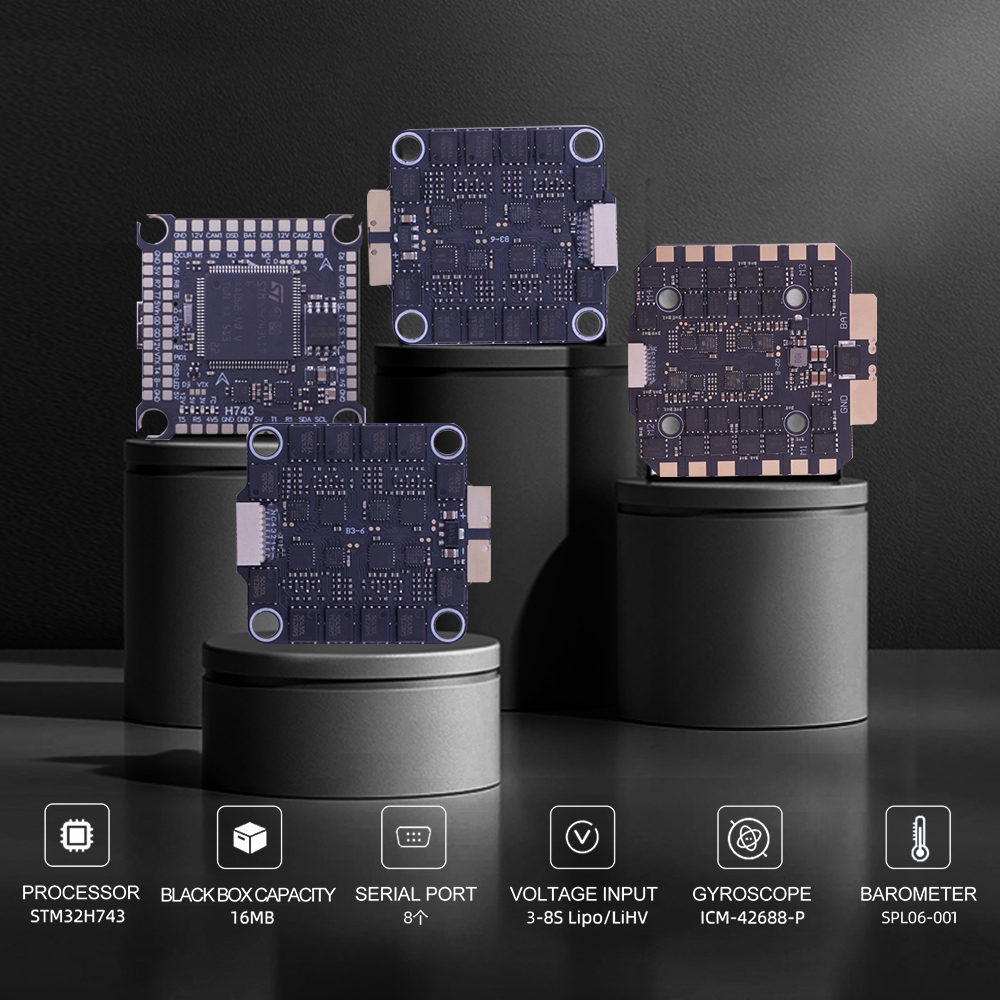

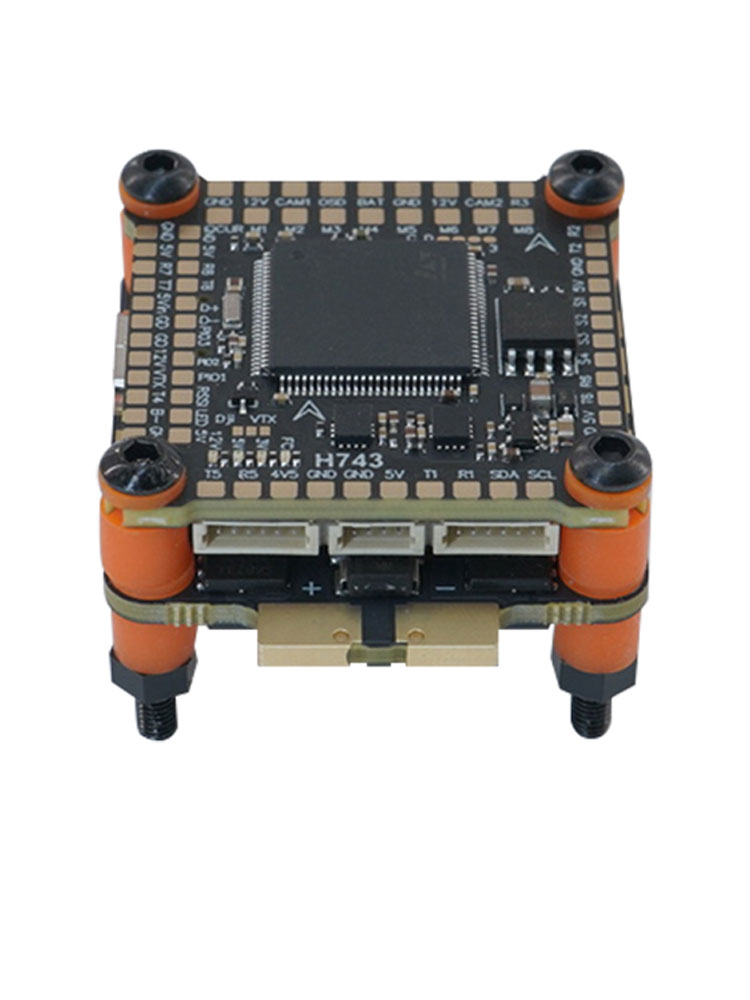

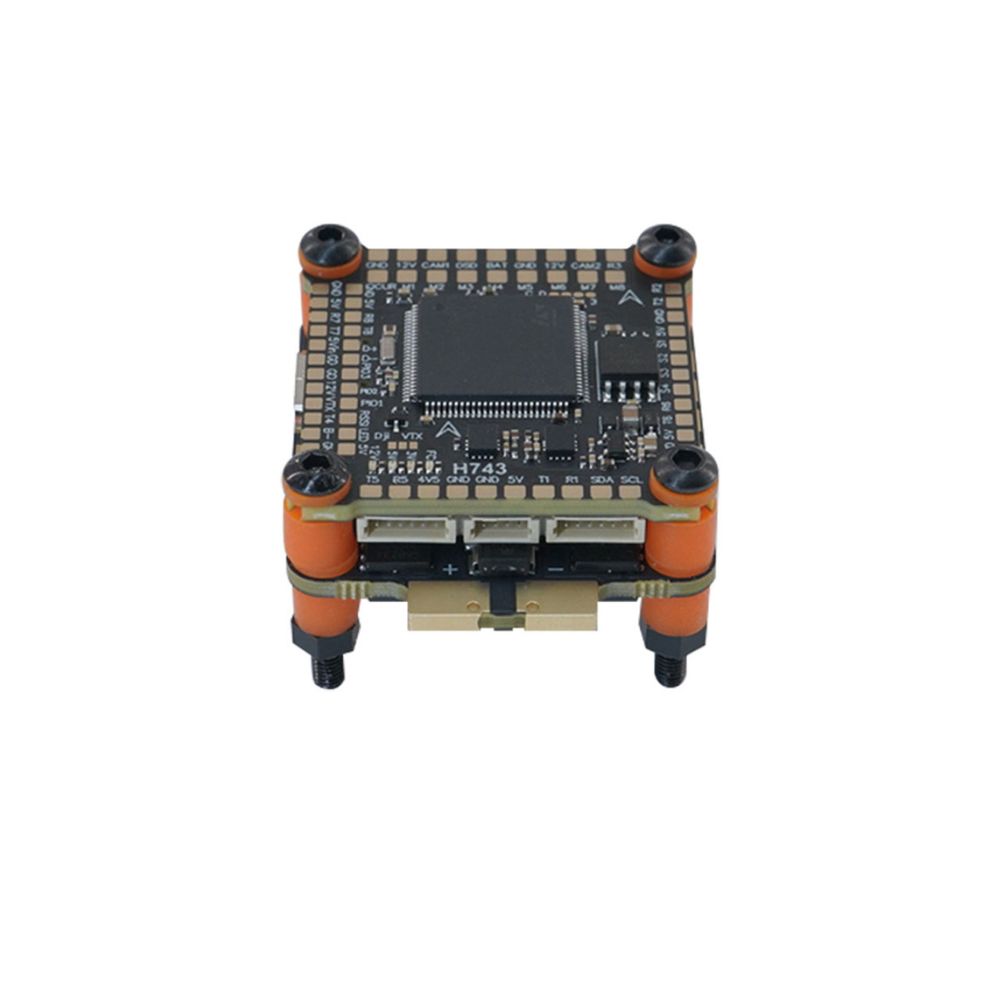

HPXGRC H743 60A 70A 80A Stack

Specifications:

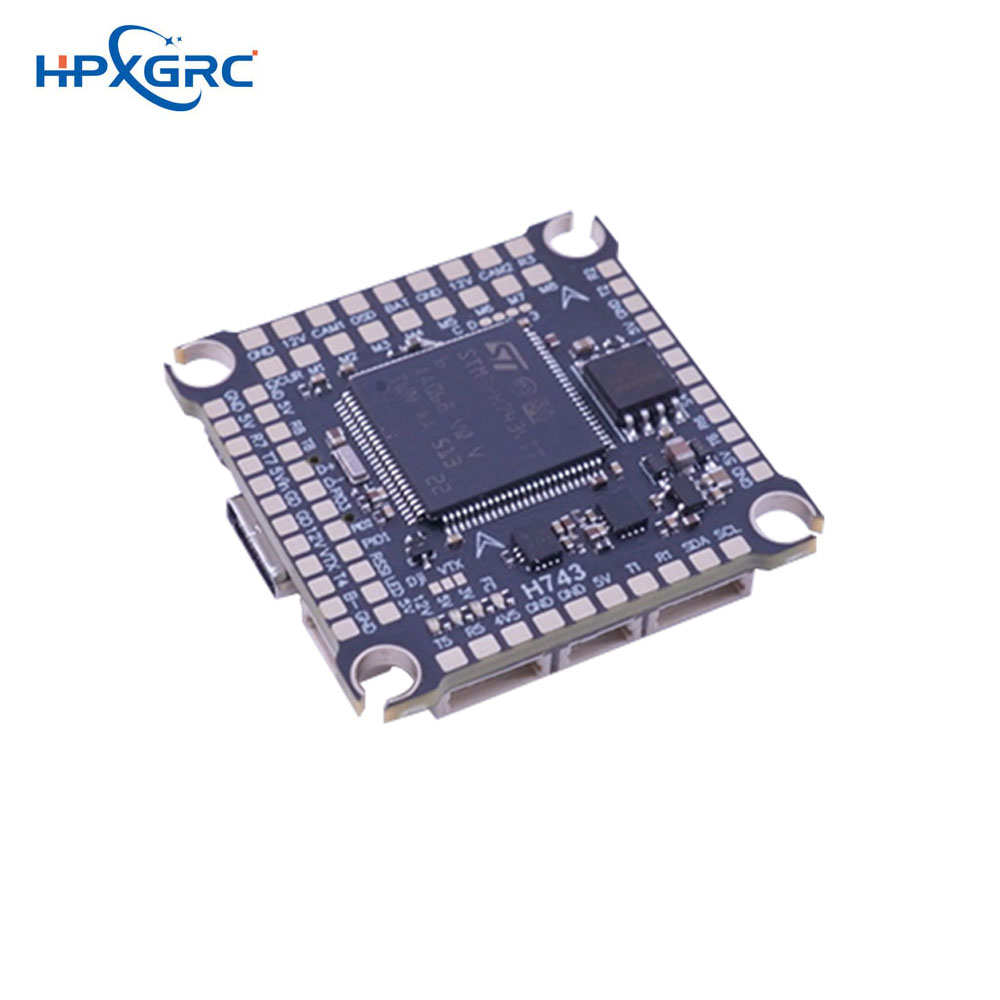

Product Name:  HPXGRC H743 30 x 30 Flight Controller

Main Controller: STM32H743

Gyroscope: ICM42688P

USB Interface Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E

Bluetooth BLE: None

WIFI: Not Supported

DJI Air Unit Connection Method: Supports two ways - direct insertion into a 6-pin socket or soldering connection.

6-pin DJI Sky End Direct Socket Sub: Supported. Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any wire sequence.

FLASH (Black Box): 16MB Flash Memory

Current Meter: Supported

Input Voltage: 3-12S Lithium Battery

UART Serial Ports: 8 Groups

Buzzer Pad: Supported. BZ+ and BZ- pads can be connected to 5V active buzzer

BOOT Button: Supported. [A]. Press the BOOT button and supply power to the flight controller simultaneously to force it into DFU mode, which is used for firmware flashing when the flight controller has a problem.

RSSI Pad: Supported. Located at the top of the front RS pad

SmartPort/F.Port: Not Supported

Supported Flight Controller Firmware Types: BetaFlight (default factory firmware), Ardupilot

Firmware Target Name: DAKEFPVH743

Installation Hole Position: 30.5 x 30.5mm (4mm hole diameter)

Size: 36 x 36 x 8 mm

Weight: 8g

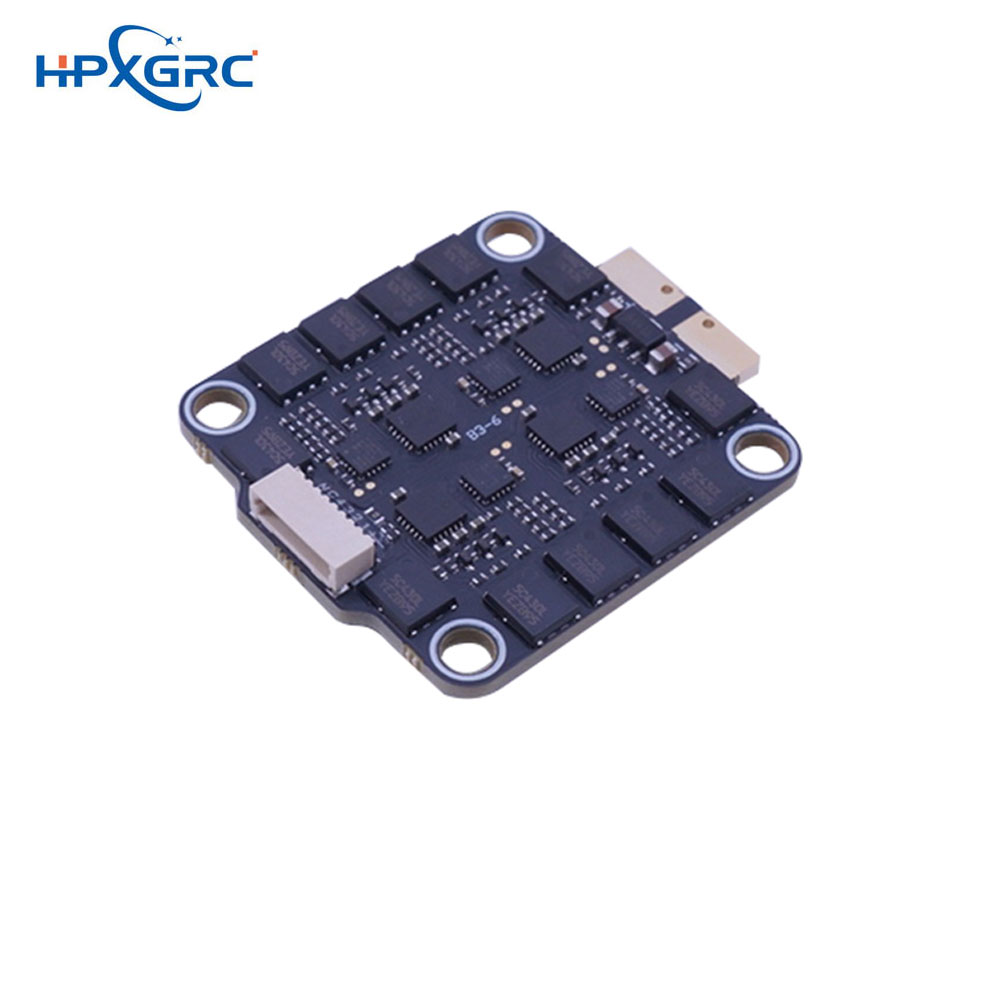

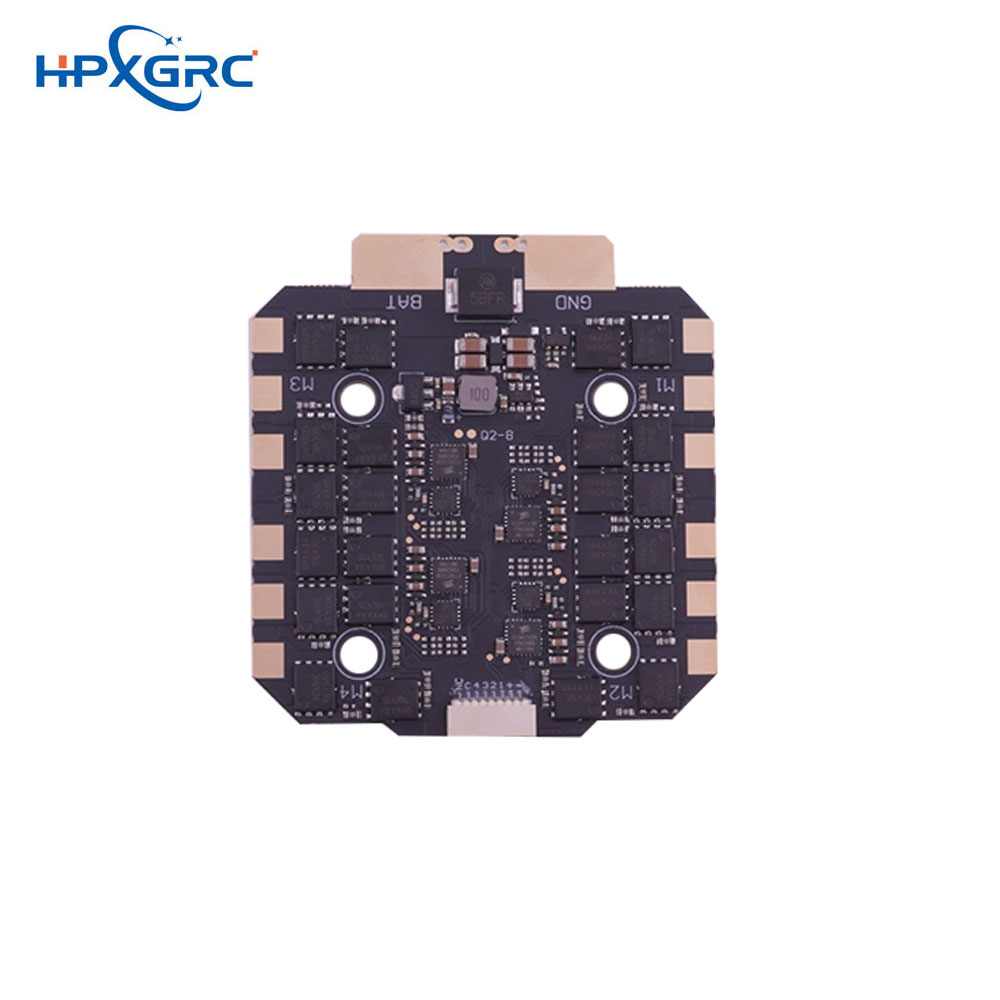

HPXGRC 8S 60A ESC

Electricity Control Firmware: BLHeli_S/Bluejay

Firmware Version: B_X_30_24_v0.19.2

MCU: EFM8BB21F16G-C-QFN20R

MOS Transistor : ON5C430NL

Continuous Maximum Current : 60AX4

Instantaneous Maximum Current : 65AX4-10S

TVS : Yes

Electrolytic Capacitor : 35V 1000uF Low ESR Capacitor

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot.

Battery Input : 3-8S

Current Meter : Supported / Current meter ratio 120

Power Output : VBAT

Weight : 12g

Dimensions : 43mm * 37mm * 7mm

Installation Hole Position : 30.5mm x * 30.5 / M4

Operating Temperature : 20℃~+85℃

Storage Temperature : 20°C~+70°C

Operating Temperature : 20~95%

HPXGRC 8S 70A ESC

Electricity Control Firmware: BLHeli_S/Bluejay

Firmware Version: B_X_30_24_v0.19.2

MCU: EFM8BB21F16G-C-QFN20R

MOS Transistor : ON5C430NL

Continuous Maximum Current : 70AX4

Instantaneous Maximum Current : 70AX4-10S

TVS : Yes

Electrolytic Capacitor : 35V 1000uF Low ESR Capacitor

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot.

Battery Input : 3-8S

Current Meter : Supported / Current meter ratio 120

Power Output : VBAT

Weight : 12g

Dimensions : 43mm * 37mm * 7mm

Installation Hole Position : 30.5mm x * 30.5 / M4

Operating Temperature : 20℃~+85℃

Storage Temperature : 20°C~+70°C

Operating Temperature : 20~95%

HPXGRC 8S 80A ESC

Electricity Control Firmware: BLHeli_S/Bluejay

Firmware Version: B_X_30_24_v0.19.2

MCU: EFM8BB21F16G-C-QFN20R

MOS Transistor : ON5C430NL

Continuous Maximum Current : 80AX4

Instantaneous Maximum Current : 85AX4-10S

TVS : Yes

Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot.

Battery Input : 3-8S

Current Meter : Supported / Current meter ratio 120

Power Output : VBAT

Weight : 30g

Dimensions : 56mm * 59mm * 7mm

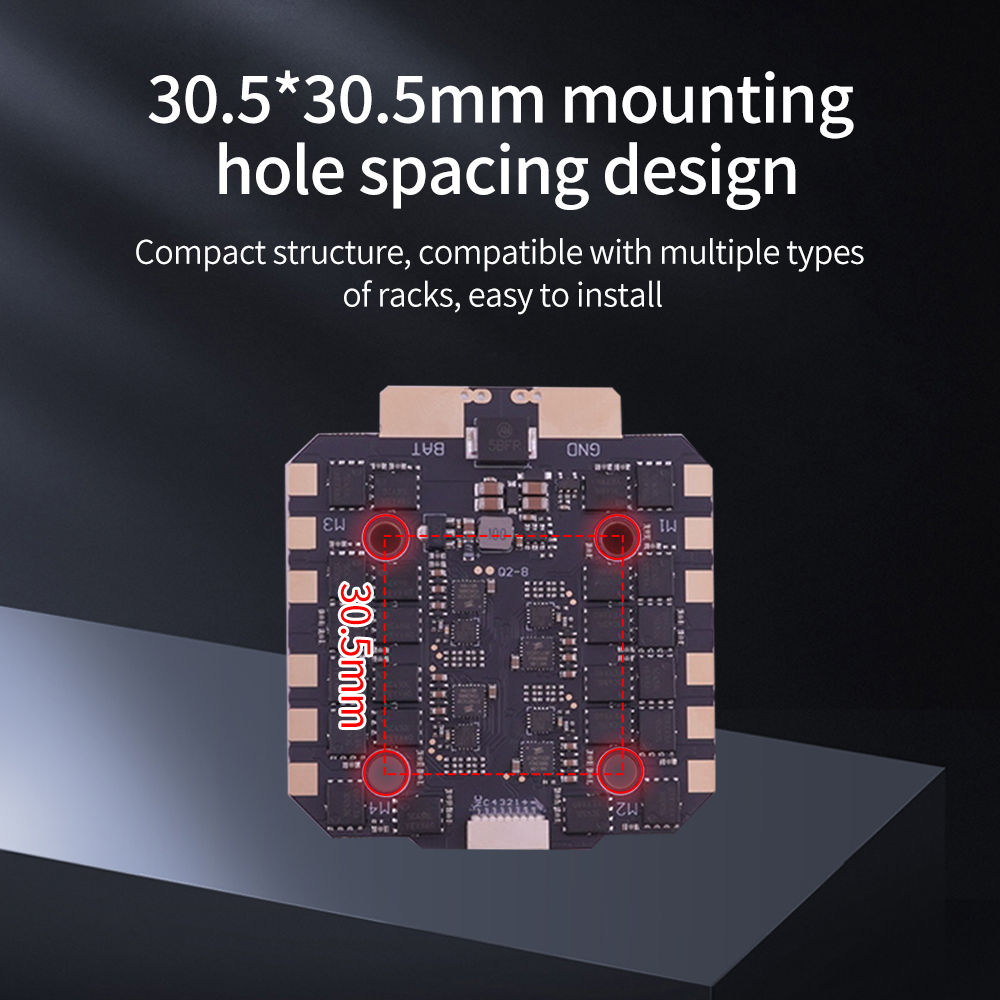

Installation Hole Position : 30.5mm x * 30.5 / M4

Operating Temperature : 20℃~+85℃

Storage Temperature : 20°C~+70°C

Operating Temperature : 20~95%
